GB 14866-2023: General technical specification for eye and face protector

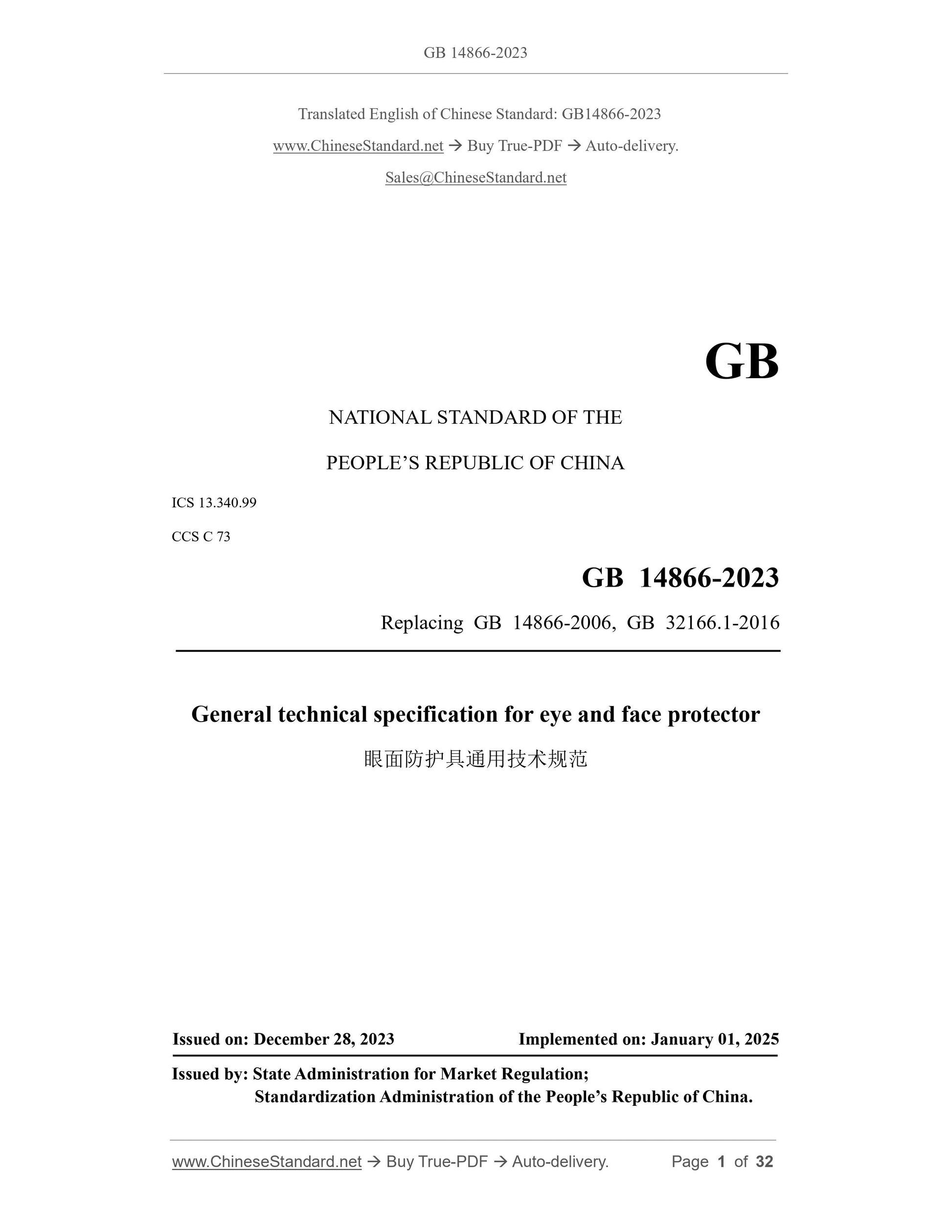

GB 14866-2023
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 13.340.99
CCS C 73
Replacing GB 14866-2006, GB 32166.1-2016
General technical specification for eye and face protector
ISSUED ON: DECEMBER 28, 2023
IMPLEMENTED ON: JANUARY 01, 2025
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

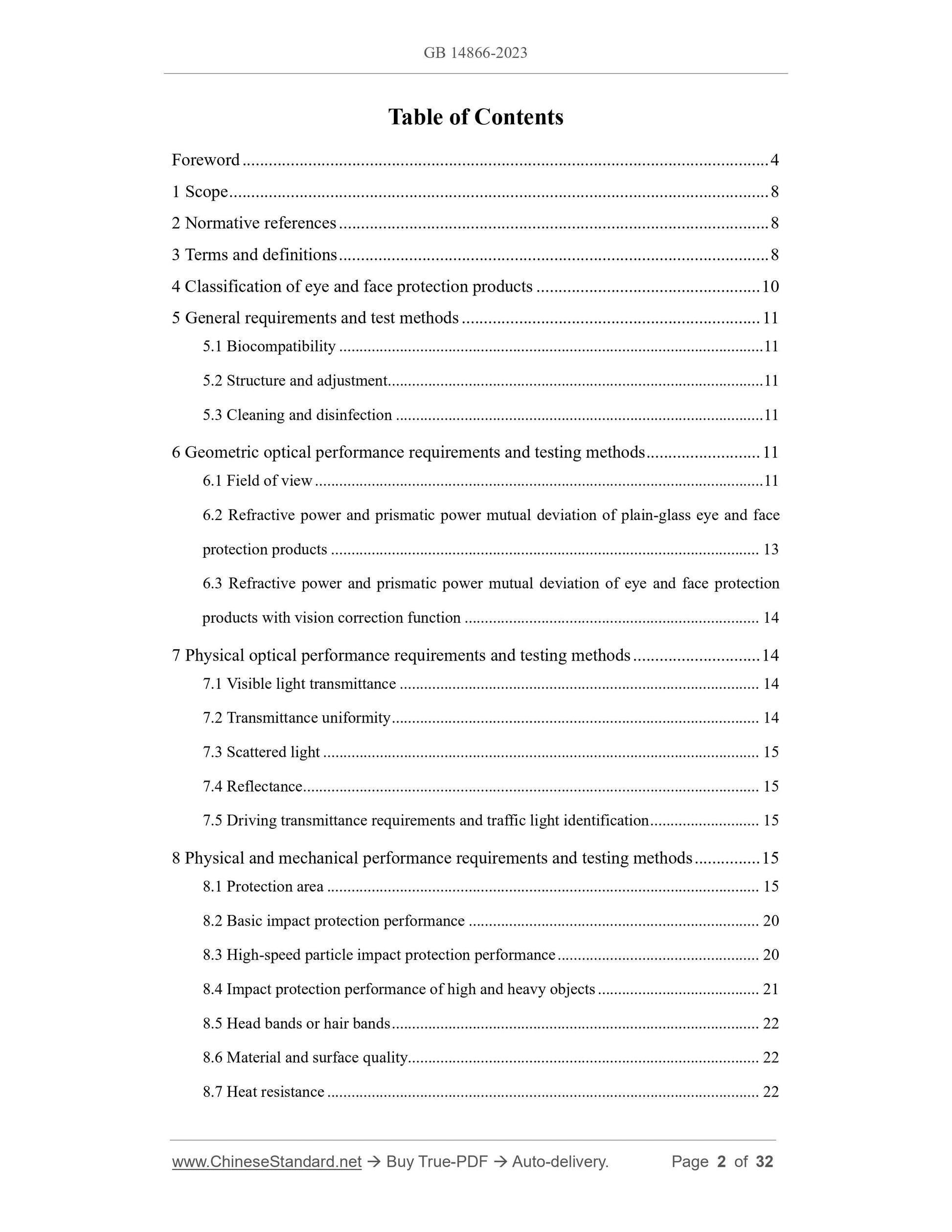

Table of Contents
Foreword ... 4
1 Scope ... 8
2 Normative references ... 8
3 Terms and definitions ... 8
4 Classification of eye and face protection products ... 10
5 General requirements and test methods ... 11
5.1 Biocompatibility ... 11
5.2 Structure and adjustment... 11
5.3 Cleaning and disinfection ... 11
6 Geometric optical performance requirements and testing methods ... 11
6.1 Field of view ... 11
6.2 Refractive power and prismatic power mutual deviation of plain-glass eye and face
protection products ... 13
6.3 Refractive power and prismatic power mutual deviation of eye and face protection
products with vision correction function ... 14
7 Physical optical performance requirements and testing methods ... 14
7.1 Visible light transmittance ... 14
7.2 Transmittance uniformity ... 14
7.3 Scattered light ... 15
7.4 Reflectance ... 15
7.5 Driving transmittance requirements and traffic light identification ... 15
8 Physical and mechanical performance requirements and testing methods ... 15
8.1 Protection area ... 15
8.2 Basic impact protection performance ... 20
8.3 High-speed particle impact protection performance ... 20
8.4 Impact protection performance of high and heavy objects ... 21
8.5 Head bands or hair bands ... 22
8.6 Material and surface quality ... 22
8.7 Heat resistance ... 22

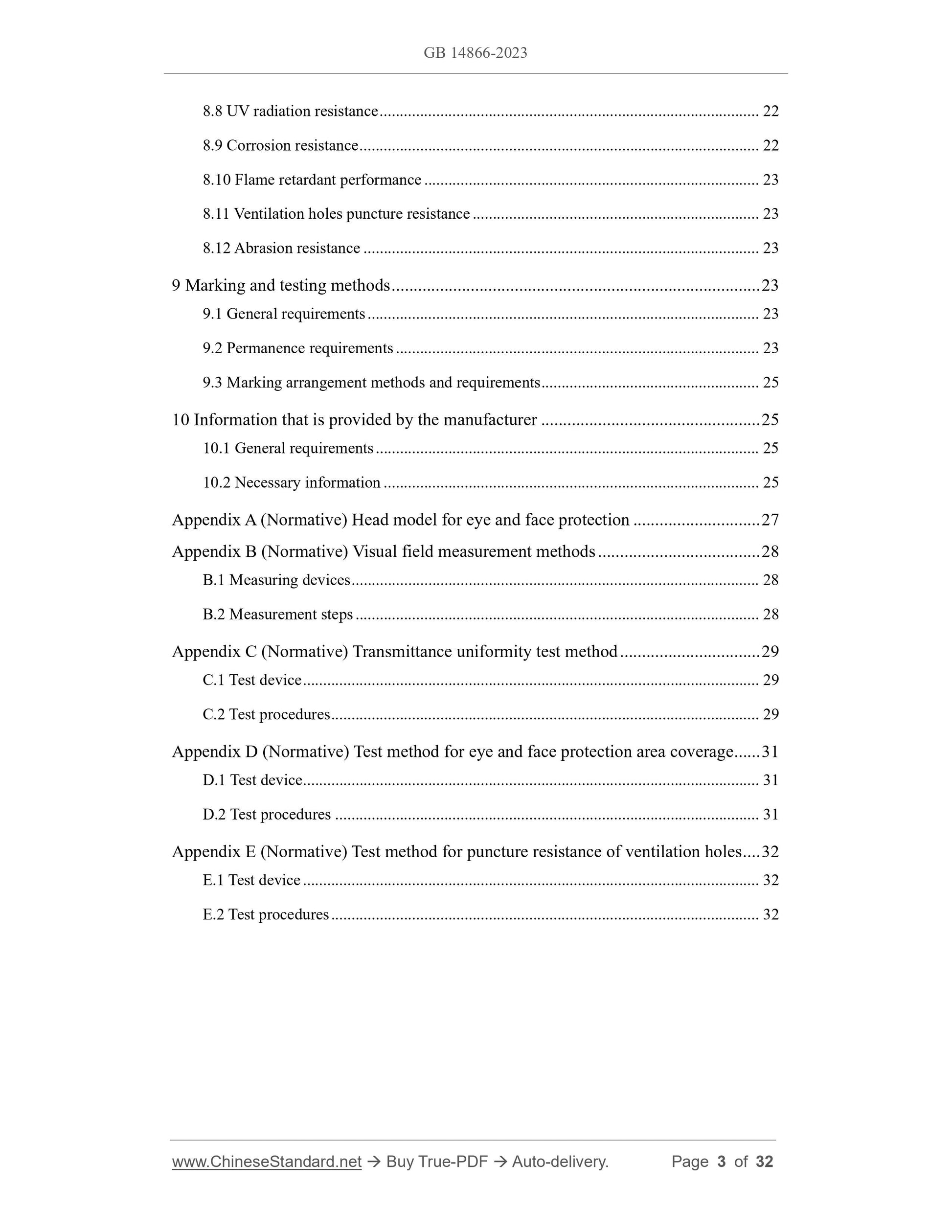

8.8 UV radiation resistance ... 22
8.9 Corrosion resistance ... 22
8.10 Flame retardant performance ... 23
8.11 Ventilation holes puncture resistance ... 23
8.12 Abrasion resistance ... 23
9 Marking and testing methods ... 23
9.1 General requirements ... 23
9.2 Permanence requirements ... 23
9.3 Marking arrangement methods and requirements ... 25
10 Information that is provided by the manufacturer ... 25
10.1 General requirements ... 25
10.2 Necessary information ... 25
Appendix A (Normative) Head model for eye and face protection ... 27
Appendix B (Normative) Visual field measurement methods ... 28
B.1 Measuring devices ... 28
B.2 Measurement steps ... 28
Appendix C (Normative) Transmittance uniformity test method ... 29
C.1 Test device ... 29
C.2 Test procedures ... 29
Appendix D (Normative) Test method for eye and face protection area coverage ... 31
D.1 Test device ... 31
D.2 Test procedures ... 31
Appendix E (Normative) Test method for puncture resistance of ventilation holes ... 32
E.1 Test device ... 32
E.2 Test procedures ... 32
General technical specification for eye and face protector

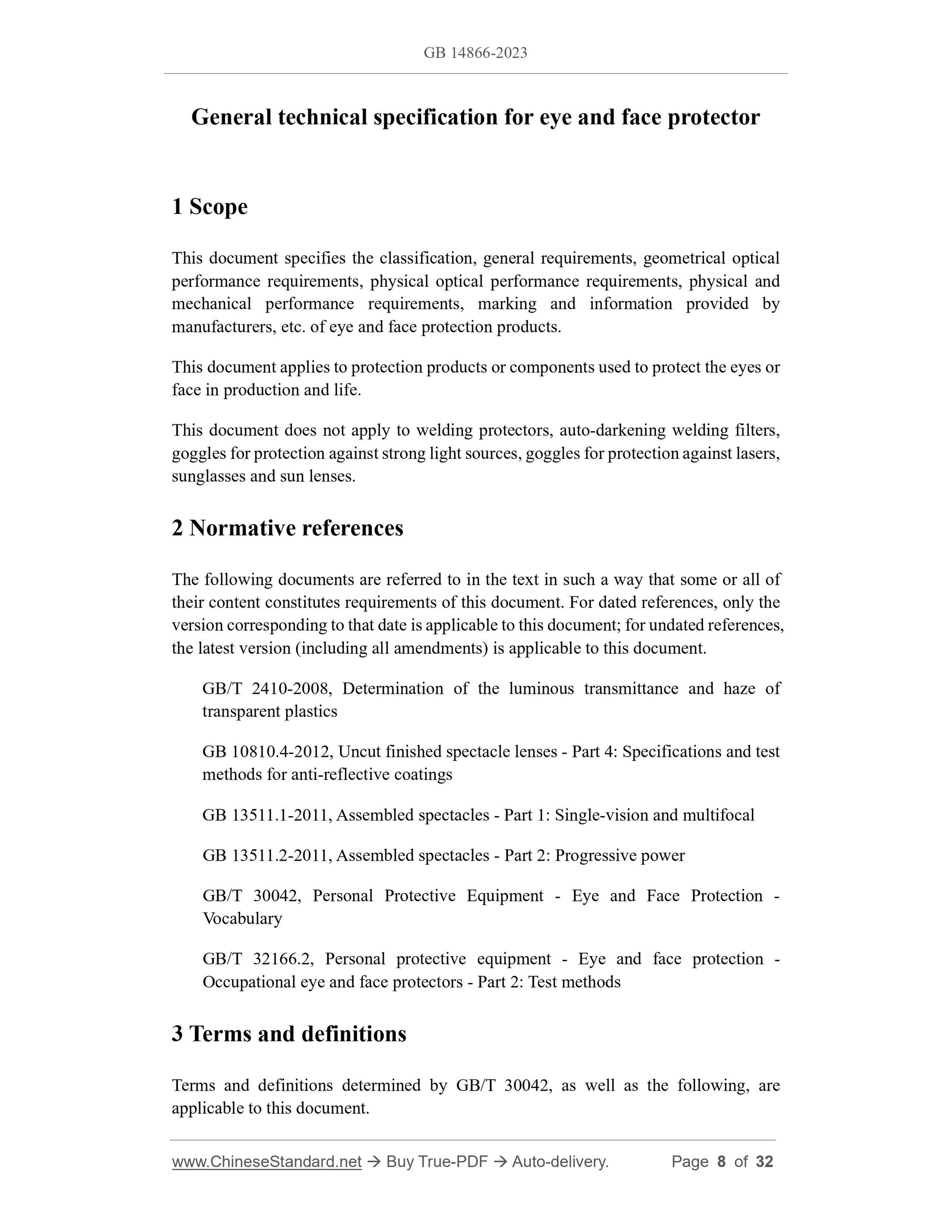

1 Scope
This document specifies the classification, general requirements, geometrical optical
performance requirements, physical optical performance requirements, physical and
mechanical performance requirements, marking and information provided by
manufacturers, etc. of eye and face protection products.
This document applies to protection products or components used to protect the eyes or
face in production and life.
This document does not apply to welding protectors, auto-darkening welding filters,
goggles for protection against strong light sources, goggles for protection against lasers,
sunglasses and sun lenses.
2 Normative references
The following documents are referred to in the text in such a way that some or all of
their content constitutes requirements of this document. For dated references, only the
version corresponding to that date is applicable to this document; for undated references,
the latest version (including all amendments) is applicable to this document.
GB/T 2410-2008, Determination of the luminous transmittance and haze of
transparent plastics
GB 10810.4-2012, Uncut finished spectacle lenses - Part 4: Specifications and test
methods for anti-reflective coatings
GB 13511.1-2011, Assembled spectacles - Part 1: Single-vision and multifocal
GB 13511.2-2011, Assembled spectacles - Part 2: Progressive power
GB/T 30042, Personal Protective Equipment - Eye and Face Protection -
Vocabulary
GB/T 32166.2, Personal protective equipment - Eye and face protection -
Occupational eye and face protectors - Part 2: Test methods
3 Terms and definitions
Terms and definitions determined by GB/T 30042, as well as the following, are
applicable to this document.

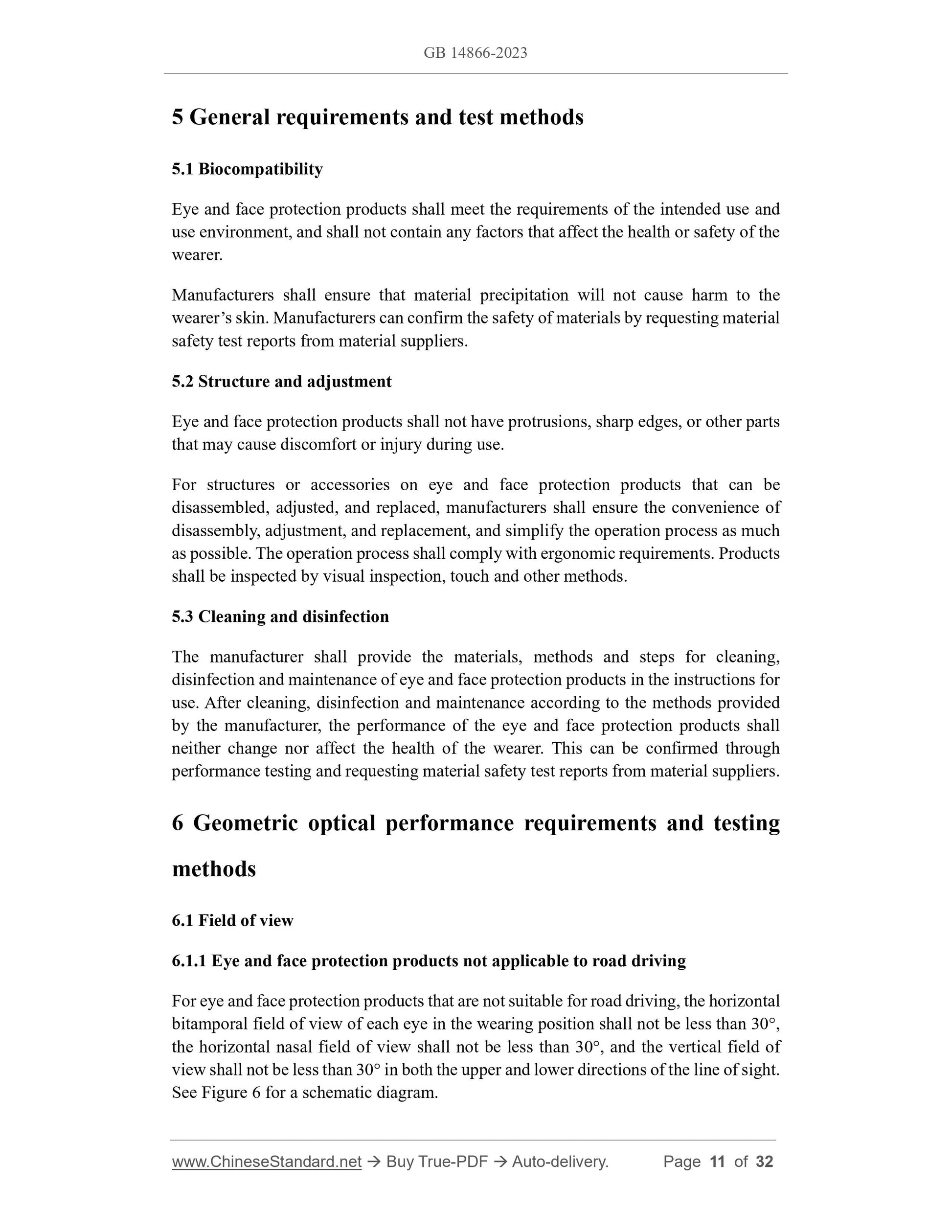

5 General requirements and test methods
5.1 Biocompatibility
Eye and face protection products shall meet the requirements of the intended use and
use environment, and shall not contain any factors that affect the health or safety of the
wearer.
Manufacturers shall ensure that material precipitation will not cause harm to the
wearer’s skin. Manufacturers can confirm the safety of materials by requesting material
safety test reports from material suppliers.
5.2 Structure and adjustment
Eye and face protection products shall not have protrusions, sharp edges, or other parts
that may cause discomfort or injury during use.
For structures or accessories on eye and face protection products that can be
disassembled, adjusted, and replaced, manufacturers shall ensure the convenience of
disassembly, adjustment, and replacement, and simplify the operation process as much
as possible. The operation process shall comply with ergonomic requirements. Products
shall be inspected by visual inspection, touch and other methods.
5.3 Cleaning and disinfection
The manufacturer shall provide the materials, methods and steps for cleaning,
disinfection and maintenance of eye and face protection products in the instructions for
use. After cleaning, disinfection and maintenance according to the methods provided
by the manufacturer, the performance of the eye and face protection products shall
neither change nor affect the health of the wearer. This can be confirmed through
performance testing and requesting material safety test reports from material suppliers.
6 Geometric optical performance requirements and testing
methods
6.1 Field of view
6.1.1 Eye and face protection products not applicable to road driving
For eye and face protection products that are not suitable for road driving, the horizontal
bitamporal field of view of each eye in the wearing position shall not be less than 30°,
the horizontal nasal field of view shall not be less than 30°, and the vertical field of
view shall not be less than 30° in both the upper and lower directions of the line of sight.
See Figure 6 for a schematic diagram.

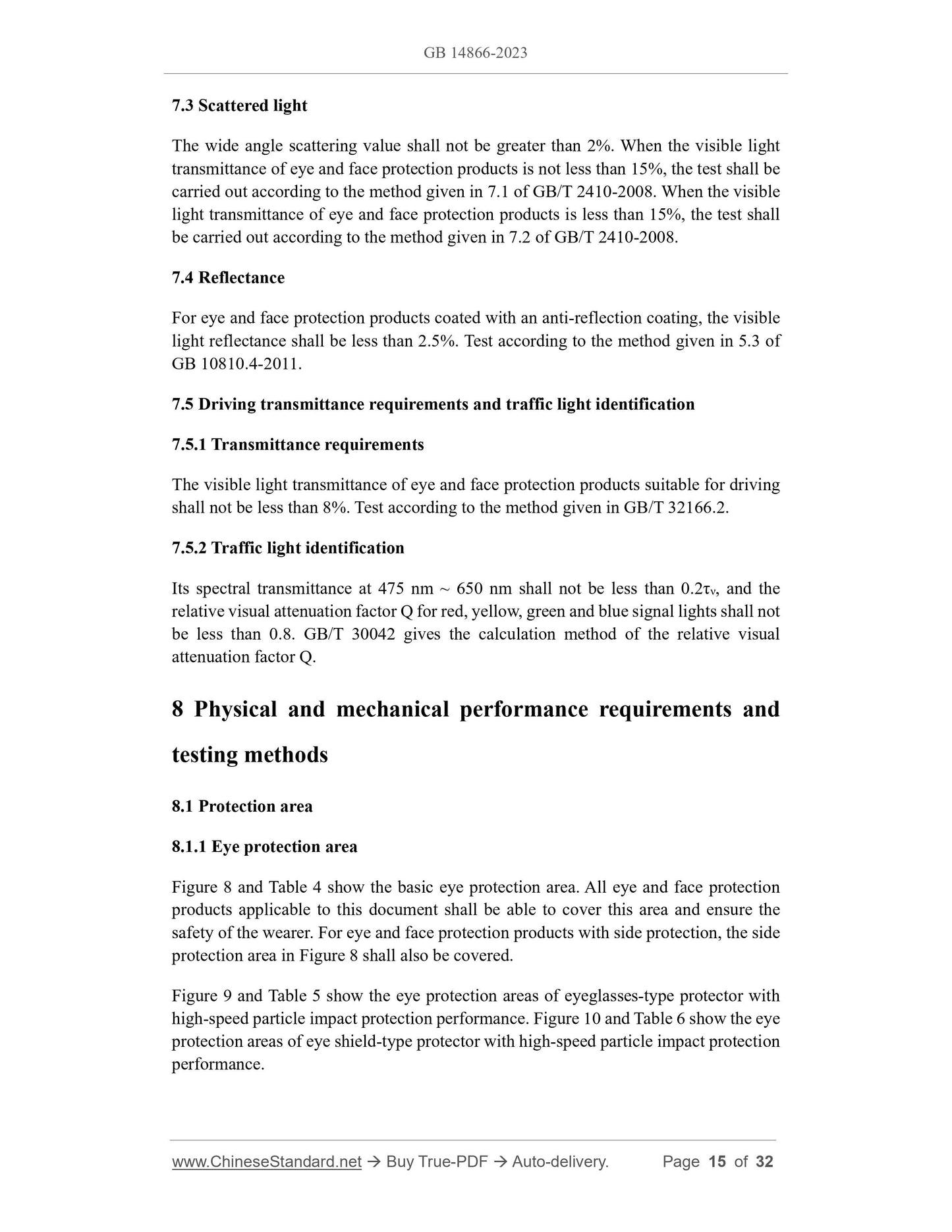

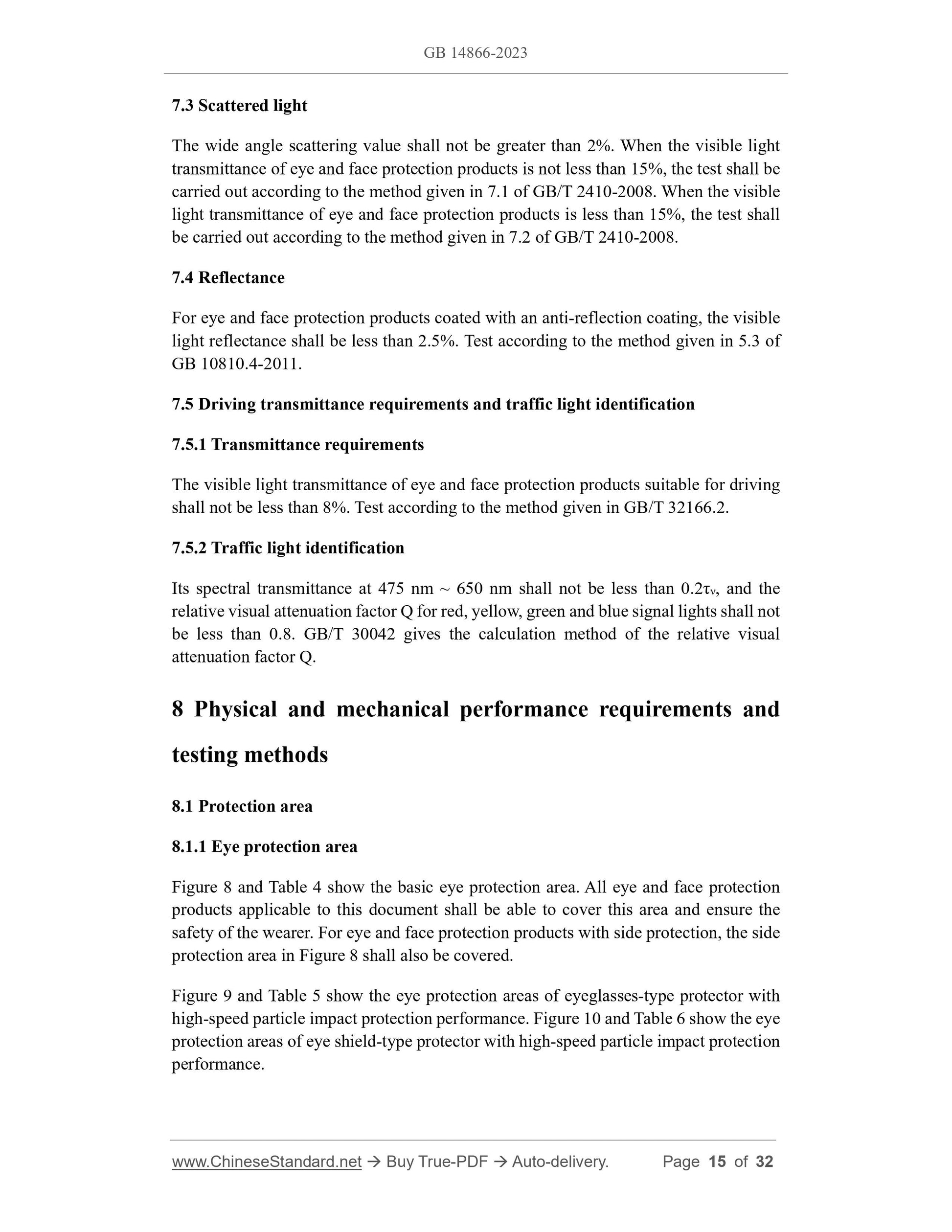

7.3 Scattered light
The wide angle scattering value shall not be greater than 2%. When the visible light
transmittance of eye and face protection products is not less than 15%, the test shall be
carried out according to the method given in 7.1 of GB/T 2410-2008. When the visible
light transmittance of eye and face protection products is less than 15%, the test shall
be carried out according to the method given in 7.2 of GB/T 2410-2008.
7.4 Reflectance
For eye and face protection products coated with an anti-reflection coating, the visible
light reflectance shall be less than 2.5%. Test according to the method given in 5.3 of
GB 10810.4-2011.
7.5 Driving transmittance requirements and traffic lig...
