GB 19044-2022: Minimum allowable values of energy efficiency and energy efficiency grades of fluorescent lamps for general lighting

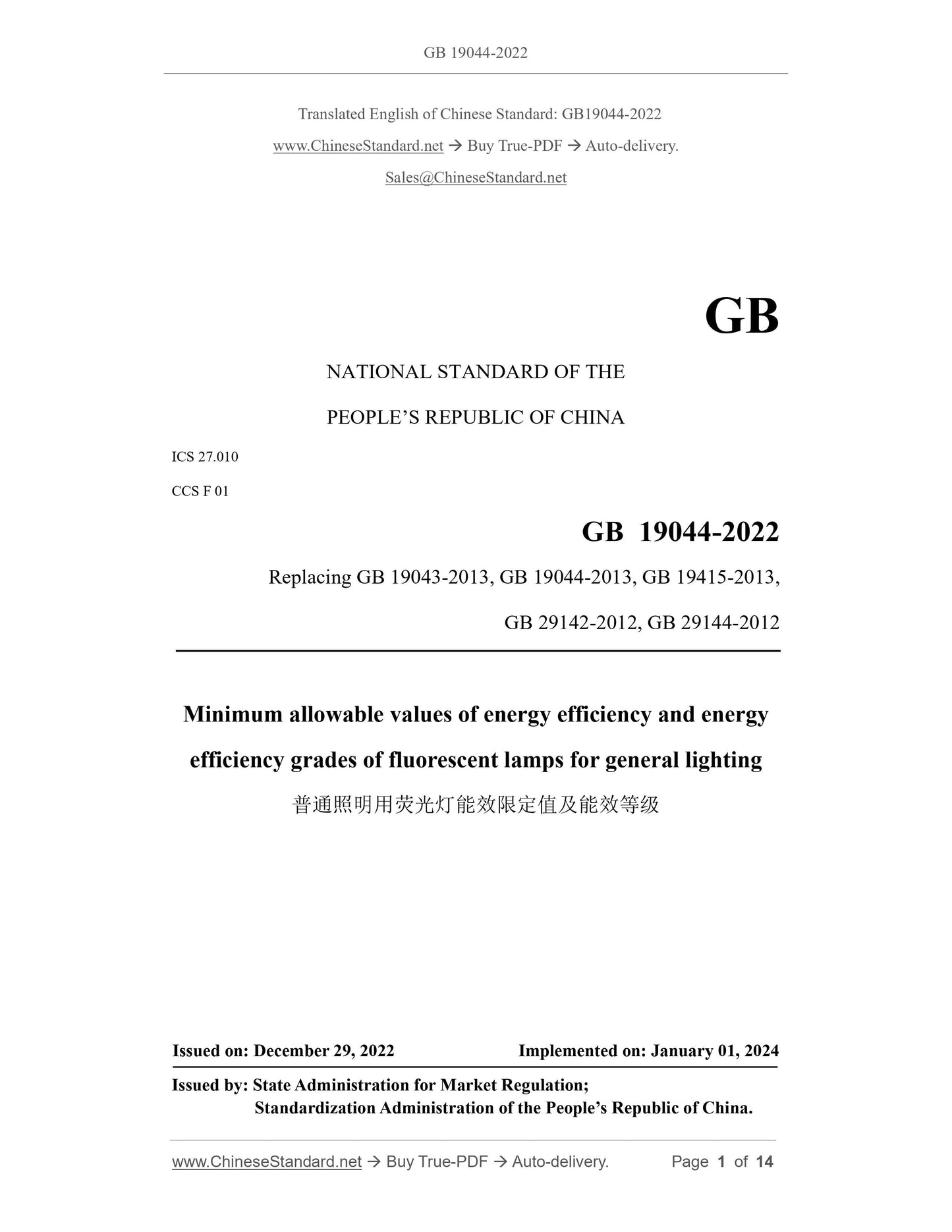

GB 19044-2022
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.010
CCS F 01
Replacing GB 19043-2013, GB 19044-2013, GB 19415-2013,
GB 29142-2012, GB 29144-2012
Minimum allowable values of energy efficiency and energy
efficiency grades of fluorescent lamps for general lighting
ISSUED ON: DECEMBER 29, 2022
IMPLEMENTED ON: JANUARY 01, 2024
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.
Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Technical requirements ... 6
4.1 Energy efficiency grades ... 6
4.2 Minimum allowable values ... 13
4.3 Luminous lux maintenance rate ... 13
4.4 Color rendering index ... 14
5 Test methods ... 14

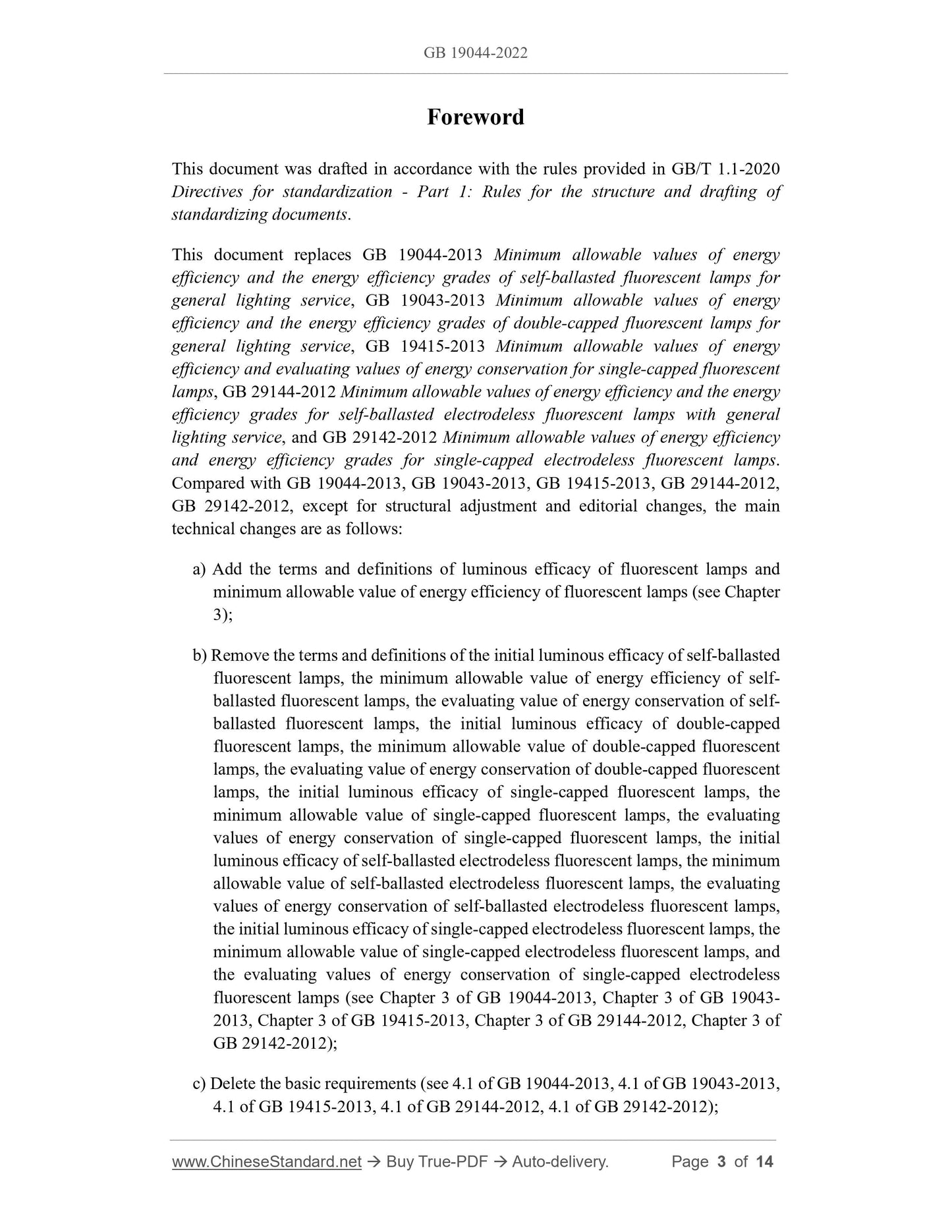

Foreword
This document was drafted in accordance with the rules provided in GB/T 1.1-2020
Directives for standardization - Part 1: Rules for the structure and drafting of
standardizing documents.
This document replaces GB 19044-2013 Minimum allowable values of energy
efficiency and the energy efficiency grades of self-ballasted fluorescent lamps for
general lighting service, GB 19043-2013 Minimum allowable values of energy
efficiency and the energy efficiency grades of double-capped fluorescent lamps for
general lighting service, GB 19415-2013 Minimum allowable values of energy
efficiency and evaluating values of energy conservation for single-capped fluorescent
lamps, GB 29144-2012 Minimum allowable values of energy efficiency and the energy
efficiency grades for self-ballasted electrodeless fluorescent lamps with general
lighting service, and GB 29142-2012 Minimum allowable values of energy efficiency
and energy efficiency grades for single-capped electrodeless fluorescent lamps.
Compared with GB 19044-2013, GB 19043-2013, GB 19415-2013, GB 29144-2012,
GB 29142-2012, except for structural adjustment and editorial changes, the main
technical changes are as follows:
a) Add the terms and definitions of luminous efficacy of fluorescent lamps and
minimum allowable value of energy efficiency of fluorescent lamps (see Chapter
3);
b) Remove the terms and definitions of the initial luminous efficacy of self-ballasted
fluorescent lamps, the minimum allowable value of energy efficiency of self-
ballasted fluorescent lamps, the evaluating value of energy conservation of self-
ballasted fluorescent lamps, the initial luminous efficacy of double-capped
fluorescent lamps, the minimum allowable value of double-capped fluorescent
lamps, the evaluating value of energy conservation of double-capped fluorescent
lamps, the initial luminous efficacy of single-capped fluorescent lamps, the
minimum allowable value of single-capped fluorescent lamps, the evaluating
values of energy conservation of single-capped fluorescent lamps, the initial
luminous efficacy of self-ballasted electrodeless fluorescent lamps, the minimum
allowable value of self-ballasted electrodeless fluorescent lamps, the evaluating
values of energy conservation of self-ballasted electrodeless fluorescent lamps,
the initial luminous efficacy of single-capped electrodeless fluorescent lamps, the
minimum allowable value of single-capped electrodeless fluorescent lamps, and
the evaluating values of energy conservation of single-capped electrodeless
fluorescent lamps (see Chapter 3 of GB 19044-2013, Chapter 3 of GB 19043-
2013, Chapter 3 of GB 19415-2013, Chapter 3 of GB 29144-2012, Chapter 3 of
GB 29142-2012);
c) Delete the basic requirements (see 4.1 of GB 19044-2013, 4.1 of GB 19043-2013,
4.1 of GB 19415-2013, 4.1 of GB 29144-2012, 4.1 of GB 29142-2012);

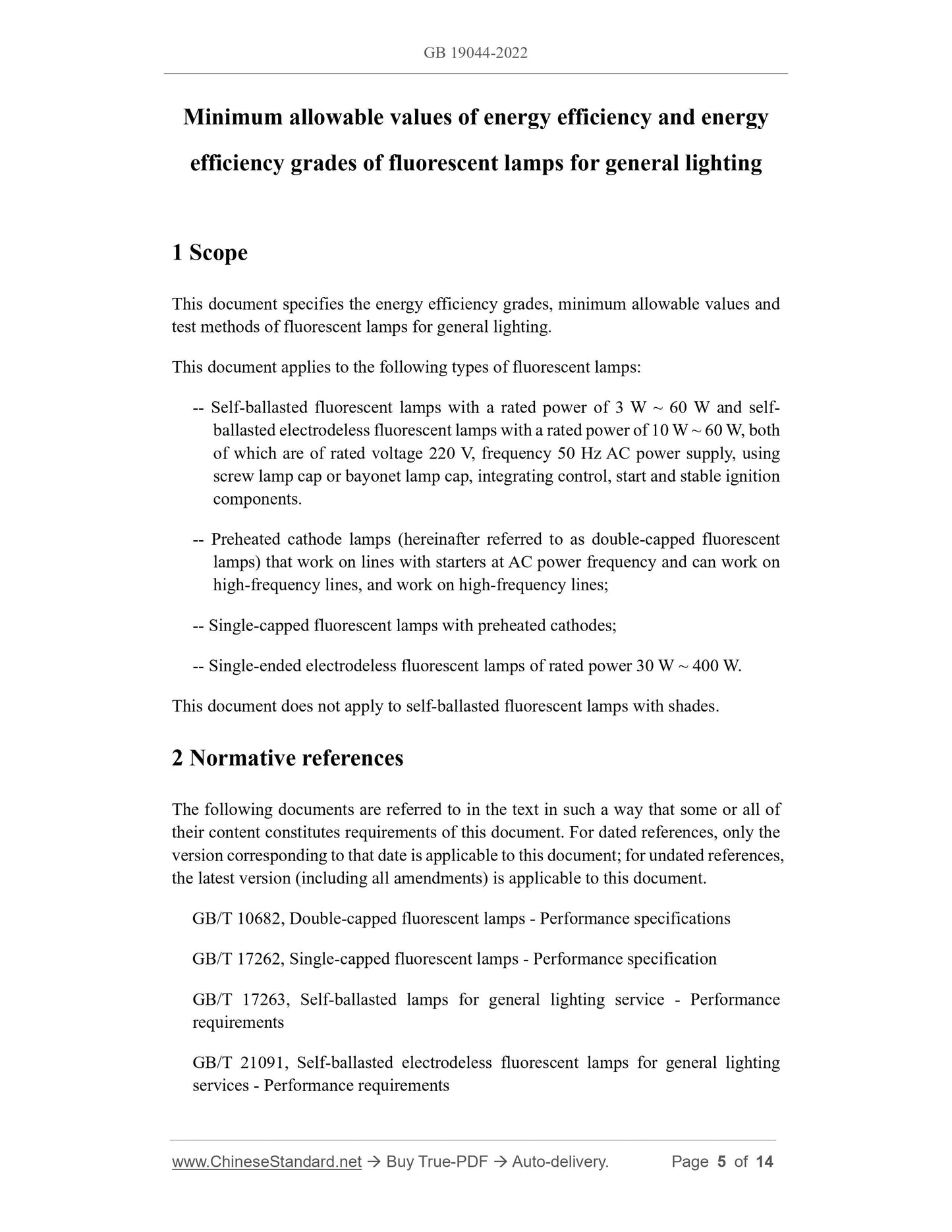

Minimum allowable values of energy efficiency and energy
efficiency grades of fluorescent lamps for general lighting
1 Scope
This document specifies the energy efficiency grades, minimum allowable values and
test methods of fluorescent lamps for general lighting.
This document applies to the following types of fluorescent lamps:
-- Self-ballasted fluorescent lamps with a rated power of 3 W ~ 60 W and self-
ballasted electrodeless fluorescent lamps with a rated power of 10 W ~ 60 W, both
of which are of rated voltage 220 V, frequency 50 Hz AC power supply, using
screw lamp cap or bayonet lamp cap, integrating control, start and stable ignition
components.
-- Preheated cathode lamps (hereinafter referred to as double-capped fluorescent
lamps) that work on lines with starters at AC power frequency and can work on
high-frequency lines, and work on high-frequency lines;
-- Single-capped fluorescent lamps with preheated cathodes;
-- Single-ended electrodeless fluorescent lamps of rated power 30 W ~ 400 W.
This document does not apply to self-ballasted fluorescent lamps with shades.
2 Normative references
The following documents are referred to in the text in such a way that some or all of
their content constitutes requirements of this document. For dated references, only the
version corresponding to that date is applicable to this document; for undated references,
the latest version (including all amendments) is applicable to this document.
GB/T 10682, Double-capped fluorescent lamps - Performance specifications
GB/T 17262, Single-capped fluorescent lamps - Performance specification
GB/T 17263, Self-ballasted lamps for general lighting service - Performance
requirements
GB/T 21091, Self-ballasted electrodeless fluorescent lamps for general lighting
services - Performance requirements
GB/T 34841, Fluorescent induction lamps - Performance specification

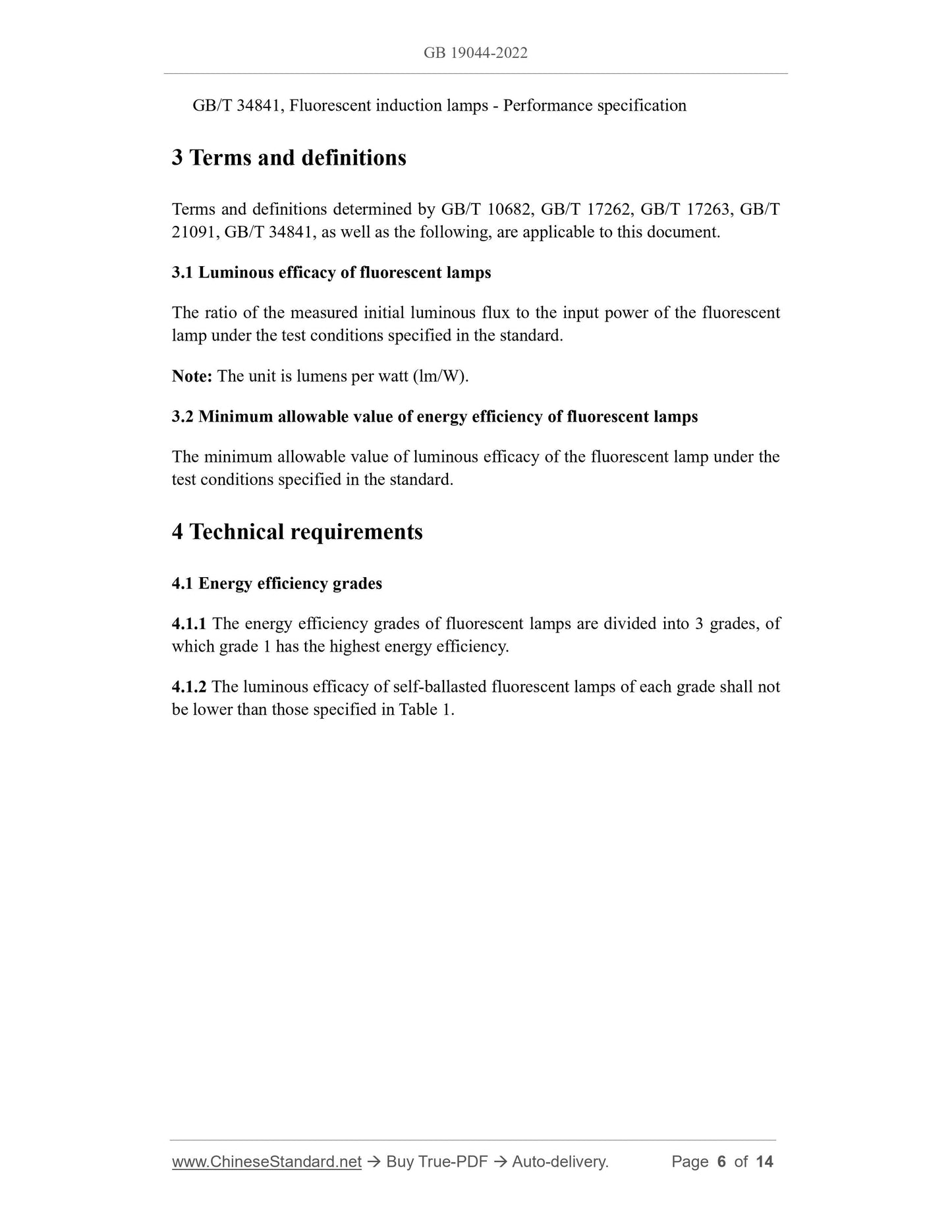

3 Terms and definitions
Terms and definitions determined by GB/T 10682, GB/T 17262, GB/T 17263, GB/T
21091, GB/T 34841, as well as the following, are applicable to this document.
3.1 Luminous efficacy of fluorescent lamps
The ratio of the measured initial luminous flux to the input power of the fluorescent
lamp under the test conditions specified in the standard.
Note: The unit is lumens per watt (lm/W).
3.2 Minimum allowable value of energy efficiency of fluorescent lamps
The minimum allowable value of luminous efficacy of the fluorescent lamp under the
test conditions specified in the standard.
4 Technical requirements
4.1 Energy efficiency grades
4.1.1 The energy efficiency grades of fluorescent lamps are divided into 3 grades, of
which grade 1 has the highest energy efficiency.
4.1.2 The luminous efficacy of self-ballasted fluorescent lamps of each grade shall not
be lower than those specified in Table 1.
