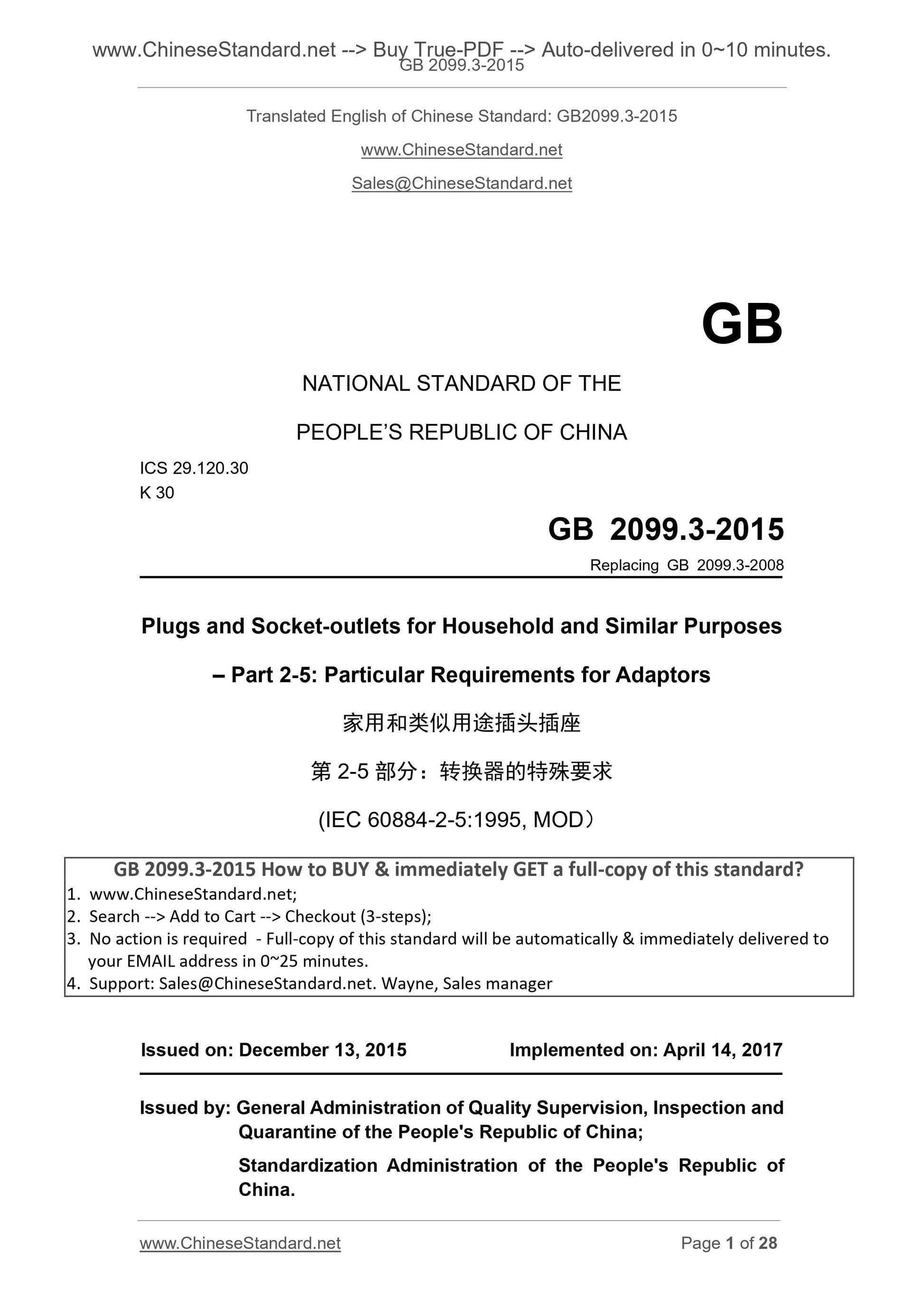

GB 2099.3-2015
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.120.30
K 30
Replacing GB 2099.3-2008
Plugs and Socket-outlets for Household and Similar Purposes
– Part 2-5. Particular Requirements for Adaptors
(IEC 60884-2-5.1995, MOD)
ISSUED ON. DECEMBER 13, 2015
IMPLEMENTED ON. APRIL 14, 2017
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

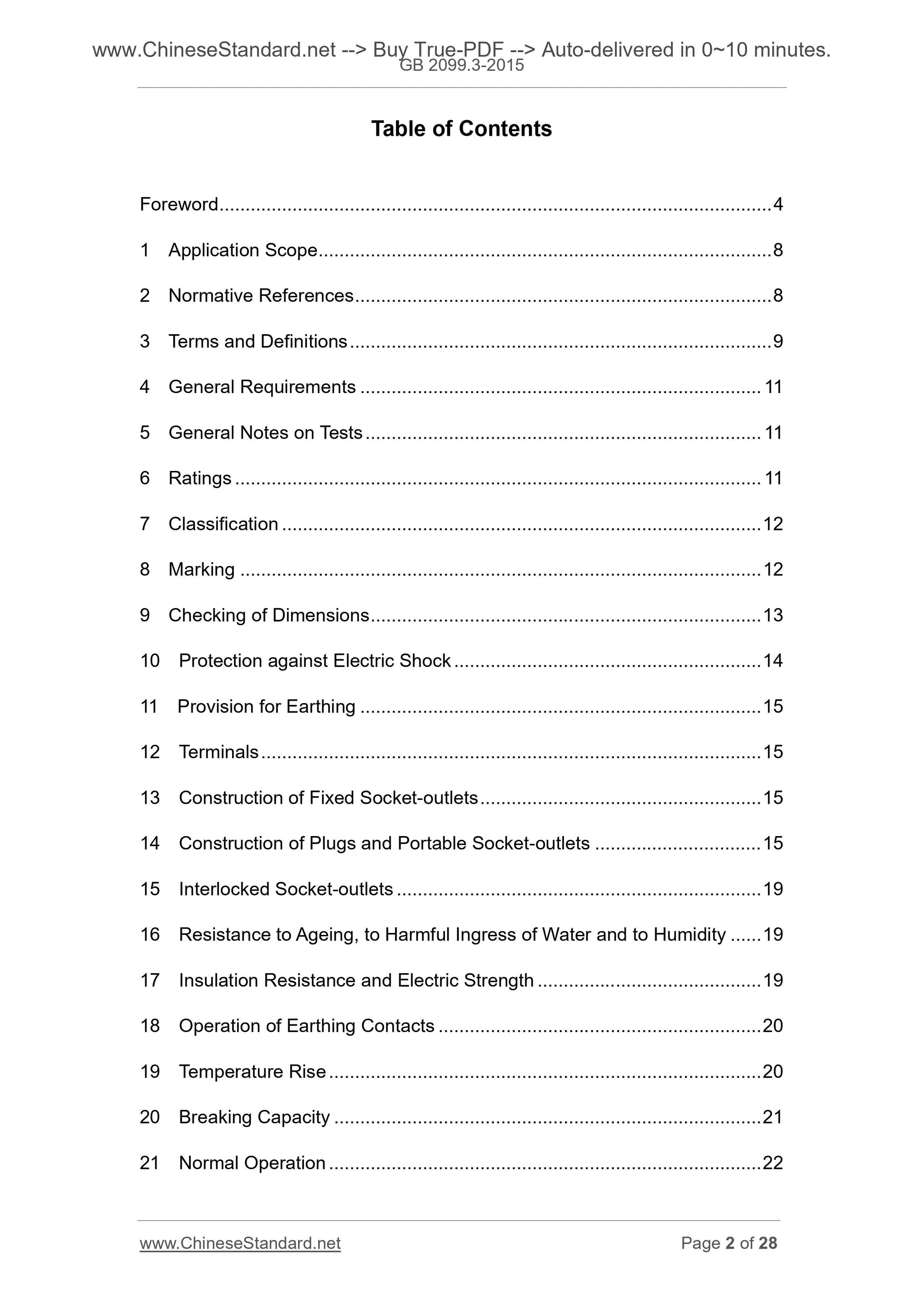

Table of Contents
Foreword ... 4
1 Application Scope ... 8
2 Normative References ... 8
3 Terms and Definitions ... 9
4 General Requirements ... 11
5 General Notes on Tests ... 11
6 Ratings ... 11
7 Classification ... 12
8 Marking ... 12
9 Checking of Dimensions ... 13
10 Protection against Electric Shock ... 14
11 Provision for Earthing ... 15
12 Terminals ... 15
13 Construction of Fixed Socket-outlets ... 15
14 Construction of Plugs and Portable Socket-outlets ... 15
15 Interlocked Socket-outlets ... 19
16 Resistance to Ageing, to Harmful Ingress of Water and to Humidity ... 19
17 Insulation Resistance and Electric Strength ... 19
18 Operation of Earthing Contacts ... 20
19 Temperature Rise ... 20
20 Breaking Capacity ... 21
21 Normal Operation ... 22
22 Force Necessary to Withdraw the Plug ... 22
23 Flexible Cables and Their Connection ... 23
24 Mechanical Strength ... 24
25 Resistance to Heat ... 26
26 Screws, Current-carrying Parts and Connections ... 26
27 Creepage Distances, Clearances and Distances through Sealing
Compound ... 26
28 Resistance of Insulating Material to Abnormal Heat, to Fire and to Tracking
... 27
29 Resistance to Rusting ... 27
30 Additional Tests on Pins Provided with Insulating Sleeves ... 27
Annex AA (Normative) Needle-flame Test ... 28

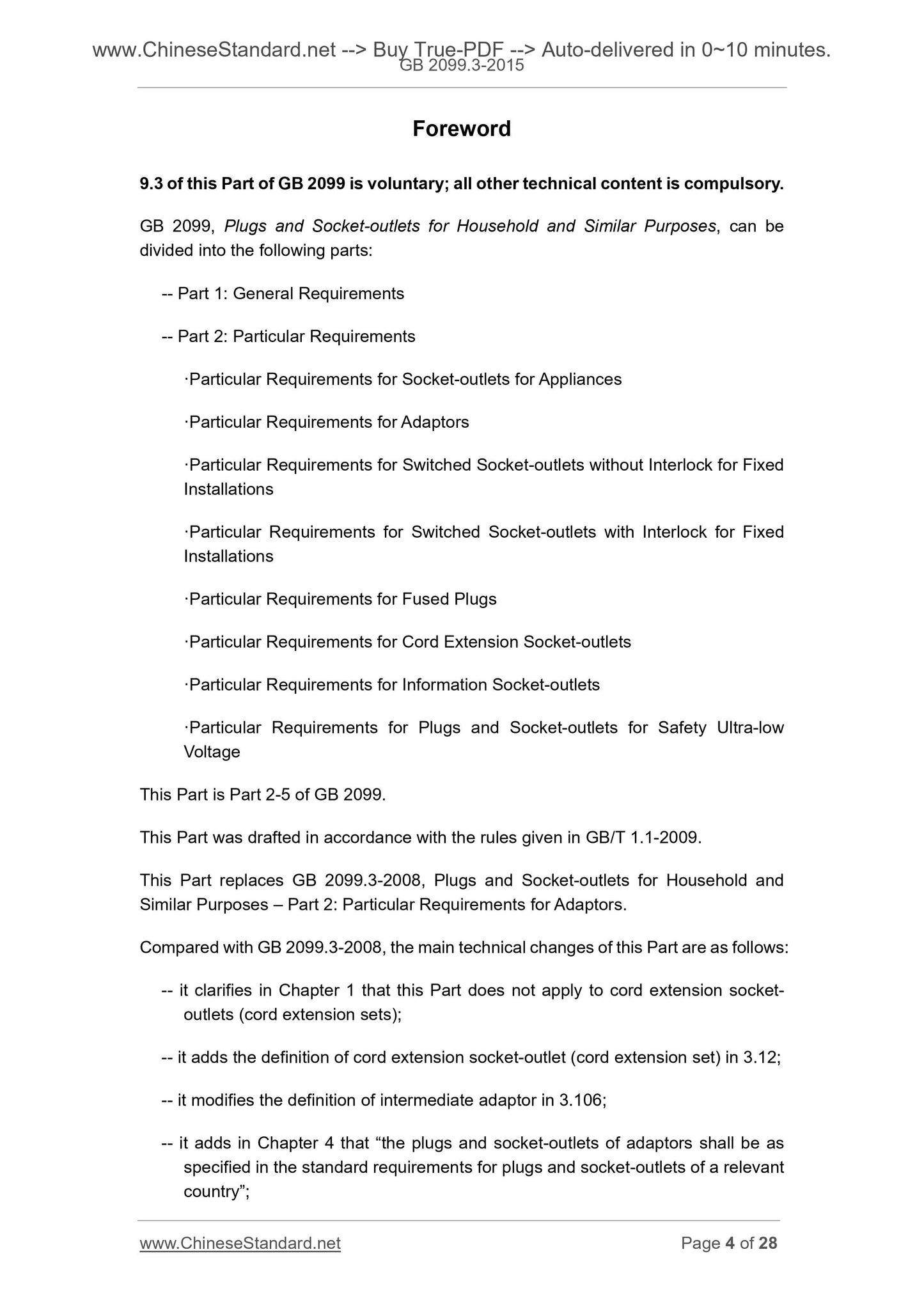

Foreword
9.3 of this Part of GB 2099 is voluntary; all other technical content is compulsory.
GB 2099, Plugs and Socket-outlets for Household and Similar Purposes, can be
divided into the following parts.
-- Part 1. General Requirements
-- Part 2. Particular Requirements
·Particular Requirements for Socket-outlets for Appliances
·Particular Requirements for Adaptors
·Particular Requirements for Switched Socket-outlets without Interlock for Fixed
Installations
·Particular Requirements for Switched Socket-outlets with Interlock for Fixed
Installations
·Particular Requirements for Fused Plugs
·Particular Requirements for Cord Extension Socket-outlets
·Particular Requirements for Information Socket-outlets
·Particular Requirements for Plugs and Socket-outlets for Safety Ultra-low
Voltage
This Part is Part 2-5 of GB 2099.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009.
This Part replaces GB 2099.3-2008, Plugs and Socket-outlets for Household and
Similar Purposes – Part 2. Particular Requirements for Adaptors.
Compared with GB 2099.3-2008, the main technical changes of this Part are as follows.
-- it clarifies in Chapter 1 that this Part does not apply to cord extension socket-
outlets (cord extension sets);
-- it adds the definition of cord extension socket-outlet (cord extension set) in 3.12;
-- it modifies the definition of intermediate adaptor in 3.106;
-- it adds in Chapter 4 that “the plugs and socket-outlets of adaptors shall be as
specified in the standard requirements for plugs and socket-outlets of a relevant
country”;

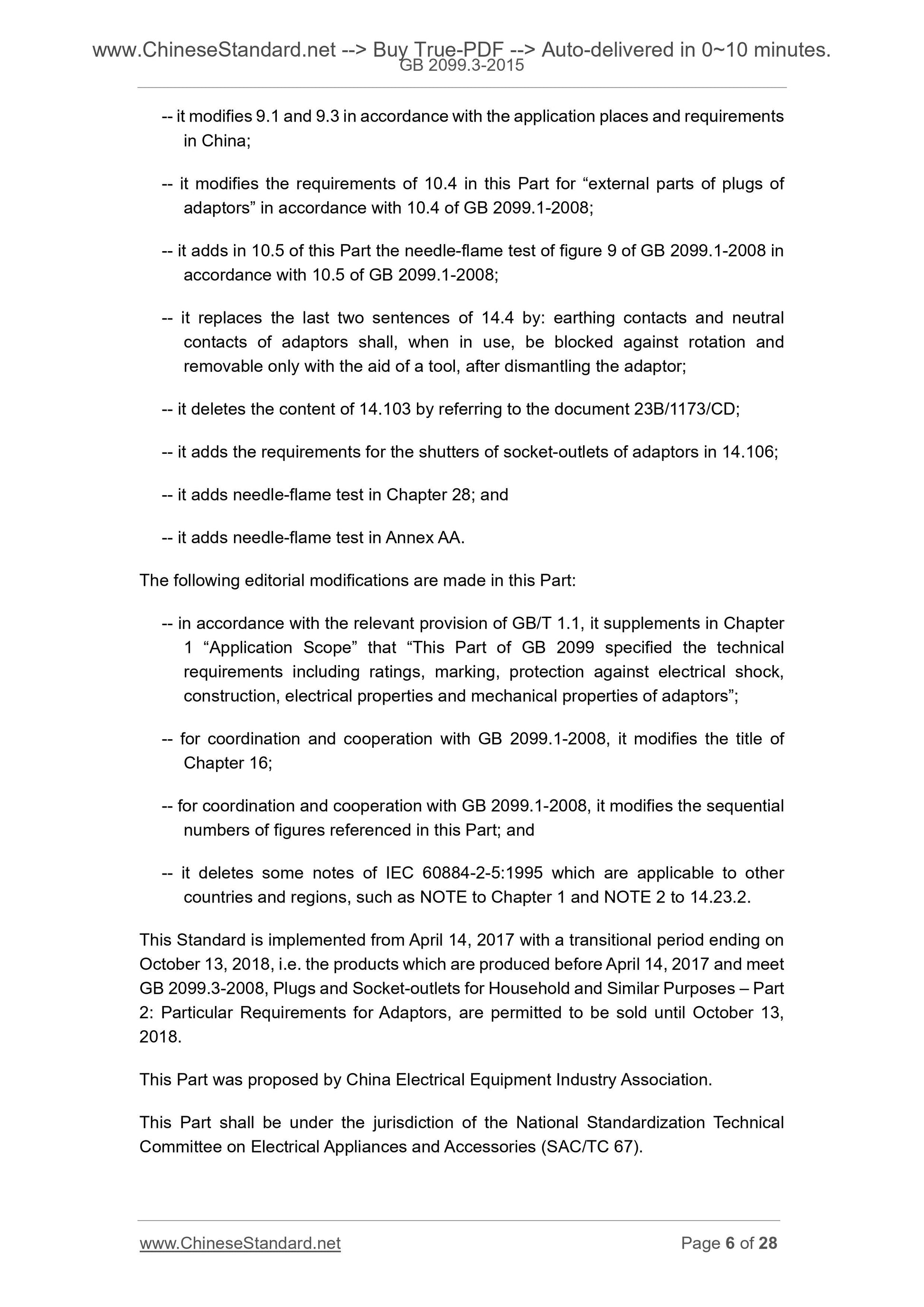

-- it modifies 9.1 and 9.3 in accordance with the application places and requirements
in China;
-- it modifies the requirements of 10.4 in this Part for “external parts of plugs of
adaptors” in accordance with 10.4 of GB 2099.1-2008;
-- it adds in 10.5 of this Part the needle-flame test of figure 9 of GB 2099.1-2008 in
accordance with 10.5 of GB 2099.1-2008;
-- it replaces the last two sentences of 14.4 by. earthing contacts and neutral
contacts of adaptors shall, when in use, be blocked against rotation and
removable only with the aid of a tool, after dismantling the adaptor;
-- it deletes the content of 14.103 by referring to the document 23B/1173/CD;
-- it adds the requirements for the shutters of socket-outlets of adaptors in 14.106;
-- it adds needle-flame test in Chapter 28; and
-- it adds needle-flame test in Annex AA.
The following editorial modifications are made in this Part.
-- in accordance with the relevant provision of GB/T 1.1, it supplements in Chapter
1 “Application Scope” that “This Part of GB 2099 specified the technical
requirements including ratings, marking, protection against electrical shock,
construction, electrical properties and mechanical properties of adaptors”;
-- for coordination and cooperation with GB 2099.1-2008, it modifies the title of
Chapter 16;
-- for coordination and cooperation with GB 2099.1-2008, it modifies the sequential
numbers of figures referenced in this Part; and
-- it deletes some notes of IEC 60884-2-5.1995 which are applicable to other
countries and regions, such as NOTE to Chapter 1 and NOTE 2 to 14.23.2.
This Standard is implemented from April 14, 2017 with a transitional period ending on
October 13, 2018, i.e. the products which are produced before April 14, 2017 and meet
GB 2099.3-2008, Plugs and Socket-outlets for Household and Similar Purposes – Part
2. Particular Requirements for Adaptors, are permitted to be sold until October 13,
2018.
This Part was proposed by China Electrical Equipment Industry Association.
This Part shall be under the jurisdiction of the National Standardization Technical
Committee on Electrical Appliances and Accessories (SAC/TC 67).

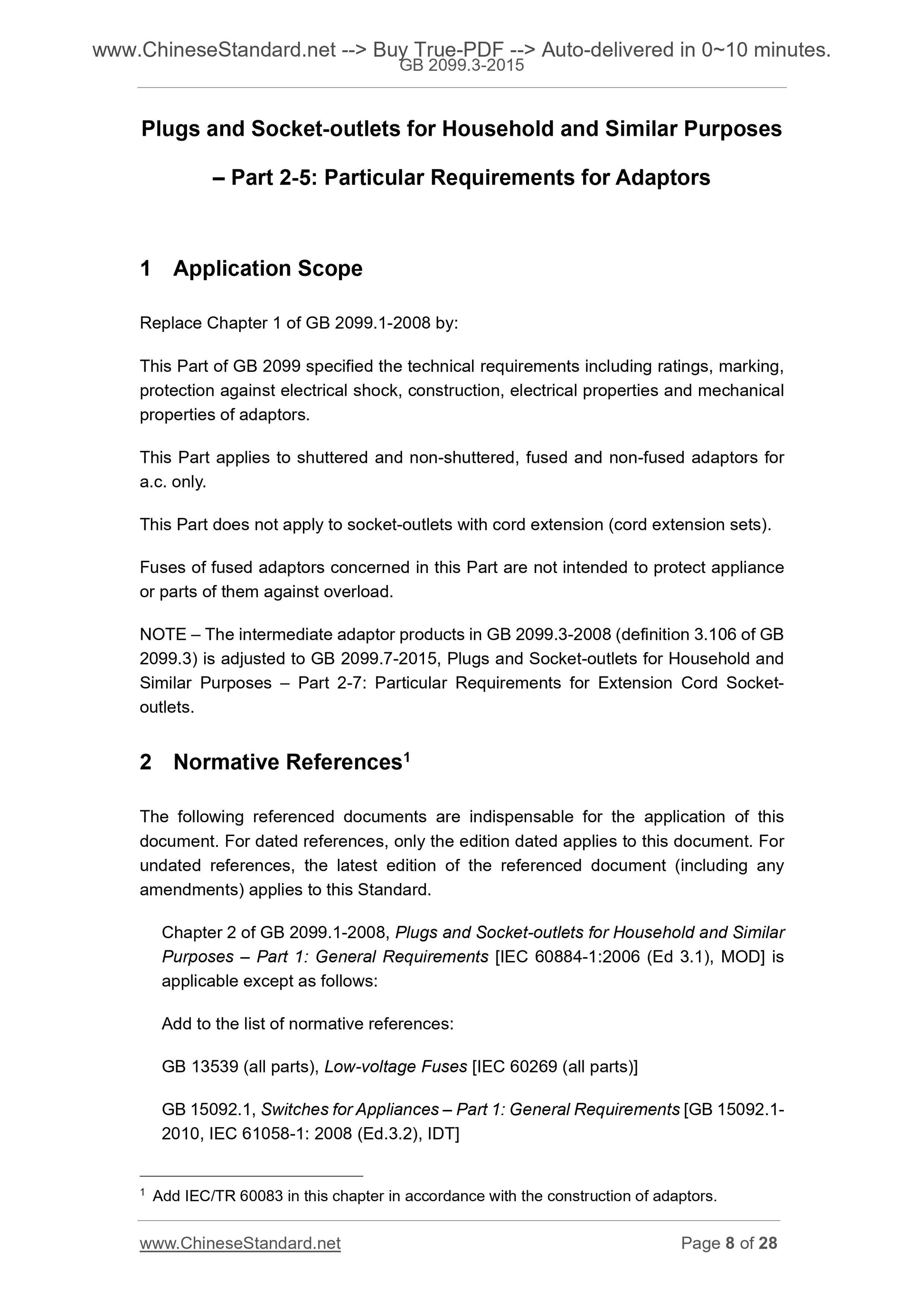

Plugs and Socket-outlets for Household and Similar Purposes
– Part 2-5. Particular Requirements for Adaptors
1 Application Scope
Replace Chapter 1 of GB 2099.1-2008 by.
This Part of GB 2099 specified the technical requirements including ratings, marking,
protection against electrical shock, construction, electrical properties and mechanical
properties of adaptors.
This Part applies to shuttered and non-shuttered, fused and non-fused adaptors for
a.c. only.
This Part does not apply to socket-outlets with cord extension (cord extension sets).
Fuses of fused adaptors concerned in this Part are not intended to protect appliance
or parts of them against overload.
NOTE – The intermediate adaptor products in GB 2099.3-2008 (definition 3.106 of GB
2099.3) is adjusted to GB 2099.7-2015, Plugs and Socket-outlets for Household and
Similar Purposes – Part 2-7. Particular Requirements for Extension Cord Socket-
outlets.
2 Normative References1
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition dated applies to this document. For
undated references, the latest edition of the referenced document (including any
amendments) applies to this Standard.
Chapter 2 of GB 2099.1-2008, Plugs and Socket-outlets for Household and Similar
Purposes – Part 1. General Requirements [IEC 60884-1.2006 (Ed 3.1), MOD] is
applicable except as follows.
Add to the list of normative references.
GB 13539 (all parts), Low-voltage Fuses [IEC 60269 (all parts)]
GB 15092.1, Switches for Appliances – Part 1. General Requirements [GB 15092.1-
2010, IEC 61058-1. 2008 (Ed.3.2), IDT]
1 Add IEC/TR 60083 in this chapter in accordance with the construction of adaptors.

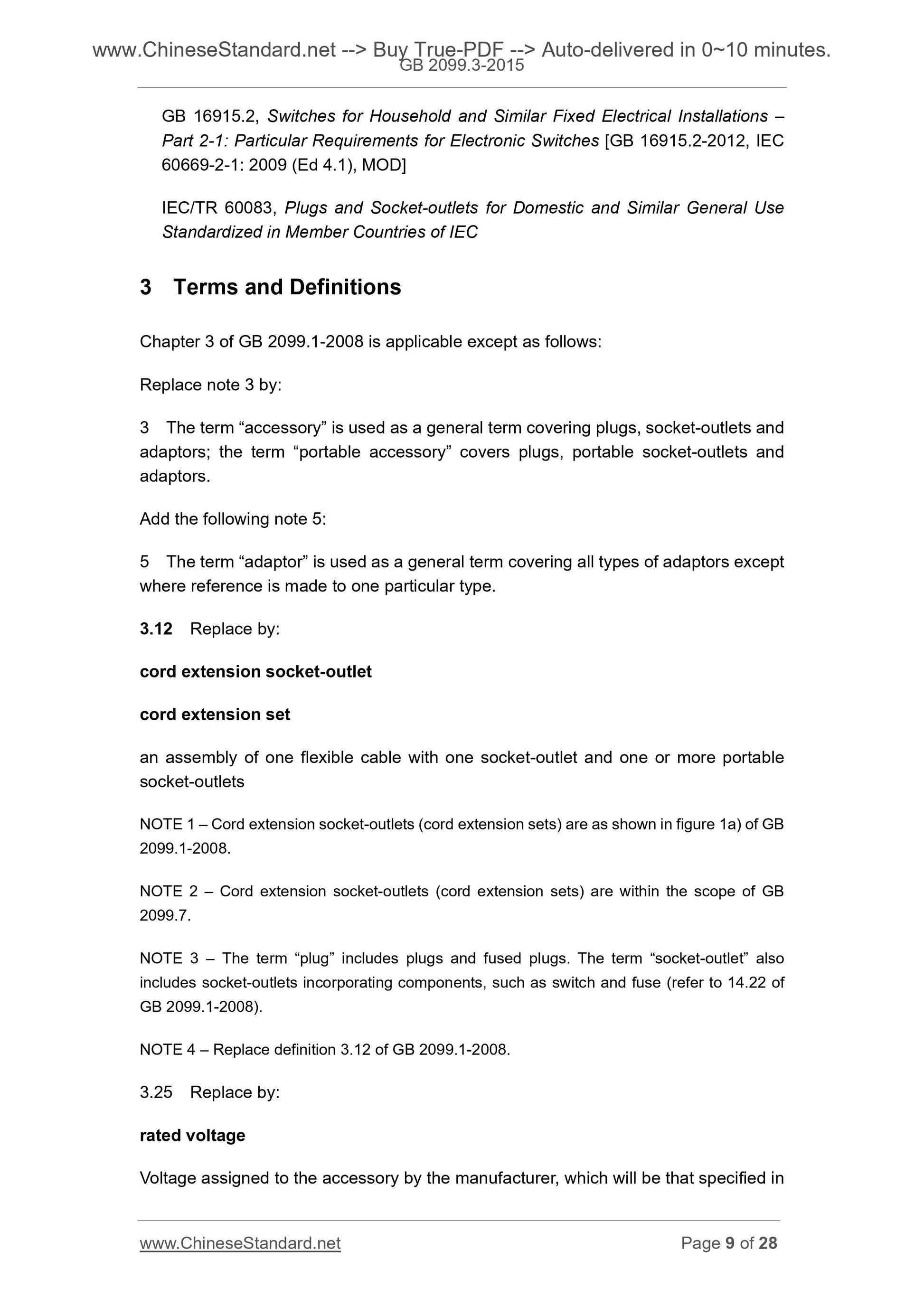

GB 16915.2, Switches for Household and Similar Fixed Electrical Installations –
Part 2-1. Particular Requirements for Electronic Switches [GB 16915.2-2012, IEC
60669-2-1. 2009 (Ed 4.1), MOD]
IEC/TR 60083, Plugs and Socket-outlets for Domestic and Simil...
