GB 22030-2017: Blend stocks of ethanol gasoline for motor vehicles

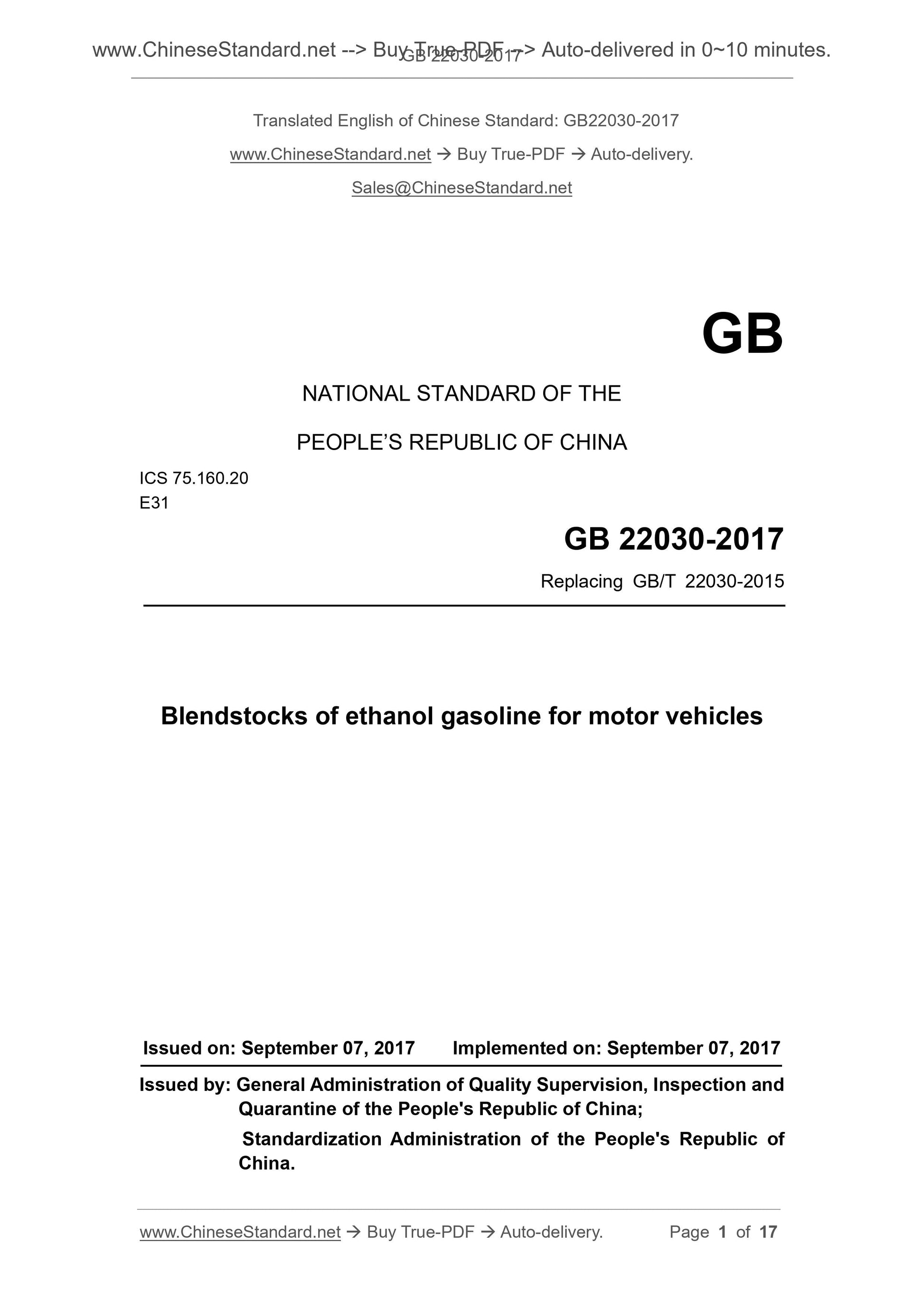

GB 22030-2017
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 75.160.20
E31
Replacing GB/T 22030-2015
Blendstocks of ethanol gasoline for motor vehicles
ISSUED ON. SEPTEMBER 07, 2017
IMPLEMENTED ON. SEPTEMBER 07, 2017
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

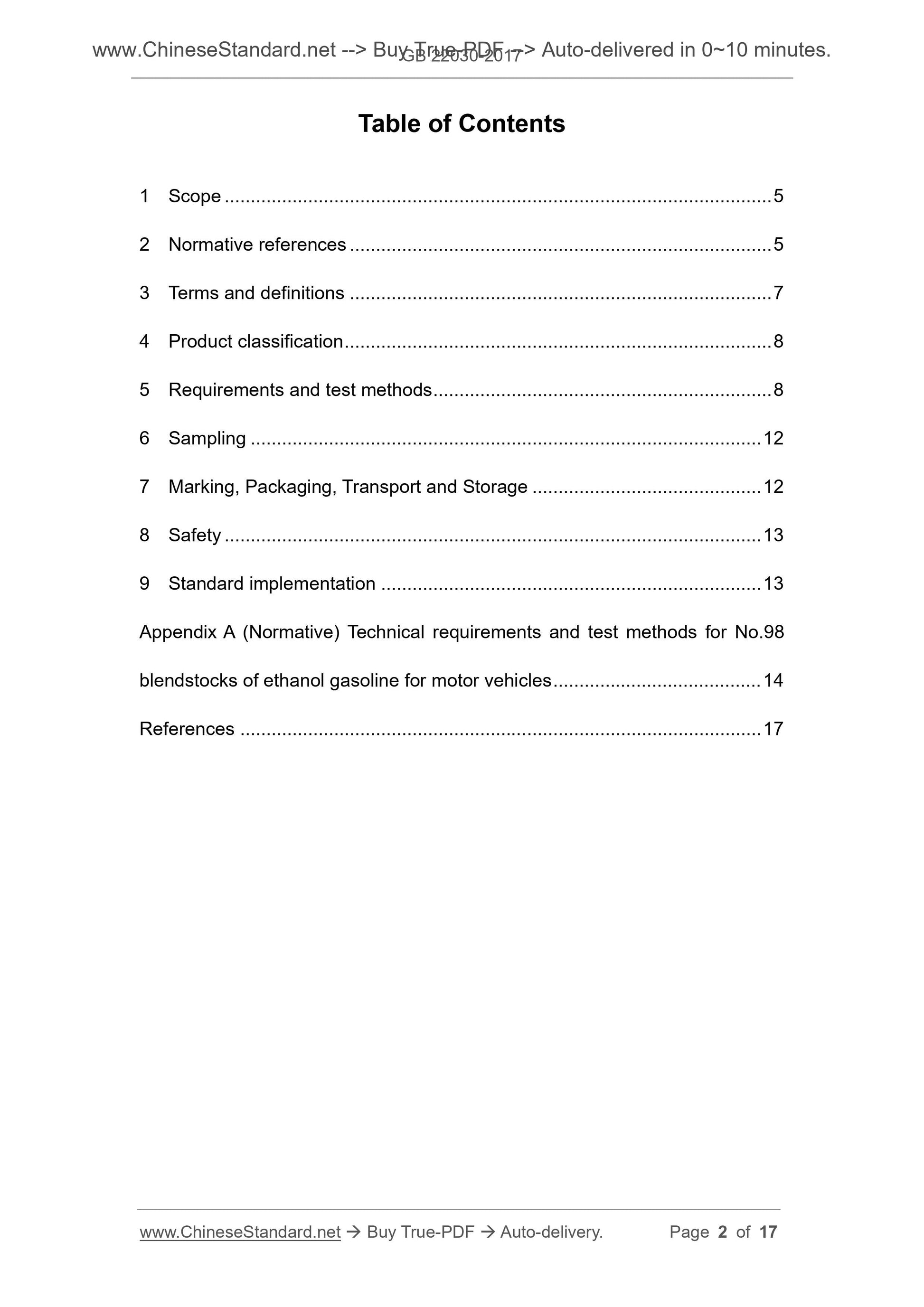

Table of Contents
1 Scope .. 5
2 Normative references .. 5
3 Terms and definitions .. 7
4 Product classification .. 8
5 Requirements and test methods .. 8
6 Sampling . 12
7 Marking, Packaging, Transport and Storage .. 12
8 Safety . 13
9 Standard implementation .. 13
Appendix A (Normative) Technical requirements and test methods for No.98
blendstocks of ethanol gasoline for motor vehicles . 14
References . 17

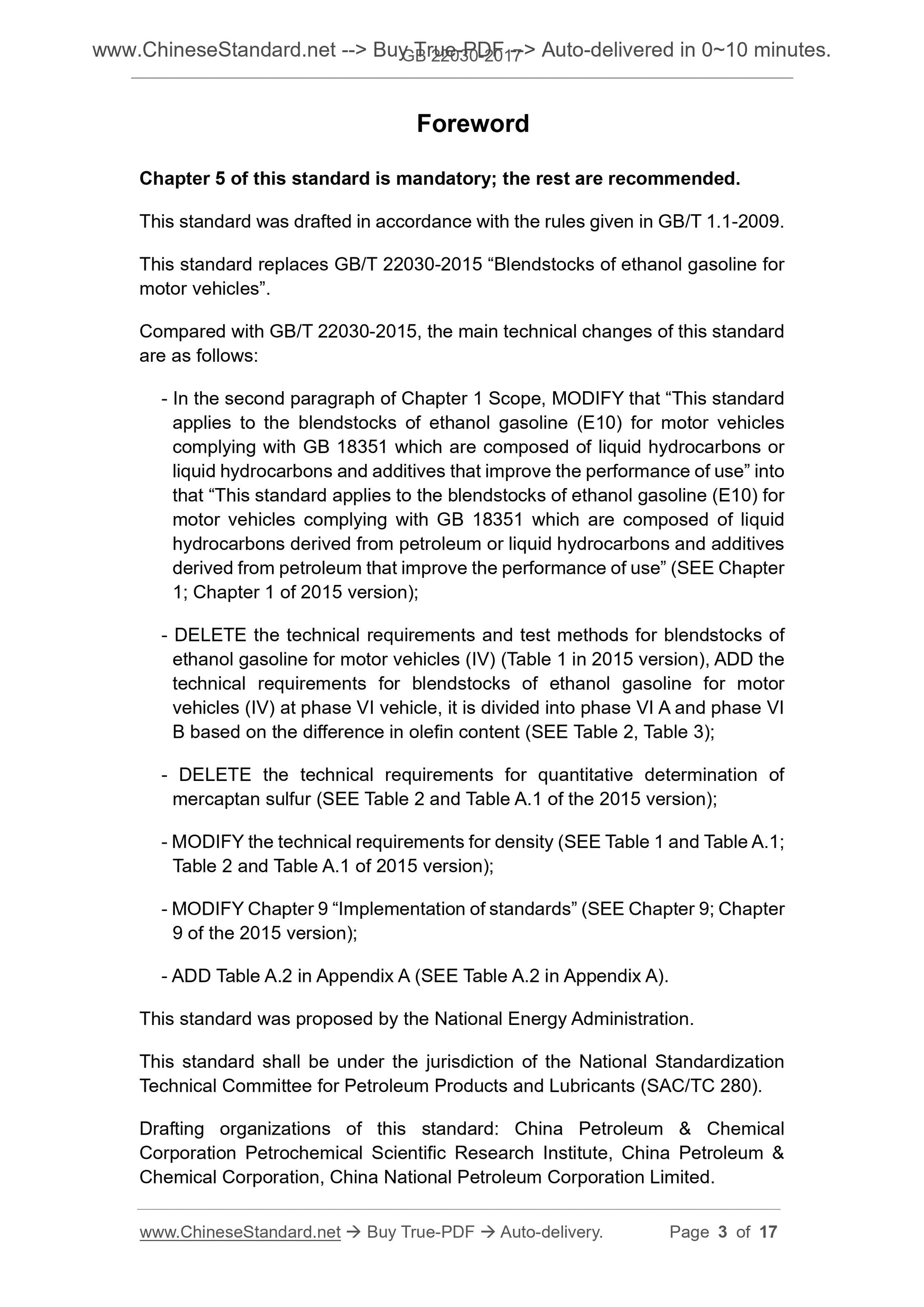

Foreword
Chapter 5 of this standard is mandatory; the rest are recommended.
This standard was drafted in accordance with the rules given in GB/T 1.1-2009.
This standard replaces GB/T 22030-2015 “Blendstocks of ethanol gasoline for
motor vehicles”.
Compared with GB/T 22030-2015, the main technical changes of this standard
are as follows.
- In the second paragraph of Chapter 1 Scope, MODIFY that “This standard
applies to the blendstocks of ethanol gasoline (E10) for motor vehicles
complying with GB 18351 which are composed of liquid hydrocarbons or
liquid hydrocarbons and additives that improve the performance of use” into
that “This standard applies to the blendstocks of ethanol gasoline (E10) for
motor vehicles complying with GB 18351 which are composed of liquid
hydrocarbons derived from petroleum or liquid hydrocarbons and additives
derived from petroleum that improve the performance of use” (SEE Chapter
1; Chapter 1 of 2015 version);
- DELETE the technical requirements and test methods for blendstocks of
ethanol gasoline for motor vehicles (IV) (Table 1 in 2015 version), ADD the
technical requirements for blendstocks of ethanol gasoline for motor
vehicles (IV) at phase VI vehicle, it is divided into phase VI A and phase VI
B based on the difference in olefin content (SEE Table 2, Table 3);
- DELETE the technical requirements for quantitative determination of
mercaptan sulfur (SEE Table 2 and Table A.1 of the 2015 version);
- MODIFY the technical requirements for density (SEE Table 1 and Table A.1;
Table 2 and Table A.1 of 2015 version);
- MODIFY Chapter 9 “Implementation of standards” (SEE Chapter 9; Chapter
9 of the 2015 version);
- ADD Table A.2 in Appendix A (SEE Table A.2 in Appendix A).
This standard was proposed by the National Energy Administration.
This standard shall be under the jurisdiction of the National Standardization
Technical Committee for Petroleum Products and Lubricants (SAC/TC 280).
Drafting organizations of this standard. China Petroleum and Chemical
Corporation Petrochemical Scientific Research Institute, China Petroleum and
Chemical Corporation, China National Petroleum Corporation Limited.

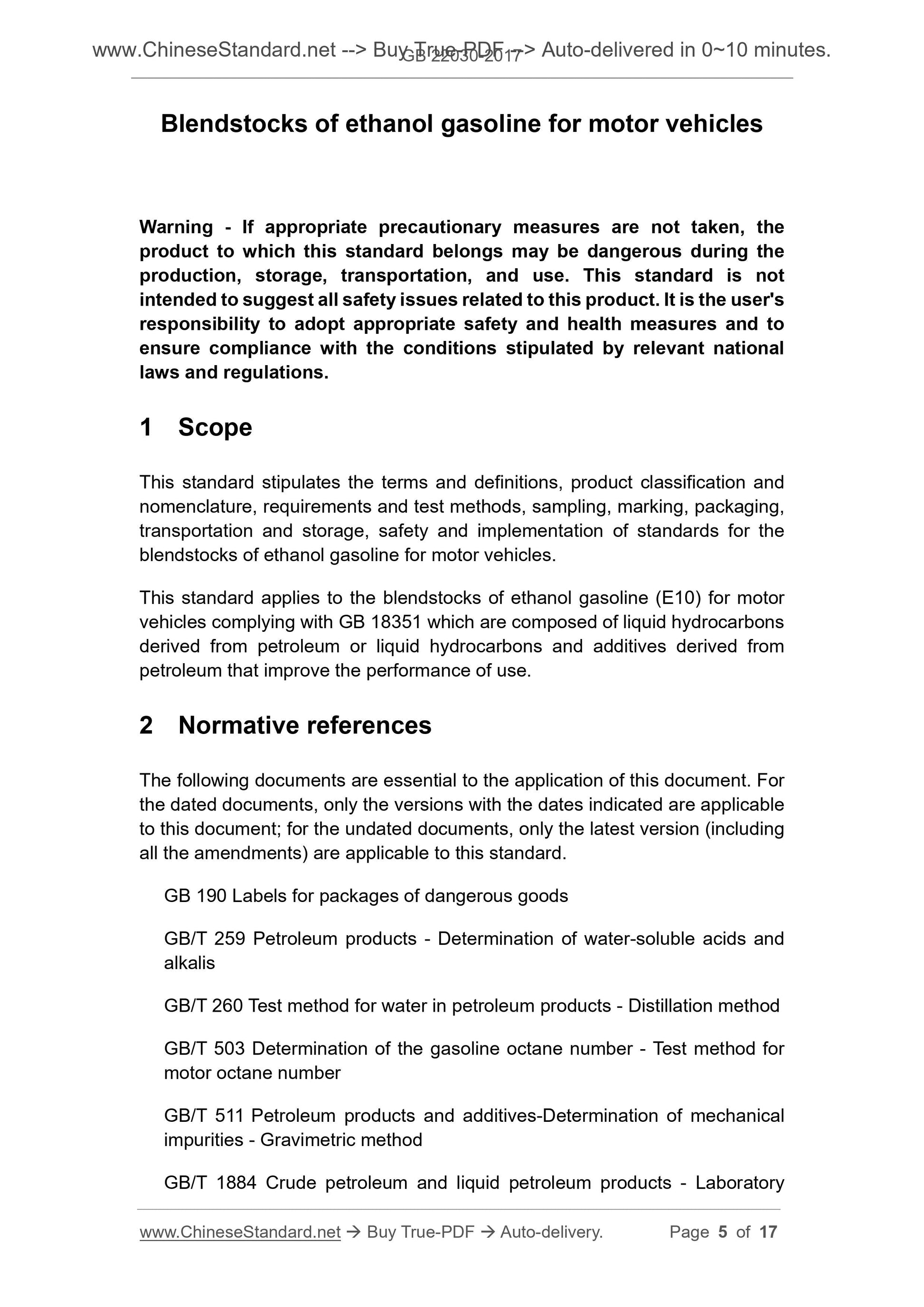

Blendstocks of ethanol gasoline for motor vehicles
Warning - If appropriate precautionary measures are not taken, the
product to which this standard belongs may be dangerous during the
production, storage, transportation, and use. This standard is not
intended to suggest all safety issues related to this product. It is the user's
responsibility to adopt appropriate safety and health measures and to
ensure compliance with the conditions stipulated by relevant national
laws and regulations.
1 Scope
This standard stipulates the terms and definitions, product classification and
nomenclature, requirements and test methods, sampling, marking, packaging,
transportation and storage, safety and implementation of standards for the
blendstocks of ethanol gasoline for motor vehicles.
This standard applies to the blendstocks of ethanol gasoline (E10) for motor
vehicles complying with GB 18351 which are composed of liquid hydrocarbons
derived from petroleum or liquid hydrocarbons and additives derived from
petroleum that improve the performance of use.
2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) are applicable to this standard.
GB 190 Labels for packages of dangerous goods
GB/T 259 Petroleum products - Determination of water-soluble acids and
alkalis
GB/T 260 Test method for water in petroleum products - Distillation method
GB/T 503 Determination of the gasoline octane number - Test method for
motor octane number
GB/T 511 Petroleum products and additives-Determination of mechanical
impurities - Gravimetric method

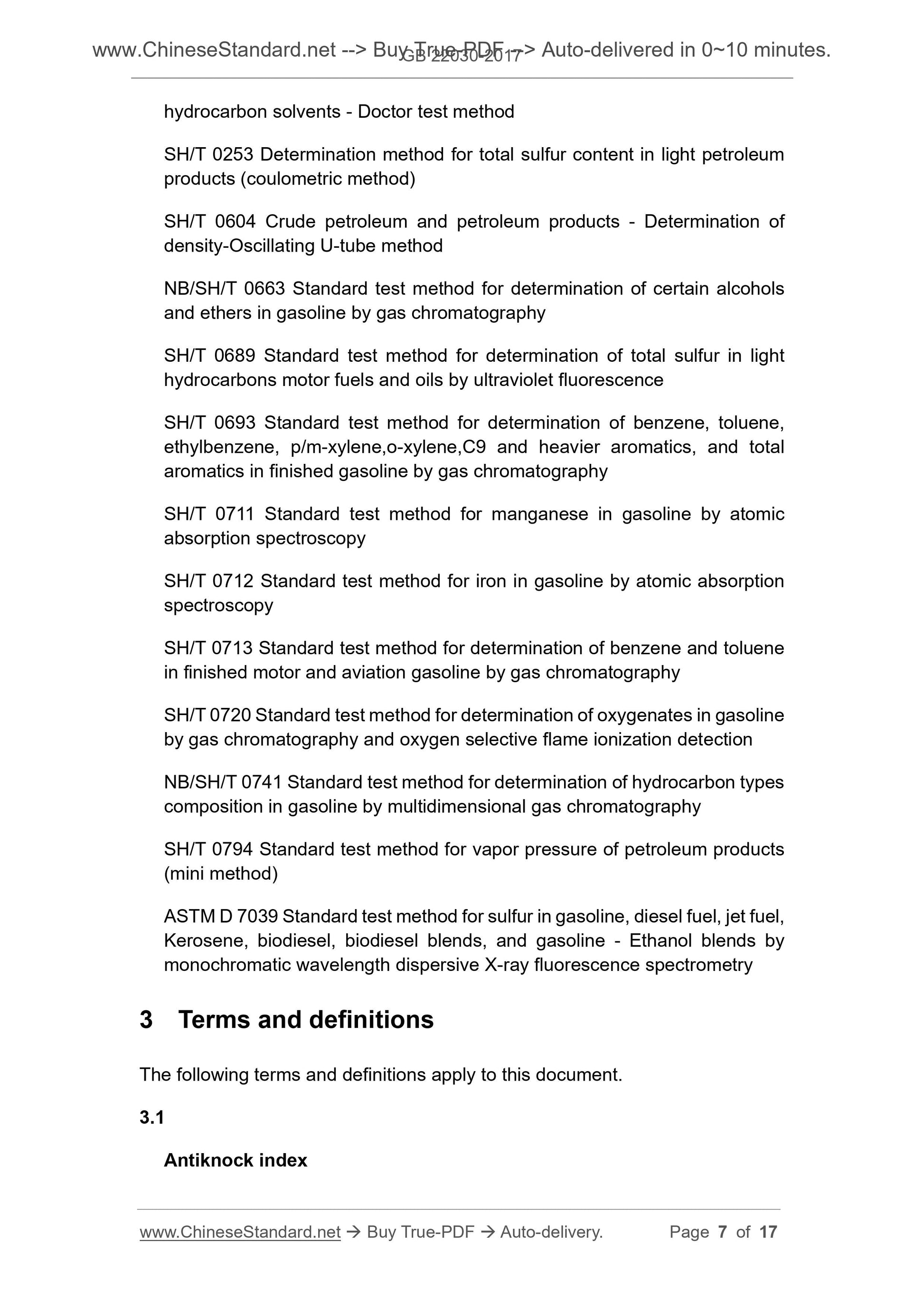

GB/T 1884 Crude petroleum and liquid petroleum products - Laboratory
hydrocarbon solvents - Doctor test method
SH/T 0253 Determination method for total sulfur content in light petroleum
products (coulometric method)
SH/T 0604 Crude petroleum and petroleum products - Determination of
density-Oscillating U-tube method
NB/SH/T 0663 Standard test method for determination of certain alcohols
and ethers in gasoline by gas chromatography
SH/T 0689 Standard test method for determination of total sulfur in light
hydrocarbons motor fuels and oils by ultraviolet fluorescence
SH/T 0693 Standard test method for determination of benzene, toluene,
ethylbenzene, p/m-xylene,o-xylene,C9 and heavier aromatics, and total
aromatics in finished gasoline by gas chromatography
SH/T 0711 Standard test method for manganese in gasoline by atomic
absorption spectroscopy
SH/T 0712 Standard test method for iron in gasoline by atomic absorption
spectroscopy
SH/T 0713 Standard test method for determination of benzene and toluene
in finished motor and aviation gasoline by gas chromatography
SH/T 0720 Standard test method for determination of oxygenates in gasoline
by gas chromatography and oxygen selective flame ionization detection
NB/SH/T 0741 Standard test method for determination of hydrocarbon types
composition in gasoline by multidimensional gas chromatography
SH/T 0794 Standard test method for vapor pressure of petroleum products
(mini method)
ASTM D 7039 Standard test method for sulfur in gasoline, diesel fuel, jet fuel,
Kerosene, biodiesel, biodiesel blends, and gasoline - Ethanol blends by
monochromatic wavelength dispersive X-ray fluorescence spectrometry
3 Terms and definitions
The following terms and definitions apply to this document.
3.1
Antiknock index

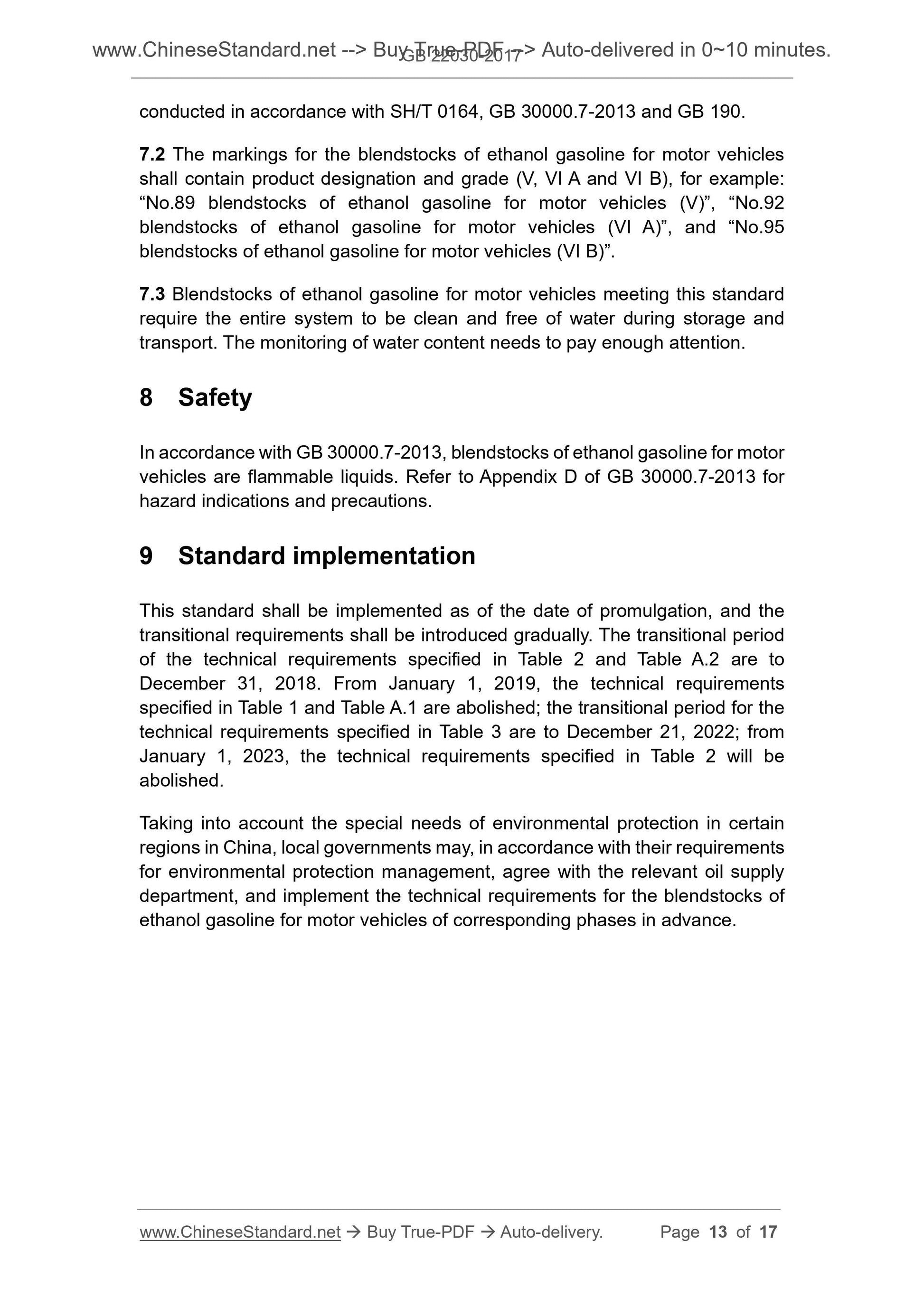

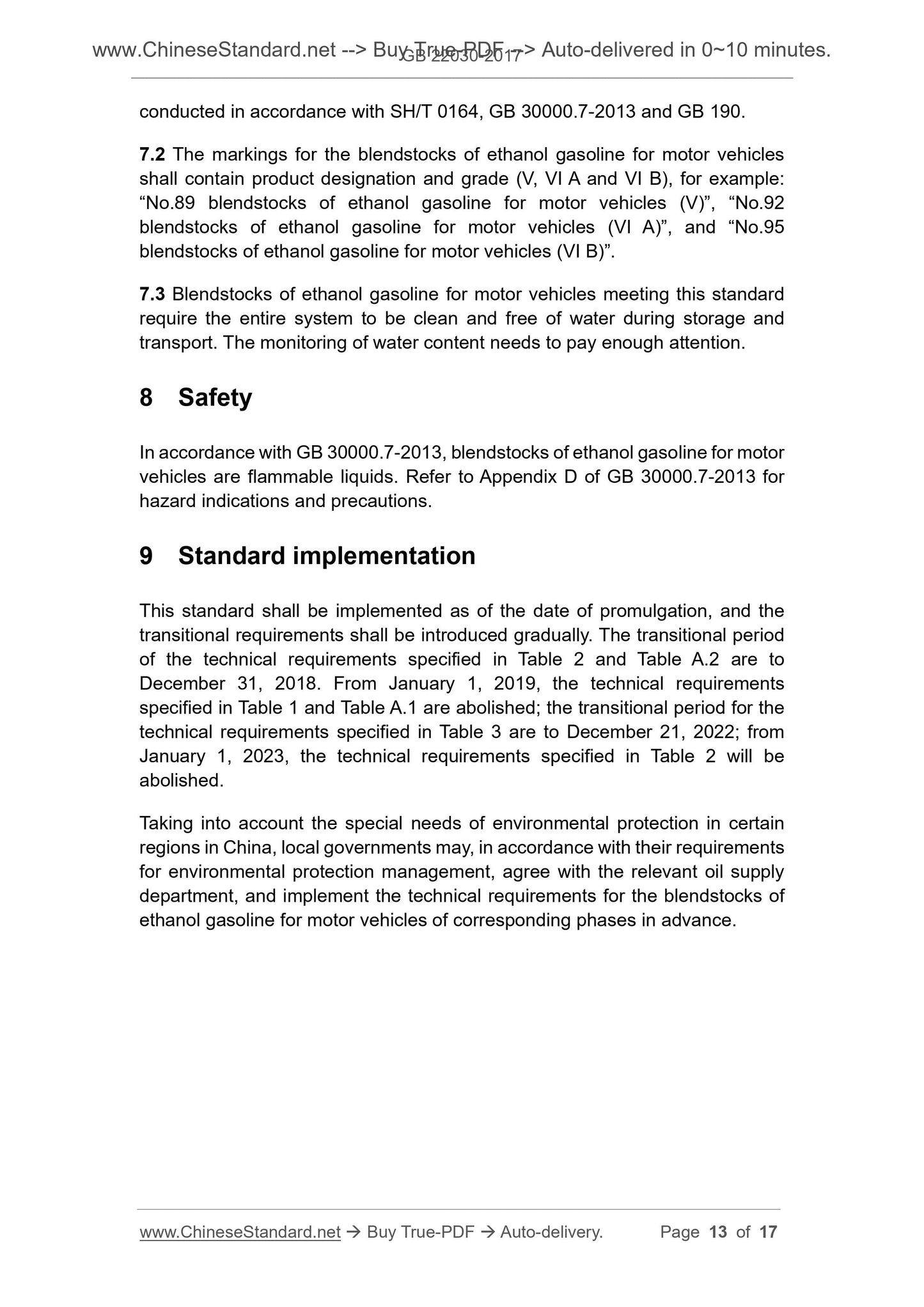

conducted in accordance with SH/T 0164, GB 30000.7-2013 and GB 190.
7.2 The markings for the blendstocks of ethanol gasoline for motor vehicles
shall contain product designation and grade (V, VI A and VI B), for example.
“No.89 blendstocks of ethanol gasoline for motor vehicles (V)”, “No.92
blendstocks of ethanol gasoline for motor vehicles (VI A)”, and “No.95
blendstocks of ethanol gasoline for motor vehicles (VI B)”.
7.3 Blendstocks of ethanol gasoline for motor vehicles meeting this standard
require the entire system to be clean and free of water during storage and
transport. The monitoring of water content needs to pay enough attention.
8 Safety
In accordance with GB 30000.7-2013, blendstocks of ethanol gasoline for motor
vehicles are flammable liquids. Refer to Appendix D of GB 30000.7-2013 for
