GB 28008-2024: Technical specification for the safety of furniture structure

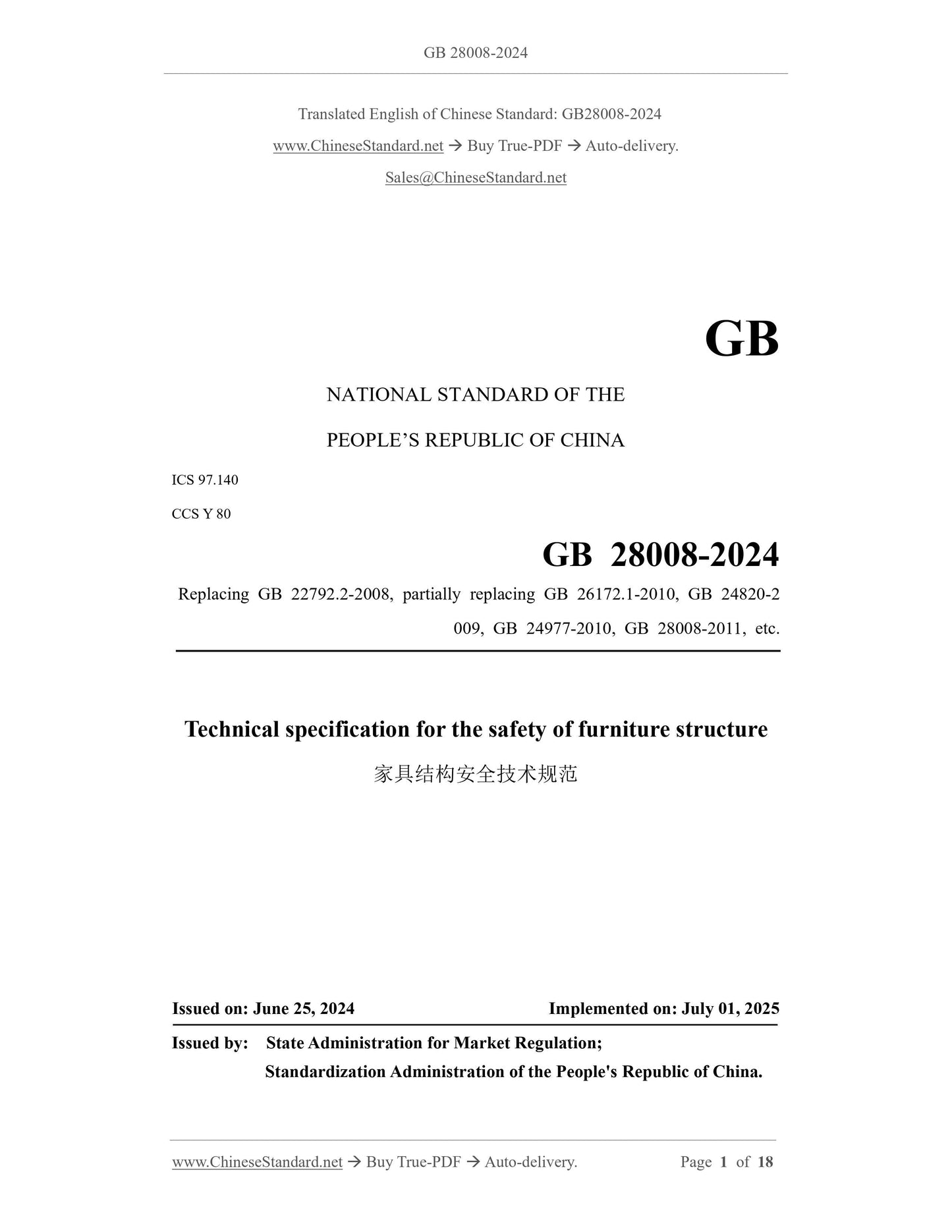

GB 28008-2024
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 97.140
CCS Y 80
Replacing GB 22792.2-2008, partially replacing GB 26172.1-2010, GB 24820-2
009, GB 24977-2010, GB 28008-2011, etc.
Technical specification for the safety of furniture structure
ISSUED ON. JUNE 25, 2024
IMPLEMENTED ON. JULY 01, 2025
Issued by. State Administration for Market Regulation;
Standardization Administration of the People's Republic of China.

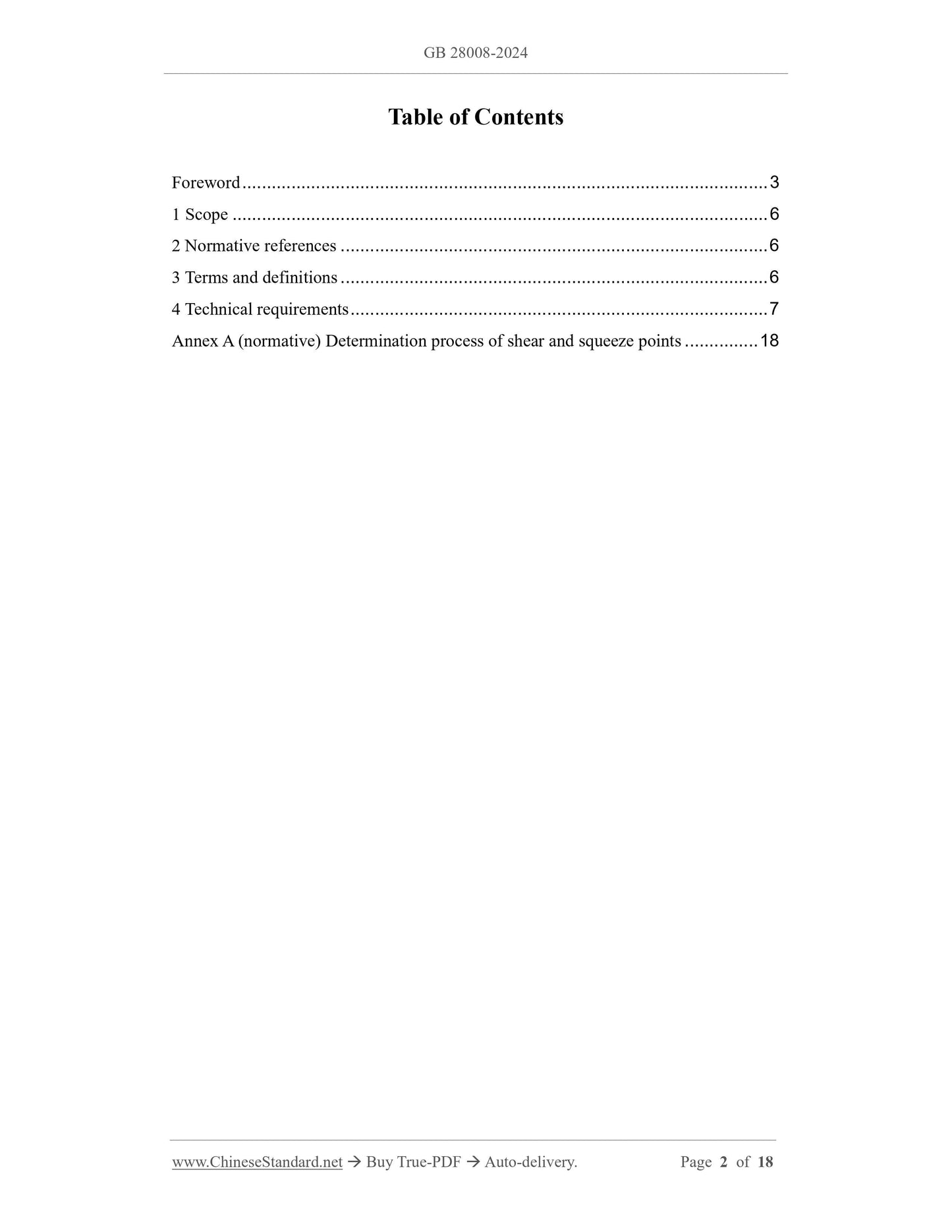

Table of Contents
Foreword... 3
1 Scope... 6
2 Normative references... 6
3 Terms and definitions... 6
4 Technical requirements... 7
Annex A (normative) Determination process of shear and squeeze points... 18

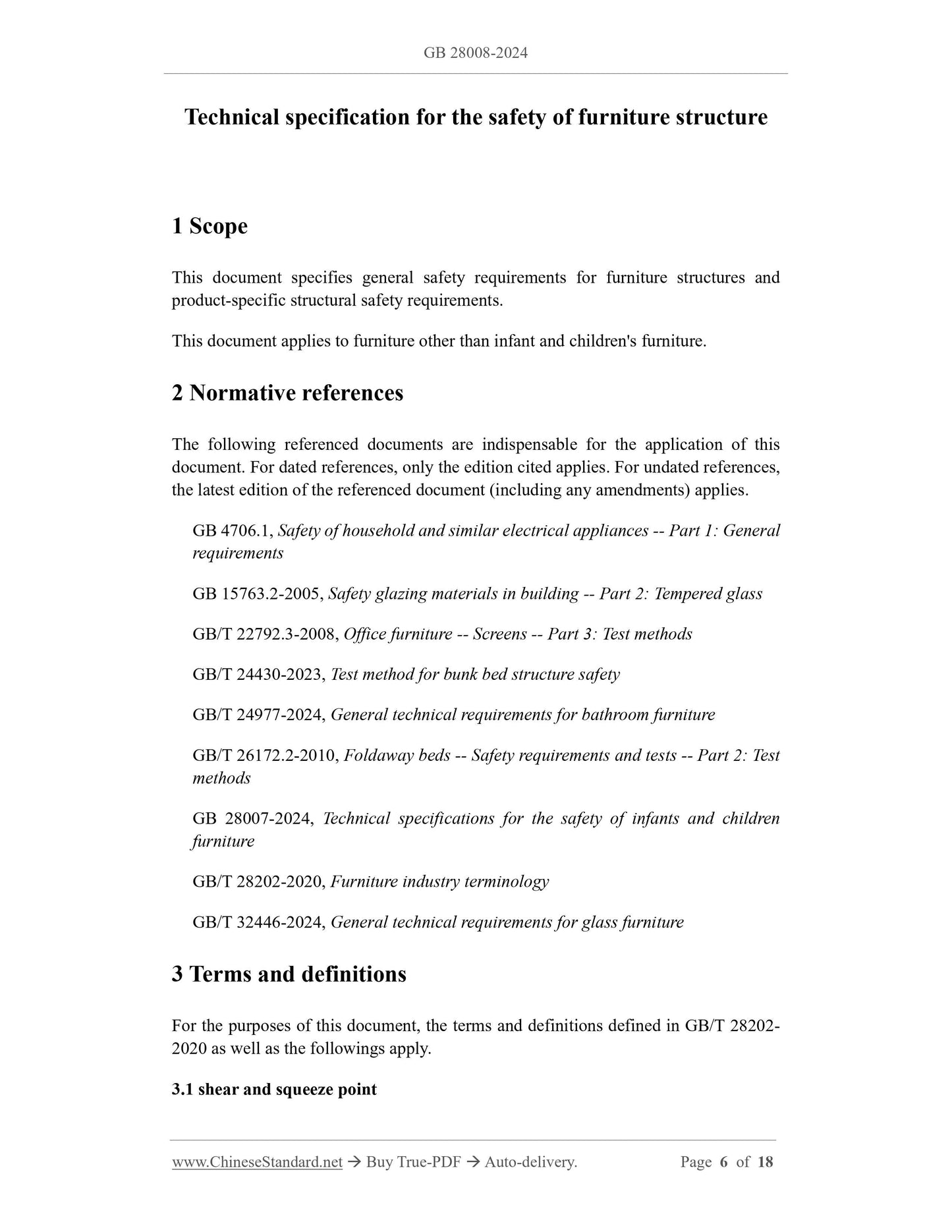

Technical specification for the safety of furniture structure
1 Scope
This document specifies general safety requirements for furniture structures and
product-specific structural safety requirements.
This document applies to furniture other than infant and children's furniture.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB 4706.1, Safety of household and similar electrical appliances -- Part 1.General
requirements
GB 15763.2-2005, Safety glazing materials in building -- Part 2.Tempered glass
GB/T 22792.3-2008, Office furniture -- Screens -- Part 3.Test methods
GB/T 24430-2023, Test method for bunk bed structure safety
GB/T 24977-2024, General technical requirements for bathroom furniture
GB/T 26172.2-2010, Foldaway beds -- Safety requirements and tests -- Part 2.Test
methods
GB 28007-2024, Technical specifications for the safety of infants and children
furniture
GB/T 28202-2020, Furniture industry terminology
GB/T 32446-2024, General technical requirements for glass furniture
3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T 28202-
2020 as well as the followings apply.

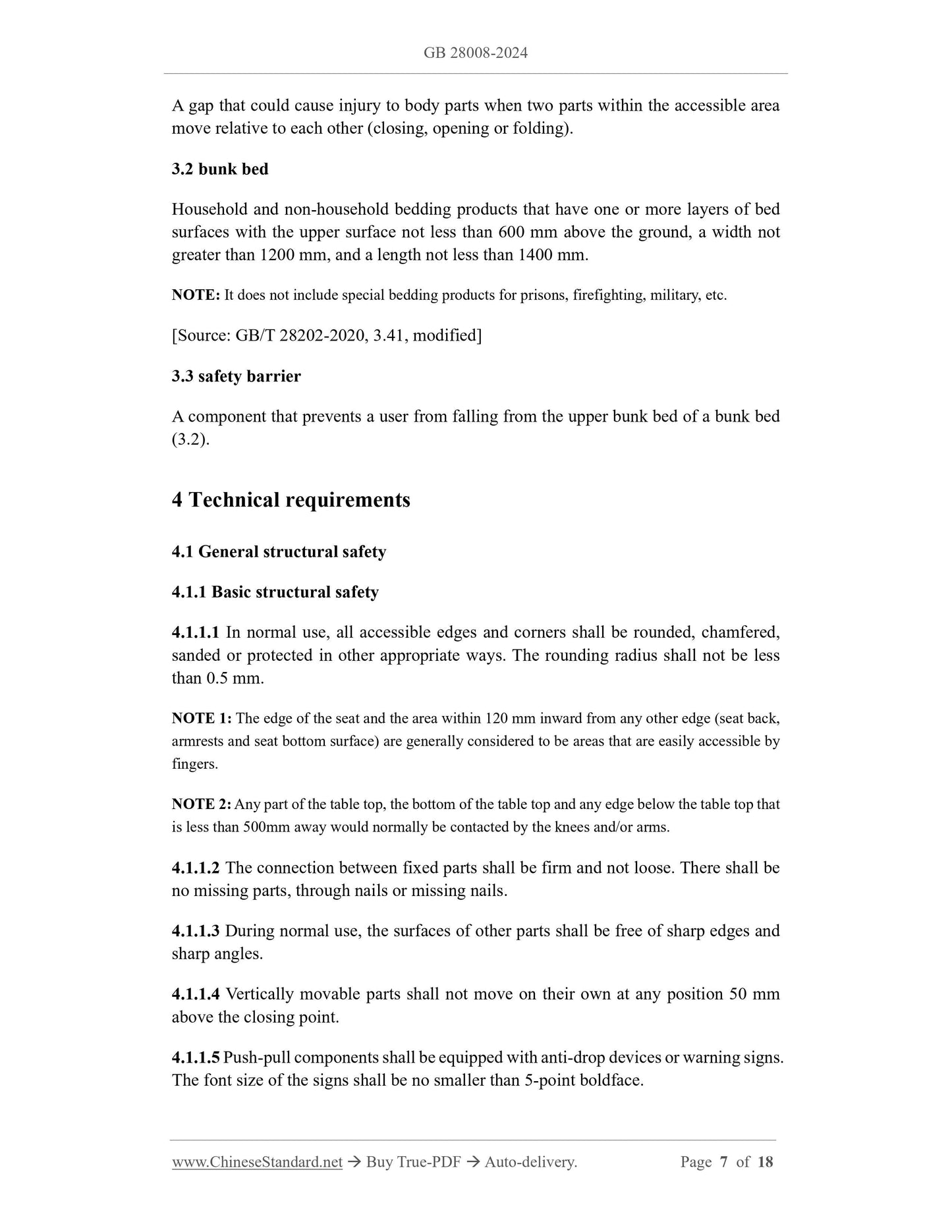

3.1 shear and squeeze point
A gap that could cause injury to body parts when two parts within the accessible area
move relative to each other (closing, opening or folding).
3.2 bunk bed
Household and non-household bedding products that have one or more layers of bed
surfaces with the upper surface not less than 600 mm above the ground, a width not
greater than 1200 mm, and a length not less than 1400 mm.
NOTE. It does not include special bedding products for prisons, firefighting, military, etc.
[Source. GB/T 28202-2020, 3.41, modified]
3.3 safety barrier
A component that prevents a user from falling from the upper bunk bed of a bunk bed
(3.2).
4 Technical requirements
4.1 General structural safety
4.1.1 Basic structural safety
4.1.1.1 In normal use, all accessible edges and corners shall be rounded, chamfered,
sanded or protected in other appropriate ways. The rounding radius shall not be less
than 0.5 mm.
NOTE 1.The edge of the seat and the area within 120 mm inward from any other edge (seat back,
armrests and seat bottom surface) are generally considered to be areas that are easily accessible by
fingers.
NOTE 2.Any part of the table top, the bottom of the table top and any edge below the table top that
is less than 500mm away would normally be contacted by the knees and/or arms.
4.1.1.2 The connection between fixed parts shall be firm and not loose. There shall be
no missing parts, through nails or missing nails.
4.1.1.3 During normal use, the surfaces of other parts shall be free of sharp edges and
sharp angles.
4.1.1.4 Vertically movable parts shall not move on their own at any position 50 mm
above the closing point.
4.1.1.5 Push-pull components shall be equipped with anti-drop devices or warning signs.
The font size of the signs shall be no smaller than 5-point boldface.

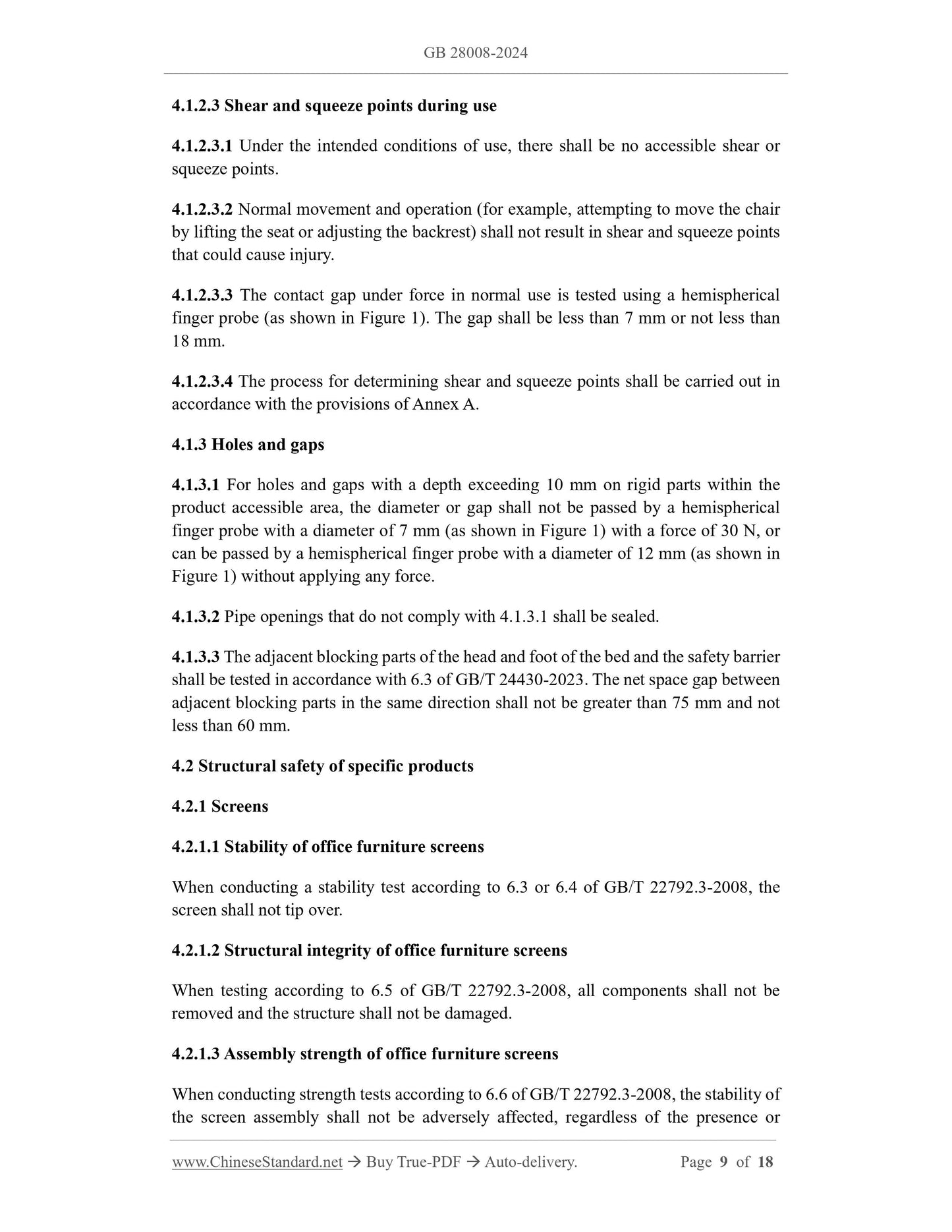

4.1.2.3 Shear and squeeze points during use
4.1.2.3.1 Under the intended conditions of use, there shall be no accessible shear or
squeeze points.
4.1.2.3.2 Normal movement and operation (for example, attempting to move the chair
by lifting the seat or adjusting the backrest) shall not result in shear and squeeze points
that could cause injury.
4.1.2.3.3 The contact gap under force in normal use is tested using a hemispherical
finger probe (as shown in Figure 1). The gap shall be less than 7 mm or not less than
18 mm.
4.1.2.3.4 The process for determining shear and squeeze points shall be carried out in
accordance with the provisions of Annex A.
4.1.3 Holes and gaps
4.1.3.1 For holes and gaps with a depth exceeding 10 mm on rigid parts within the
product accessible area, the diameter or gap shall not be passed by a hemispherical
finger probe with a diameter of 7 mm (as shown in Figure 1) with a force of 30 N, or
can be passed by a hemispherical finger probe with a diameter of 12 mm (as shown in
Figure 1) without applying any force.
4.1.3.2 Pipe openings that do not comply with 4.1.3.1 shall be sealed.
4.1.3.3 The adjacent blocking parts of the head and foot of the bed and the safety barrier
shall be tested in accordance with 6.3 of GB/T 24430-2023.The net space gap between
adjacent blocking parts in the same direction shall not be greater than 75 mm and not
less than 60 mm.
4.2 Structural safety of specific products
4.2.1 Screens
4.2.1.1 Stability of office furniture screens
When conducting a stability test according to 6.3 or 6.4 of GB/T 22792.3-2008, the
screen shall not tip over.
4.2.1.2 Structural integrity of office furniture screens
When testing according to 6.5 of GB/T 22792.3-2008, all components shall not be
removed and the structure shall not be damaged.
4.2.1.3 Assembly strength of office furniture screens
When conducting strength tests according to 6.6 of GB/T 22792.3-2008, the stability of
the screen assembly shall not be adversely affected, regardless of the presence or
absence of accessories. Any parts, connectors, or components shall not be damaged.
There shall be no deformation or looseness that affects the safety and function of the
screen assembly.

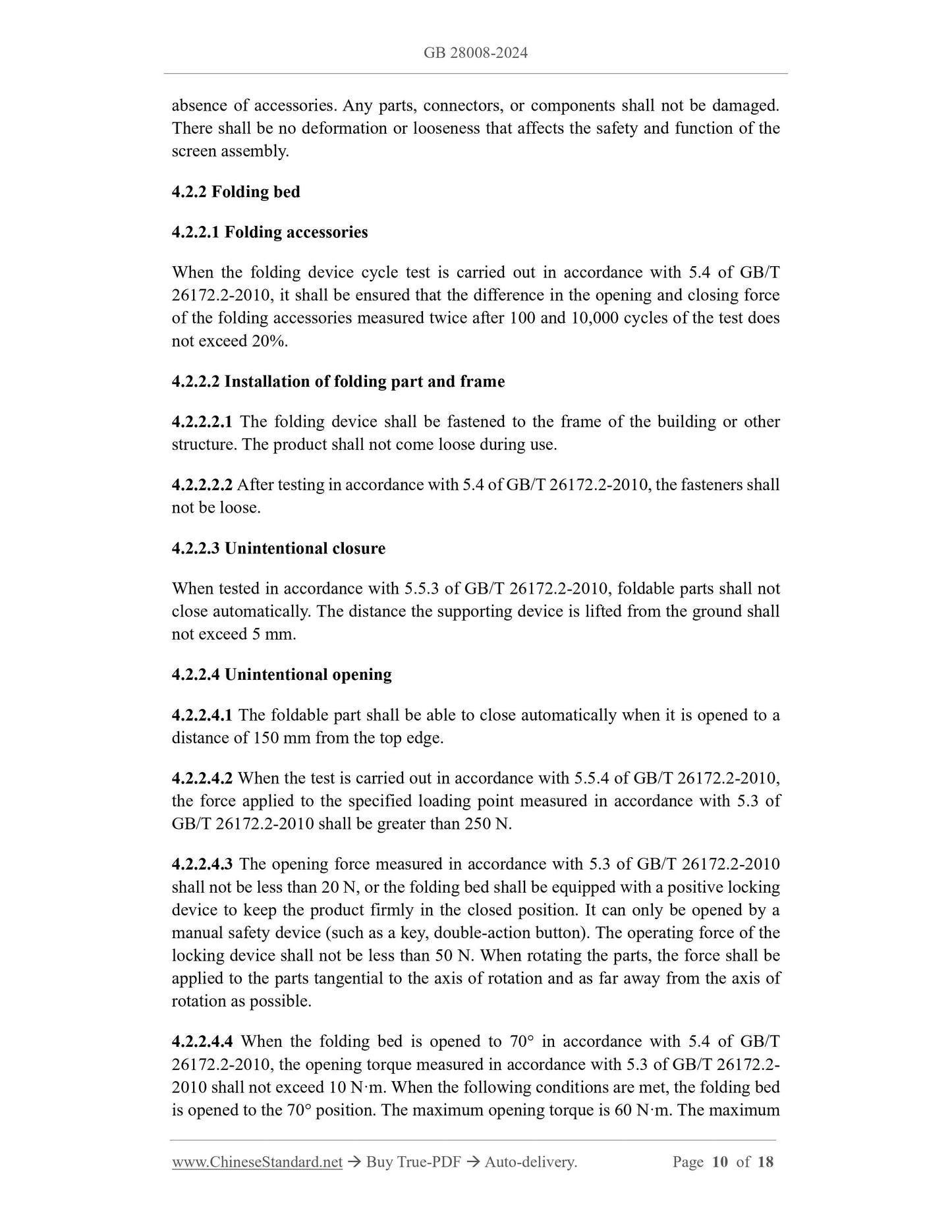

4.2.2 Folding bed
4.2.2.1 Folding accessories
When the folding device cycle test is carried out in accordance with 5.4 of GB/T
26172.2-2010, it shall be ensured that the difference in the opening and closing force
of the folding accessories measured twice after 100 and 10,000 cycles of the test does
not exceed 20%.
4.2.2.2 Installation of folding part and frame
4.2.2.2.1 The folding device shall be fastened to the frame of the building or other
structure. The product shall not come loose during use.
4.2.2.2.2 After testing in accordance with 5.4 of GB/T 26172.2-2010, the fasteners shall
not be loose.
4.2.2.3 Unintentional closure
When tested in accordance with 5.5.3 of GB/T 26172.2-2010, foldable parts shall not
close automatically. The distance the supporting device is lifted from the ground shall
not exceed 5 mm.
4.2.2.4 Unintentional opening
4.2.2.4.1 The foldable part shall be able to close automatically when it is opened to a
distance of 150 mm from the top edge.
4.2.2.4.2 When the test is carried out in accordance with 5.5.4 of GB/T 26172.2-2010,
the force applied to the specified loading point measured in accordance with 5.3 of
GB/T 26172.2-2010 shall be greater than 250 N.
4.2.2.4.3 The opening force measured in accordance with 5.3 of GB/T 26172.2-2010
shall not be less than ...
