GB 38263-2019: The norm of energy consumption per unit throughput of cement products

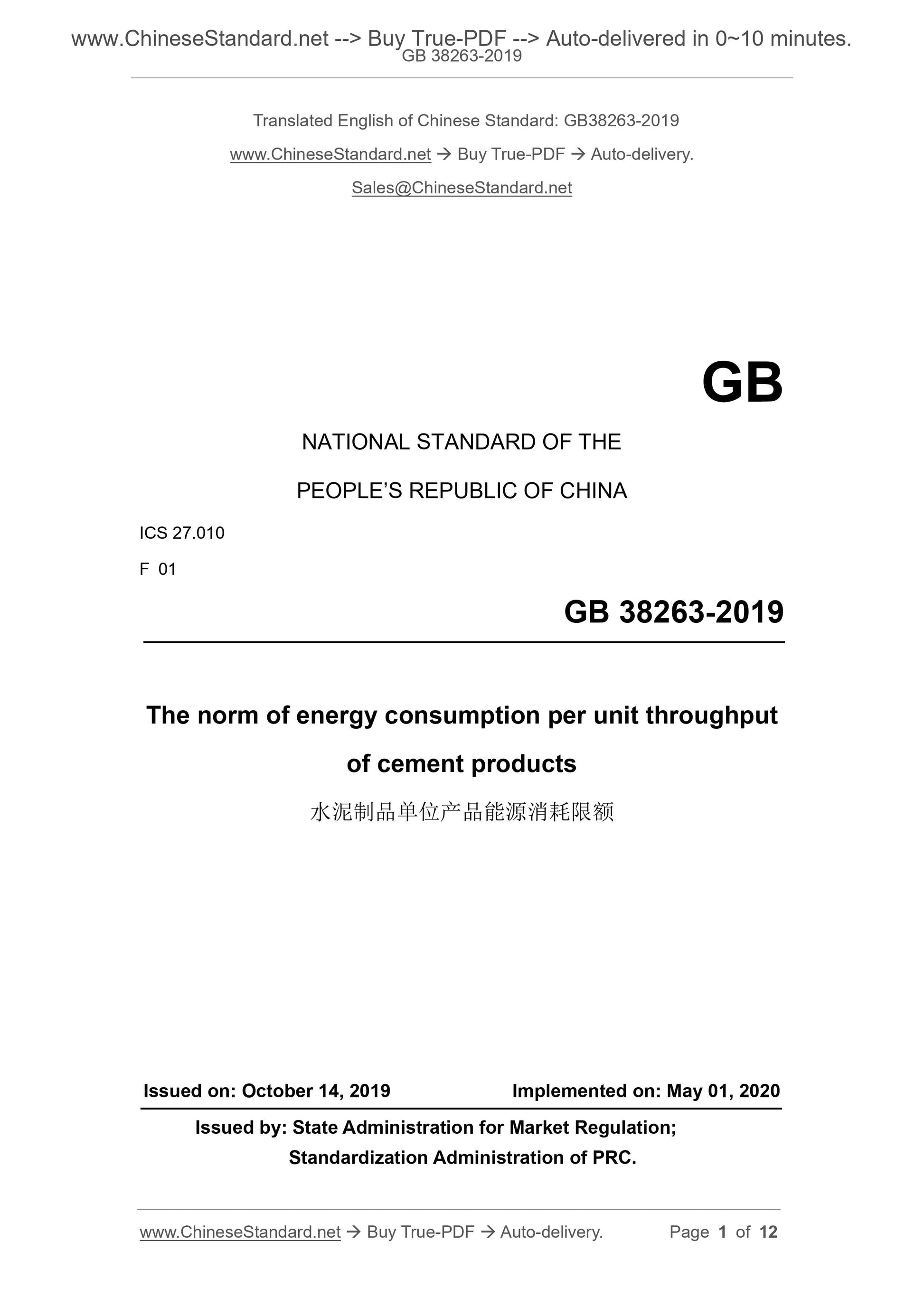

GB 38263-2019
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.010
F 01
The norm of energy consumption per unit throughput
of cement products
ISSUED ON: OCTOBER 14, 2019
IMPLEMENTED ON: MAY 01, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of PRC.

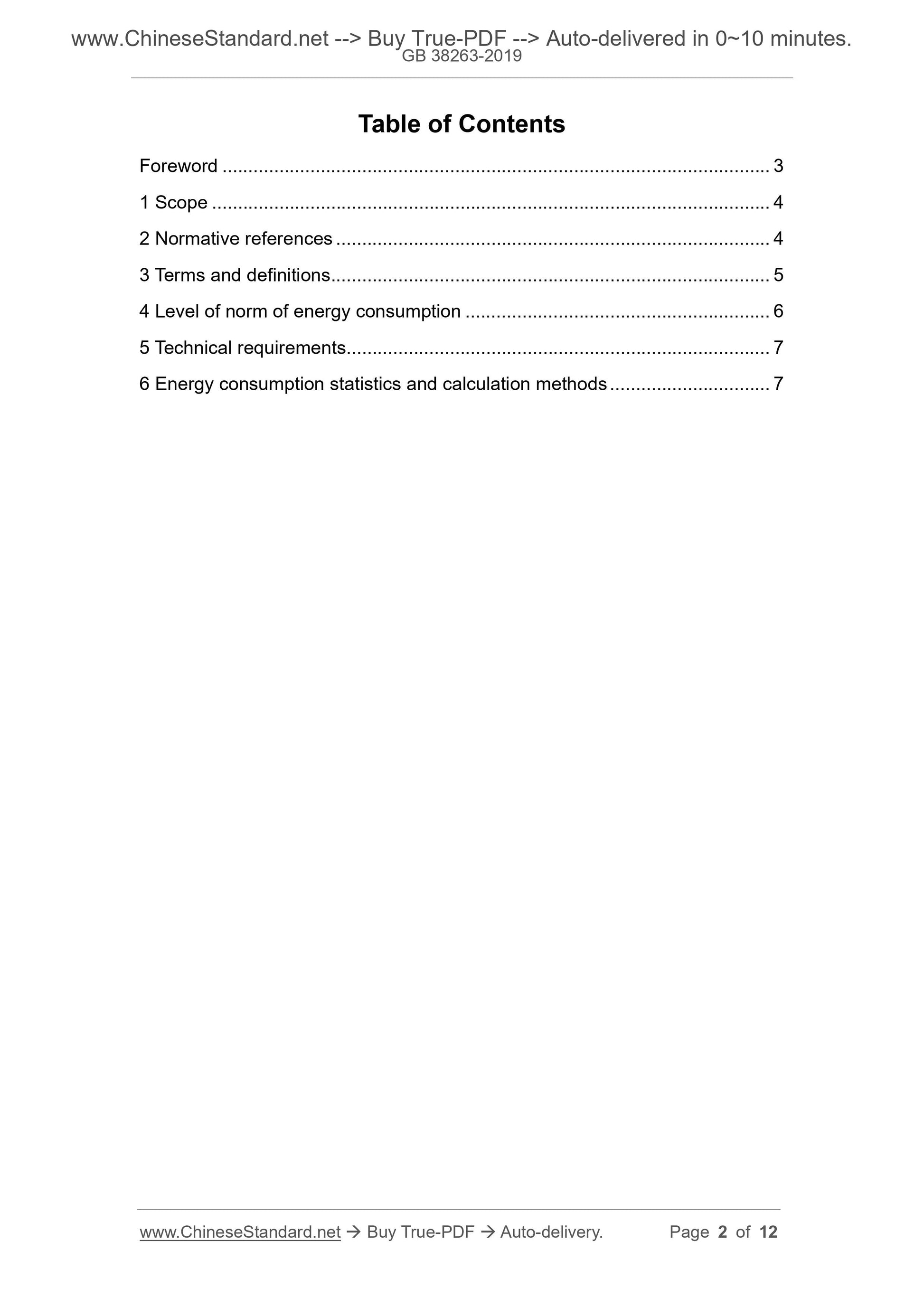

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Level of norm of energy consumption ... 6
5 Technical requirements ... 7
6 Energy consumption statistics and calculation methods ... 7

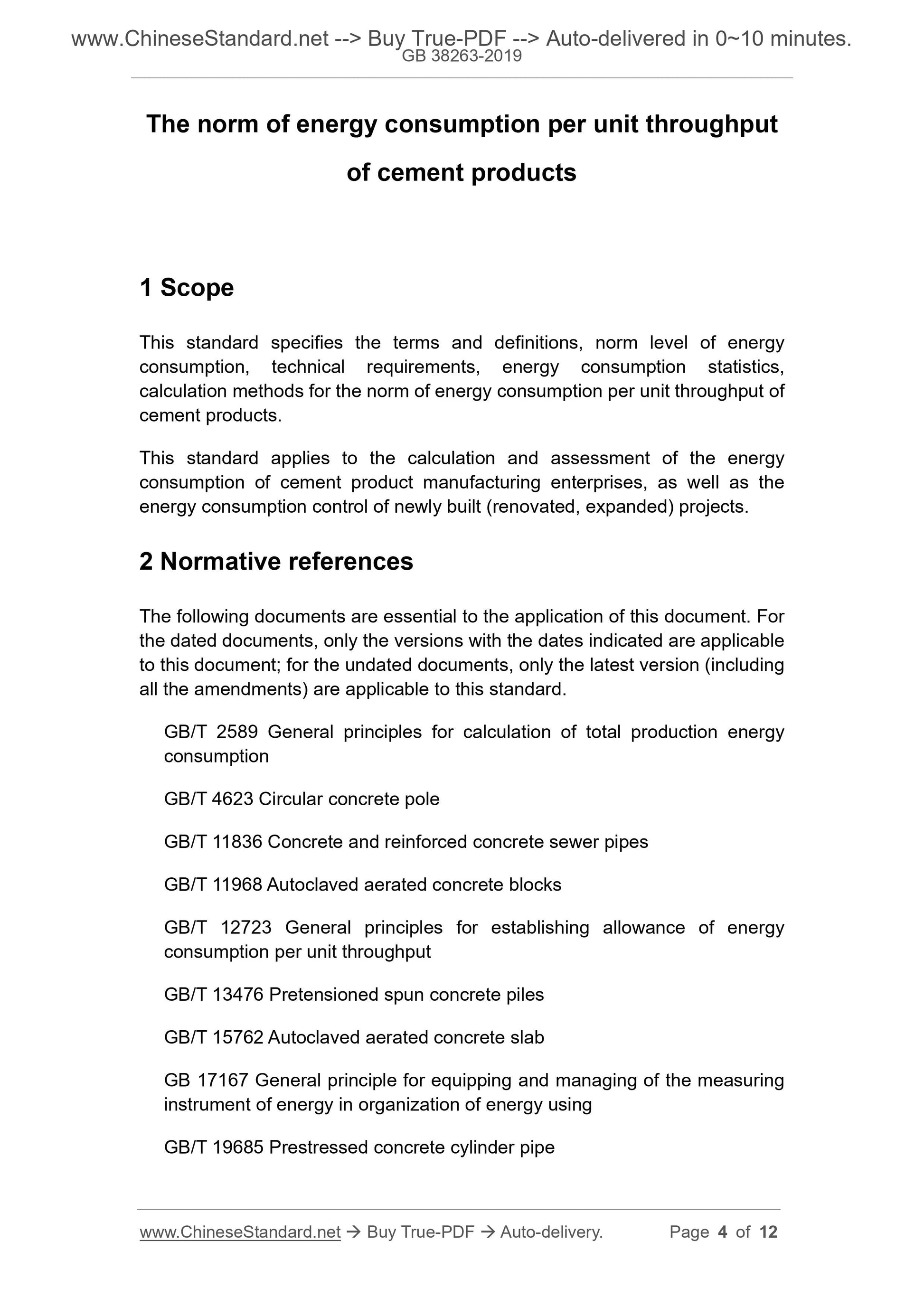

The norm of energy consumption per unit throughput
of cement products
1 Scope
This standard specifies the terms and definitions, norm level of energy
consumption, technical requirements, energy consumption statistics,
calculation methods for the norm of energy consumption per unit throughput of
cement products.
This standard applies to the calculation and assessment of the energy
consumption of cement product manufacturing enterprises, as well as the
energy consumption control of newly built (renovated, expanded) projects.
2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) are applicable to this standard.
GB/T 2589 General principles for calculation of total production energy
consumption
GB/T 4623 Circular concrete pole
GB/T 11836 Concrete and reinforced concrete sewer pipes
GB/T 11968 Autoclaved aerated concrete blocks
GB/T 12723 General principles for establishing allowance of energy
consumption per unit throughput
GB/T 13476 Pretensioned spun concrete piles
GB/T 15762 Autoclaved aerated concrete slab
GB 17167 General principle for equipping and managing of the measuring
instrument of energy in organization of energy using
GB/T 19685 Prestressed concrete cylinder pipe
GB/T 22082 Reinforced concrete segments
GB/T 31039 Pre-tensioned prestressed centrifugal concrete shaped pile
JC/T 412.1 Fiber cement flat sheets - Part 1: Non-asbestos fiber cement flat
sheets
JC/T 412.2 Fiber cement flat sheets - Part 2: Asbestos fiber cement flat
sheets
JC/T 564.1 Fiber reinforced calcium silicate boards. Part 1: Non-asbestos
calcium silicate boards
JC/T 564.2 Fiber reinforced calcium silicate boards - Part 2: Asbestos
calcium silicate boards
JC/T 2029 Precast prestressed spun concrete square piles

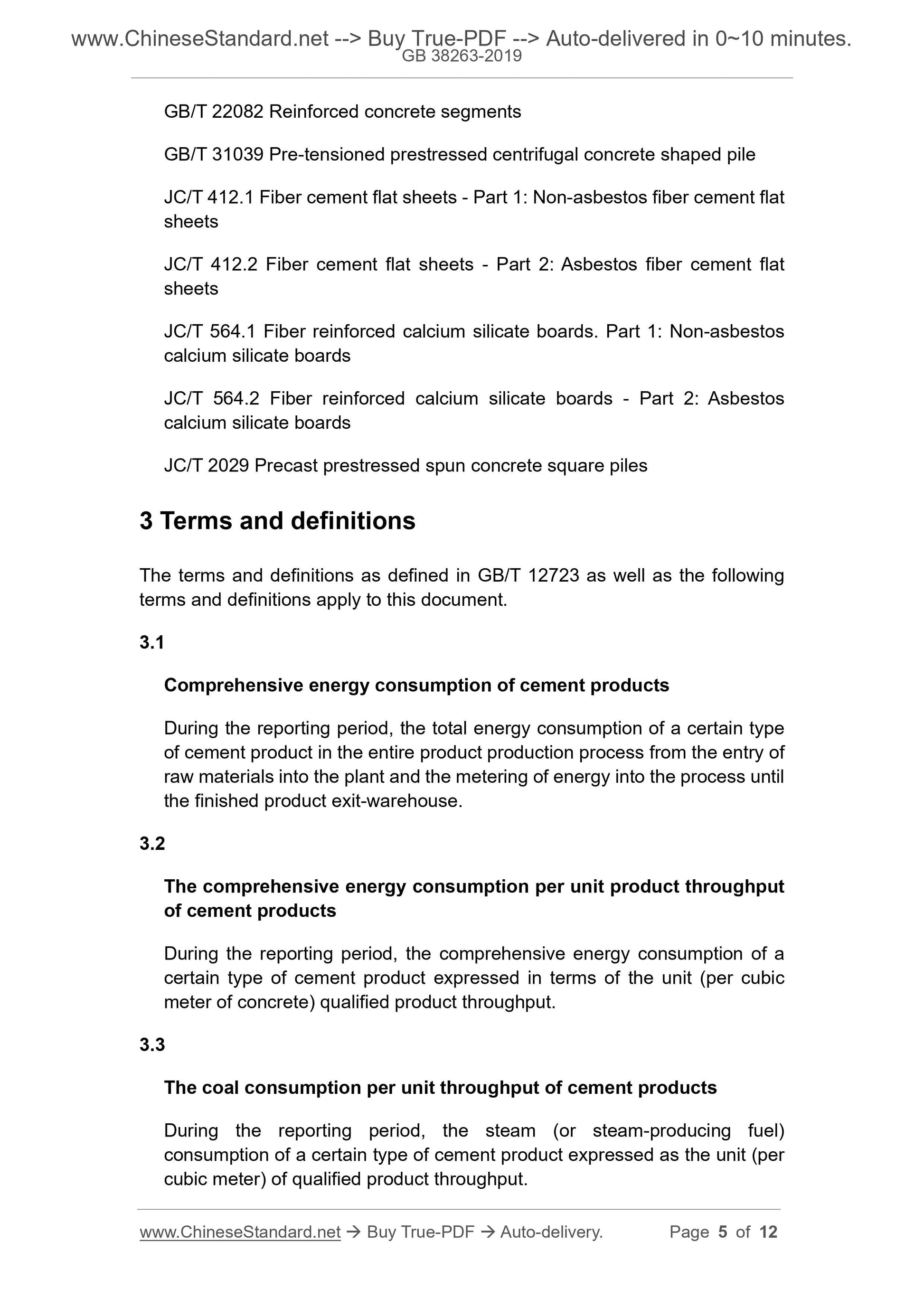

3 Terms and definitions
The terms and definitions as defined in GB/T 12723 as well as the following
terms and definitions apply to this document.
3.1
Comprehensive energy consumption of cement products
During the reporting period, the total energy consumption of a certain type
of cement product in the entire product production process from the entry of
raw materials into the plant and the metering of energy into the process until
the finished product exit-warehouse.
3.2
The comprehensive energy consumption per unit product throughput
of cement products
During the reporting period, the comprehensive energy consumption of a
certain type of cement product expressed in terms of the unit (per cubic
meter of concrete) qualified product throughput.
3.3
The coal consumption per unit throughput of cement products
During the reporting period, the steam (or steam-producing fuel)
consumption of a certain type of cement product expressed as the unit (per
cubic meter) of qualified product throughput.

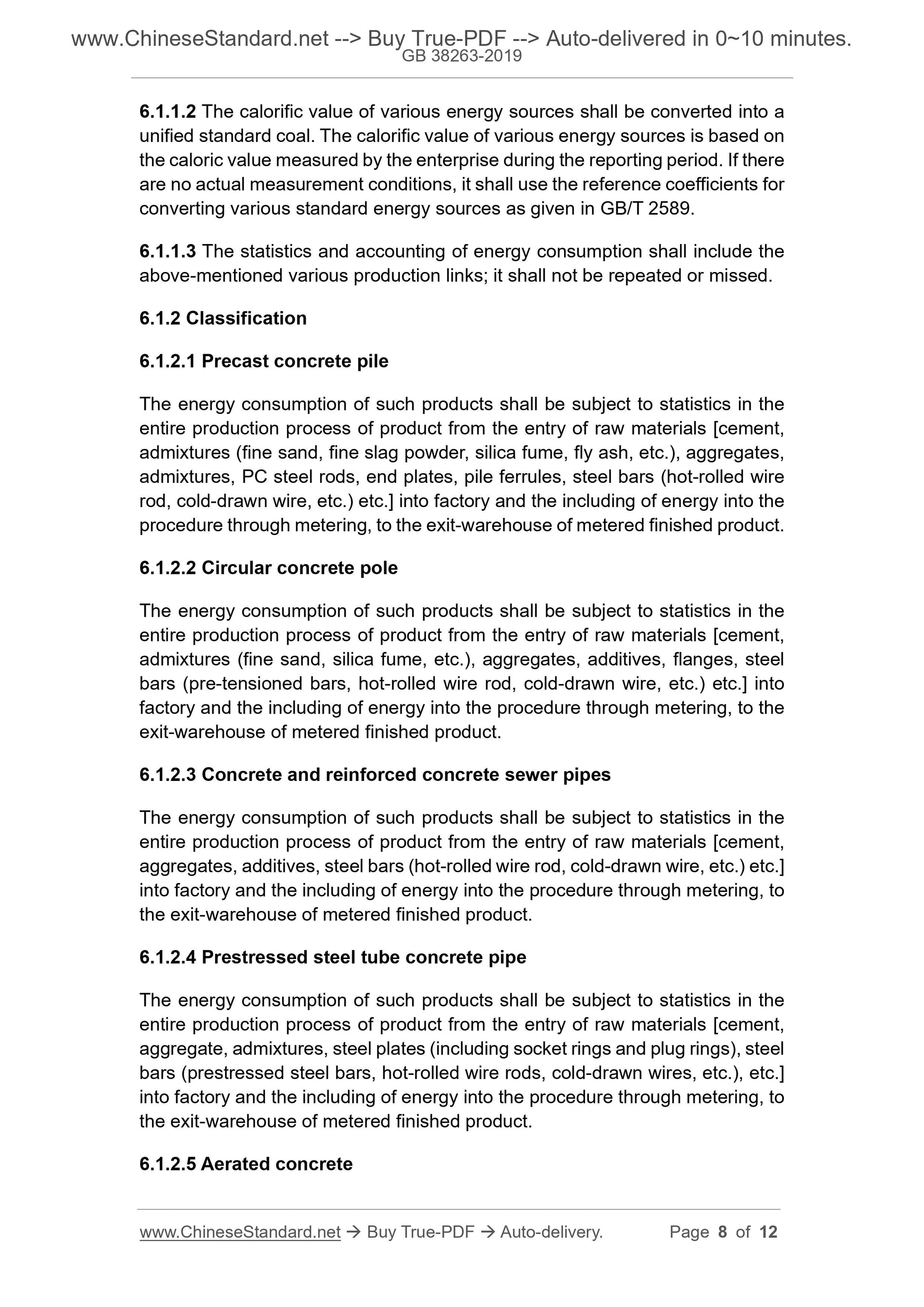

6.1.1.2 The calorific value of various energy sources shall be converted into a
unified standard coal. The calorific value of various energy sources is based on
the caloric value measured by the enterprise during the reporting period. If there
are no actual measurement conditions, it shall use the reference coefficients for
converting various standard energy sources as given in GB/T 2589.
6.1.1.3 The statistics and accounting of energy consumption shall include the
above-mentioned various production links; it shall not be repeated or missed.
6.1.2 Classification
6.1.2.1 Precast concrete pile
The energy consumption of such products shall be subject to statistics in the
entire production process of product from the entry of raw materials [cement,
admixtures (fine sand, fine slag powder, silica fume, fly ash, etc.), aggregates,
admixtures, PC steel rods, end plates, pile ferrules, steel bars (hot-rolled wire
rod, cold-drawn wire, etc.) etc.] into factory and the including of energy into the
procedure through metering, to the exit-warehouse of metered finished product.
6.1.2.2 Circular concrete pole
The energy consumption of such products shall be subject to statistics in the
entire production process of product from the entry of raw materials [cement,
admixtures (fine sand, silica fume, etc.), aggregates, additives, flanges, steel
bars (pre-tensioned bars, hot-rolled wire rod, cold-drawn wire, etc.) etc.] into
factory and the including of energy into the procedure through metering, to the
exit-warehouse of metered finished product.
6.1.2.3 Concrete and reinforced concrete sewer pipes
The energy consumption of such products shall be subject to statistics in the
entire production process of product from the entry of raw materials [cement,
aggregates, additives, steel bars (hot-rolled wire rod, cold-drawn wire, etc.) etc.]
into factory and the including of energy into the procedure through metering, to
the exit-warehouse of metered finished product.
6.1.2.4 Prestressed steel tube concrete pipe
The energy consumption of such products shall be subject to statistics in the
entire production process of product from the entry of raw materials [cement,
aggregate, admixtures, steel plates (including socket rings and plug rings), steel
bars (prestressed steel bars, hot-rolled wire rods, cold-drawn wires, etc.), etc.]
into factory and the including of energy into the procedure through metering, to
the exit-warehouse of metered finished product.
6.1.2.5 Aerated concrete

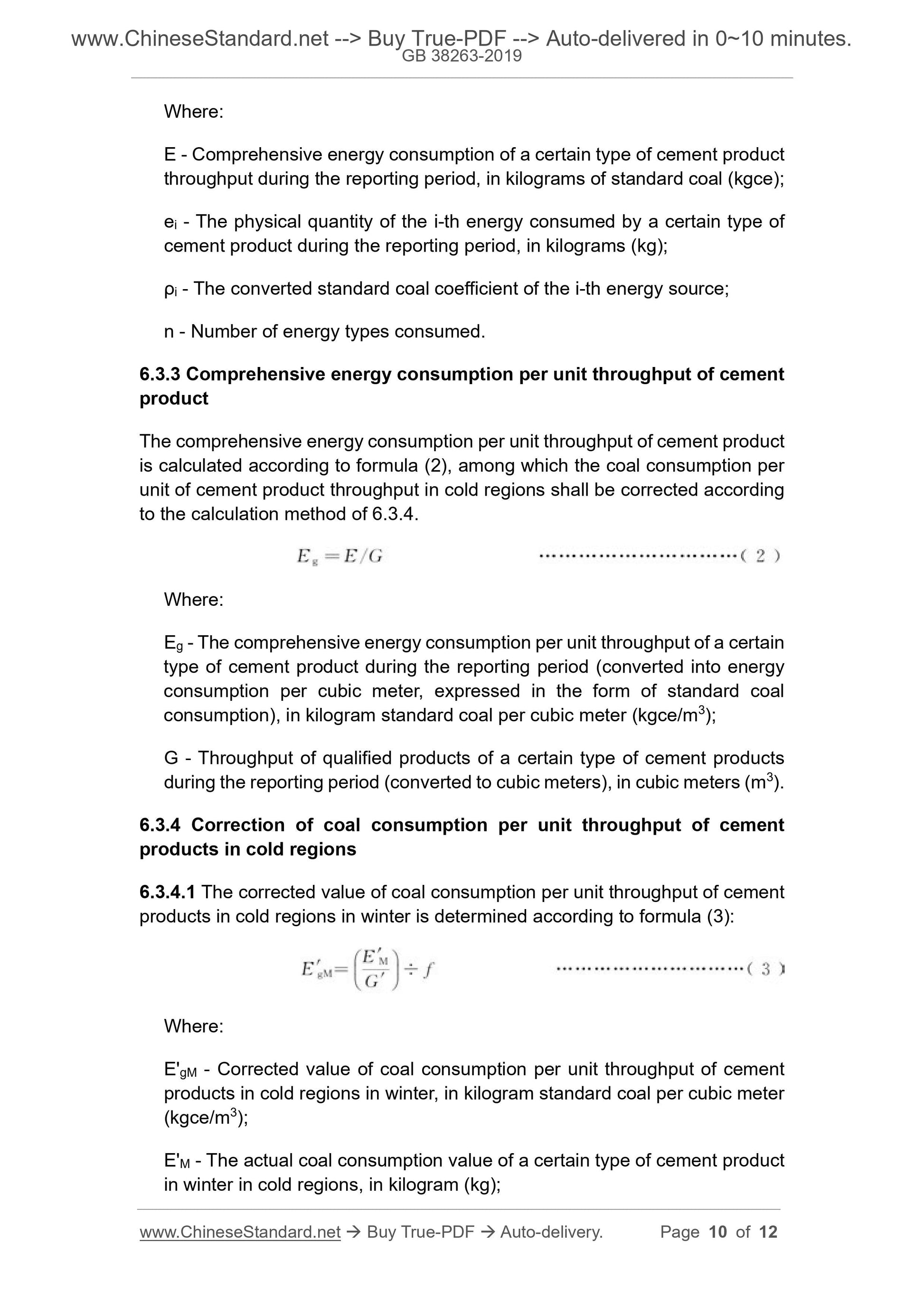

Where:
E - Comprehensive energy consumption of a certain type of cement product
throughput during the reporting period, in kilograms of standard coal (kgce);
ei - The physical quantity of the i-th energy consumed by a certain type of
cement product during the reporting period, in kilograms (kg);
ρi - The converted standard coal coefficient of the i-th energy source;
n - Number of energy types consumed.
6.3.3 Comprehensive energy consumption per unit throughput of cement
product
The comprehensive energy consumption per unit throughput of cement product
is calculated according to formula (2), among which the coal consumption per
unit of cement product throughput in cold regions shall be corrected according
to the calculation method of 6.3.4.
Where:
Eg - The comprehensive energy consumption per unit throughput of a certain
type of cement product during the reporting period (converted into energy
consumption per cubic meter, expressed in the form of standard coal
consumption), in kilogram standard coal per cubic meter (kgce/m3);
G - Throughput of qualified products of a certain type of cement products
during the reporting period (converted to cubic meters), in cubic meters (m3).
6.3.4 Correction of coal consumption per unit throughput of cement
products in cold regions
6.3.4.1 The corrected value of coal consum...
