GB 4789.26-2023: National food safety standard - Food microbiological examination - Commercial sterilization

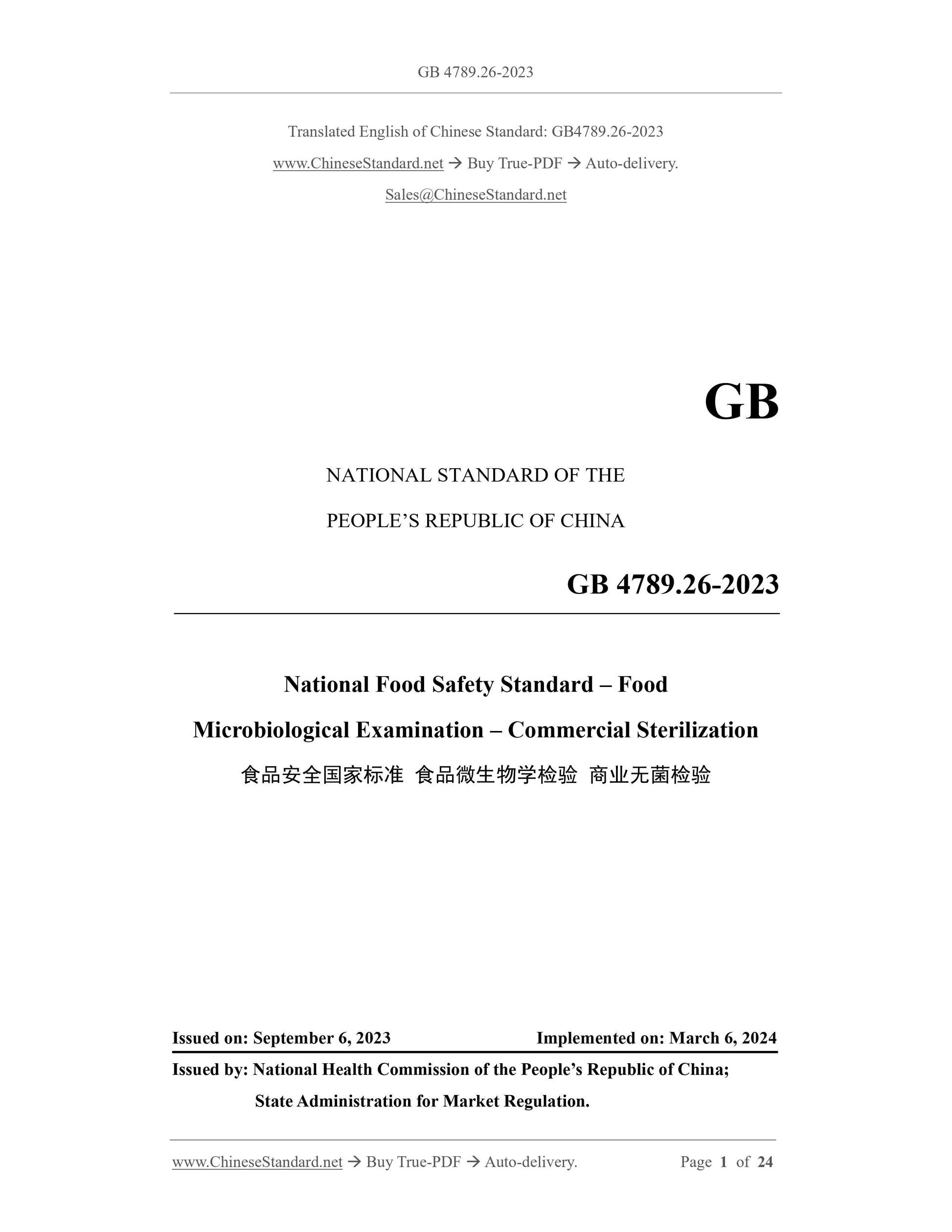

GB 4789.26-2023
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
National Food Safety Standard – Food
Microbiological Examination – Commercial Sterilization
ISSUED ON. SEPTEMBER 6, 2023
IMPLEMENTED ON. MARCH 6, 2024
Issued by. National Health Commission of the People’s Republic of China;
State Administration for Market Regulation.

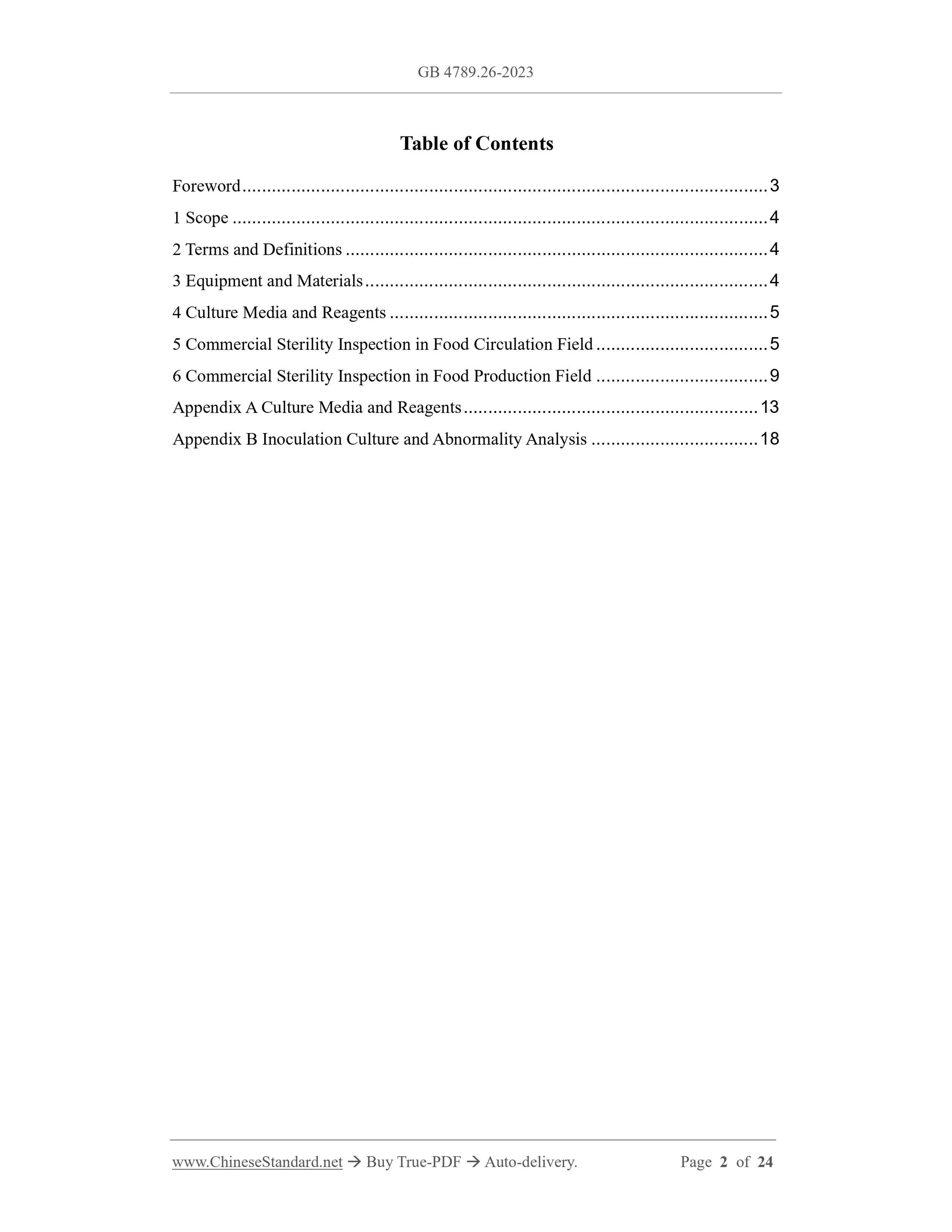

Table of Contents
Foreword... 3
1 Scope... 4
2 Terms and Definitions... 4
3 Equipment and Materials... 4
4 Culture Media and Reagents... 5
5 Commercial Sterility Inspection in Food Circulation Field... 5
6 Commercial Sterility Inspection in Food Production Field... 9
Appendix A Culture Media and Reagents... 13
Appendix B Inoculation Culture and Abnormality Analysis... 18

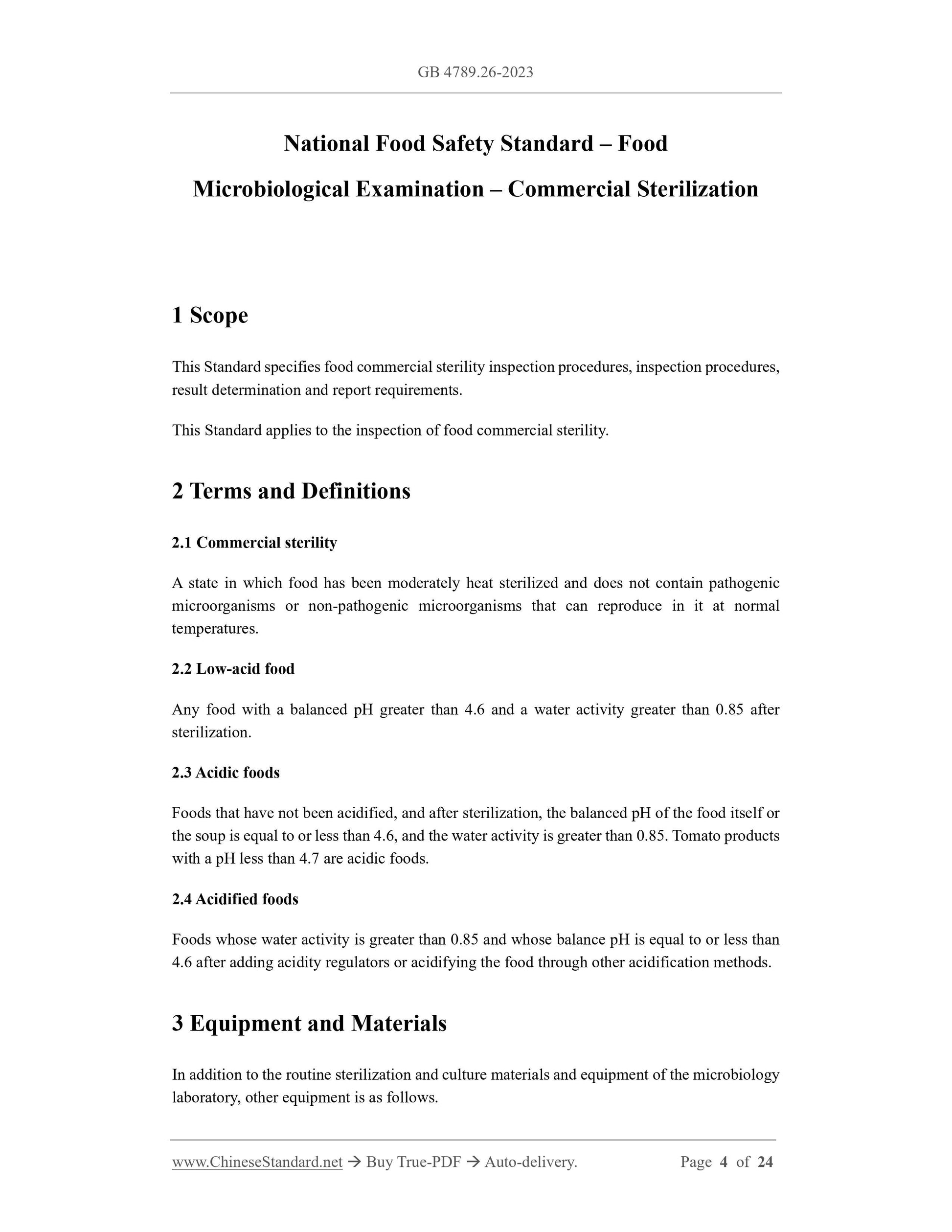

National Food Safety Standard – Food
Microbiological Examination – Commercial Sterilization
1 Scope
This Standard specifies food commercial sterility inspection procedures, inspection procedures,
result determination and report requirements.
This Standard applies to the inspection of food commercial sterility.
2 Terms and Definitions
2.1 Commercial sterility
A state in which food has been moderately heat sterilized and does not contain pathogenic
microorganisms or non-pathogenic microorganisms that can reproduce in it at normal
temperatures.
2.2 Low-acid food
Any food with a balanced pH greater than 4.6 and a water activity greater than 0.85 after
sterilization.
2.3 Acidic foods
Foods that have not been acidified, and after sterilization, the balanced pH of the food itself or
the soup is equal to or less than 4.6, and the water activity is greater than 0.85.Tomato products
with a pH less than 4.7 are acidic foods.
2.4 Acidified foods
Foods whose water activity is greater than 0.85 and whose balance pH is equal to or less than
4.6 after adding acidity regulators or acidifying the food through other acidification methods.
3 Equipment and Materials
In addition to the routine sterilization and culture materials and equipment of the microbiology
laboratory, other equipment is as follows.

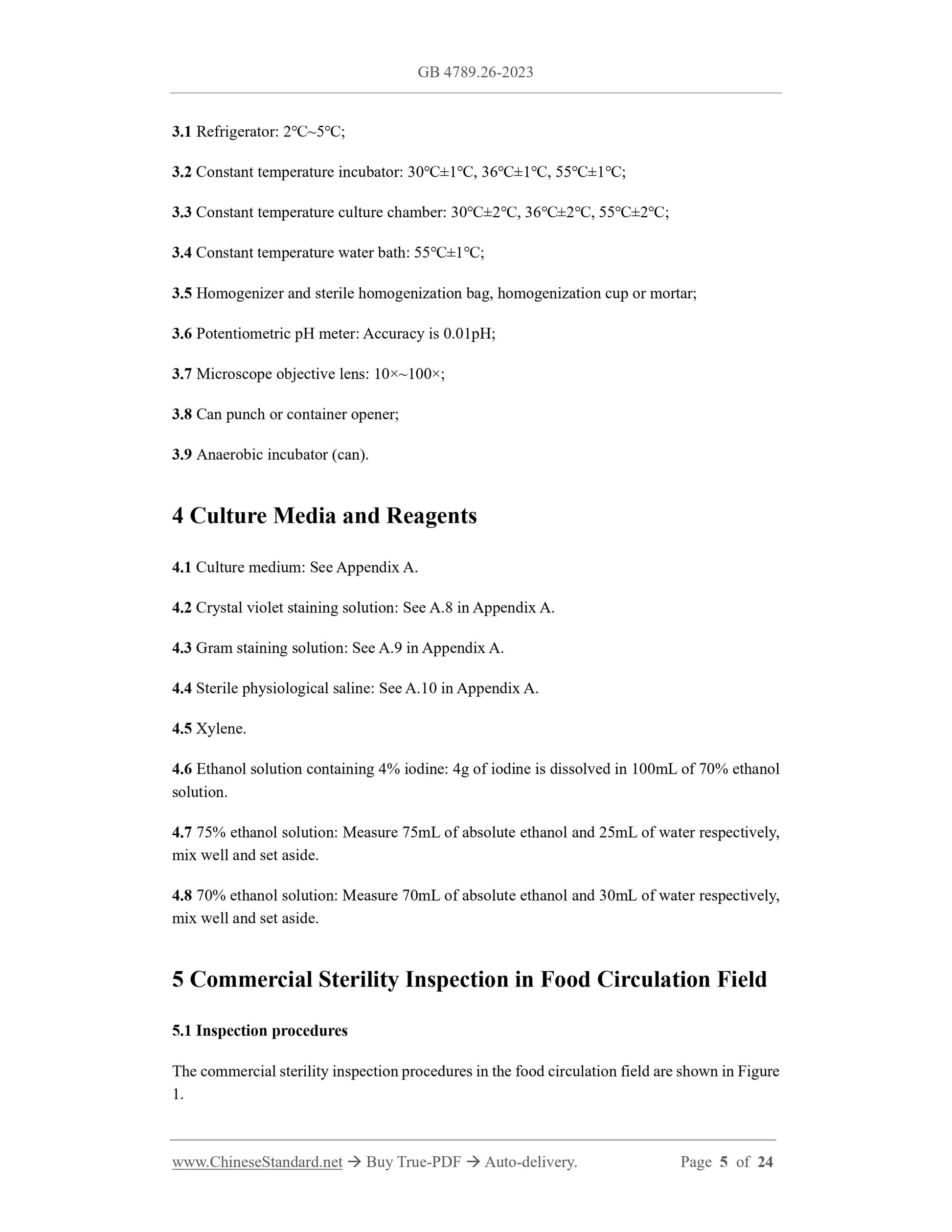

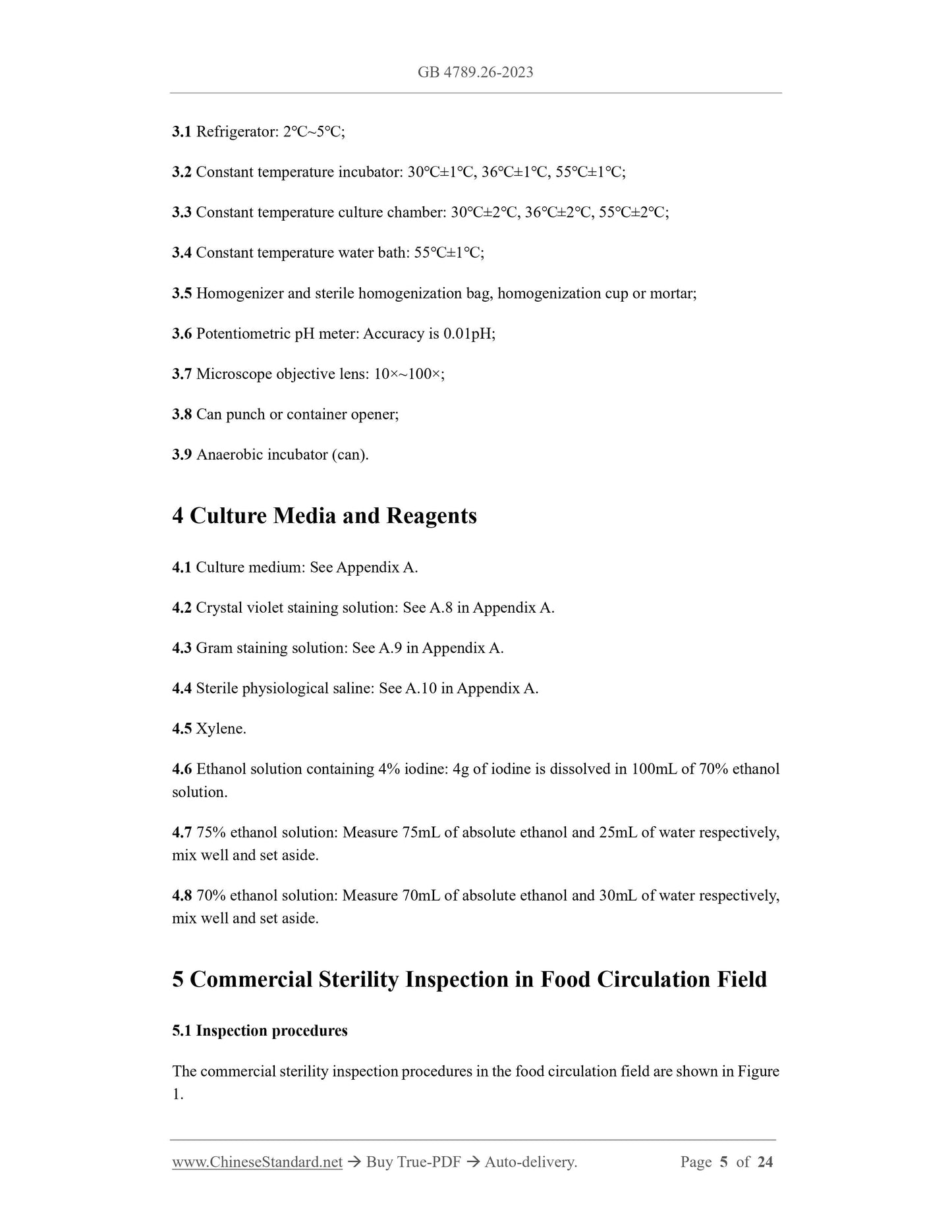

3.1 Refrigerator. 2℃~5℃;
3.2 Constant temperature incubator. 30℃±1℃, 36℃±1℃, 55℃±1℃;
3.3 Constant temperature culture chamber. 30℃±2℃, 36℃±2℃, 55℃±2℃;
3.4 Constant temperature water bath. 55℃±1℃;
3.5 Homogenizer and sterile homogenization bag, homogenization cup or mortar;
3.6 Potentiometric pH meter. Accuracy is 0.01pH;
3.7 Microscope objective lens. 10×~100×;
3.8 Can punch or container opener;
3.9 Anaerobic incubator (can).
4 Culture Media and Reagents
4.1 Culture medium. See Appendix A.
4.2 Crystal violet staining solution. See A.8 in Appendix A.
4.3 Gram staining solution. See A.9 in Appendix A.
4.4 Sterile physiological saline. See A.10 in Appendix A.
4.5 Xylene.
4.6 Ethanol solution containing 4% iodine. 4g of iodine is dissolved in 100mL of 70% ethanol
solution.
4.7 75% ethanol solution. Measure 75mL of absolute ethanol and 25mL of water respectively,
mix well and set aside.
4.8 70% ethanol solution. Measure 70mL of absolute ethanol and 30mL of water respectively,
mix well and set aside.
5 Commercial Sterility Inspection in Food Circulation Field
5.1 Inspection procedures
The commercial sterility inspection procedures in the food circulation field are shown in Figure
1.

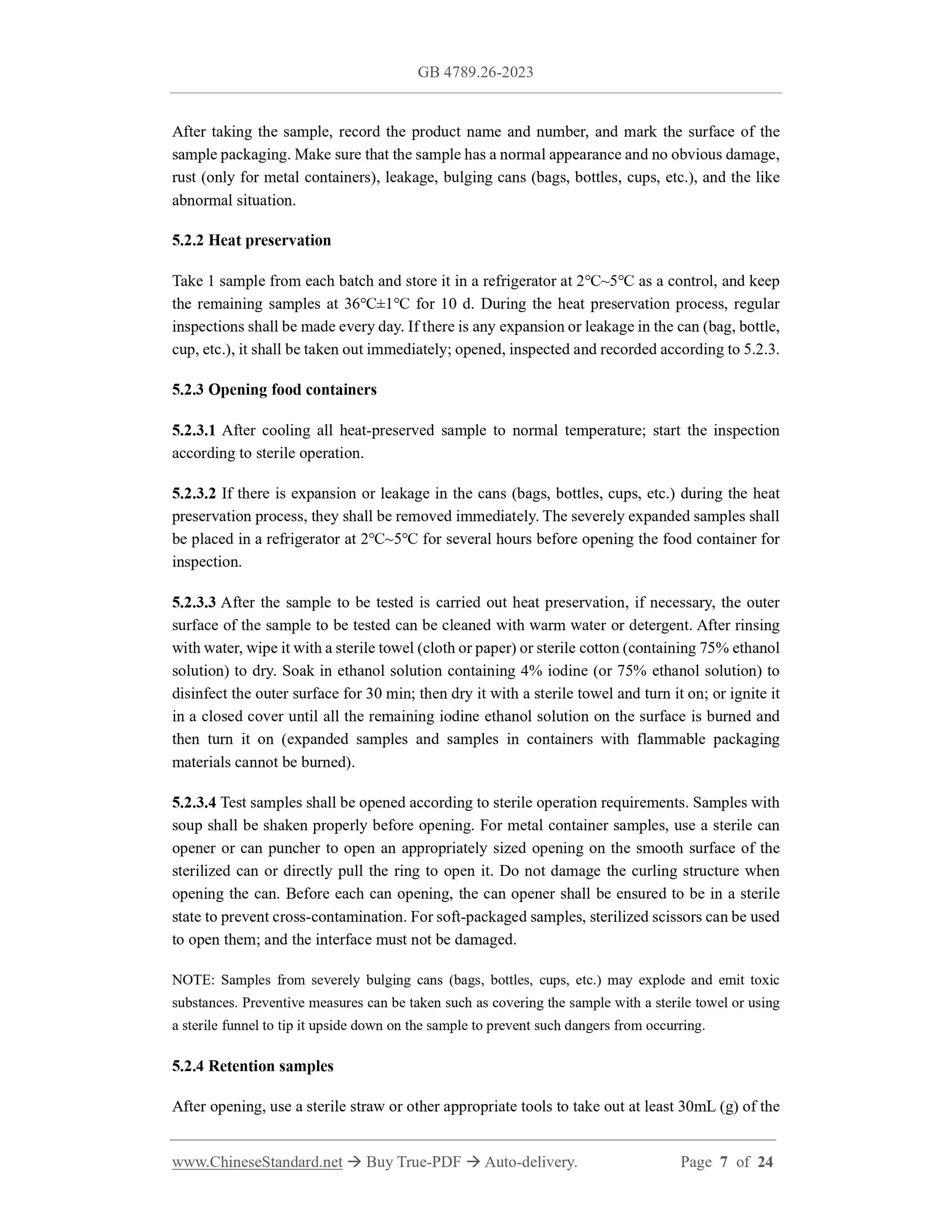

After taking the sample, record the product name and number, and mark the surface of the
sample packaging. Make sure that the sample has a normal appearance and no obvious damage,
rust (only for metal containers), leakage, bulging cans (bags, bottles, cups, etc.), and the like
abnormal situation.
5.2.2 Heat preservation
Take 1 sample from each batch and store it in a refrigerator at 2℃~5℃ as a control, and keep
the remaining samples at 36℃±1℃ for 10 d. During the heat preservation process, regular
inspections shall be made every day. If there is any expansion or leakage in the can (bag, bottle,
cup, etc.), it shall be taken out immediately; opened, inspected and recorded according to 5.2.3.
5.2.3 Opening food containers
5.2.3.1 After cooling all heat-preserved sample to normal temperature; start the inspection
according to sterile operation.
5.2.3.2 If there is expansion or leakage in the cans (bags, bottles, cups, etc.) during the heat
preservation process, they shall be removed immediately. The severely expanded samples shall
be placed in a refrigerator at 2℃~5℃ for several hours before opening the food container for
inspection.
5.2.3.3 After the sample to be tested is carried out heat preservation, if necessary, the outer
surface of the sample to be tested can be cleaned with warm water or detergent. After rinsing
with water, wipe it with a sterile towel (cloth or paper) or sterile cotton (containing 75% ethanol
solution) to dry. Soak in ethanol solution containing 4% iodine (or 75% ethanol solution) to
disinfect the outer surface for 30 min; then dry it with a sterile towel and turn it on; or ignite it
in a closed cover until all the remaining iodine ethanol solution on the surface is burned and
then turn it on (expanded samples and samples in containers with flammable packaging
materials cannot be burned).
5.2.3.4 Test samples shall be opened according to sterile operation requirements. Samples with
soup shall be shaken properly before opening. For metal container samples, use a sterile can
opener or can puncher to open an appropriately sized opening on the smooth surface of the
sterilized can or directly pull the ring to open it. Do not damage the curling structure when
opening the can. Before each can opening, the can opener shall be ensured to be in a sterile
state to prevent cross-contamination. For soft-packaged samples, sterilized scissors can be used
to open them; and the interface must not be damaged.
NOTE. Samples from severely bulging cans (bags, bottles, cups, etc.) may explode and emit toxic
substances. Preventive measures can be taken such as covering the sample with a sterile towel or using
a sterile funnel to tip it upside down on the sample to prevent such dangers from occurring.
5.2.4 Retention samples
After opening, use a sterile straw or other appropriate tools to take out at least 30mL (g) of the
contents into a sterilized container from a sterile operation; and store it in a refrigerator at 2°C
~ 5°C. It can be used for further testing when necessary. The sample can be discarded after
reaching the test conclusion.

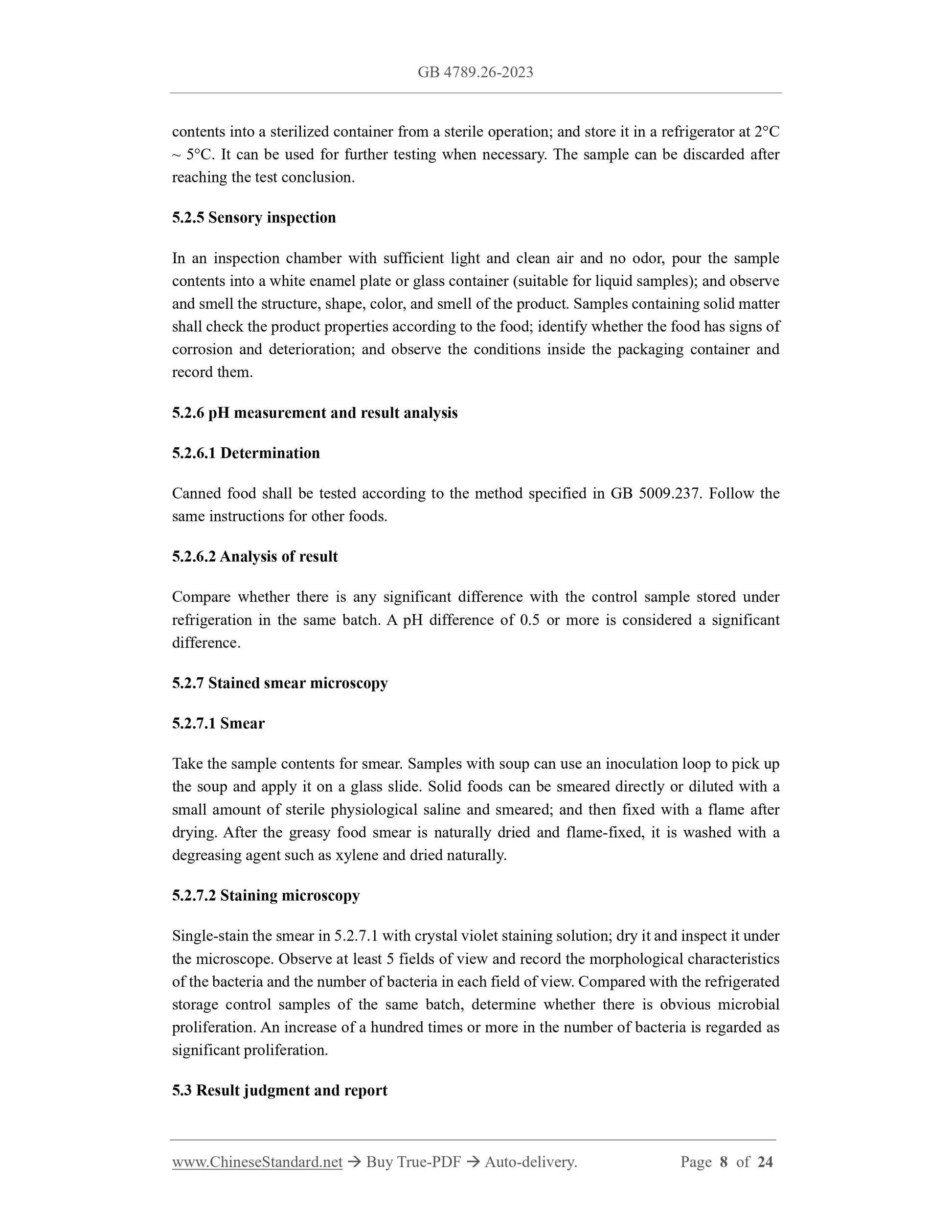

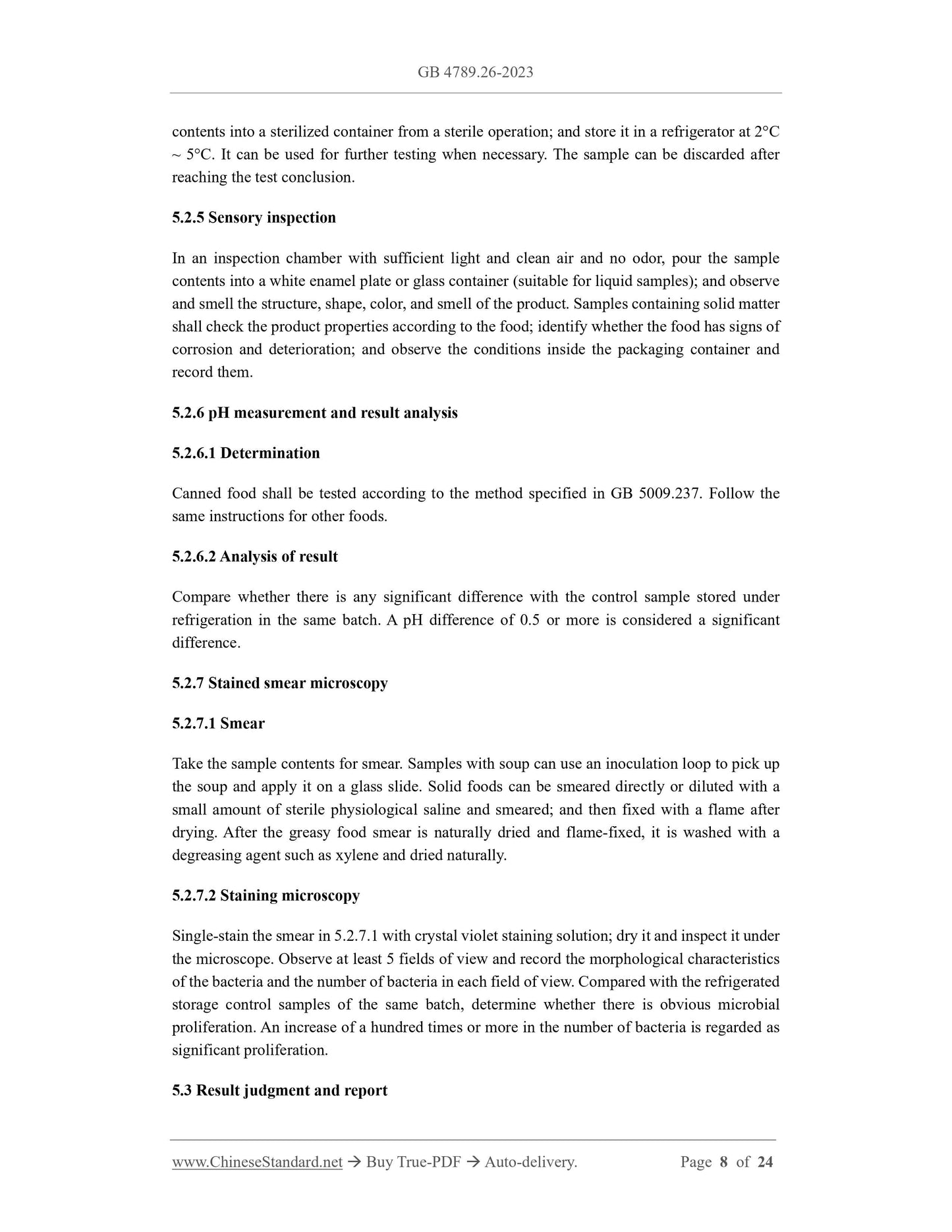

5.2.5 Sensory inspection
In an inspection chamber with sufficient light and clean air and no odor, pour the sample
contents into a white enamel plate or glass container (suitable for liquid samples); and observe
and smell the structure, shape, color, and smell of the product. Samples containing solid matter
shall check the product properties according to the food; identify whether the food has signs of
corrosion and deterioration; and observe the conditions inside the packaging container and
record them.
5.2.6 pH measurement and result analysis
5.2.6.1 Determination
Canned food shall be tested according to the method specified in GB 5009.237.Follow the
same instructions for other foods.
5.2.6.2 Analysis of result
Compare whether there is any significant difference with the control sample stored under
refrigeration in the same batch. A pH difference of 0.5 or more is considered a significant
difference.
5.2.7 Stained smear microscopy
5.2.7.1 Smear
Take the sample contents for smear. Samples with soup can use an inoculation loop to pick up
the sou...
