GB/T 1174-2022: Cast bearing alloy

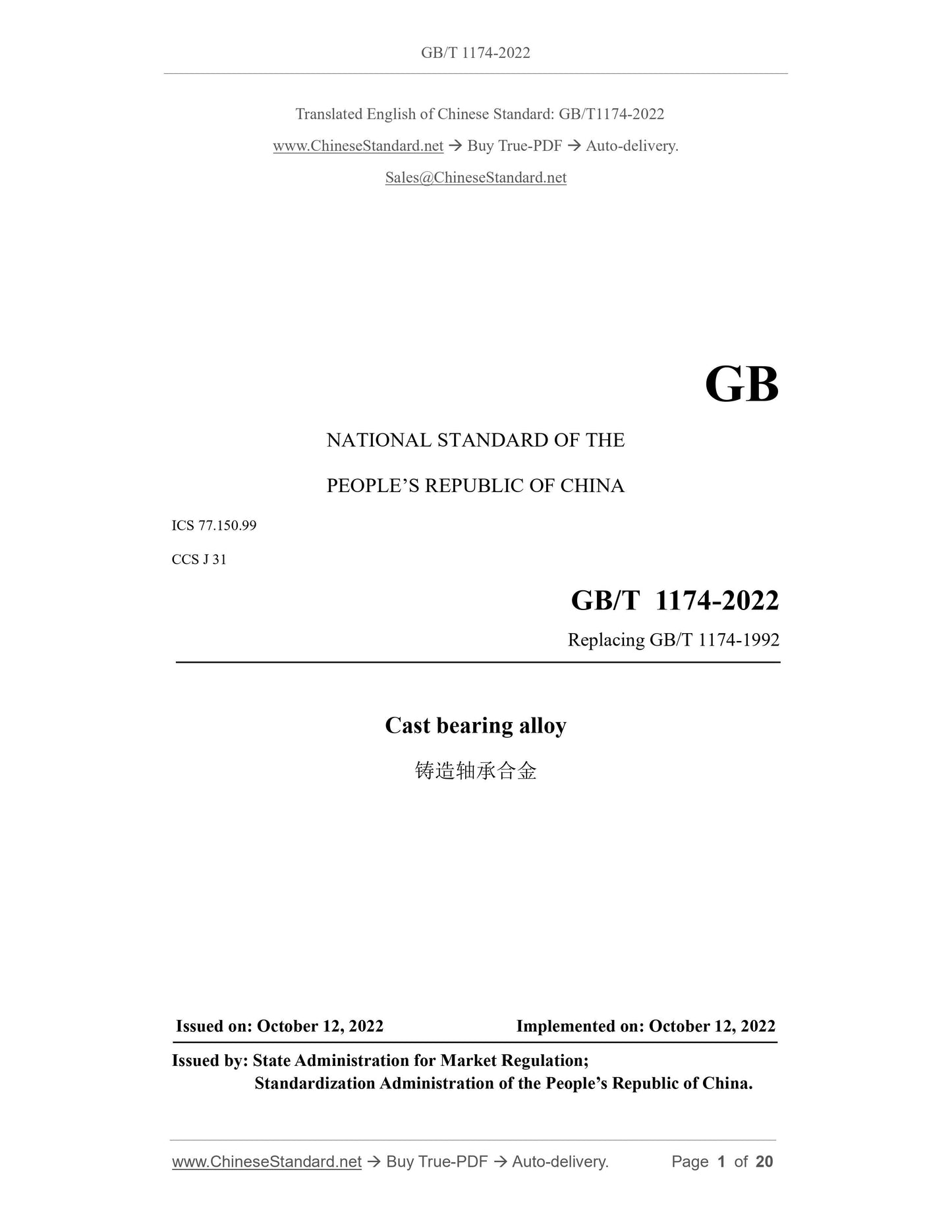

GB/T 1174-2022
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.99
CCS J 31
Replacing GB/T 1174-1992
Cast bearing alloy
ISSUED ON: OCTOBER 12, 2022
IMPLEMENTED ON: OCTOBER 12, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

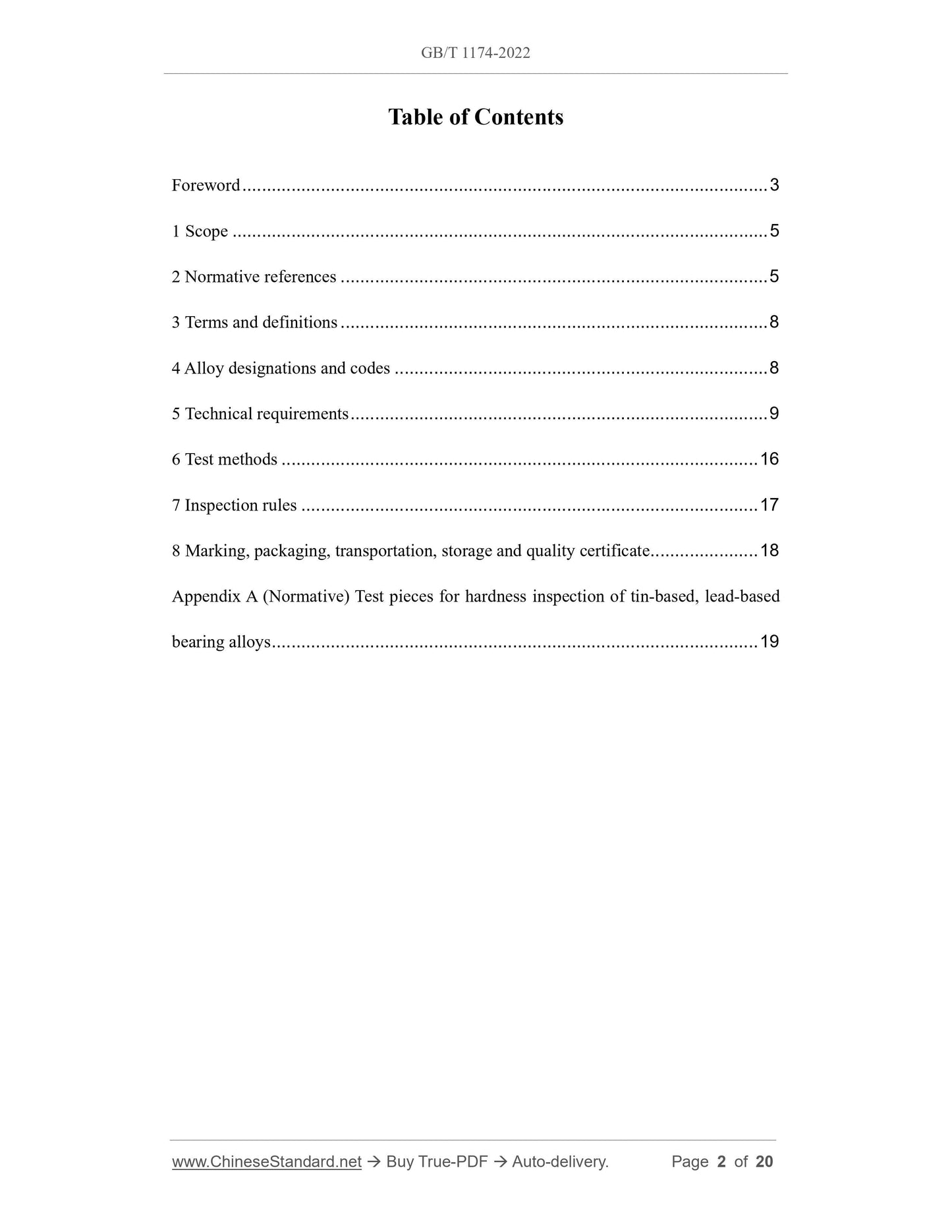

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 8
4 Alloy designations and codes ... 8
5 Technical requirements ... 9
6 Test methods ... 16
7 Inspection rules ... 17
8 Marking, packaging, transportation, storage and quality certificate ... 18
Appendix A (Normative) Test pieces for hardness inspection of tin-based, lead-based
bearing alloys ... 19

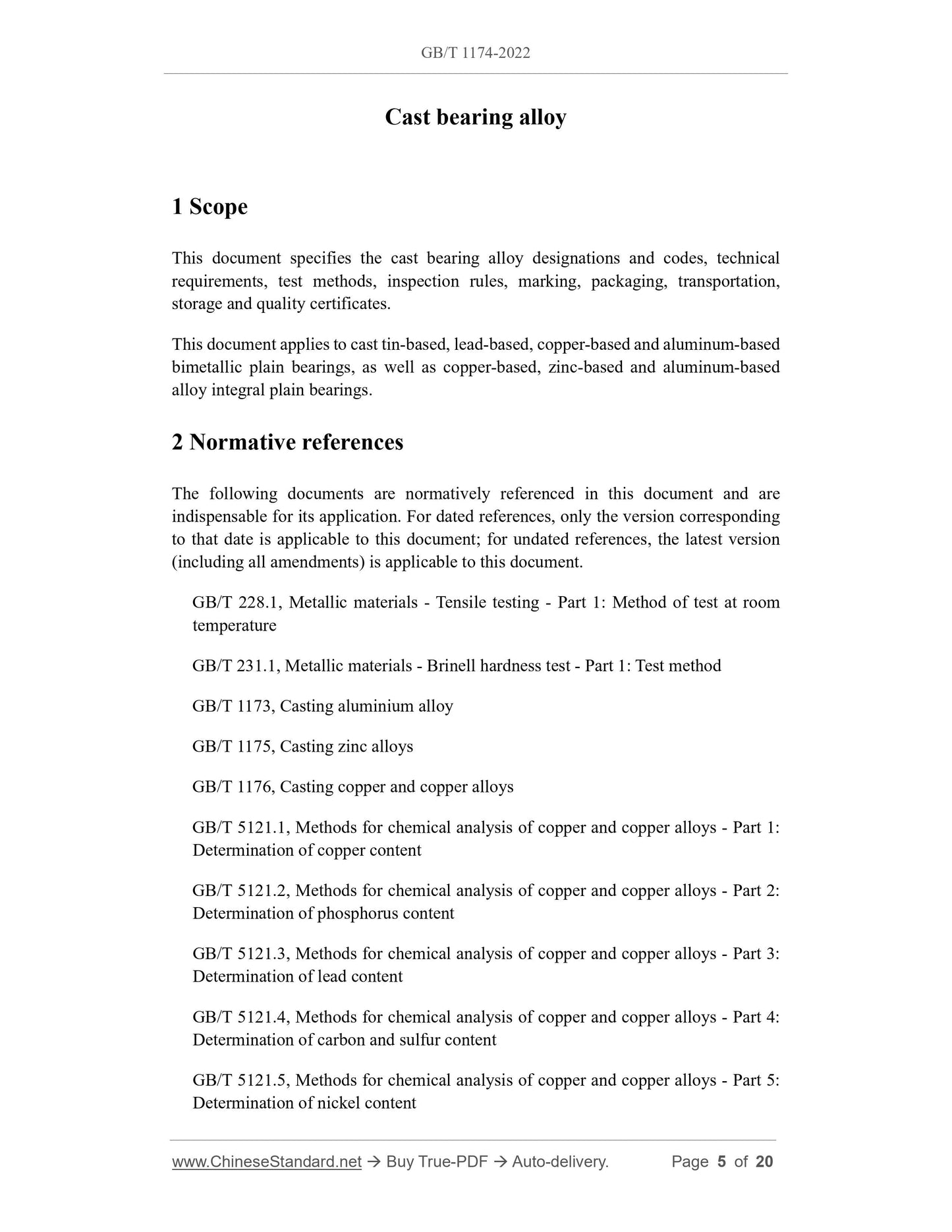

Cast bearing alloy
1 Scope
This document specifies the cast bearing alloy designations and codes, technical
requirements, test methods, inspection rules, marking, packaging, transportation,
storage and quality certificates.
This document applies to cast tin-based, lead-based, copper-based and aluminum-based
bimetallic plain bearings, as well as copper-based, zinc-based and aluminum-based
alloy integral plain bearings.
2 Normative references
The following documents are normatively referenced in this document and are
indispensable for its application. For dated references, only the version corresponding
to that date is applicable to this document; for undated references, the latest version
(including all amendments) is applicable to this document.
GB/T 228.1, Metallic materials - Tensile testing - Part 1: Method of test at room
temperature
GB/T 231.1, Metallic materials - Brinell hardness test - Part 1: Test method
GB/T 1173, Casting aluminium alloy
GB/T 1175, Casting zinc alloys
GB/T 1176, Casting copper and copper alloys
GB/T 5121.1, Methods for chemical analysis of copper and copper alloys - Part 1:
Determination of copper content
GB/T 5121.2, Methods for chemical analysis of copper and copper alloys - Part 2:
Determination of phosphorus content
GB/T 5121.3, Methods for chemical analysis of copper and copper alloys - Part 3:
Determination of lead content
GB/T 5121.4, Methods for chemical analysis of copper and copper alloys - Part 4:
Determination of carbon and sulfur content
GB/T 5121.5, Methods for chemical analysis of copper and copper alloys - Part 5:
Determination of nickel content

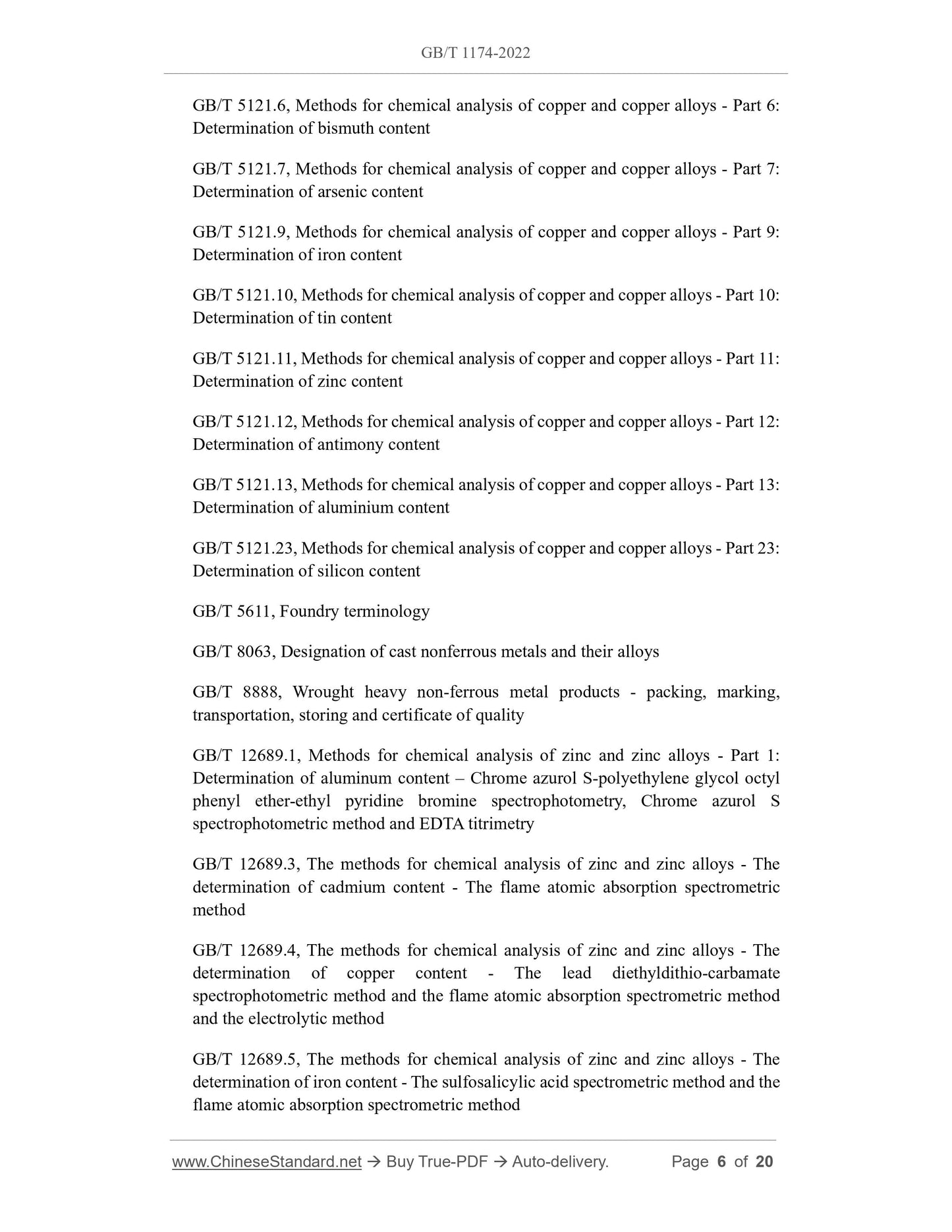

GB/T 5121.6, Methods for chemical analysis of copper and copper alloys - Part 6:
Determination of bismuth content
GB/T 5121.7, Methods for chemical analysis of copper and copper alloys - Part 7:
Determination of arsenic content
GB/T 5121.9, Methods for chemical analysis of copper and copper alloys - Part 9:
Determination of iron content
GB/T 5121.10, Methods for chemical analysis of copper and copper alloys - Part 10:
Determination of tin content
GB/T 5121.11, Methods for chemical analysis of copper and copper alloys - Part 11:
Determination of zinc content
GB/T 5121.12, Methods for chemical analysis of copper and copper alloys - Part 12:
Determination of antimony content
GB/T 5121.13, Methods for chemical analysis of copper and copper alloys - Part 13:
Determination of aluminium content
GB/T 5121.23, Methods for chemical analysis of copper and copper alloys - Part 23:
Determination of silicon content
GB/T 5611, Foundry terminology
GB/T 8063, Designation of cast nonferrous metals and their alloys
GB/T 8888, Wrought heavy non-ferrous metal products - packing, marking,
transportation, storing and certificate of quality
GB/T 12689.1, Methods for chemical analysis of zinc and zinc alloys - Part 1:
Determination of aluminum content – Chrome azurol S-polyethylene glycol octyl
phenyl ether-ethyl pyridine bromine spectrophotometry, Chrome azurol S
spectrophotometric method and EDTA titrimetry
GB/T 12689.3, The methods for chemical analysis of zinc and zinc alloys - The
determination of cadmium content - The flame atomic absorption spectrometric
method
GB/T 12689.4, The methods for chemical analysis of zinc and zinc alloys - The
determination of copper content - The lead diethyldithio-carbamate
spectrophotometric method and the flame atomic absorption spectrometric method
and the electrolytic method
GB/T 12689.5, The methods for chemical analysis of zinc and zinc alloys - The
determination of iron content - The sulfosalicylic acid spectrometric method and the
flame atomic absorption spectrometric method

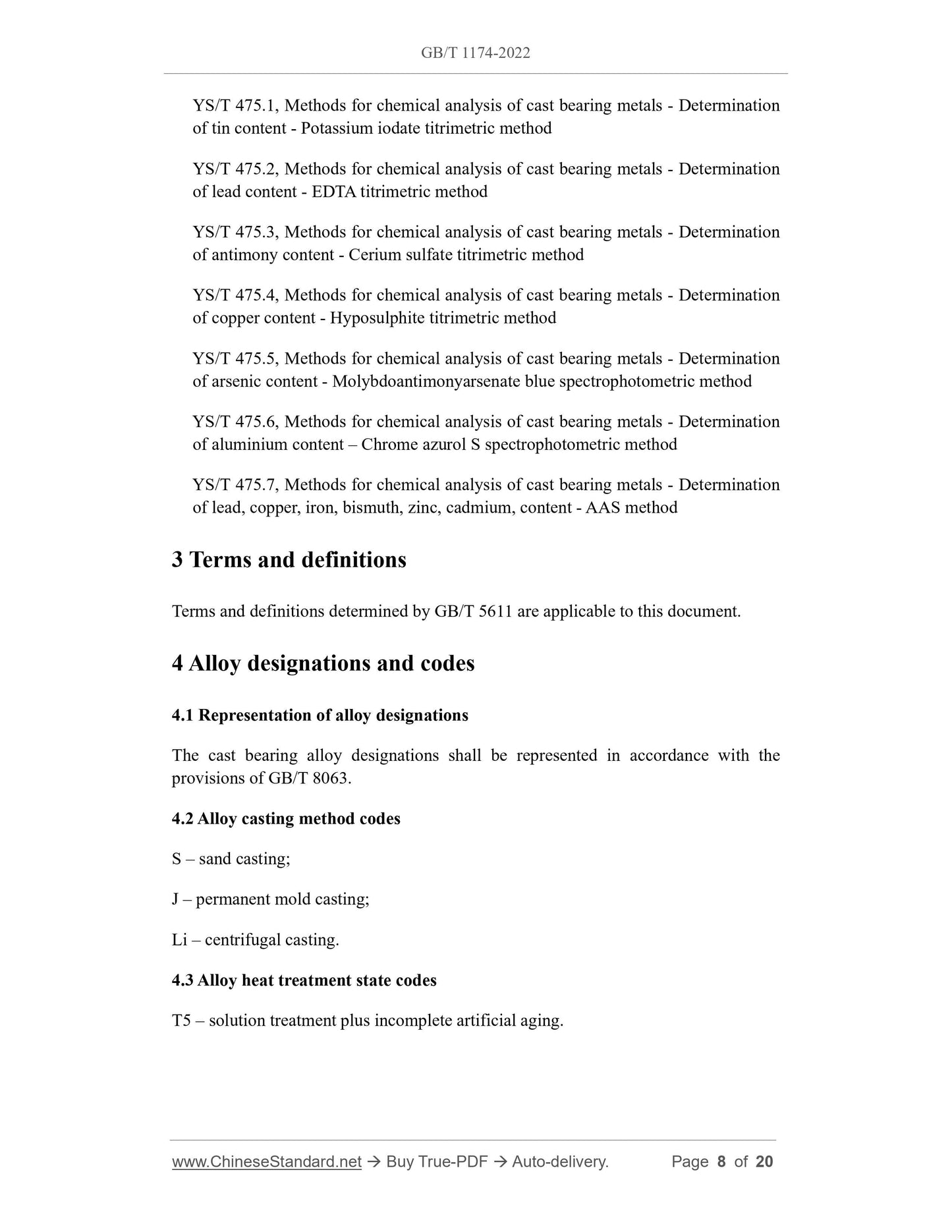

YS/T 475.1, Methods for chemical analysis of cast bearing metals - Determination
of tin content - Potassium iodate titrimetric method
YS/T 475.2, Methods for chemical analysis of cast bearing metals - Determination
of lead content - EDTA titrimetric method
YS/T 475.3, Methods for chemical analysis of cast bearing metals - Determination
of antimony content - Cerium sulfate titrimetric method
YS/T 475.4, Methods for chemical analysis of cast bearing metals - Determination
of copper content - Hyposulphite titrimetric method
YS/T 475.5, Methods for chemical analysis of cast bearing metals - Determination
of arsenic content - Molybdoantimonyarsenate blue spectrophotometric method
YS/T 475.6, Methods for chemical analysis of cast bearing metals - Determination
of aluminium content – Chrome azurol S spectrophotometric method
YS/T 475.7, Methods for chemical analysis of cast bearing metals - Determination
of lead, copper, iron, bismuth, zinc, cadmium, content - AAS method
3 Terms and definitions
Terms and definitions determined by GB/T 5611 are applicable to this document.
4 Alloy designations and codes
4.1 Representation of alloy designations
The cast bearing alloy designations shall be represented in accordance with the
provisions of GB/T 8063.
4.2 Alloy casting method codes
S – sand casting;
J – permanent mold casting;
Li – centrifugal casting.
4.3 Alloy heat treatment state codes
T5 – solution treatment plus incomplete artificial aging.

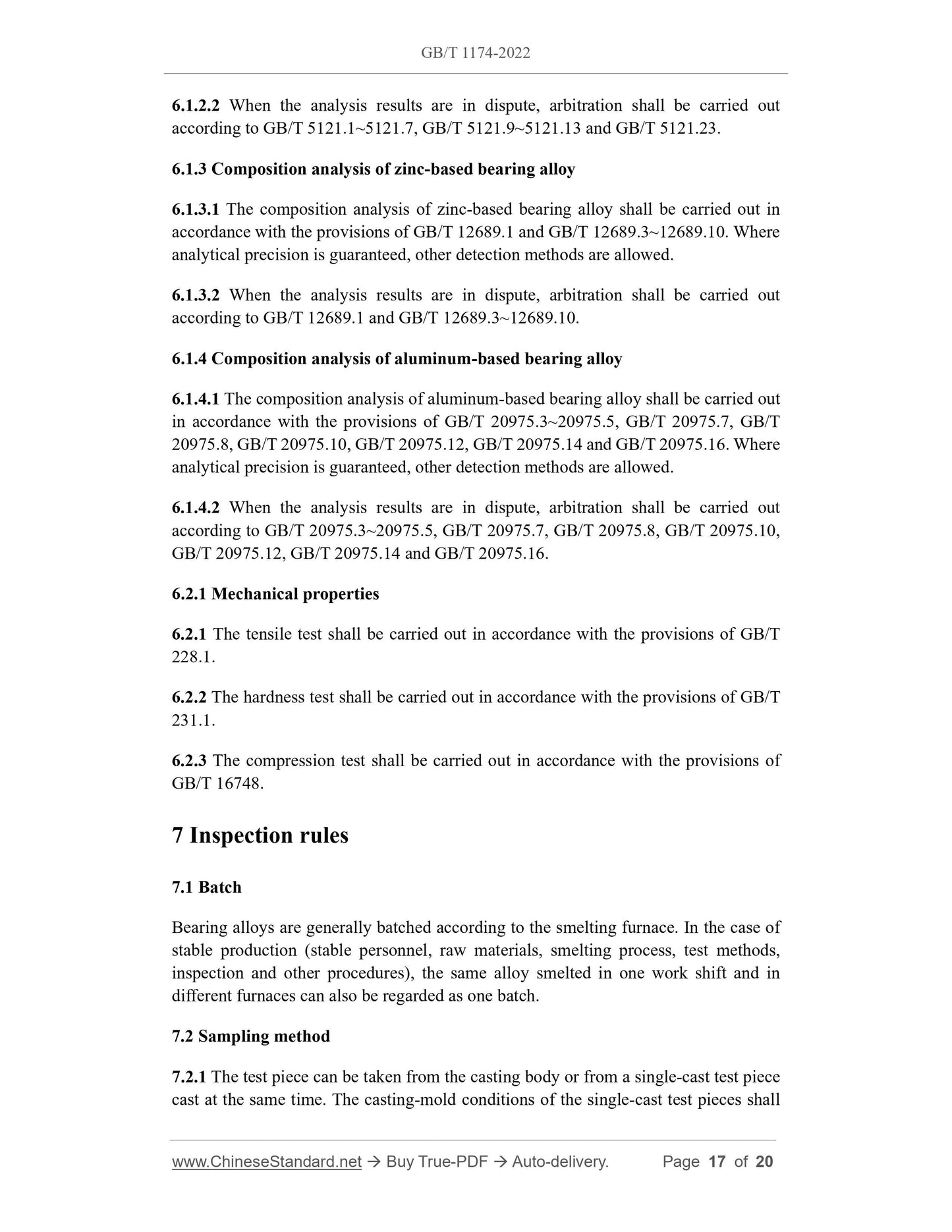

6.1.2.2 When the analysis results are in dispute, arbitration shall be carried out
according to GB/T 5121.1~5121.7, GB/T 5121.9~5121.13 and GB/T 5121.23.
6.1.3 Composition analysis of zinc-based bearing alloy
6.1.3.1 The composition analysis of zinc-based bearing alloy shall be carried out in
accordance with the provisions of GB/T 12689.1 and GB/T 12689.3~12689.10. Where
analytical precision is guaranteed, other detection methods are allowed.
6.1.3.2 When the analysis results are in dispute, arbitration shall be carried out
according to GB/T 12689.1 and GB/T 12689.3~12689.10.
6.1.4 Composition analysis of aluminum-based bearing alloy
6.1.4.1 The composition analysis of aluminum-based bearing alloy shall be carried out
in accordance with the provisions of GB/T 20975.3~20975.5, GB/T 20975.7, GB/T
20975.8, GB/T 20975.10, GB/T 20975.12, GB/T 20975.14 and GB/T 20975.16. Where
analytical precision is guaranteed, other detection methods are allowed.
6.1.4.2 When the analysis results are in dispute, arbitration shall be carried out
according to GB/T 20975.3~20975.5, GB/T 20975.7, GB/T 20975.8, GB/T 20975.10,
GB/T 20975.12, GB/T 20975.14 and GB/T 20975.16.
6.2.1 Mechanical properties
6.2.1 The tensile test shall be carried out in accordance with the provisions of GB/T
228.1.
6.2.2 The hardness test shall be carried out in accordance with the provisions of GB/T
231.1.
6.2.3 The compression test shall be carried out in accordance with the provisions of
GB/T 16748.
7 Inspection rul...
