GB/T 2820.9-2024 English PDF (GB/T2820.9-2024)

GB/T 2820.9-2024: Reciprocating internal combustion engine driven alternating current generating sets - Part 9: Measurement and evaluation of mechanical vibrations
Delivery: 9 seconds. Download (& Email) true-PDF + Invoice.
Get Quotation: Click GB/T 2820.9-2024 (Self-service in 1-minute)
Historical versions (Master-website): GB/T 2820.9-2024
Preview True-PDF (Reload/Scroll-down if blank)

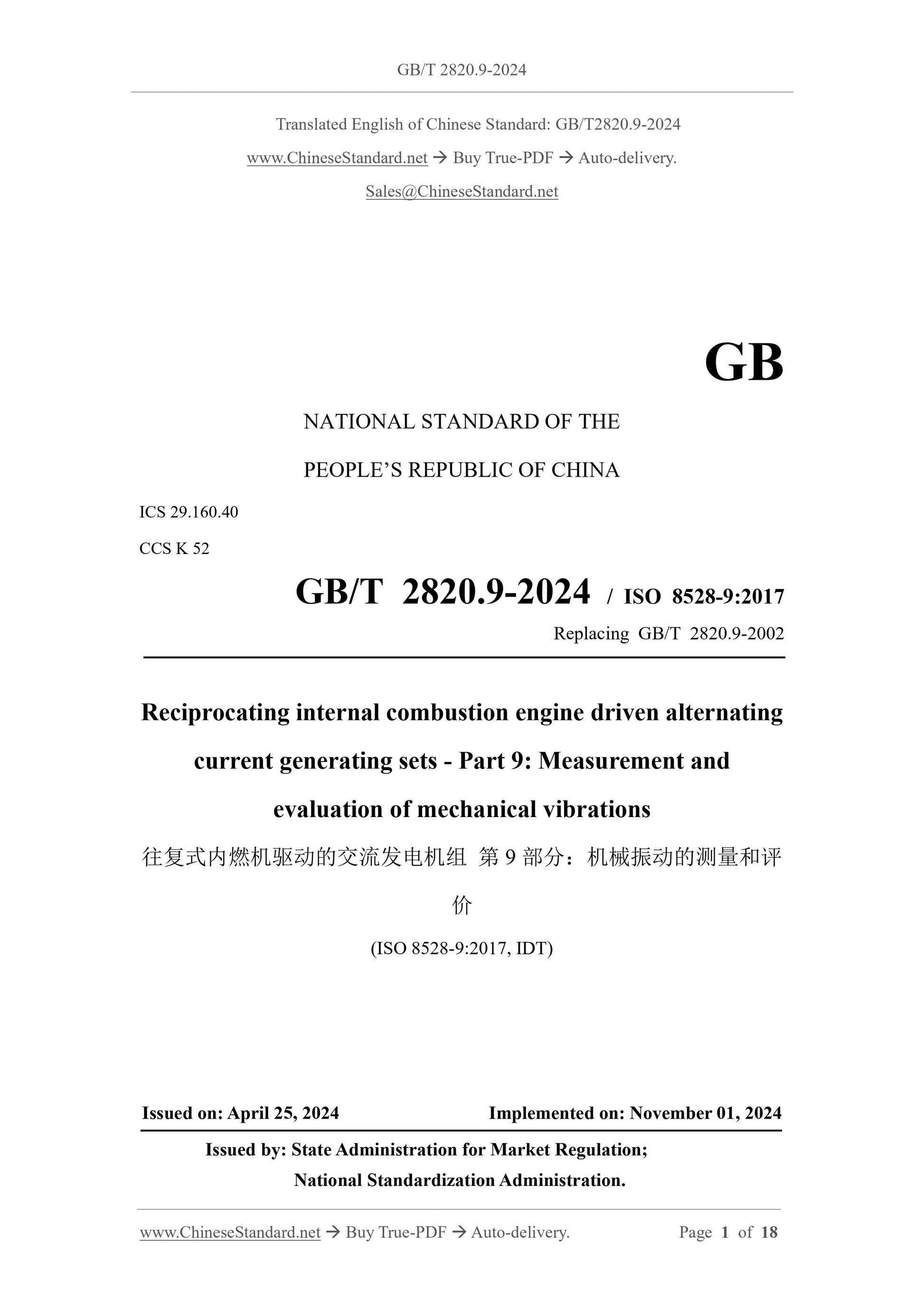

GB/T 2820.9-2024
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.160.40
CCS K 52
GB/T 2820.9-2024 / ISO 8528-9:2017
Replacing GB/T 2820.9-2002
Reciprocating internal combustion engine driven alternating
current generating sets - Part 9: Measurement and
evaluation of mechanical vibrations
(ISO 8528-9:2017, IDT)
ISSUED ON: APRIL 25, 2024
IMPLEMENTED ON: NOVEMBER 01, 2024
Issued by: State Administration for Market Regulation;
National Standardization Administration.

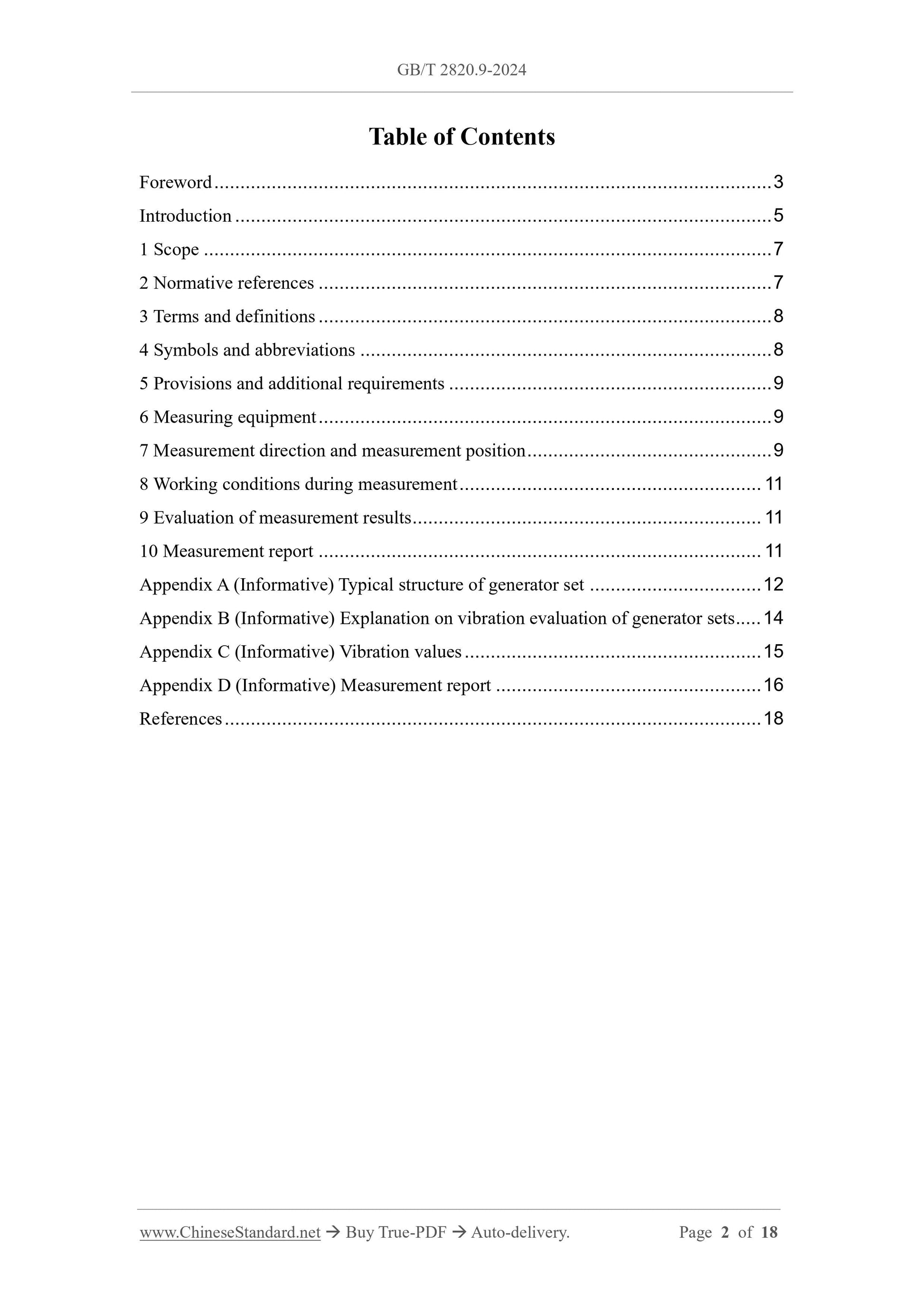

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 7
2 Normative references ... 7
3 Terms and definitions ... 8
4 Symbols and abbreviations ... 8
5 Provisions and additional requirements ... 9
6 Measuring equipment ... 9
7 Measurement direction and measurement position ... 9
8 Working conditions during measurement ... 11
9 Evaluation of measurement results ... 11
10 Measurement report ... 11
Appendix A (Informative) Typical structure of generator set ... 12
Appendix B (Informative) Explanation on vibration evaluation of generator sets ... 14
Appendix C (Informative) Vibration values ... 15
Appendix D (Informative) Measurement report ... 16
References ... 18

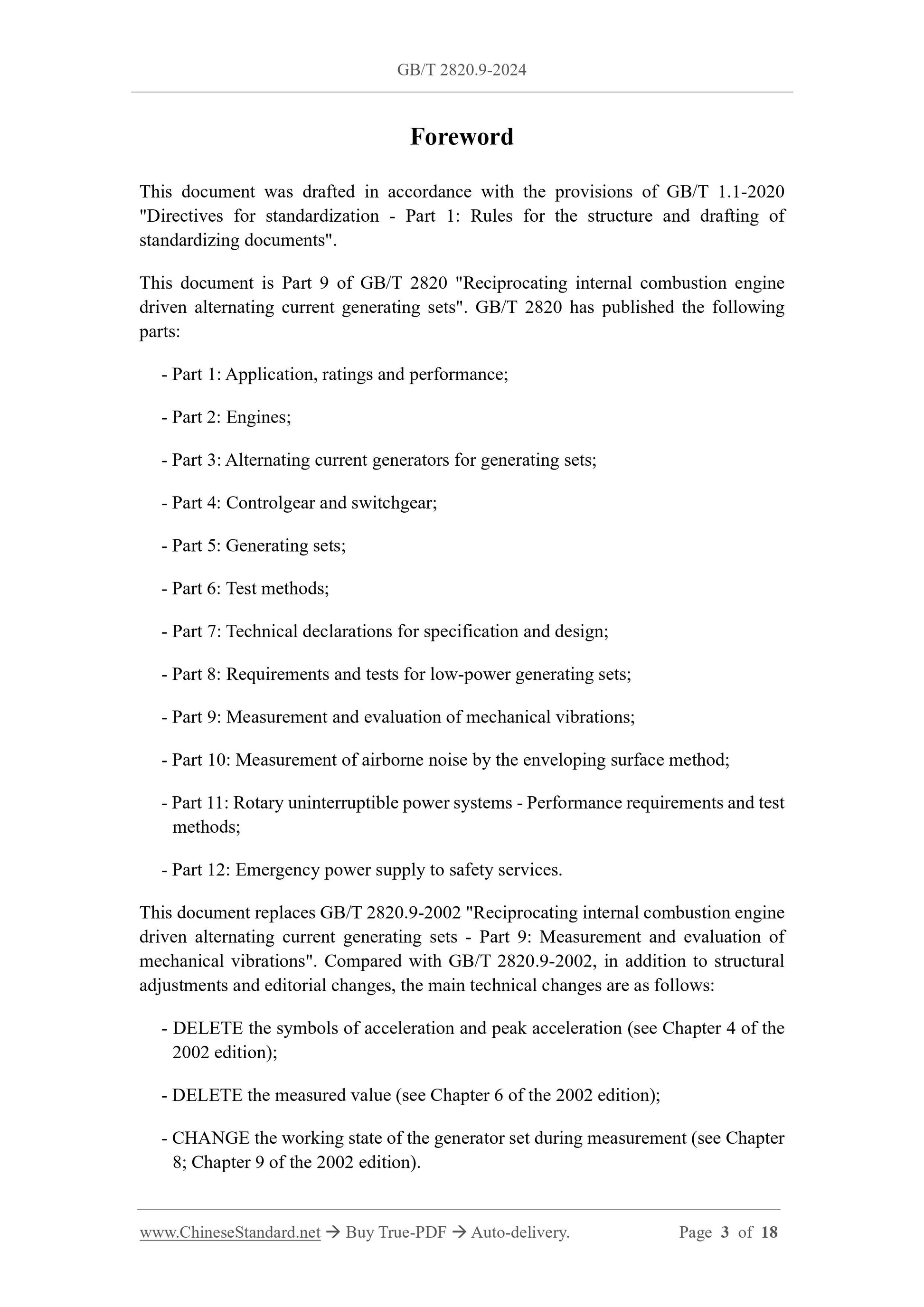

Foreword
This document was drafted in accordance with the provisions of GB/T 1.1-2020
"Directives for standardization - Part 1: Rules for the structure and drafting of
standardizing documents".
This document is Part 9 of GB/T 2820 "Reciprocating internal combustion engine
driven alternating current generating sets". GB/T 2820 has published the following
parts:
- Part 1: Application, ratings and performance;
- Part 2: Engines;
- Part 3: Alternating current generators for generating sets;
- Part 4: Controlgear and switchgear;
- Part 5: Generating sets;
- Part 6: Test methods;
- Part 7: Technical declarations for specification and design;
- Part 8: Requirements and tests for low-power generating sets;
- Part 9: Measurement and evaluation of mechanical vibrations;
- Part 10: Measurement of airborne noise by the enveloping surface method;
- Part 11: Rotary uninterruptible power systems - Performance requirements and test
methods;
- Part 12: Emergency power supply to safety services.
This document replaces GB/T 2820.9-2002 "Reciprocating internal combustion engine
driven alternating current generating sets - Part 9: Measurement and evaluation of
mechanical vibrations". Compared with GB/T 2820.9-2002, in addition to structural
adjustments and editorial changes, the main technical changes are as follows:
- DELETE the symbols of acceleration and peak acceleration (see Chapter 4 of the
2002 edition);
- DELETE the measured value (see Chapter 6 of the 2002 edition);
- CHANGE the working state of the generator set during measurement (see Chapter
8; Chapter 9 of the 2002 edition).

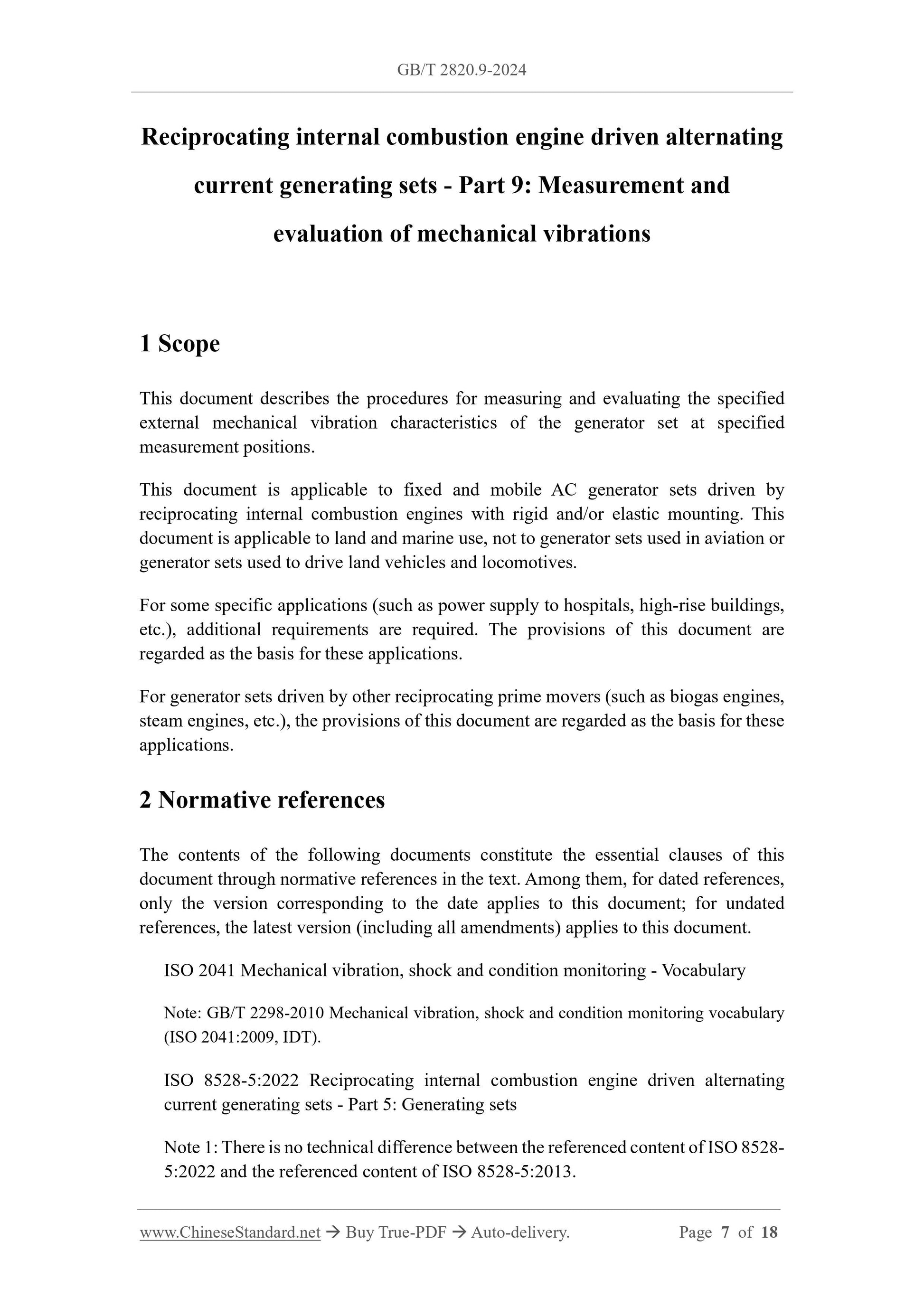

Reciprocating internal combustion engine driven alternating
current generating sets - Part 9: Measurement and
evaluation of mechanical vibrations
1 Scope
This document describes the procedures for measuring and evaluating the specified
external mechanical vibration characteristics of the generator set at specified
measurement positions.
This document is applicable to fixed and mobile AC generator sets driven by
reciprocating internal combustion engines with rigid and/or elastic mounting. This
document is applicable to land and marine use, not to generator sets used in aviation or
generator sets used to drive land vehicles and locomotives.
For some specific applications (such as power supply to hospitals, high-rise buildings,
etc.), additional requirements are required. The provisions of this document are
regarded as the basis for these applications.
For generator sets driven by other reciprocating prime movers (such as biogas engines,
steam engines, etc.), the provisions of this document are regarded as the basis for these
applications.
2 Normative references
The contents of the following documents constitute the essential clauses of this
document through normative references in the text. Among them, for dated references,
only the version corresponding to the date applies to this document; for undated
references, the latest version (including all amendments) applies to this document.
ISO 2041 Mechanical vibration, shock and condition monitoring - Vocabulary
Note: GB/T 2298-2010 Mechanical vibration, shock and condition monitoring vocabulary
(ISO 2041:2009, IDT).
ISO 8528-5:2022 Reciprocating internal combustion engine driven alternating
current generating sets - Part 5: Generating sets
Note 1: There is no technical difference between the referenced content of ISO 8528-
5:2022 and the referenced content of ISO 8528-5:2013.
