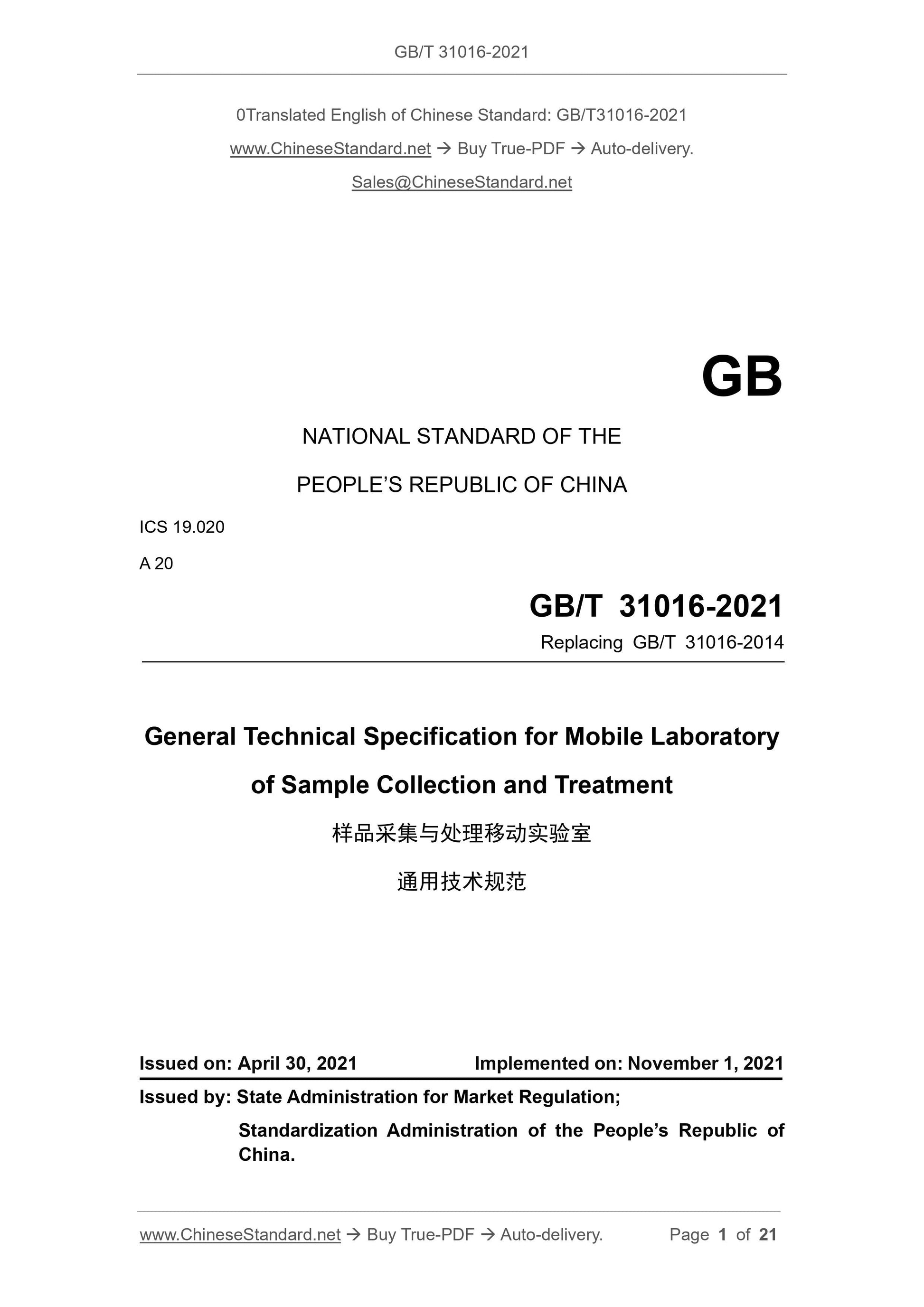

GB/T 31016-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 19.020
A 20
Replacing GB/T 31016-2014
General Technical Specification for Mobile Laboratory
of Sample Collection and Treatment
ISSUED ON: APRIL 30, 2021
IMPLEMENTED ON: NOVEMBER 1, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of
China.

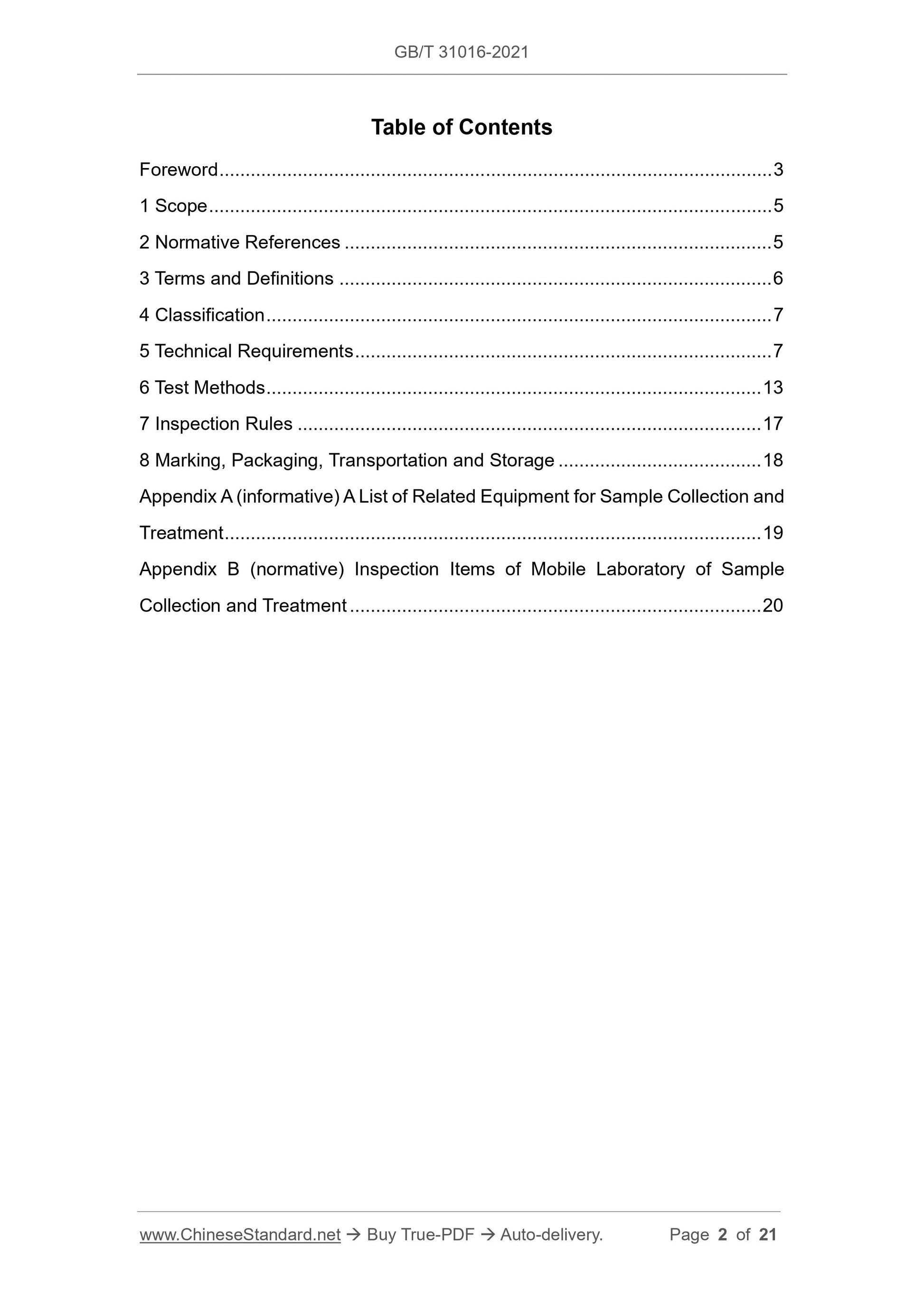

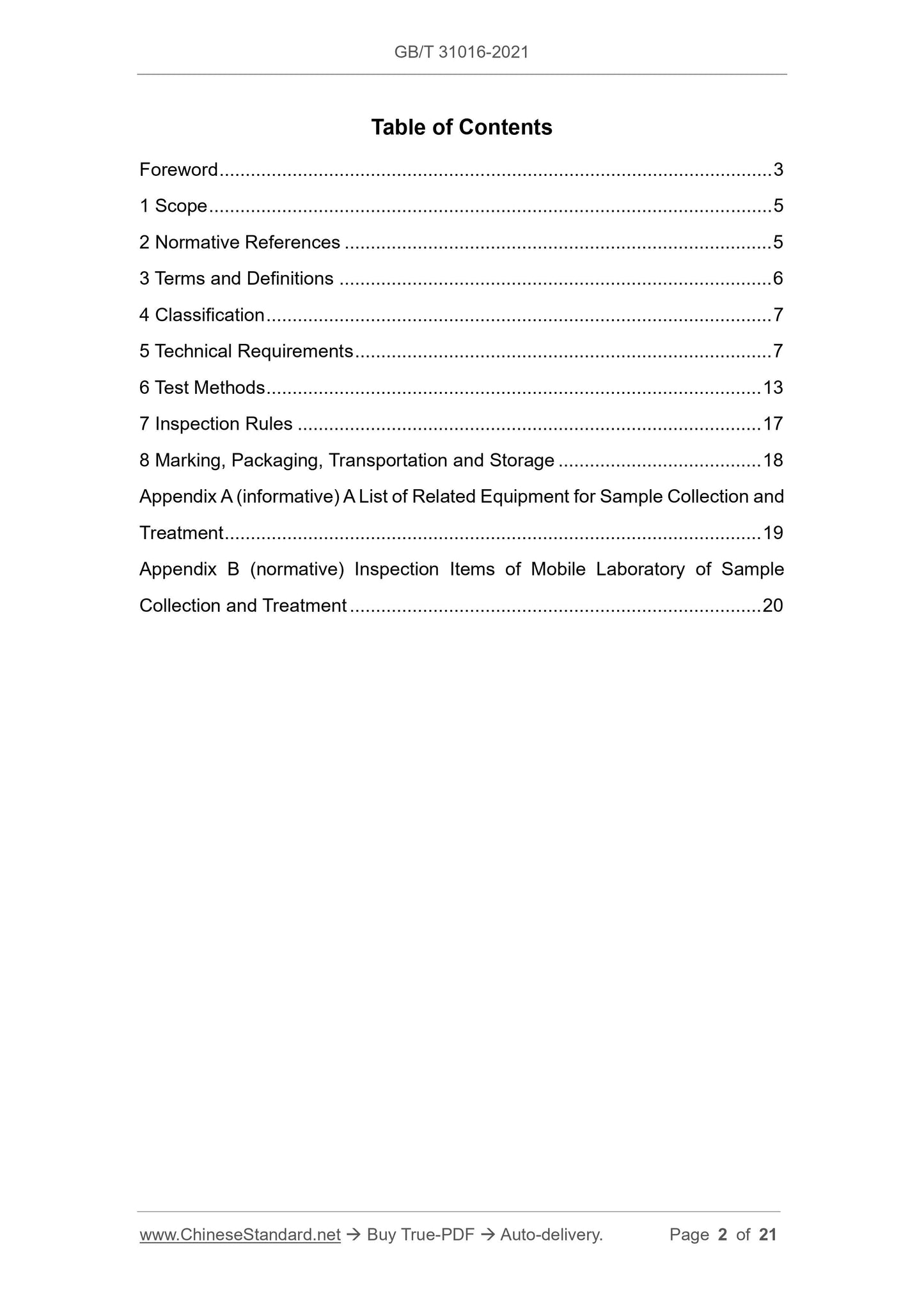

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Terms and Definitions ... 6
4 Classification ... 7
5 Technical Requirements ... 7
6 Test Methods ... 13
7 Inspection Rules ... 17
8 Marking, Packaging, Transportation and Storage ... 18
Appendix A (informative) A List of Related Equipment for Sample Collection and
Treatment ... 19
Appendix B (normative) Inspection Items of Mobile Laboratory of Sample
Collection and Treatment ... 20

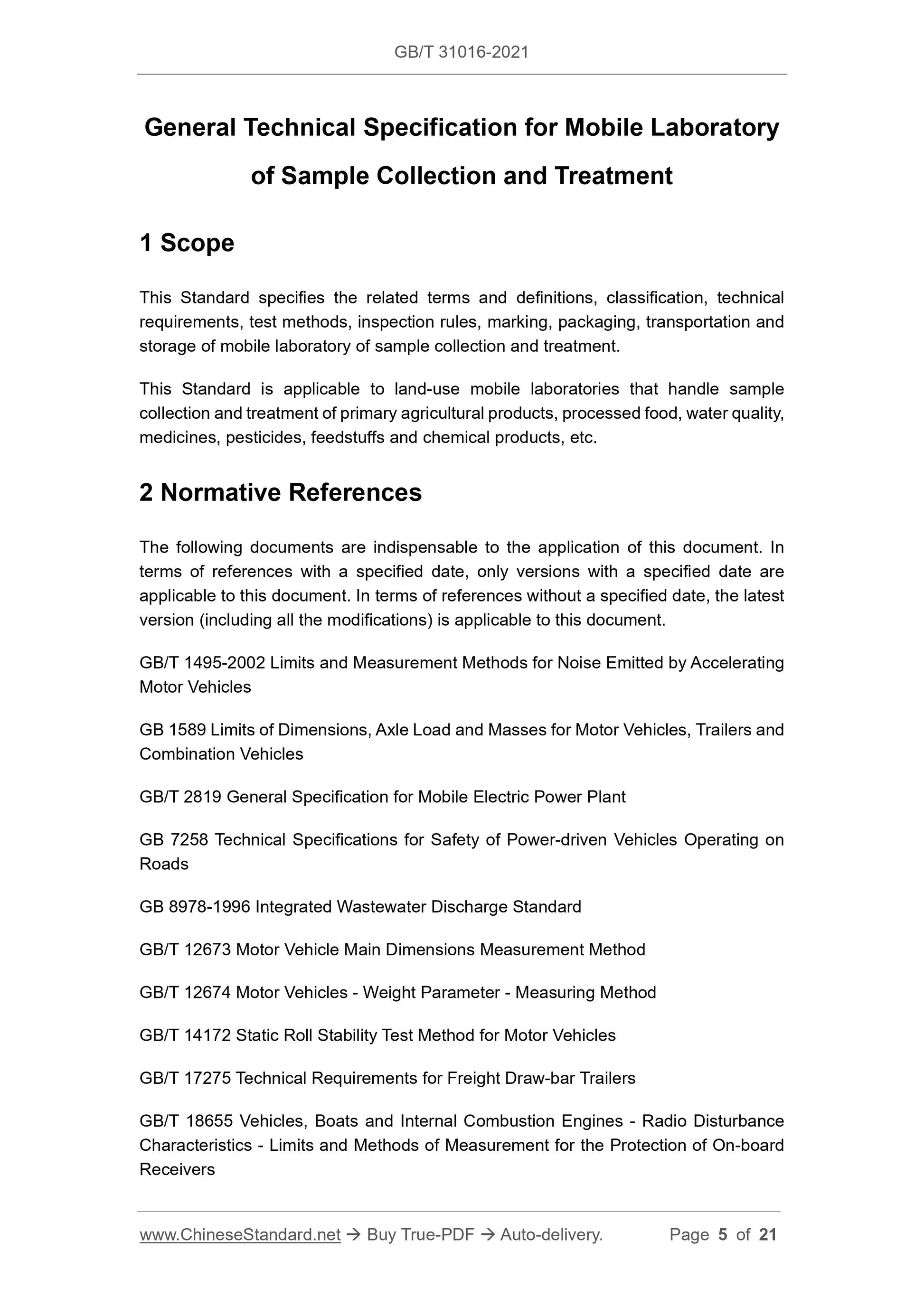

General Technical Specification for Mobile Laboratory
of Sample Collection and Treatment
1 Scope
This Standard specifies the related terms and definitions, classification, technical
requirements, test methods, inspection rules, marking, packaging, transportation and
storage of mobile laboratory of sample collection and treatment.
This Standard is applicable to land-use mobile laboratories that handle sample
collection and treatment of primary agricultural products, processed food, water quality,
medicines, pesticides, feedstuffs and chemical products, etc.
2 Normative References
The following documents are indispensable to the application of this document. In
terms of references with a specified date, only versions with a specified date are
applicable to this document. In terms of references without a specified date, the latest
version (including all the modifications) is applicable to this document.
GB/T 1495-2002 Limits and Measurement Methods for Noise Emitted by Accelerating
Motor Vehicles
GB 1589 Limits of Dimensions, Axle Load and Masses for Motor Vehicles, Trailers and
Combination Vehicles
GB/T 2819 General Specification for Mobile Electric Power Plant
GB 7258 Technical Specifications for Safety of Power-driven Vehicles Operating on
Roads
GB 8978-1996 Integrated Wastewater Discharge Standard
GB/T 12673 Motor Vehicle Main Dimensions Measurement Method
GB/T 12674 Motor Vehicles - Weight Parameter - Measuring Method
GB/T 14172 Static Roll Stability Test Method for Motor Vehicles
GB/T 17275 Technical Requirements for Freight Draw-bar Trailers
GB/T 18655 Vehicles, Boats and Internal Combustion Engines - Radio Disturbance
Characteristics - Limits and Methods of Measurement for the Protection of On-board
Receivers

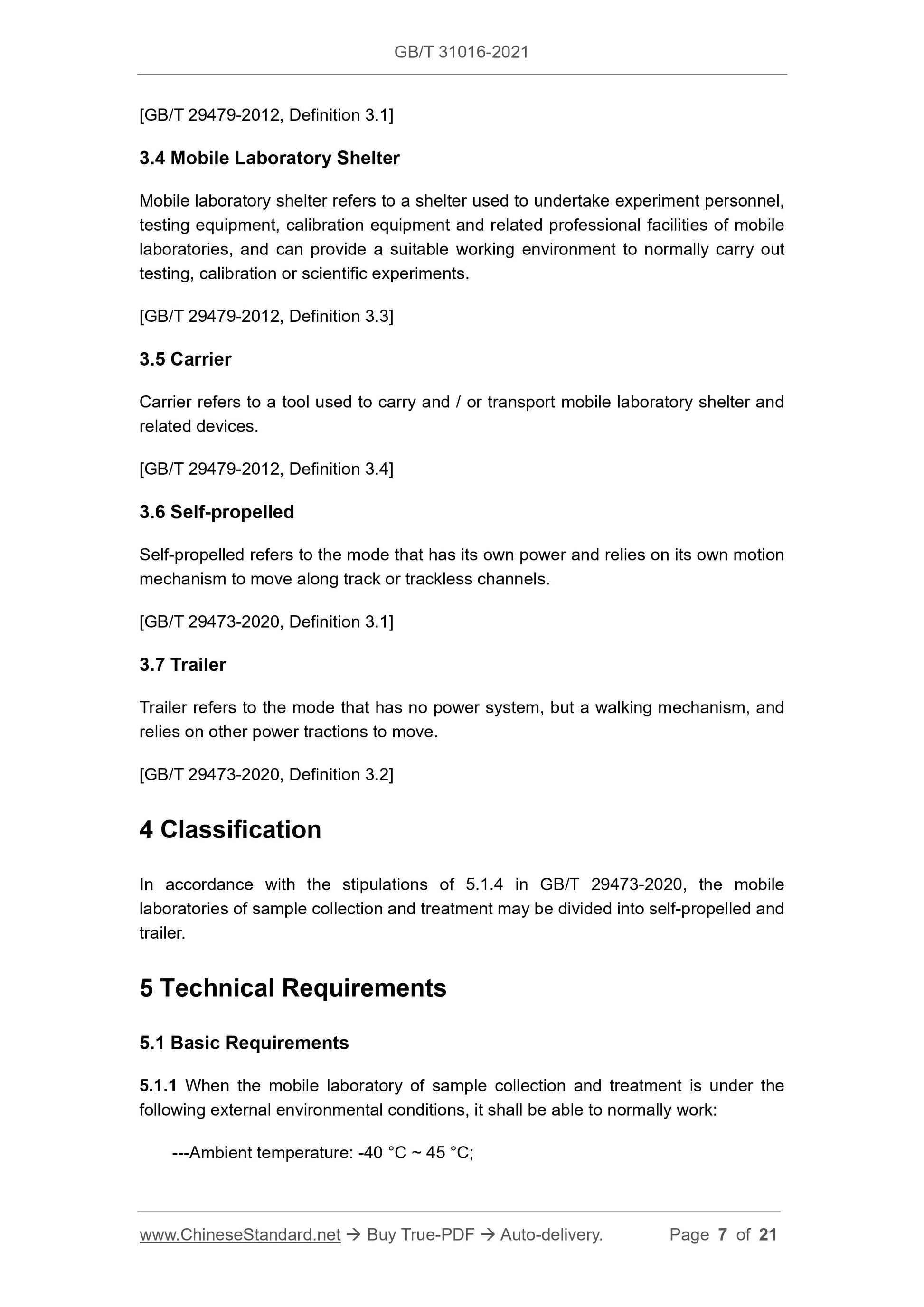

[GB/T 29479-2012, Definition 3.1]
3.4 Mobile Laboratory Shelter
Mobile laboratory shelter refers to a shelter used to undertake experiment personnel,
testing equipment, calibration equipment and related professional facilities of mobile
laboratories, and can provide a suitable working environment to normally carry out
testing, calibration or scientific experiments.
[GB/T 29479-2012, Definition 3.3]
3.5 Carrier
Carrier refers to a tool used to carry and / or transport mobile laboratory shelter and
related devices.
[GB/T 29479-2012, Definition 3.4]
3.6 Self-propelled
Self-propelled refers to the mode that has its own power and relies on its own motion
mechanism to move along track or trackless channels.
[GB/T 29473-2020, Definition 3.1]
3.7 Trailer
Trailer refers to the mode that has no power system, but a walking mechanism, and
relies on other power tractions to move.
[GB/T 29473-2020, Definition 3.2]
4 Classification
In accordance with the stipulations of 5.1.4 in GB/T 29473-2020, the mobile
laboratories of sample collection and treatment may be divided into self-propelled and
trailer.
5 Technical Requirements
5.1 Basic Requirements
5.1.1 When the mobile laboratory of sample collection and treatment is under the
following external environmental conditions, it shall be able to normally work:
---Ambient temperature: -40 °C ~ 45 °C;

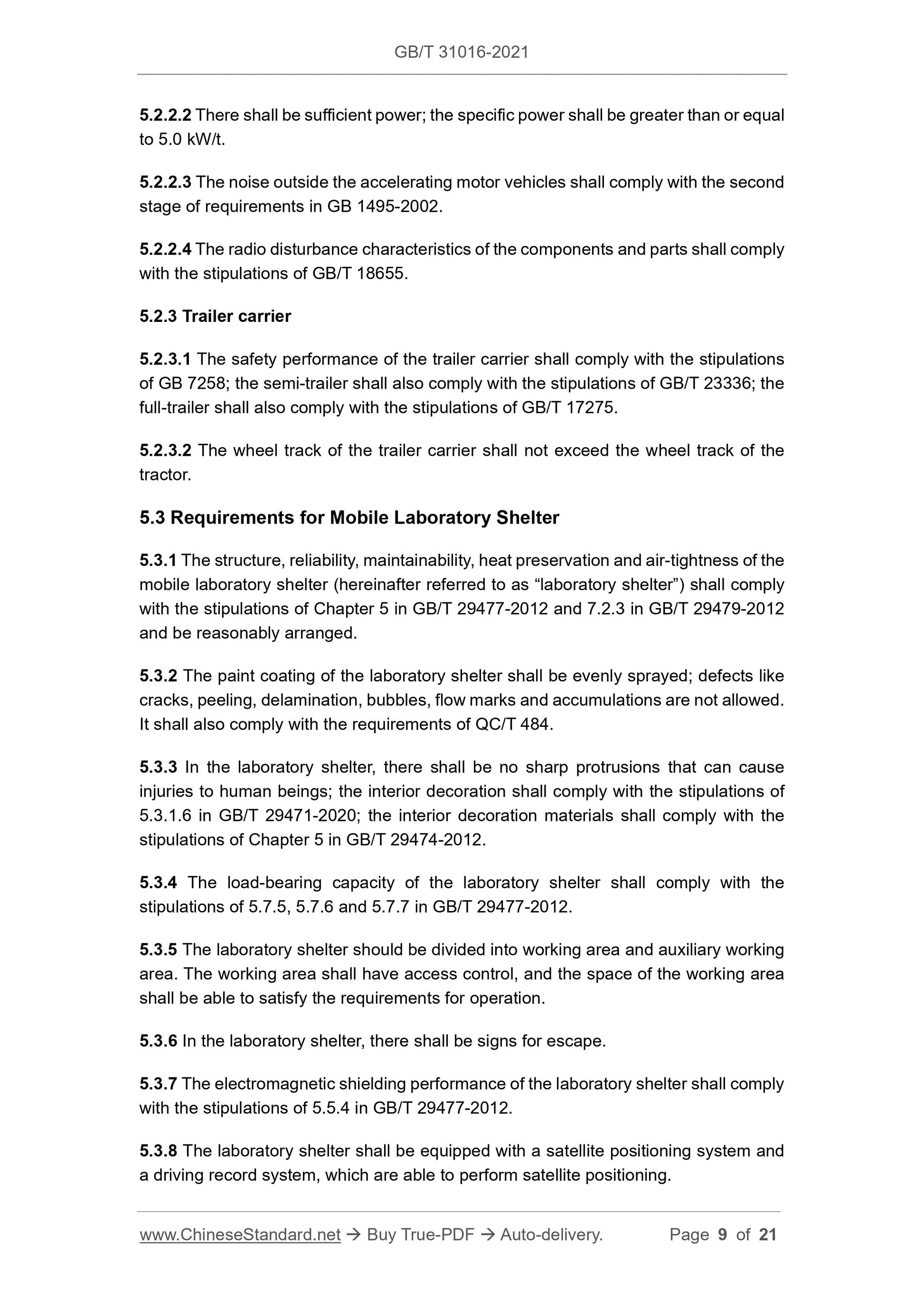

5.2.2.2 There shall be sufficient power; the specific power shall be greater than or equal
to 5.0 kW/t.
5.2.2.3 The noise outside the accelerating motor vehicles shall comply with the second
stage of requirements in GB 1495-2002.
5.2.2.4 The radio disturbance characteristics of the components and parts shall comply
with the stipulations of GB/T 18655.
5.2.3 Trailer carrier
5.2.3.1 The safety performance of the trailer carrier shall comply with the stipulations
of GB 7258; the semi-trailer shall also comply with the stipulations of GB/T 23336; the
full-trailer shall also comply with the stipulations of GB/T 17275.
5.2.3.2 The wheel track of the trailer carrier shall not exceed the wheel track of the
tractor.
5.3 Requirements for Mobile Laboratory Shelter
5.3.1 The structure, reliability, maintainability, heat preservation and air-tightness of the
mobile laboratory shelter (hereinafter referred to as “laboratory shelter”) shall comply
with the stipulations of Chapter 5 in GB/T 29477-2012 and 7.2.3 in GB/T 29479-2012
and be reasonably arranged.
5.3.2 The paint coating of the laboratory shelter shall be evenly sprayed; defects like
cracks, peeling, delamination, bubbles, flow marks and accumulations are not allowed.
It shall also comply with the requirements of QC/T 484.
5.3.3 In the laboratory shelter, there shall be no sharp protrusions that can cause
injuries to human beings; the interior decoration shall comply with the stipulations of
5.3.1.6 in GB/T 29471-2020; the interior decoration materials shall comply with the
stipulations of Chapter 5 in GB/T 29474-2012.
5.3.4 The load-bearing capacity of the laboratory shelter shall comply with the
stipulations of 5.7.5, 5.7.6 and 5.7.7 in GB/T 29477-2012.
5.3.5 The laboratory shelter should be divided into working area and auxiliary working
area. The working area shall have access control, and the space of the working area
shall be able to satisfy the requirements for operation.
5.3.6 In the laboratory shelter, there shall be signs for escape.
5.3.7 The electromagnetic shielding performance of the laboratory shelter shall comply
with the stipulations of 5.5.4 in GB/T 29477-2012.
5.3.8 The laboratory shelter shall be equipped with a satellite positioning system and
a driving record system, which are able to perform satellite positioning.

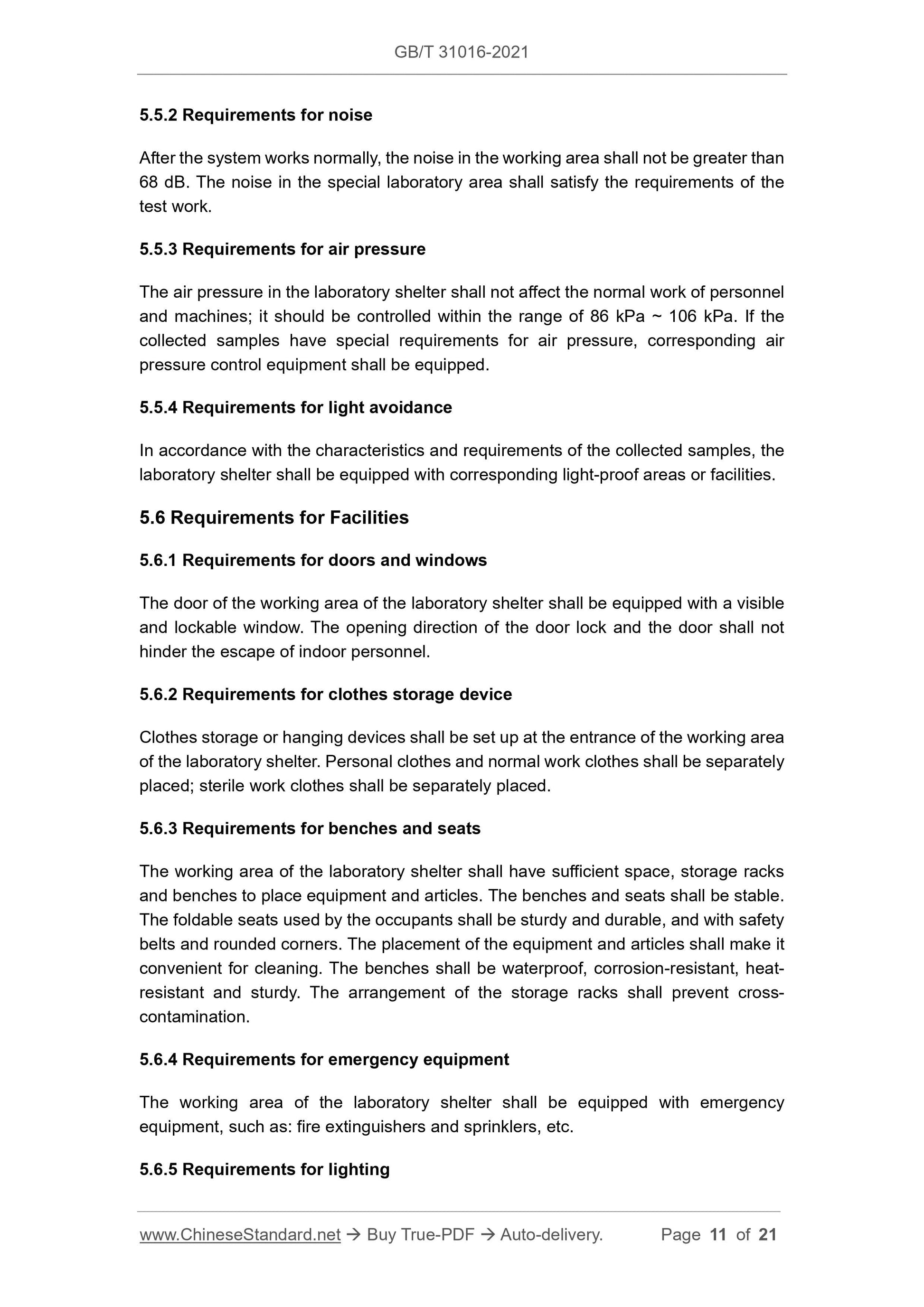

5.5.2 Requirements for noise
After the system works normally, the noise in the working area shall not be greater than
68 dB. The noise in the special laboratory area shall satisfy the requirements of the
test work.
5.5.3 Requirements for air pressure
The air pressure in the laboratory shelter shall not affect the normal work of personnel
and machines; it should be controlled within the range of 86 kPa ~ 106 kPa. If the
collected samples have special requirements for air pressure, corresponding air
pressure control equipment shall be equipped.
5.5.4 Requirements for light avoidance
In accordance with the characteristics and requirements of the collected samples, the
laboratory shelter shall be equipped with corresponding light-proof areas or facilities.
5.6 Requirements for Facilities
5.6.1 Requirements for doors and windows
The door of the working area of the laboratory shelter shall be equipped with a visible
and lockable window. The opening direction of the door lock and the door shall not
hinder the escape of indoor personnel.
5.6.2 Requirements for clothes storage device
Clothes storage or hanging devices shall be set up at the entrance of the working area
of the laboratory shelter. Personal clothes and normal work clothes shall be separately
placed; sterile work clothes shall be separately placed.
5.6.3 Requirements for benches and seats
The working area of the laboratory shelter shall have sufficient space, storage racks
and benches to place equipment and articles. The benches and seats shall be stable.
The foldable seats used by the occupants shall be sturdy and durable, and with safety
belts and rounded corners. The placement of the equipment and articles shall make it
convenient for cleaning. The benches shall be waterproof, corrosion-resistant, heat-
resistant and sturdy. The arrangement of the storage racks shall prevent cross-
contamination.
5.6.4 Requirements for emergency equipment
The working area of the laboratory shelter shall be equipped with emergency
equipment, such as: fire extinguishers and sprinklers, etc.
5.6.5 Requirements for lighting

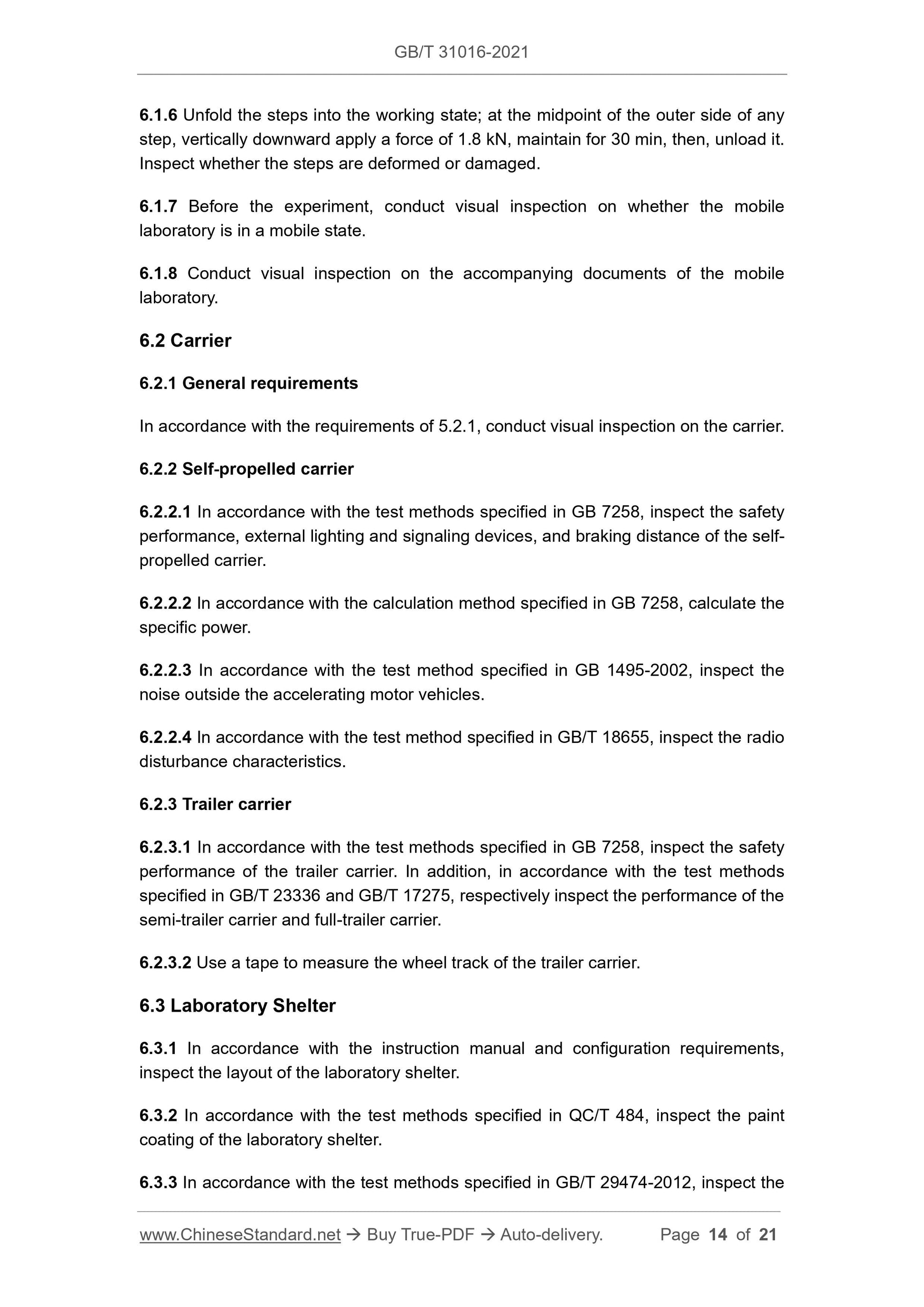

6.1.6 Unfold the steps into the working state; at the midpoint of the outer side of any
step, vertically downward apply a force of 1.8 kN, maintain for 30 min, then, unload it.
Inspect whether the steps are deformed or damaged.
6.1.7 Before the experiment, conduct visual inspection on whether the mobile
laboratory is in a mobile state.
6.1.8 Conduct visual inspection on the accompanying documents of the mobile
laboratory.
6.2 Carrier
6.2.1 General requirements
In accordance with the requirements of 5.2.1, conduct visual inspection on the carrier.
6.2.2 Self-propelled carrier
6.2.2.1 In accordance with the test methods specified in GB 7258, inspect the safety
performance, external lighting and signaling devices, and braking distance of the self-
propelled carrier.
6.2.2.2 In accordance with the calculation method specified in GB 7258, calculate the
specific power.
6.2.2.3 In accordance with the test method specified in GB 1495-2002, inspect the
noise outside the accelerating motor vehicles.
6.2.2.4 In accordance with the test method specified in GB/T 18655, inspect the radio
disturbance characteristics.
6.2.3 Trailer carrier
6.2.3.1 In accordance with the test methods specified in GB 7258, inspect the safety
performance of the trailer carrier. In addition, in accordance with the test methods
specified in GB/T 23336 and GB/T 17275, respectively inspect the performance of the
semi-trailer carrier and full-trailer carrier.
6.2.3.2 Use a tape to measure the wheel track of the trailer carrier.
6.3 Laboratory Shelter
6.3.1 In accordance with the instruction manual and configuration requirements,
inspect the layout of the laboratory shelter.
6.3.2 In accordance with the test methods specified in QC/T 484, inspect the paint
coating of the laboratory shelter.
6.3.3 In accordance with the test methods specified in GB/T 29474-2012, inspect the
laboratory shelter.

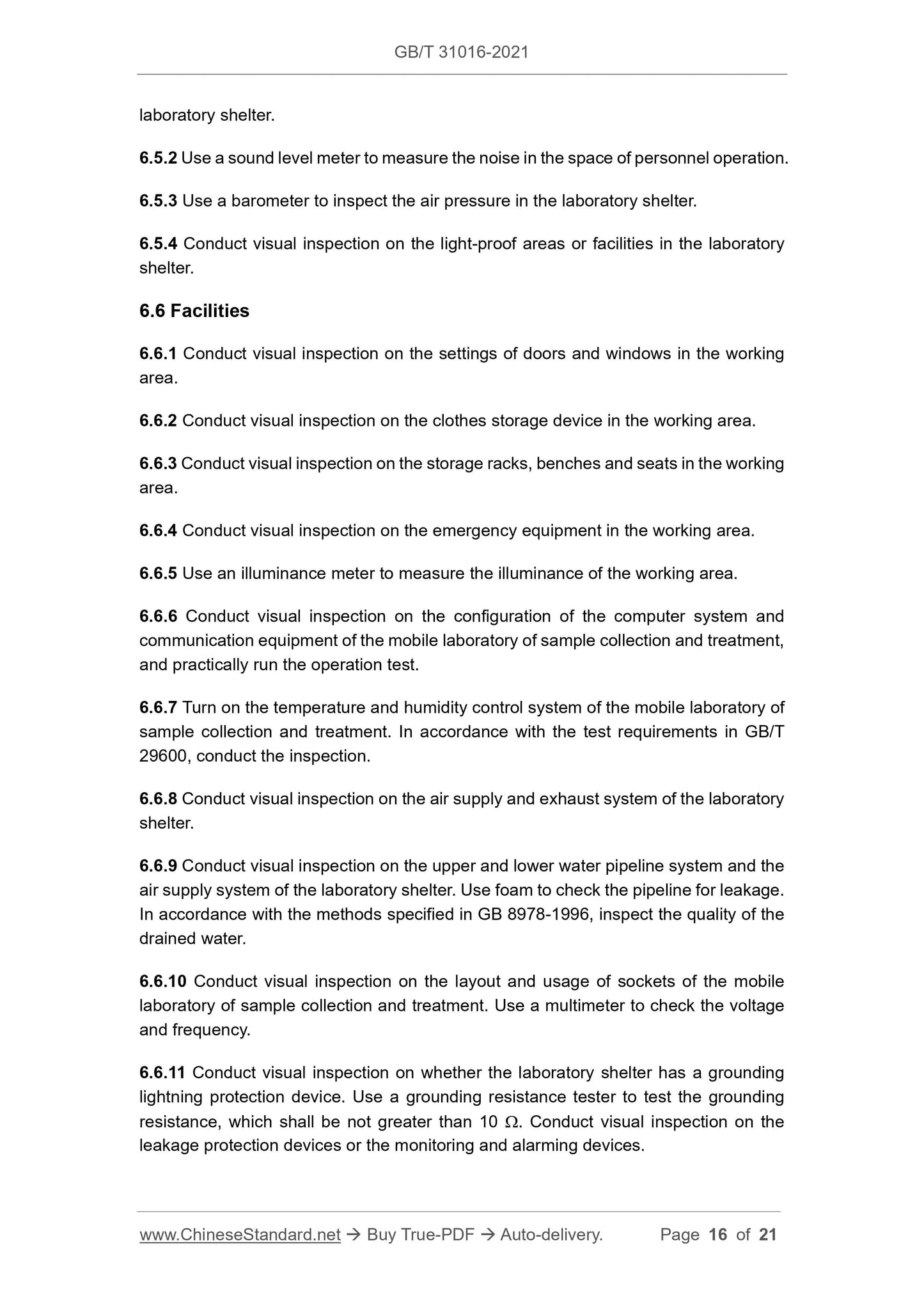

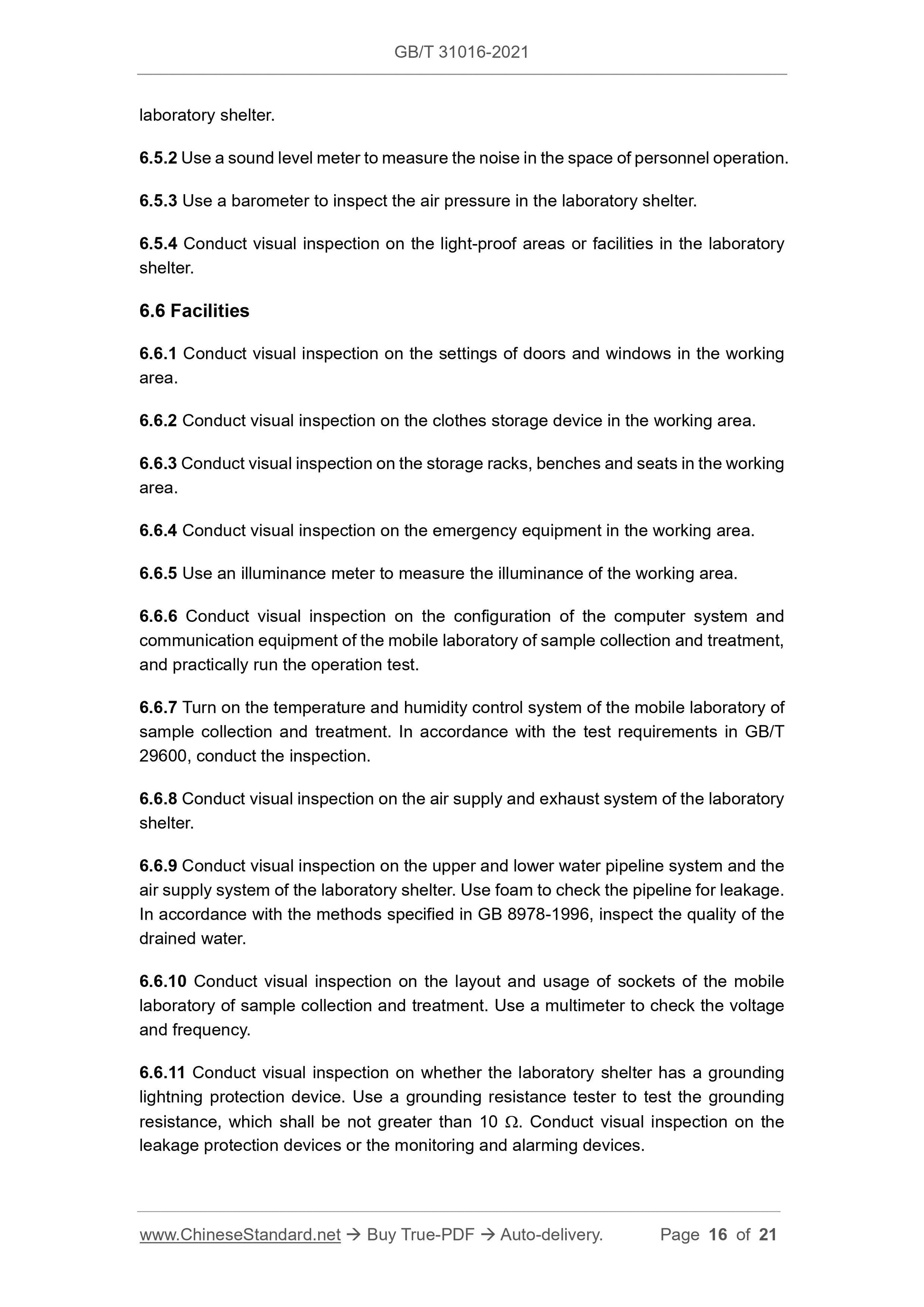

6.5.2 Use a sound level meter to measure the noise in the space of personnel operation.
6.5.3 Use a barometer to inspect the air pressure in the laboratory shelter.
6.5.4 Conduct visual inspection on the light-proof areas or facilities in the laboratory
shelter.
6.6 Facilities
6.6.1 Conduct visual inspection on the settings of doors and windows in the working
area.
6.6.2 Conduct visual inspection on the clothes storage device in the working area.
6.6.3 Conduct visual inspection on the storage racks, benches and seats in the working
area.
6.6.4 Conduct visual inspection on the emergency equipment in the working area.
6.6.5 Use an illuminance meter to measure the illuminance of the working area.
6.6.6 Conduct visual inspection on the configuration of the computer system and
communication equipment of the mobile laboratory of sample collection and treatment,
and practically run the operation test.
6.6.7 Turn on the temperature and humidity control system of the mobile laboratory of
sample collection and treatment. In accordance with the test requirements in GB/T
29600, conduct the inspection.
6.6.8 Conduct visual inspection on the air supply and exhaust system of the laboratory
shelter.
6.6.9 Conduct visual inspection on the upper and lower water pipeline system and the
air supply system of the laboratory shelter. Use foam to check the pipeline for leakage.
In accordance with the methods specified in GB 8978-1996, inspect the quality of the
drained water.
6.6.10 Conduct visual inspection on the layout and usage of sockets of the mobile
laboratory of sample collection and treatment. Use a multimeter to check the voltage
and frequency.
6.6.11 Conduct visual inspection on whether the laboratory shelter has a grounding
lightning protection device. Use a grounding resistance tester to test the grounding
resistance, which shall be not greater than 10 . Conduct visual inspection on the
leakage protection devices or the monitoring and alarming devices.
GB/T 31016-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 19.020
A 20
Replacing GB/T 31016-2014
General Technical Specification for Mobile Laboratory
of Sample Collection and Treatment
ISSUED ON: APRIL 30, 2021
IMPLEMENTED ON: NOVEMBER 1, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of
China.
Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Terms and Definitions ... 6
4 Classification ... 7
5 Technical Requirements ... 7
6 Test Methods ... 13
7 Inspection Rules ... 17
8 Marking, Packaging, Transportation and Storage ... 18
Appendix A (informative) A List of Related Equipment for Sample Collection and
Treatment ... 19
Appendix B (normative) Inspection Items of Mobile Laboratory of Sample
Collection and Treatment ... 20
General Technical Specification for Mobile Laboratory
of Sample Collection and Treatment
1 Scope
This Standard specifies the related terms and definitions, classification, technical
requirements, test methods, inspection rules, marking, packaging, transportation and
storage of mobile laboratory of sample collection and treatment.
This Standard is applicable to land-use mobile laboratories that handle sample
collection and treatment of primary agricultural products, processed food, water quality,
medicines, pesticides, feedstuffs and chemical products, etc.
2 Normative References
The following documents are indispensable to the applica...
