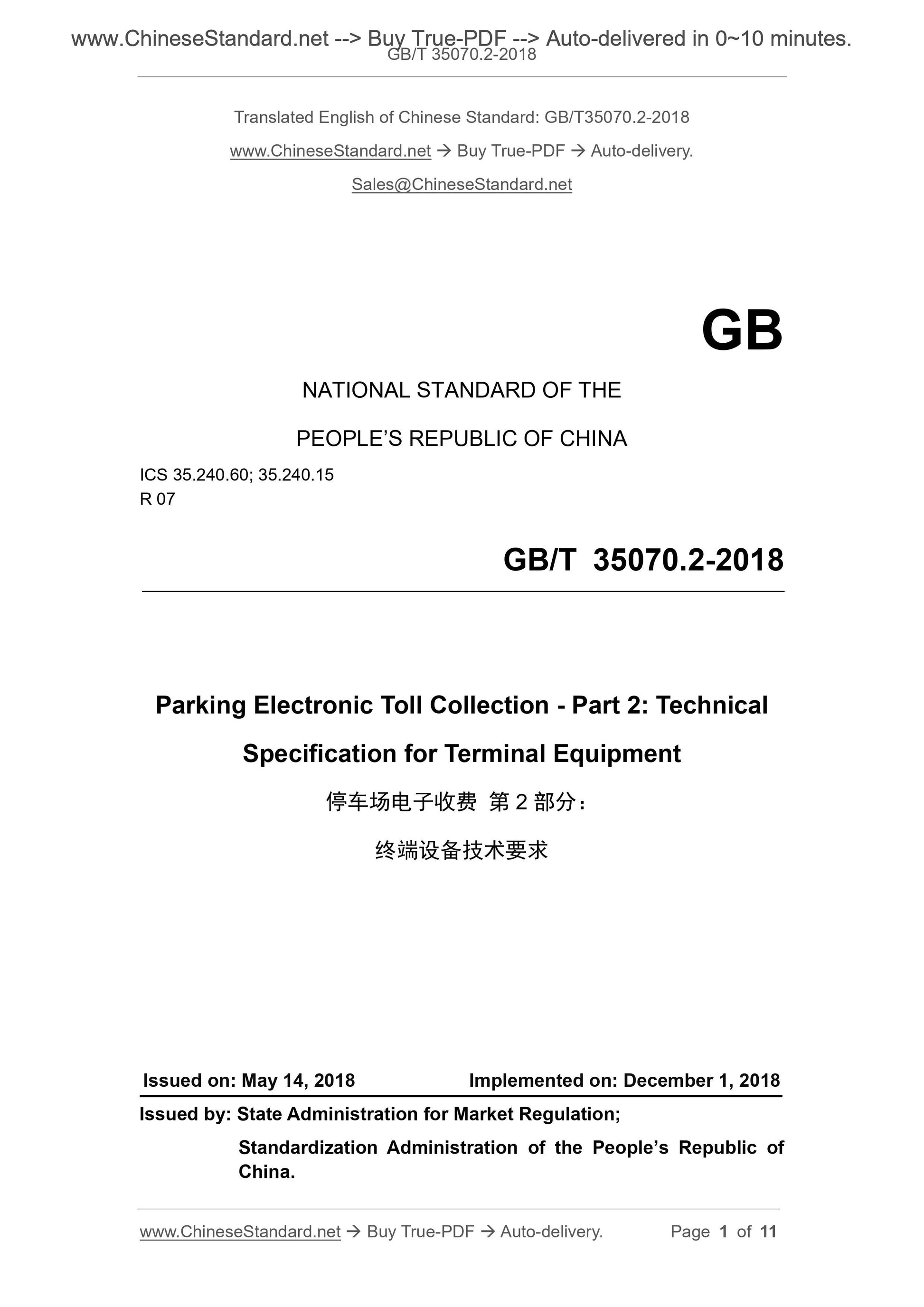

GB/T 35070.2-2018
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 35.240.60; 35.240.15
R 07
Parking Electronic Toll Collection - Part 2. Technical
Specification for Terminal Equipment
ISSUED ON. MAY 14, 2018
IMPLEMENTED ON. DECEMBER 1, 2018
Issued by. State Administration for Market Regulation;
Standardization Administration of the People’s Republic of
China.

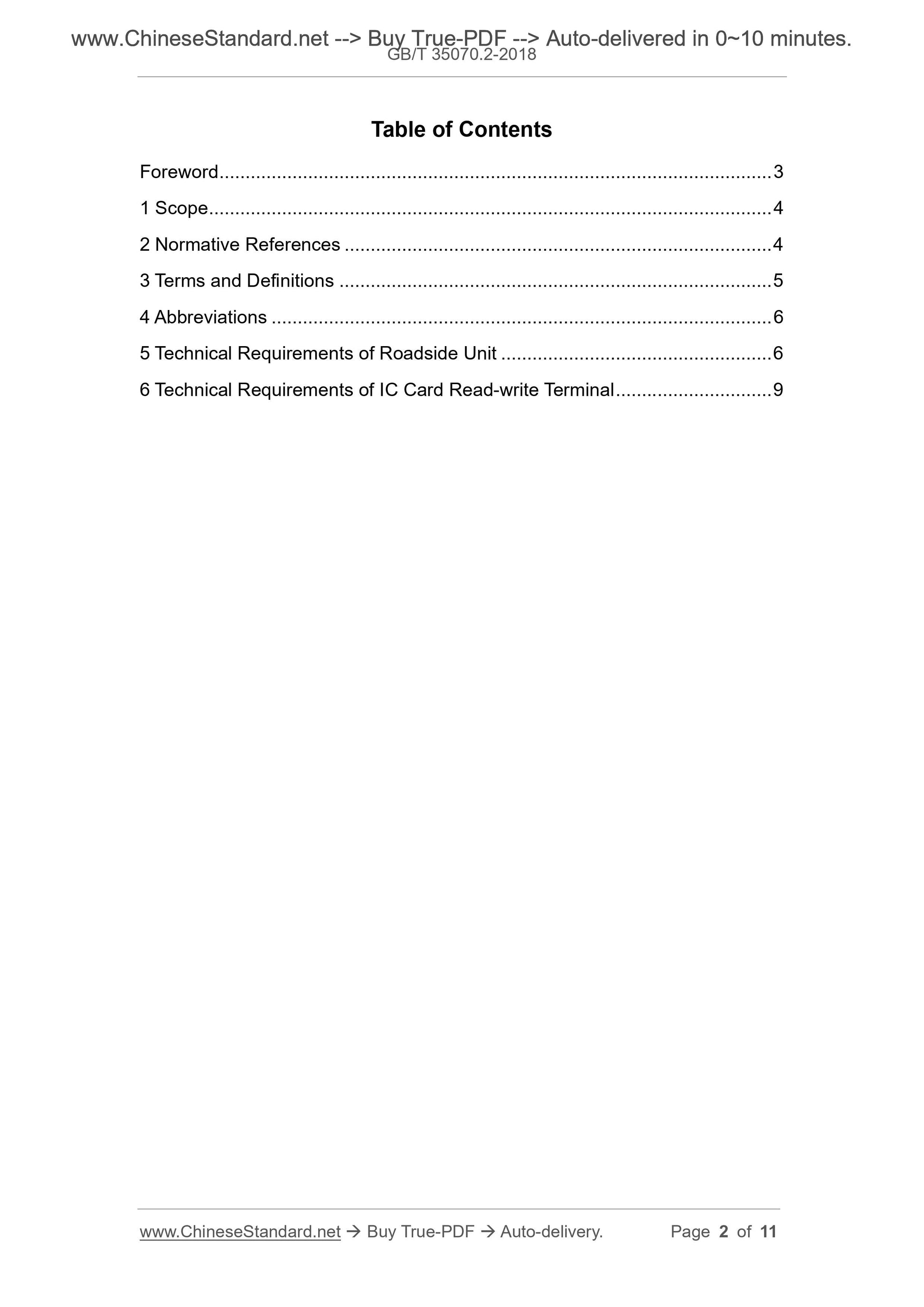

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 5
4 Abbreviations ... 6
5 Technical Requirements of Roadside Unit ... 6
6 Technical Requirements of IC Card Read-write Terminal ... 9
Parking Electronic Toll Collection - Part 2. Technical
Specification for Terminal Equipment

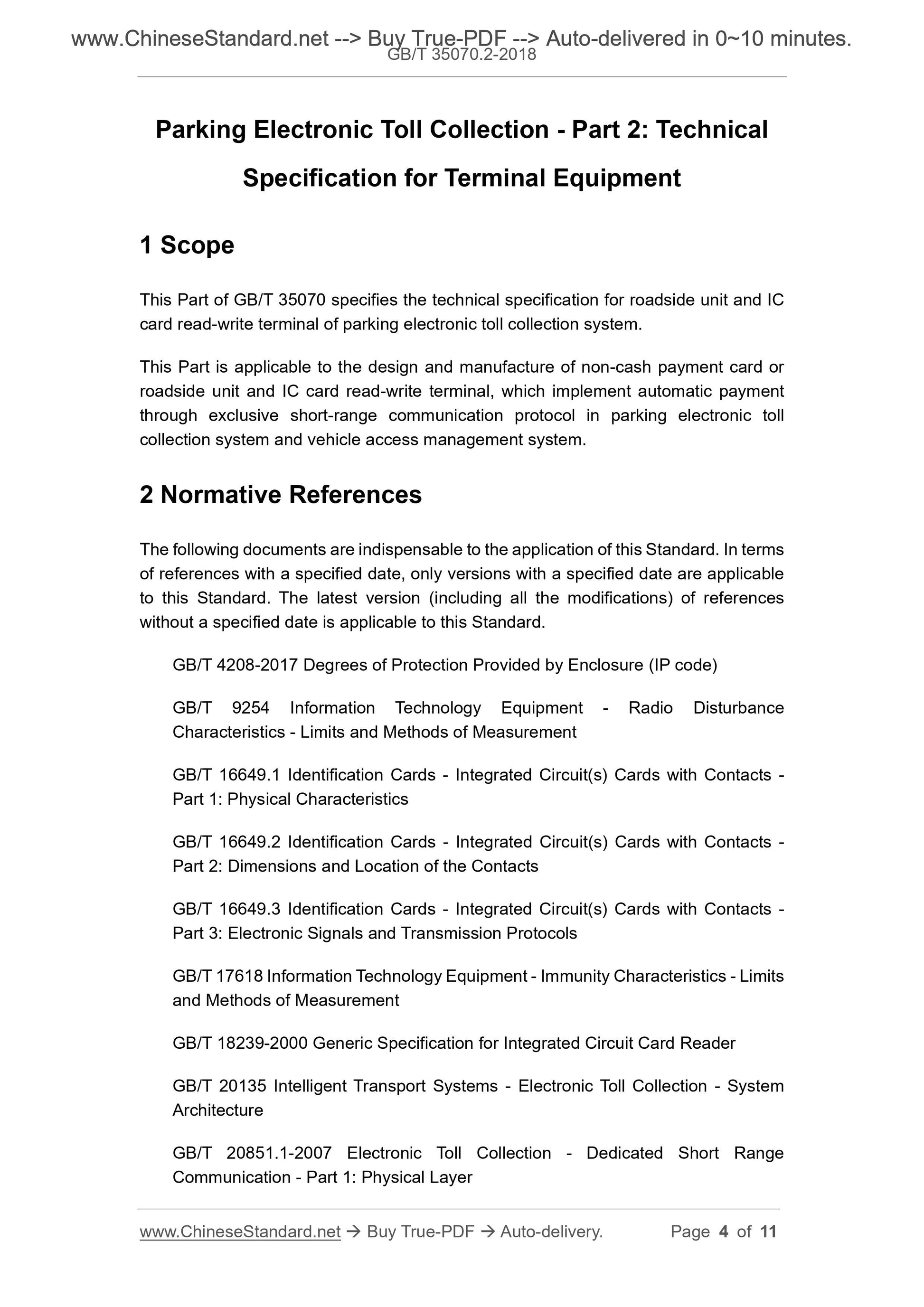

1 Scope
This Part of GB/T 35070 specifies the technical specification for roadside unit and IC
card read-write terminal of parking electronic toll collection system.
This Part is applicable to the design and manufacture of non-cash payment card or
roadside unit and IC card read-write terminal, which implement automatic payment
through exclusive short-range communication protocol in parking electronic toll
collection system and vehicle access management system.
2 Normative References
The following documents are indispensable to the application of this Standard. In terms
of references with a specified date, only versions with a specified date are applicable
to this Standard. The latest version (including all the modifications) of references
without a specified date is applicable to this Standard.
GB/T 4208-2017 Degrees of Protection Provided by Enclosure (IP code)
GB/T 9254 Information Technology Equipment - Radio Disturbance
Characteristics - Limits and Methods of Measurement
GB/T 16649.1 Identification Cards - Integrated Circuit(s) Cards with Contacts -
Part 1. Physical Characteristics
GB/T 16649.2 Identification Cards - Integrated Circuit(s) Cards with Contacts -
Part 2. Dimensions and Location of the Contacts
GB/T 16649.3 Identification Cards - Integrated Circuit(s) Cards with Contacts -
Part 3. Electronic Signals and Transmission Protocols
GB/T 17618 Information Technology Equipment - Immunity Characteristics - Limits
and Methods of Measurement
GB/T 18239-2000 Generic Specification for Integrated Circuit Card Reader
GB/T 20135 Intelligent Transport Systems - Electronic Toll Collection - System
Architecture
GB/T 20851.1-2007 Electronic Toll Collection - Dedicated Short Range
Communication - Part 1. Physical Layer

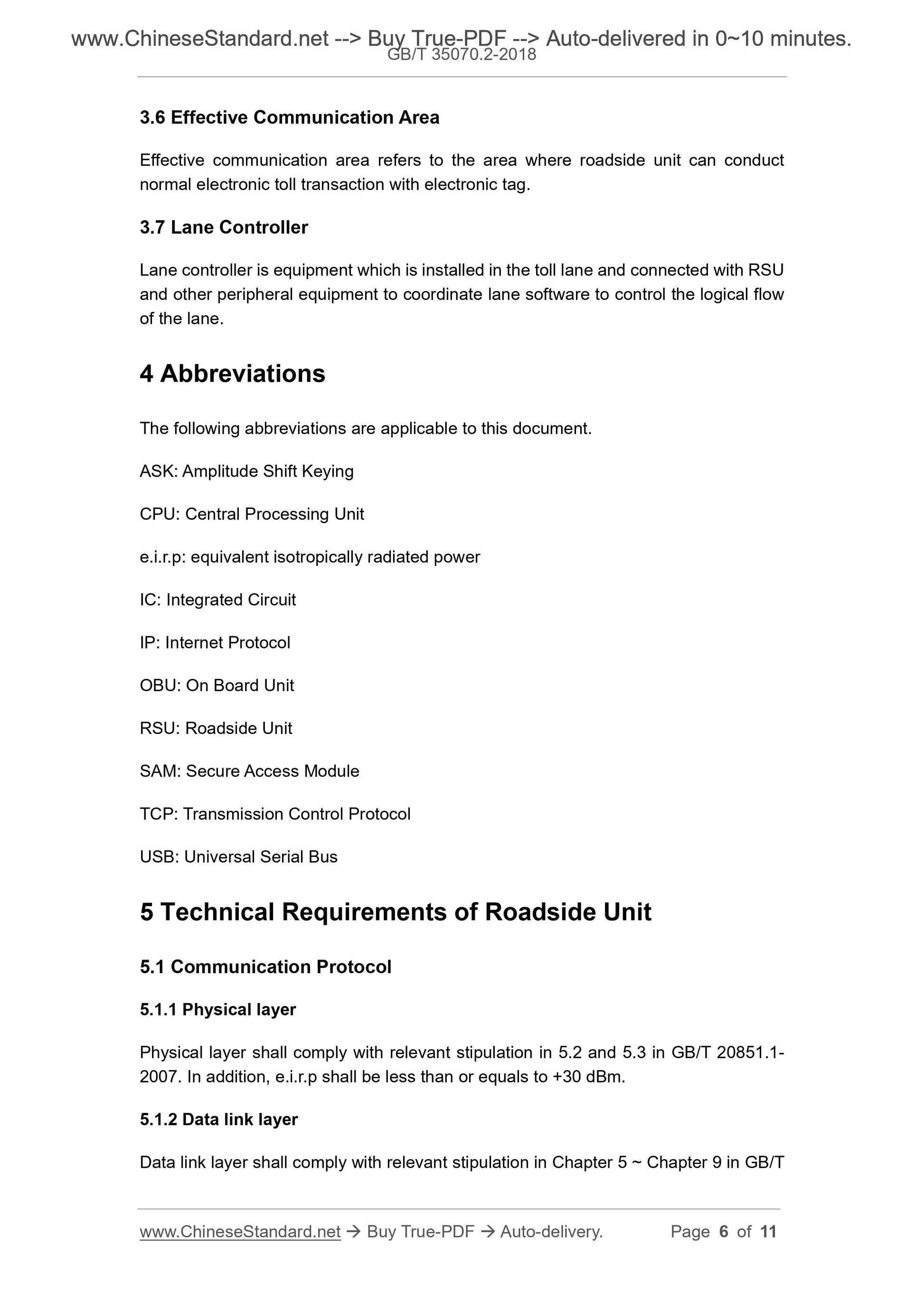

3.6 Effective Communication Area
Effective communication area refers to the area where roadside unit can conduct
normal electronic toll transaction with electronic tag.
3.7 Lane Controller
Lane controller is equipment which is installed in the toll lane and connected with RSU
and other peripheral equipment to coordinate lane software to control the logical flow
of the lane.
4 Abbreviations
The following abbreviations are applicable to this document.
ASK. Amplitude Shift Keying
CPU. Central Processing Unit
e.i.r.p. equivalent isotropically radiated power
IC. Integrated Circuit
IP. Internet Protocol
OBU. On Board Unit
RSU. Roadside Unit
SAM. Secure Access Module
TCP. Transmission Control Protocol
USB. Universal Serial Bus
5 Technical Requirements of Roadside Unit
5.1 Communication Protocol
5.1.1 Physical layer
Physical layer shall comply with relevant stipulation in 5.2 and 5.3 in GB/T 20851.1-
2007. In addition, e.i.r.p shall be less than or equals to +30 dBm.
5.1.2 Data link layer
Data link layer shall comply with relevant stipulation in Chapter 5 ~ Chapter 9 in GB/T

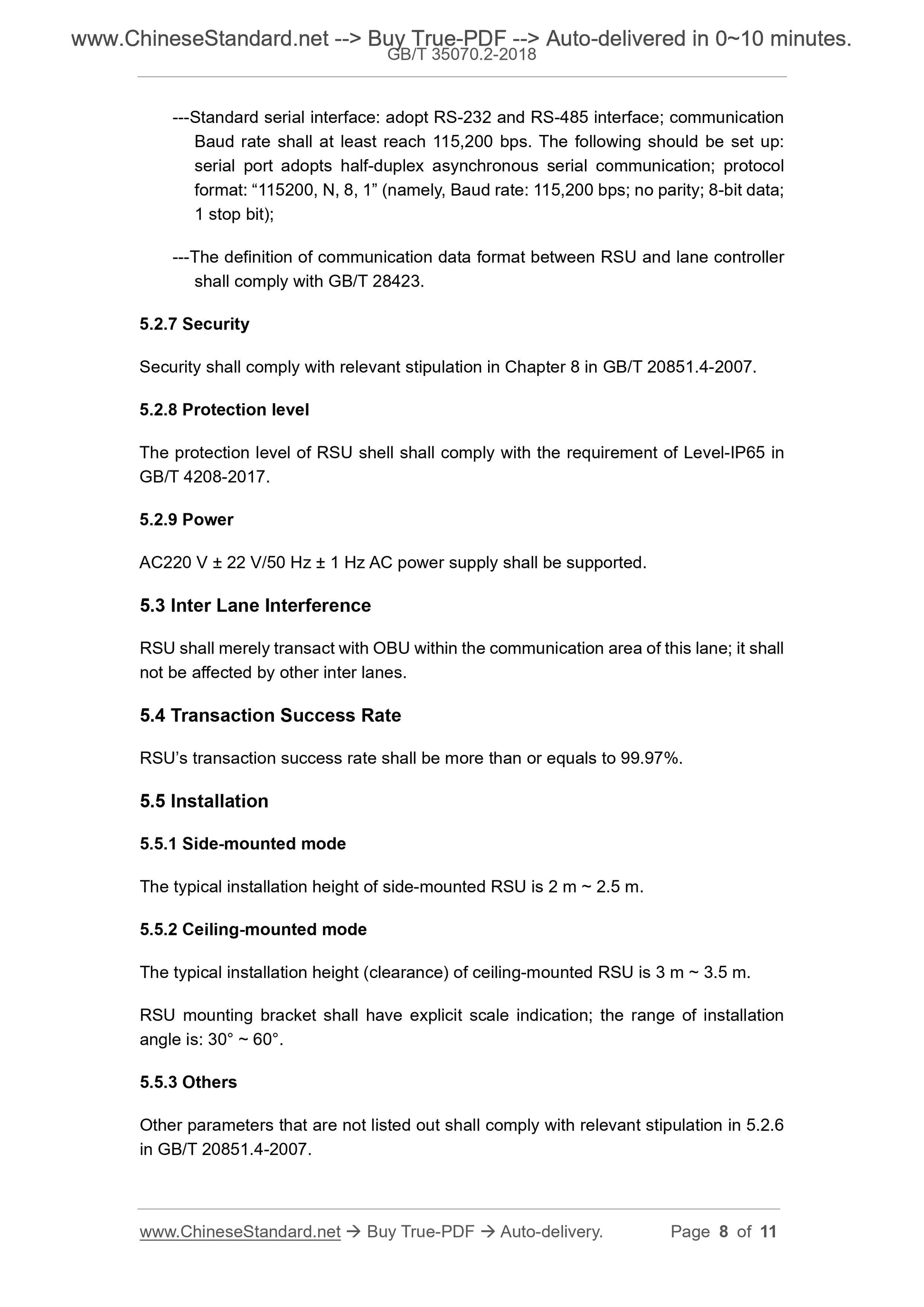

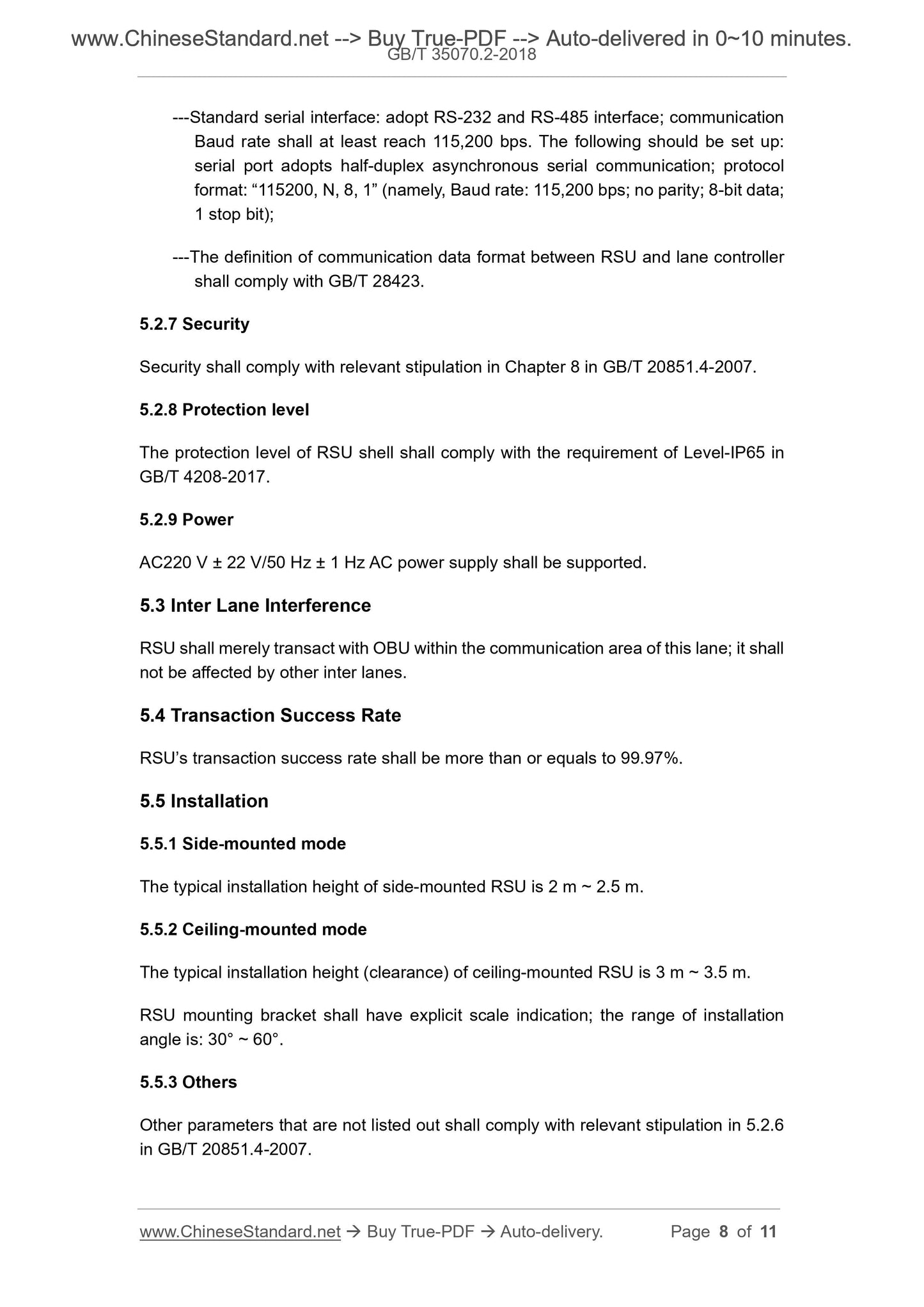

---Standard serial interface. adopt RS-232 and RS-485 interface; communication
Baud rate shall at least reach 115,200 bps. The following should be set up.
serial port adopts half-duplex asynchronous serial communication; protocol
format. “115200, N, 8, 1” (namely, Baud rate. 115,200 bps; no parity; 8-bit data;
1 stop bit);
---The definition of communication data format between RSU and lane controller
shall comply with GB/T 28423.
5.2.7 Security
Security shall comply with relevant stipulation in Chapter 8 in GB/T 20851.4-2007.
5.2.8 Protection level
The protection level of RSU shell shall comply with the requirement of Level-IP65 in
GB/T 4208-2017.
5.2.9 Power
AC220 V ± 22 V/50 Hz ± 1 Hz AC power supply shall be supported.
5.3 Inter Lane Interference
RSU shall merely transact with OBU within the communication area of this lane; it shall
not be affected by other inter lanes.
5.4 Transaction Success Rate
RSU’s transaction success rate shall be more than or equals to 99.97%.
5.5 Installation
5.5.1 Side-mounted mode
The typical installation height of side-mounted RSU is 2 m ~ 2.5 m.
5.5.2 Ceiling-mounted mode
The typical installation height (clearance) of ceiling-mounted RSU is 3 m ~ 3.5 m.
RSU mounting bracket shall have explicit scale indication; the range of installation
angle is. 30° ~ 60°.
5.5.3 Others
Other parameters that are not listed out shall comply with relevant stipulation in 5.2.6
in GB/T 20851.4-2007.

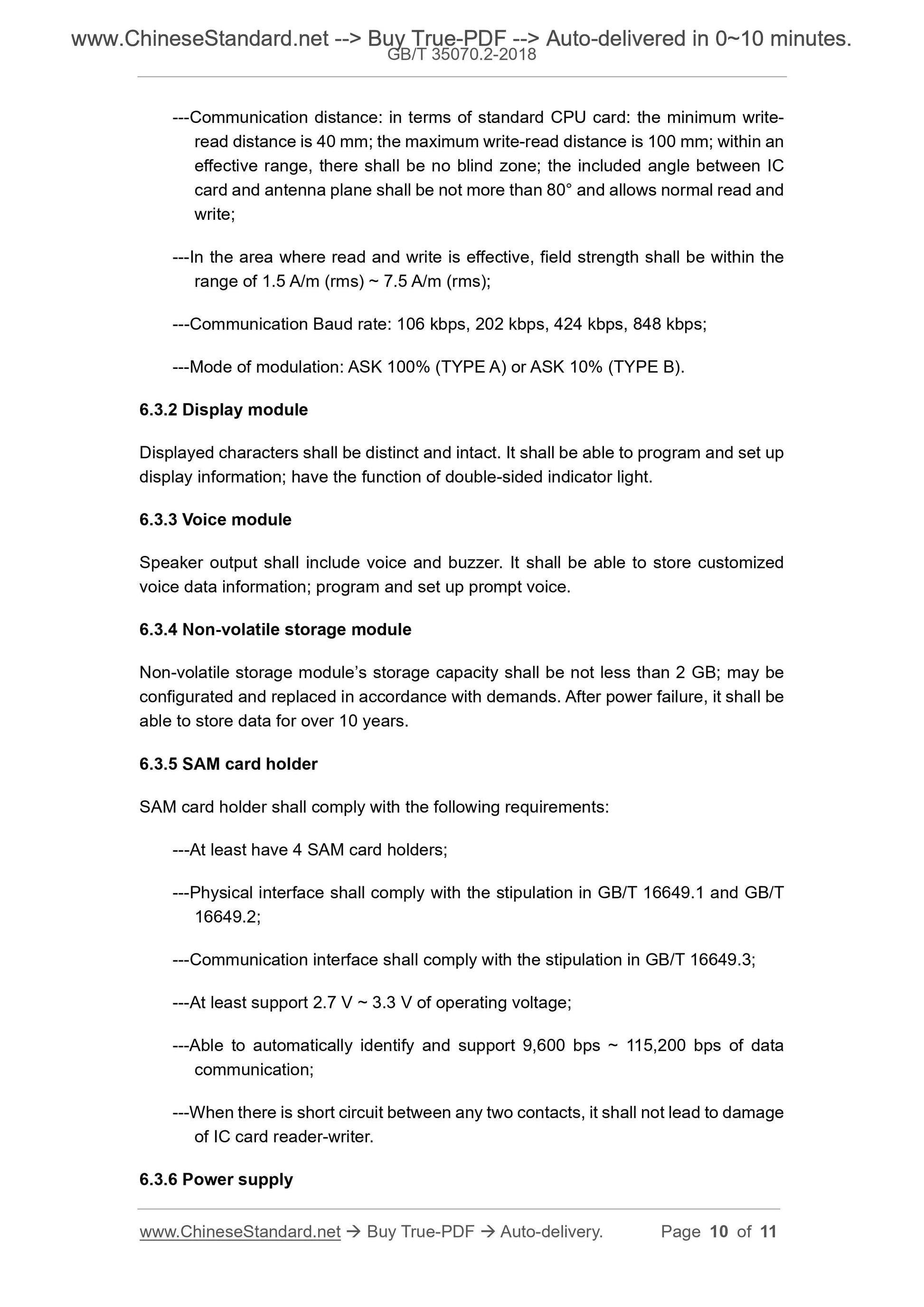

---Communication distance. in terms of standard CPU card. the minimum write-
read distance is 40 mm; the maximum write-read distance is 100 mm; within an
effective range, there shall be no blind zone; the included angle between IC
card and antenna plane shall be not more than 80° and allows normal read and
write;
---In the area where read and write is effective, field strength shall be within the
range of 1.5 A/m (rms) ~ 7.5 A/m (rms);
---Communication Baud rate. 106 kbps, 202 kbps, 424 kbps, 848 kbps;
---Mode of modulation. ASK 100% (TYPE A) or ASK 10% (TYPE B).
6.3.2 Display module
Displayed characters shall be distinct and intact. It shall be able to program and set up
display information; have the function of double-sided indicator light.
6.3.3 Voice module
Speaker output shall include voice and buzzer. It shall be able to store customized
voice data information; program and set up prompt voice.
6.3.4 Non-volatile storage module
Non-volatile storage module’s storage capacity shall be not less than 2 GB; may be
configurated and replaced in accordance with demands. After power failure, it shall be
able to store data for over 10 years.
6.3.5 SAM card holder
SAM card holder shall comply with the following requirements.
---At least have 4 SAM card holders;
---Physical interface shall comply with the stipulation in GB/T 16649.1 and GB/T
16649.2;
---Communication interface shall comply with the stipulation in GB/T 16649.3;
---At least support 2.7 V ~ 3.3 V of operating voltage;
---Able to automatically identify and support 9,600 bps ~ 115,200 bps of data
communication;
---When there is short circuit between any two contacts, it shall not lead to damage
of IC card reader-writer.
6.3.6 Power supply
