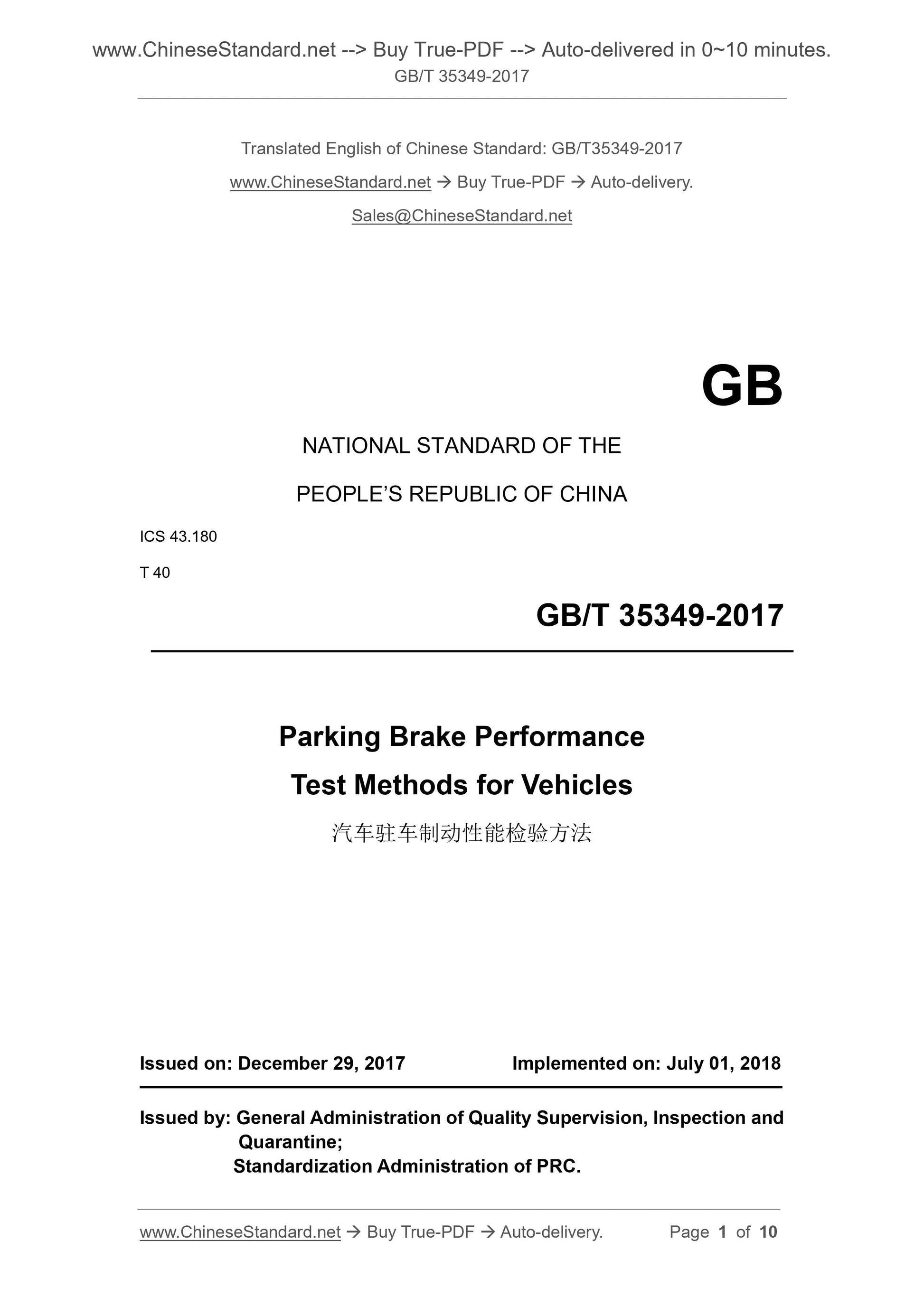

GB/T 35349-2017: Parking brake performance test methods for vehicles
GB/T 35349-2017
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 43.180
T 40
Parking Brake Performance
Test Methods for Vehicles
ISSUED ON. DECEMBER 29, 2017
IMPLEMENTED ON. JULY 01, 2018
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of PRC.

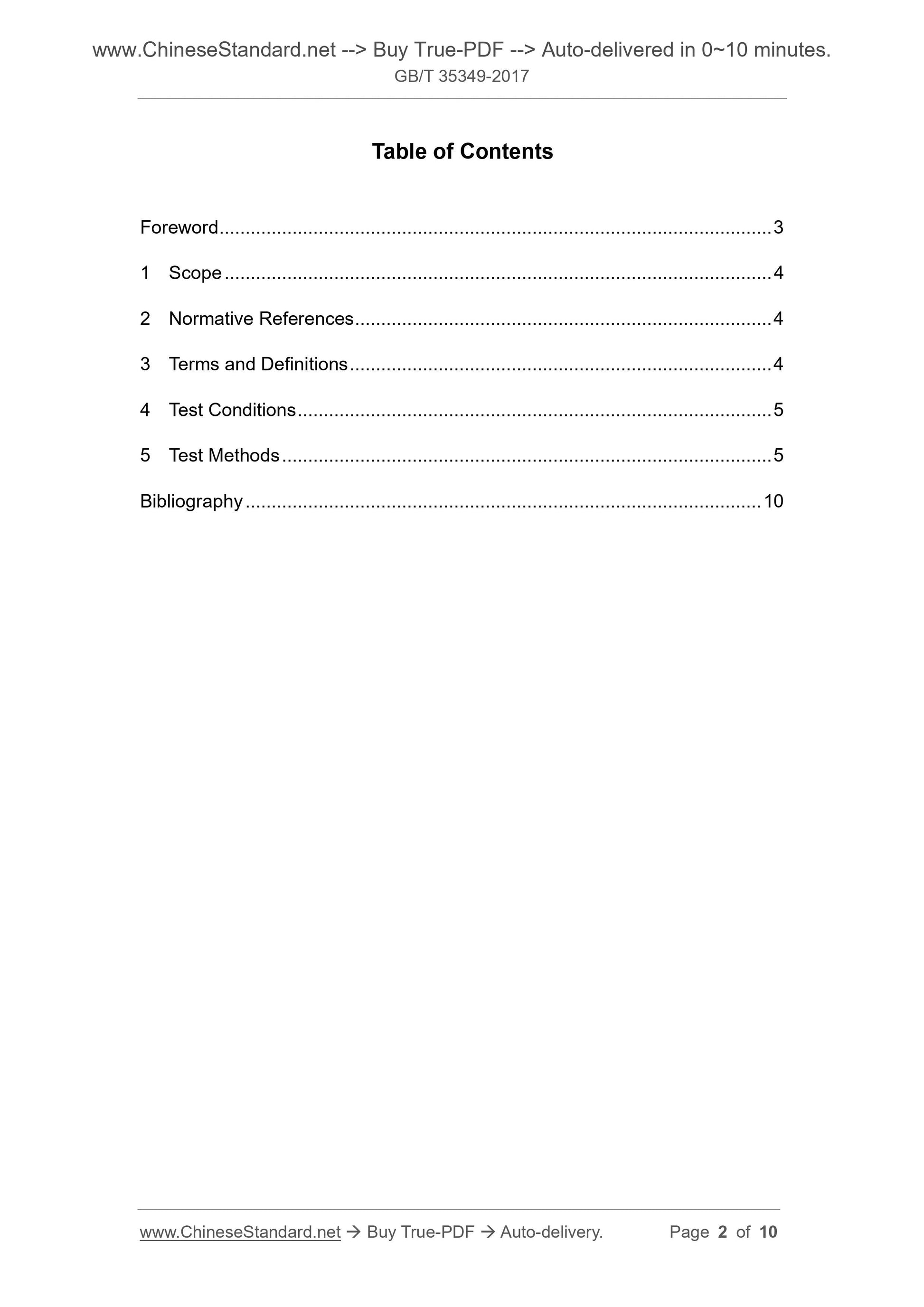

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Test Conditions ... 5
5 Test Methods ... 5
Bibliography ... 10

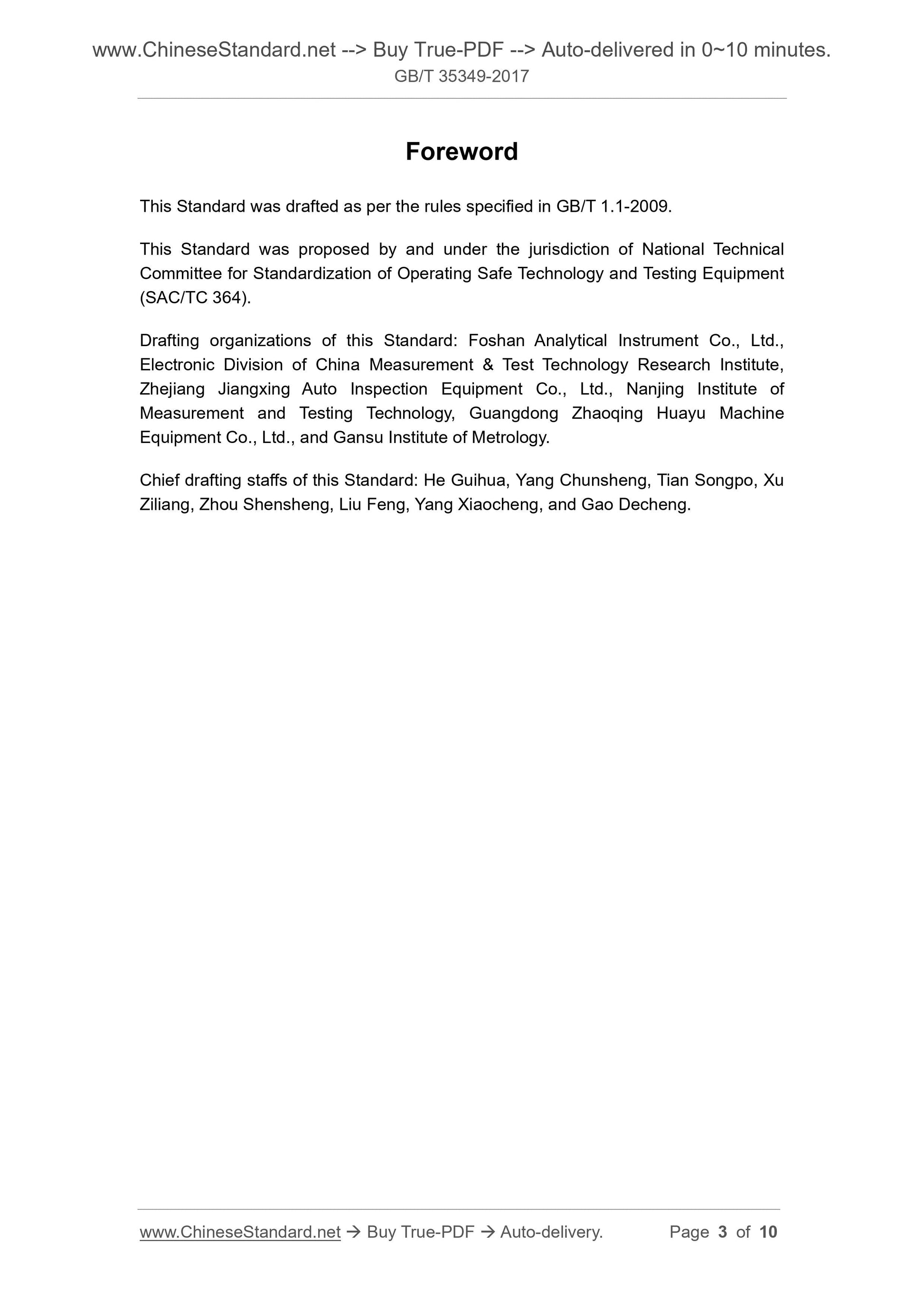

Foreword
This Standard was drafted as per the rules specified in GB/T 1.1-2009.
This Standard was proposed by and under the jurisdiction of National Technical
Committee for Standardization of Operating Safe Technology and Testing Equipment
(SAC/TC 364).
Drafting organizations of this Standard. Foshan Analytical Instrument Co., Ltd.,
Electronic Division of China Measurement and Test Technology Research Institute,
Zhejiang Jiangxing Auto Inspection Equipment Co., Ltd., Nanjing Institute of
Measurement and Testing Technology, Guangdong Zhaoqing Huayu Machine
Equipment Co., Ltd., and Gansu Institute of Metrology.
Chief drafting staffs of this Standard. He Guihua, Yang Chunsheng, Tian Songpo, Xu
Ziliang, Zhou Shensheng, Liu Feng, Yang Xiaocheng, and Gao Decheng.
Parking Brake Performance
Test Methods for Vehicles

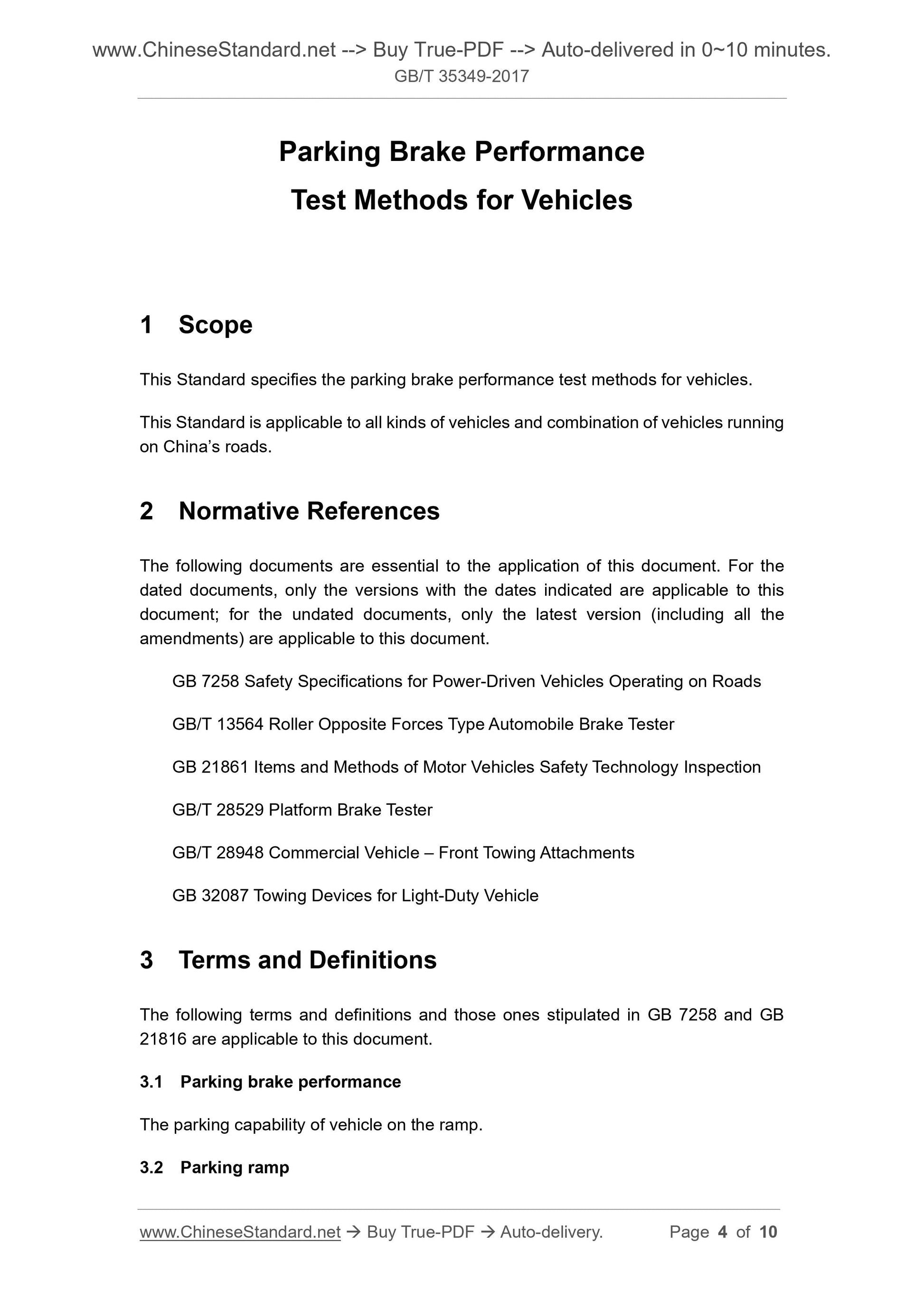

1 Scope
This Standard specifies the parking brake performance test methods for vehicles.
This Standard is applicable to all kinds of vehicles and combination of vehicles running
on China’s roads.
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB 7258 Safety Specifications for Power-Driven Vehicles Operating on Roads
GB/T 13564 Roller Opposite Forces Type Automobile Brake Tester
GB 21861 Items and Methods of Motor Vehicles Safety Technology Inspection
GB/T 28529 Platform Brake Tester
GB/T 28948 Commercial Vehicle – Front Towing Attachments
GB 32087 Towing Devices for Light-Duty Vehicle
3 Terms and Definitions
The following terms and definitions and those ones stipulated in GB 7258 and GB
21816 are applicable to this document.
3.1 Parking brake performance
The parking capability of vehicle on the ramp.
3.2 Parking ramp

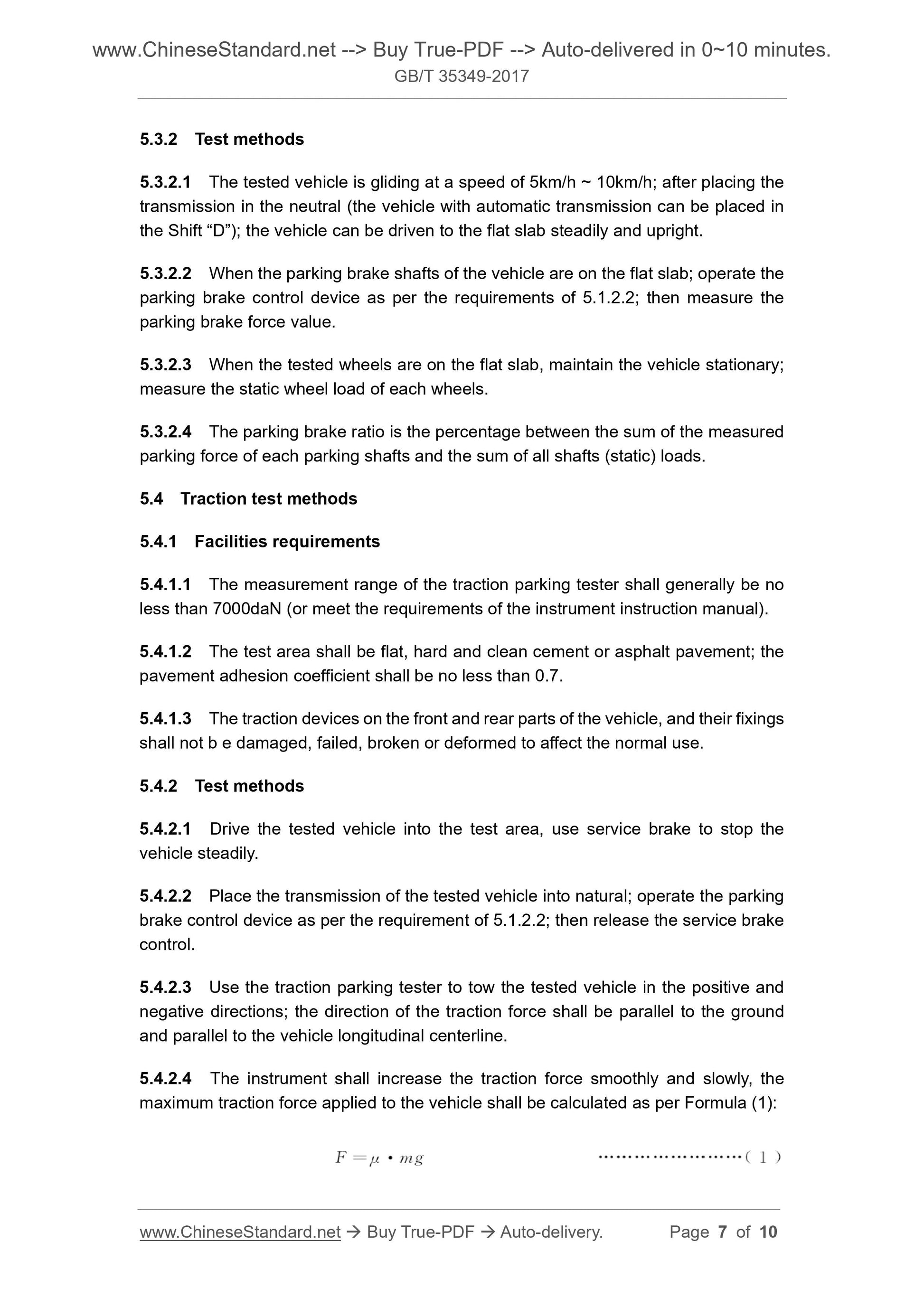

5.3.2 Test methods
5.3.2.1 The tested vehicle is gliding at a speed of 5km/h ~ 10km/h; after placing the
transmission in the neutral (the vehicle with automatic transmission can be placed in
the Shift “D”); the vehicle can be driven to the flat slab steadily and upright.
5.3.2.2 When the parking brake shafts of the vehicle are on the flat slab; operate the
parking brake control device as per the requirements of 5.1.2.2; then measure the
parking brake force value.
5.3.2.3 When the tested wheels are on the flat slab, maintain the vehicle stationary;
measure the static wheel load of each wheels.
5.3.2.4 The parking brake ratio is the percentage between the sum of the measured
parking force of each parking shafts and the sum of all shafts (static) loads.
5.4 Traction test methods
5.4.1 Facilities requirements
5.4.1.1 The measurement range of the traction parking tester shall generally be no
less than 7000daN (or meet the requirements of the instrument instruction manual).
5.4.1.2 The test area shall be flat, hard and clean cement or asphalt pavement; the
pavement adhesion coefficient shall be no less than 0.7.
5.4.1.3 The traction devices on the front and rear parts of the vehicle, and their fixings
shall not b e damaged, failed, broken or deformed to affect the normal use.
5.4.2 Test methods
5.4.2.1 Drive the tested vehicle into the test area, use service brake to stop the
vehicle steadily.
5.4.2.2 Place the transmission of the tested vehicle into natural; operate the parking
brake control device as per the requirement of 5.1.2.2; then release the service brake
control.
5.4.2.3 Use the traction parking tester to tow the tested vehicle in the positive and
negative directions; the direction of the traction force shall be parallel to the ground
and parallel to the vehicle longitudinal centerline.
5.4.2.4 The instrument shall increase the traction force smoothly and slowly, the
maximum traction force applied to the vehicle shall be calculated as per Formula (1).
