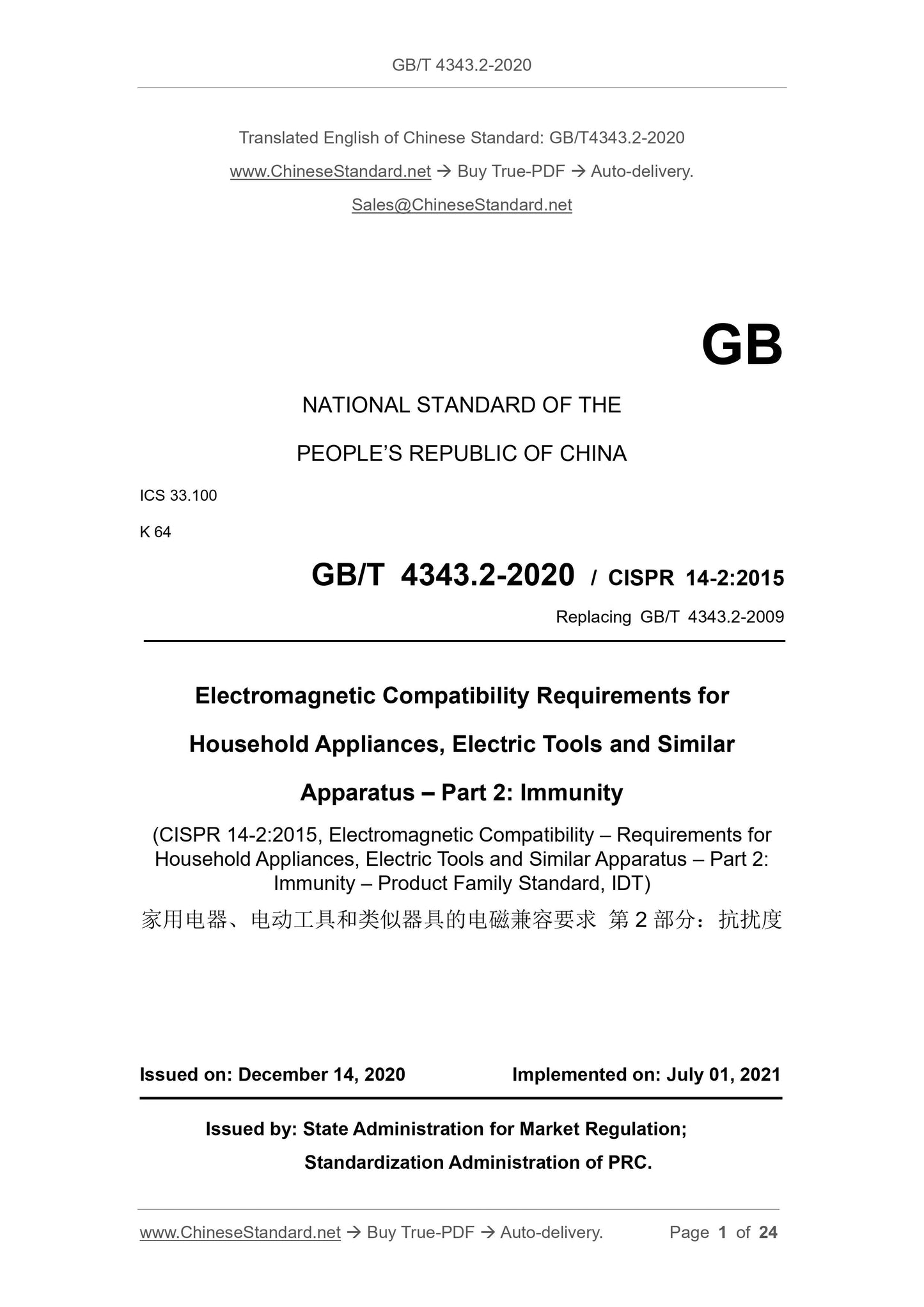

GB/T 4343.2-2020: Electromagnetic compatibility requirements for household appliances, electric tools and similar apparatus -- Part 2: Immunity
GB/T 4343.2-2020
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 33.100
K 64
GB/T 4343.2-2020 / CISPR 14-2:2015
Replacing GB/T 4343.2-2009
Electromagnetic Compatibility Requirements for
Household Appliances, Electric Tools and Similar
Apparatus – Part 2: Immunity
(CISPR 14-2:2015, Electromagnetic Compatibility – Requirements for
Household Appliances, Electric Tools and Similar Apparatus – Part 2:
Immunity – Product Family Standard, IDT)
ISSUED ON: DECEMBER 14, 2020
IMPLEMENTED ON: JULY 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of PRC.

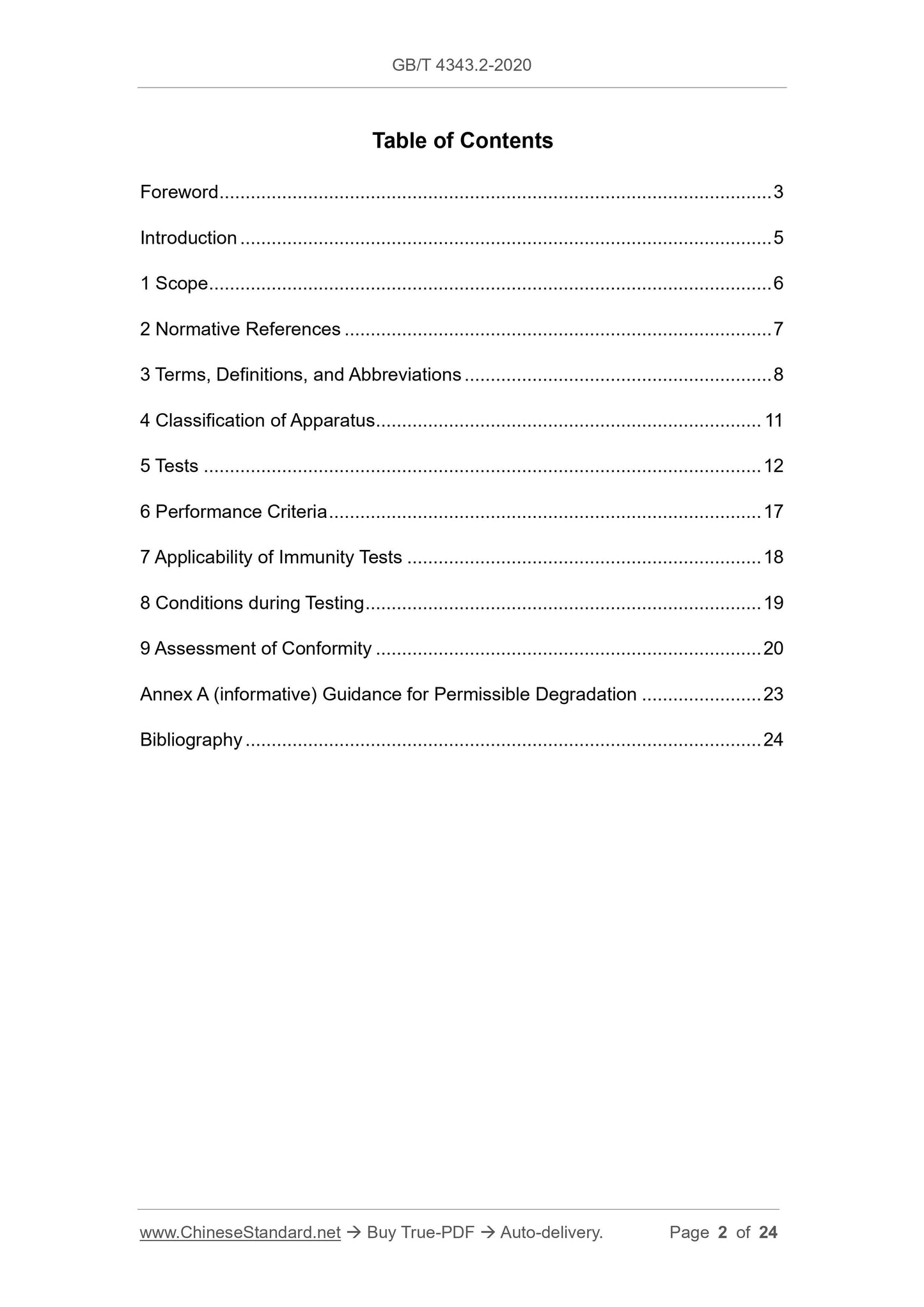

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 6
2 Normative References ... 7
3 Terms, Definitions, and Abbreviations ... 8
4 Classification of Apparatus ... 11
5 Tests ... 12
6 Performance Criteria ... 17
7 Applicability of Immunity Tests ... 18
8 Conditions during Testing ... 19
9 Assessment of Conformity ... 20
Annex A (informative) Guidance for Permissible Degradation ... 23
Bibliography ... 24

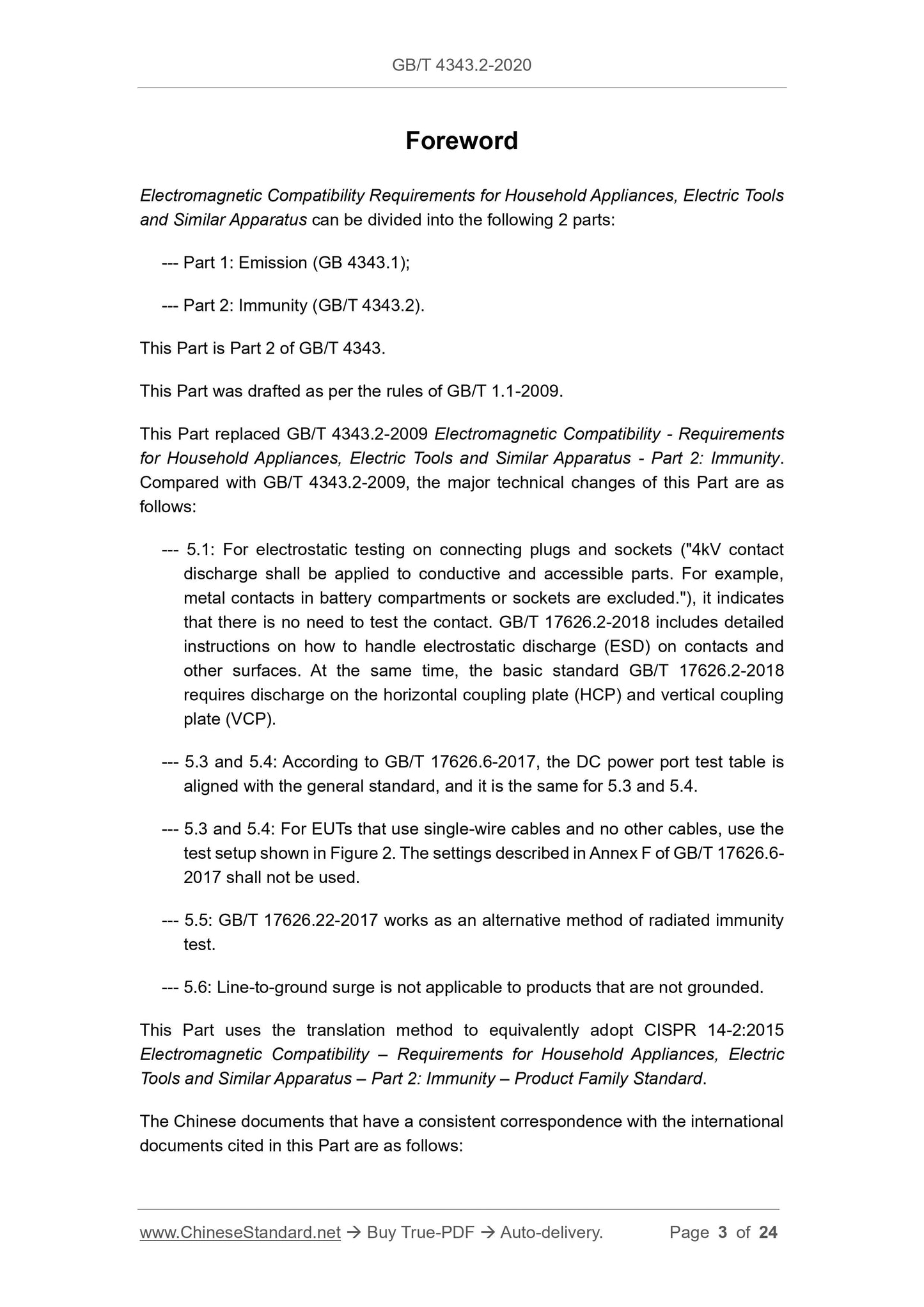

Foreword
Electromagnetic Compatibility Requirements for Household Appliances, Electric Tools
and Similar Apparatus can be divided into the following 2 parts:
--- Part 1: Emission (GB 4343.1);
--- Part 2: Immunity (GB/T 4343.2).
This Part is Part 2 of GB/T 4343.
This Part was drafted as per the rules of GB/T 1.1-2009.
This Part replaced GB/T 4343.2-2009 Electromagnetic Compatibility - Requirements
for Household Appliances, Electric Tools and Similar Apparatus - Part 2: Immunity.
Compared with GB/T 4343.2-2009, the major technical changes of this Part are as
follows:
--- 5.1: For electrostatic testing on connecting plugs and sockets ("4kV contact
discharge shall be applied to conductive and accessible parts. For example,
metal contacts in battery compartments or sockets are excluded."), it indicates
that there is no need to test the contact. GB/T 17626.2-2018 includes detailed
instructions on how to handle electrostatic discharge (ESD) on contacts and
other surfaces. At the same time, the basic standard GB/T 17626.2-2018
requires discharge on the horizontal coupling plate (HCP) and vertical coupling
plate (VCP).
--- 5.3 and 5.4: According to GB/T 17626.6-2017, the DC power port test table is
aligned with the general standard, and it is the same for 5.3 and 5.4.
--- 5.3 and 5.4: For EUTs that use single-wire cables and no other cables, use the
test setup shown in Figure 2. The settings described in Annex F of GB/T 17626.6-
2017 shall not be used.
--- 5.5: GB/T 17626.22-2017 works as an alternative method of radiated immunity
test.
--- 5.6: Line-to-ground surge is not applicable to products that are not grounded.
This Part uses the translation method to equivalently adopt CISPR 14-2:2015
Electromagnetic Compatibility – Requirements for Household Appliances, Electric
Tools and Similar Apparatus – Part 2: Immunity – Product Family Standard.
The Chinese documents that have a consistent correspondence with the international
documents cited in this Part are as follows:

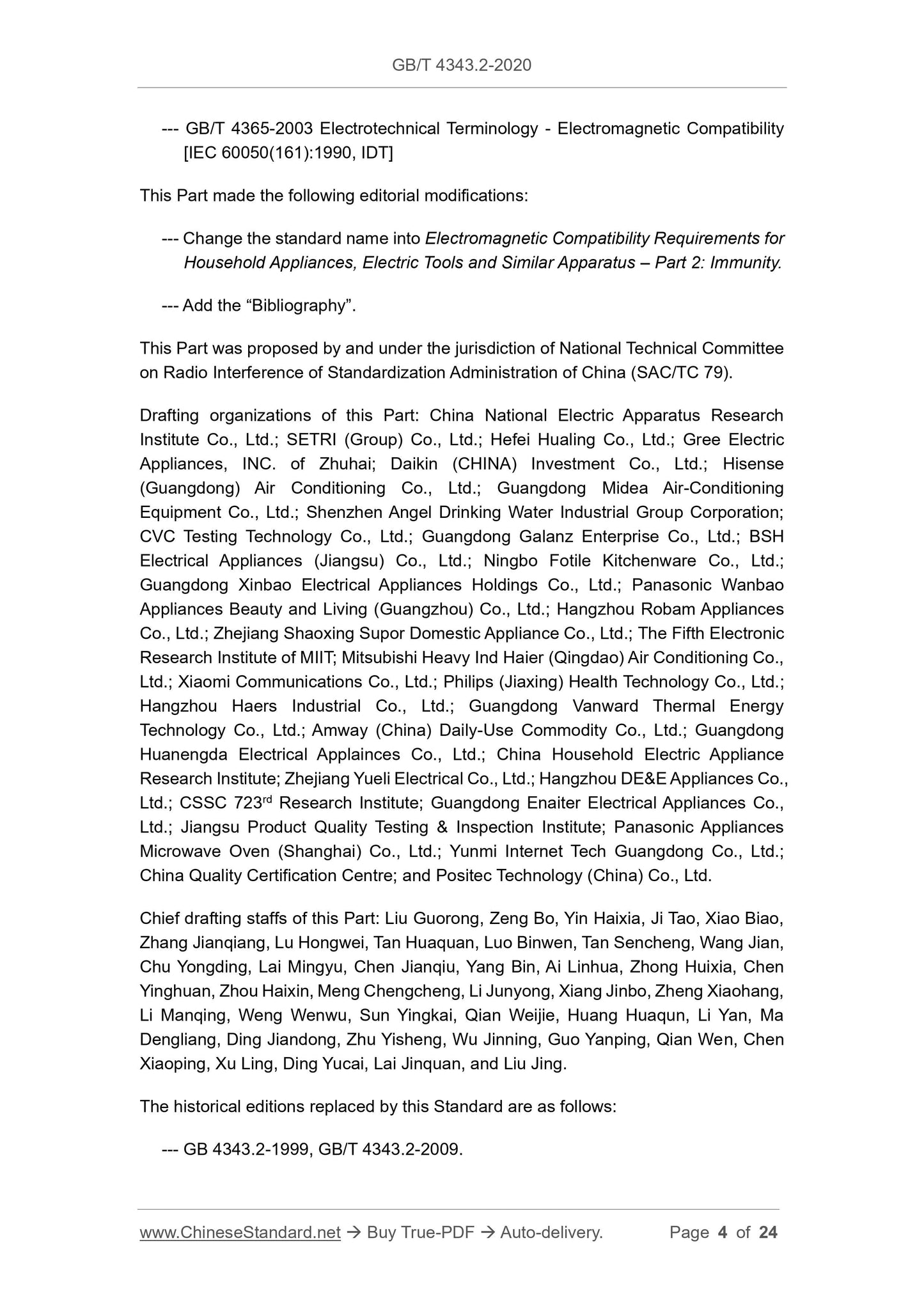

--- GB/T 4365-2003 Electrotechnical Terminology - Electromagnetic Compatibility
[IEC 60050(161):1990, IDT]
This Part made the following editorial modifications:
--- Change the standard name into Electromagnetic Compatibility Requirements for
Household Appliances, Electric Tools and Similar Apparatus – Part 2: Immunity.
--- Add the “Bibliography”.
This Part was proposed by and under the jurisdiction of National Technical Committee
on Radio Interference of Standardization Administration of China (SAC/TC 79).
Drafting organizations of this Part: China National Electric Apparatus Research
Institute Co., Ltd.; SETRI (Group) Co., Ltd.; Hefei Hualing Co., Ltd.; Gree Electric
Appliances, INC. of Zhuhai; Daikin (CHINA) Investment Co., Ltd.; Hisense
(Guangdong) Air Conditioning Co., Ltd.; Guangdong Midea Air-Conditioning
Equipment Co., Ltd.; Shenzhen Angel Drinking Water Industrial Group Corporation;
CVC Testing Technology Co., Ltd.; Guangdong Galanz Enterprise Co., Ltd.; BSH
Electrical Appliances (Jiangsu) Co., Ltd.; Ningbo Fotile Kitchenware Co., Ltd.;
Guangdong Xinbao Electrical Appliances Holdings Co., Ltd.; Panasonic Wanbao
Appliances Beauty and Living (Guangzhou) Co., Ltd.; Hangzhou Robam Appliances
Co., Ltd.; Zhejiang Shaoxing Supor Domestic Appliance Co., Ltd.; The Fifth Electronic
Research Institute of MIIT; Mitsubishi Heavy Ind Haier (Qingdao) Air Conditioning Co.,
Ltd.; Xiaomi Communications Co., Ltd.; Philips (Jiaxing) Health Technology Co., Ltd.;
Hangzhou Haers Industrial Co., Ltd.; Guangdong Vanward Thermal Energy
Technology Co., Ltd.; Amway (China) Daily-Use Commodity Co., Ltd.; Guangdong
Huanengda Electrical Applainces Co., Ltd.; China Household Electric Appliance
Research Institute; Zhejiang Yueli Electrical Co., Ltd.; Hangzhou DE and E Appliances Co.,
Ltd.; CSSC 723rd Research Institute; Guangdong Enaiter Electrical Appliances Co.,
Ltd.; Jiangsu Product Quality Testing and Inspection Institute; Panasonic Appliances
Microwave Oven (Shanghai) Co., Ltd.; Yunmi Internet Tech Guangdong Co., Ltd.;
China Quality Certification Centre; and Positec Technology (China) Co., Ltd.
Chief drafting staffs of this Part: Liu Guorong, Zeng Bo, Yin Haixia, Ji Tao, Xiao Biao,
Zhang Jianqiang, Lu Hongwei, Tan Huaquan, Luo Binwen, Tan Sencheng, Wang Jian,
Chu Yongding, Lai Mingyu, Chen Jianqiu, Yang Bin, Ai Linhua, Zhong Huixia, Chen
Yinghuan, Zhou Haixin, Meng Chengcheng, Li Junyong, Xiang Jinbo, Zheng Xiaohang,
Li Manqing, Weng Wenwu, Sun Yingkai, Qian Weijie, Huang Huaqun, Li Yan, Ma
Dengliang, Ding Jiandong, Zhu Yisheng, Wu Jinning, Guo Yanping, Qian Wen, Chen
Xiaoping, Xu Ling, Ding Yucai, Lai Jinquan, and Liu Jing.
The historical editions replaced by this Standard are as follows:
--- GB 4343.2-1999, GB/T 4343.2-2009.
Electromagnetic Compatibility Requirements for
Household Appliances, Electric Tools and Similar
Apparatus – Part 2: Immunity

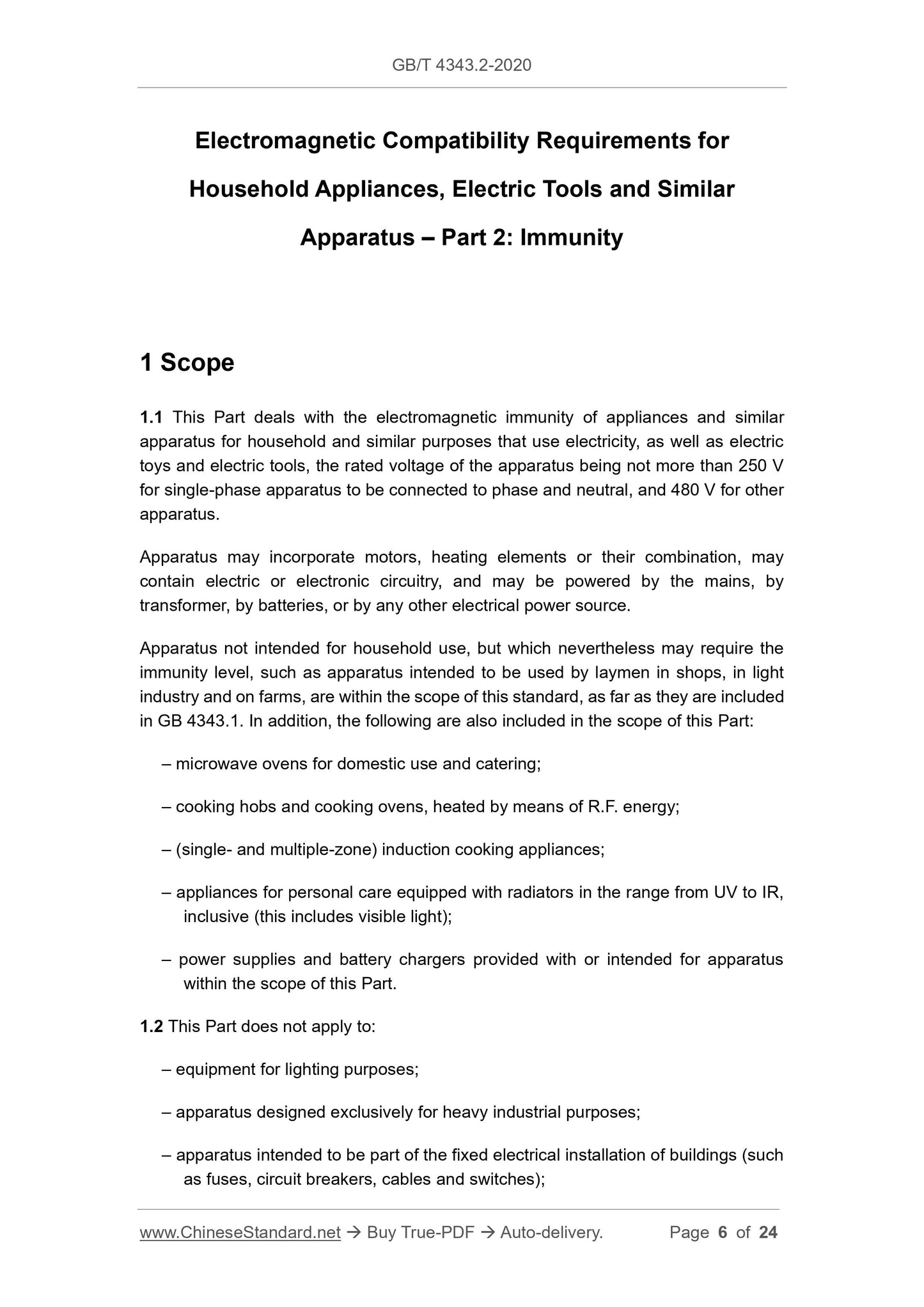

1 Scope
1.1 This Part deals with the electromagnetic immunity of appliances and similar
apparatus for household and similar purposes that use electricity, as well as electric
toys and electric tools, the rated voltage of the apparatus being not more than 250 V
for single-phase apparatus to be connected to phase and neutral, and 480 V for other
apparatus.
Apparatus may incorporate motors, heating elements or their combination, may
contain electric or electronic circuitry, and may be powered by the mains, by
transformer, by batteries, or by any other electrical power source.
Apparatus not intended for household use, but which nevertheless may require the
immunity level, such as apparatus intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard, as far as they are included
in GB 4343.1. In addition, the following are also included in the scope of this Part:
– microwave ovens for domestic use and catering;
– cooking hobs and cooking ovens, heated by means of R.F. energy;
– (single- and multiple-zone) induction cooking appliances;
– appliances for personal care equipped with radiators in the range from UV to IR,
inclusive (this includes visible light);
– power supplies and battery chargers provided with or intended for apparatus
within the scope of this Part.
1.2 This Part does not apply to:
– equipment for lighting purposes;
– apparatus designed exclusively for heavy industrial purposes;
– apparatu...
