GB/T 4854.7-2008 English PDF (GB/T4854.7-2008)

GB/T 4854.7-2008: Acoustics -- Reference zero for the calibration of audiometric equipment -- Part 7: Reference threshold of hearing under free-field and diffuse-field listening conditions
Delivery: 9 seconds. Download (& Email) true-PDF + Invoice.
Get Quotation: Click GB/T 4854.7-2008 (Self-service in 1-minute)
Historical versions (Master-website): GB/T 4854.7-2008
Preview True-PDF (Reload/Scroll-down if blank)

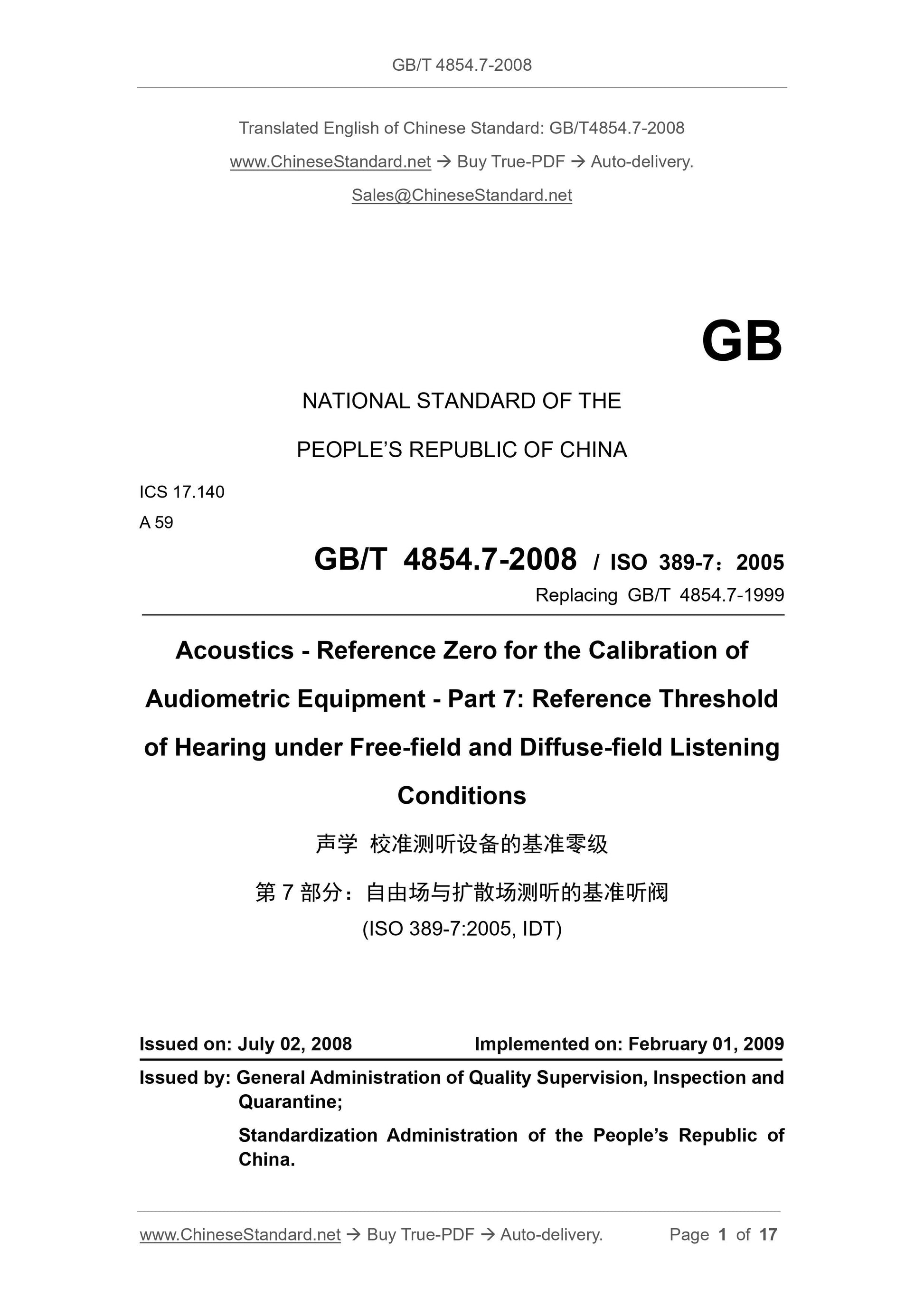

GB/T 4854.7-2008
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 17.140
A 59
GB/T 4854.7-2008 / ISO 389-7: 2005
Replacing GB/T 4854.7-1999
Acoustics - Reference Zero for the Calibration of
Audiometric Equipment - Part 7: Reference Threshold
of Hearing under Free-field and Diffuse-field Listening
Conditions
(ISO 389-7:2005, IDT)
ISSUED ON: JULY 02, 2008
IMPLEMENTED ON: FEBRUARY 01, 2009
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of the People’s Republic of
China.

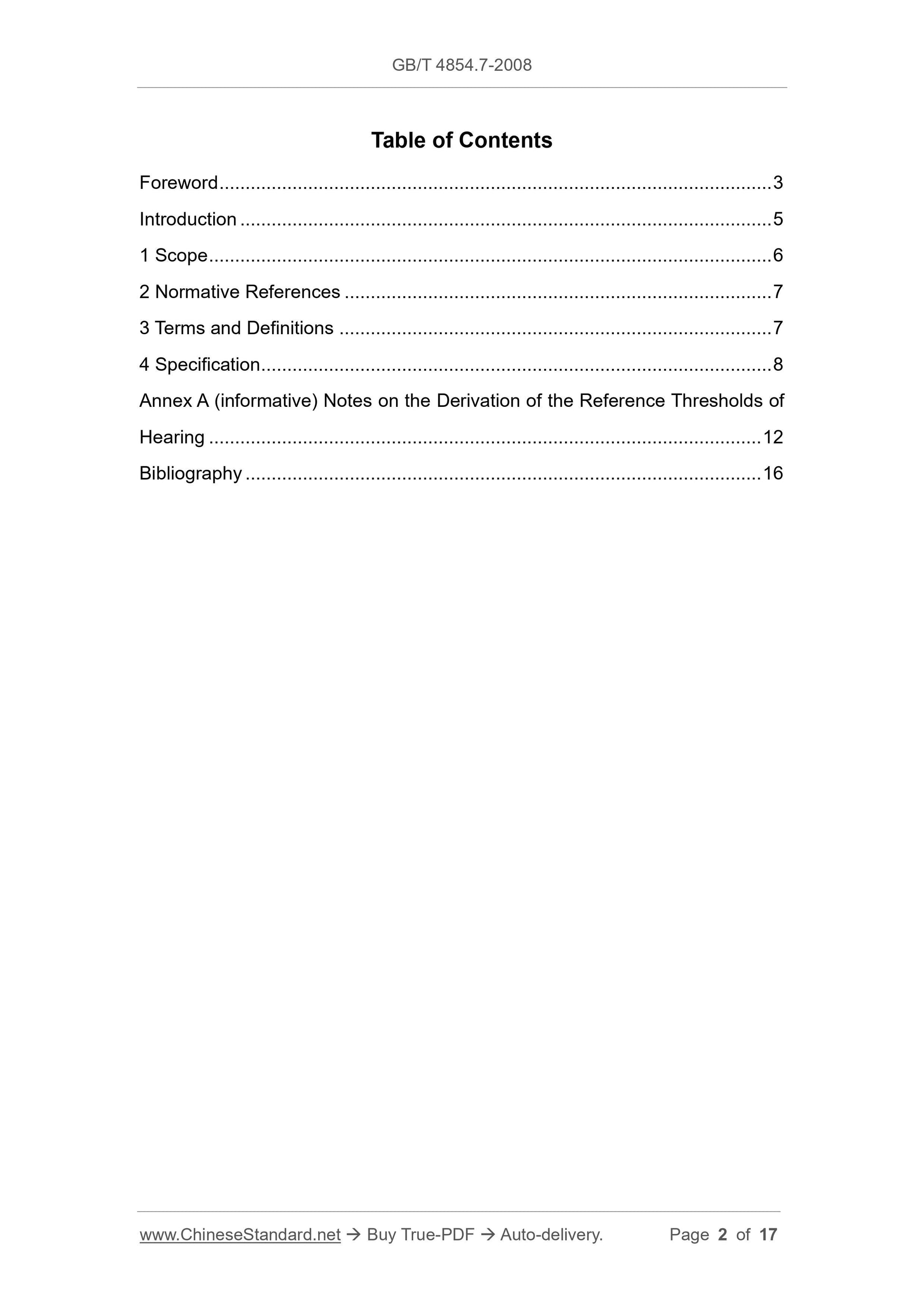

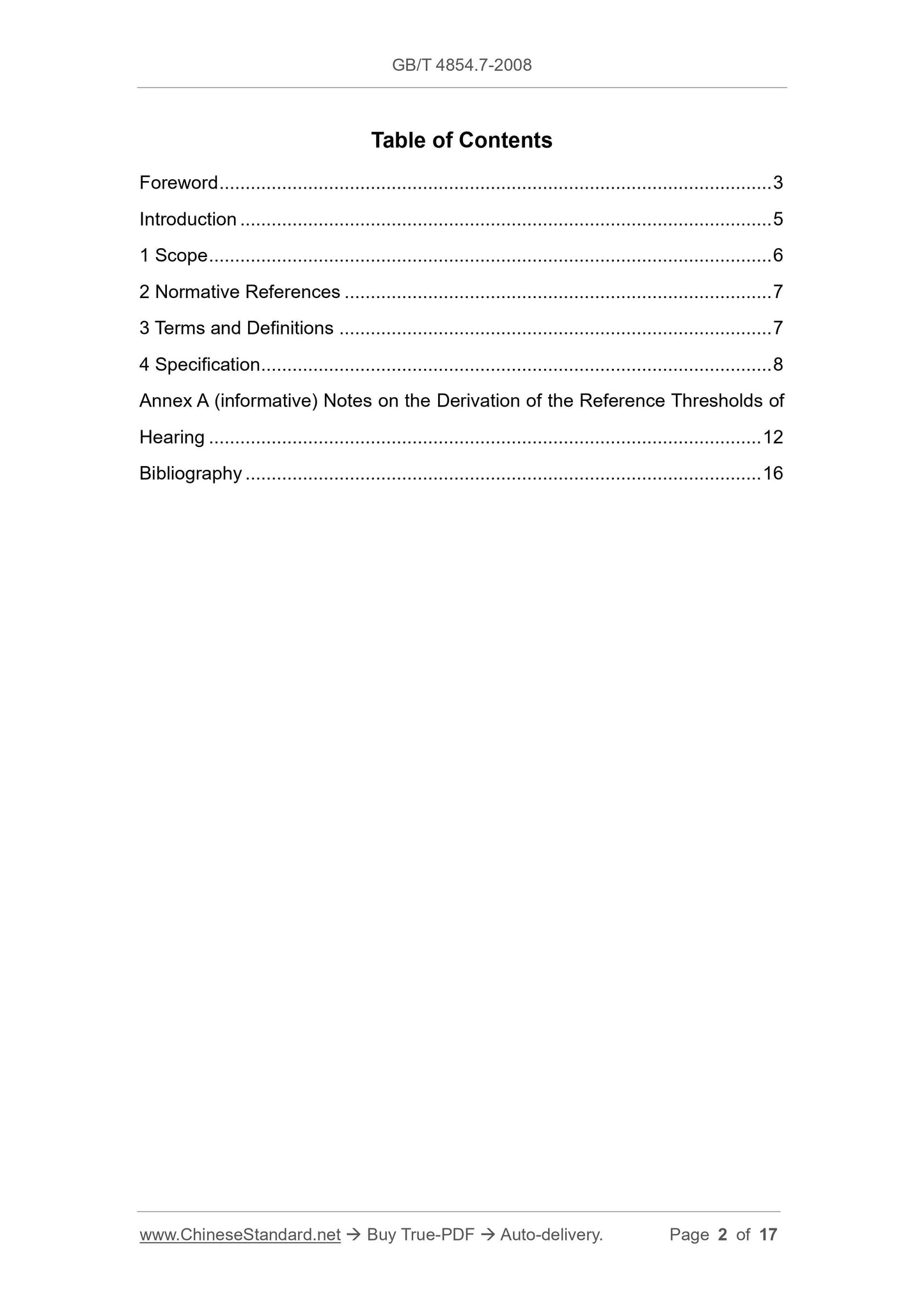

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 6
2 Normative References ... 7
3 Terms and Definitions ... 7
4 Specification ... 8
Annex A (informative) Notes on the Derivation of the Reference Thresholds of
Hearing ... 12
Bibliography ... 16

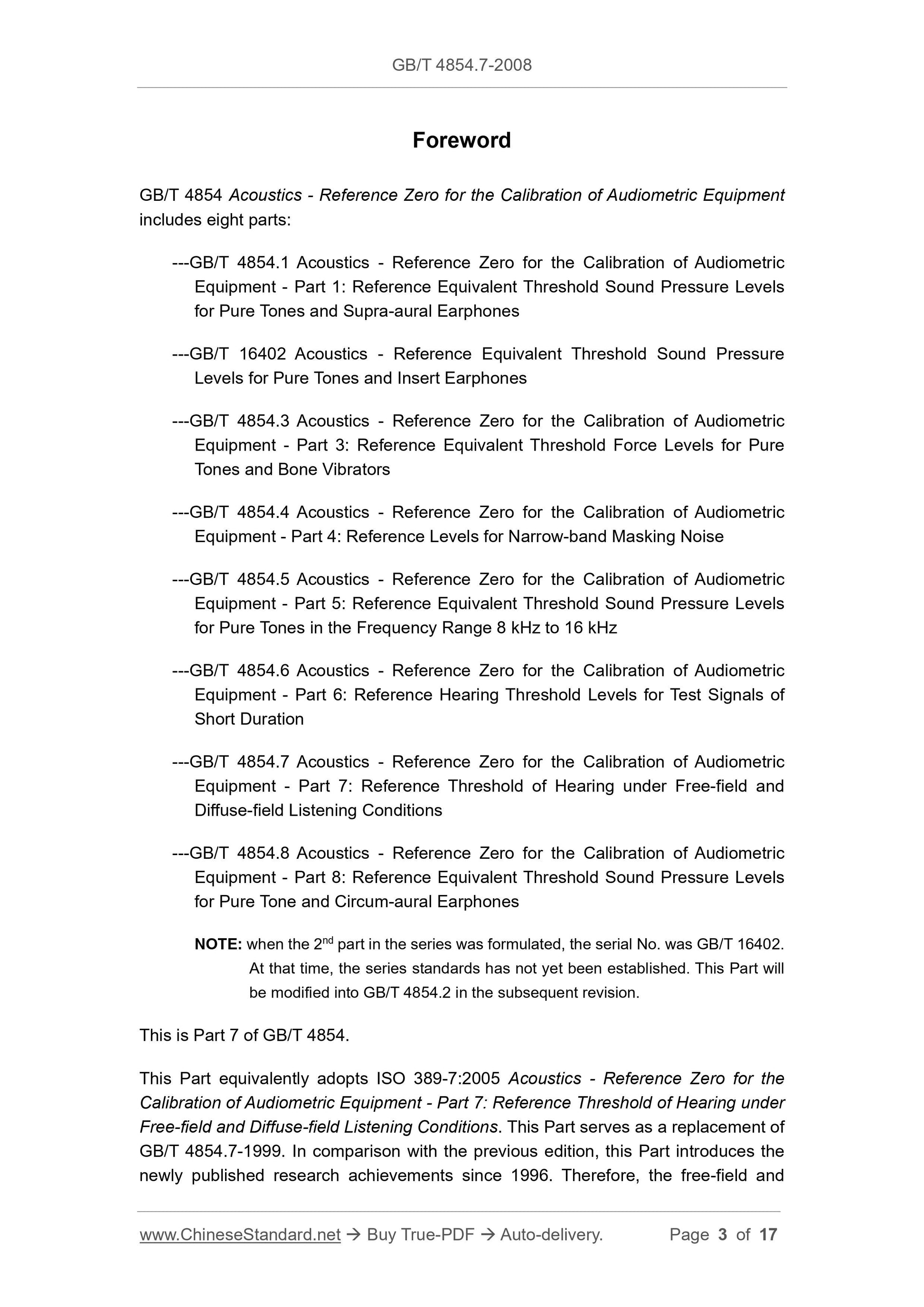

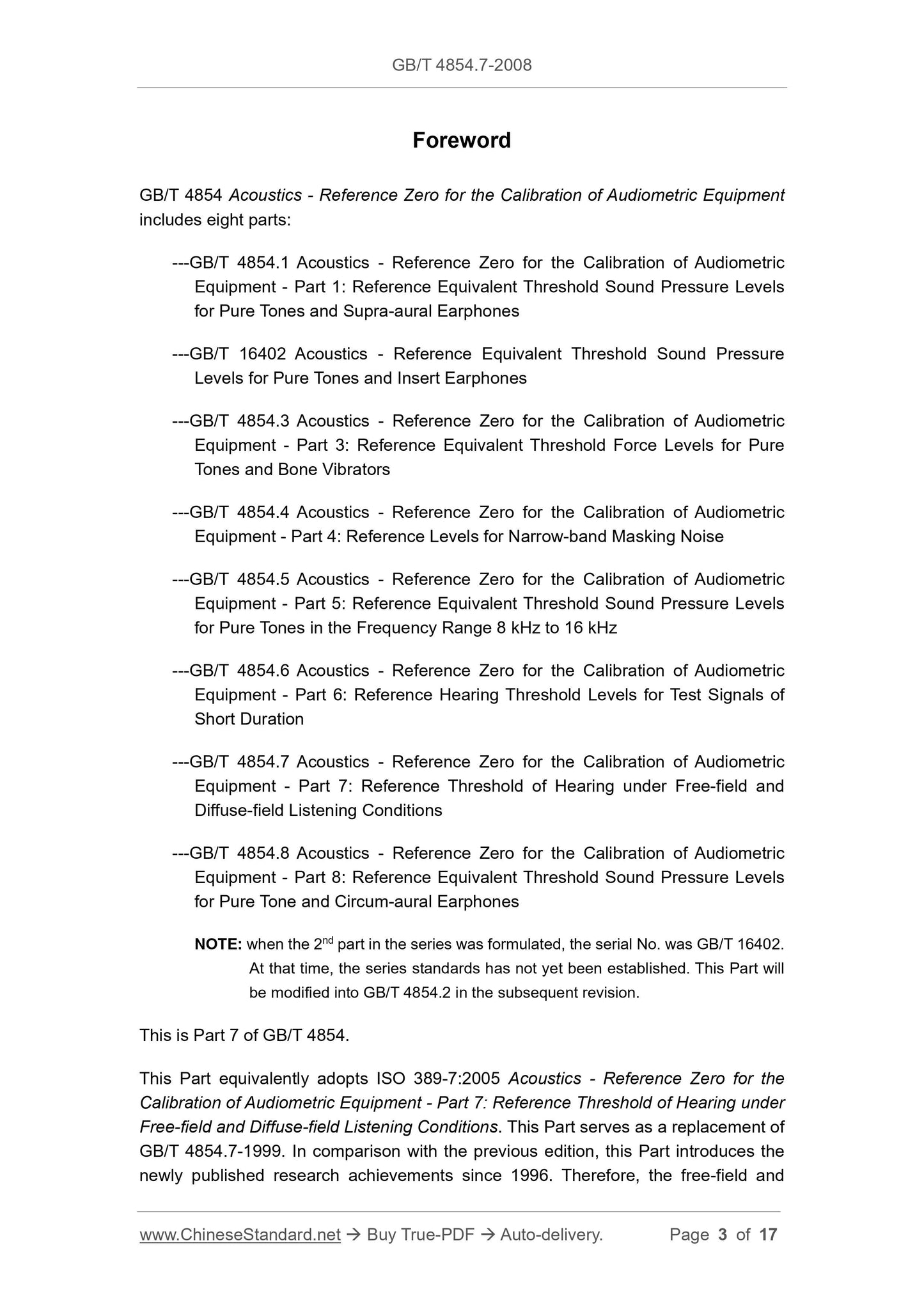

Foreword
GB/T 4854 Acoustics - Reference Zero for the Calibration of Audiometric Equipment
includes eight parts:
---GB/T 4854.1 Acoustics - Reference Zero for the Calibration of Audiometric
Equipment - Part 1: Reference Equivalent Threshold Sound Pressure Levels
for Pure Tones and Supra-aural Earphones
---GB/T 16402 Acoustics - Reference Equivalent Threshold Sound Pressure
Levels for Pure Tones and Insert Earphones
---GB/T 4854.3 Acoustics - Reference Zero for the Calibration of Audiometric
Equipment - Part 3: Reference Equivalent Threshold Force Levels for Pure
Tones and Bone Vibrators
---GB/T 4854.4 Acoustics - Reference Zero for the Calibration of Audiometric
Equipment - Part 4: Reference Levels for Narrow-band Masking Noise
---GB/T 4854.5 Acoustics - Reference Zero for the Calibration of Audiometric
Equipment - Part 5: Reference Equivalent Threshold Sound Pressure Levels
for Pure Tones in the Frequency Range 8 kHz to 16 kHz
---GB/T 4854.6 Acoustics - Reference Zero for the Calibration of Audiometric
Equipment - Part 6: Reference Hearing Threshold Levels for Test Signals of
Short Duration
---GB/T 4854.7 Acoustics - Reference Zero for the Calibration of Audiometric
Equipment - Part 7: Reference Threshold of Hearing under Free-field and
Diffuse-field Listening Conditions
---GB/T 4854.8 Acoustics - Reference Zero for the Calibration of Audiometric
Equipment - Part 8: Reference Equivalent Threshold Sound Pressure Levels
for Pure Tone and Circum-aural Earphones
NOTE: when the 2nd part in the series was formulated, the serial No. was GB/T 16402.
At that time, the series standards has not yet been established. This Part will
be modified into GB/T 4854.2 in the subsequent revision.
This is Part 7 of GB/T 4854.
This Part equivalently adopts ISO 389-7:2005 Acoustics - Reference Zero for the
Calibration of Audiometric Equipment - Part 7: Reference Threshold of Hearing under
Free-field and Diffuse-field Listening Conditions. This Part serves as a replacement of
GB/T 4854.7-1999. In comparison with the previous edition, this Part introduces the
newly published research achievements since 1996. Therefore, the free-field and

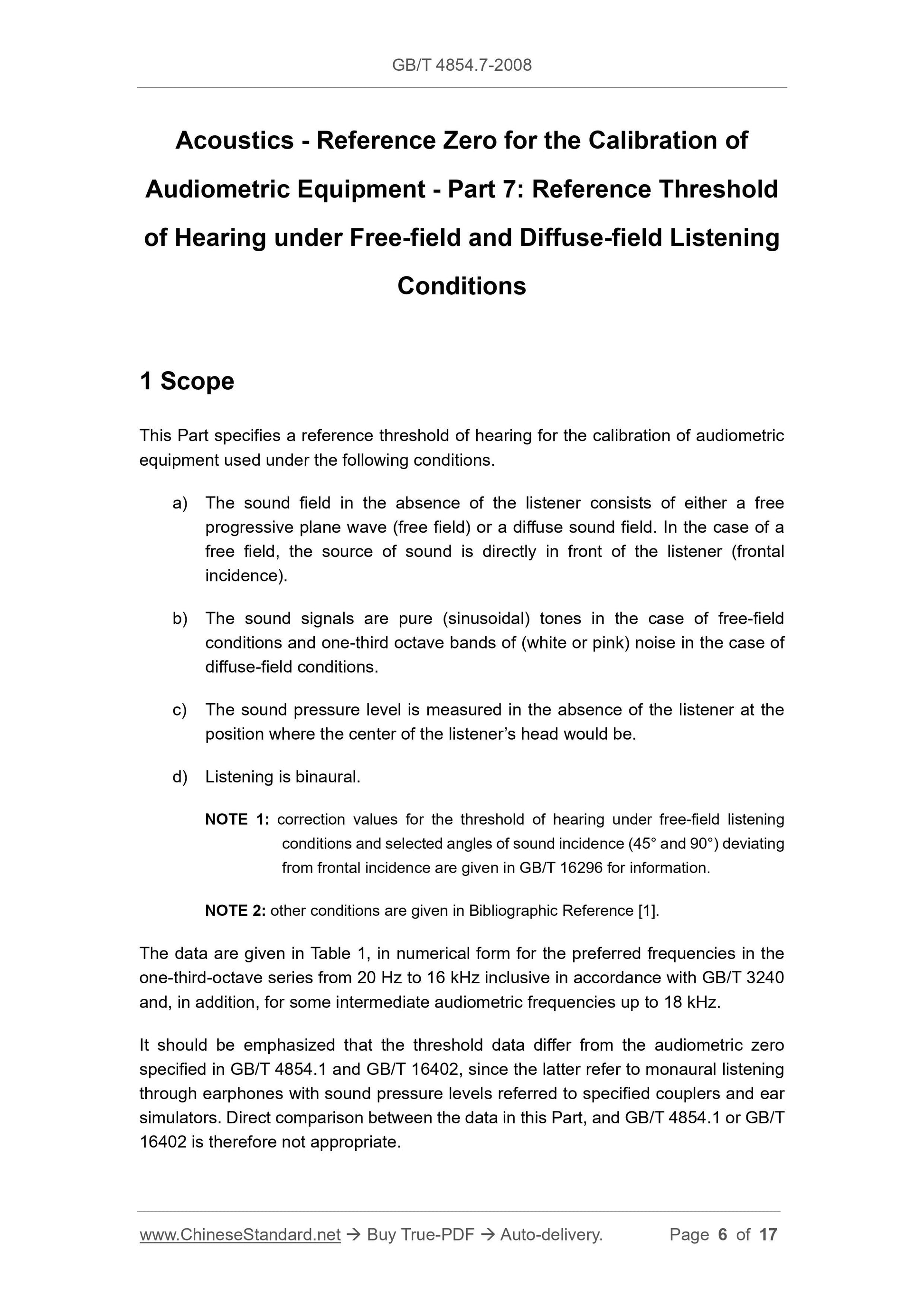

Acoustics - Reference Zero for the Calibration of
Audiometric Equipment - Part 7: Reference Threshold
of Hearing under Free-field and Diffuse-field Listening
Conditions
1 Scope
This Part specifies a reference threshold of hearing for the calibration of audiometric
equipment used under the following conditions.
a) The sound field in the absence of the listener consists of either a free
progressive plane wave (free field) or a diffuse sound field. In the case of a
free field, the source of sound is directly in front of the listener (frontal
incidence).
b) The sound signals are pure (sinusoidal) tones in the case of free-field
conditions and one-third octave bands of (white or pink) noise in the case of
diffuse-field conditions.
c) The sound pressure level is measured in the absence of the listener at the
position where the center of the listener’s head would be.
d) Listening is binaural.
NOTE 1: correction values for the threshold of hearing under free-field listening
conditions and selected angles of sound incidence (45° and 90°) deviating
from frontal incidence are given in GB/T 16296 for information.
NOTE 2: other conditions are given in Bibliographic Reference [1].
The data are given in Table 1, in numerical form for the preferred frequencies in the
one-third-octave series from 20 Hz to 16 kHz inclusive in accordance with GB/T 3240
and, in addition, for some intermediate audiometric frequencies up to 18 kHz.
It should be emphasized that the threshold data differ from the audiometric zero
specified in GB/T 4854.1 and GB/T 16402, since the latter refer to monaural listening
through earphones with sound pressure levels referred to specified couplers and ear
simulators. Direct comparison between the data in this Part, and GB/T 4854.1 or GB/T
16402 is therefore not appropriate.
