GB/T 6182-2016: Prevailing torque type hexagon nuts (with non-metallic insert), style 2

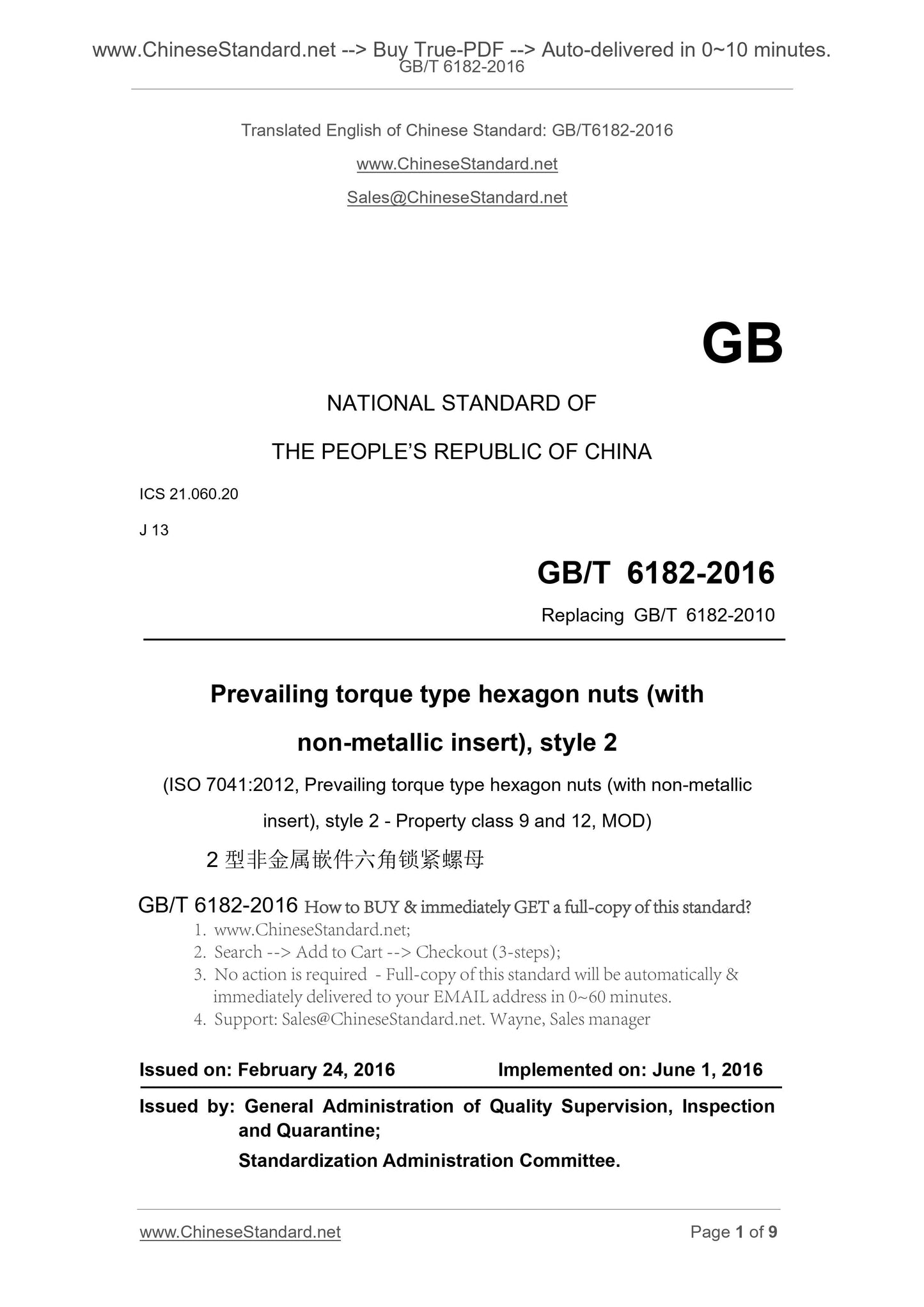

GB/T 6182-2016
Prevailing torque type hexagon nuts (with non-metallic insert), style 2
ICS 21.060.20
J13
National Standards of People's Republic of China
Replace GB/T 6182-2010
Type 2 non - metallic insert hexagonal locking nut
Prevailingtorquetypehexagonnuts (withnon-metalicinsert), style2
(ISO 7041..2012, Prevailingtorquetypehexagonnuts
(Withnon-metalicinsert), style2-Propertyclass9and12, MOD)
2016-02-24 released
2016-06-01 Implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People 's Republic of China
China National Standardization Management Committee released

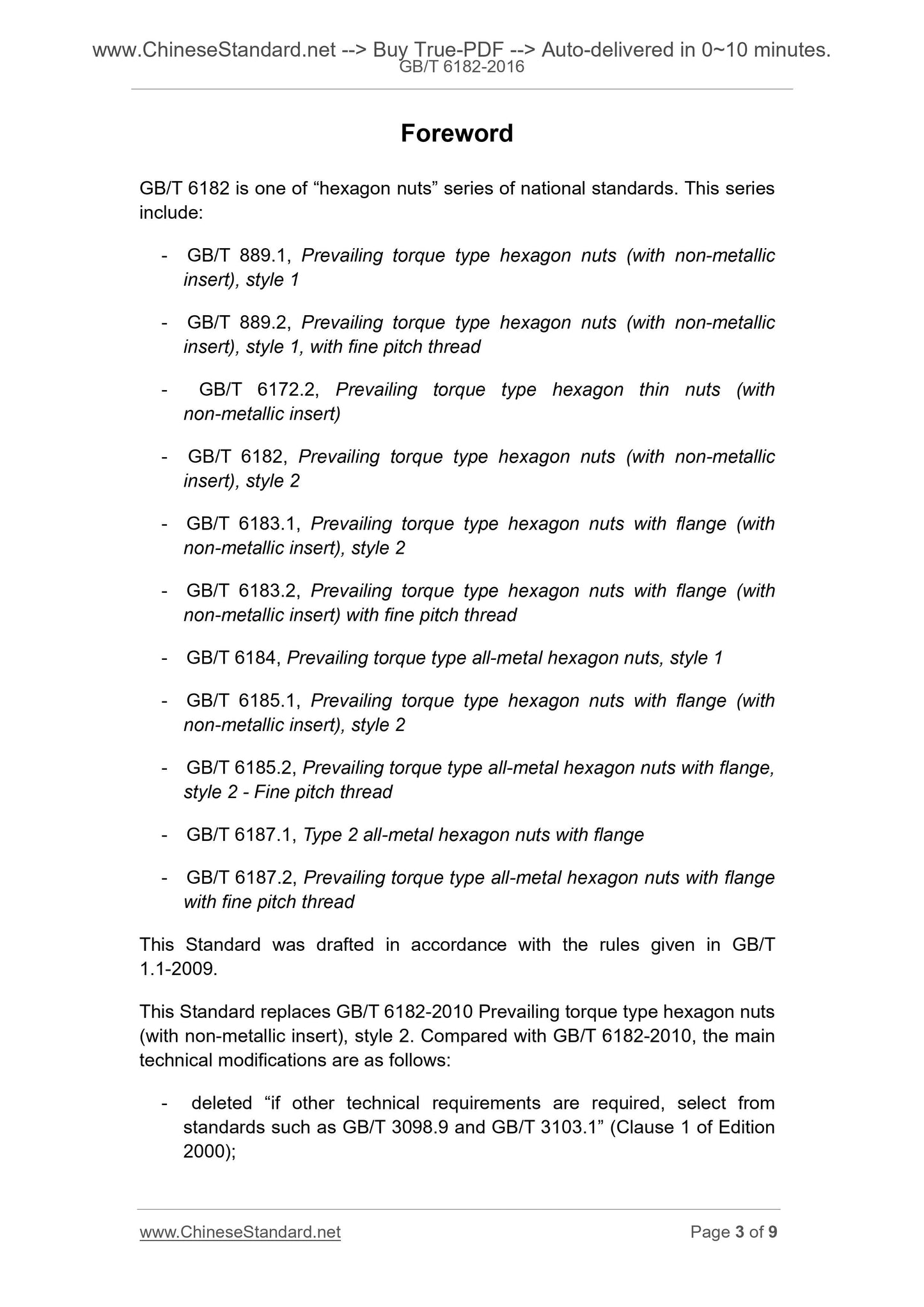

Preface
GB/T 6182 is one of the national standard of "hexagonal locking nut" series, which includes.
--- GB/T 889.1 type 1 non-metallic insert hexagonal locking nut;
--- GB/T 889.2 type 1 non-metallic insert hexagonal locking nut fine teeth;
--- GB/T 6172.2 Hex Locking nuts with non-metallic insert;
--- GB/T 6182 type 2 non - metallic insert hexagonal locking nut;
GB/T 6183.1 Type 2 non - metallic insert hexagonal flange face lock nut;
--- GB/T 6183.2 Type 2 non-metallic insert hexagonal flange face lock nut fine teeth;
--- GB/T 6184 type 1 all-metal hexagonal locking nut;
--- GB/T 6185.1 Type 2 hexagonal locking nuts with all metal;
--- GB/T 6185.2 Type 2 All-metal hexagonal locking nut fine teeth;
--- GB/T 6187.1 Type 2 all-metal hexagonal flange lock nut;
--- GB/T 6187.2 Type 2 All-metal hexagonal flange nuts.
This standard is drafted in accordance with the rules given in GB/T 1.1-2009.
This standard replaces GB/T 6182-2010 "Type 2 non-metallic insert hexagonal locking nut", compared with GB/T 6182-2010, the main
The technical changes are as follows.
--- Delete "For other technical requirements, such as GB/T 3098.9 and GB/T 3103.1)." (2000 edition 1
chapter);
--- reference thread standard unified GB/T 193, GB/T 9145 (Chapter 2);
--- Mechanical performance grade modified as. 10 (QT), 12 (QT) (Table 2);
--- mechanical properties increase. QT --- quenching and tempering (Table 2);
- Added reference in mechanical performance standards GB/T 3098.2 (Table 2);
--- increase the surface without treatment, remove the oxidation treatment (Table 2).
This standard uses the re-drafting method to modify ISO 7041..2012 "2-type effective torque hexagon nut (non-metallic insert) performance
Level 9 and 12 "(English version).
The technical differences between this and ISO 7041..2012 and the reasons are as follows.
- remove ISO 7041. "For other technical requirements, ISO 2320 and ISO 4759-1." (Chapter 1)
Does not belong to the provisions of this standard;
- in the reference document, with our standard instead of international standards (Chapter 2), to increase the reference GB/T 6175 (Chapter 1),
GB/T 90.2 (Table 2) and GB/T 1237 (5.1), the deletion of references to ISO 724 to meet the basic standards of fasteners in China;
--- According to our practice recommended nylon 66 (Table 2);
--- Mechanical performance grade modified as. 10 (QT), 12 (QT) (Table 2), improve the technical conditions;
--- To carry out the basic standards, mechanical properties increase. QT --- quenching and tempering (Table 2);
--- to increase the packaging technical requirements (Table 2) to meet the basic standards of China's fasteners;
--- Example of a modified mark is a simplified example of a mark (5.2) to comply with the requirements of GB/T 1237.
This standard also made the following editorial changes.
--- modify the standard name;
--- remove the ISO 7041 reference bibliography.

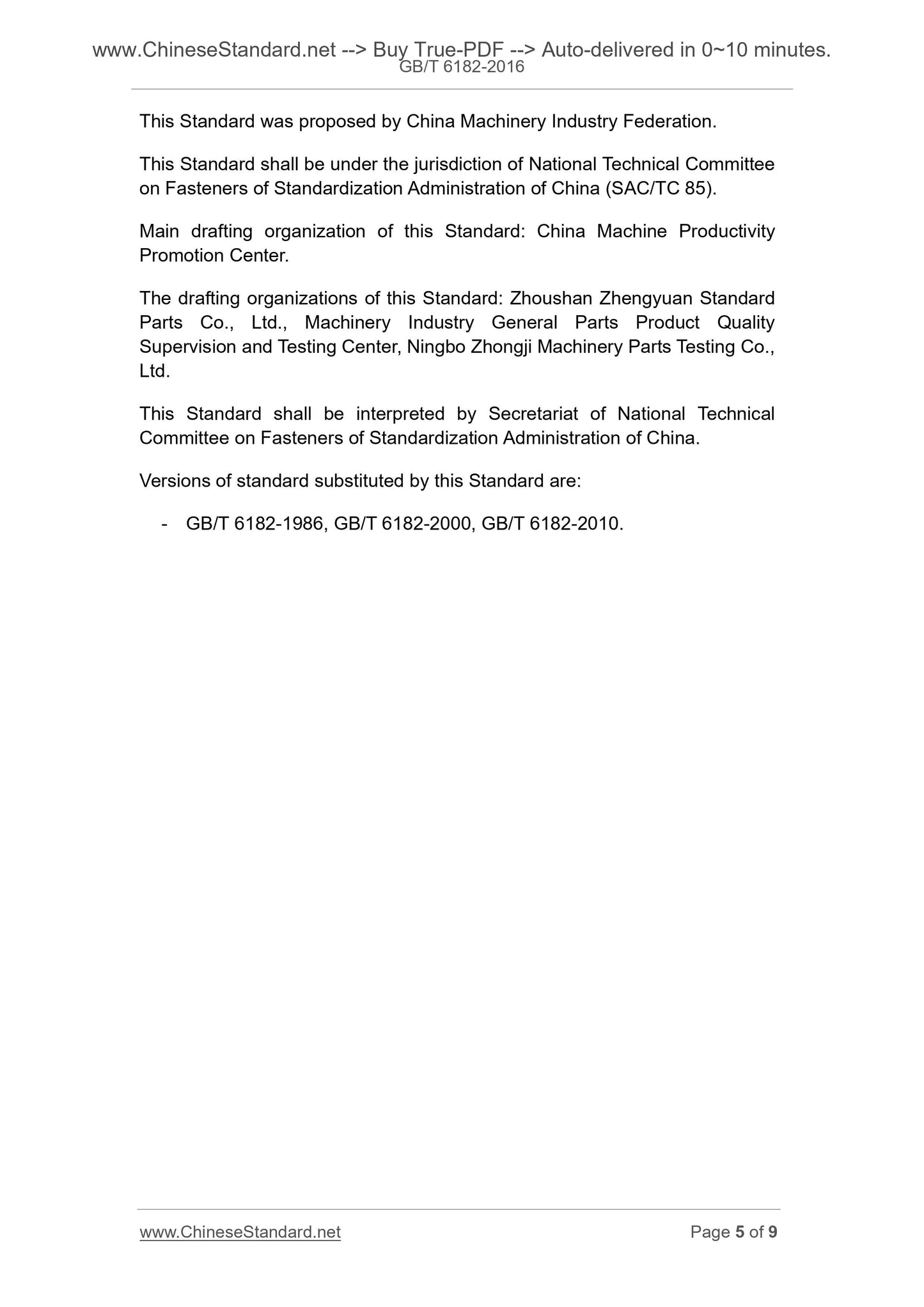

This standard is proposed by the China Machinery Industry Federation.
This standard is nationalized by the National Standardization Technical Committee on Fasteners (SAC/TC85).
This standard is responsible for drafting units. China Machine Productivity Promotion Center.
This standard participated in the drafting unit. Zhoushan City is the source of standard parts Co., Ltd., machinery industry, general parts and components product quality supervision and inspection center,
Ningbo Zhongji Machinery Parts Testing Co., Ltd.
This standard is interpreted by the Secretariat of the National Standardization Technical Committee for Fasteners.
This standard replaced the previous version of the standard release.
GB/T 6182-1986, GB/T 6182-2000, GB/T 6182-2010.
Type 2 non - metallic insert hexagonal locking nut

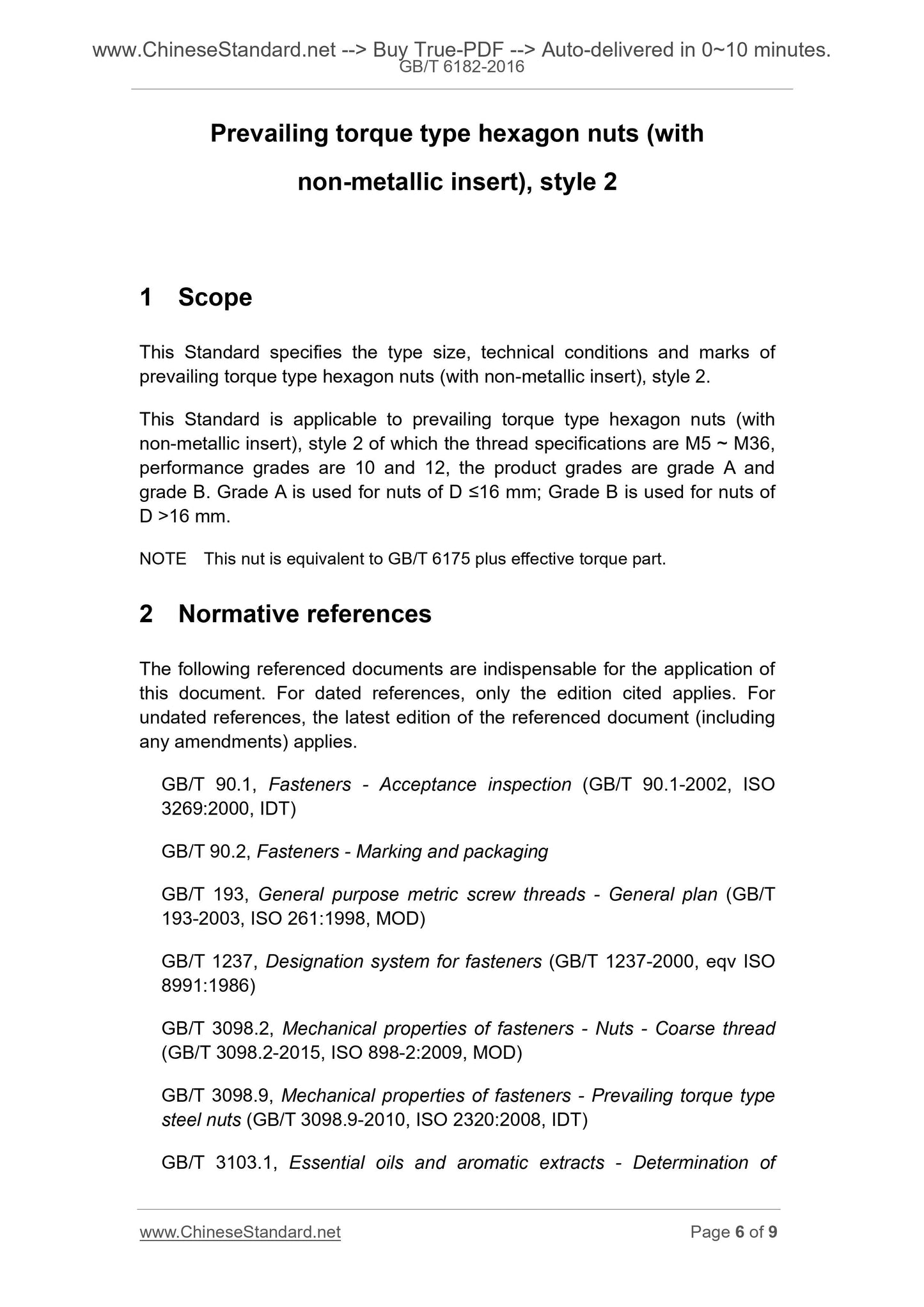

1 Scope
This standard specifies the type, technical conditions and marking of type 2 non-metallic insert hexagonal locking nuts.
This standard applies to the thread specifications for the M5 ~ M36, performance levels of 10 and 12, the product level for the A and B level 2
Metal insert hexagonal locking nut. Class A for D ≤ 16mm; Class B for D> 16mm nuts.
Note. This nut is equivalent to GB/T 6175 plus the effective torque part.
2 normative reference documents
The following documents are indispensable for the application of this document. For dated references, the only dated edition applies to this article
Pieces. For undated references, the latest edition (including all modifications) applies to this document.
GB/T 90.1 Fastener acceptance inspection (GB/T 90.1-2002, ISO 3269..2000, IDT)
Fasteners - Marking and Packaging
GB/T 193 Common thread diameter and pitch series (GB/T 193-2003, ISO 261..1998, MOD)
GB/T 1237 Fastener marking method (GB/T 1237-2000, eqvISO 8991. 1986)
GB/T 3098.2 Fasteners Mechanical properties nuts (GB/T 3098.2-2015, ISO 898-2..2009, MOD)
GB/T 3098.9 fasteners mechanical properties of effective torque steel hexagonal lock nut (GB/T 3098.9-2010, ISO 2320.
2008, IDT)
GB/T 3103.1 Fasteners Tolerances Bolts, screws and nuts (GB/T 3103.1-2002, idtISO 4759-1..2000)
GB/T 5267.1 Fastener plating (GB/T 5267.1-2002, ISO 4042..1999, IDT)
GB/T 5267.2 Fasteners Non-electrolytic zinc sheet coating (GB/T 5267.2-2002, ISO 10683..2000, IDT)
GB/T 5276 Fasteners - Bolts, screws, studs and nuts - Dimensions and designation (GB/T 5276-2015, ISO 225.
2010, MOD)
GB/T 5779.2 Fastener surface defect nut (GB/T 5779.2-2000, idtISO 6157-2..1995)
GB/T 6175 Type 2 Hex Nuts (GB/T 6175-2016, ISO 4033..2012, MOD)
GB/T 9145 Common thread medium precision, preferred series limit size (GB/T 9145-2003, ISO 965-2..1998,
MOD)
GB/T 16938 Fasteners - General technical conditions for bolts, screws, studs and nuts (GB/T 16938-2008, ISO 8992.
2005, IDT)
3 size
The size of the nut is shown in Figure 1 and Table 1.
Dimensional designation and marking shall comply with GB/T 5276.
A effective moment part, shape selected by the manufacturer;
B β = 15 ° ~ 30 °;
C θ = 90 ° to 120 °.
figure 1
Table 1 Dimensions in millimeters
Thread size
M5 M6 M8 M10 M12 (M14) a M16 M20 M24 M30 M36
Pb 0.8 1 1.25 1.5 1.75 2 2 2.5 3 3.5 4
Da
Max.5.75 6.75 8.75 10.80 13.00 15.10 17.30 21.60 25.90 32.40 38.90
Closed by. Pr.n.
Lt;/RTI and gt;
E min.8.79 11.05 14.38 17.77 20.03 23.36 26.75 32.95 39.55 50.85 60.79
Max.7.20 8.50 10.20 12.80 16.10 18.30 20.70 25.10 29.50 35.60 42.60
Min.6.62 7.92 9.50 12.10 15.40 17.00 19.40 23.00 27.40 33.10 40.10
Mc min.4.80 5.40 7.14 8.94 11.57 13.40 15.70 19.00 22.60 27.30 33.10
Mwd min.3.84 4.32 5.71 7.15 9.26 10.70 12.60 15.20 18.10 21.80 26.50
Price...
Min.7.78 9.78 12.73 15.73 17.73 20.67 23.67 29.16 35.00 45.00 53.80
A As far as possible without the use of brackets within the specifications.
B P - pitch.
C minimum thread height.
D minimum pull height.
4 technical conditions and reference standards
Technical conditions and reference standards in Table 2.
Table 2 Technical conditions and reference standards
material
Nut body steel
The insert is recommended for nylon 66
General technical conditions GB/T 16938
Thread
Tolerance 6H
Standard GB/T 193, GB/T 9145
Mechanical behavior
Level 10 (QT), 12 (QT)
Standard GB/T 3098.2, GB/T 3098.9
tolerance
Product grade D ≤ 16mm. Class A; D> 16mm. Class B
Standard GB/T 3103.1
Surface treatment
Untreated
Electroplating technical requirements by GB/T 5267.1;
Non-electrolytic zinc film coating technical requirements by GB/T 5267.2;
For other technical requirements or surface treatment, should be provided by the supply and demand agreement
Surface defects GB/T 5779.2
Acceptance and packing GB/T 90.1, GB/T 90.2
Note. QT --- quenching and tempering.
5 mark
5.1 Marking method
Marking method according to GB/T 1237 requirements.
5.2 Example of marking
Thread size M12, performance level of 10, the surface without treatment, product grade A-class type 2 non-metallic insert hexagonal locking
Nut mark
Nuts GB/T 6182 M12
