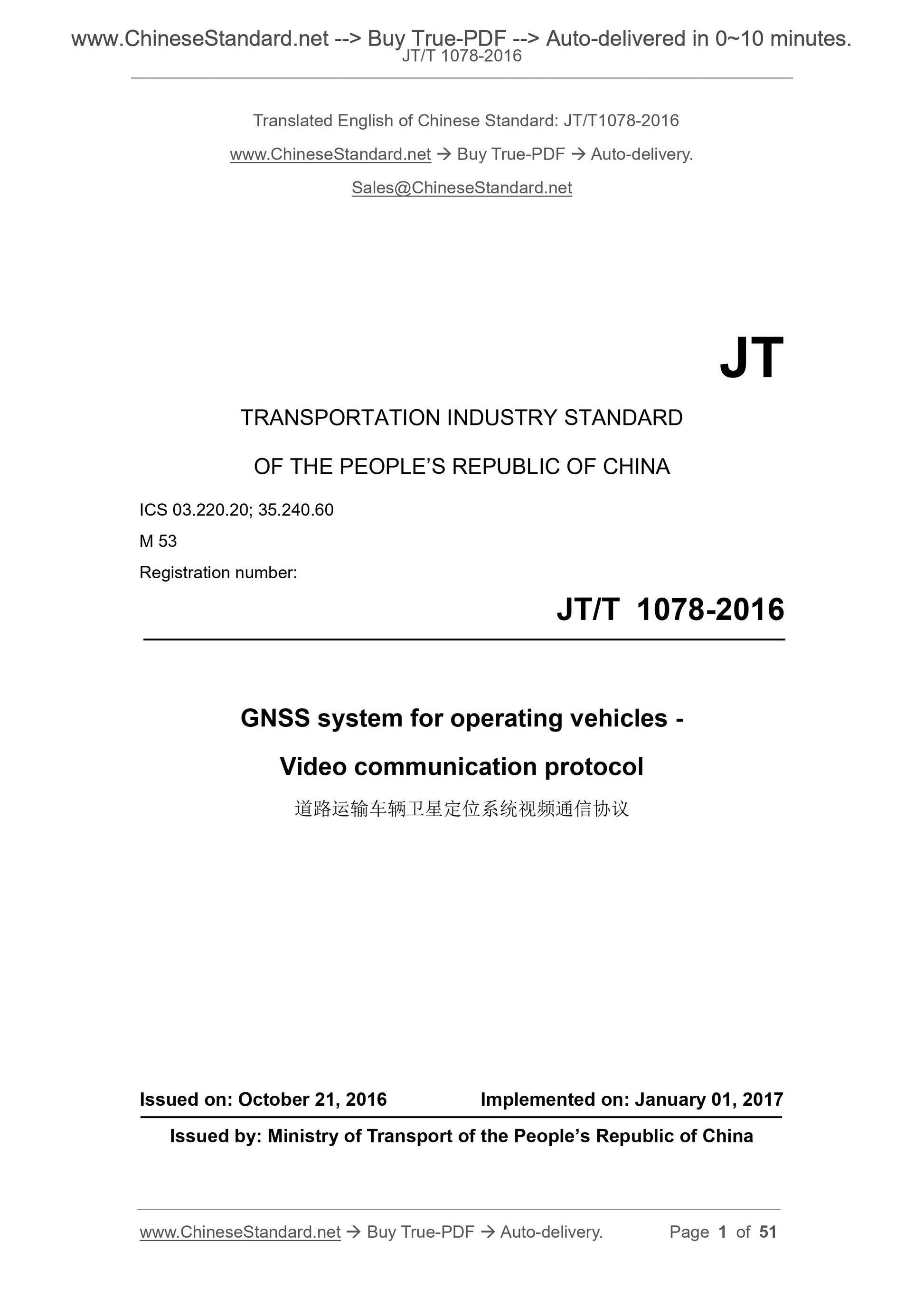

JT/T 1078-2016: GNSS system for operating vehicles - Video communication protocol
JT/T 1078-2016
JT
TRANSPORTATION INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 03.220.20; 35.240.60
M 53
Registration number.
GNSS system for operating vehicles -
Video communication protocol
ISSUED ON. OCTOBER 21, 2016
IMPLEMENTED ON. JANUARY 01, 2017
Issued by. Ministry of Transport of the People’s Republic of China
Table of Contents
Foreword ... 4
1 Scope ... 5
2 Normative references ... 5
3 Terms, definitions, abbreviations ... 6
3.1 Terms and definitions ... 6
3.2 Abbreviations ... 6
4 Protocol basis between video terminal and video platform ... 6
4.1 Basic agreement of protocol ... 7
4.2 Convention on real-time audio-video transmission channel ... 7
4.3 Classification of audio-video communication messages ... 8
5 Communication protocol between video terminal and video platform ... 8
5.1 Protocol command set ... 8
5.2 Inheritance commands ... 8

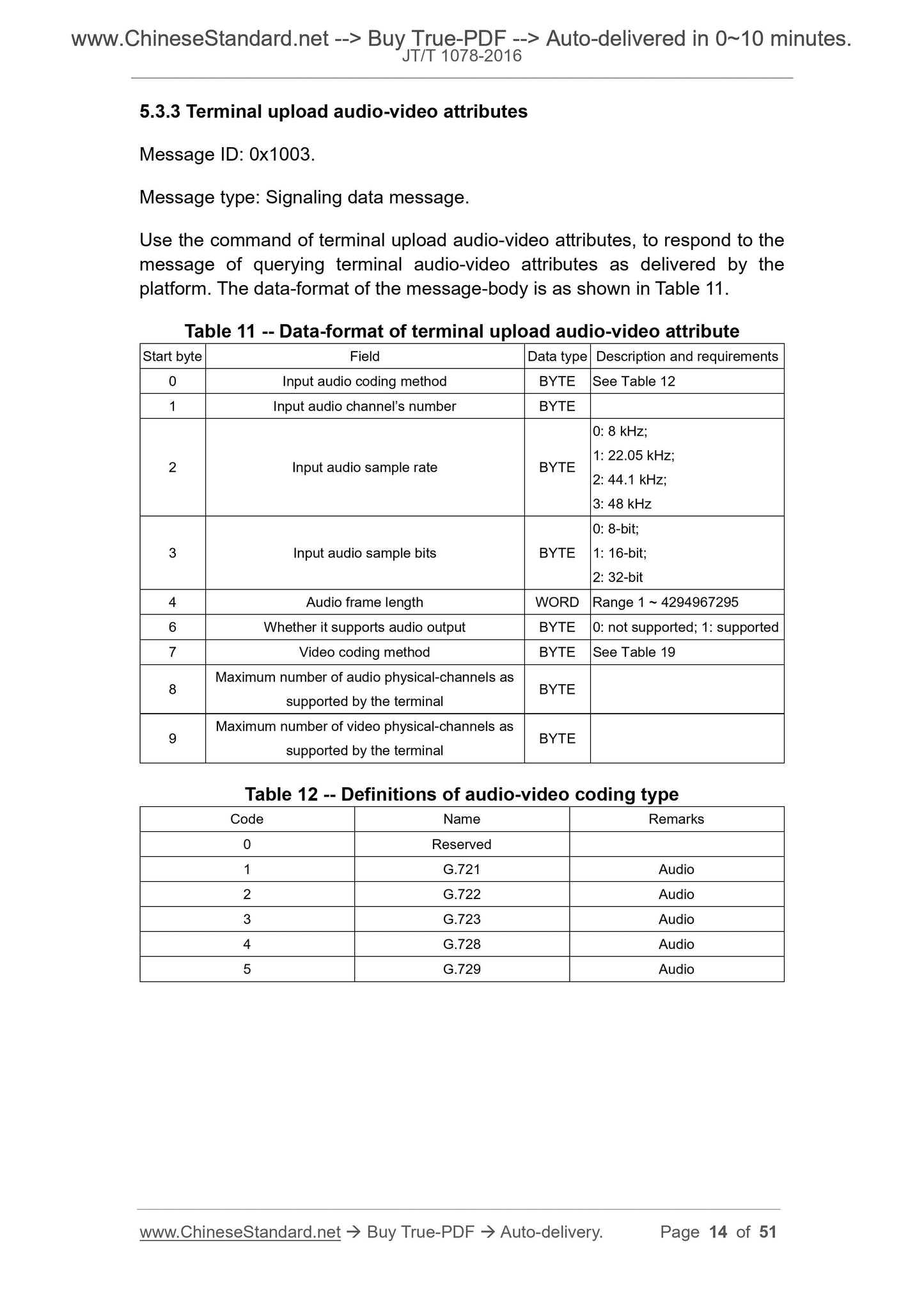

5.3 Parameter setting commands ... 8
5.4 Video-alarm command ... 15

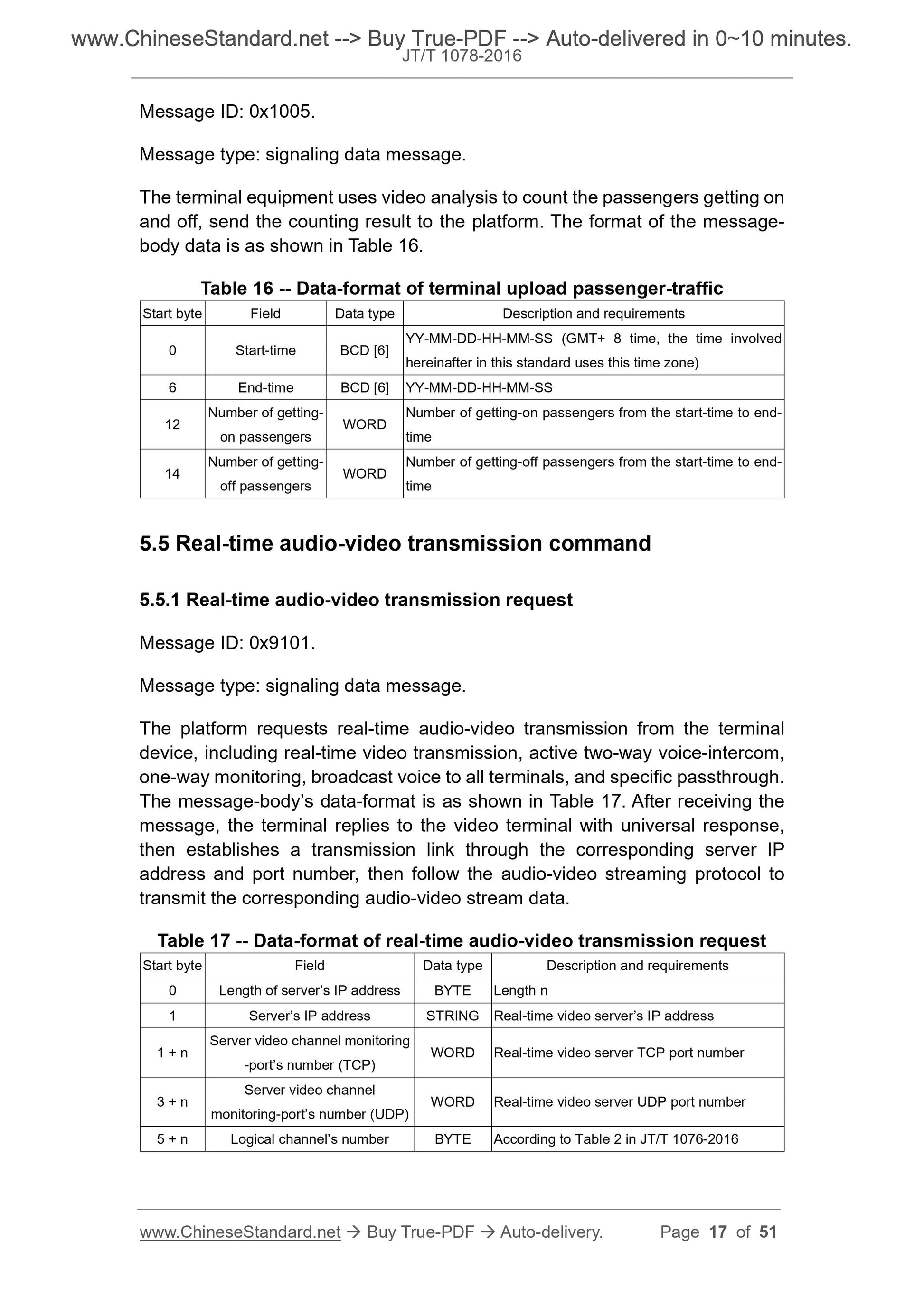

5.5 Real-time audio-video transmission command ... 17

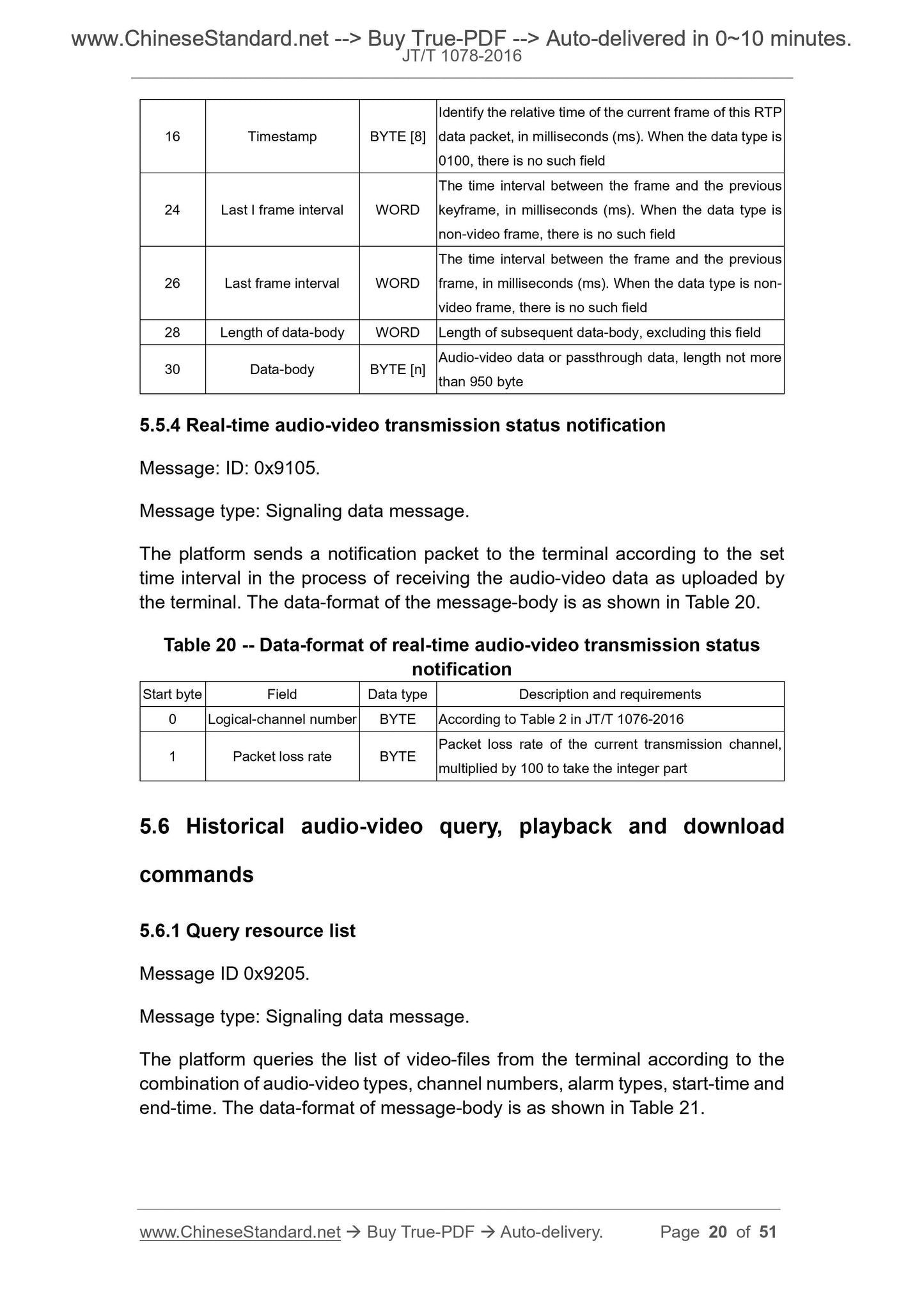

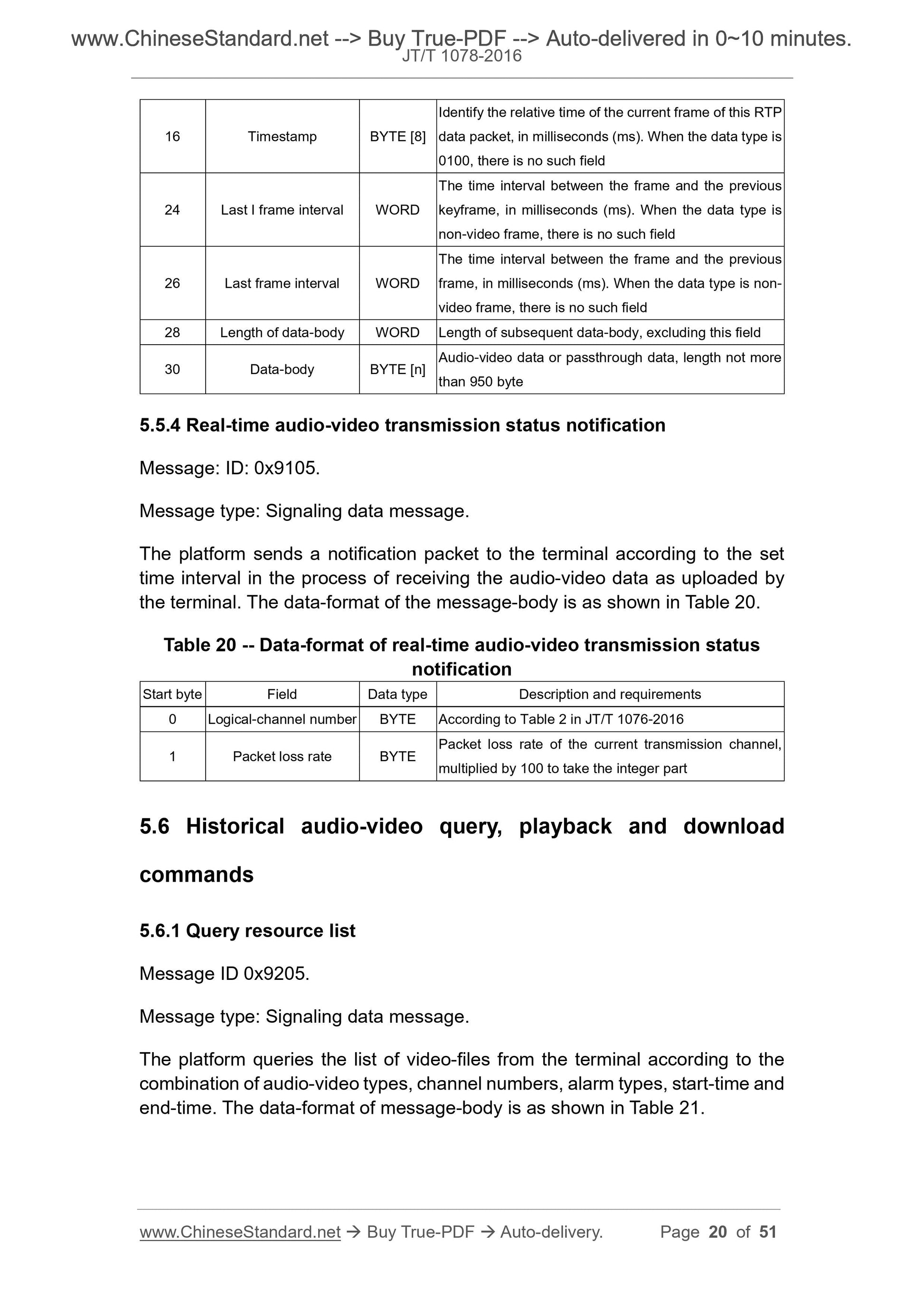

5.6 Historical audio-video query, playback and download commands ... 20
5.7 PTZ control commands ... 26
5.8 Terminal sleep wakeup command ... 28
6 Code-stream communication between audio-video streaming server and
client play software ... 28
6.1 Encapsulation format of audio-video streaming and passthrough data ... 28

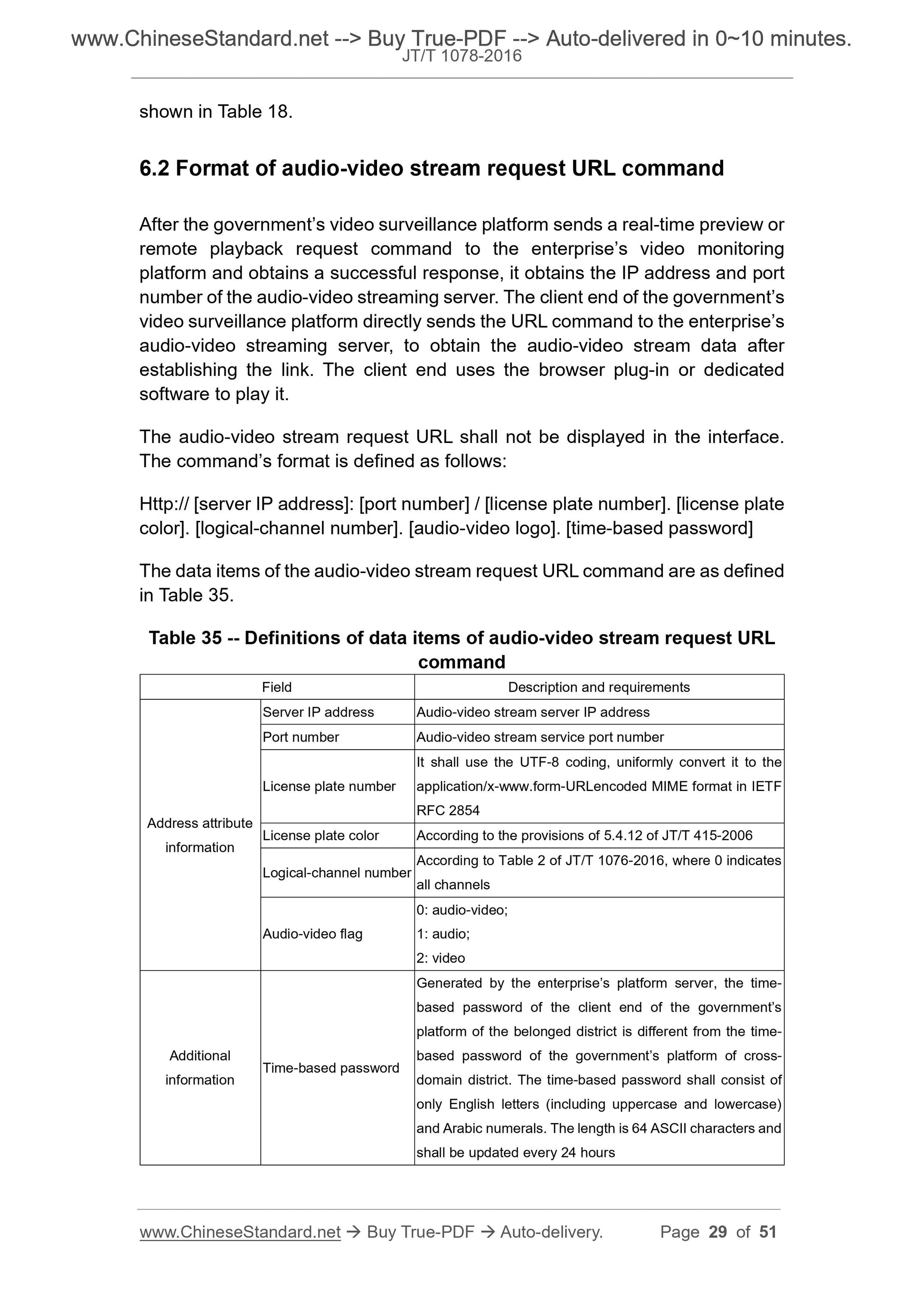

6.2 Format of audio-video stream request URL command ... 29
7 Basis of communication protocol between video platforms ... 30
8 Process of video platform communication protocol ... 30
8.1 Time-based password report and request services ... 30
8.2 Real-time audio-video services ... 30

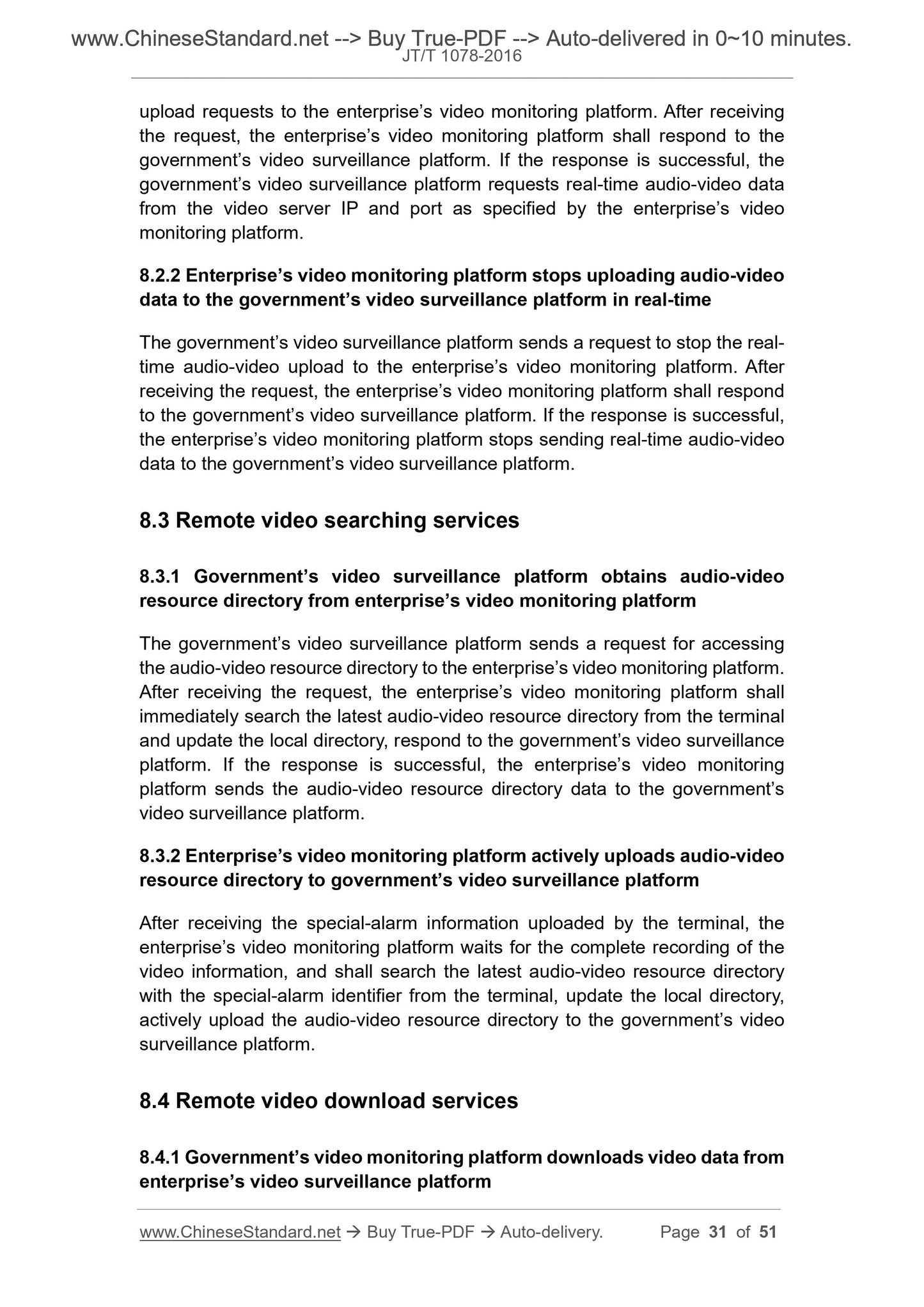

8.3 Remote video searching services ... 31
8.4 Remote video download services ... 31
8.5 Remote video playback services ... 32
9 Definitions of communication protocol constant between video platforms .. 33
9.1 Identifier of service data type ... 33
9.2 Identifiers of sub-service types ... 34
9.3 Coding of video-alarm type ... 35

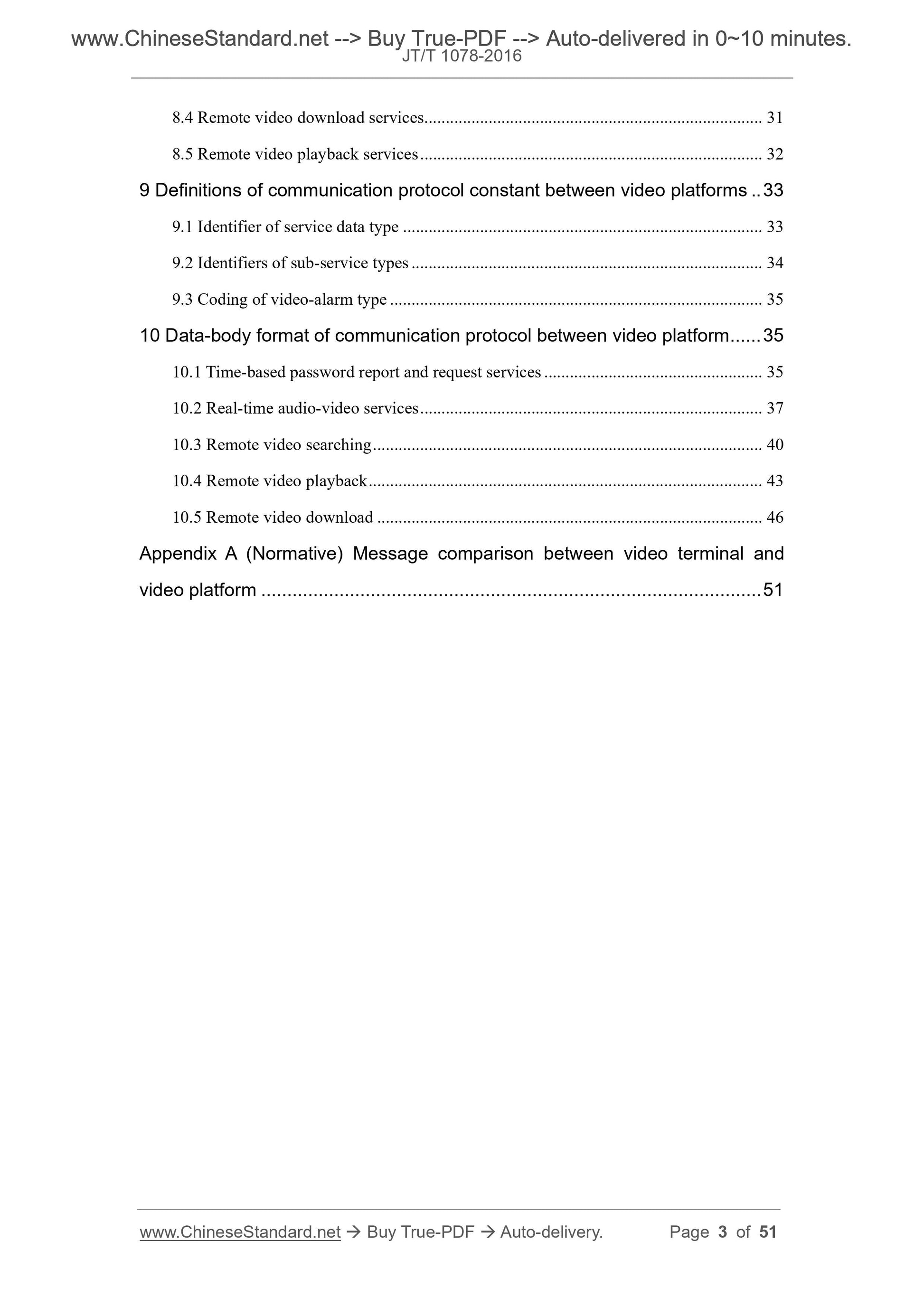

10 Data-body format of communication protocol between video platform ... 35
10.1 Time-based password report and request services ... 35

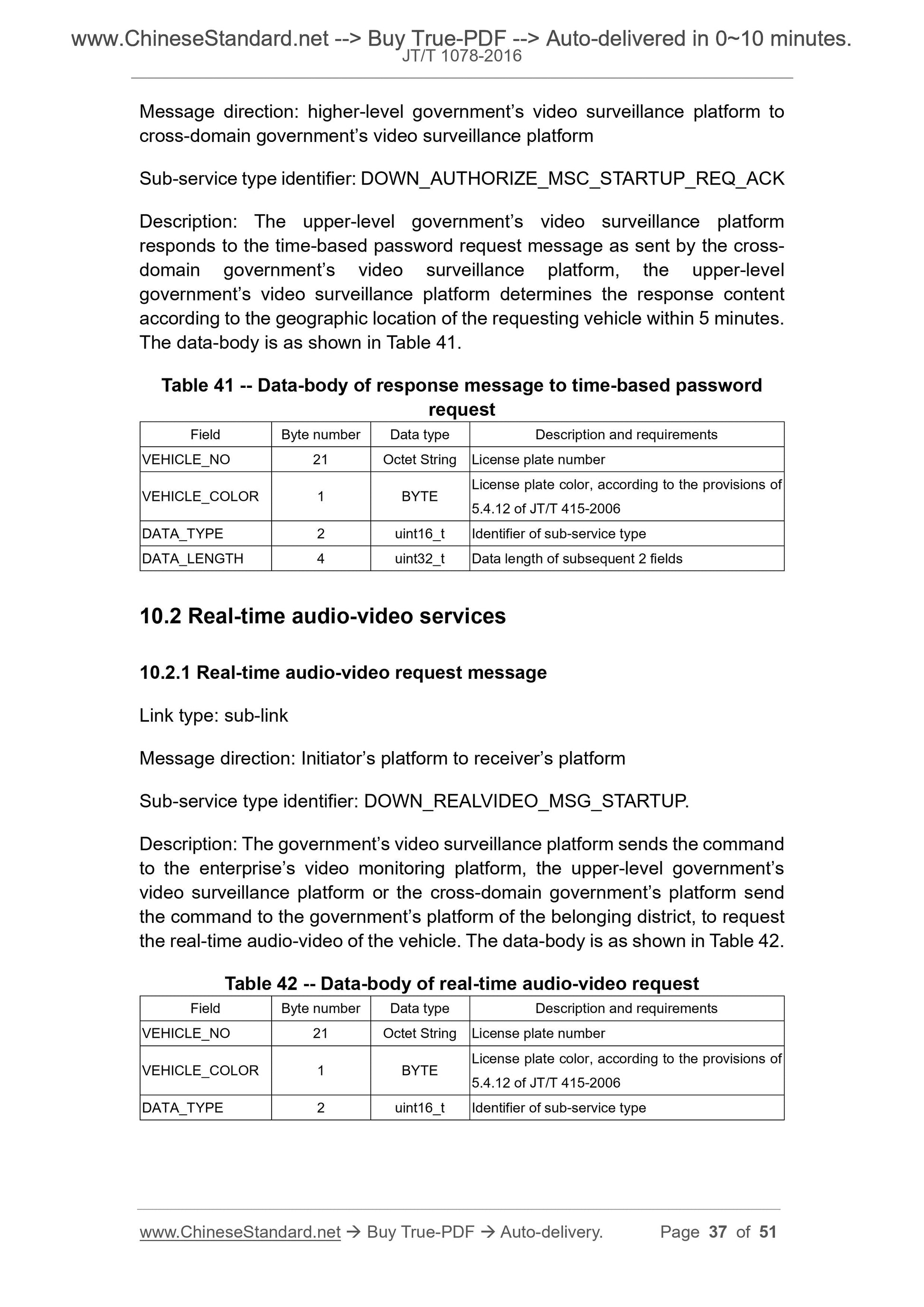

10.2 Real-time audio-video services ... 37
10.3 Remote video searching ... 40
10.4 Remote video playback ... 43
10.5 Remote video download ... 46
Appendix A (Normative) Message comparison between video terminal and
video platform ... 51

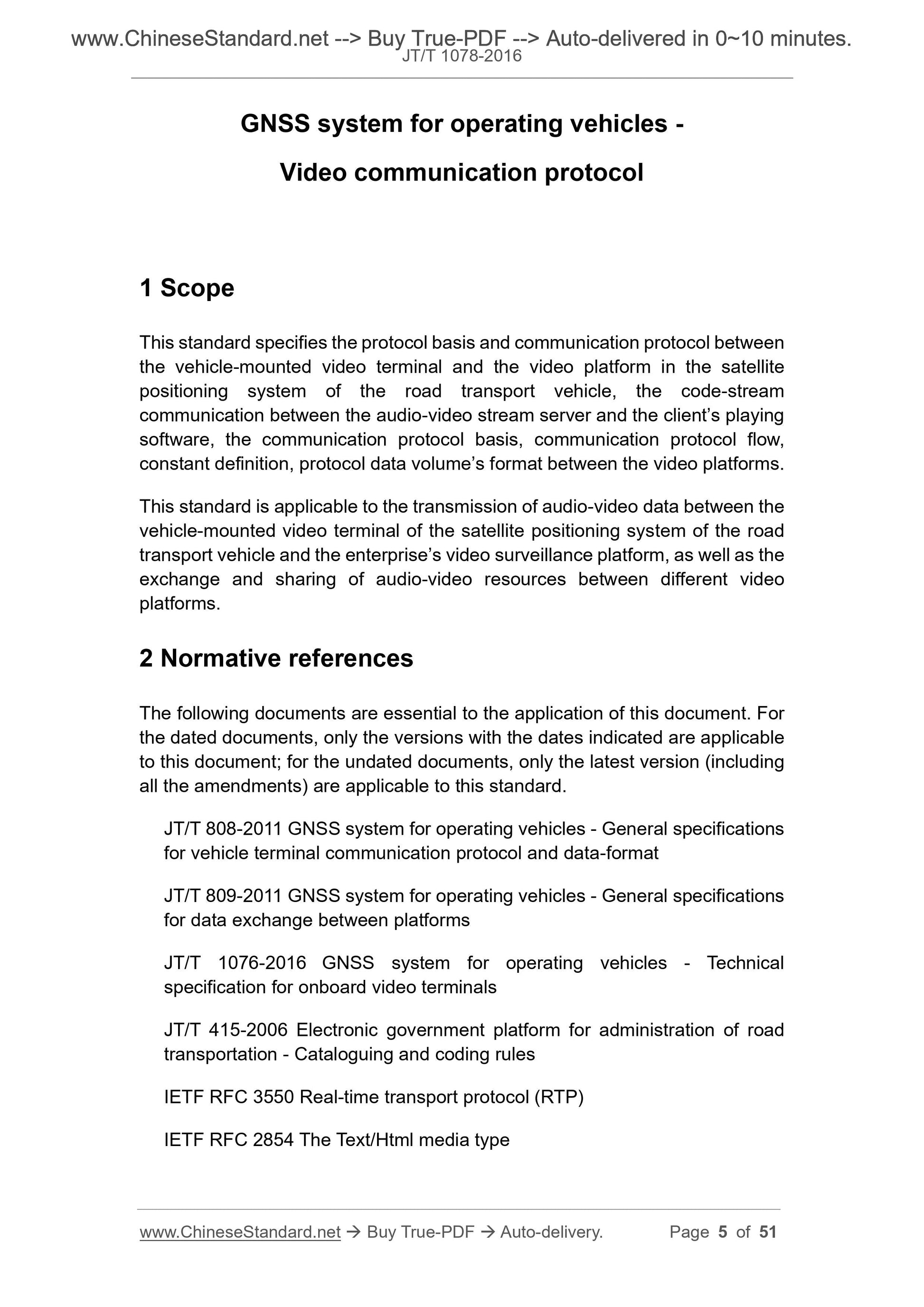

GNSS system for operating vehicles -
Video communication protocol
1 Scope
This standard specifies the protocol basis and communication protocol between
the vehicle-mounted video terminal and the video platform in the satellite
positioning system of the road transport vehicle, the code-stream
communication between the audio-video stream server and the client’s playing
software, the communication protocol basis, communication protocol flow,
constant definition, protocol data volume’s format between the video platforms.
This standard is applicable to the transmission of audio-video data between the
vehicle-mounted video terminal of the satellite positioning system of the road
transport vehicle and the enterprise’s video surveillance platform, as well as the
exchange and sharing of audio-video resources between different video
platforms.
2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) are applicable to this standard.
JT/T 808-2011 GNSS system for operating vehicles - General specifications
for vehicle terminal communication protocol and data-format
JT/T 809-2011 GNSS system for operating vehicles - General specifications
for data exchange between platforms
JT/T 1076-2016 GNSS system for operating vehicles - Technical
specification for onboard video terminals
JT/T 415-2006 Electronic government platform for administration of road
transportation - Cataloguing and coding rules
IETF RFC 3550 Real-time transport protocol (RTP)
IETF RFC 2854 The Text/Html media type

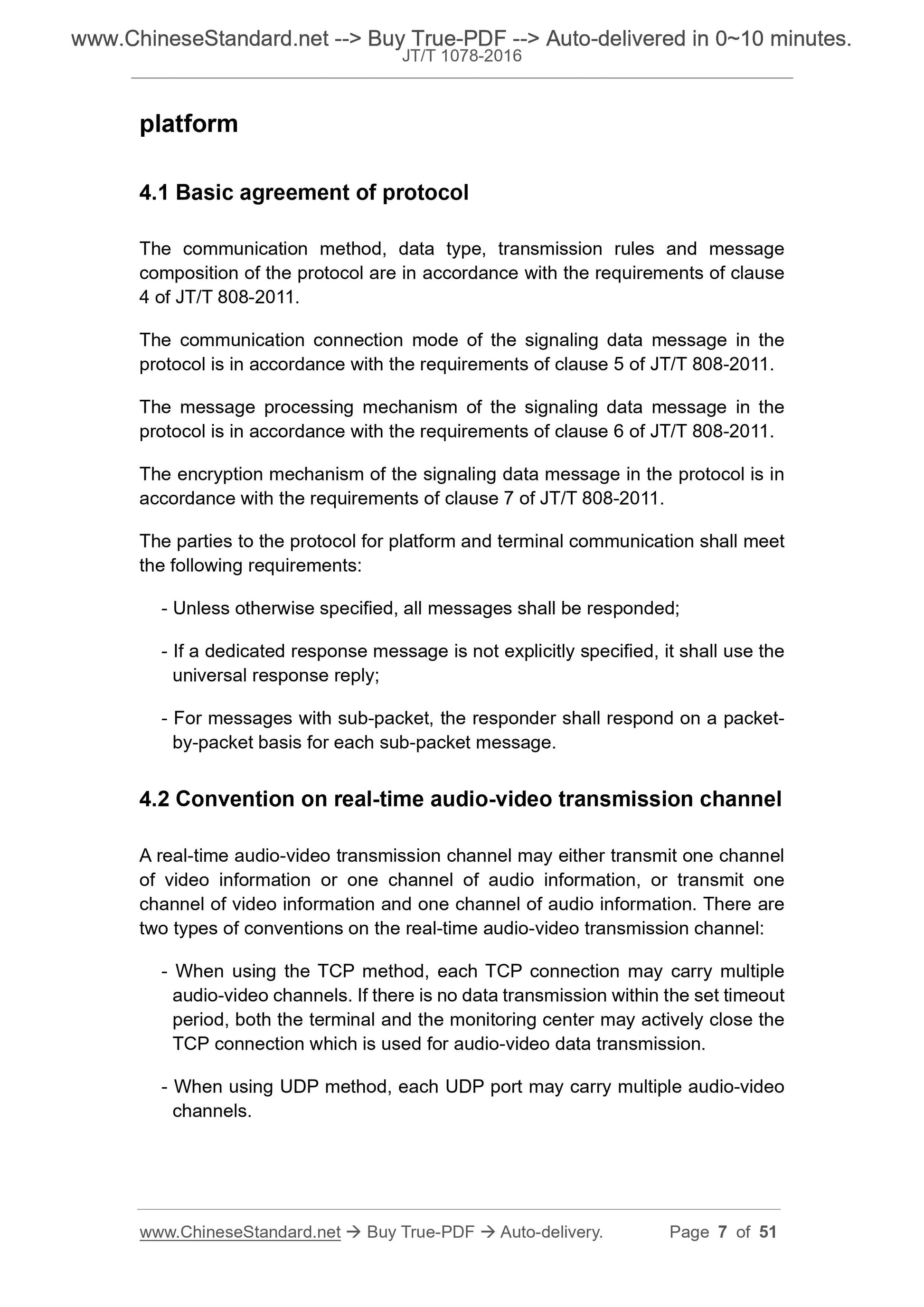

platform

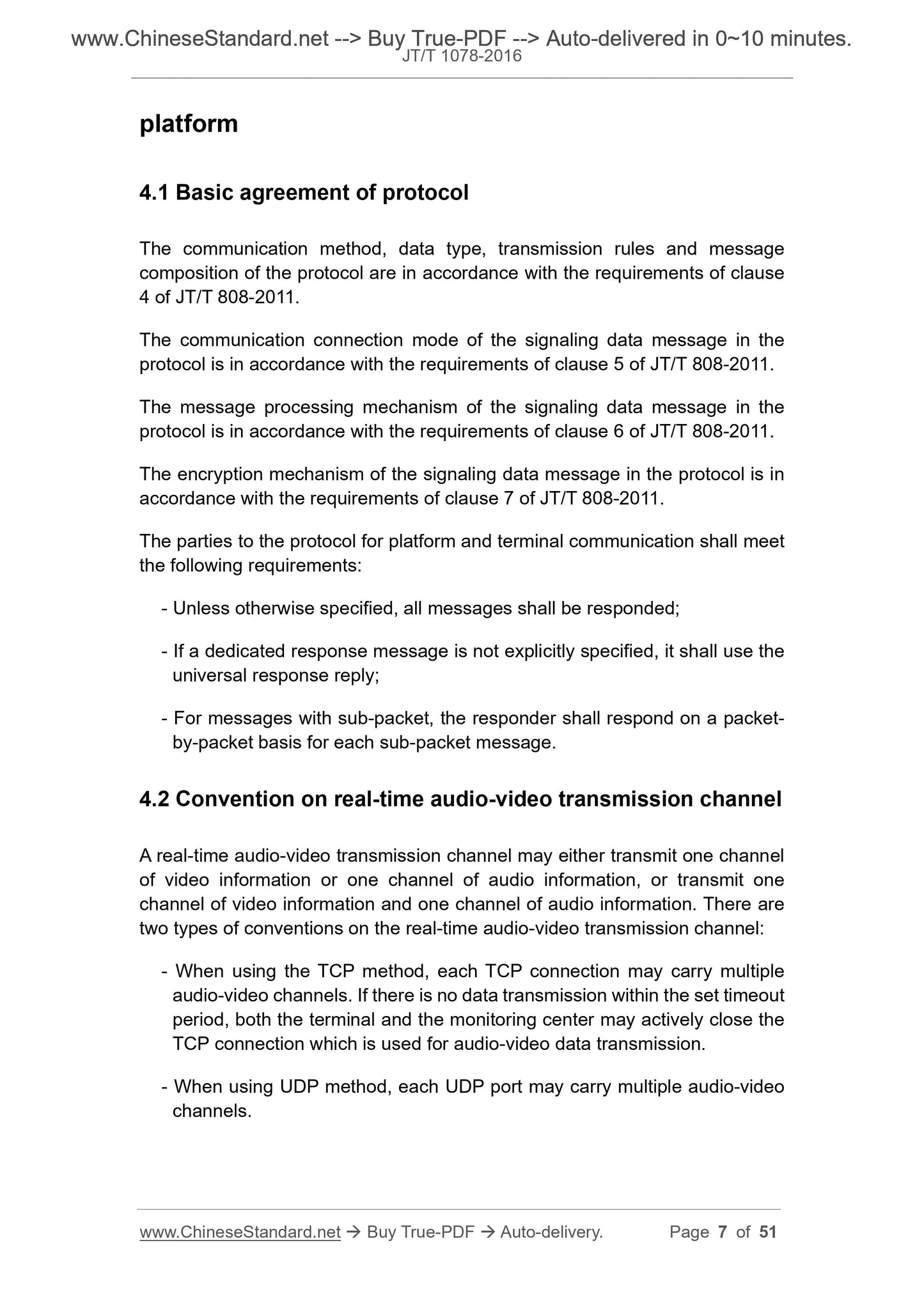

4.1 Basic agreement of protocol
The communication method, data type, transmission rules and message
composition of the protocol are in accordance with the requirements of clause
4 of JT/T 808-2011.
The communication connection mode of the signaling data message in the
protocol is in accordance with the requirements of clause 5 of JT/T 808-2011.
The message processing mechanism of the signaling data message in the
protocol is in accordance with the requirements of clause 6 of JT/T 808-2011.
The encryption mechanism of the signaling data message in the protocol is in
accordance with the requirements of clause 7 of JT/T 808-2011.
The parties to the protocol for platform and terminal communication shall meet
the following requirements.
- Unless otherwise specified, all messages shall be responded;
- If a dedicated response message is not explicitly specified, it shall use the
universal response reply;
- For messages with sub-packet, the responder shall respond on a packet-
by-packet basis for each sub-packet message.
4.2 Convention on real-time audio-video transmission channel
A real-time audio-video transmission channel may either transmit one channel
of video information or one channel of audio information, or transmit one
channel of video information and one channel of audio information. There are
two types of conventions on the real-time audio-video transmission channel.
- When using the TCP method, each TCP connection may carry multiple
audio-video channels. If there is no data transmission within the set timeout
period, both the terminal and the monitoring center may actively close the
TCP connection which is used for audio-video data transmission.
- When using UDP method, each UDP port may carry multiple audio-video
channels.

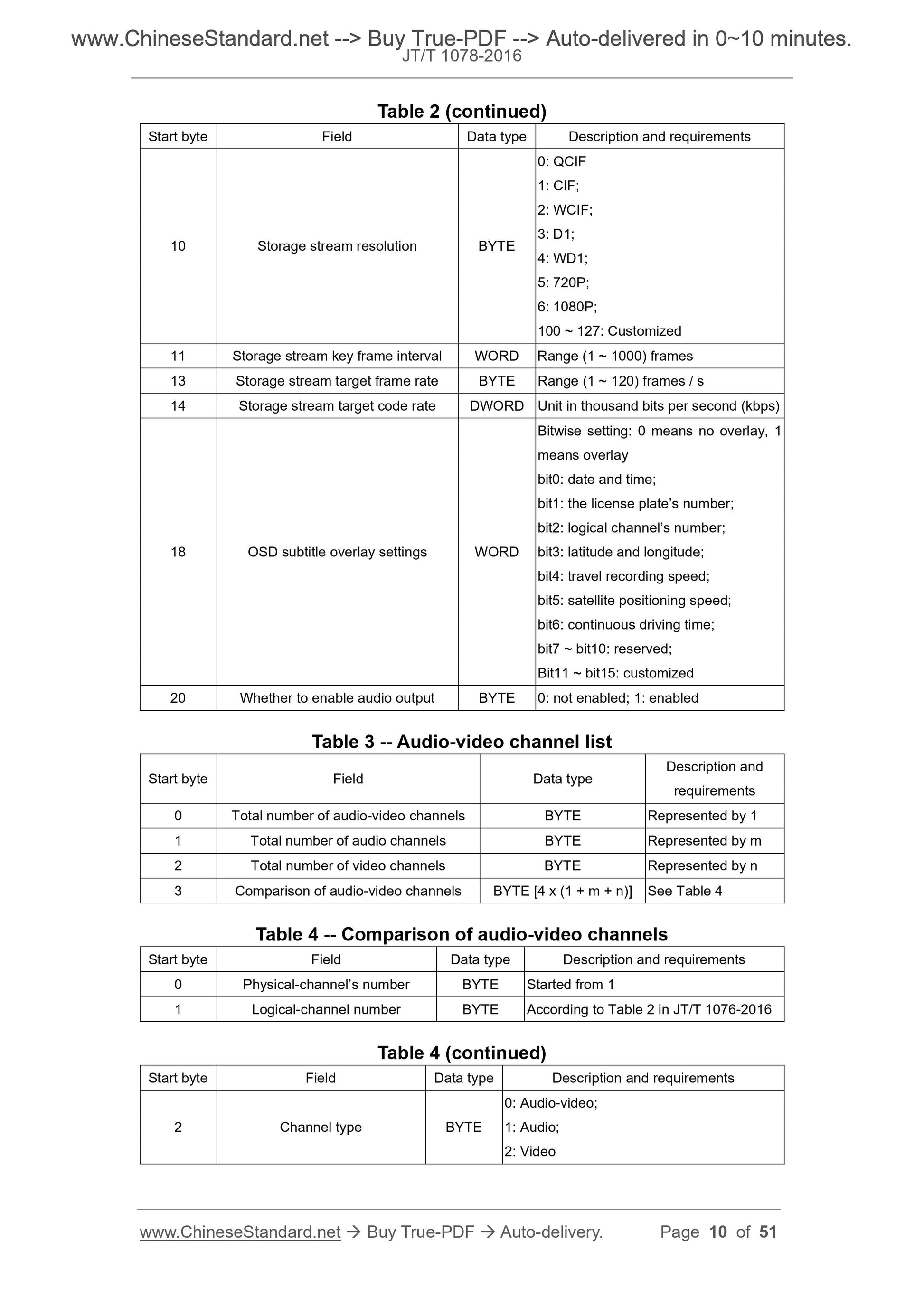

Table 2 (continued)
Start byte Field Data type Description and requirements
10 Storage stream resolution BYTE
0. QCIF
1. CIF;
2. WCIF;
3. D1;
4. WD1;
5. 720P;
6. 1080P;
100 ~ 127. Customized
11 Storage stream key frame interval WORD Range (1 ~ 1000) frames
13 Storage stream target frame rate BYTE Range (1 ~ 120) frames / s
14 Storage stream target code rate DWORD Unit in thousand bits per second (kbps)
18 OSD subtitle overlay settings WORD
Bitwise setting. 0 means no overlay, 1
means overlay
bit0. date and time;
bit1. the license plate’s number;
bit2. logical channel’s number;
bit3. latitude and longitude;
bit4. travel recording speed;
bit5. satellite positioning speed;
bit6. continuous driving time;
bit7 ~ bit10. reserved;
Bit11 ~ bit15. customized
20 Whether to enable audio output BYTE 0. not enabled; 1. enabled
Table 3 -- Audio-video channel list
Start byte Field Data type Description and requirements
0 Total number of audio-video channels BYTE Represented by 1
1 Total number of audio channels BYTE Represented by m
2 Total number of video channels BYTE Represented by n
3 Comparison of audio-video channels BYTE [4 x (1 + m + n)] See Table 4
Table 4 -- Comparison of audio-video channels
Start byte Field Data type Description and requirements
0 Physical-channel’s number BYTE Started from 1
1 Logical-channel number BYTE According to Table 2 in JT/T 1076-2016
Table 4 (continued)
Start byte Field Data...
