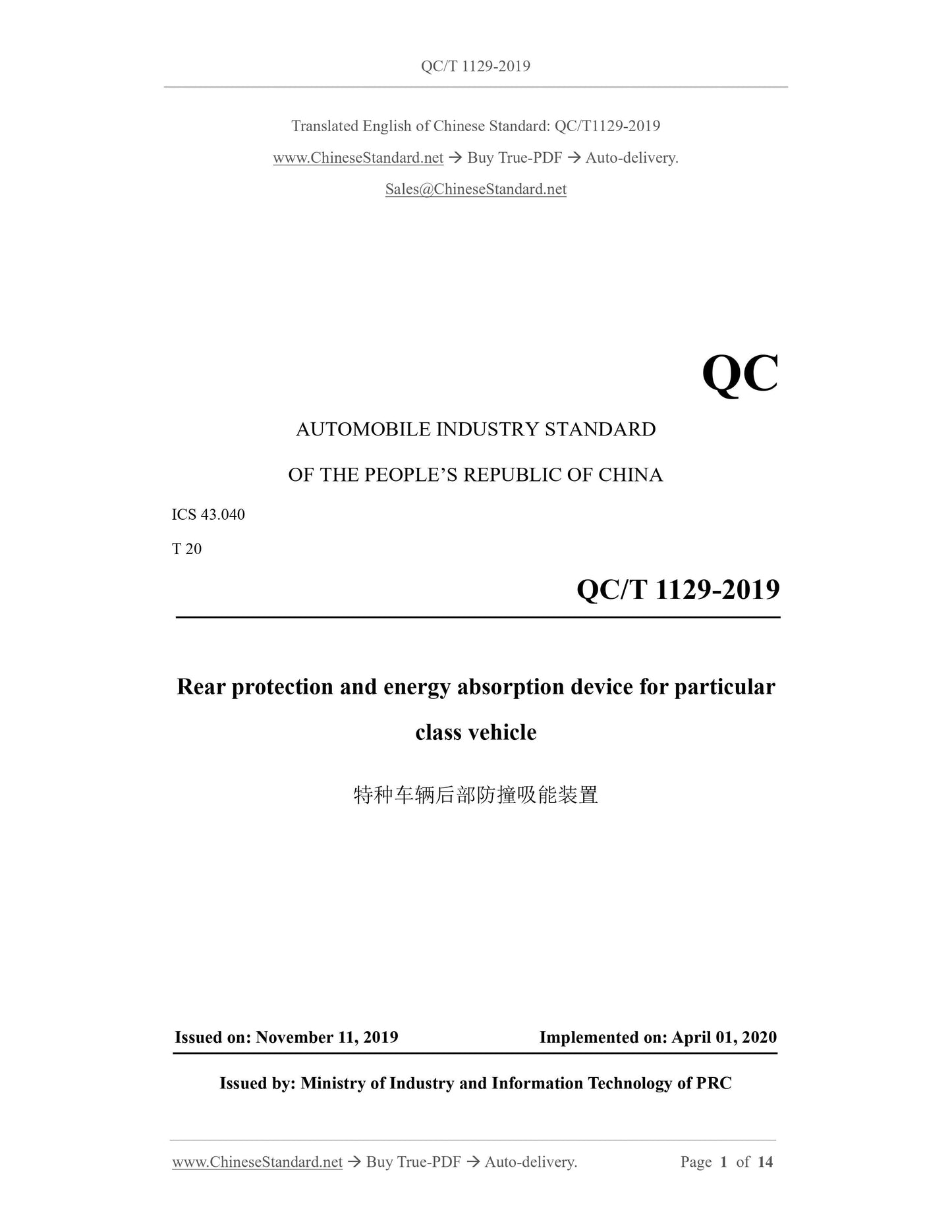

Rear protection and energy absorption device for particular
class vehicle
ISSUED ON: NOVEMBER 11, 2019
IMPLEMENTED ON: APRIL 01, 2020
Issued by: Ministry of Industry and Information Technology of PRC
Rear protection and energy absorption device for particular
class vehicle

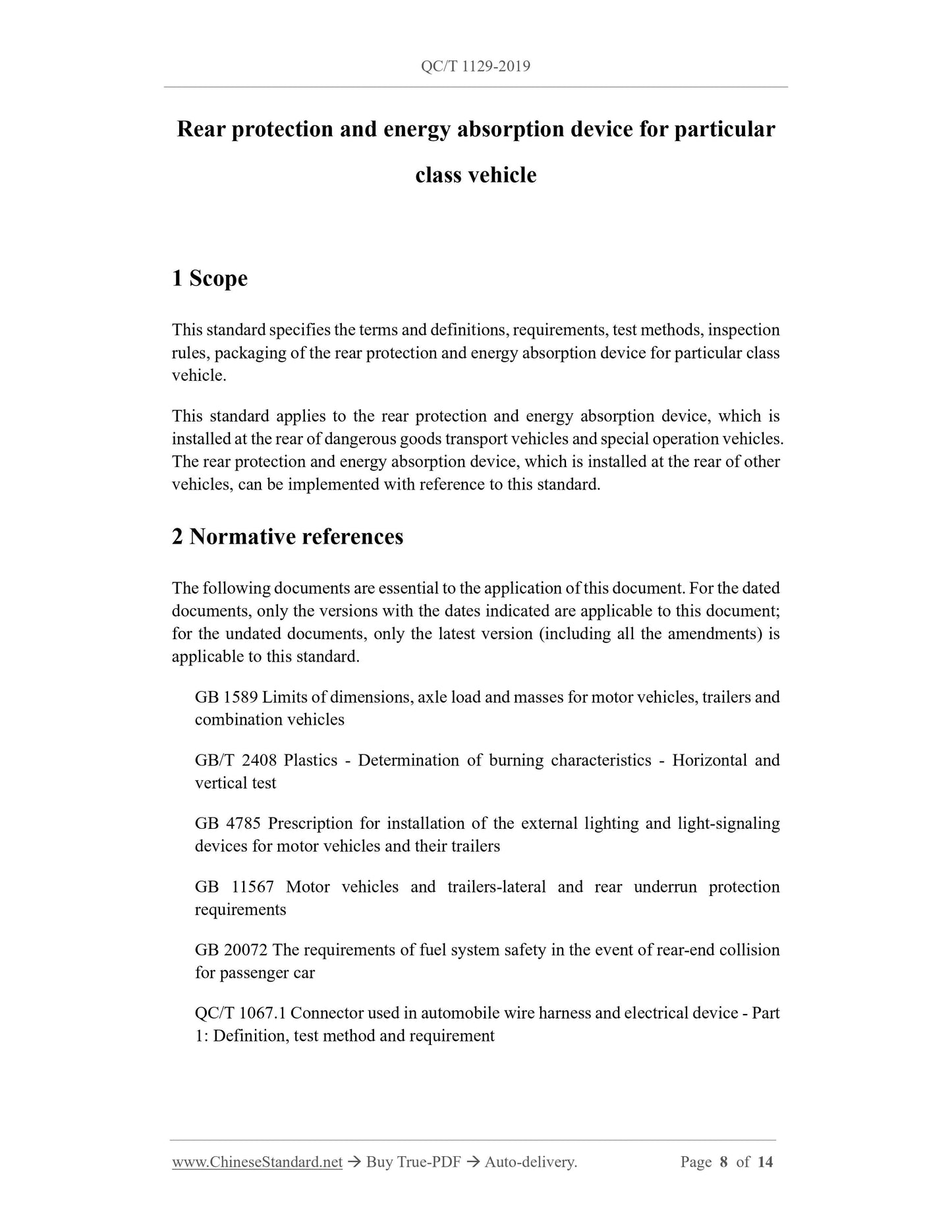

1 Scope
This standard specifies the terms and definitions, requirements, test methods, inspection
rules, packaging of the rear protection and energy absorption device for particular class
vehicle.
This standard applies to the rear protection and energy absorption device, which is
installed at the rear of dangerous goods transport vehicles and special operation vehicles.
The rear protection and energy absorption device, which is installed at the rear of other
vehicles, can be implemented with reference to this standard.
2 Normative references
The following documents are essential to the application of this document. For the dated
documents, only the versions with the dates indicated are applicable to this document;
for the undated documents, only the latest version (including all the amendments) is
applicable to this standard.
GB 1589 Limits of dimensions, axle load and masses for motor vehicles, trailers and
combination vehicles
GB/T 2408 Plastics - Determination of burning characteristics - Horizontal and
vertical test
GB 4785 Prescription for installation of the external lighting and light-signaling
devices for motor vehicles and their trailers
GB 11567 Motor vehicles and trailers-lateral and rear underrun protection
requirements
GB 20072 The requirements of fuel system safety in the event of rear-end collision
for passenger car
QC/T 1067.1 Connector used in automobile wire harness and electrical device - Part
1: Definition, test method and requirement

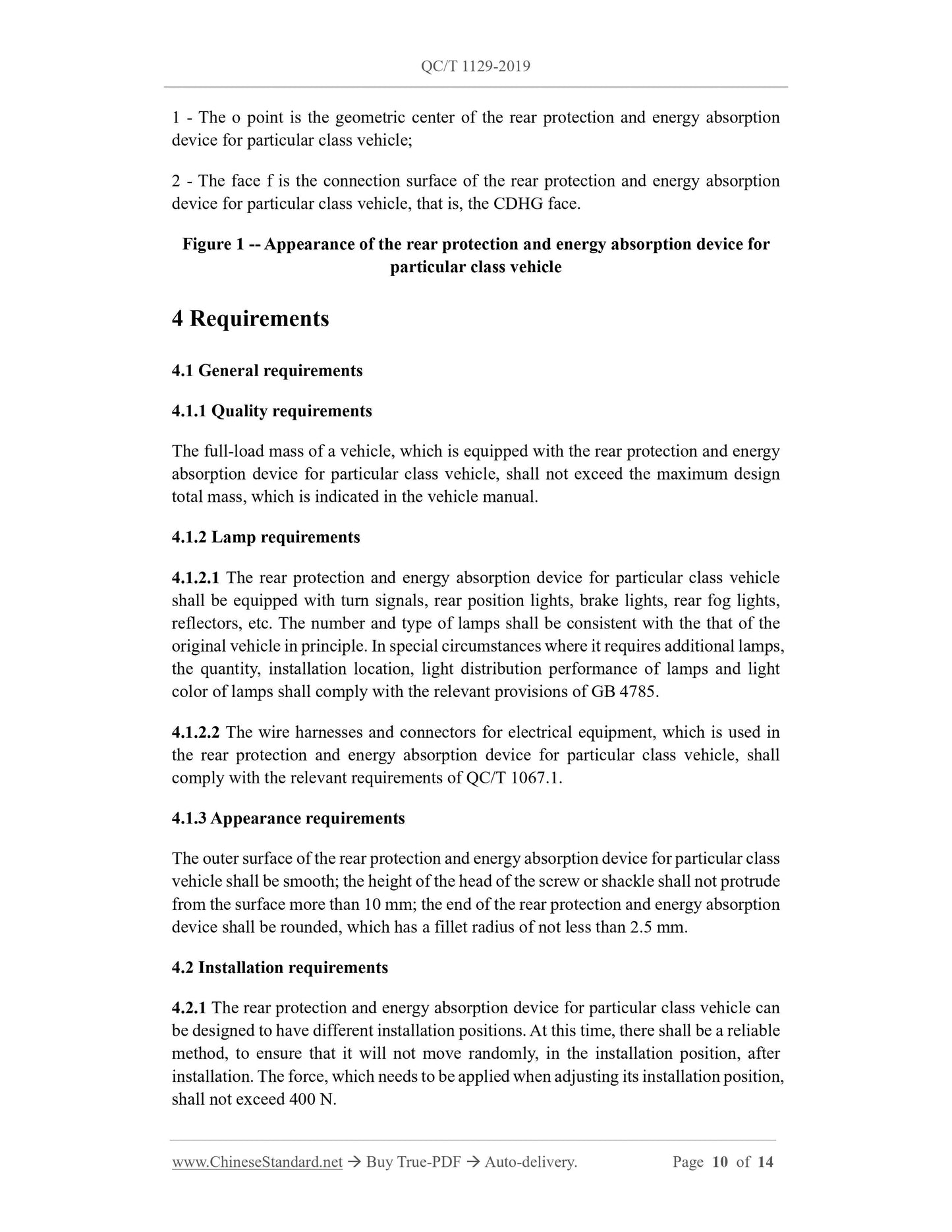

1 - The o point is the geometric center of the rear protection and energy absorption
device for particular class vehicle;
2 - The face f is the connection surface of the rear protection and energy absorption
device for particular class vehicle, that is, the CDHG face.
Figure 1 -- Appearance of the rear protection and energy absorption device for
particular class vehicle
4 Requirements
4.1 General requirements
4.1.1 Quality requirements
The full-load mass of a vehicle, which is equipped with the rear protection and energy
absorption device for particular class vehicle, shall not exceed the maximum design
total mass, which is indicated in the vehicle manual.
4.1.2 Lamp requirements
4.1.2.1 The rear protection and energy absorption device for particular class vehicle
shall be equipped with turn signals, rear position lights, brake lights, rear fog lights,
reflectors, etc. The number and type of lamps shall be consistent with the that of the
original vehicle in principle. In special circumstances where it requires additional lamps,
the quantity, installation location, light distribution performance of lamps and light
color of lamps shall comply with the relevant provisions of GB 4785.
4.1.2.2 The wire harnesses and connectors for electrical equipment, which is used in
the rear protection and energy absorption device for particular class vehicle, shall
comply with the relevant requirements of QC/T 1067.1.
4.1.3 Appearance requirements
The outer surface of the rear protection and energy absorption device for particular class
vehicle shall be smooth; the height of the head of the screw or shackle shall not protrude
from the surface more than 10 mm; the end of the rear protection and energy absorption
device shall be rounded, which has a fillet radius of not less than 2.5 mm.
4.2 Installation requirements
4.2.1 The rear protection and energy absorption device for particular class vehicle can
be designed to have different installation positions. At this time, there shall be a reliable
method, to ensure that it will not move randomly, in the installation position, after
installation. The force, which needs to be applied when adjusting its installation position,
shall not exceed 400 N.

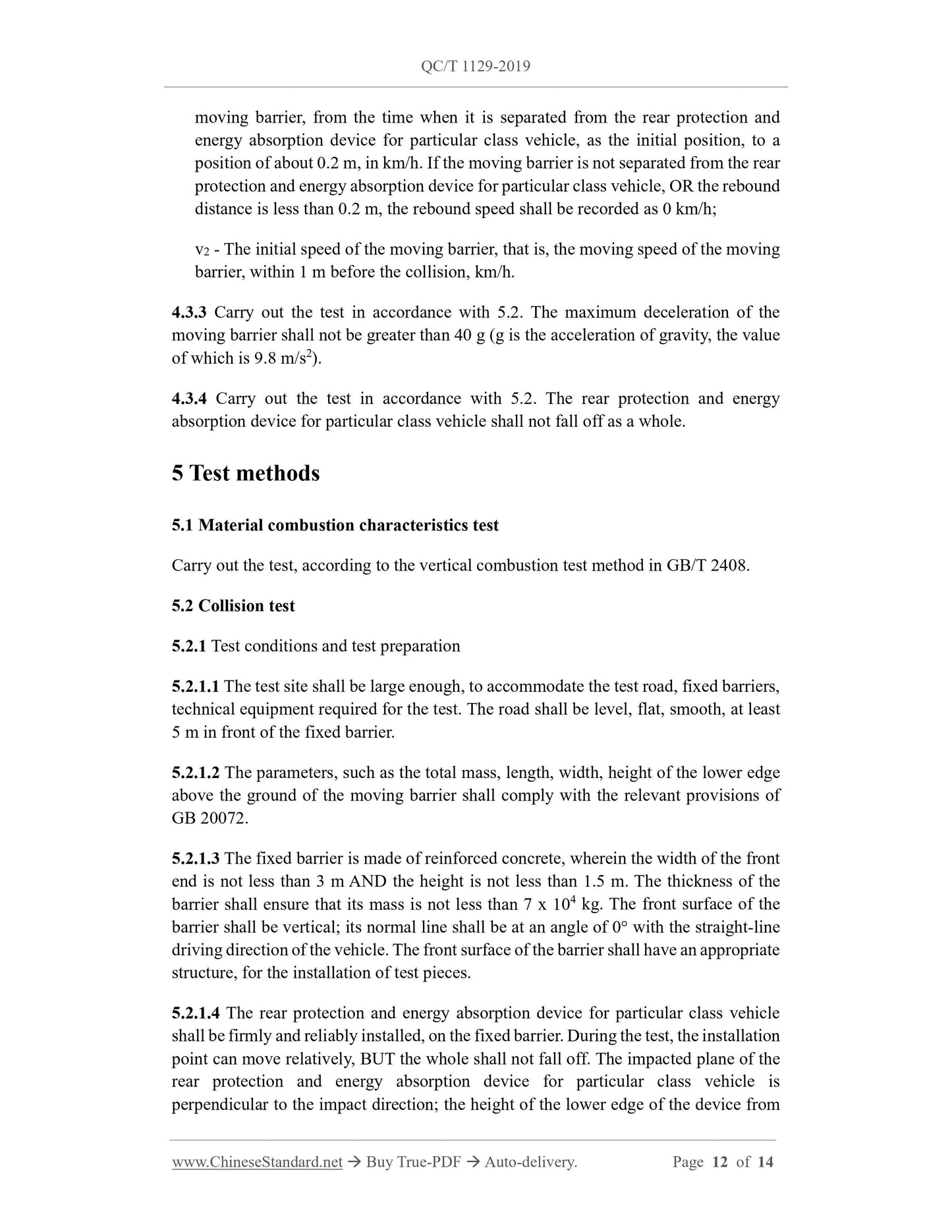

moving barrier, from the time when it is separated from the rear protection and
energy absorption device for particular class vehicle, as the initial position, to a
position of about 0.2 m, in km/h. If the moving barrier is not separated from the rear
protection and energy absorption device for particular class vehicle, OR the rebound
distance is less than 0.2 m, the rebound speed shall be recorded as 0 km/h;
v2 - The initial speed of the moving barrier, that is, the moving speed of the moving
barrier, within 1 m before the collision, km/h.
4.3.3 Carry out the test in accordance with 5.2. The maximum deceleration of the
moving barrier shall not be greater than 40 g (g is the acceleration of gravity, the value
of which is 9.8 m/s2).
4.3.4 Carry out the test in accordance with 5.2. The rear protection and energy
absorption device for particular class vehicle shall not fall off as a whole.
5 Test methods
5.1 Material combustion characteristics test
Carry out the test, according to the vertical combustion test method in GB/T 2408.
5.2 Collision test
5.2.1 Test conditions and test preparation
5.2.1.1 The test site shall be large enough, to accommodate the test road, fixed barriers,
technical equipment required for the test. The road shall be level, flat, smooth, at least
5 m in front of the fixed barrier.
5.2.1.2 The parameters, such as the total mass, length, width, height of the lower edge
above the ground of the moving barrier shall comply with the relevant provisions of
GB 20072.
5.2.1.3 The fixed barrier is made of reinforced concrete, wherein the width of the front
end is not less than 3 m AND the height is not less than 1.5 m. The thickness of the
barrier shall ensure that its mass is not less than 7 x 104 kg. The front surface of the
barrier shall be vertical; its normal line shall be at an angle of 0° with the straight-line
driving direction of the vehicle. The front surface of the barrier shall have an appropriate
structure, for the installation of test pieces.
5.2.1.4 The rear protection and energy absorption device for particular class vehicle
shall be firmly and reliably installed, on the fixed barrier. During the test, the installation
point can move relatively, BUT the whole shall not fall off. The impacted plane of the
rear protection and energy absorption device for particular class vehicle is
perpendicular to the impact direction; the height of the lower edge of the device from
the horizontal ground shall be such, that the front collision surface of the moving barrier
just completely covers the collided plane of the rear protection and energy absorption
device for particular class vehicle, in height.

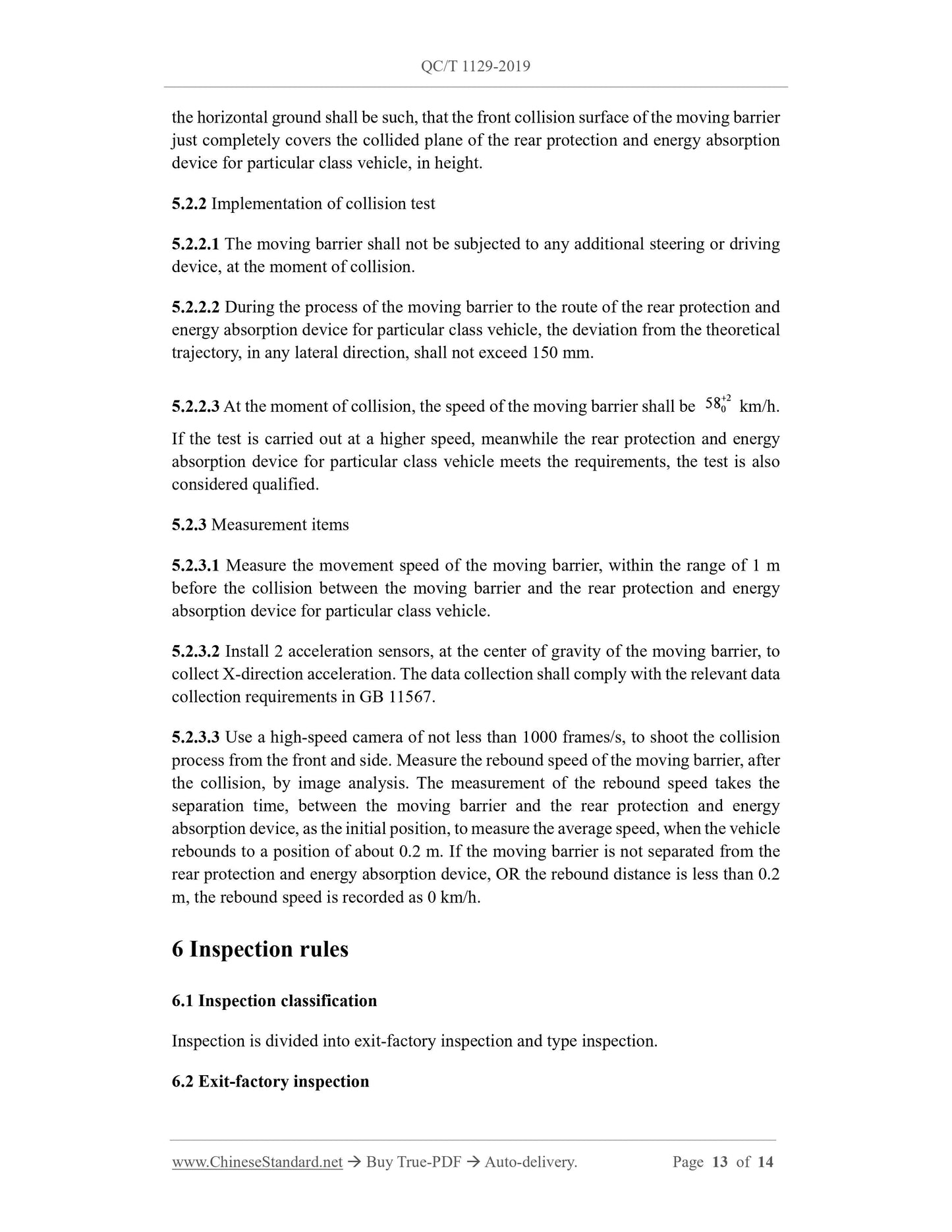

5.2.2 Implementation of collision test
5.2.2.1 The moving barrier shall not be subjected to any additional steering or driving
device, at the moment of collision.
5.2.2.2 During the process of the moving barrier to the route of the rear protection and
energy absorption device for particular class vehicle, the deviation from the theoretical
trajectory, in any lateral direction, shall not exceed 150 mm.
5.2.2.3 At the moment of collision, the speed of the moving barrier shall be km/h.
If the test is carried out at a higher speed, meanwhile the rear protection and energy
absorption device for particular class vehicle meets the requirements, the test is also
considered qualified.
...
