QC/T 218-2017: Technical specification of steering column switch for vehicles

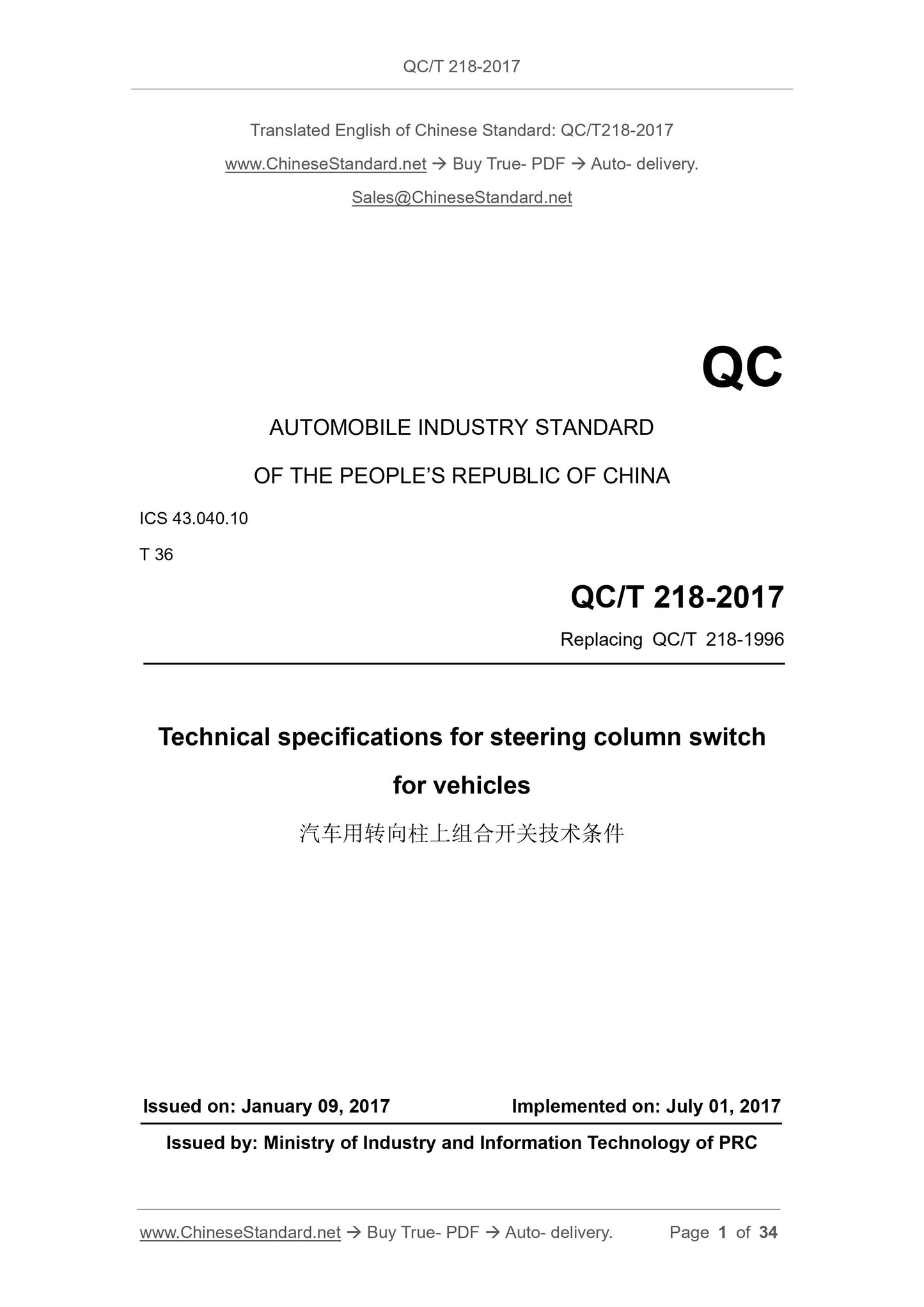

QC/T 218-2017
QC
AUTOMOBILE INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 43.040.10
T 36
Replacing QC/T 218-1996
Technical specifications for steering column switch
for vehicles
ISSUED ON: JANUARY 09, 2017
IMPLEMENTED ON: JULY 01, 2017
Issued by: Ministry of Industry and Information Technology of PRC

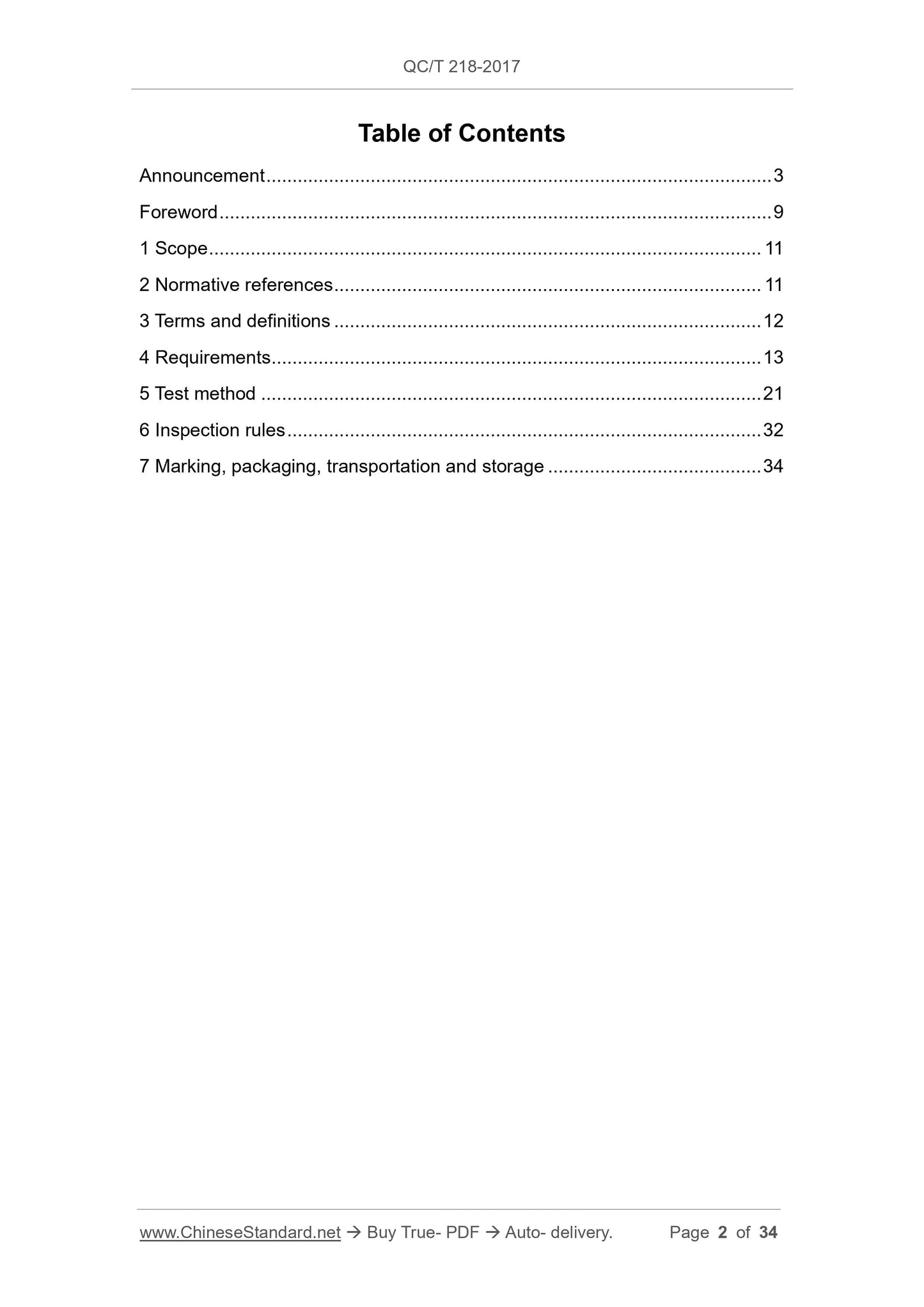

Table of Contents

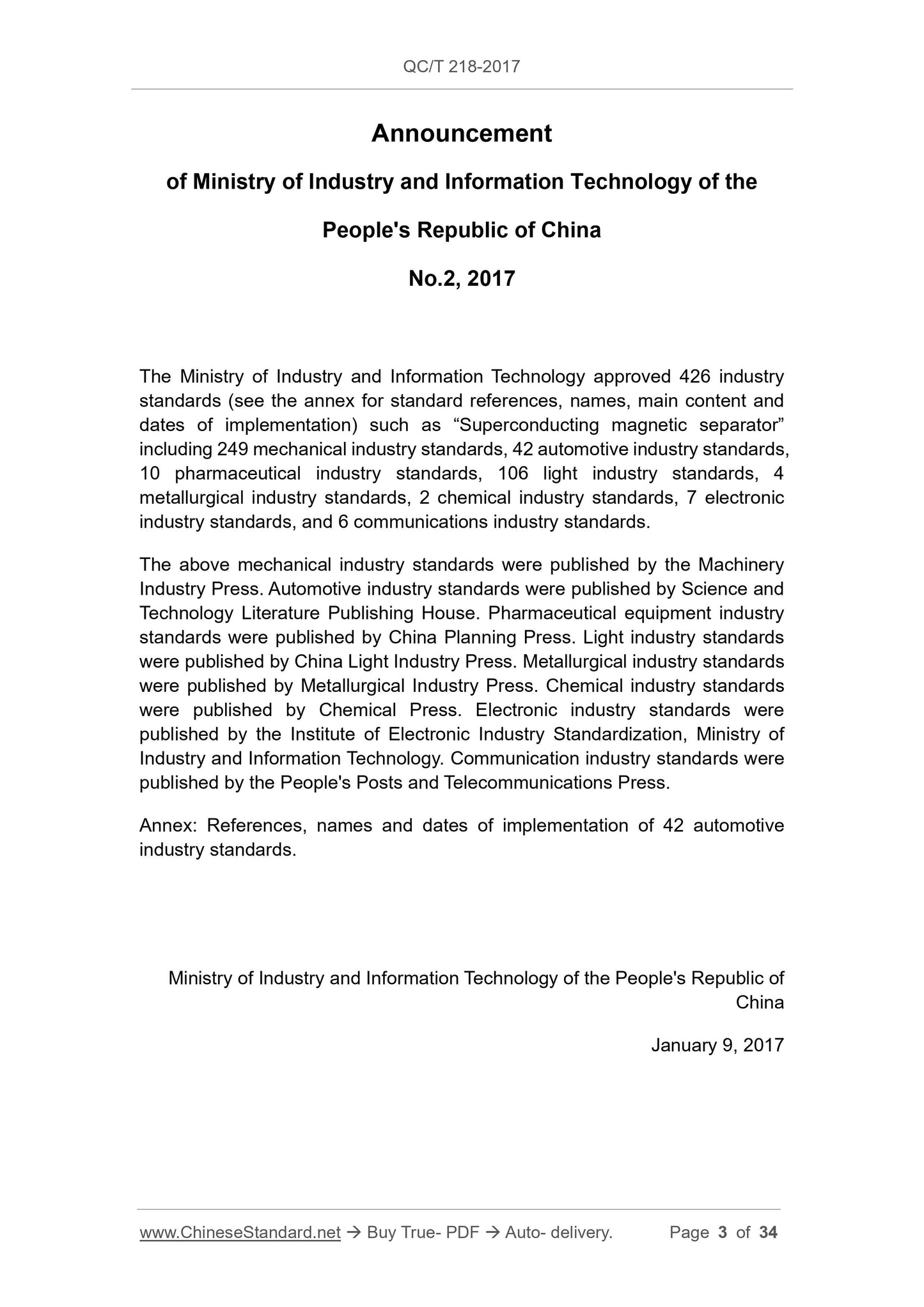

Announcement ... 3

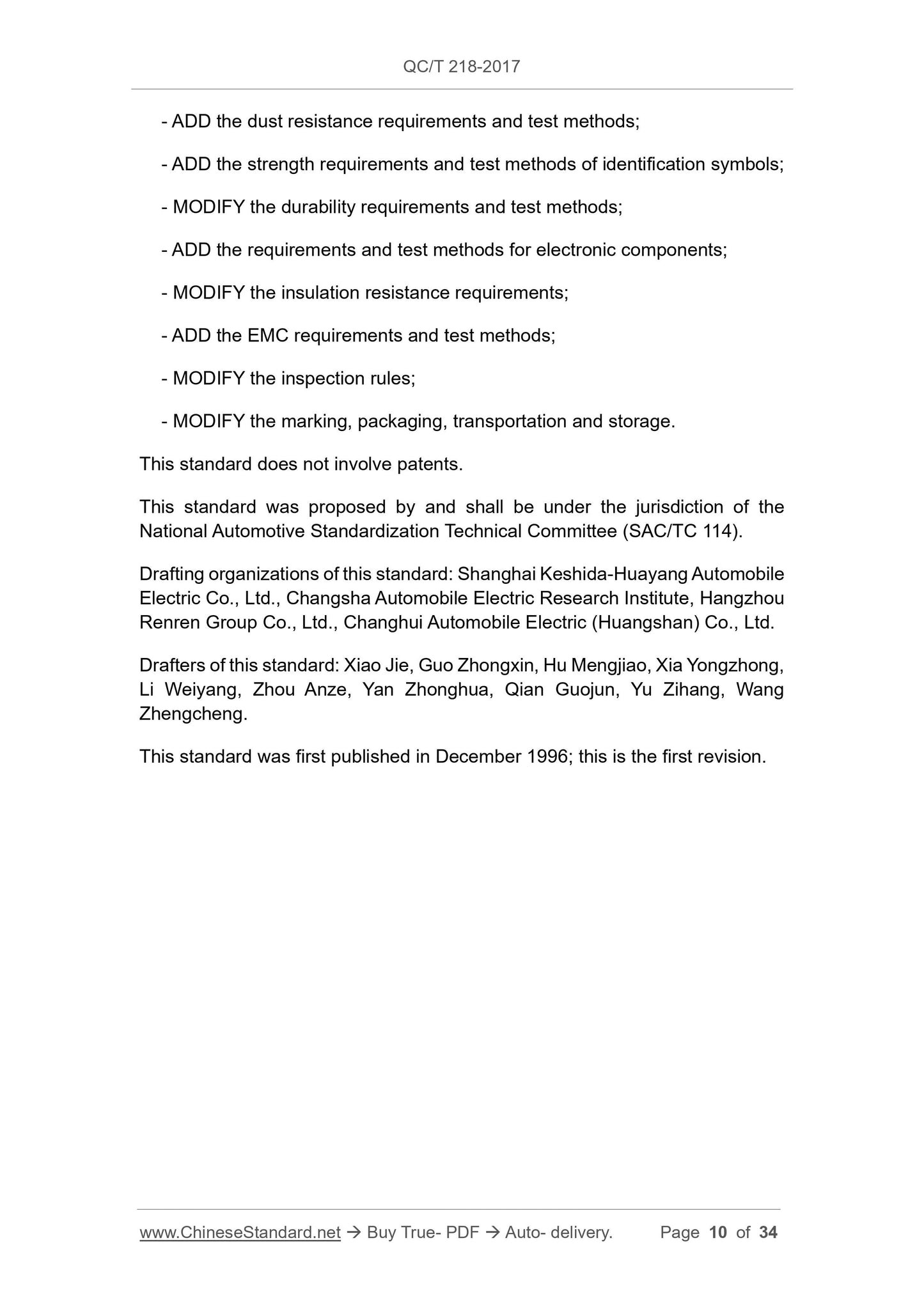

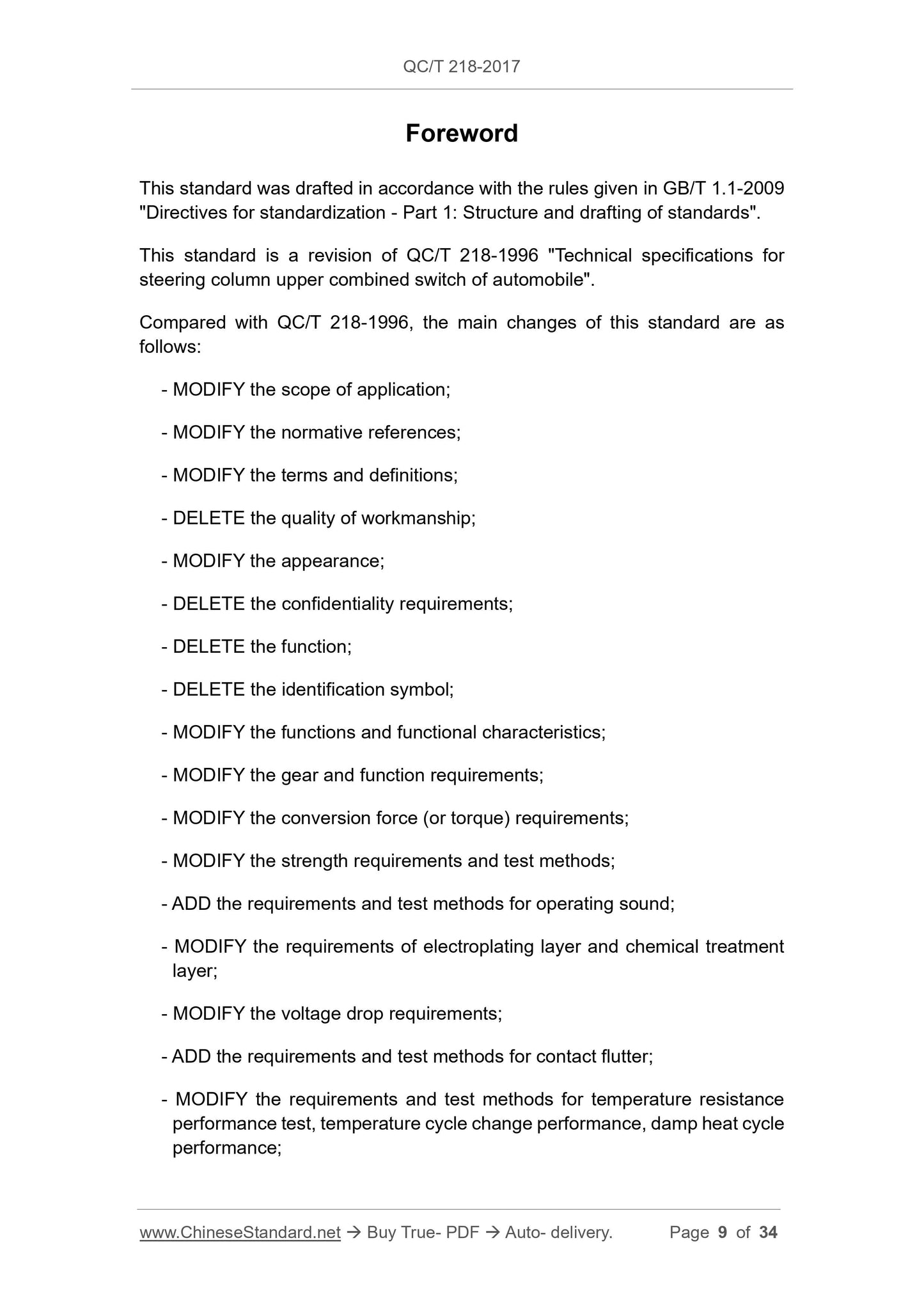

Foreword ... 9
1 Scope ... 11
2 Normative references ... 11
3 Terms and definitions ... 12
4 Requirements ... 13
5 Test method ... 21
6 Inspection rules ... 32
7 Marking, packaging, transportation and storage ... 34

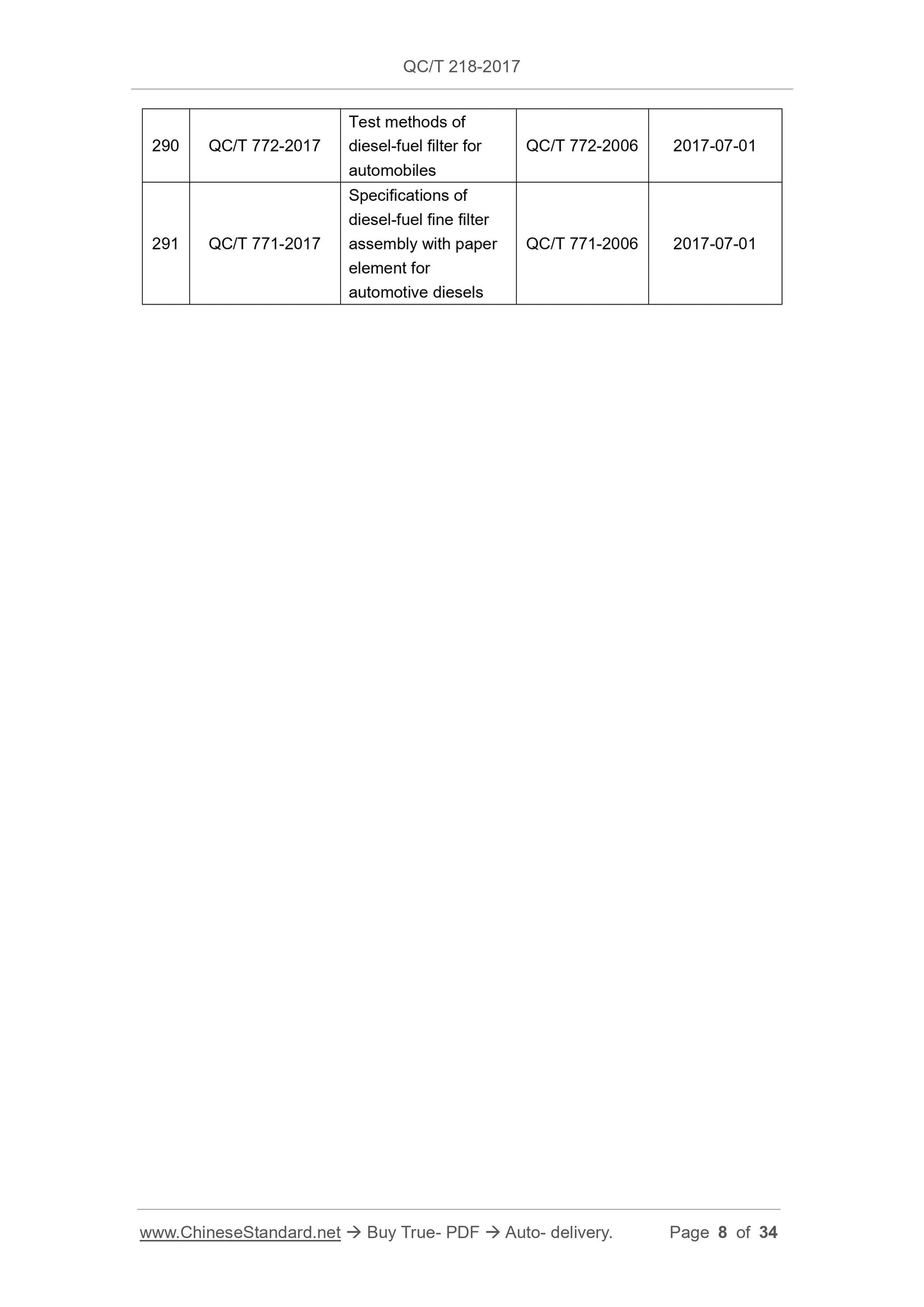

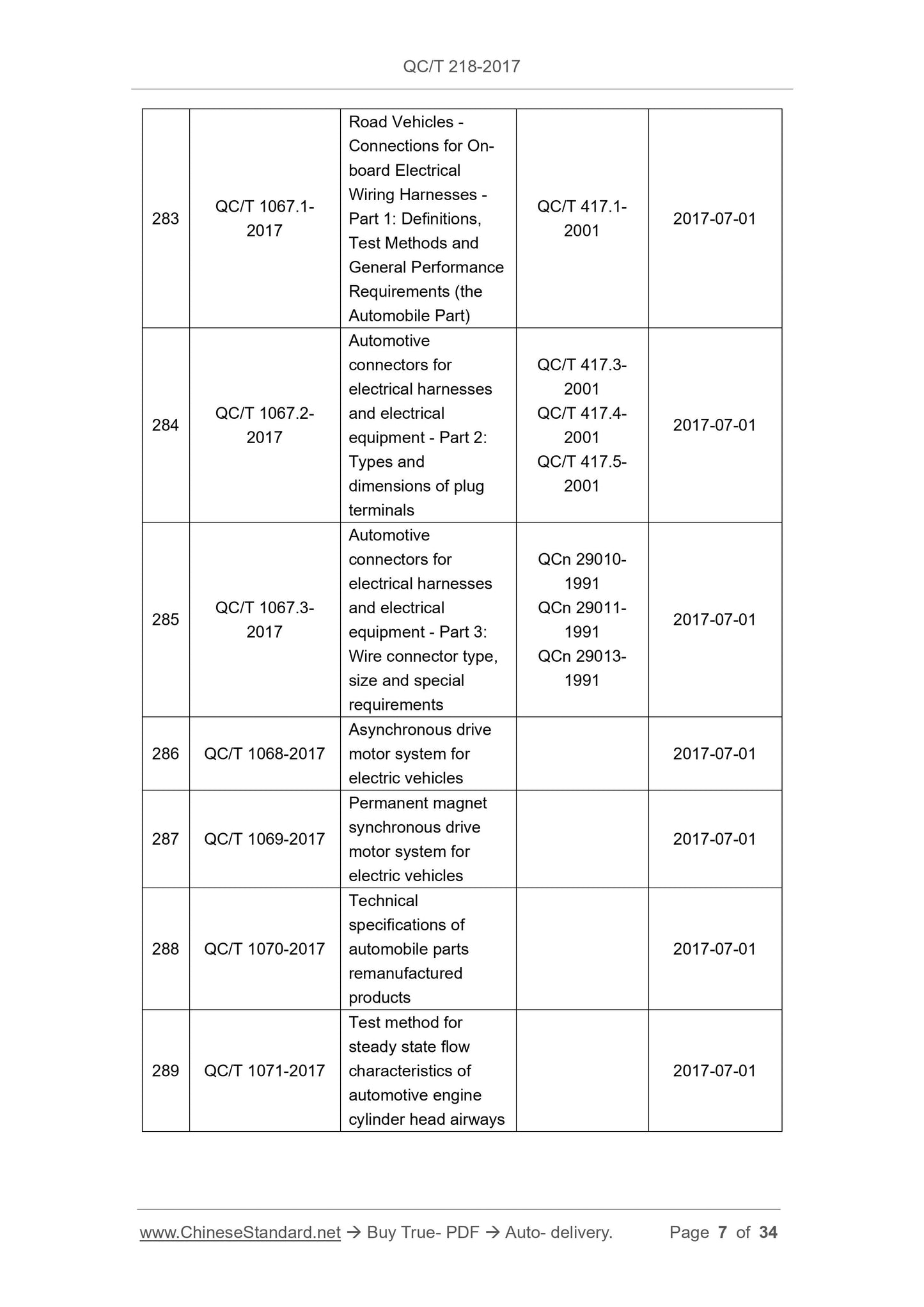

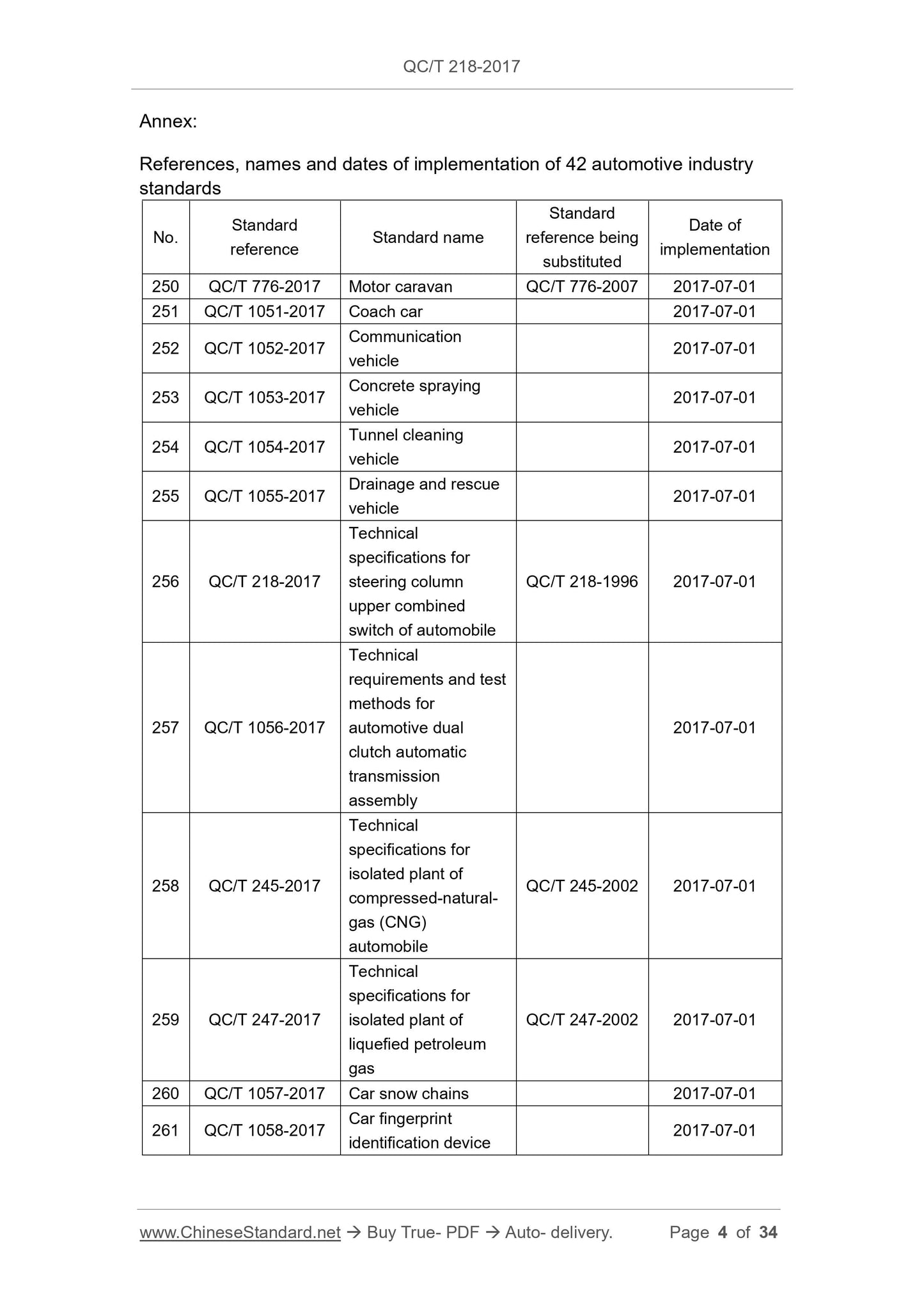

Annex:
References, names and dates of implementation of 42 automotive industry
standards
No.
Standard
reference
Standard name
Standard
reference being
substituted
Date of
implementation
250 QC/T 776-2017 Motor caravan QC/T 776-2007 2017-07-01
251 QC/T 1051-2017 Coach car 2017-07-01
252 QC/T 1052-2017
Communication
vehicle
2017-07-01
253 QC/T 1053-2017
Concrete spraying
vehicle
2017-07-01
254 QC/T 1054-2017
Tunnel cleaning
vehicle
2017-07-01
255 QC/T 1055-2017
Drainage and rescue
vehicle
2017-07-01
256 QC/T 218-2017
Technical
specifications for
steering column
upper combined
switch of automobile
QC/T 218-1996 2017-07-01
257 QC/T 1056-2017
Technical
requirements and test
methods for
automotive dual
clutch automatic
transmission
assembly
2017-07-01
258 QC/T 245-2017
Technical
specifications for
isolated plant of
compressed-natural-
gas (CNG)
automobile
QC/T 245-2002 2017-07-01
259 QC/T 247-2017
Technical
specifications for
isolated plant of
liquefied petroleum
gas
QC/T 247-2002 2017-07-01
260 QC/T 1057-2017 Car snow chains 2017-07-01
261 QC/T 1058-2017
Car fingerprint
identification device
2017-07-01

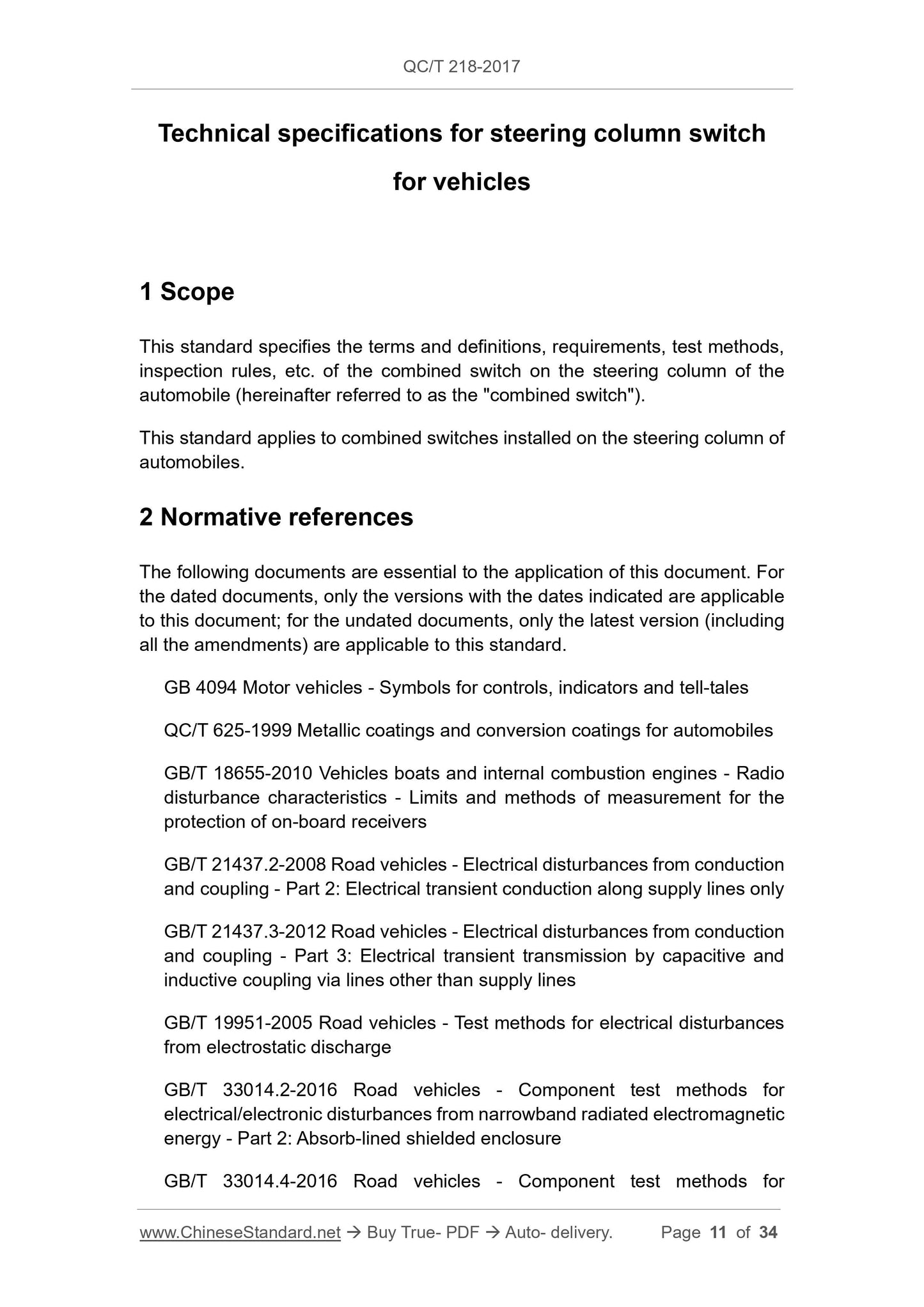

Technical specifications for steering column switch
for vehicles
1 Scope
This standard specifies the terms and definitions, requirements, test methods,
inspection rules, etc. of the combined switch on the steering column of the
automobile (hereinafter referred to as the "combined switch").
This standard applies to combined switches installed on the steering column of
automobiles.

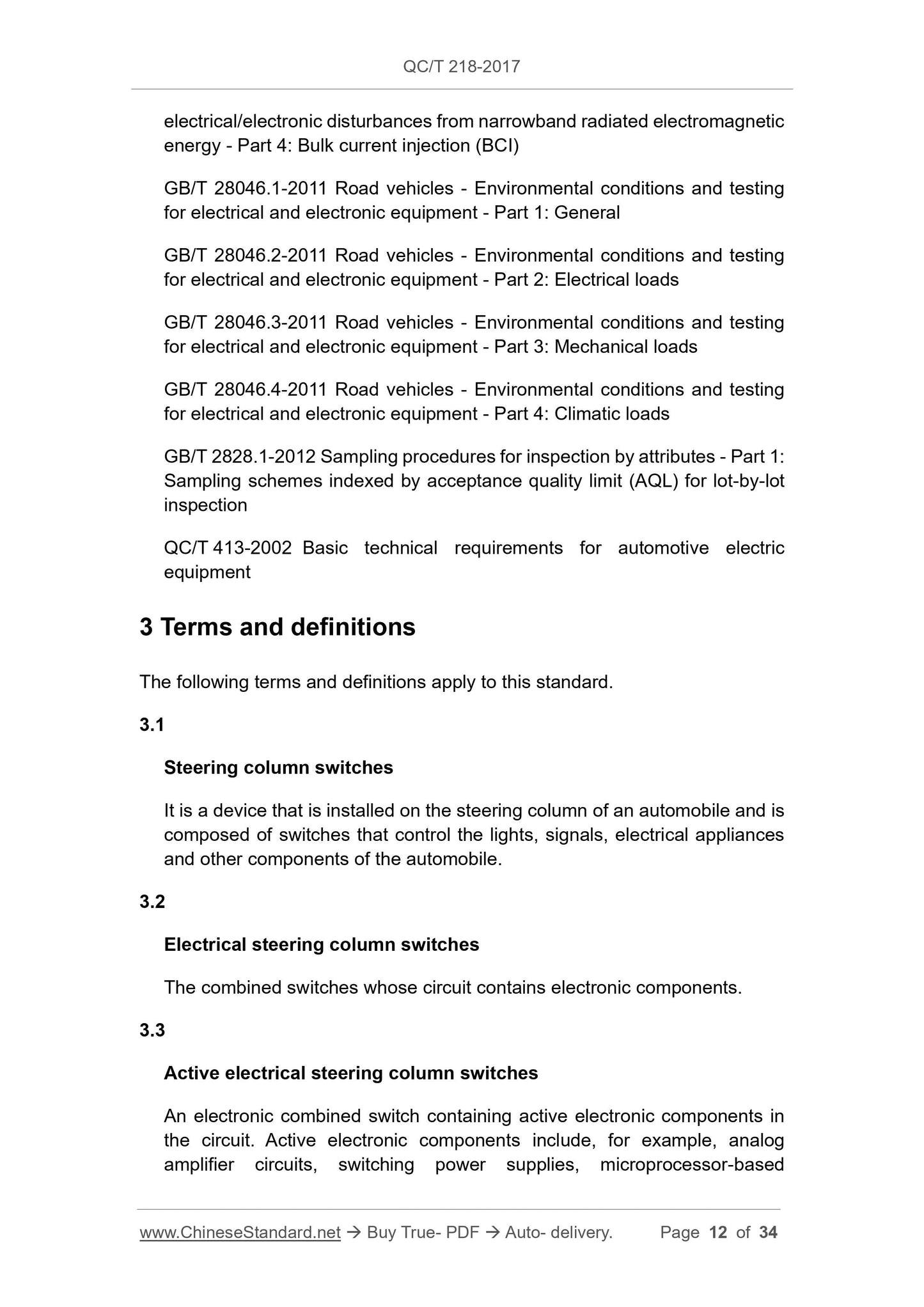

2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) are applicable to this standard.
GB 4094 Motor vehicles - Symbols for controls, indicators and tell-tales
QC/T 625-1999 Metallic coatings and conversion coatings for automobiles
GB/T 18655-2010 Vehicles boats and internal combustion engines - Radio
disturbance characteristics - Limits and methods of measurement for the
protection of on-board receivers
GB/T 21437.2-2008 Road vehicles - Electrical disturbances from conduction
and coupling - Part 2: Electrical transient conduction along supply lines only
GB/T 21437.3-2012 Road vehicles - Electrical disturbances from conduction
and coupling - Part 3: Electrical transient transmission by capacitive and
inductive coupling via lines other than supply lines
GB/T 19951-2005 Road vehicles - Test methods for electrical disturbances
from electrostatic discharge
GB/T 33014.2-2016 Road vehicles - Component test methods for
electrical/electronic disturbances from narrowband radiated electromagnetic
energy - Part 2: Absorb-lined shielded enclosure
GB/T 33014.4-2016 Road vehicles - Component test methods for
controllers, etc.
3.4
Auto return framework
The mechanism installed in the switch which, when the handle of the turn
signal switch is in the left (L) or right (R) position, if the steering wheel returns
from the left or right position to the original position, makes the handle
automatically return to the neutral (N) position.
3.5
Speed character
The characteristics of automatic return mechanism which cancels the
steering signal when the steering wheel returns at high speed.
4 Requirements
4.1 General requirements
4.1.1 Product drawings and technical documents.
The combined switch shall meet the requirements of this standard and be
manufactured in accordance with the requirements of the product drawings and
technical documents approved by the prescribed procedures.
4.1.2 Appearance
The combined switch shall have good appearance quality; the structure shall
be intact; there shall be no incorrect assembly, missing assembly or other poor
assembly. The surface paint film shall be uniform and free from blisters, blanks,
accumulation or overflow. The metal parts shall have an anti-corrosion layer.
The plastic parts shall be free of cracks; it shall have no deformation that affects
the use and appearance.
The indication and signal’s identification symbols used by the combined switch
shall comply with the requirements of GB 4094. The identification symbols shall
be clear and free from partial shedding, shrinkage or blurring.
4.1.3 Dimensions
The size of the combined switch shall conform to the specifications of the
product drawings of this type.
4.2 Rated load
The functions, functional characteristics and voltage drop shall meet the
requirements of 4.3 and 4.7.
4.12 Cyclic damp heat resistance
After the combined switch has been subjected to the cyclic damp heat test, its
appearance shall meet the requirements of 4.1.2. The functions, functional
characteristics and voltage drop shall meet the requirements of 4.3 and 4.7.
4.13 Salt spray resistance
After the combined switch has undergone the salt spray resistance test, its
appearance shall meet the requirements of 4.1.2. The functions, functional
characteristics, and voltage drop shall meet the requirements of 4.3 and 4.7.
There shall be no corrosion pits on the surface after cleaning.
4.14 Dust resistance
After the combined switch is subjected to the dust resistance test, the function,
functional characteristics and voltage drop shall meet the requirements of 4.3
and 4.7.
4.15 Vibration resistance
After the combined switch is subjected to the vibration resistance test, the
appearance shall meet the requirements of 4.1.2; the function, functional
characteristics and voltage drop shall meet the requirements of 4.3 and 4.7.
4.16 Strength of identification symbol
4.16.1 Resistance to chemical reagents
After the combined switch is tested for resistance to chemical reagents, the
surface of the sample does not change; meanwhile the marking content is clear
and readable.
4.16.2 Adhesion performance
After the adhesion test of the combined switch, the surface peeling off area of
the identification symbol, the corners of the square, the cut intersection shall
not be significantly larger than 5%.
4.16.3 Wear resistance
After the combined switch is subjected to abrasion resistance test, the
identification symbol shall be identifiable.
4.17 Durability
The electronic combined switch shall be subjected to a slow drop and slow rise
test of the power supply voltage. During the test, the functions, functional
characteristics, voltage drop shall meet the requirements of 4.3 and 4.7; after
the test, it shall be turned on and off normally.
4.22 Transient changes of supply voltage
4.22.1 ...
