QC/T 29078-2016: Performance requirements and bench test methods of vehicle air compressor

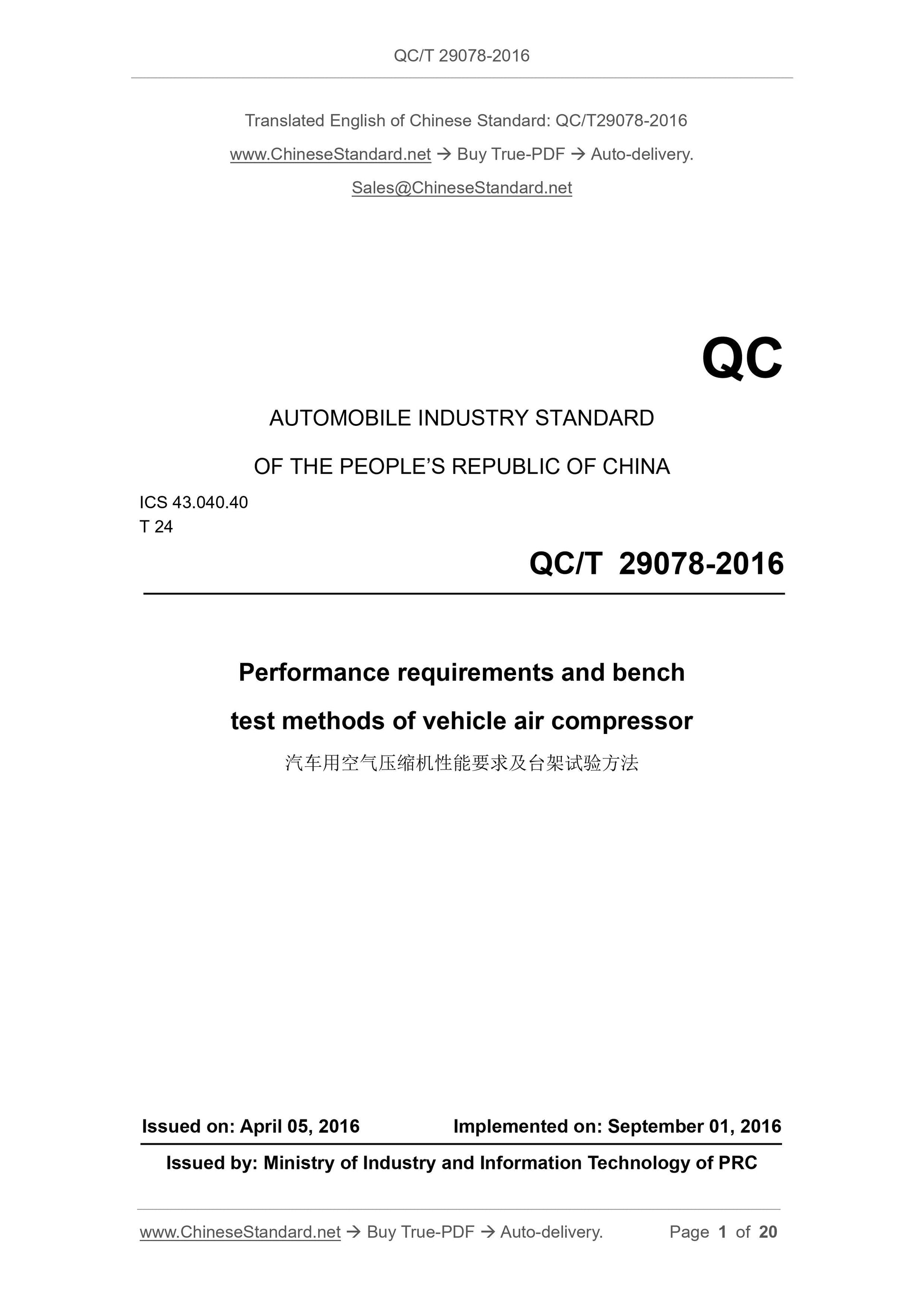

QC/T 29078-2016
AUTOMOBILE INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 43.040.40
T 24
Performance requirements and bench
test methods of vehicle air compressor
ISSUED ON: APRIL 05, 2016
IMPLEMENTED ON: SEPTEMBER 01, 2016
Issued by: Ministry of Industry and Information Technology of PRC

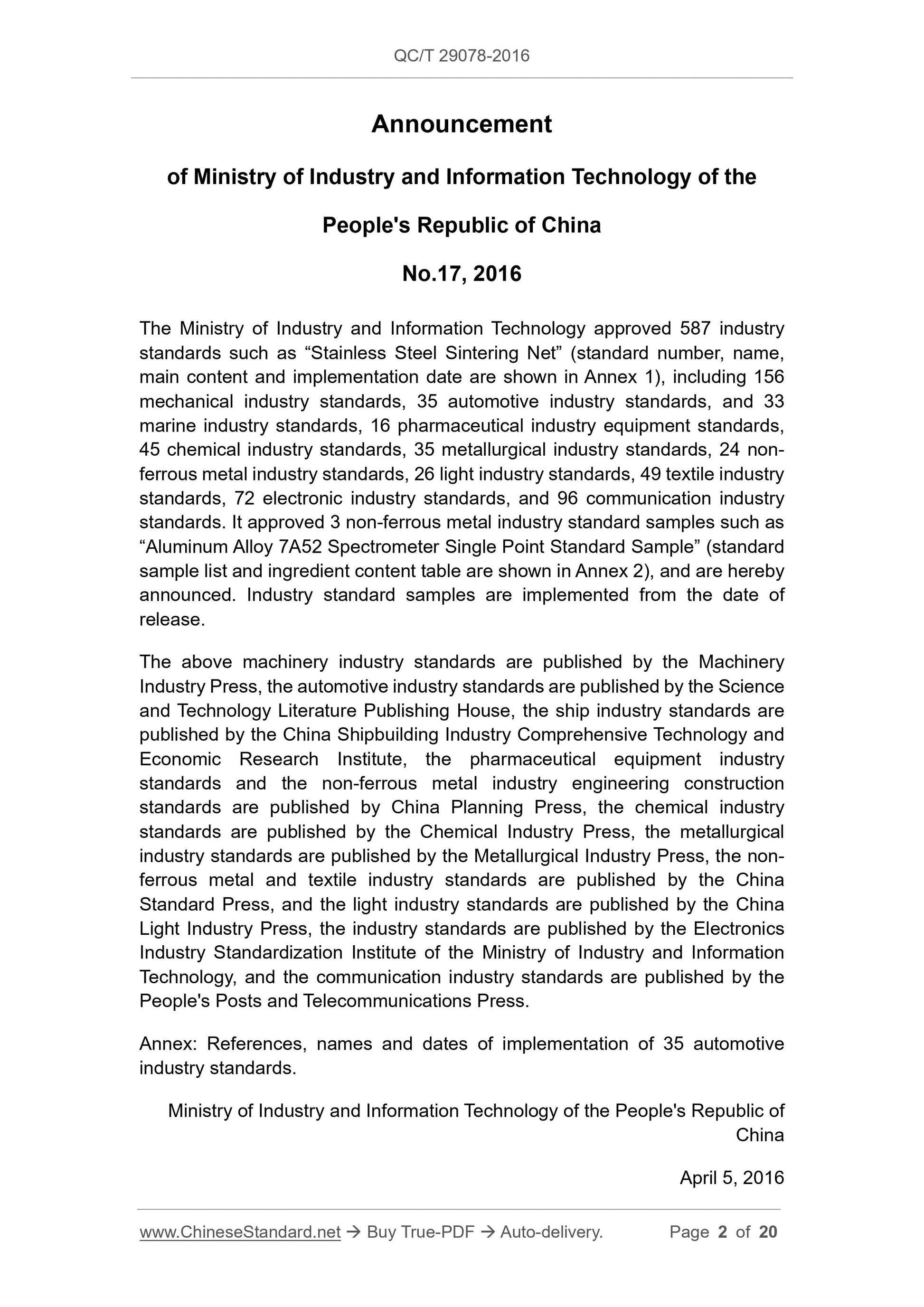

Announcement
of Ministry of Industry and Information Technology of the
People's Republic of China
No.17, 2016
The Ministry of Industry and Information Technology approved 587 industry
standards such as “Stainless Steel Sintering Net” (standard number, name,
main content and implementation date are shown in Annex 1), including 156
mechanical industry standards, 35 automotive industry standards, and 33
marine industry standards, 16 pharmaceutical industry equipment standards,
45 chemical industry standards, 35 metallurgical industry standards, 24 non-
ferrous metal industry standards, 26 light industry standards, 49 textile industry
standards, 72 electronic industry standards, and 96 communication industry
standards. It approved 3 non-ferrous metal industry standard samples such as
“Aluminum Alloy 7A52 Spectrometer Single Point Standard Sample” (standard
sample list and ingredient content table are shown in Annex 2), and are hereby
announced. Industry standard samples are implemented from the date of
release.
The above machinery industry standards are published by the Machinery
Industry Press, the automotive industry standards are published by the Science
and Technology Literature Publishing House, the ship industry standards are
published by the China Shipbuilding Industry Comprehensive Technology and
Economic Research Institute, the pharmaceutical equipment industry
standards and the non-ferrous metal industry engineering construction
standards are published by China Planning Press, the chemical industry
standards are published by the Chemical Industry Press, the metallurgical
industry standards are published by the Metallurgical Industry Press, the non-
ferrous metal and textile industry standards are published by the China
Standard Press, and the light industry standards are published by the China
Light Industry Press, the industry standards are published by the Electronics
Industry Standardization Institute of the Ministry of Industry and Information
Technology, and the communication industry standards are published by the
People's Posts and Telecommunications Press.
Annex: References, names and dates of implementation of 35 automotive
industry standards.
Ministry of Industry and Information Technology of the People's Republic of
China
April 5, 2016

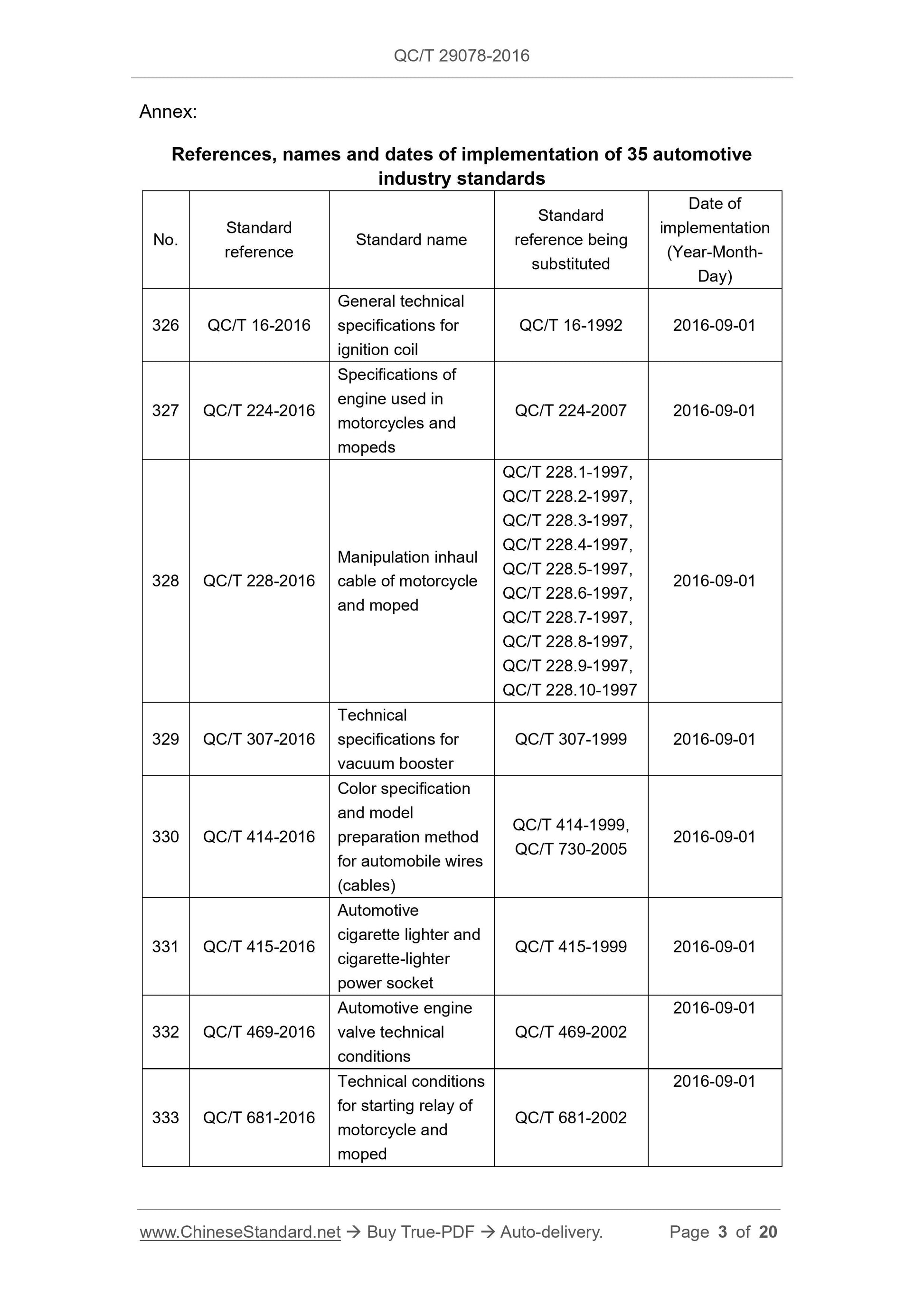

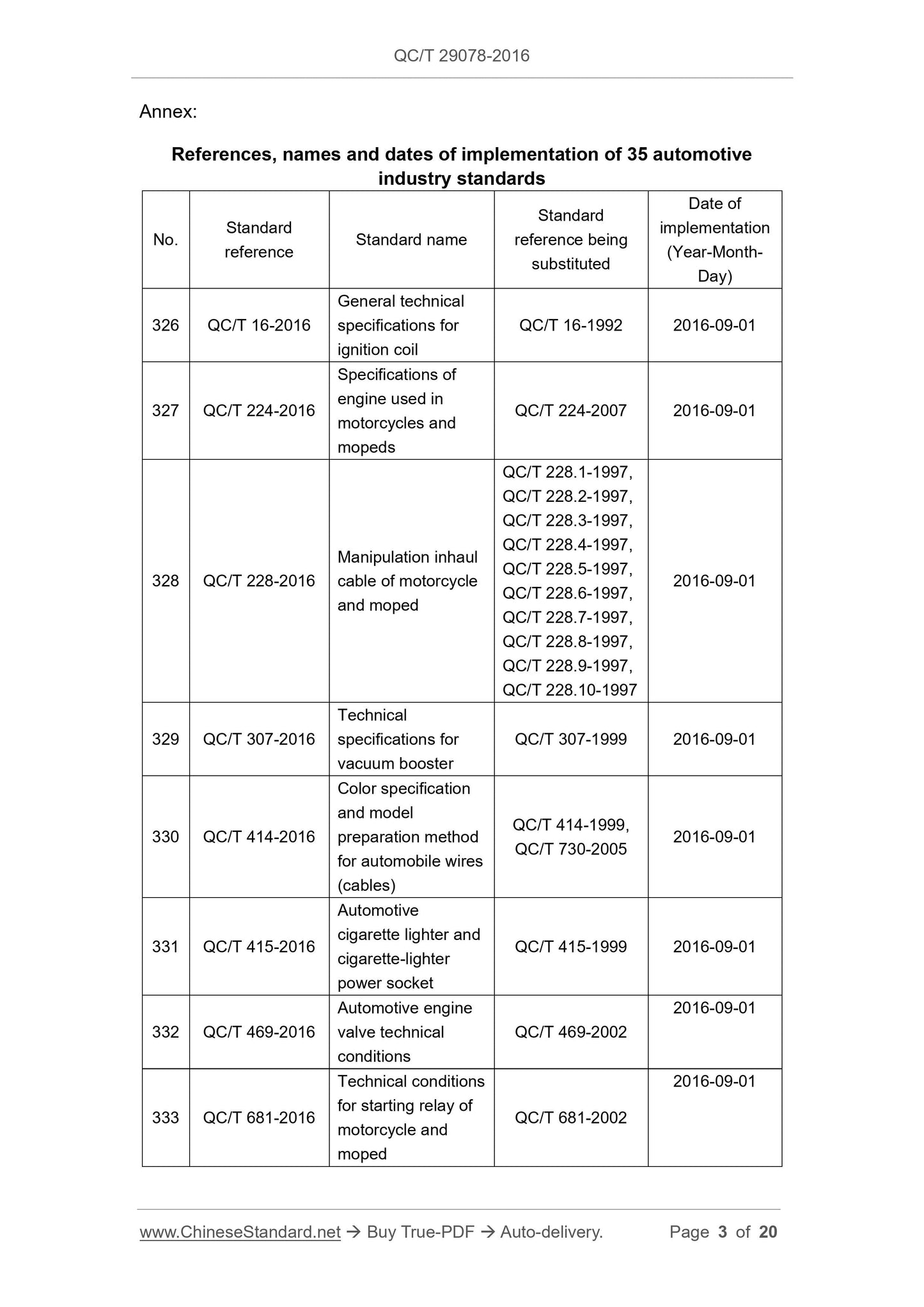

Annex:
References, names and dates of implementation of 35 automotive
industry standards
No. Standard reference Standard name
Standard
reference being
substituted
Date of
implementation
(Year-Month-
Day)
326 QC/T 16-2016
General technical
specifications for
ignition coil
QC/T 16-1992 2016-09-01
327 QC/T 224-2016
Specifications of
engine used in
motorcycles and
mopeds
QC/T 224-2007 2016-09-01
328 QC/T 228-2016
Manipulation inhaul
cable of motorcycle
and moped
QC/T 228.1-1997,
QC/T 228.2-1997,
QC/T 228.3-1997,
QC/T 228.4-1997,
QC/T 228.5-1997,
QC/T 228.6-1997,
QC/T 228.7-1997,
QC/T 228.8-1997,
QC/T 228.9-1997,
QC/T 228.10-1997
2016-09-01
329 QC/T 307-2016
Technical
specifications for
vacuum booster
QC/T 307-1999 2016-09-01
330 QC/T 414-2016
Color specification
and model
preparation method
for automobile wires
(cables)
QC/T 414-1999,
QC/T 730-2005 2016-09-01
331 QC/T 415-2016
Automotive
cigarette lighter and
cigarette-lighter
power socket
QC/T 415-1999 2016-09-01
332 QC/T 469-2016
Automotive engine
valve technical
conditions
QC/T 469-2002
2016-09-01
333 QC/T 681-2016
Technical conditions
for starting relay of
motorcycle and
moped
QC/T 681-2002
2016-09-01

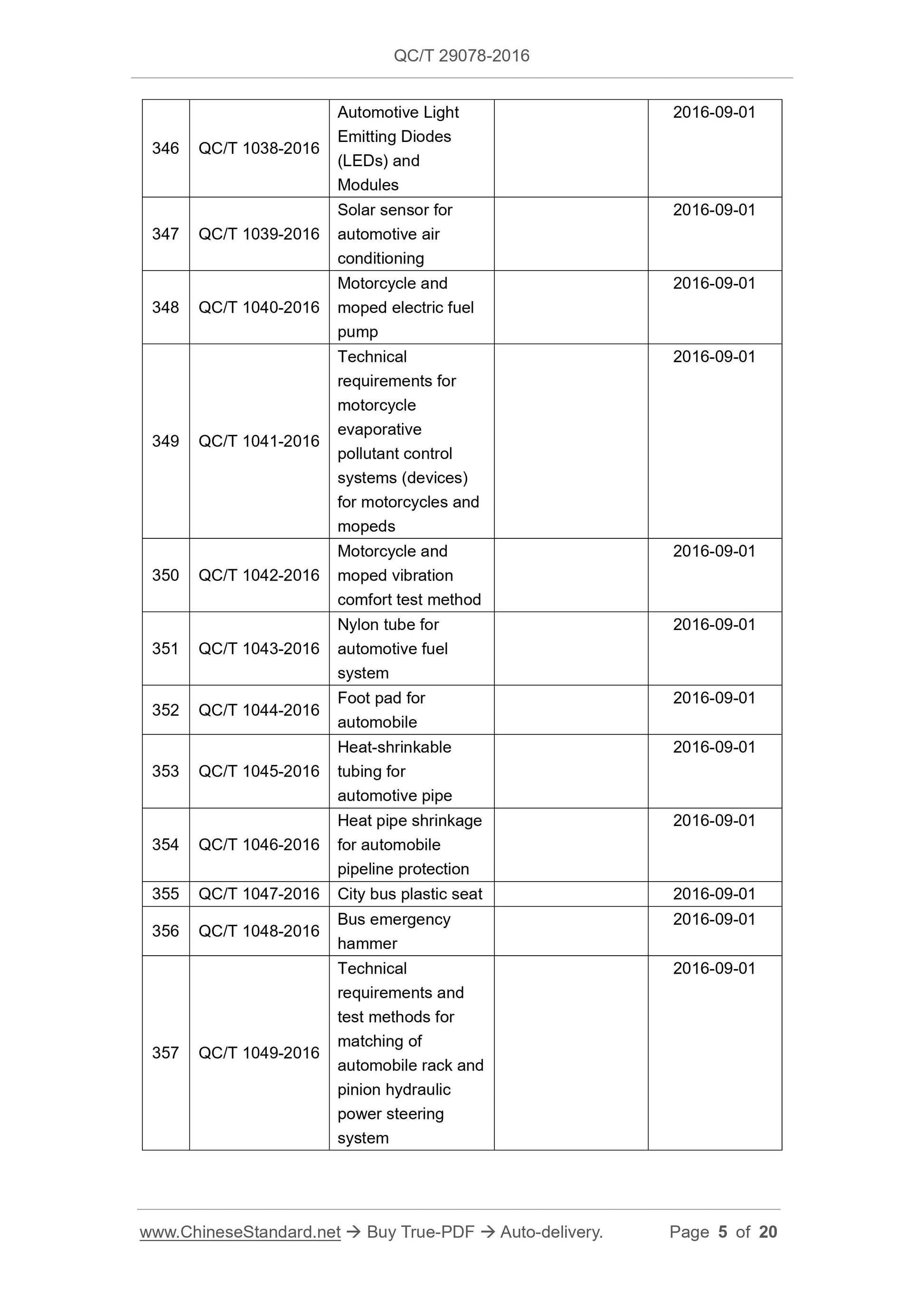

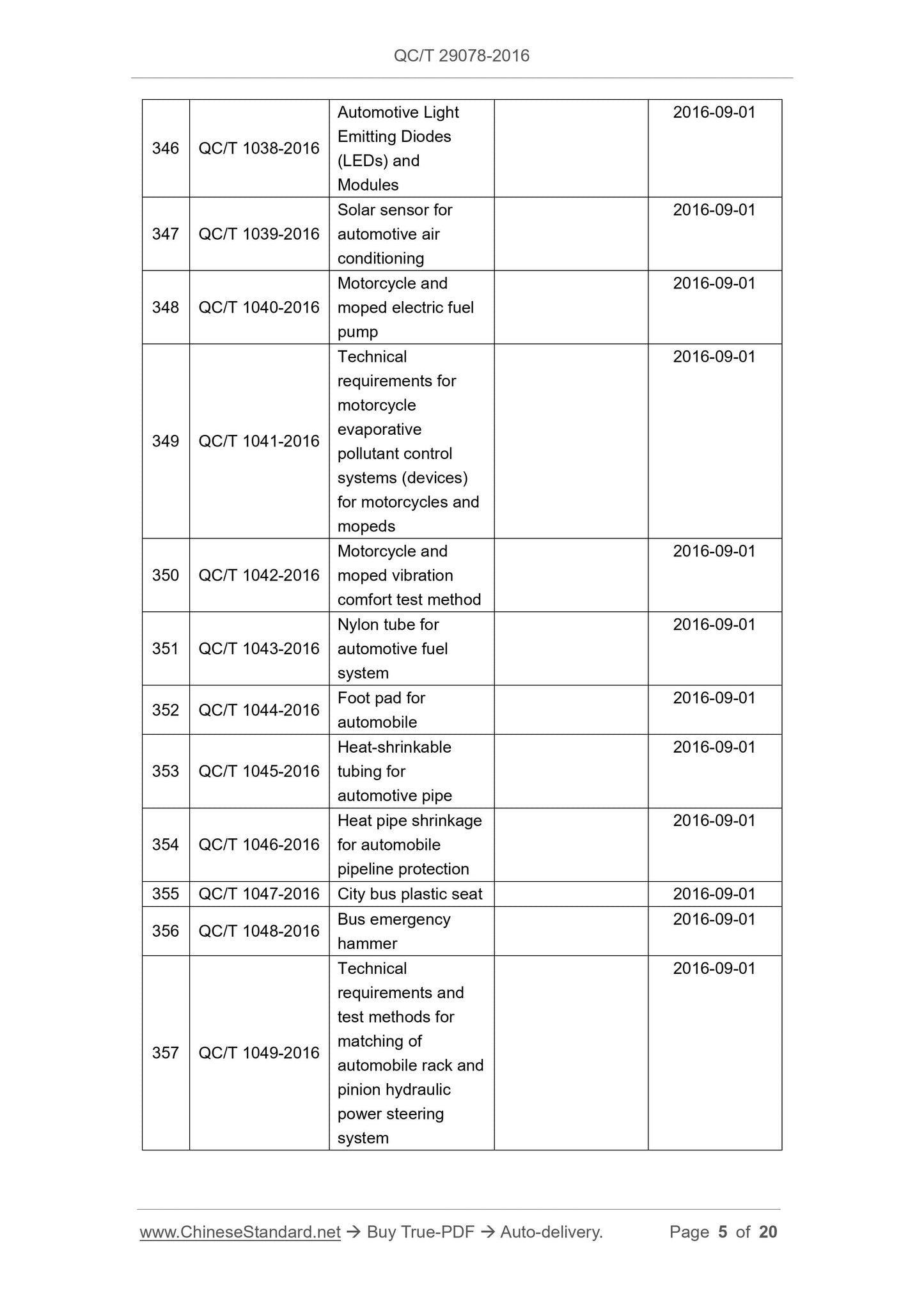

346 QC/T 1038-2016
Automotive Light
Emitting Diodes
(LEDs) and
Modules
2016-09-01
347 QC/T 1039-2016
Solar sensor for
automotive air
conditioning
2016-09-01
348 QC/T 1040-2016
Motorcycle and
moped electric fuel
pump
2016-09-01
349 QC/T 1041-2016
Technical
requirements for
motorcycle
evaporative
pollutant control
systems (devices)
for motorcycles and
mopeds
2016-09-01
350 QC/T 1042-2016
Motorcycle and
moped vibration
comfort test method
2016-09-01
351 QC/T 1043-2016
Nylon tube for
automotive fuel
system
2016-09-01
352 QC/T 1044-2016 Foot pad for automobile
2016-09-01
353 QC/T 1045-2016
Heat-shrinkable
tubing for
automotive pipe
2016-09-01
354 QC/T 1046-2016
Heat pipe shrinkage
for automobile
pipeline protection
2016-09-01
355 QC/T 1047-2016 City bus plastic seat 2016-09-01
356 QC/T 1048-2016 Bus emergency hammer
2016-09-01
357 QC/T 1049-2016
Technical
requirements and
test methods for
matching of
automobile rack and
pinion hydraulic
power steering
system
2016-09-01

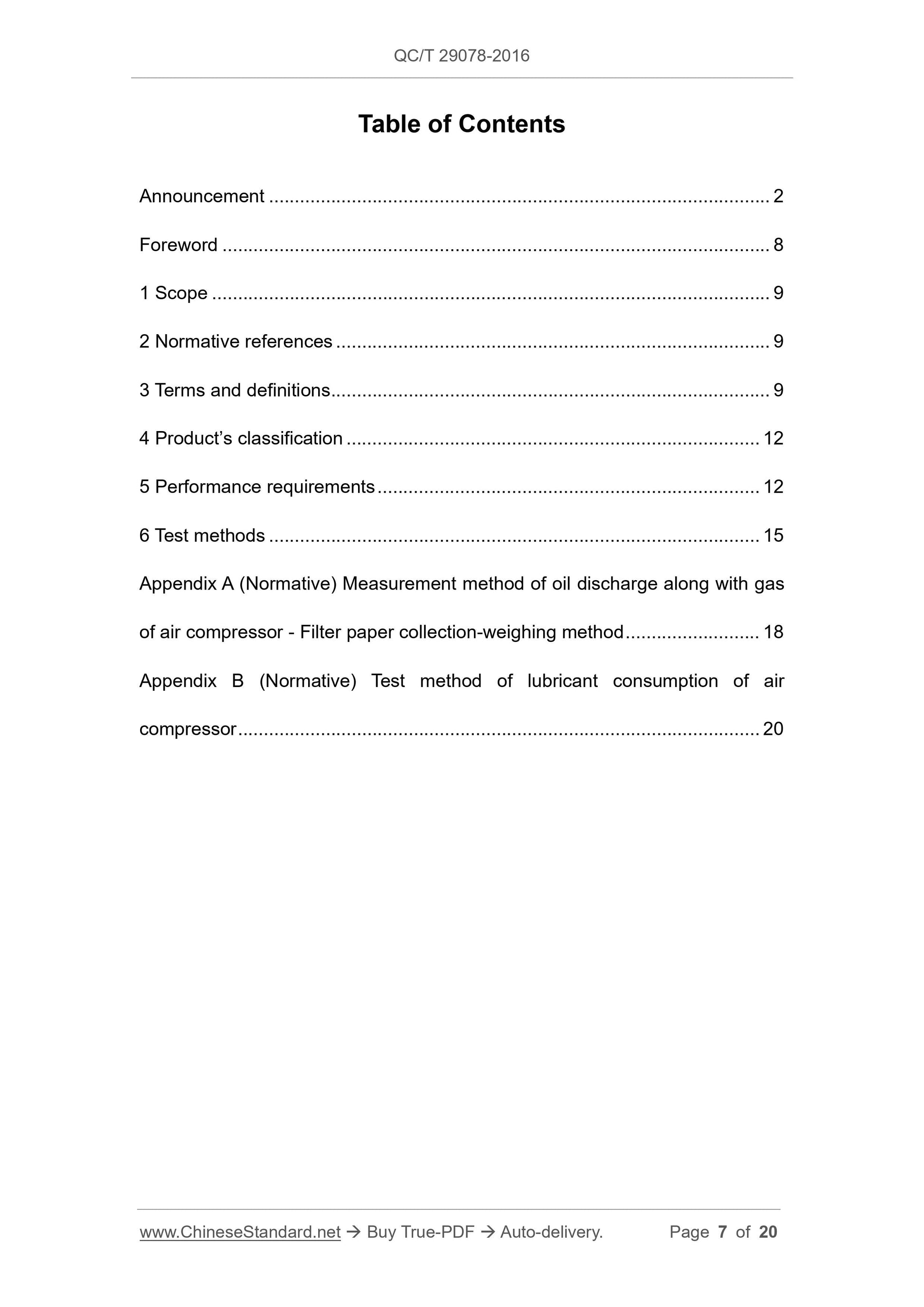

Table of Contents
Announcement ... 2
Foreword ... 8
1 Scope ... 9
2 Normative references ... 9
3 Terms and definitions ... 9
4 Product’s classification ... 12
5 Performance requirements ... 12
6 Test methods ... 15
Appendix A (Normative) Measurement method of oil discharge along with gas
of air compressor - Filter paper collection-weighing method ... 18
Appendix B (Normative) Test method of lubricant consumption of air
compressor ... 20

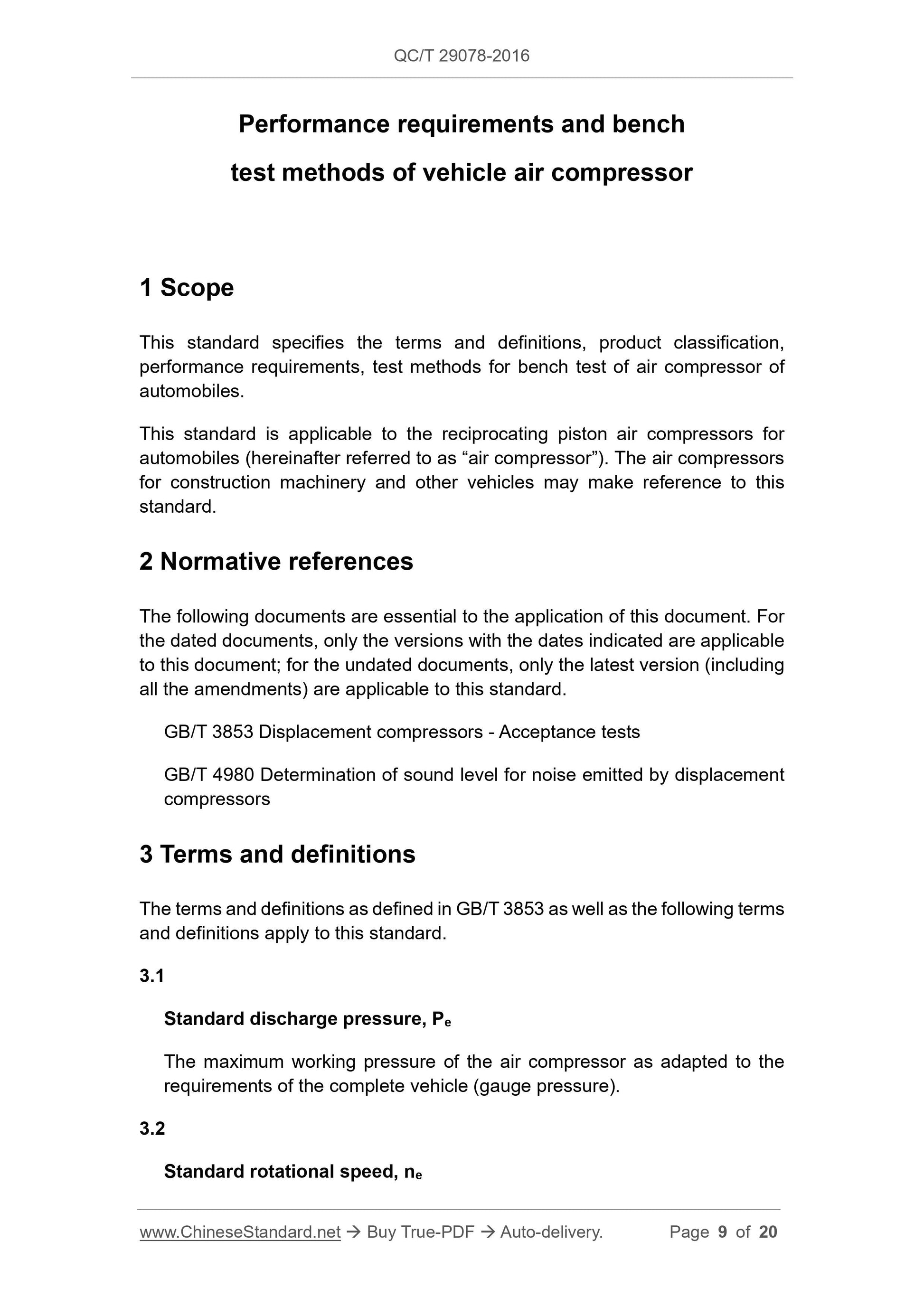

Performance requirements and bench
test methods of vehicle air compressor
1 Scope
This standard specifies the terms and definitions, product classification,
performance requirements, test methods for bench test of air compressor of
automobiles.
This standard is applicable to the reciprocating piston air compressors for
automobiles (hereinafter referred to as “air compressor”). The air compressors
for construction machinery and other vehicles may make reference to this
standard.
2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) are applicable to this standard.
GB/T 3853 Displacement compressors - Acceptance tests
GB/T 4980 Determination of sound level for noise emitted by displacement
compressors
3 Terms and definitions
The terms and definitions as defined in GB/T 3853 as well as the following terms
and definitions apply to this standard.
3.1
Standard discharge pressure, Pe
The maximum working pressure of the air compressor as adapted to the
requirements of the complete vehicle (gauge pressure).
3.2
Standard rotational speed, ne

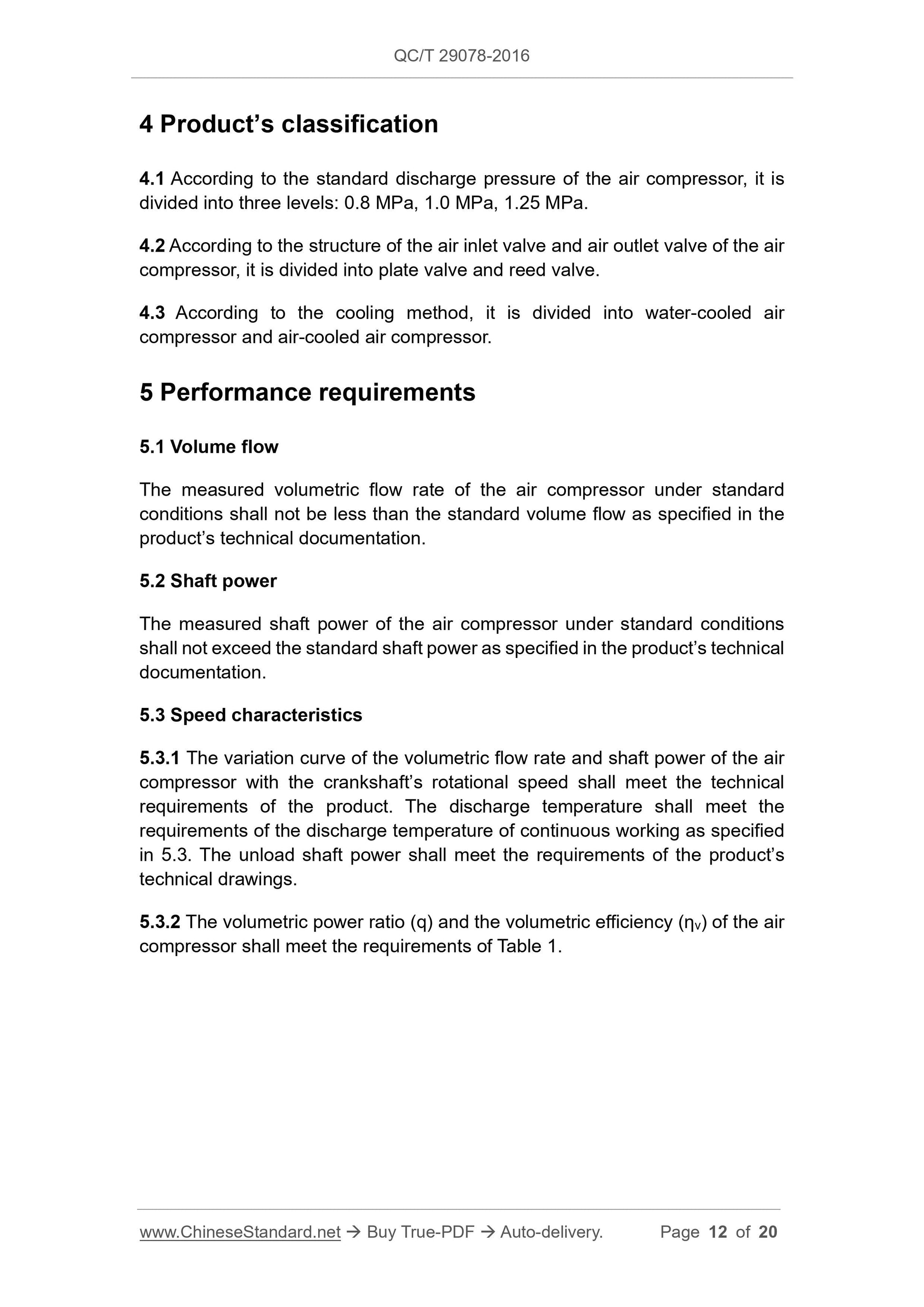

4 Product’s classification
4.1 According to the standard discharge pressure of the air compressor, it is
divided into three levels: 0.8 MPa, 1.0 MPa, 1.25 MPa.
4.2 According to the structure of the air inlet valve and air outlet valve of the air
compressor, it is divided into plate valve and reed valve.
4.3 According to the cooling method, it is divided into water-cooled air
compressor and air-cooled air compressor...
