CCAP-C11-04-2014: China Compulsory Certification Implementation Detailed-Rules - Motor vehicle safety-belts
File No..CCAP-C11-04.2014
Document Name. Detailed Implementation Rules for China Compulsory Certification - Safety-Belts of Motor
Vehicles (Edition 1) (Revision Code. 0)
  Page 1 of 35
Translated English. CCAP‐C11‐04.2014

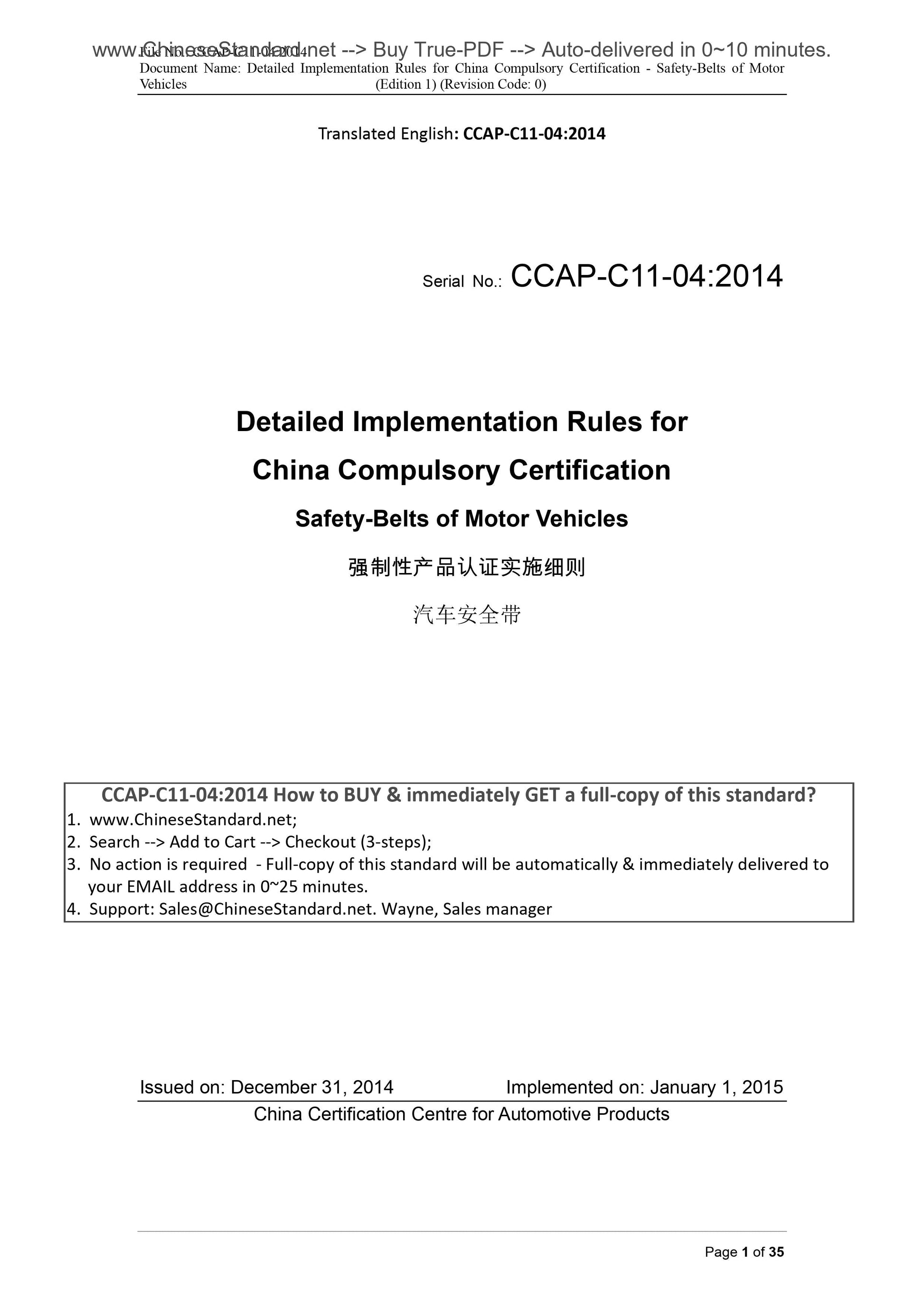

Serial No.. CCAP-C11-04.2014
Detailed Implementation Rules for
China Compulsory Certification
Safety-Belts of Motor Vehicles
ISSUED ON. DECEMBER 31, 2014
IMPLEMENTED ON. JANUARY 1, 2015
China Certification Centre for Automotive Products
Document Name. Detailed Implementation Rules for China Compulsory Certification - Safety-Belts of Motor
Vehicles (Edition 1) (Revision Code. 0)
  Page 2 of 35

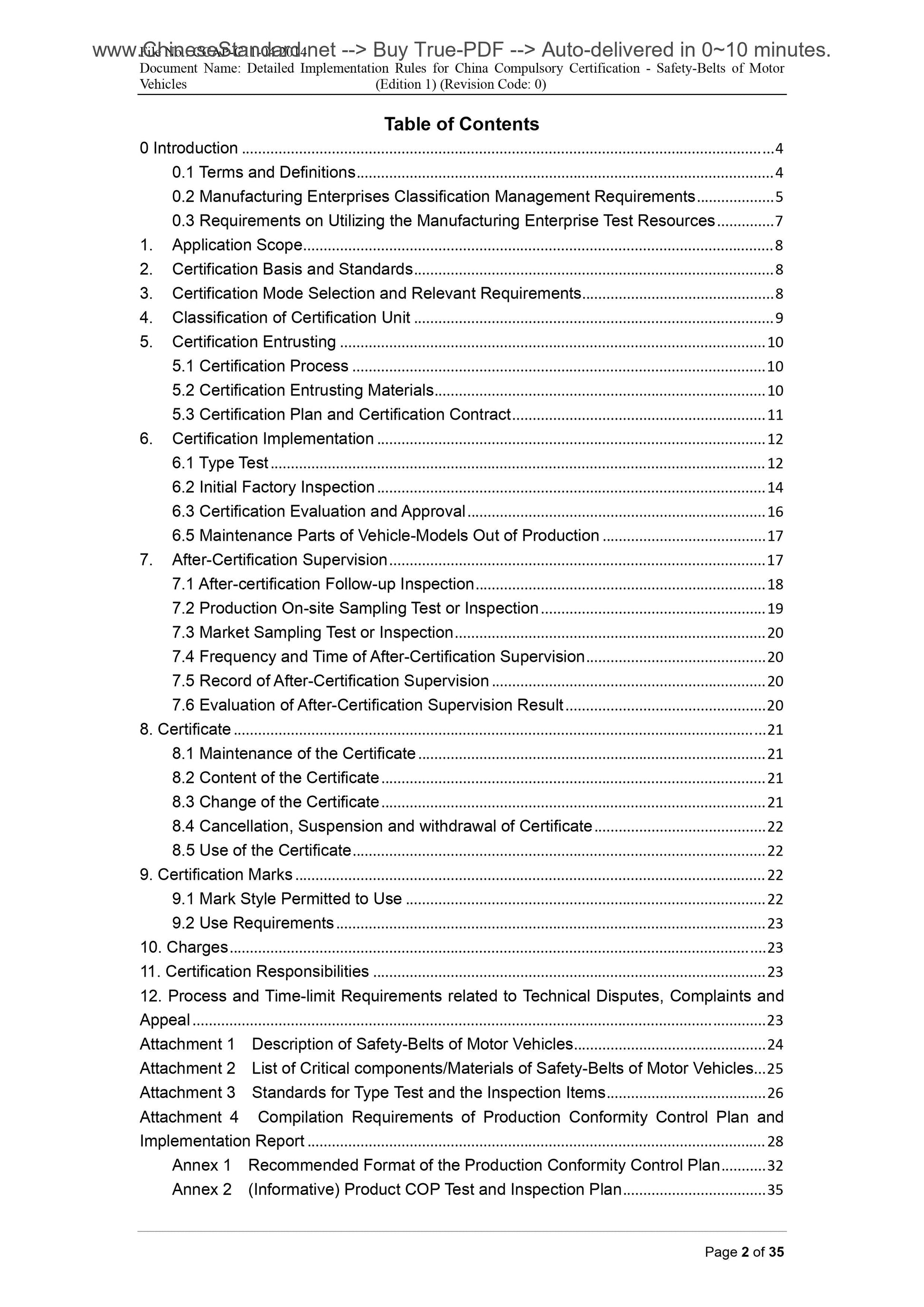

Table of Contents
0 Introduction ... 4
0.1 Terms and Definitions ... 4
0.2 Manufacturing Enterprises Classification Management Requirements ... 5
0.3 Requirements on Utilizing the Manufacturing Enterprise Test Resources ... 7
1.  Application Scope ... 8
2.  Certification Basis and Standards ... 8
3.  Certification Mode Selection and Relevant Requirements... 8
4.  Classification of Certification Unit ... 9
5.  Certification Entrusting ... 10
5.1 Certification Process ... 10
5.2 Certification Entrusting Materials ... 10
5.3 Certification Plan and Certification Contract ... 11
6.  Certification Implementation ... 12
6.1 Type Test ... 12
6.2 Initial Factory Inspection ... 14
6.3 Certification Evaluation and Approval ... 16
6.5 Maintenance Parts of Vehicle-Models Out of Production ... 17
7.  After-Certification Supervision ... 17
7.1 After-certification Follow-up Inspection ... 18
7.2 Production On-site Sampling Test or Inspection ... 19
7.3 Market Sampling Test or Inspection ... 20
7.4 Frequency and Time of After-Certification Supervision ... 20
7.5 Record of After-Certification Supervision ... 20
7.6 Evaluation of After-Certification Supervision Result ... 20
8. Certificate ... 21
8.1 Maintenance of the Certificate ... 21
8.2 Content of the Certificate ... 21
8.3 Change of the Certificate ... 21
8.4 Cancellation, Suspension and withdrawal of Certificate ... 22
8.5 Use of the Certificate ... 22
9. Certification Marks ... 22
9.1 Mark Style Permitted to Use ... 22
9.2 Use Requirements ... 23
10. Charges ... 23
11. Certification Responsibilities ... 23
12. Process and Time-limit Requirements related to Technical Disputes, Complaints and
Appeal ... 23
Attachment 1 Description of Safety-Belts of Motor Vehicles ... 24
Attachment 2 List of Critical components/Materials of Safety-Belts of Motor Vehicles ... 25
Attachment 3 Standards for Type Test and the Inspection Items ... 26
Attachment 4 Compilation Requirements of Production Conformity Control Plan and
Implementation Report ... 28
Annex 1 Recommended Format of the Production Conformity Control Plan ... 32
Annex 2 (Informative) Product COP Test and Inspection Plan ... 35
Document Name. Detailed Implementation Rules for China Compulsory Certification - Safety-Belts of Motor
Vehicles (Edition 1) (Revision Code. 0)
  Page 3 of 35

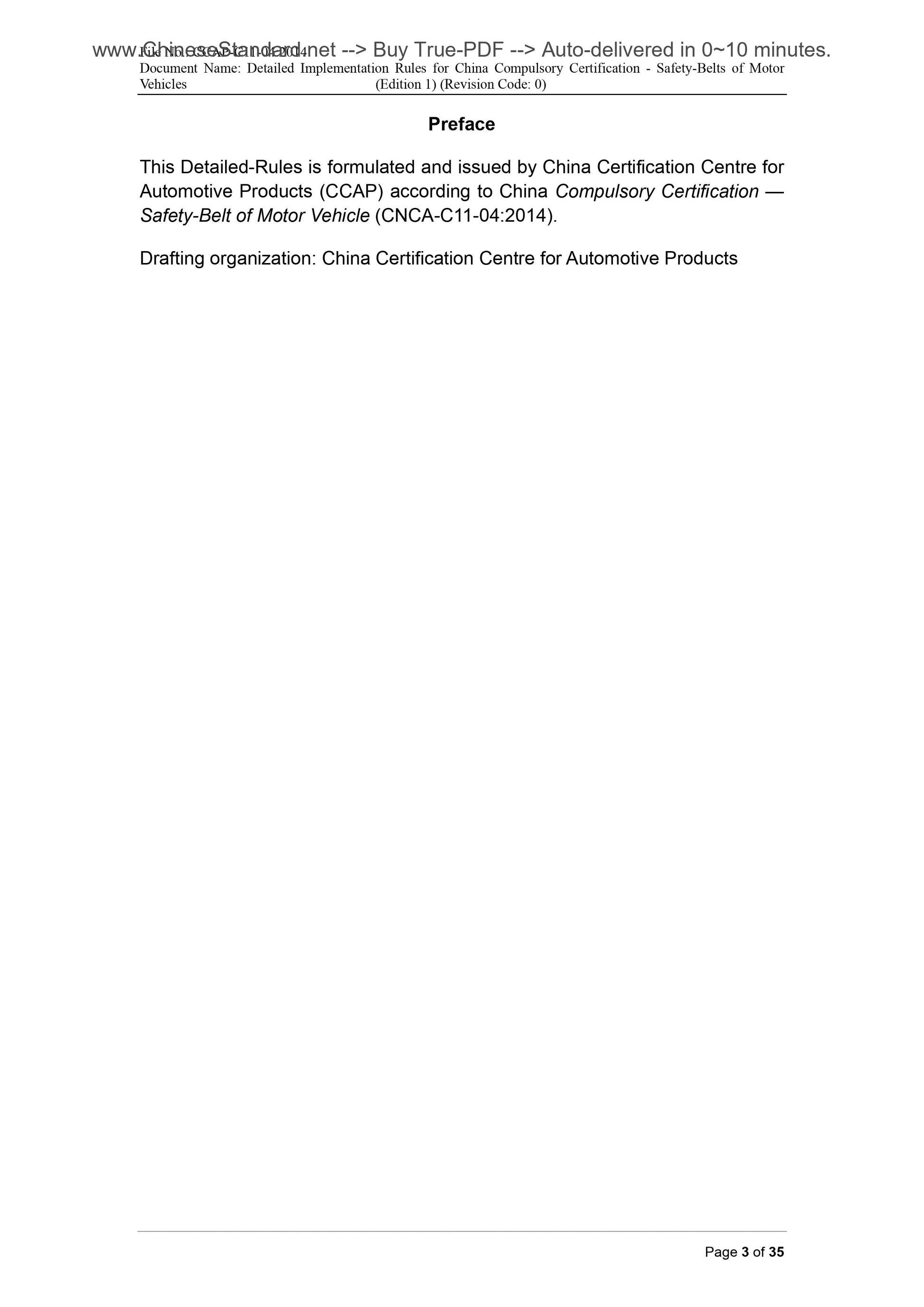

Preface
This Detailed-Rules is formulated and issued by China Certification Centre for
Automotive Products (CCAP) according to China Compulsory Certification —
Safety-Belt of Motor Vehicle (CNCA-C11-04.2014).
Drafting organization. China Certification Centre for Automotive Products
Document Name. Detailed Implementation Rules for China Compulsory Certification - Safety-Belts of Motor
Vehicles (Edition 1) (Revision Code. 0)
  Page 4 of 35

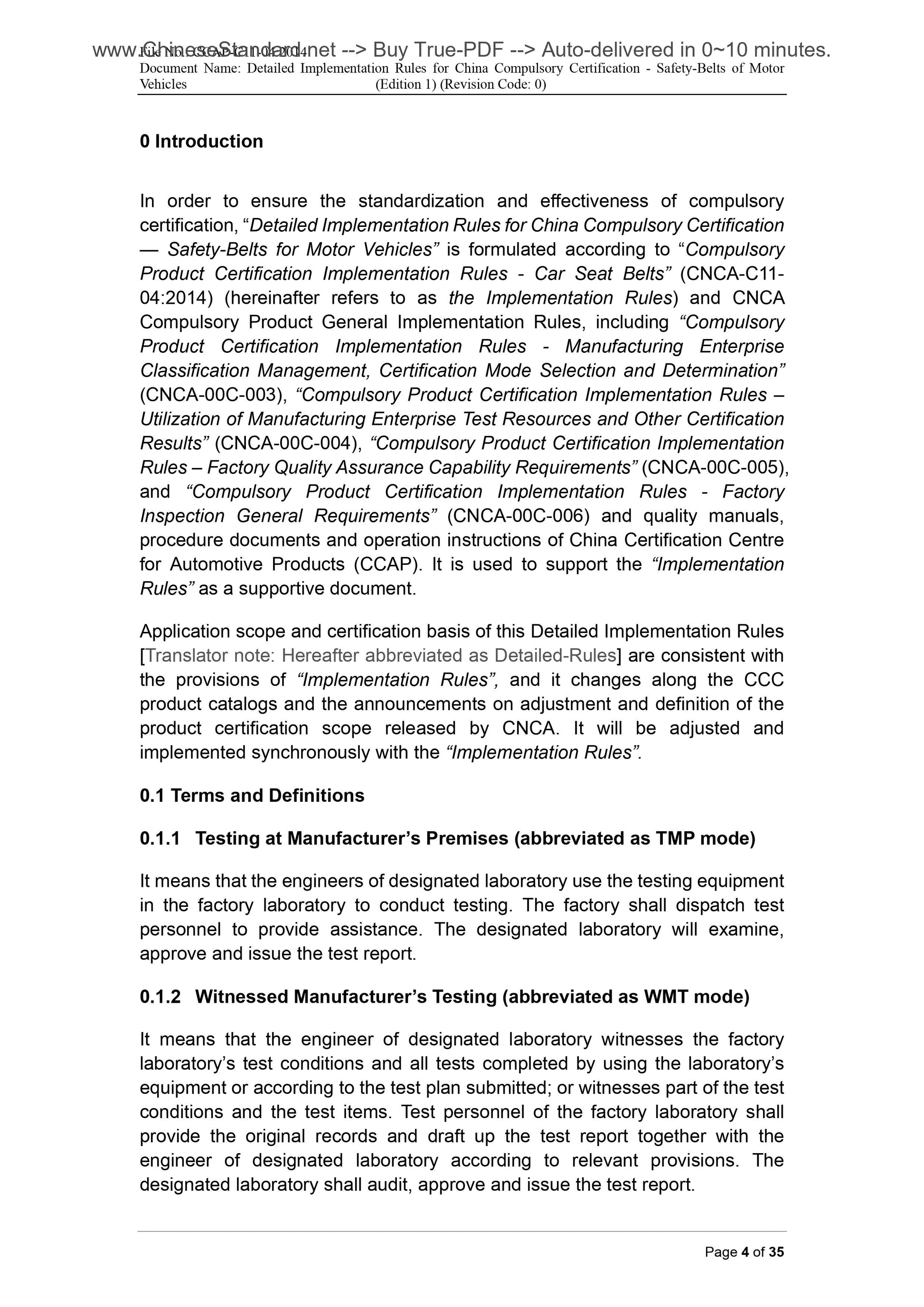

0 Introduction
In order to ensure the standardization and effectiveness of compulsory
certification, “Detailed Implementation Rules for China Compulsory Certification
— Safety-Belts for Motor Vehicles” is formulated according to “Compulsory
Product Certification Implementation Rules - Car Seat Belts” (CNCA-C11-
04.2014) (hereinafter refers to as the Implementation Rules) and CNCA
Compulsory Product General Implementation Rules, including “Compulsory
Product Certification Implementation Rules - Manufacturing Enterprise
Classification Management, Certification Mode Selection and Determination”
(CNCA-00C-003), “Compulsory Product Certification Implementation Rules –
Utilization of Manufacturing Enterprise Test Resources and Other Certification
Results” (CNCA-00C-004), “Compulsory Product Certification Implementation
Rules – Factory Quality Assurance Capability Requirements” (CNCA-00C-005),
and “Compulsory Product Certification Implementation Rules - Factory
Inspection General Requirements” (CNCA-00C-006) and quality manuals,
procedure documents and operation instructions of China Certification Centre
for Automotive Products (CCAP). It is used to support the “Implementation
Rules” as a supportive document.
Application scope and certification basis of this Detailed Implementation Rules
[Translator note. Hereafter abbreviated as Detailed-Rules] are consistent with
the provisions of “Implementation Rules”, and it changes along the CCC
product catalogs and the announcements on adjustment and definition of the
product certification scope released by CNCA. It will be adjusted and
implemented synchronously with the “Implementation Rules”.
0.1 Terms and Definitions
0.1.1 Testing at Manufacturer’s Premises (abbreviated as TMP mode)
It means that the engineers of designated laboratory use the testing equipment
in the factory laboratory to conduct testing. The factory shall dispatch test
personnel to provide assistance. The designated laboratory will examine,
approve and issue the test report.
0.1.2 Witnessed Manufacturer’s Testing (abbreviated as WMT mode)
It means that the engineer of designated laboratory witnesses the factory
laboratory’s test conditions and all tests completed by using the laboratory’s
equipment or according to the test plan submitted; or witnesses part of the test
conditions and the test items. Test personnel of the factory laboratory shall
provide the original records and draft up the test report together with the
engineer of designated laboratory according to relevant provisions. The
designated laboratory shall audit, approve and issue the test report.
Document Name. Detailed Implementation Rules for China Compulsory Certification - Safety-Belts of Motor
Vehicles (Edition 1) (Revision Code. 0)
  Page 5 of 35

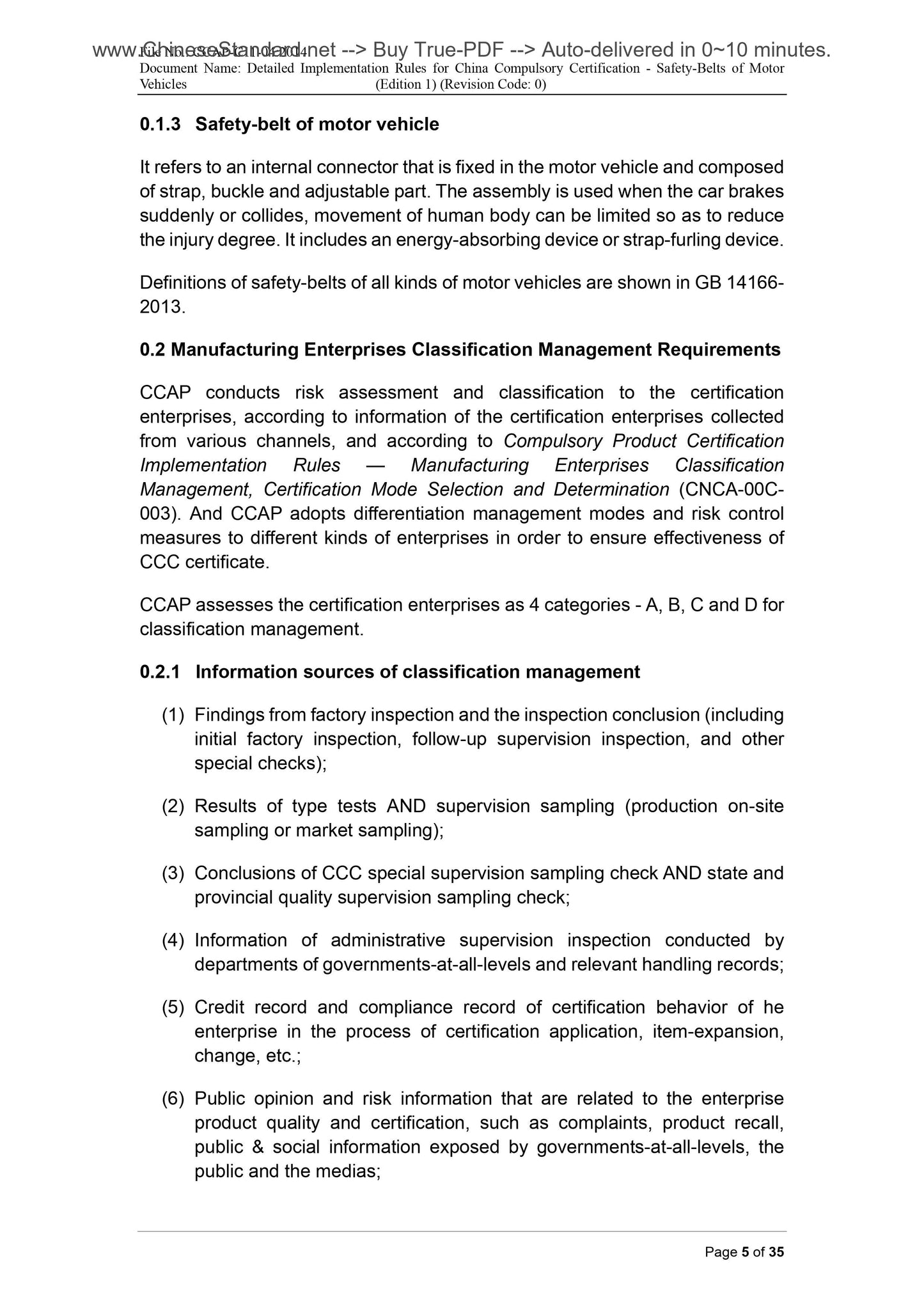

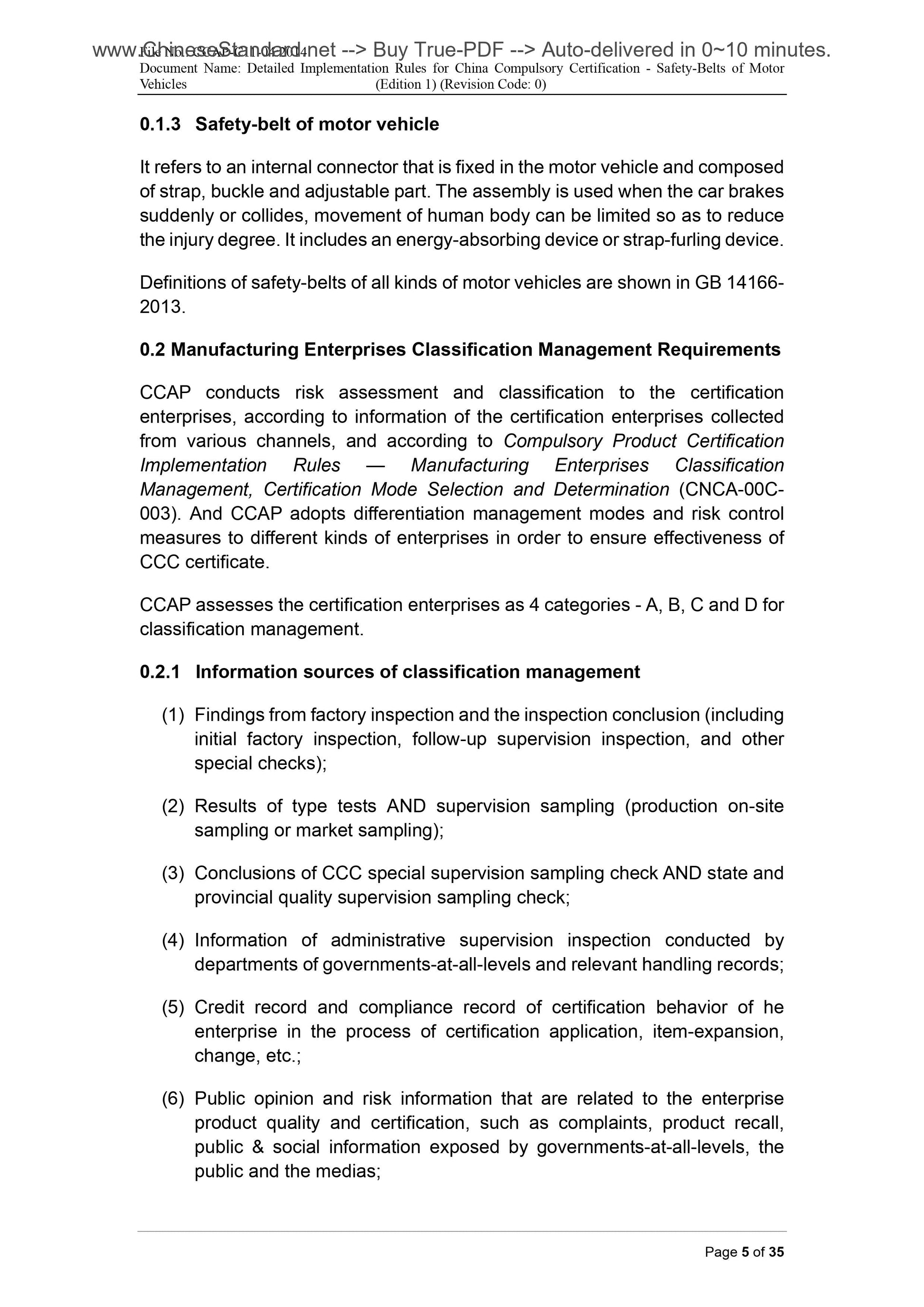

0.1.3 Safety-belt of motor vehicle
It refers to an internal connector that is fixed in the motor vehicle and composed
of strap, buckle and adjustab...
