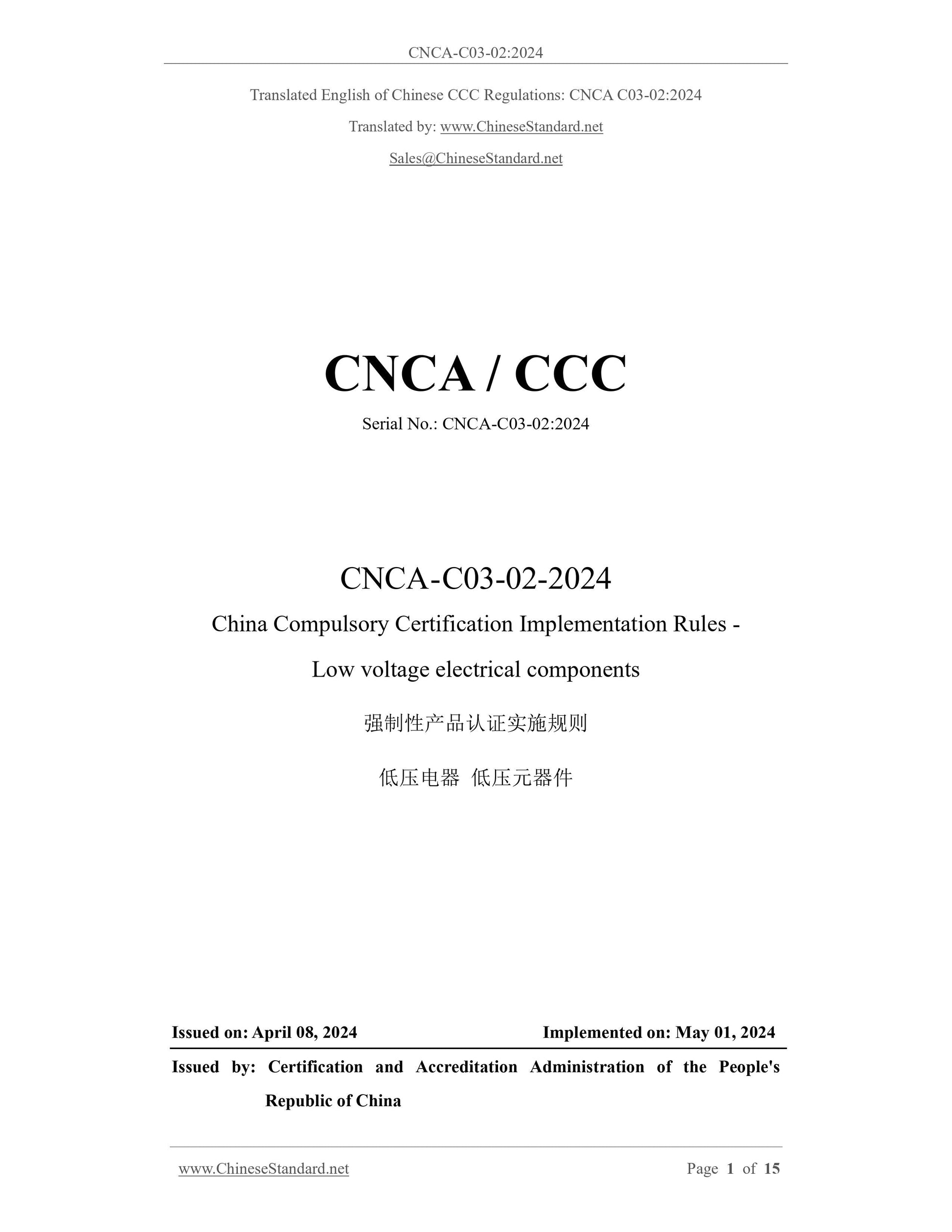

CNCA C03-02-2024: China Compulsory Certification Implementation Rules - Low voltage electrical components
CNCA-C03-02:2024
CNCA / CCC
Serial No.: CNCA-C03-02:2024
CNCA-C03-02-2024
China Compulsory Certification Implementation Rules -
Low voltage electrical components
ISSUED ON: APRIL 08, 2024
IMPLEMENTED ON: MAY 01, 2024
Issued by: Certification and Accreditation Administration of the People's
Republic of China

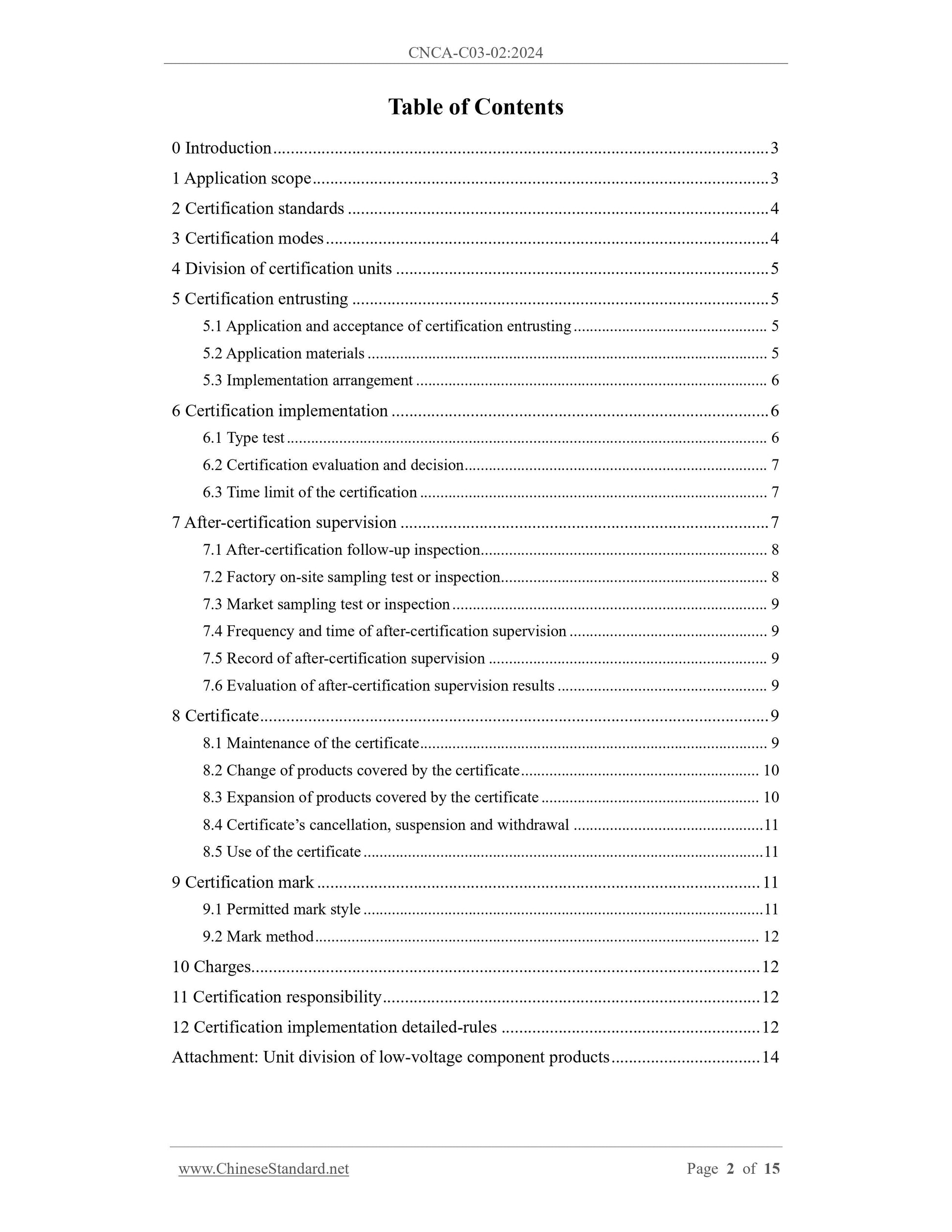

Table of Contents
0 Introduction ... 3
1 Application scope ... 3
2 Certification standards ... 4
3 Certification modes ... 4
4 Division of certification units ... 5
5 Certification entrusting ... 5
5.1 Application and acceptance of certification entrusting ... 5
5.2 Application materials ... 5
5.3 Implementation arrangement ... 6
6 Certification implementation ... 6
6.1 Type test ... 6
6.2 Certification evaluation and decision ... 7
6.3 Time limit of the certification ... 7
7 After-certification supervision ... 7
7.1 After-certification follow-up inspection ... 8
7.2 Factory on-site sampling test or inspection... 8
7.3 Market sampling test or inspection ... 9
7.4 Frequency and time of after-certification supervision ... 9
7.5 Record of after-certification supervision ... 9
7.6 Evaluation of after-certification supervision results ... 9
8 Certificate ... 9
8.1 Maintenance of the certificate ... 9
8.2 Change of products covered by the certificate ... 10
8.3 Expansion of products covered by the certificate ... 10
8.4 Certificate’s cancellation, suspension and withdrawal ... 11
8.5 Use of the certificate ... 11
9 Certification mark ... 11
9.1 Permitted mark style ... 11
9.2 Mark method ... 12
10 Charges... 12
11 Certification responsibility ... 12
12 Certification implementation detailed-rules ... 12
Attachment: Unit division of low-voltage component products ... 14

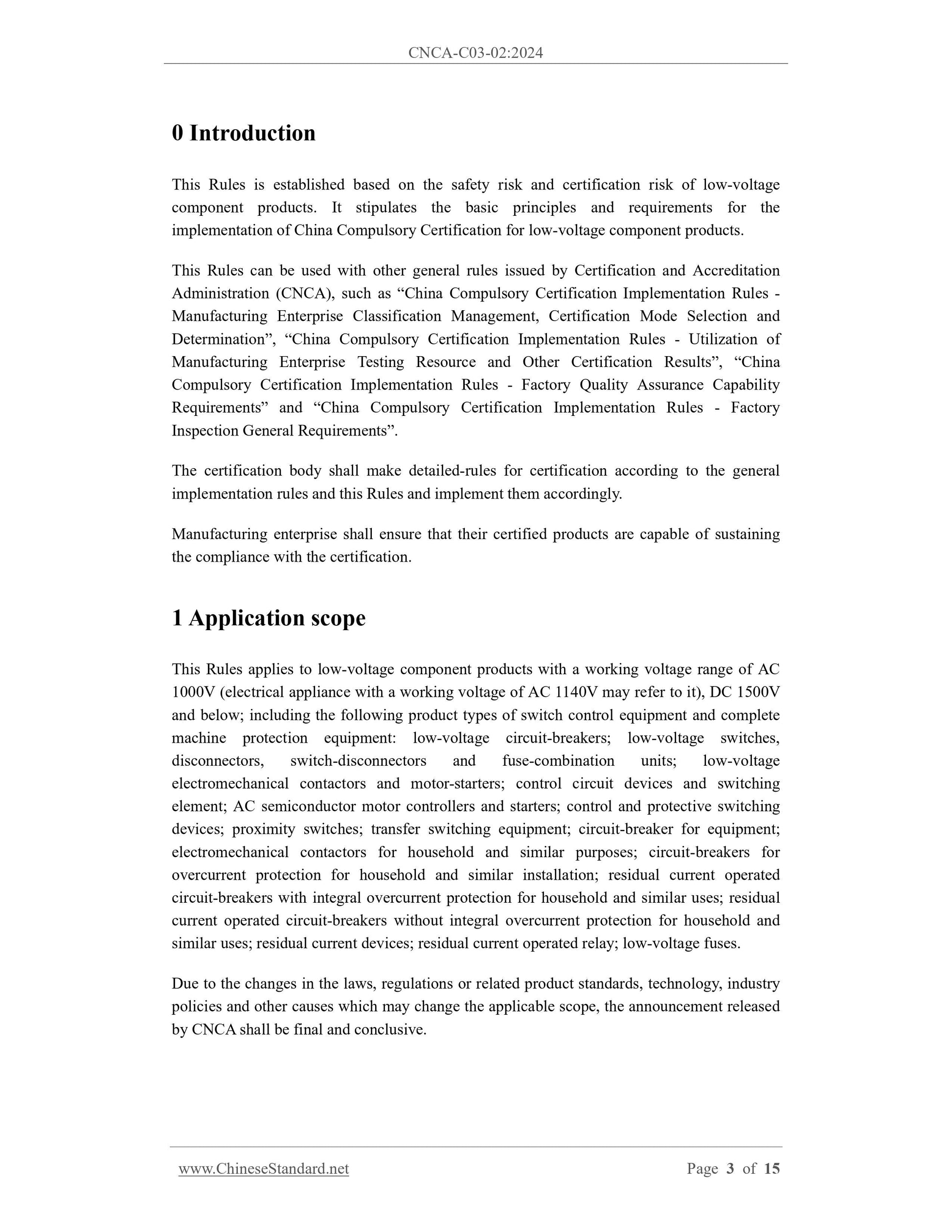

0 Introduction
This Rules is established based on the safety risk and certification risk of low-voltage
component products. It stipulates the basic principles and requirements for the
implementation of China Compulsory Certification for low-voltage component products.
This Rules can be used with other general rules issued by Certification and Accreditation
Administration (CNCA), such as “China Compulsory Certification Implementation Rules -
Manufacturing Enterprise Classification Management, Certification Mode Selection and
Determination”, “China Compulsory Certification Implementation Rules - Utilization of
Manufacturing Enterprise Testing Resource and Other Certification Results”, “China
Compulsory Certification Implementation Rules - Factory Quality Assurance Capability
Requirements” and “China Compulsory Certification Implementation Rules - Factory
Inspection General Requirements”.
The certification body shall make detailed-rules for certification according to the general
implementation rules and this Rules and implement them accordingly.
Manufacturing enterprise shall ensure that their certified products are capable of sustaining
the compliance with the certification.
1 Application scope
This Rules applies to low-voltage component products with a working voltage range of AC
1000V (electrical appliance with a working voltage of AC 1140V may refer to it), DC 1500V
and below; including the following product types of switch control equipment and complete
machine protection equipment: low-voltage circuit-breakers; low-voltage switches,
disconnectors, switch-disconnectors and fuse-combination units; low-voltage
electromechanical contactors and motor-starters; control circuit devices and switching
element; AC semiconductor motor controllers and starters; control and protective switching
devices; proximity switches; transfer switching equipment; circuit-breaker for equipment;
electromechanical contactors for household and similar purposes; circuit-breakers for
overcurrent protection for household and similar installation; residual current operated
circuit-breakers with integral overcurrent protection for household and similar uses; residual
current operated circuit-breakers without integral overcurrent protection for household and
similar uses; residual current devices; residual current operated relay; low-voltage fuses.
Due to the changes in the laws, regulations or related product standards, technology, industry
policies and other causes which may change the applicable scope, the announcement released
by CNCA shall be final and conclusive.

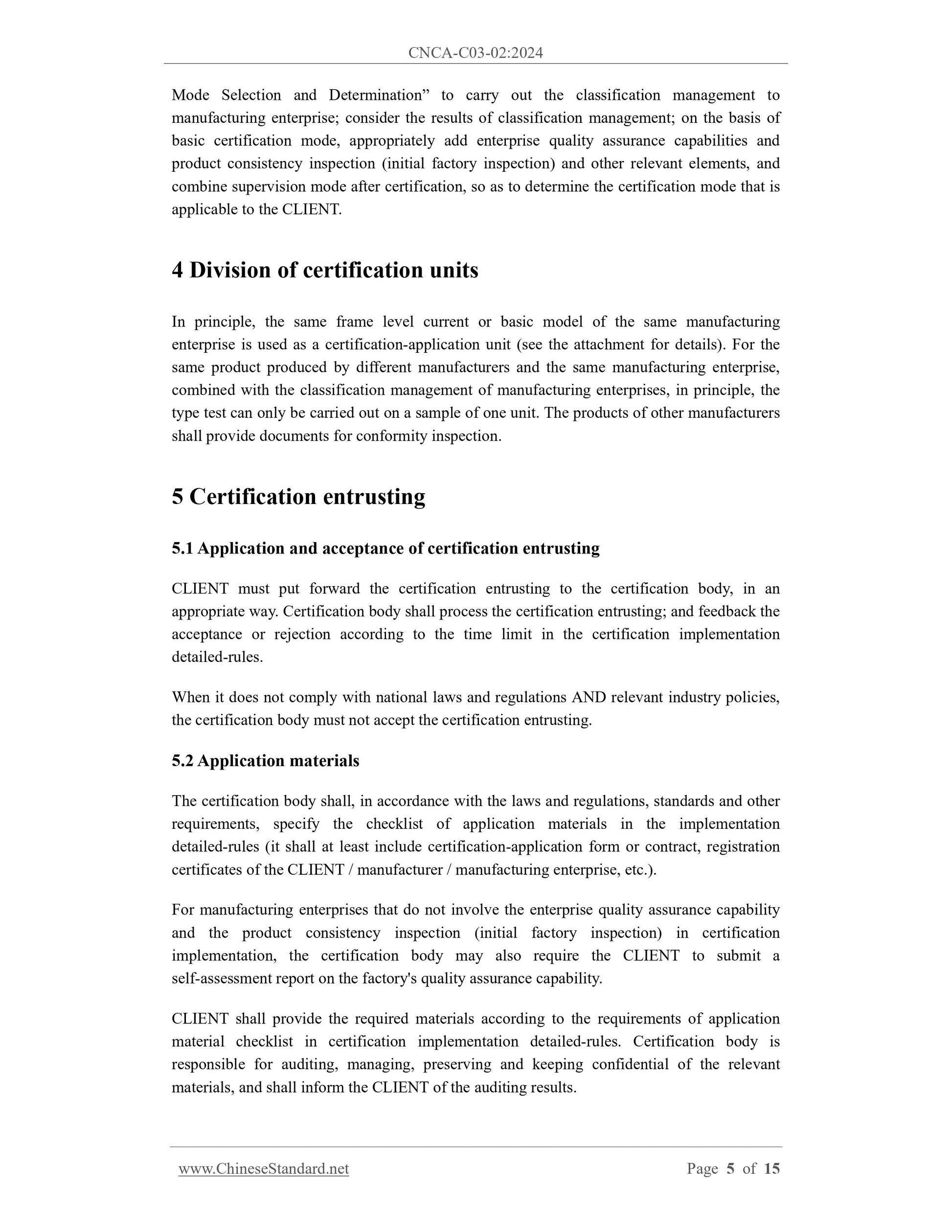

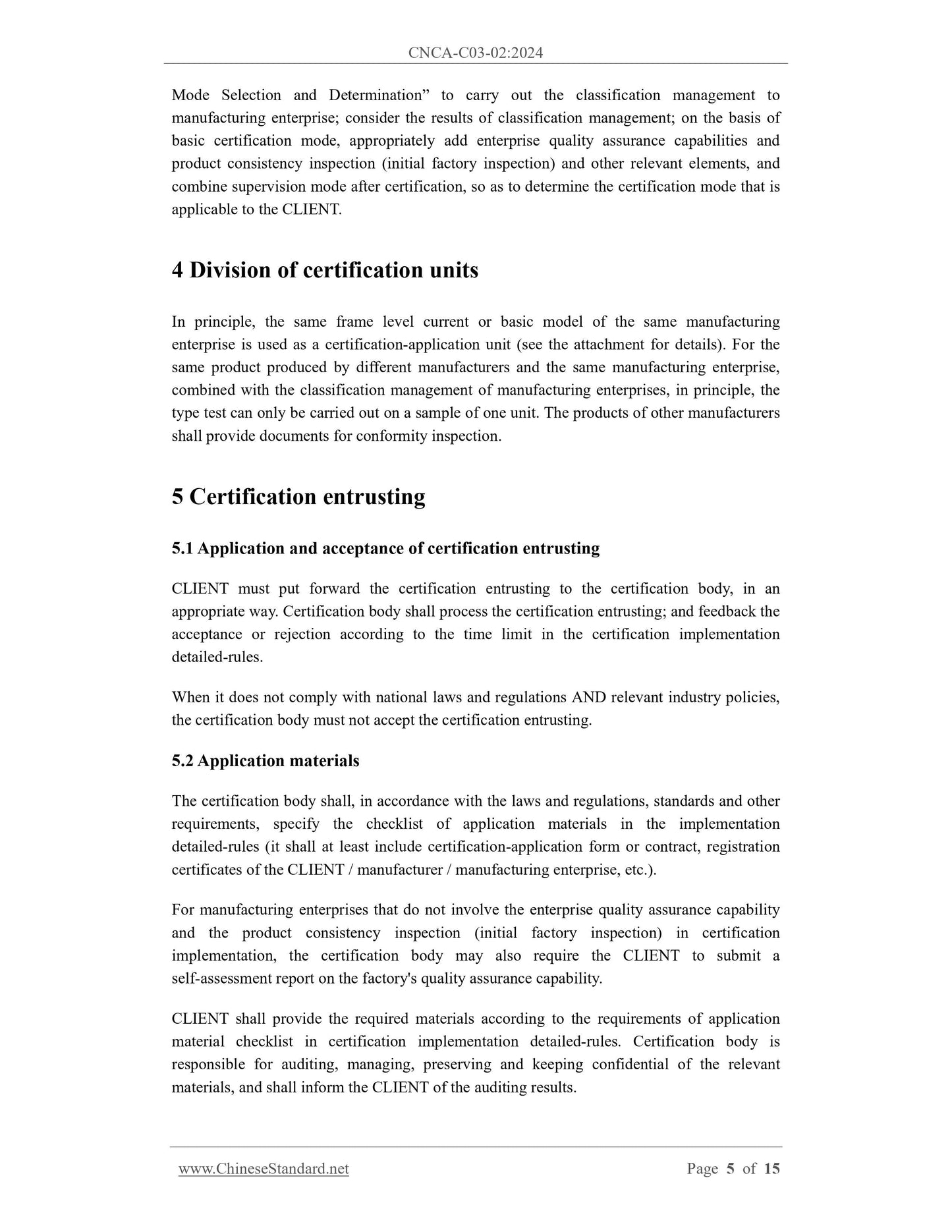

Mode Selection and Determination” to carry out the classification management to
manufacturing enterprise; consider the results of classification management; on the basis of
basic certification mode, appropriately add enterprise quality assurance capabilities and
product consistency inspection (initial factory inspection) and other relevant elements, and
combine supervision mode after certification, so as to determine the certification mode that is
applicable to the CLIENT.
4 Division of certification units
In principle, the same frame level current or basic model of the same manufacturing
enterprise is used as a certification-application unit (see the attachment for details). For the
same product produced by different manufacturers and the same manufacturing enterprise,
combined with the classification management of manufacturing enterprises, in principle, the
type test can only be carried out on a sample of one unit. The products of other manufacturers
shall provide documents for conformity inspection.
5 Certification entrusting
5.1 Application and acceptance of certification entrusting
CLIENT must put forward the certification entrusting to the certification body, in an
appropriate way. Certification body shall process the certification entrusting; and feedback the
acceptance or rejection according to the time limit in the certification implementation
detailed-rules.
When it does not comply with national laws and regulations AND relevant industry policies,
the certification body must not accept the certification entrusting.
5.2 Application materials
The certification body shall, in accordance with the laws and regulations, standards and other
requirements, specify the checklist of application materials in the implementation
detailed-rules (it shall at least include certification-application form or contract, registration
certificates of the CLIENT / manufacturer / manufacturing enterprise, etc.).
For manufacturing enterprises that do not involve the enterprise quality assurance capability
and the product consistency inspection (initial factory inspection) in certification
implementation, the certification body may also require the CLIENT to submit a
self-assessment report on the factory's quality assurance capability.
CLIENT shall provide the required materials according to the requirements of application
material checklist in certification implementation detailed-rules. Certification body is
responsible for auditing, managing, preserving and keeping confidential of the relevant
materials, and shall inform the CLIENT of the auditing results.

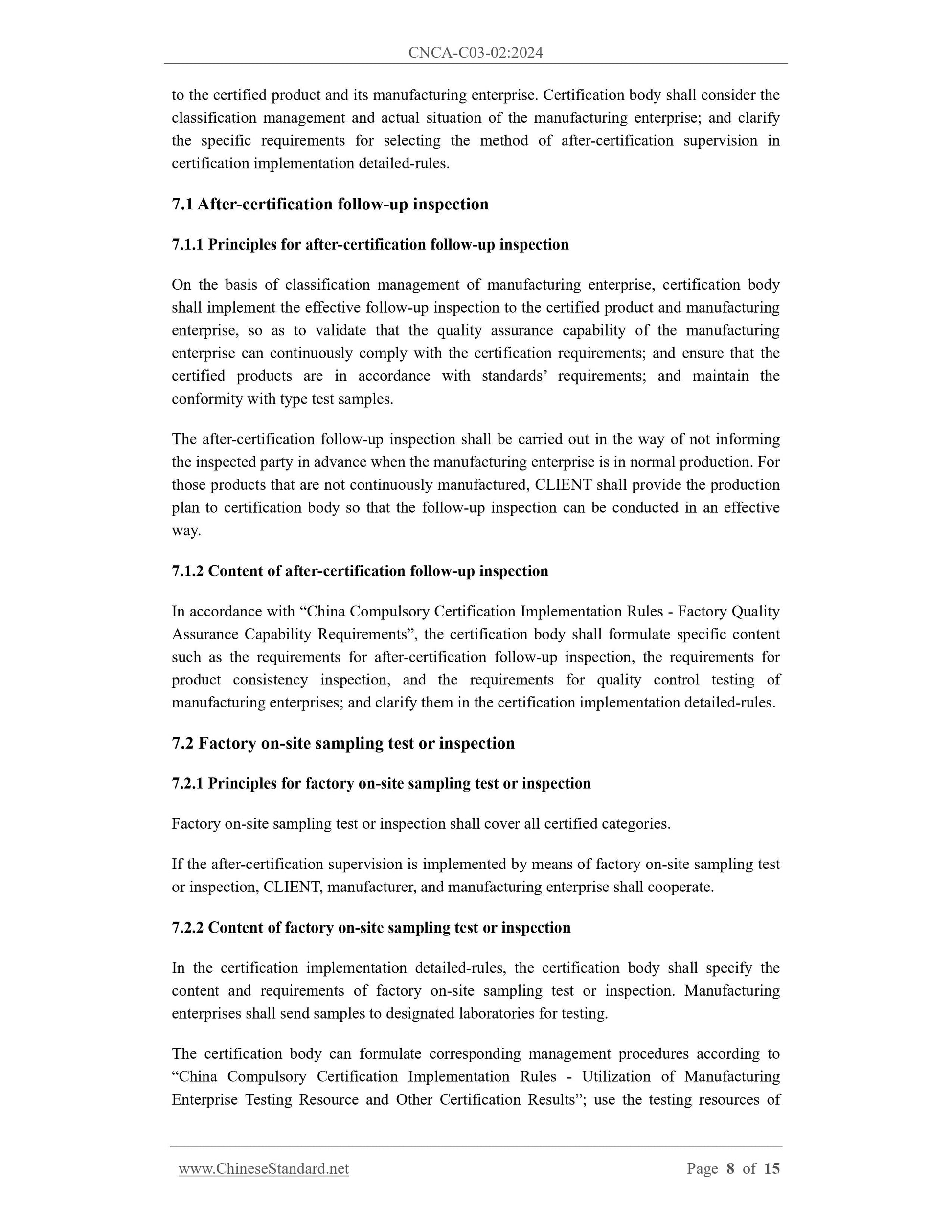

to the certified product and its manufacturing enterprise. Certification body shall consider the
classification management and actual situation of the manufacturing enterprise; and clarify
the specific requirements for selecting the method of after-certification supervision in
certification implementation detailed-rules.
7.1 After-certification follow-up inspection
7.1.1 Principles for after-certification follow-up inspection
On the basis of classification management of manufacturing enterprise, certification body
shall implement the e...
