DB61/T 1686-2023: Technical Specification for optical parameters of outdoor LED panels

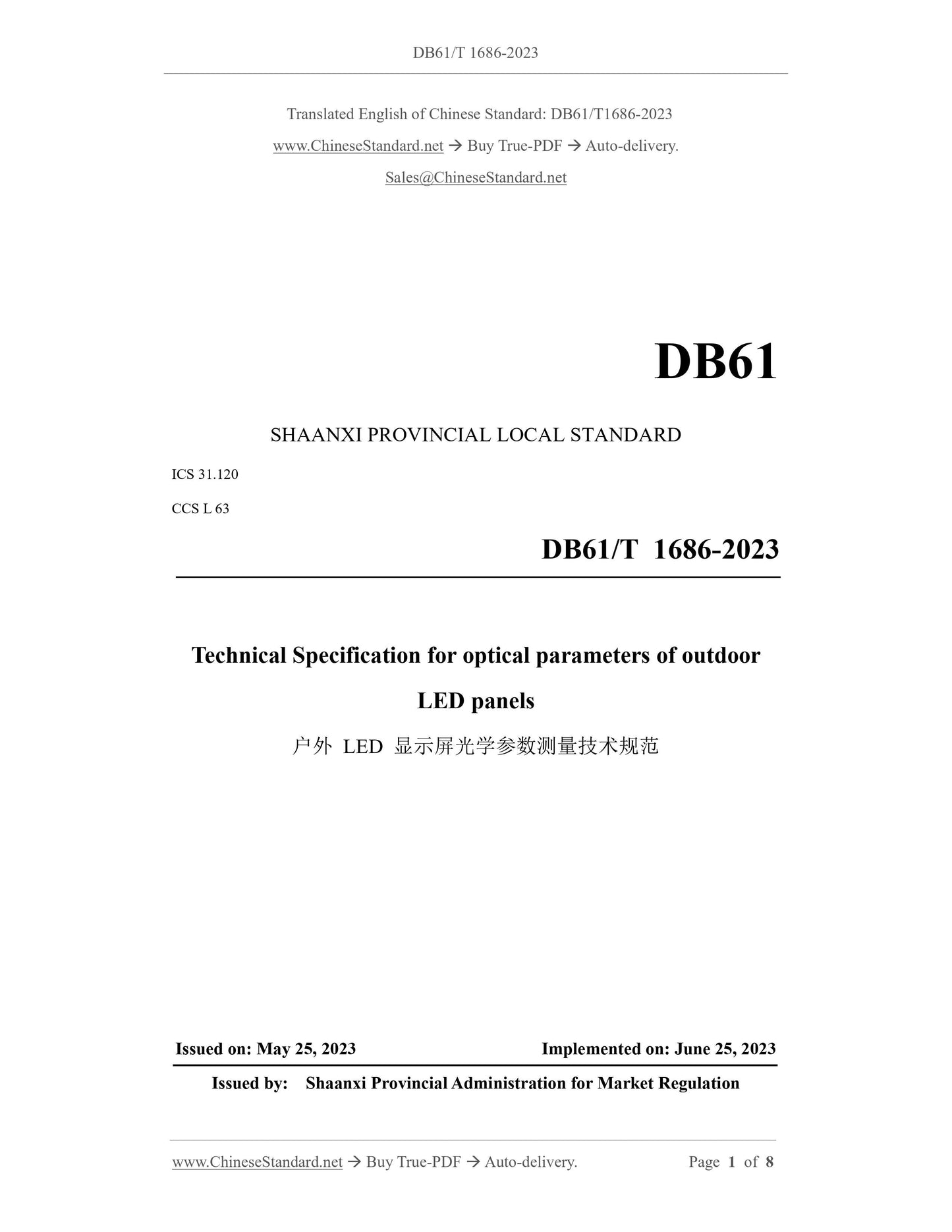

DB61/T 1686-2023
DB61
SHAANXI PROVINCIAL LOCAL STANDARD
ICS 31.120
CCS L 63
Technical Specification for optical parameters of outdoor
LED panels
ISSUED ON. MAY 25, 2023
IMPLEMENTED ON. JUNE 25, 2023
Issued by. Shaanxi Provincial Administration for Market Regulation

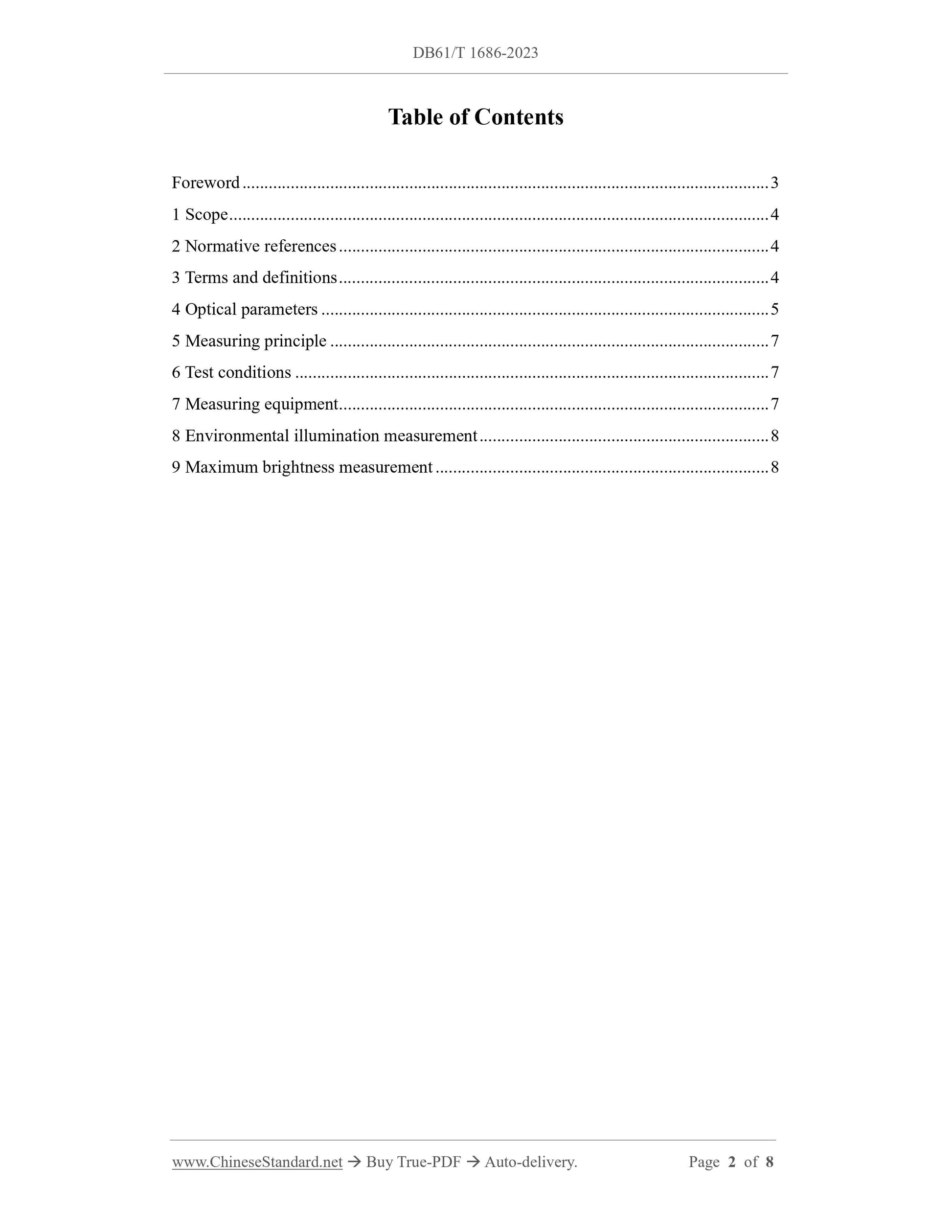

Table of Contents
Foreword... 3
1 Scope... 4
2 Normative references... 4
3 Terms and definitions... 4
4 Optical parameters... 5
5 Measuring principle... 7
6 Test conditions... 7
7 Measuring equipment... 7
8 Environmental illumination measurement... 8
9 Maximum brightness measurement... 8

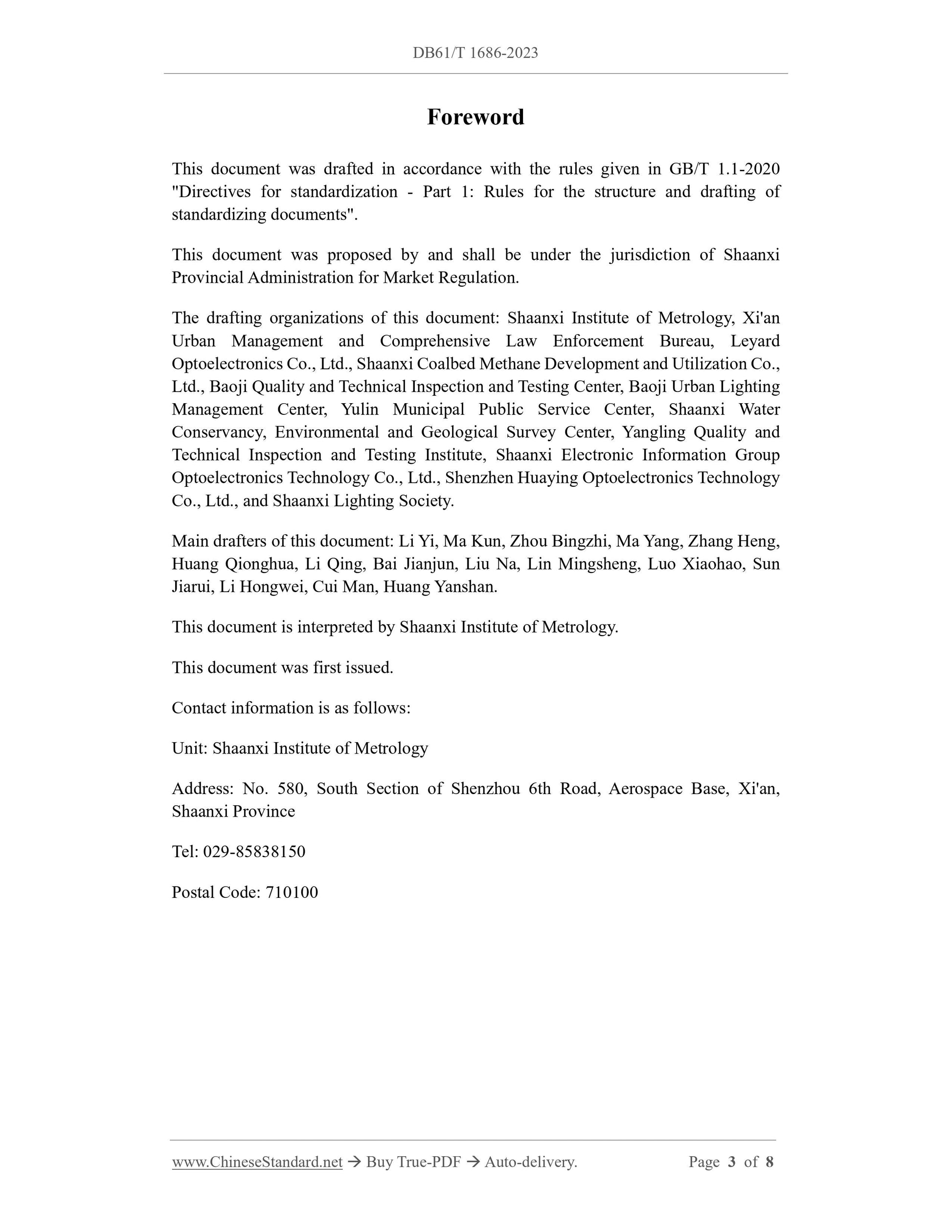

Foreword
This document was drafted in accordance with the rules given in GB/T 1.1-2020
"Directives for standardization - Part 1.Rules for the structure and drafting of
standardizing documents".
This document was proposed by and shall be under the jurisdiction of Shaanxi
Provincial Administration for Market Regulation.
The drafting organizations of this document. Shaanxi Institute of Metrology, Xi'an
Urban Management and Comprehensive Law Enforcement Bureau, Leyard
Optoelectronics Co., Ltd., Shaanxi Coalbed Methane Development and Utilization Co.,
Ltd., Baoji Quality and Technical Inspection and Testing Center, Baoji Urban Lighting
Management Center, Yulin Municipal Public Service Center, Shaanxi Water
Conservancy, Environmental and Geological Survey Center, Yangling Quality and
Technical Inspection and Testing Institute, Shaanxi Electronic Information Group
Optoelectronics Technology Co., Ltd., Shenzhen Huaying Optoelectronics Technology
Co., Ltd., and Shaanxi Lighting Society.
Main drafters of this document. Li Yi, Ma Kun, Zhou Bingzhi, Ma Yang, Zhang Heng,
Huang Qionghua, Li Qing, Bai Jianjun, Liu Na, Lin Mingsheng, Luo Xiaohao, Sun
Jiarui, Li Hongwei, Cui Man, Huang Yanshan.
This document is interpreted by Shaanxi Institute of Metrology.
This document was first issued.
Contact information is as follows.
Unit. Shaanxi Institute of Metrology
Address. No. 580, South Section of Shenzhou 6th Road, Aerospace Base, Xi'an,
Shaanxi Province
Tel. 029-85838150
Postal Code. 710100

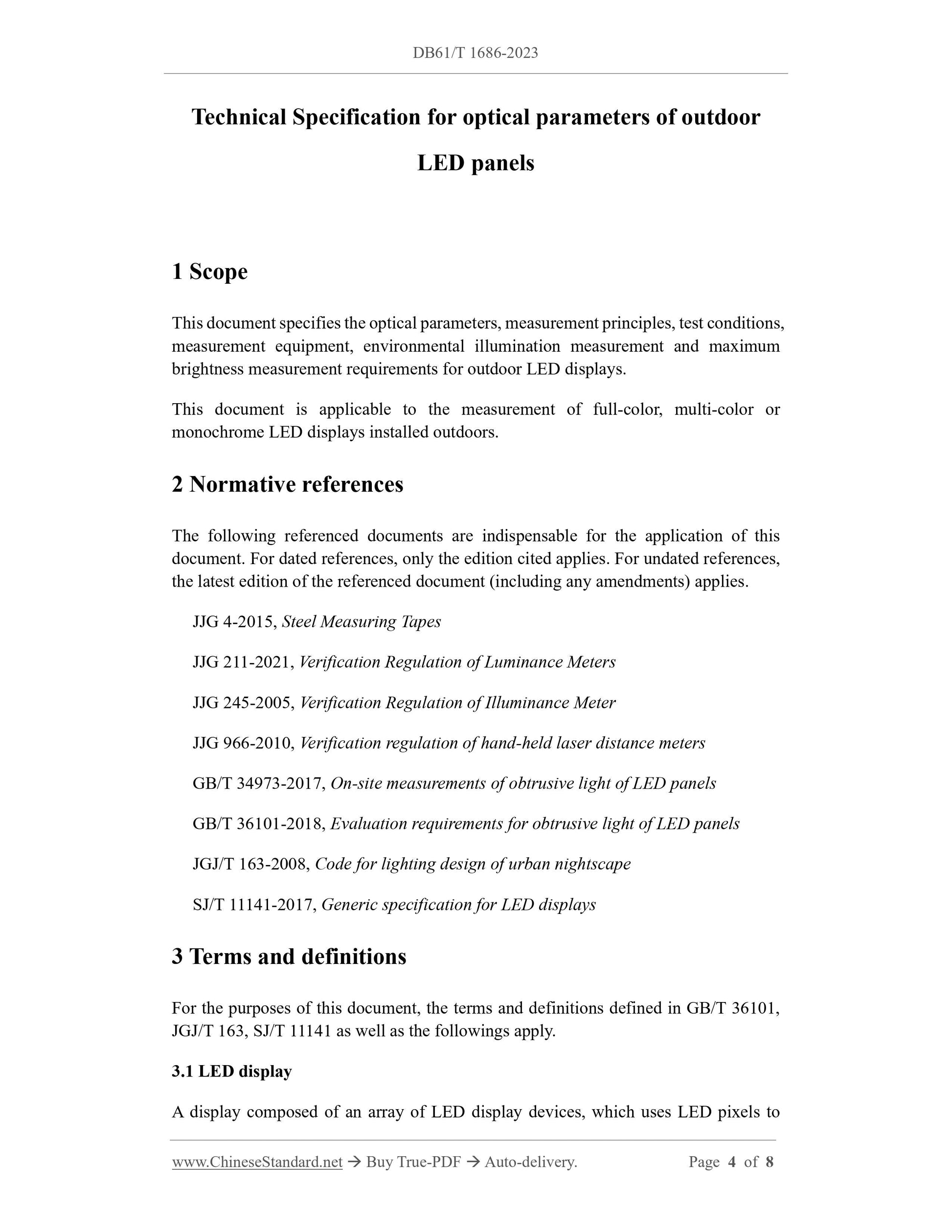

Technical Specification for optical parameters of outdoor
LED panels
1 Scope
This document specifies the optical parameters, measurement principles, test conditions,
measurement equipment, environmental illumination measurement and maximum
brightness measurement requirements for outdoor LED displays.
This document is applicable to the measurement of full-color, multi-color or
monochrome LED displays installed outdoors.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
JJG 4-2015, Steel Measuring Tapes
JJG 211-2021, Verification Regulation of Luminance Meters
JJG 245-2005, Verification Regulation of Illuminance Meter
JJG 966-2010, Verification regulation of hand-held laser distance meters
GB/T 34973-2017, On-site measurements of obtrusive light of LED panels
GB/T 36101-2018, Evaluation requirements for obtrusive light of LED panels
JGJ/T 163-2008, Code for lighting design of urban nightscape
SJ/T 11141-2017, Generic specification for LED displays
3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T 36101,
JGJ/T 163, SJ/T 11141 as well as the followings apply.
3.1 LED display
A display composed of an array of LED display devices, which uses LED pixels to

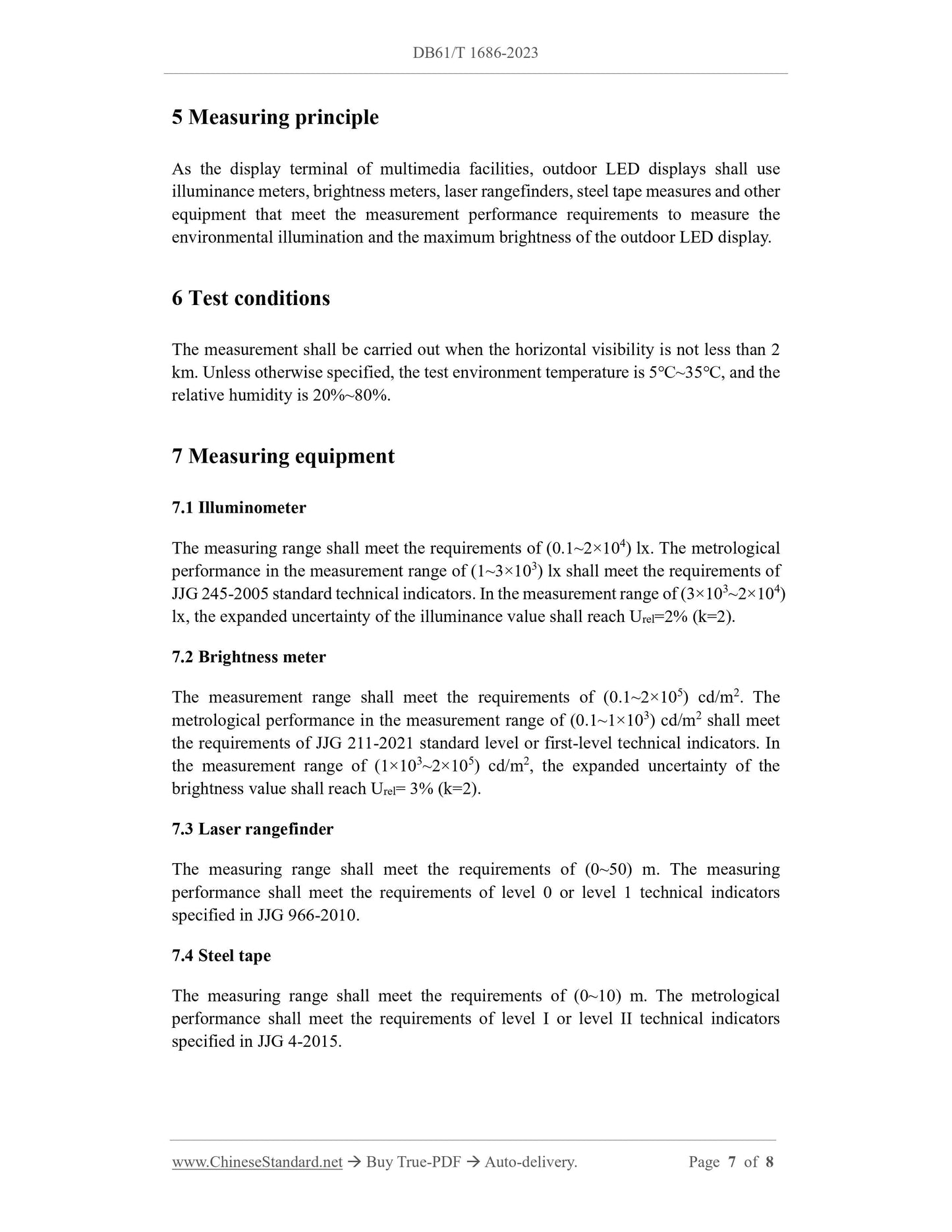

5 Measuring principle
As the display terminal of multimedia facilities, outdoor LED displays shall use
illuminance meters, brightness meters, laser rangefinders, steel tape measures and other
equipment that meet the measurement performance requirements to measure the
environmental illumination and the maximum brightness of the outdoor LED display.
6 Test conditions
The measurement shall be carried out when the horizontal visibility is not less than 2
km. Unless otherwise specified, the test environment temperature is 5℃~35℃, and the
relative humidity is 20%~80%.
7 Measuring equipment
7.1 Illuminometer
The measuring range shall meet the requirements of (0.1~2×104) lx. The metrological
performance in the measurement range of (1~3×103) lx shall meet the requirements of
JJG 245-2005 standard technical indicators. In the measurement range of (3×103~2×104)
lx, the expanded uncertainty of the illuminance value shall reach Urel=2% (k=2).
7.2 Brightness meter
The measurement range shall meet the requirements of (0.1~2×105) cd/m2.The
metrological performance in the measurement range of (0.1~1×103) cd/m2 shall meet
the requirements of JJG 211-2021 standard level or first-level technical indicators. In
the measurement range of (1×103~2×105) cd/m2, the expanded uncertainty of the
brightness value shall reach Urel= 3% (k=2).
7.3 Laser rangefinder
The measuring range shall meet the requirements of (0~50) m. The measuring
performance shall meet the requirements of level 0 or level 1 technical indicators
specified in JJG 966-2010.
7.4 Steel tape
The measuring range shall meet the requirements of (0~10) m. The metrological
performance shall meet the requirements of level I or level II technical indicators
specified in JJG 4-2015.
