FZ/T 54044-2011: Nylon 6 filament yarns for industry

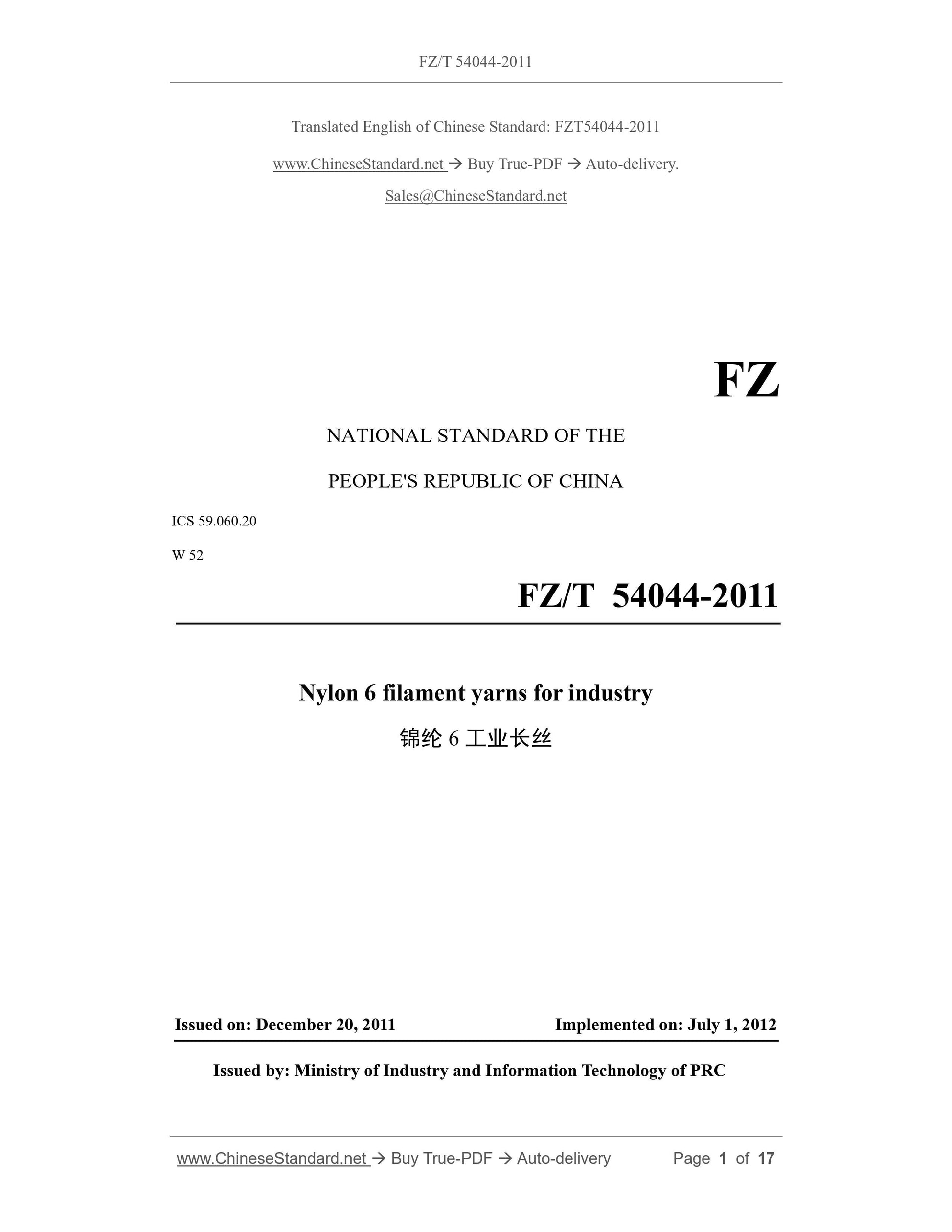

FZ/T 54044-2011
FZ
NATIONAL STANDARD OF THE
PEOPLE'S REPUBLIC OF CHINA
ICS 59.060.20
W 52
Nylon 6 filament yarns for industry
锦纶 6工业长丝
ISSUED ON: DECEMBER 20, 2011
IMPLEMENTED ON: JULY 1, 2012
Issued by: Ministry of Industry and Information Technology of PRC

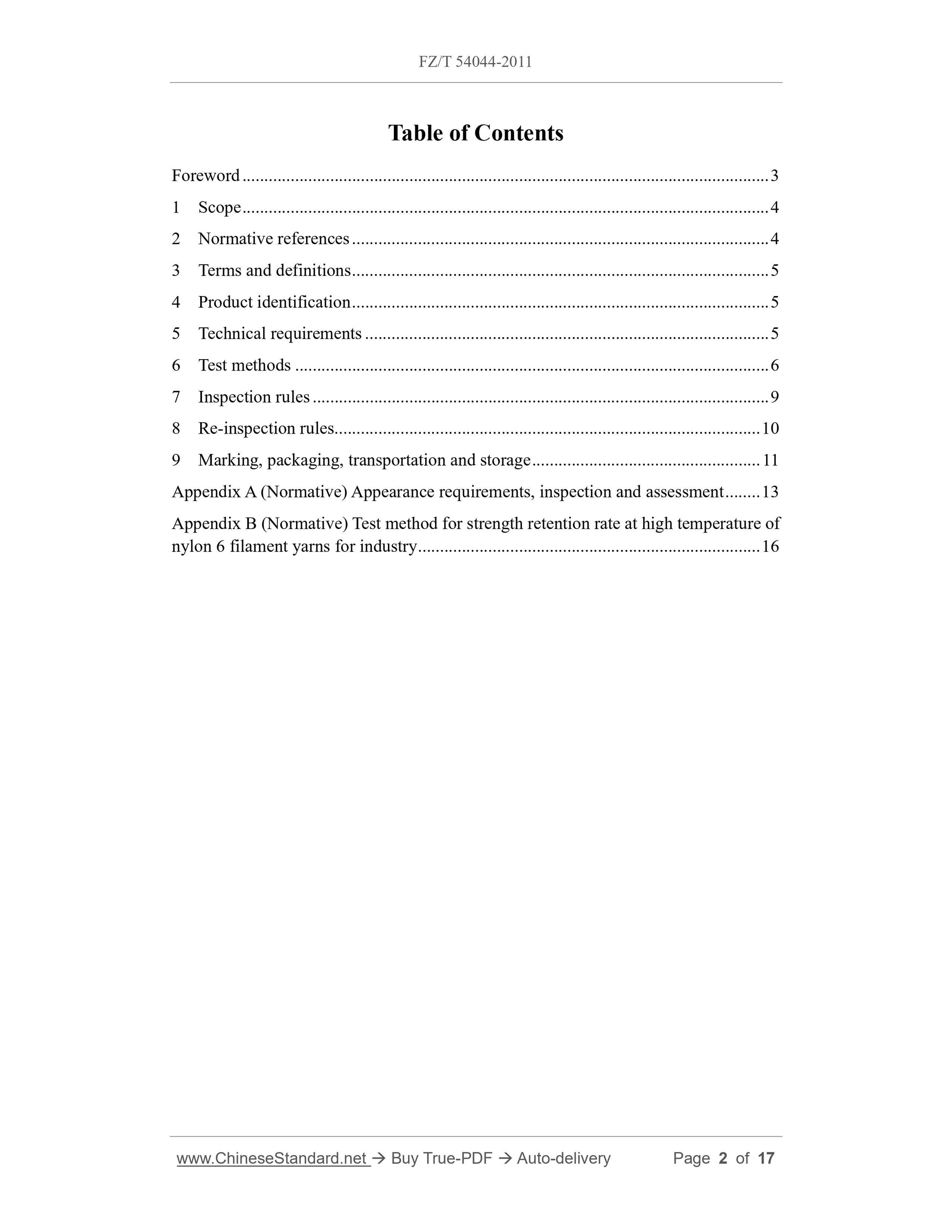

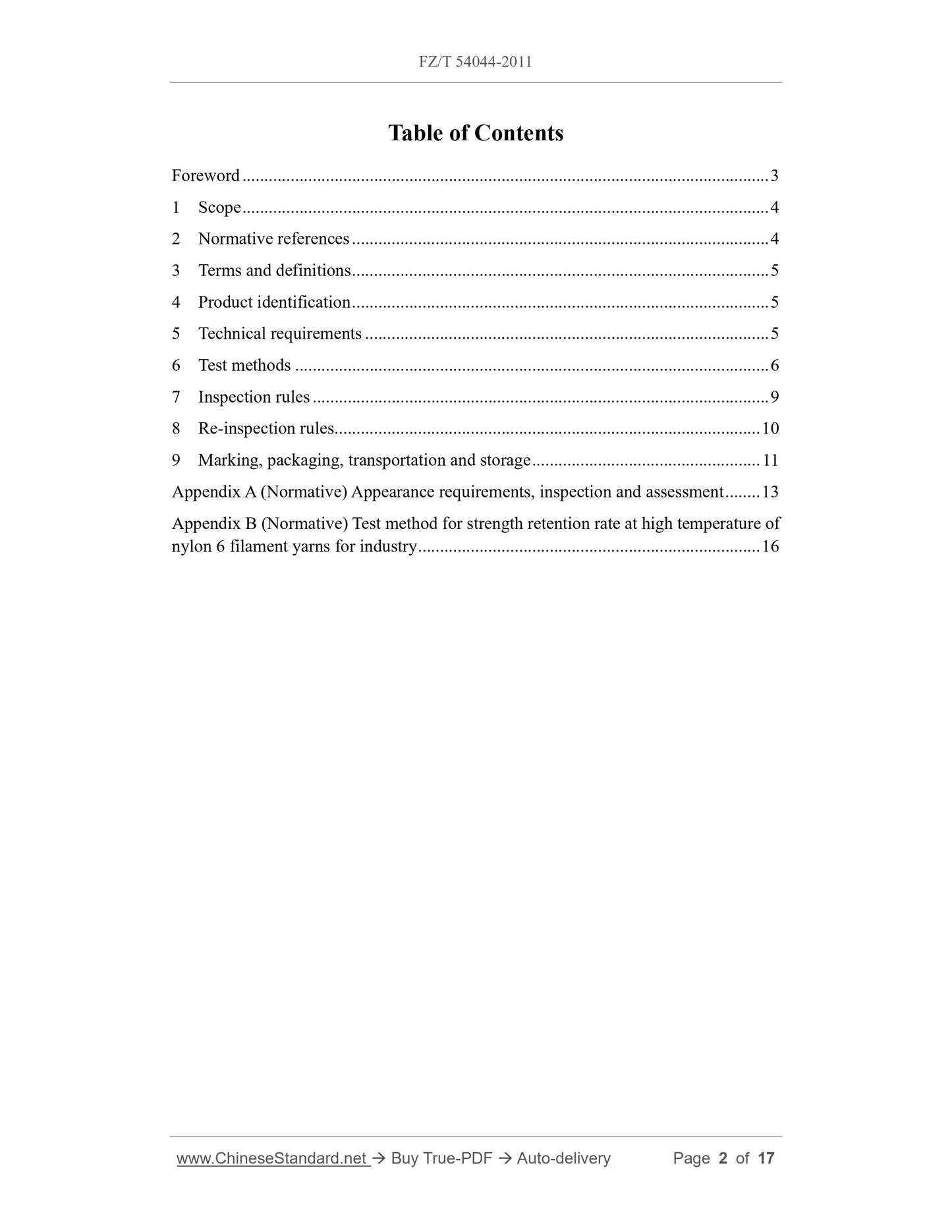

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Product identification ... 5
5 Technical requirements ... 5
6 Test methods ... 6
7 Inspection rules ... 9
8 Re-inspection rules ... 10
9 Marking, packaging, transportation and storage ... 11
Appendix A (Normative) Appearance requirements, inspection and assessment ... 13
Appendix B (Normative) Test method for strength retention rate at high temperature of
nylon 6 filament yarns for industry ... 16

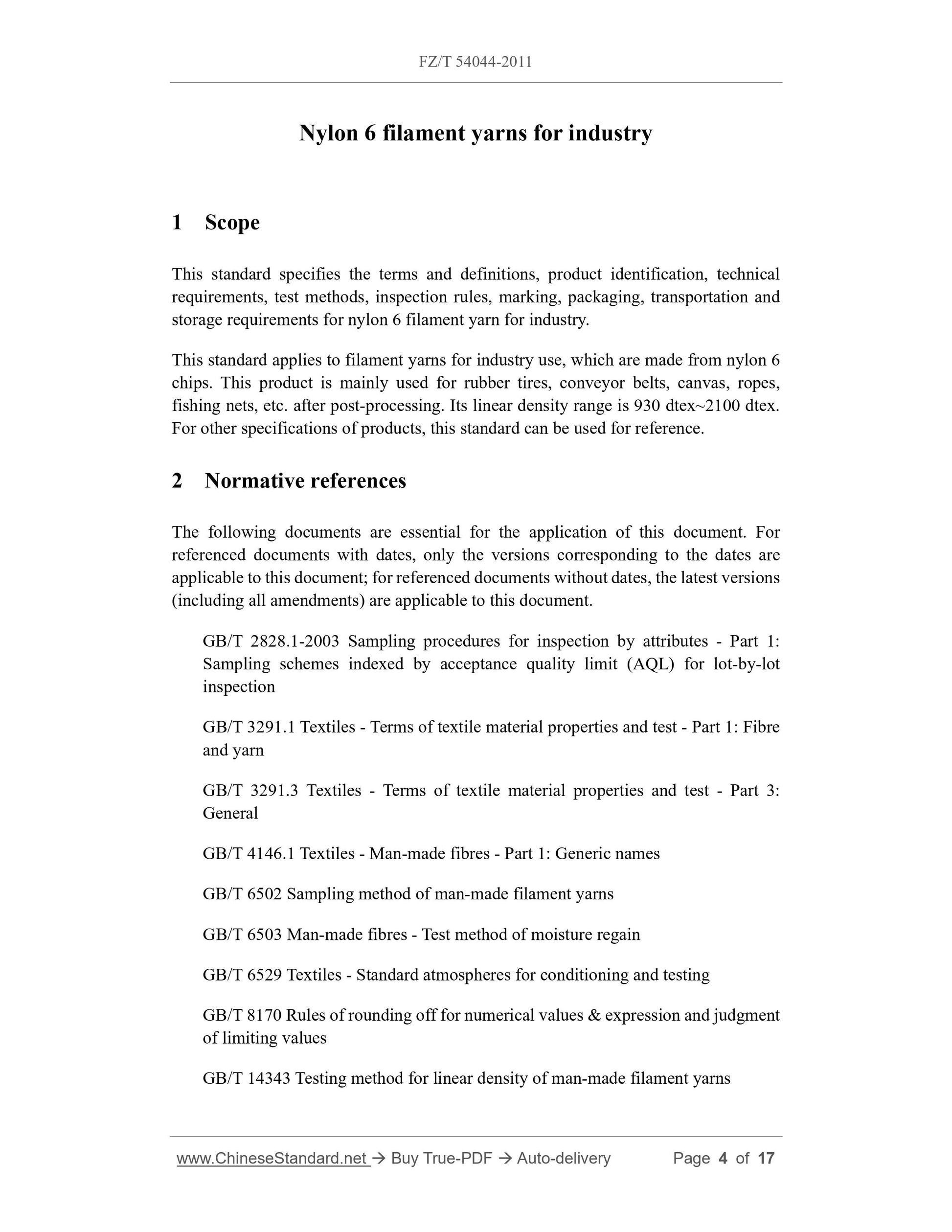

Nylon 6 filament yarns for industry
1 Scope
This standard specifies the terms and definitions, product identification, technical
requirements, test methods, inspection rules, marking, packaging, transportation and
storage requirements for nylon 6 filament yarn for industry.
This standard applies to filament yarns for industry use, which are made from nylon 6
chips. This product is mainly used for rubber tires, conveyor belts, canvas, ropes,
fishing nets, etc. after post-processing. Its linear density range is 930 dtex~2100 dtex.
For other specifications of products, this standard can be used for reference.
2 Normative references
The following documents are essential for the application of this document. For
referenced documents with dates, only the versions corresponding to the dates are
applicable to this document; for referenced documents without dates, the latest versions
(including all amendments) are applicable to this document.
GB/T 2828.1-2003 Sampling procedures for inspection by attributes - Part 1:
Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot
inspection
GB/T 3291.1 Textiles - Terms of textile material properties and test - Part 1: Fibre
and yarn
GB/T 3291.3 Textiles - Terms of textile material properties and test - Part 3:
General
GB/T 4146.1 Textiles - Man-made fibres - Part 1: Generic names
GB/T 6502 Sampling method of man-made filament yarns
GB/T 6503 Man-made fibres - Test method of moisture regain
GB/T 6529 Textiles - Standard atmospheres for conditioning and testing
GB/T 8170 Rules of rounding off for numerical values and expression and judgment
of limiting values
GB/T 14343 Testing method for linear density of man-made filament yarns

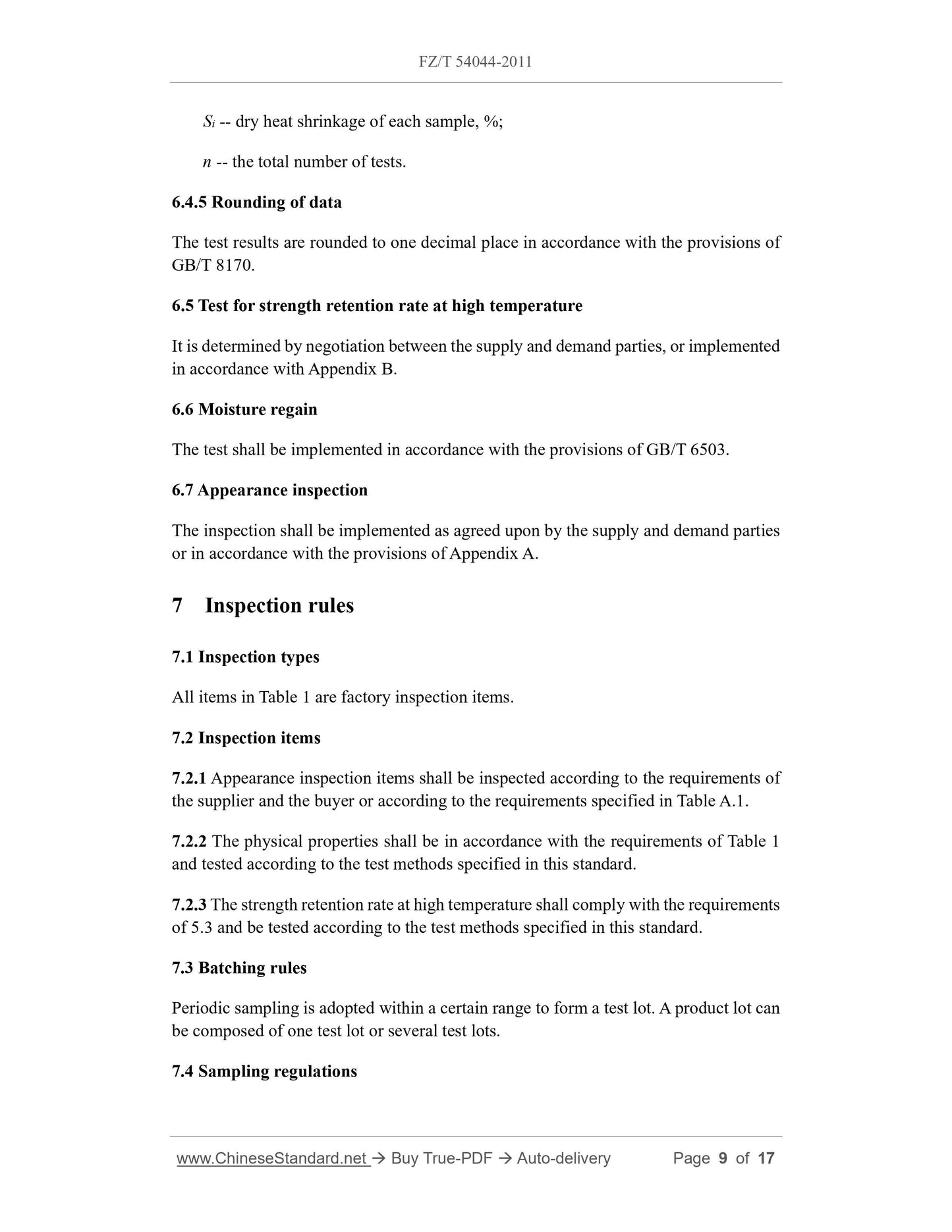

Si -- dry heat shrinkage of each sample, %;
n -- the total number of tests.
6.4.5 Rounding of data
The test results are rounded to one decimal place in accordance with the provisions of
GB/T 8170.
6.5 Test for strength retention rate at high temperature
It is determined by negotiation between the supply and demand parties, or implemented
in accordance with Appendix B.
6.6 Moisture regain
The test shall be implemented in accordance with the provisions of GB/T 6503.
6.7 Appearance inspection
The inspection shall be implemented as agreed upon by the supply and demand parties
or in accordance with the provisions of Appendix A.
7 Inspection rules
7.1 Inspection types
All items in Table 1 are factory inspection items.
7.2 Inspection items
7.2.1 Appearance inspection items shall be inspected according to the requirements of
the supplier and the buyer or according to the requirements specified in Table A.1.
7.2.2 The physical properties shall be in accordance with the requirements of Table 1
and tested according to the test methods specified in this standard.
7.2.3 The strength retention rate at high temperature shall comply with the requirements
of 5.3 and be tested according to the test methods specified in this standard.
7.3 Batching rules
Periodic sampling is adopted within a certain range to form a test lot. A product lot can
be composed of one test lot or several test lots.
7.4 Sampling regulations

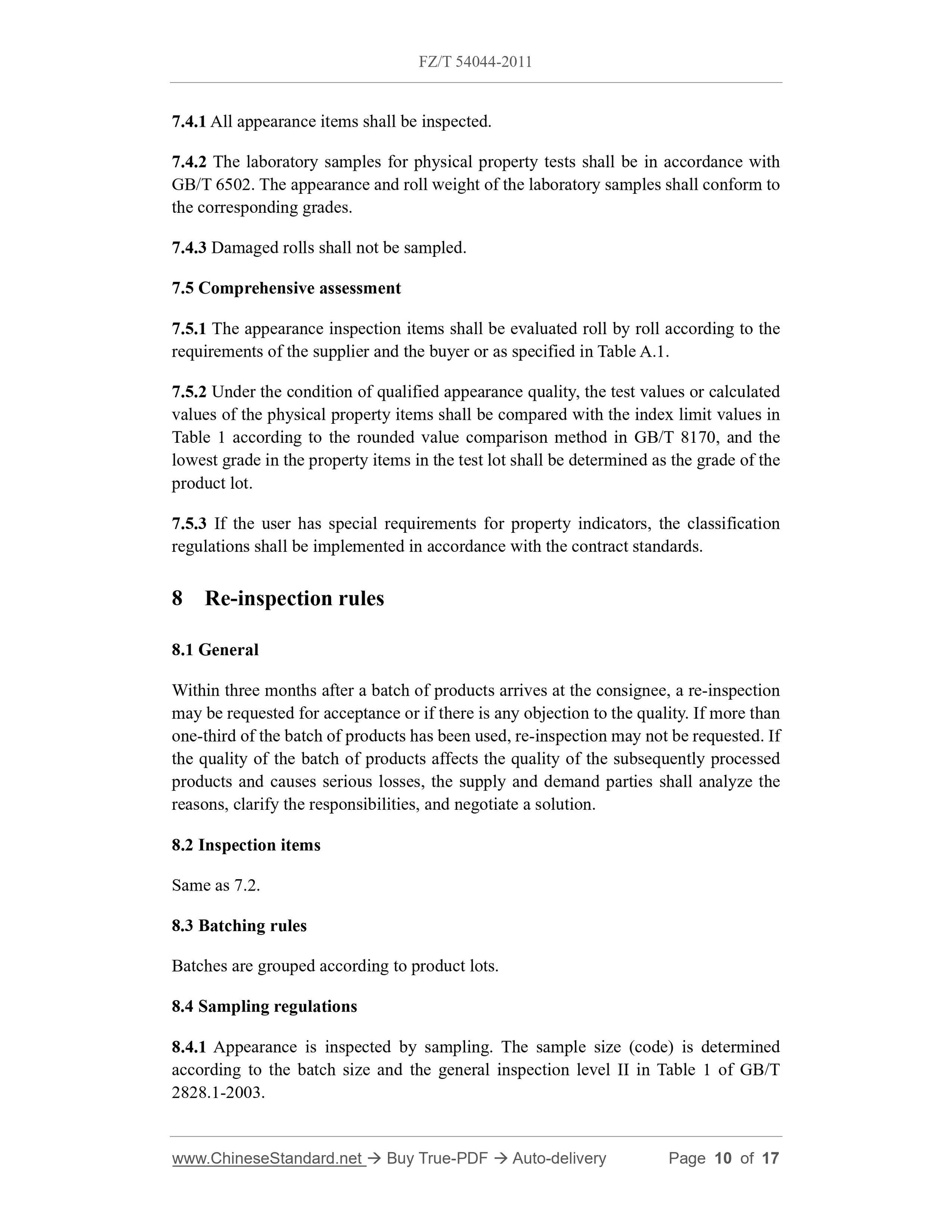

7.4.1 All appearance items shall be inspected.
7.4.2 The laboratory samples for physical property tests shall be in accordance with
GB/T 6502. The appearance and roll weight of the laboratory samples shall conform to
the corresponding grades.
7.4.3 Damaged rolls shall not be sampled.
7.5 Comprehensive assessment
7.5.1 The appearance inspection items shall be evaluated roll by roll according to the
requirements of the supplier and the buyer or as specified in Table A.1.
7.5.2 Under the condition of qualified appearance quality, the test values or calculated
values of the physical property items shall be compared with the index limit values in
Table 1 according to the rounded value comparison method in GB/T 8170, and the
lowest grade in the property items in the test lot shall be determined as the grade of the
product lot.
7.5.3 If the user has special requirements for property indicators, the classification
regulations shall be implemented in accordance with the contract standards.
8 Re-inspection rules
8.1 General
Within three months after a batch of products arrives at the consignee, a re-inspection
may be requested for acceptance or if there is any objection to the quality. If more than
one-third of the batch of products has been used, re-inspection may not be requested. If
the quality of the batch of products affects the quality of the subsequently processed
products and causes serious losses, the supply and demand parties shall analyze the
reasons, clarify the responsibilities, and negotiate a solution.
8.2 Inspection items
Same as 7.2.
8.3 Batching rules
Batches are grouped according to product lots.
8.4 Sampling regulations
8.4.1 Appearance is inspected by sampling. The sample size (code) is determined
according to the batch size and the general inspection level II in Table 1 of GB/T
2828.1-2003.

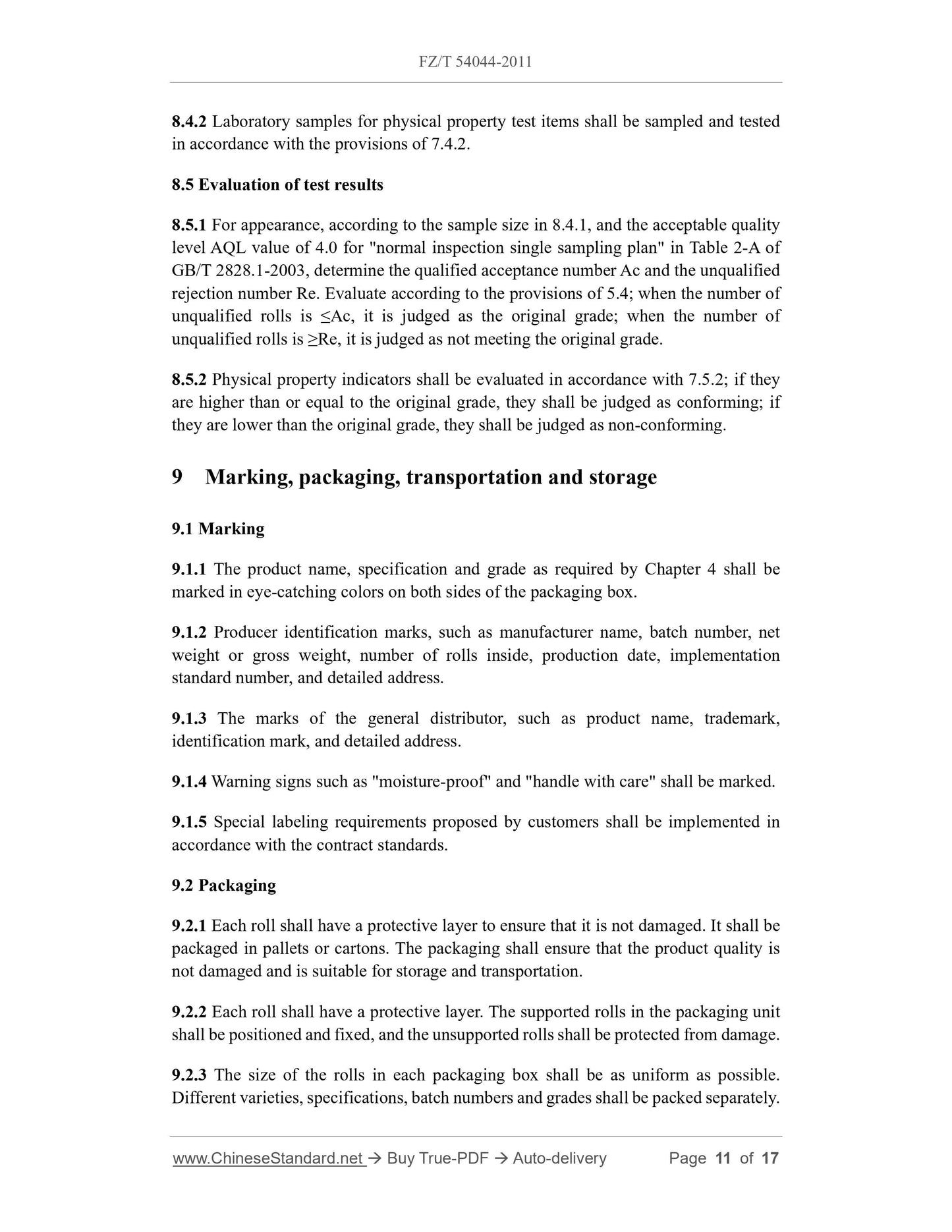

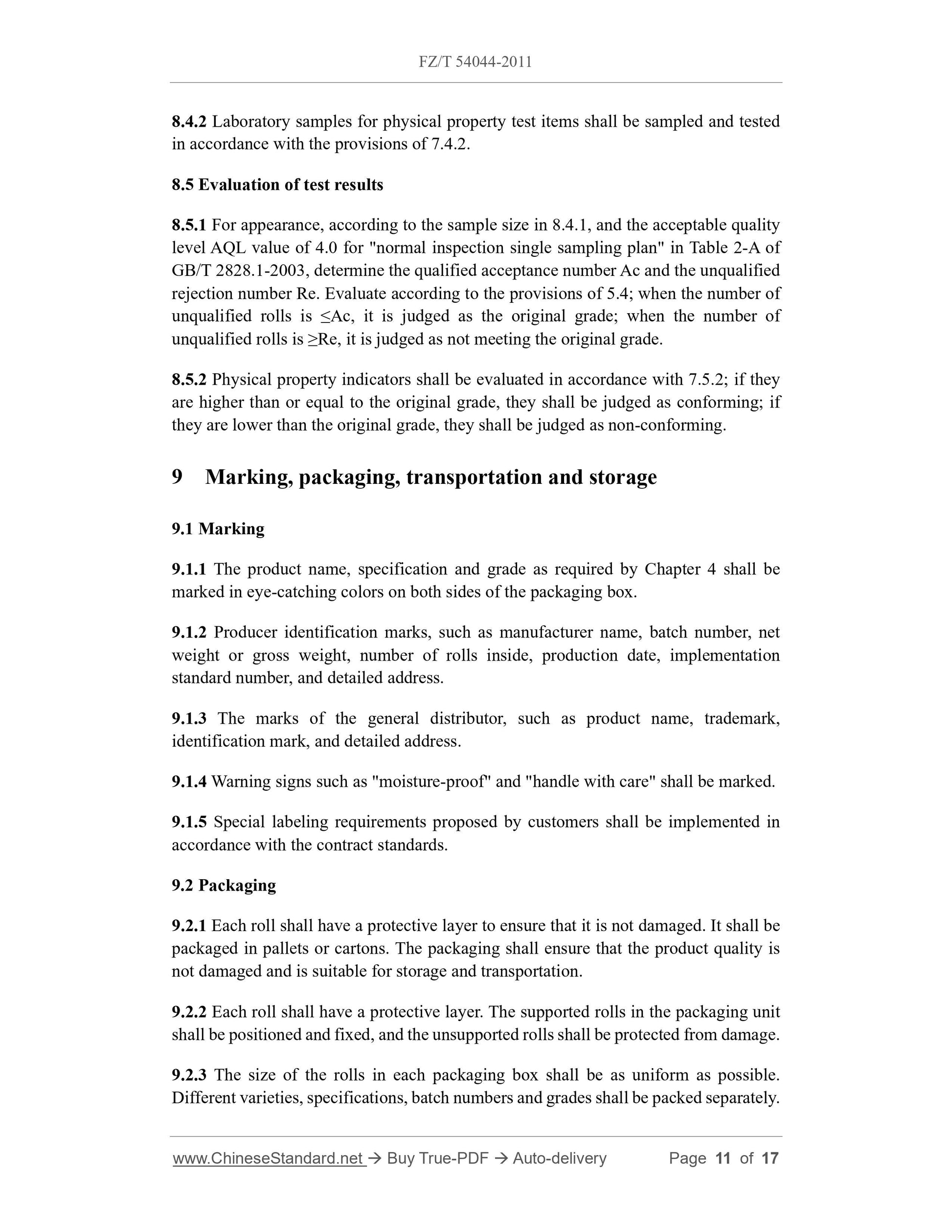

8.4.2 Laboratory samples for physical property test items shall be sampled and tested
in accordance with the provisions of 7.4.2.
8.5 Evaluation of test results
8.5.1 For appearance, according to the sample size in 8.4.1, and the acceptable quality
level AQL value of 4.0 for "normal inspection single sampling plan" in Table 2-A of
GB/T 2828.1-2003, determine the qualified acceptance number Ac and the unqualified
rejection number Re. Evaluate according to the provisions of 5.4; when the number of
unqualified rolls is ≤Ac, it is judged as the original grade; when the number of
unqualified rolls is ≥Re, it is judged as not meeting the original grade.
8.5.2 Physical property indicators shall be evaluated in accordance with 7.5.2; if they
are higher than or equal to the original grade, they shall be judged as conforming; if
they are lower than the original grade, they shall be judged as non-conforming.
9 Marking, packaging, transportation and storage
9.1 Marking
9.1.1 The product name, specification and grade as required by Chapter 4 shall be
marked in eye-catching colors on both sides of the packaging box.
9.1.2 Producer identification marks, such as manufacturer name, batch number, net
weight or gross weight, number of rolls inside, production date, implementation
standard number, and detailed address.
9.1.3 The marks of the general distributor, such as product name, trademark,
identification mark, and detailed address.
9.1.4 Warning signs such as "moisture-proof" and "handle with care" shall be marked.
9.1.5 Special labeling requirements proposed by customers shall be implemented in...
