FZ/T 73019.2-2020: Knitted shape underwear - Figured-style

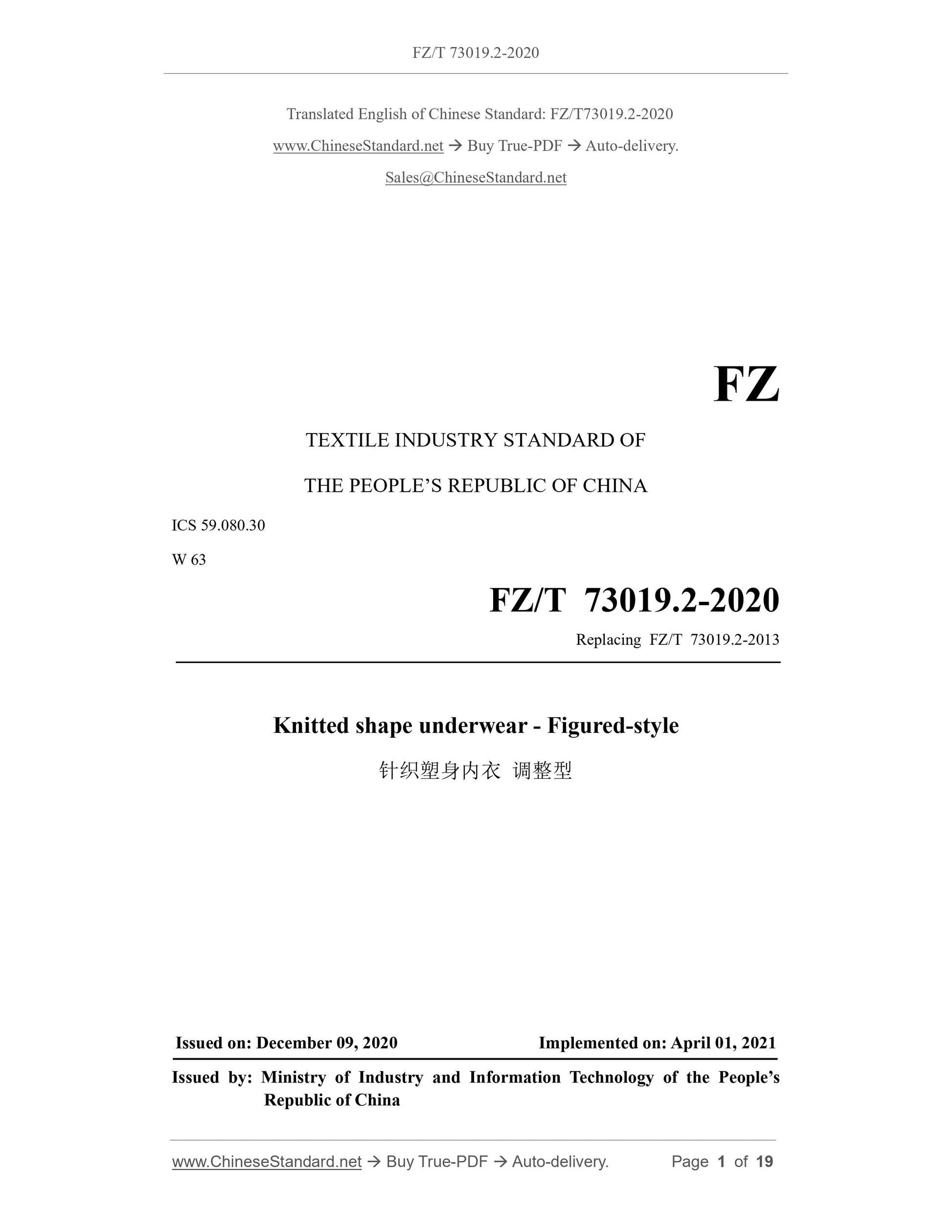

FZ/T 73019.2-2020
FZ
TEXTILE INDUSTRY STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
ICS 59.080.30
W 63
Replacing FZ/T 73019.2-2013
Knitted shape underwear - Figured-style
针织塑身内衣 调整型
ISSUED ON. DECEMBER 09, 2020
IMPLEMENTED ON. APRIL 01, 2021
Issued by. Ministry of Industry and Information Technology of the People’s
Republic of China

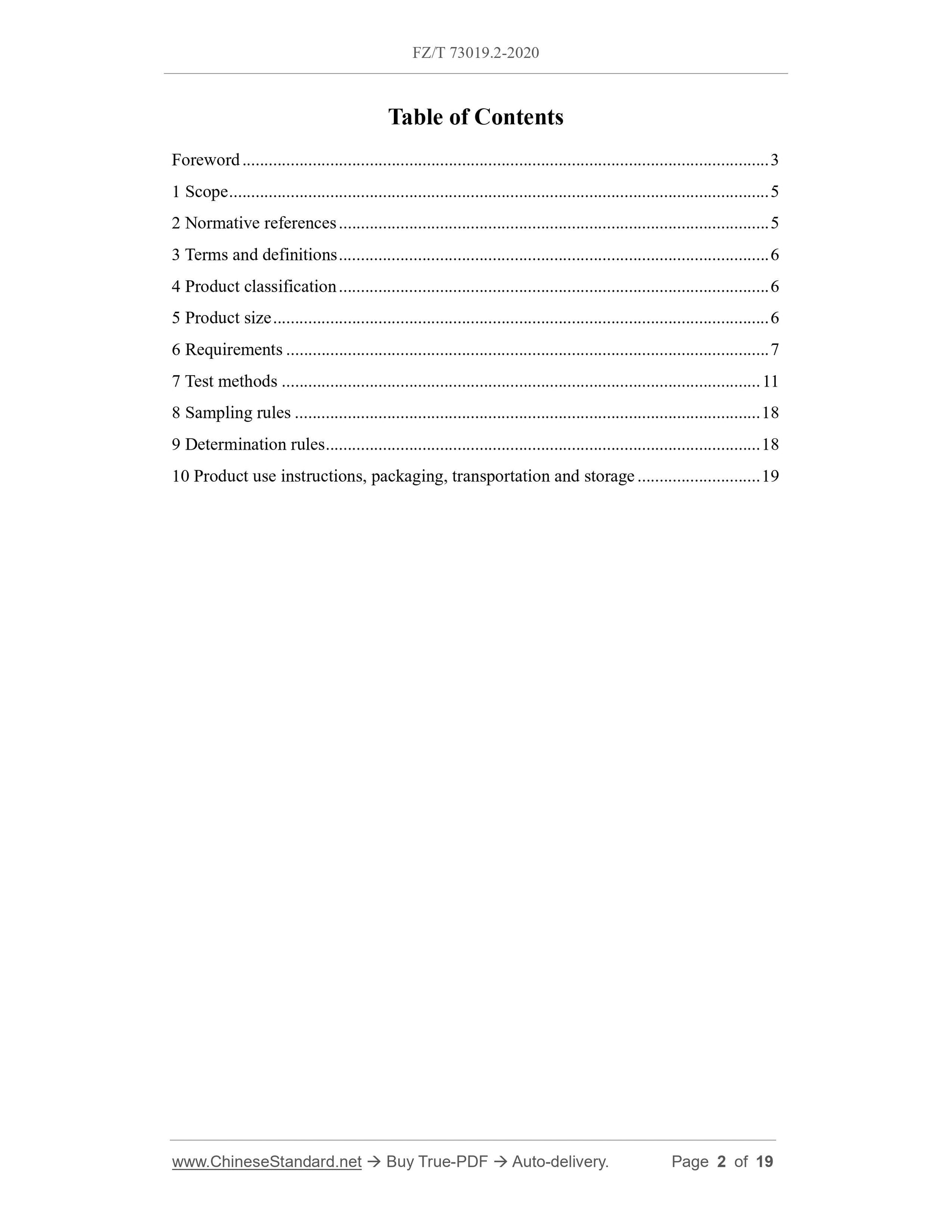

Table of Contents
Foreword... 3
1 Scope... 5
2 Normative references... 5
3 Terms and definitions... 6
4 Product classification... 6
5 Product size... 6
6 Requirements... 7
7 Test methods... 11
8 Sampling rules... 18
9 Determination rules... 18
10 Product use instructions, packaging, transportation and storage... 19

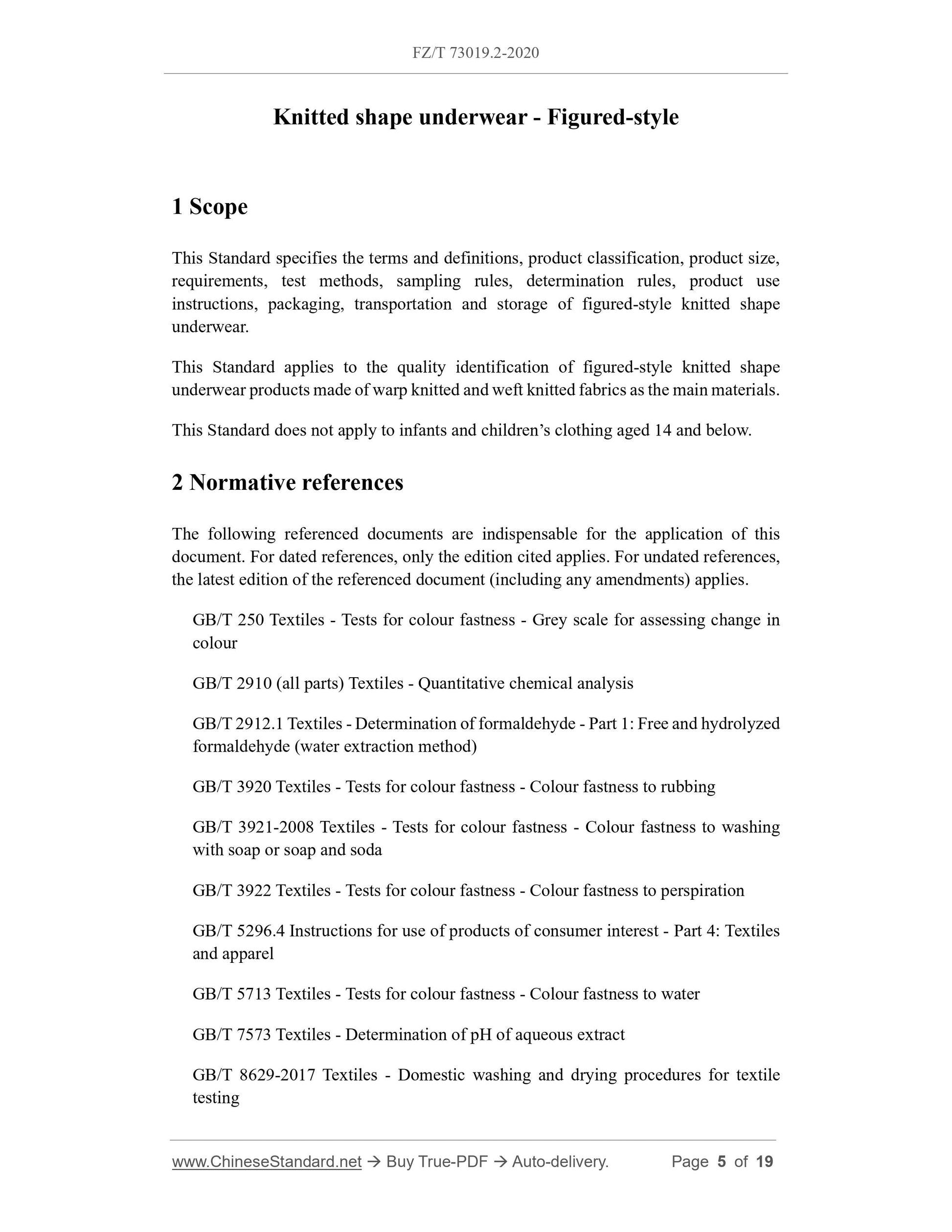

Knitted shape underwear - Figured-style
1 Scope
This Standard specifies the terms and definitions, product classification, product size,
requirements, test methods, sampling rules, determination rules, product use
instructions, packaging, transportation and storage of figured-style knitted shape
underwear.
This Standard applies to the quality identification of figured-style knitted shape
underwear products made of warp knitted and weft knitted fabrics as the main materials.
This Standard does not apply to infants and children’s clothing aged 14 and below.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 250 Textiles - Tests for colour fastness - Grey scale for assessing change in
colour
GB/T 2910 (all parts) Textiles - Quantitative chemical analysis
GB/T 2912.1 Textiles - Determination of formaldehyde - Part 1.Free and hydrolyzed
formaldehyde (water extraction method)
GB/T 3920 Textiles - Tests for colour fastness - Colour fastness to rubbing
GB/T 3921-2008 Textiles - Tests for colour fastness - Colour fastness to washing
with soap or soap and soda
GB/T 3922 Textiles - Tests for colour fastness - Colour fastness to perspiration
GB/T 5296.4 Instructions for use of products of consumer interest - Part 4.Textiles
and apparel
GB/T 5713 Textiles - Tests for colour fastness - Colour fastness to water
GB/T 7573 Textiles - Determination of pH of aqueous extract
GB/T 8629-2017 Textiles - Domestic washing and drying procedures for textile
testing

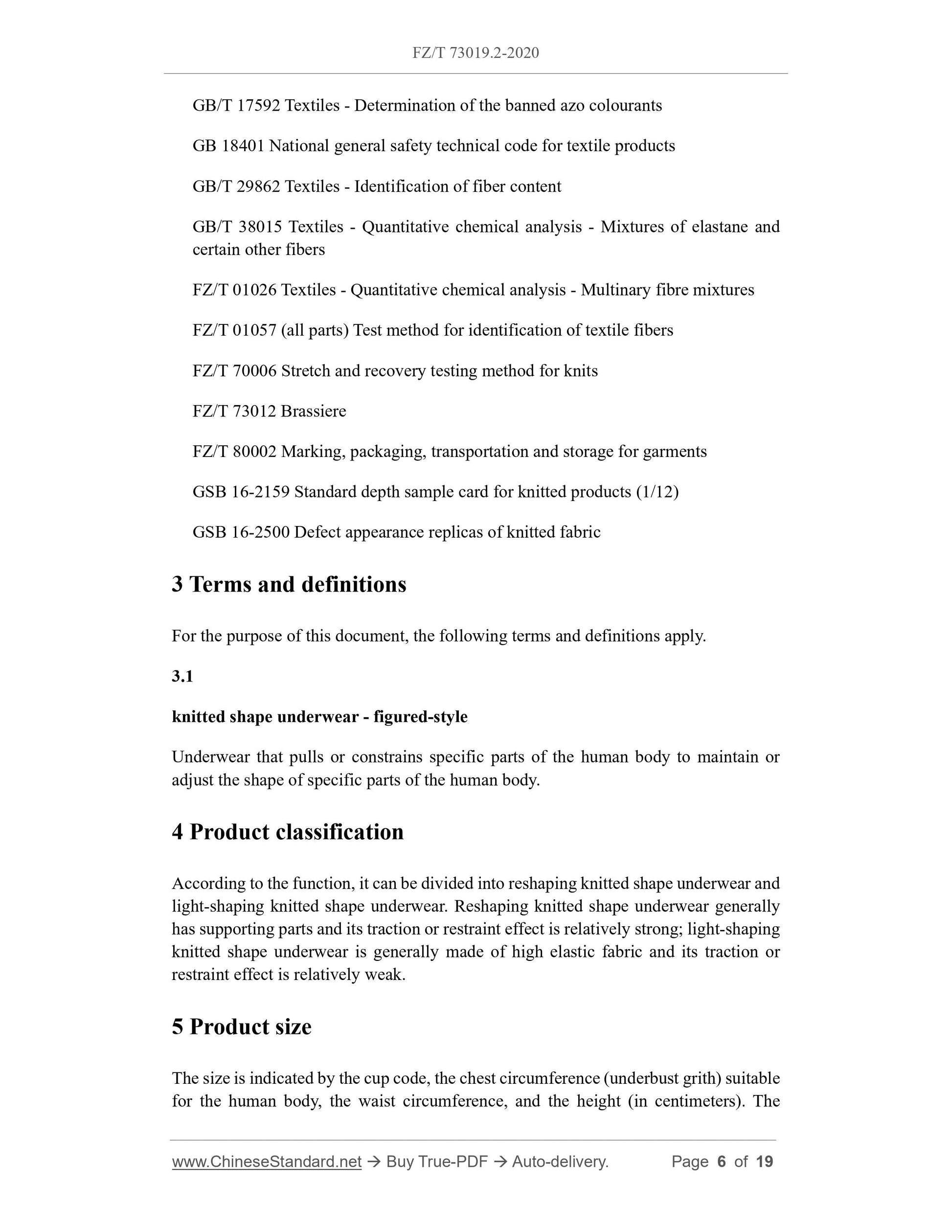

GB/T 17592 Textiles - Determination of the banned azo colourants
GB 18401 National general safety technical code for textile products
GB/T 29862 Textiles - Identification of fiber content
GB/T 38015 Textiles - Quantitative chemical analysis - Mixtures of elastane and
certain other fibers
FZ/T 01026 Textiles - Quantitative chemical analysis - Multinary fibre mixtures
FZ/T 01057 (all parts) Test method for identification of textile fibers
FZ/T 70006 Stretch and recovery testing method for knits
FZ/T 73012 Brassiere
FZ/T 80002 Marking, packaging, transportation and storage for garments
GSB 16-2159 Standard depth sample card for knitted products (1/12)
GSB 16-2500 Defect appearance replicas of knitted fabric
3 Terms and definitions
For the purpose of this document, the following terms and definitions apply.
3.1
knitted shape underwear - figured-style
Underwear that pulls or constrains specific parts of the human body to maintain or
adjust the shape of specific parts of the human body.
4 Product classification
According to the function, it can be divided into reshaping knitted shape underwear and
light-shaping knitted shape underwear. Reshaping knitted shape underwear generally
has supporting parts and its traction or restraint effect is relatively strong; light-shaping
knitted shape underwear is generally made of high elastic fabric and its traction or
restraint effect is relatively weak.
5 Product size

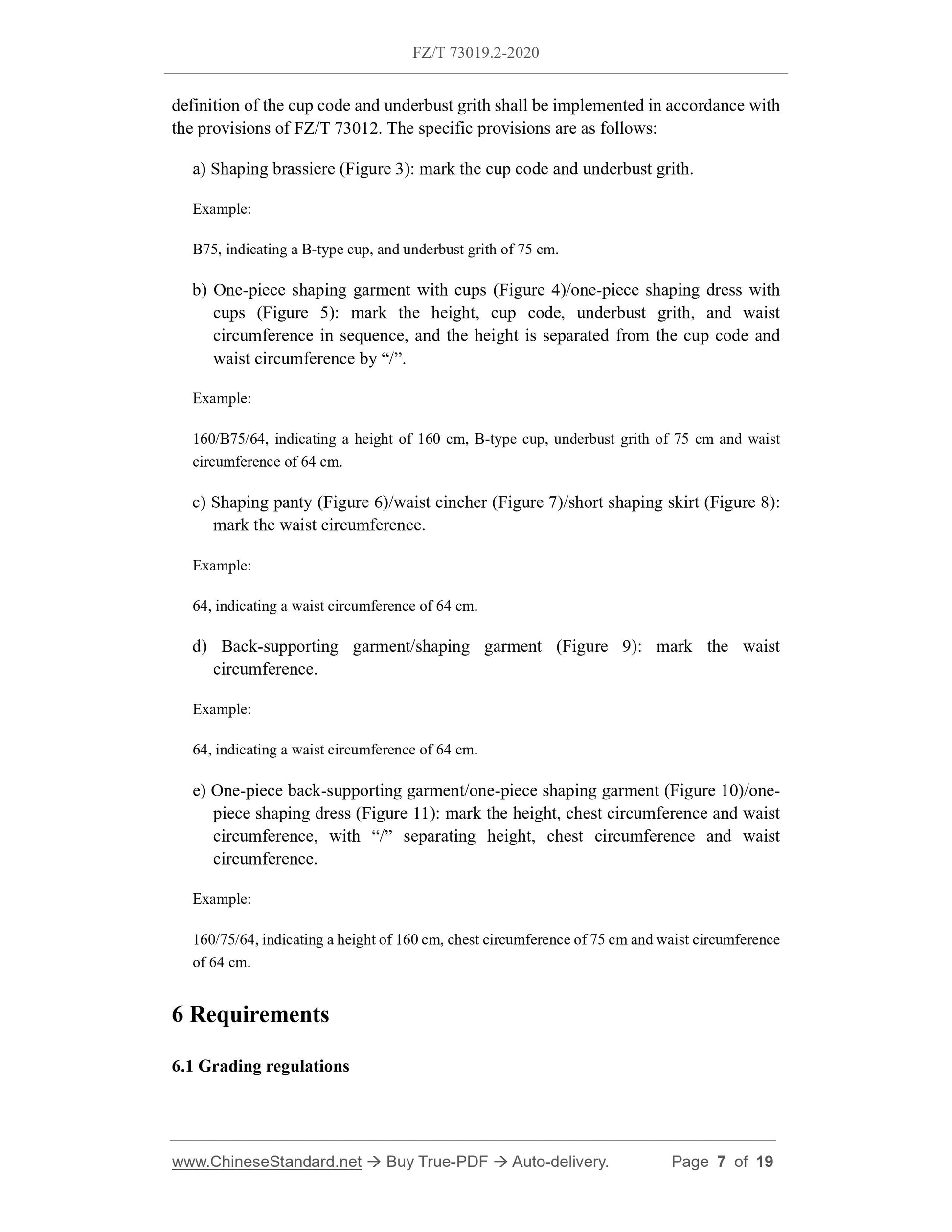

The size is indicated by the cup code, the chest circumference (underbust grith) suitable
for the human body, the waist circumference, and the height (in centimeters). The
definition of the cup code and underbust grith shall be implemented in accordance with
the provisions of FZ/T 73012.The specific provisions are as follows.
a) Shaping brassiere (Figure 3). mark the cup code and underbust grith.
Example.
B75, indicating a B-type cup, and underbust grith of 75 cm.
b) One-piece shaping garment with cups (Figure 4)/one-piece shaping dress with
cups (Figure 5). mark the height, cup code, underbust grith, and waist
circumference in sequence, and the height is separated from the cup code and
waist circumference by “/”.
Example.
160/B75/64, indicating a height of 160 cm, B-type cup, underbust grith of 75 cm and waist
circumference of 64 cm.
c) Shaping panty (Figure 6)/waist cincher (Figure 7)/short shaping skirt (Figure 8).
mark the waist circumference.
Example.
64, indicating a waist circumference of 64 cm.
d) Back-supporting garment/shaping garment (Figure 9). mark the waist
circumference.
Example.
64, indicating a waist circumference of 64 cm.
e) One-piece back-supporting garment/one-piece shaping garment (Figure 10)/one-
piece shaping dress (Figure 11). mark the height, chest circumference and waist
circumference, with “/” separating height, chest circumference and waist
circumference.
Example.
160/75/64, indicating a height of 160 cm, chest circumference of 75 cm and waist circumference
of 64 cm.
6 Requirements
6.1 Grading regulations

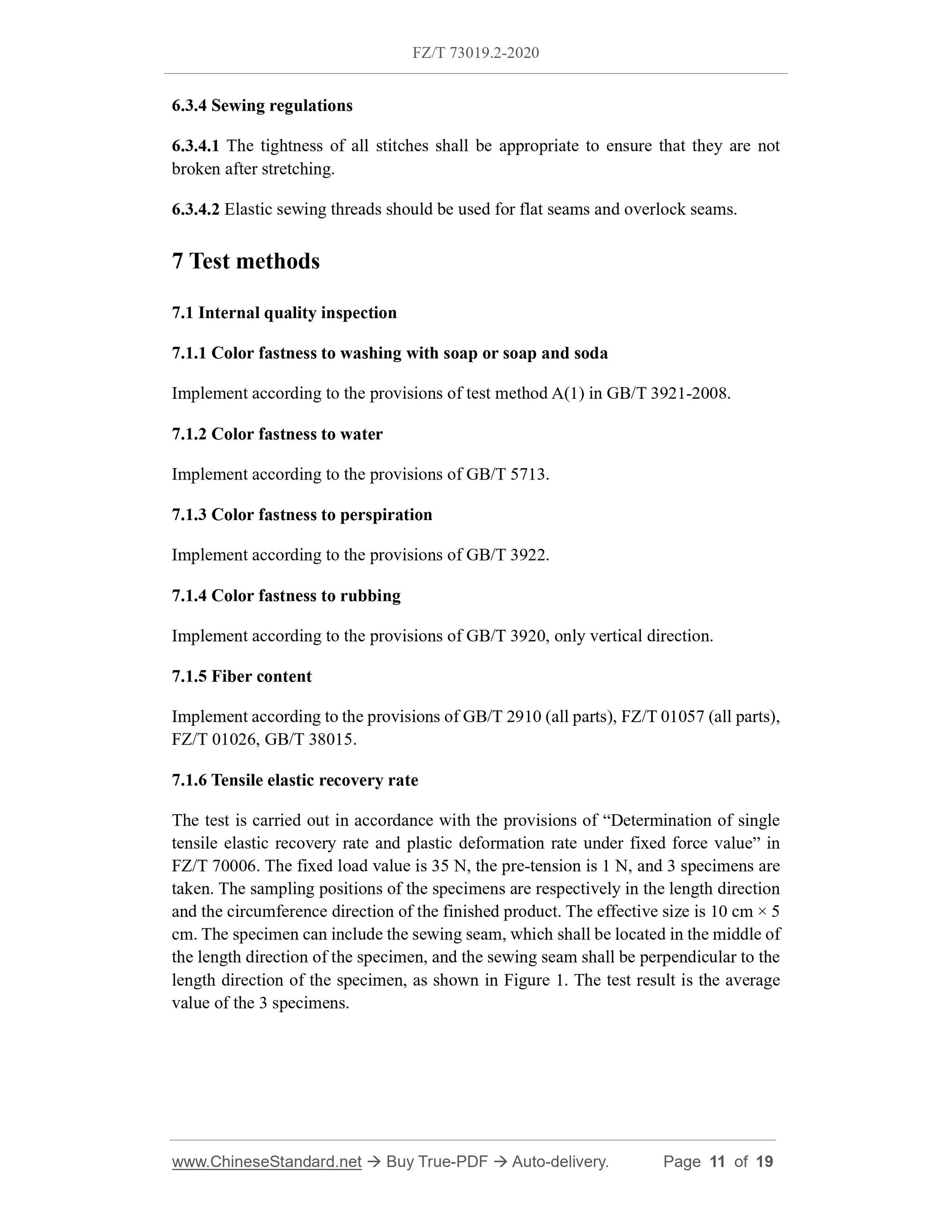

6.3.4 Sewing regulations
6.3.4.1 The tightness of all stitches shall be appropriate to ensure that they are not
broken after stretching.
6.3.4.2 Elastic sewing threads should be used for flat seams and overlock seams.
7 Test methods
7.1 Internal quality inspection
7.1.1 Color fastness to washing with soap or soap and soda
Implement according to the provisions of test method A(1) in GB/T 3921-2008.
7.1.2 Color fastness to water
Implement according to the provisions of GB/T 5713.
7.1.3 Color fastness to perspiration
Implement according to the provisions of GB/T 3922.
7.1.4 Color fastness to rubbing
Implement according to the provisions of GB/T 3920, only vertical direction.
7.1.5 Fiber content
Implement according to the provisions of GB/T 2910 (all parts), FZ/T 01057 (all parts),
FZ/T 01026, GB/T 38015.
7.1.6 Tensile elastic recovery rate
The test is carried out in accordance with the provisions of “Determination of single
tensile elastic recovery rate and plastic deformation rate under fixed force value” in
FZ/T 70006.The fixed load value is 35 N, the pre-tension is 1 N, and 3 specimens are
taken. The sampling positions of the specimens are respectively in the length direction
and the circumference direction of the finished product. The effective size is 10 cm × 5
cm. The specimen can include the sewing seam, which shall be located in the middle of
the length direction of the specimen, and the sewing seam shall be perpendicular to the
length direction of the specimen, as shown in Figure 1.The test result is the average
value of the 3 specimens.

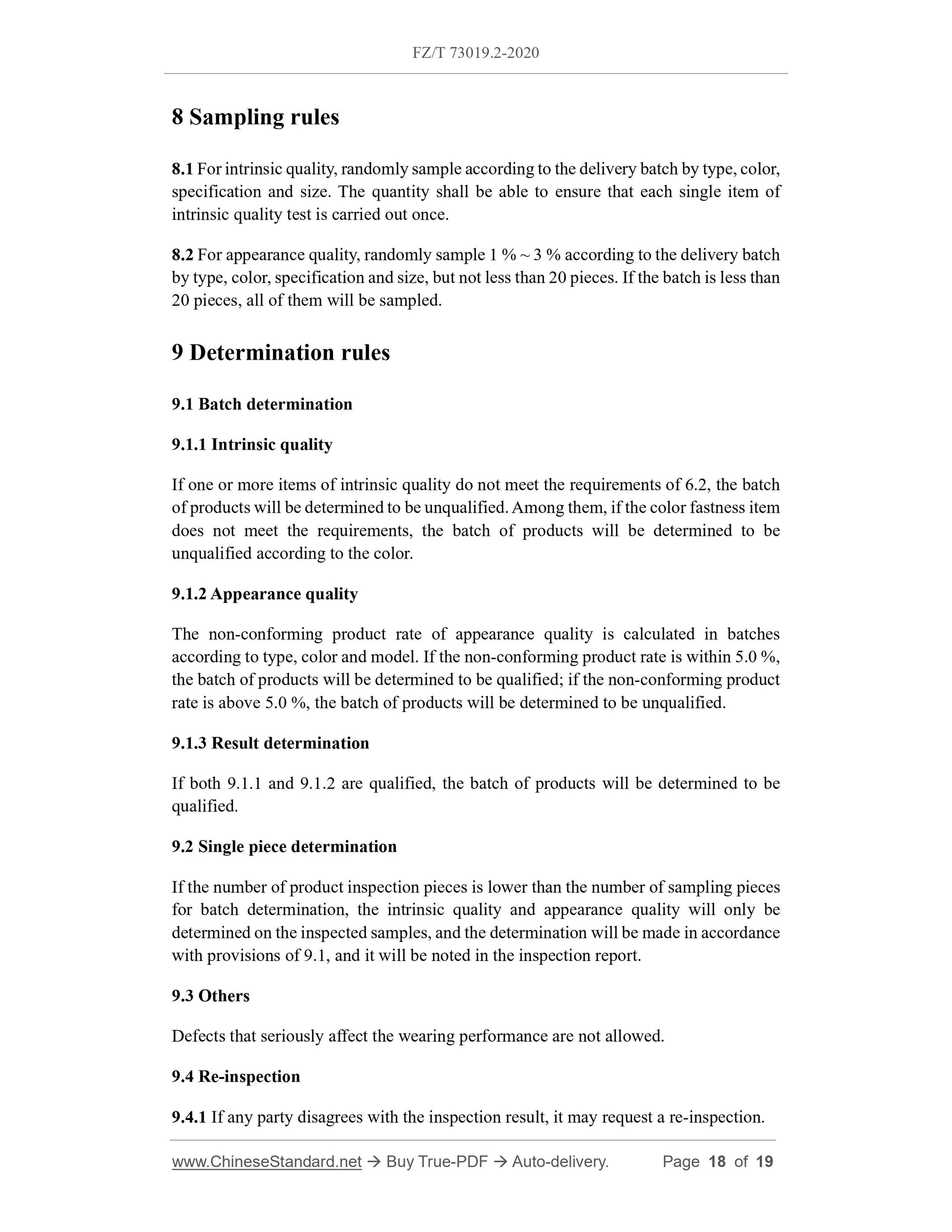

8 Sampling rules
8.1 For intrinsic quality, randomly sample according to the delivery batch by type, color,
specification and size. The quantity shall be able to ensure that each single item of
intrinsic quality test is carried out once.
8.2 For appearance quality, randomly sample 1 % ~ 3 % according to the delivery batch
by type, color, specification and size, but not less than 20 pieces. If the ba...
