GB 26920.1-2011: Minimum allowable values of energy efficiency and energy efficiency grades of commercial refrigerating appliances -- Part 1: Refrigerated display cabinets with remote condensing unit

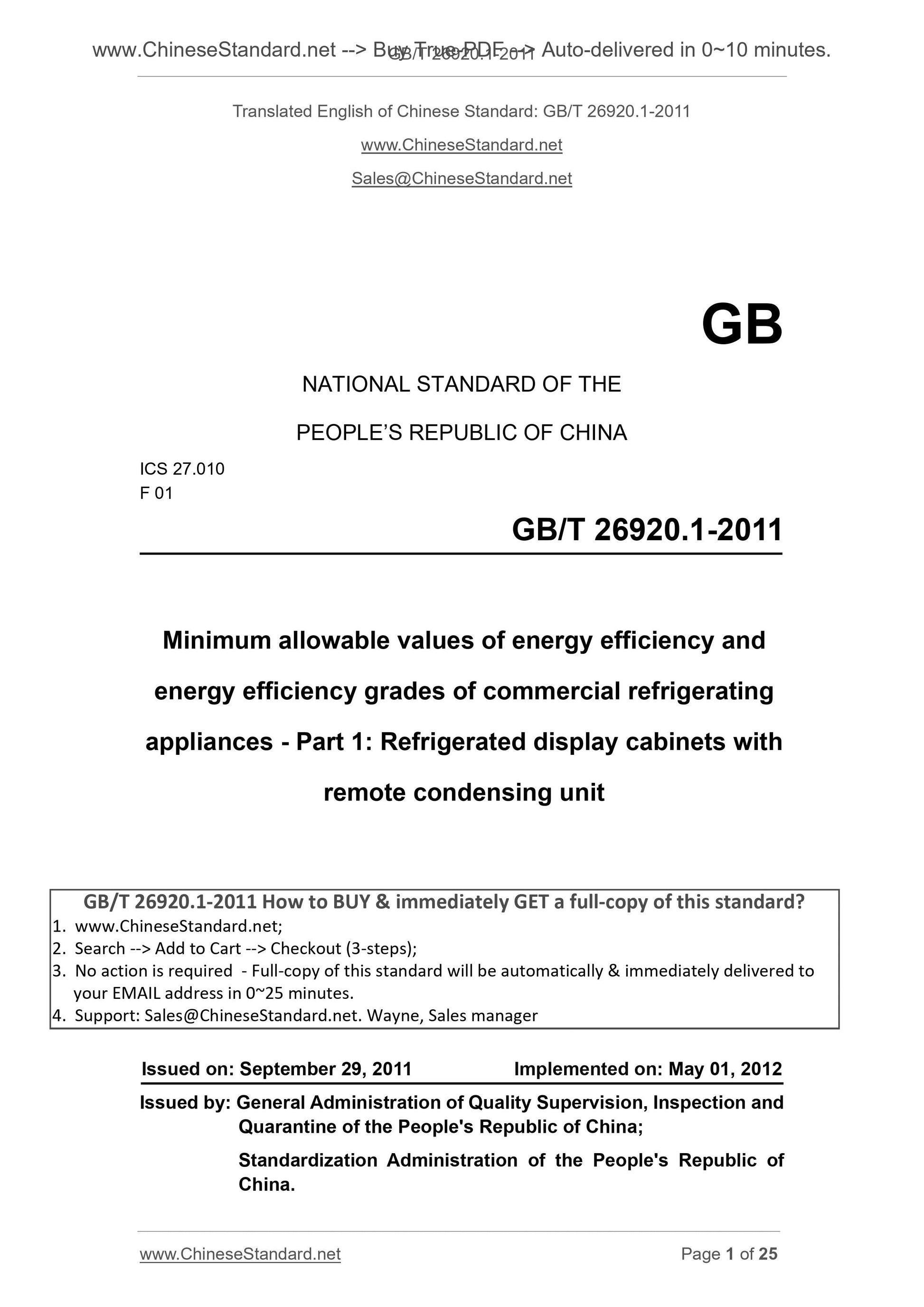

GB/T 26920.1-2011
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.010
F 01
Minimum allowable values of energy efficiency and
energy efficiency grades of commercial refrigerating
appliances - Part 1. Refrigerated display cabinets with
remote condensing unit
ISSUED ON. SEPTEMBER 29, 2011
IMPLEMENTED ON. MAY 01, 2012
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

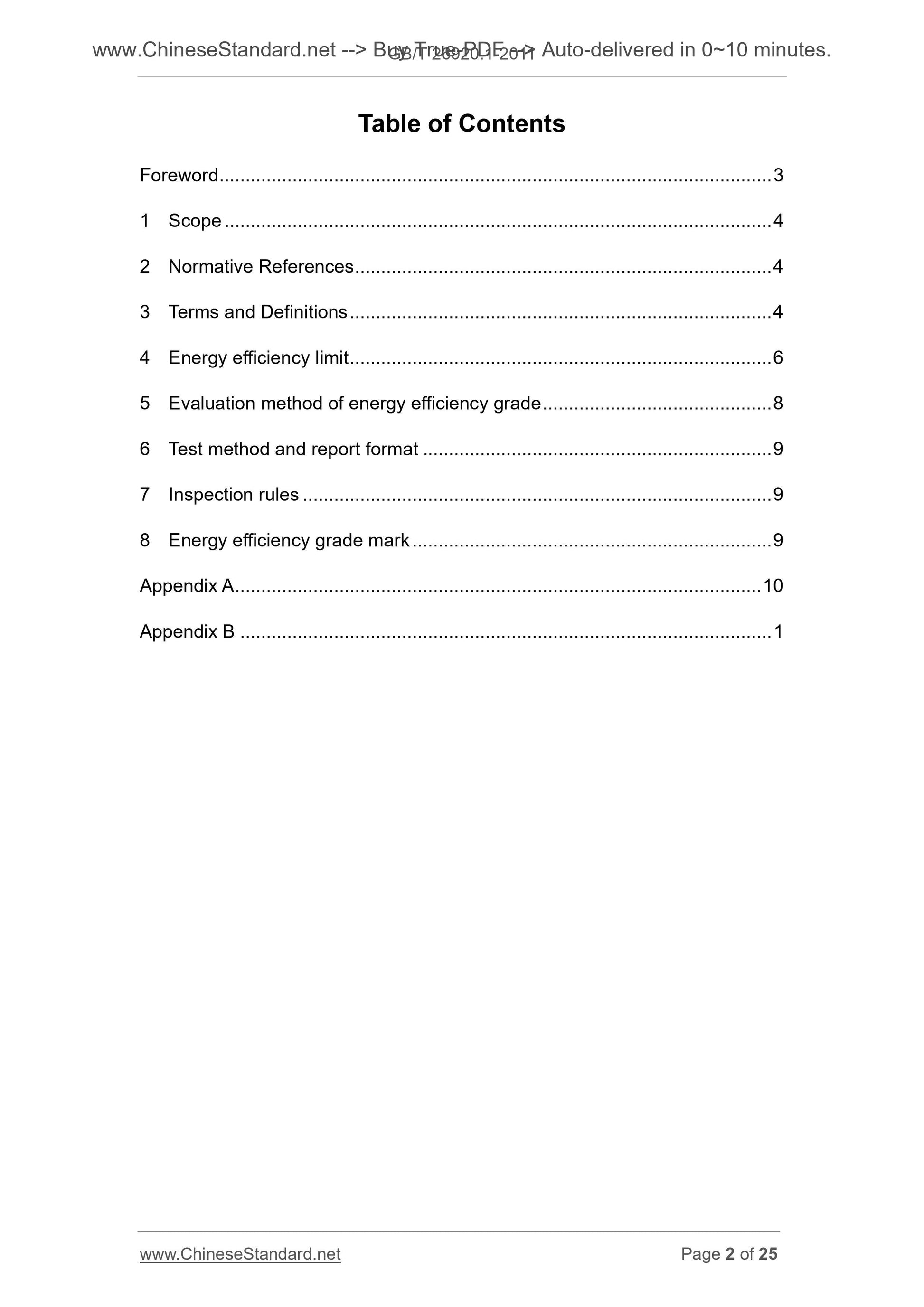

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Energy efficiency limit ... 6
5 Evaluation method of energy efficiency grade ... 8
6 Test method and report format ... 9
7 Inspection rules ... 9
8 Energy efficiency grade mark ... 9
Appendix A ... 10
Appendix B ... 1

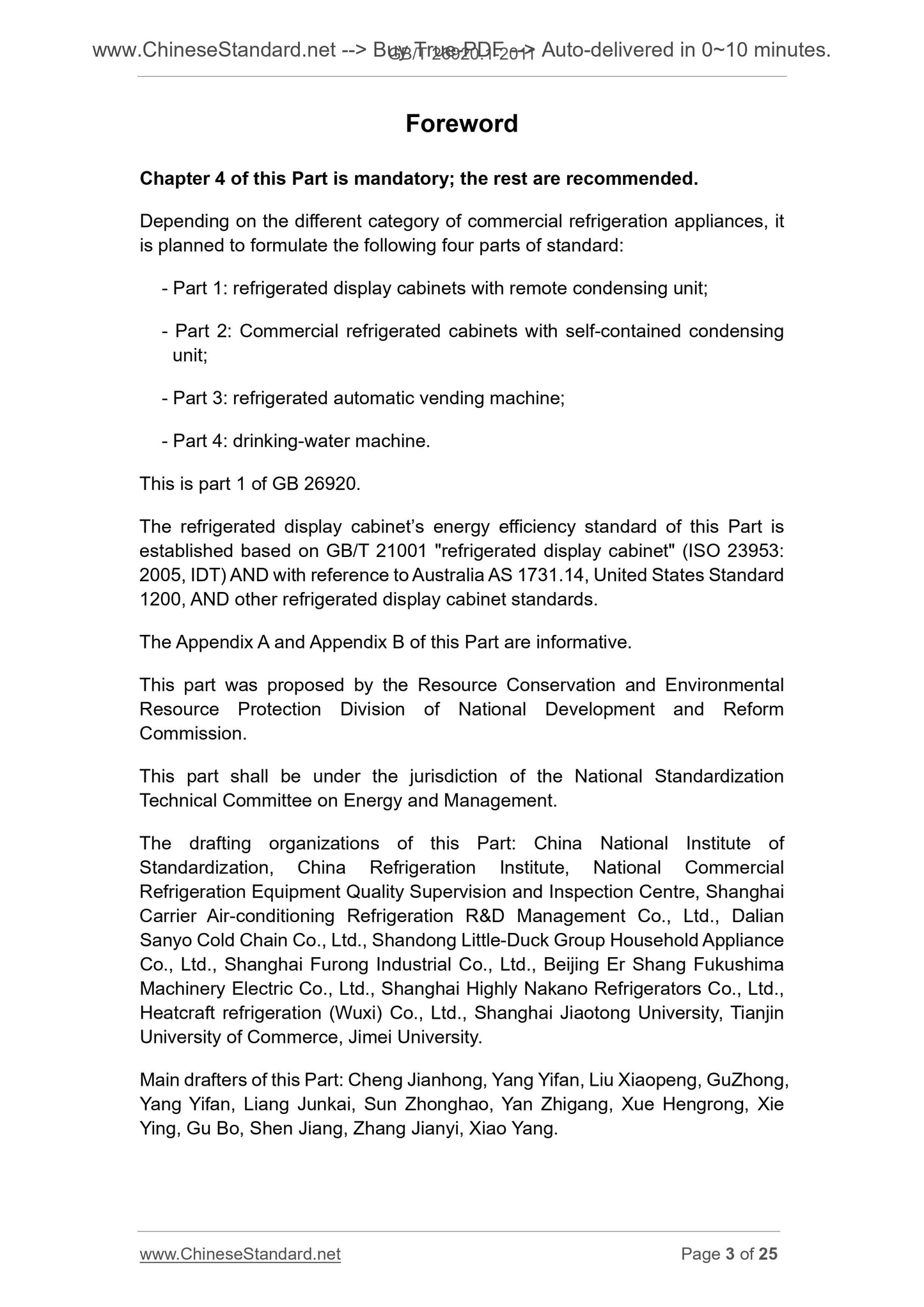

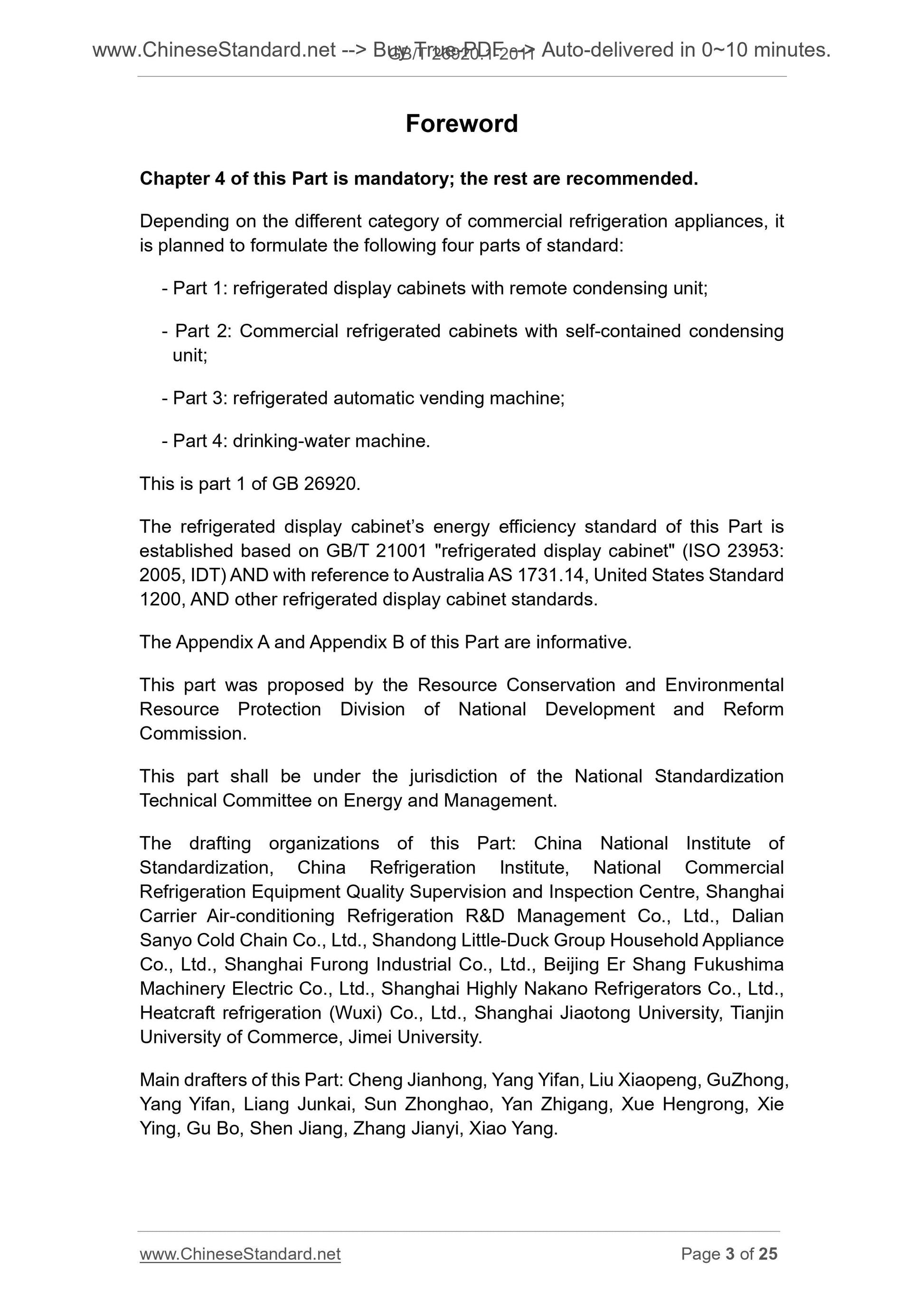

Foreword
Chapter 4 of this Part is mandatory; the rest are recommended.
Depending on the different category of commercial refrigeration appliances, it
is planned to formulate the following four parts of standard.
- Part 1. refrigerated display cabinets with remote condensing unit;
- Part 2. Commercial refrigerated cabinets with self-contained condensing
unit;
- Part 3. refrigerated automatic vending machine;
- Part 4. drinking-water machine.
This is part 1 of GB 26920.
The refrigerated display cabinet’s energy efficiency standard of this Part is
established based on GB/T 21001 "refrigerated display cabinet" (ISO 23953.
2005, IDT) AND with reference to Australia AS 1731.14, United States Standard
1200, AND other refrigerated display cabinet standards.
The Appendix A and Appendix B of this Part are informative.
This part was proposed by the Resource Conservation and Environmental
Resource Protection Division of National Development and Reform
Commission.
This part shall be under the jurisdiction of the National Standardization
Technical Committee on Energy and Management.
The drafting organizations of this Part. China National Institute of
Standardization, China Refrigeration Institute, National Commercial
Refrigeration Equipment Quality Supervision and Inspection Centre, Shanghai
Carrier Air-conditioning Refrigeration R and D Management Co., Ltd., Dalian
Sanyo Cold Chain Co., Ltd., Shandong Little-Duck Group Household Appliance
Co., Ltd., Shanghai Furong Industrial Co., Ltd., Beijing Er Shang Fukushima
Machinery Electric Co., Ltd., Shanghai Highly Nakano Refrigerators Co., Ltd.,
Heatcraft refrigeration (Wuxi) Co., Ltd., Shanghai Jiaotong University, Tianjin
University of Commerce, Jimei University.
Main drafters of this Part. Cheng Jianhong, Yang Yifan, Liu Xiaopeng, GuZhong,
Yang Yifan, Liang Junkai, Sun Zhonghao, Yan Zhigang, Xue Hengrong, Xie
Ying, Gu Bo, Shen Jiang, Zhang Jianyi, Xiao Yang.

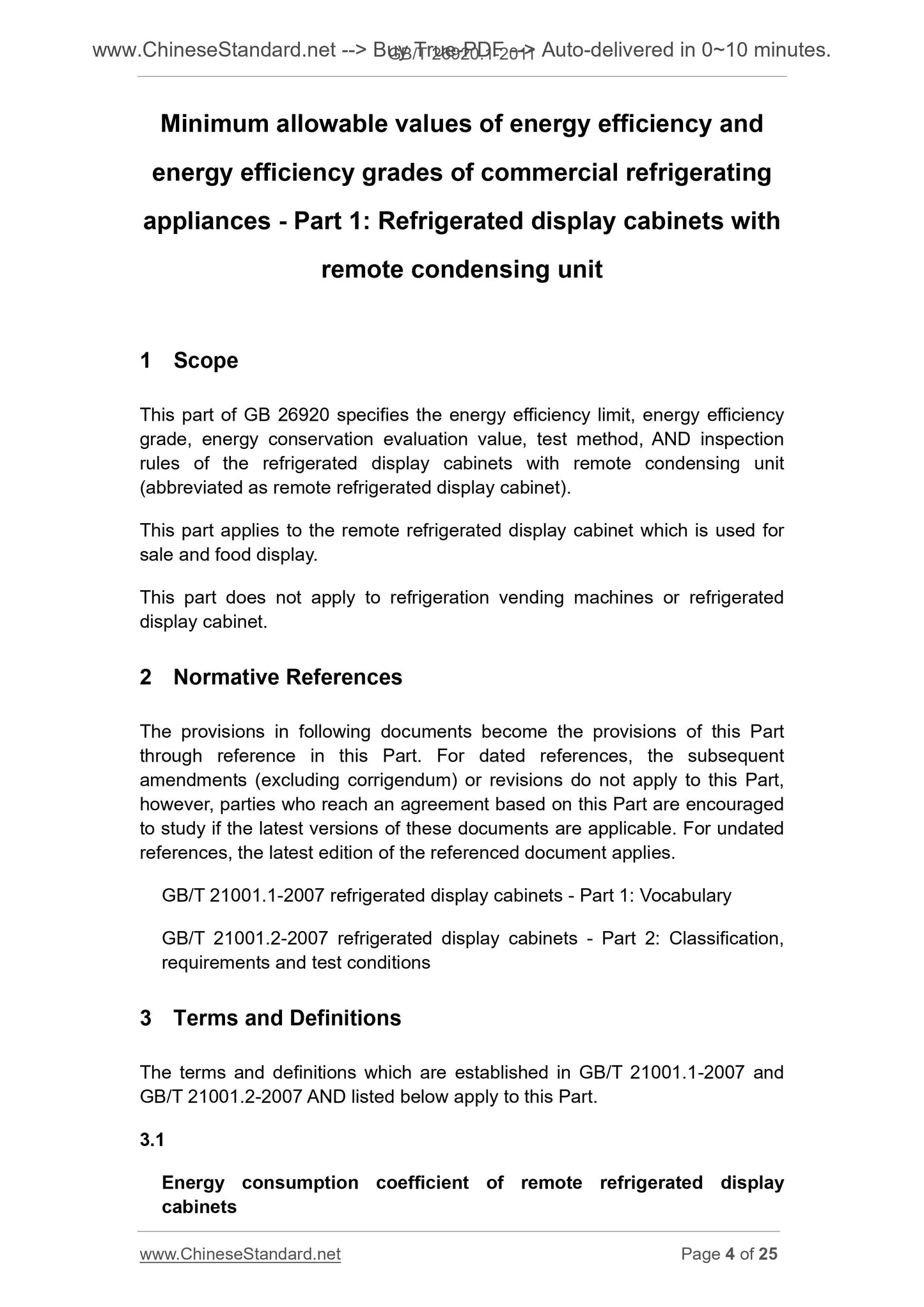

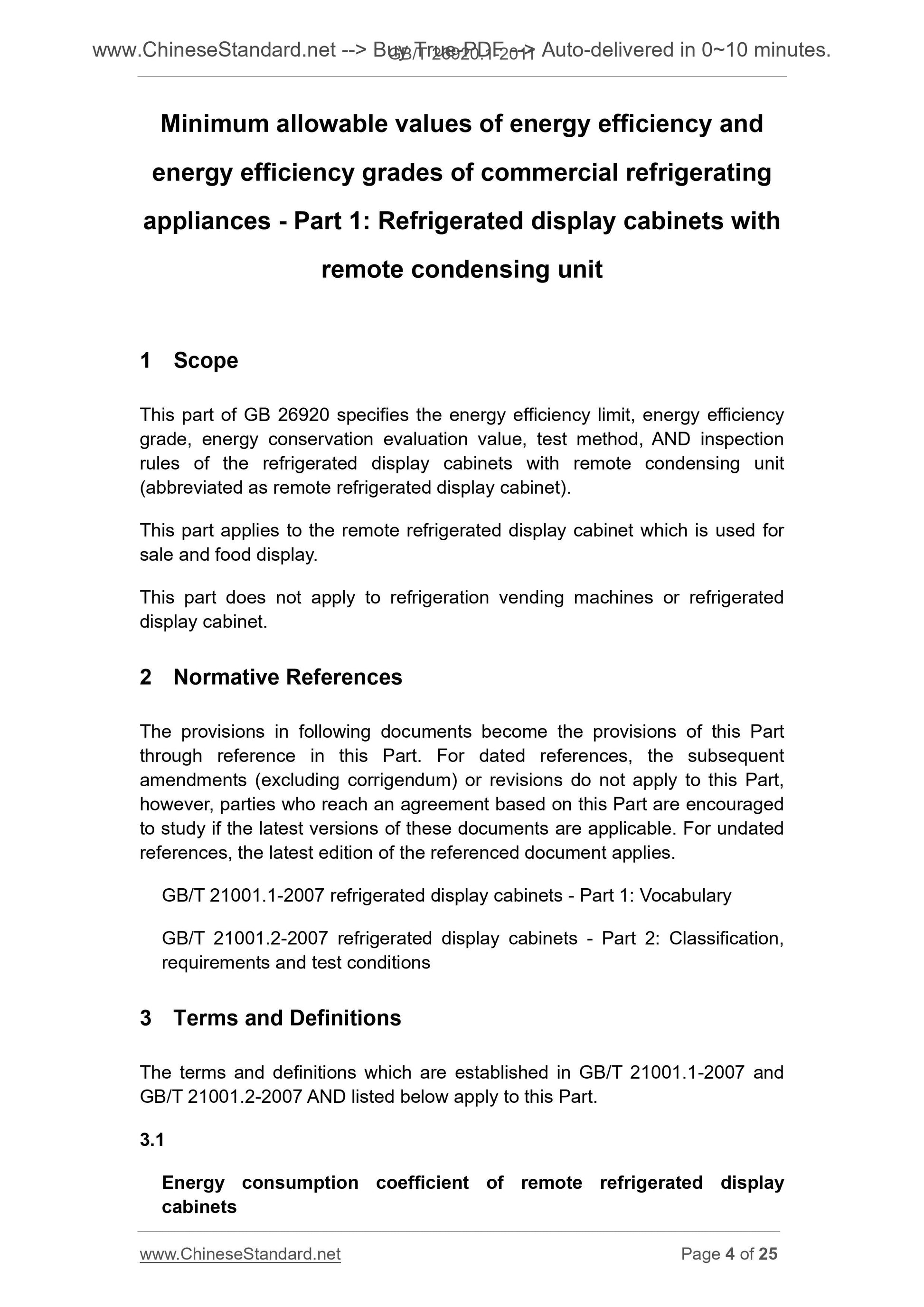

Minimum allowable values of energy efficiency and
energy efficiency grades of commercial refrigerating
appliances - Part 1. Refrigerated display cabinets with
remote condensing unit
1 Scope
This part of GB 26920 specifies the energy efficiency limit, energy efficiency
grade, energy conservation evaluation value, test method, AND inspection
rules of the refrigerated display cabinets with remote condensing unit
(abbreviated as remote refrigerated display cabinet).
This part applies to the remote refrigerated display cabinet which is used for
sale and food display.
This part does not apply to refrigeration vending machines or refrigerated
display cabinet.
2 Normative References
The provisions in following documents become the provisions of this Part
through reference in this Part. For dated references, the subsequent
amendments (excluding corrigendum) or revisions do not apply to this Part,
however, parties who reach an agreement based on this Part are encouraged
to study if the latest versions of these documents are applicable. For undated
references, the latest edition of the referenced document applies.
GB/T 21001.1-2007 refrigerated display cabinets - Part 1. Vocabulary
GB/T 21001.2-2007 refrigerated display cabinets - Part 2. Classification,
requirements and test conditions
3 Terms and Definitions
The terms and definitions which are established in GB/T 21001.1-2007 and
GB/T 21001.2-2007 AND listed below apply to this Part.
3.1
Energy consumption coefficient of remote refrigerated display
cabinets

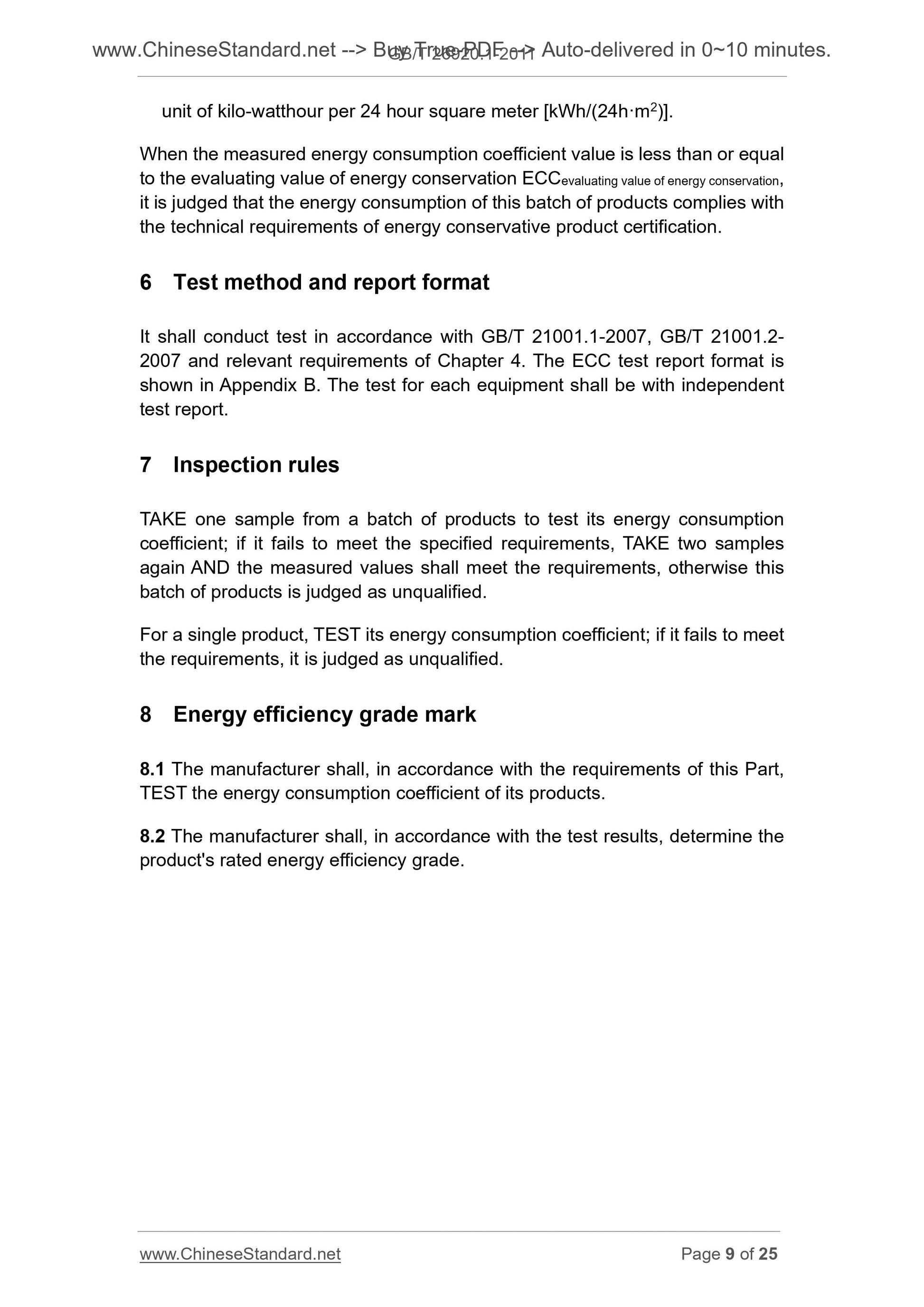

unit of kilo-watthour per 24 hour square meter [kWh/(24h·m2)].
When the measured energy consumption coefficient value is less than or equal
to the evaluating value of energy conservation ECCevaluating value of energy conservation,
it is judged that the energy consumption of this batch of products complies with
the technical requirements of energy conservative product certification.
6 Test method and report format
It shall conduct test in accordance with GB/T 21001.1-2007, GB/T 21001.2-
2007 and relevant requirements of Chapter 4. The ECC test report format is
shown in Appendix B. The test for each equipment shall be with independent
test report.
7 Inspection rules
TAKE one sample from a batch of products to test its energy consumption
coefficient; if it fails to meet the specified requirements, TAKE two samples
again AND the measured values shall meet the requirements, otherwise this
batch of products is judged as unqualified.
For a single product, TEST its energy consumption coefficient; if it fails to meet
the requirements, it is judged as unqualified.
8 Energy efficiency grade mark
8.1 The manufacturer shall, in accordance with the requirements of this Part,
TEST the energy consumption coefficient of its products.
8.2 The manufacturer shall, in accordance with the test results, determine the
product's rated energy efficiency grade.

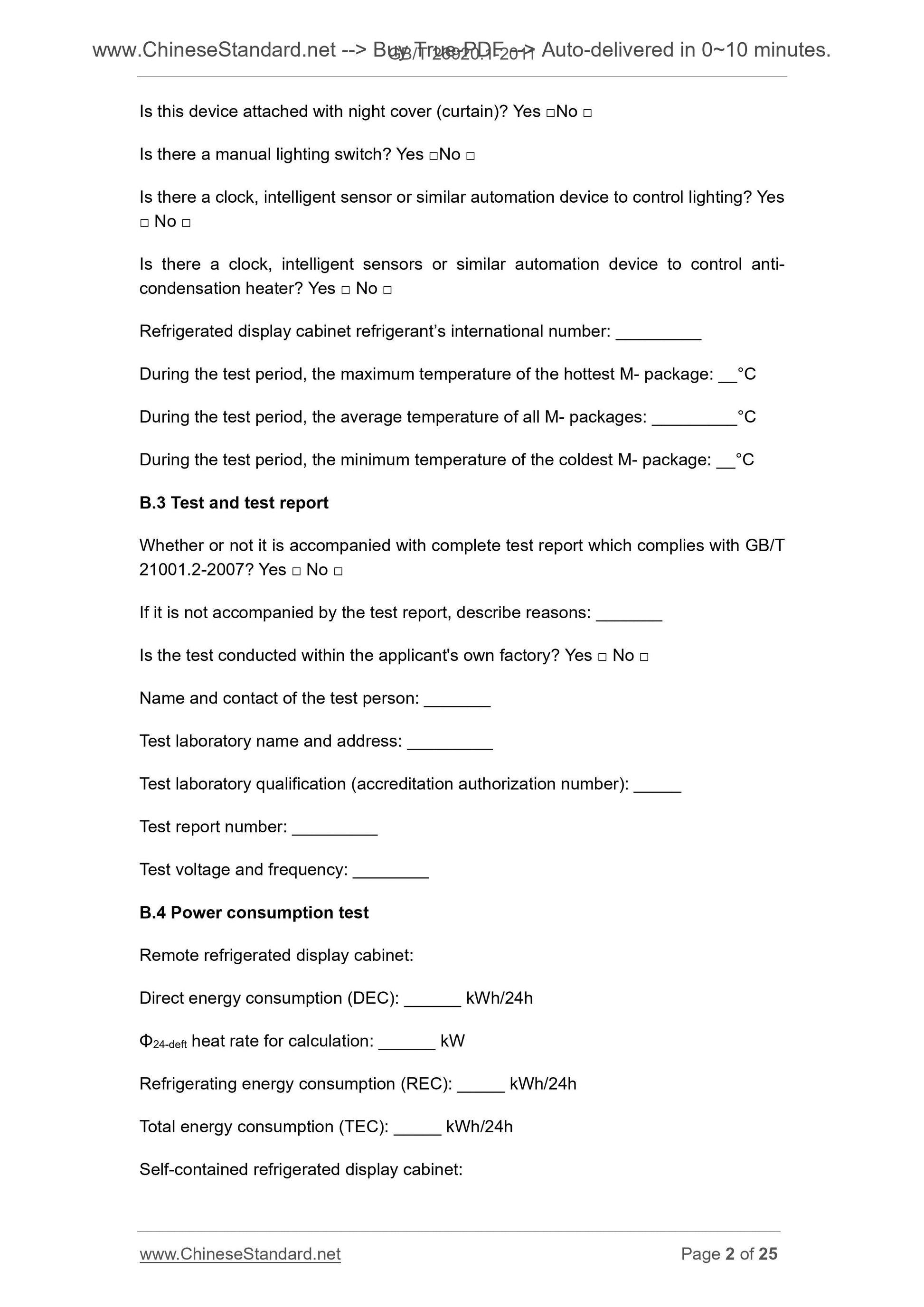

Is this device attached with night cover (curtain)? Yes □No □
Is there a manual lighting switch? Yes □No □
Is there a clock, intelligent sensor or similar automation device to control lighting? Yes
□ No □
Is there a clock, intelligent sensors or similar automation device to control anti-
condensation heater? Yes □ No □
During the test period, the maximum temperature of the hottest M- package. __°C
During the test period, the minimum temperature of the coldest M- package. __°C
B.3 Test and test report
Whether or not it is accompanied with complete test report which complies with GB/T
21001.2-2007? Yes □ No □
Is the test conducted within the applicant's own factory? Yes □ No □
Test laboratory qualification (accreditation authorization number). _____
B.4 Power consumption test
Remote refrigerated display cabinet.
Refrigerating energy consumption (REC). _____ kWh/24h
Total energy consumption (TEC). _____ kWh/24h
Self-contained refrigerated display cabinet.
