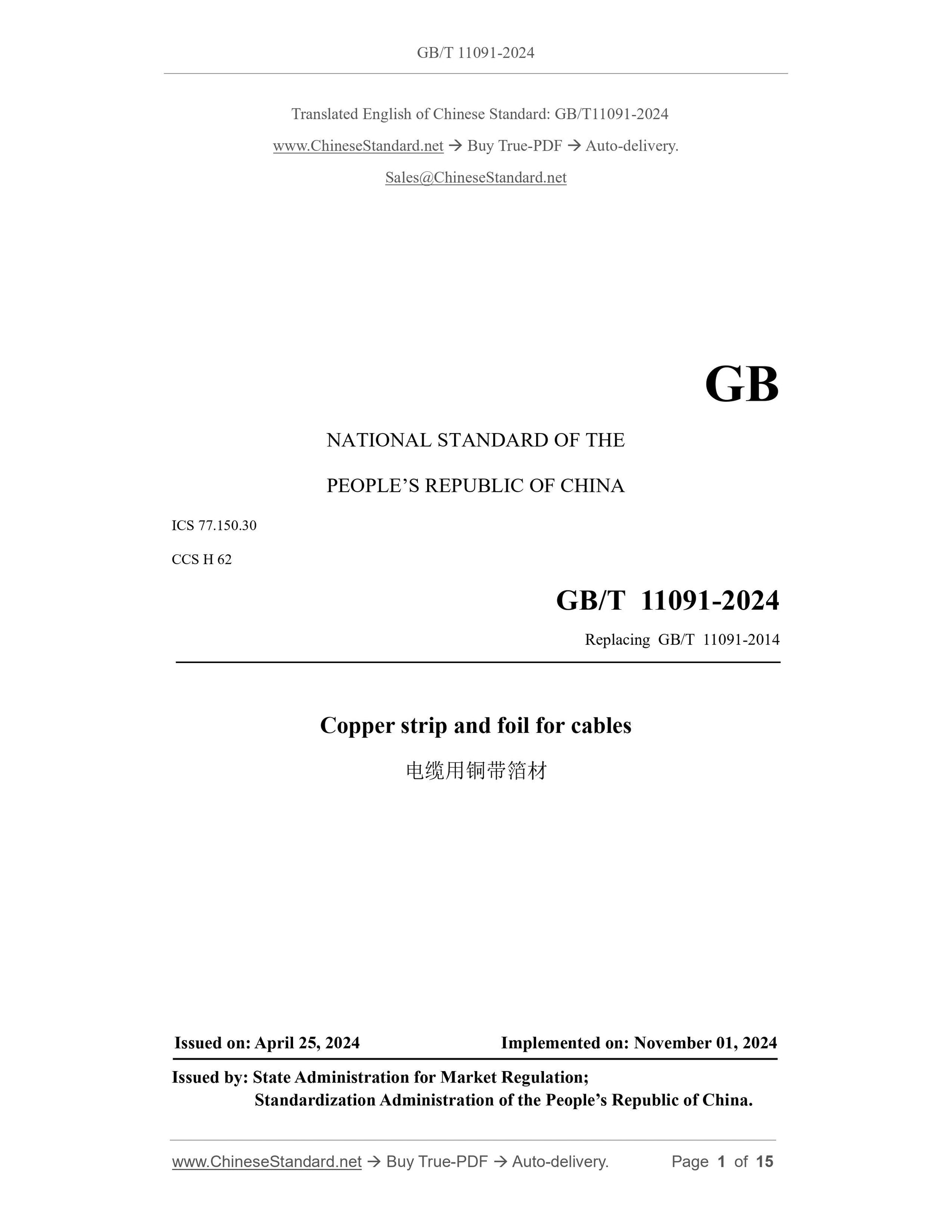

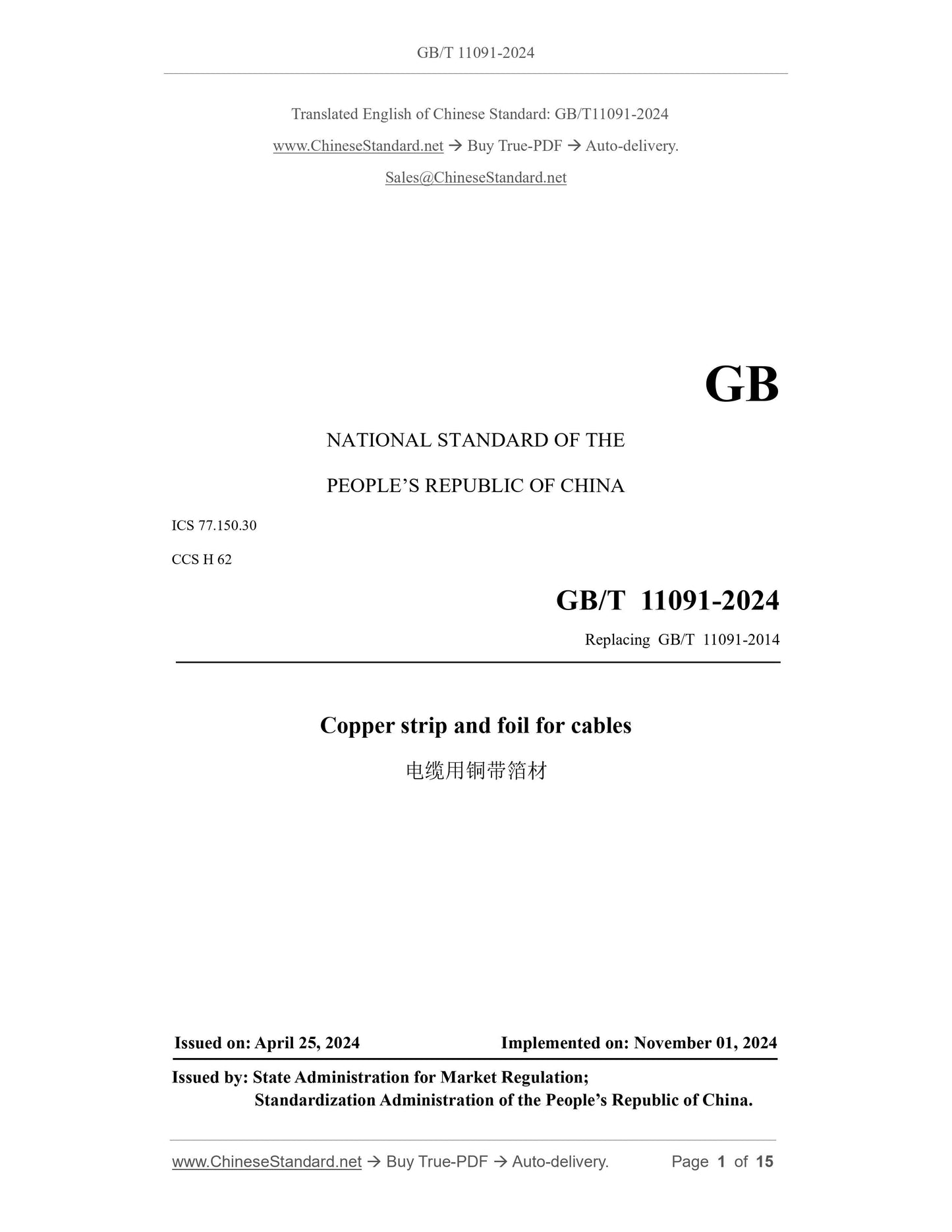

GB/T 11091-2024: Copper strip and foil for cables
GB/T 11091-2024
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.30
CCS H 62
Replacing GB/T 11091-2014
Copper strip and foil for cables
ISSUED ON: APRIL 25, 2024
IMPLEMENTED ON: NOVEMBER 01, 2024
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

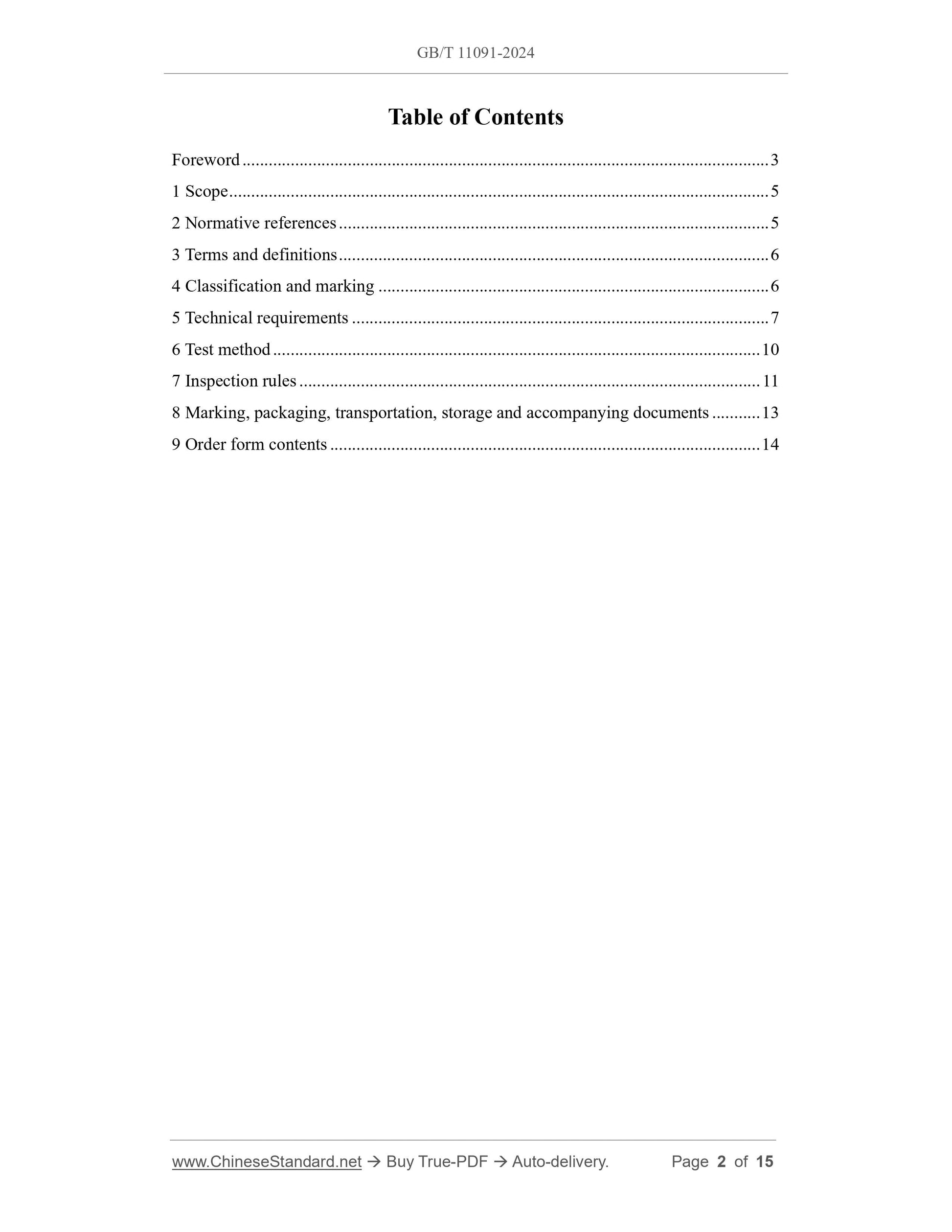

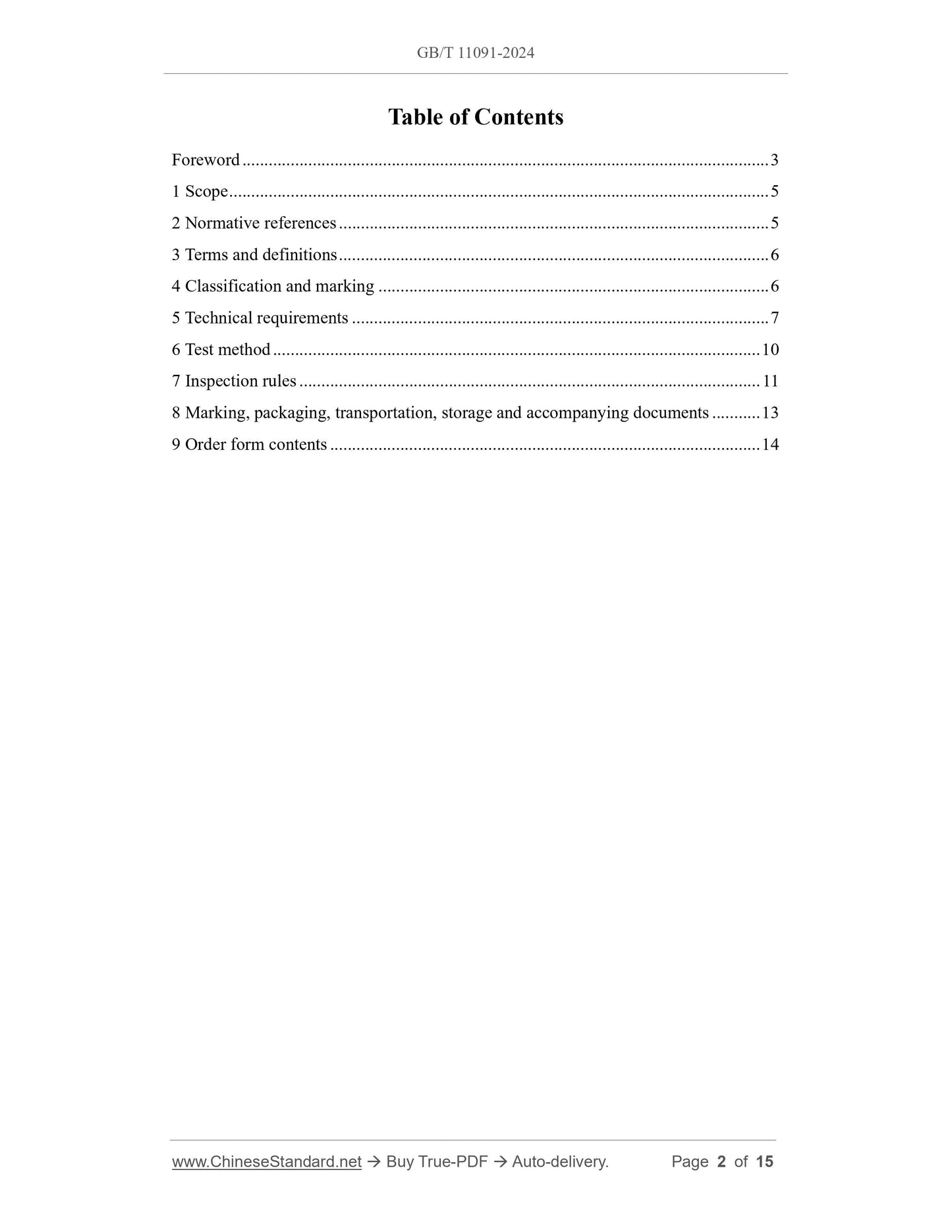

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Classification and marking ... 6
5 Technical requirements ... 7
6 Test method ... 10
7 Inspection rules ... 11
8 Marking, packaging, transportation, storage and accompanying documents ... 13
9 Order form contents ... 14

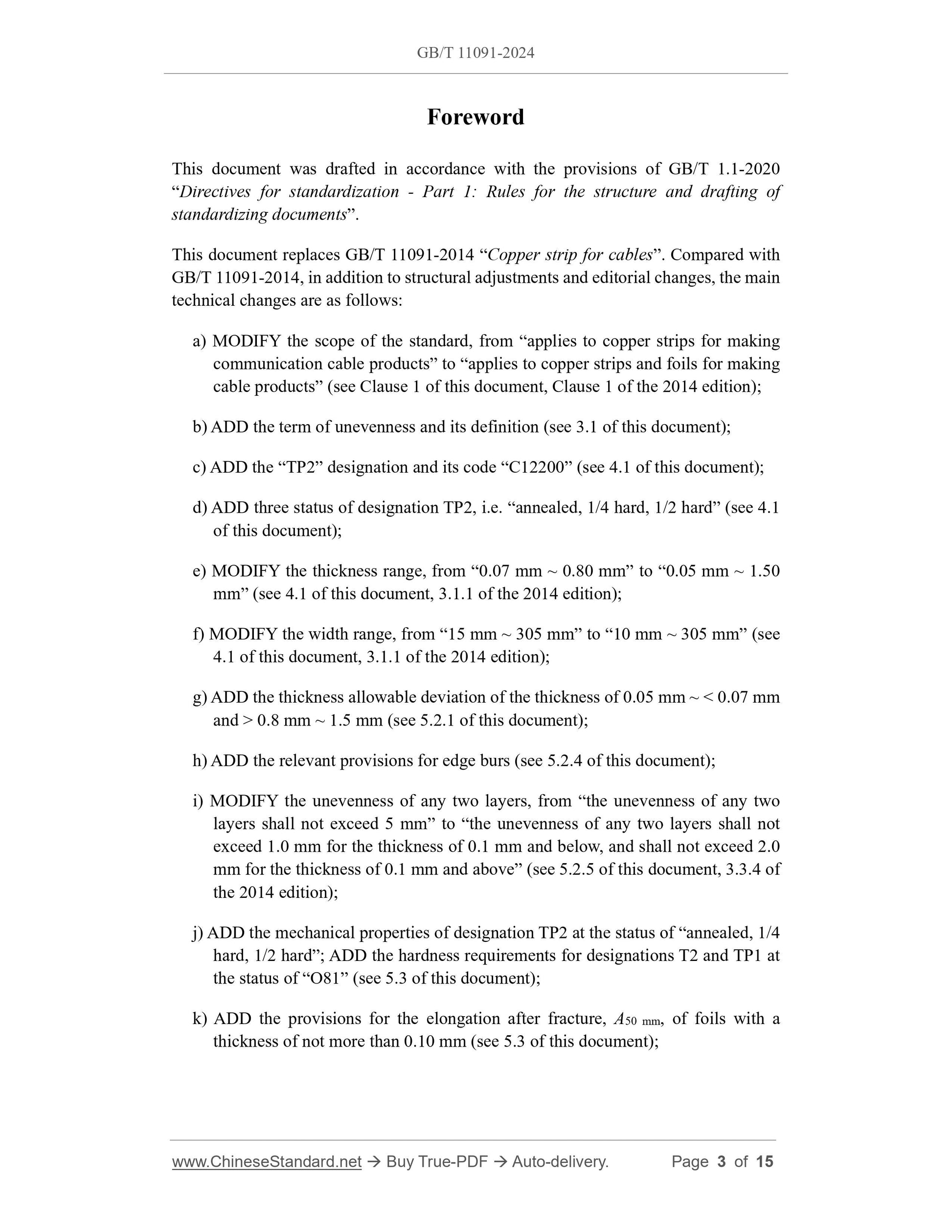

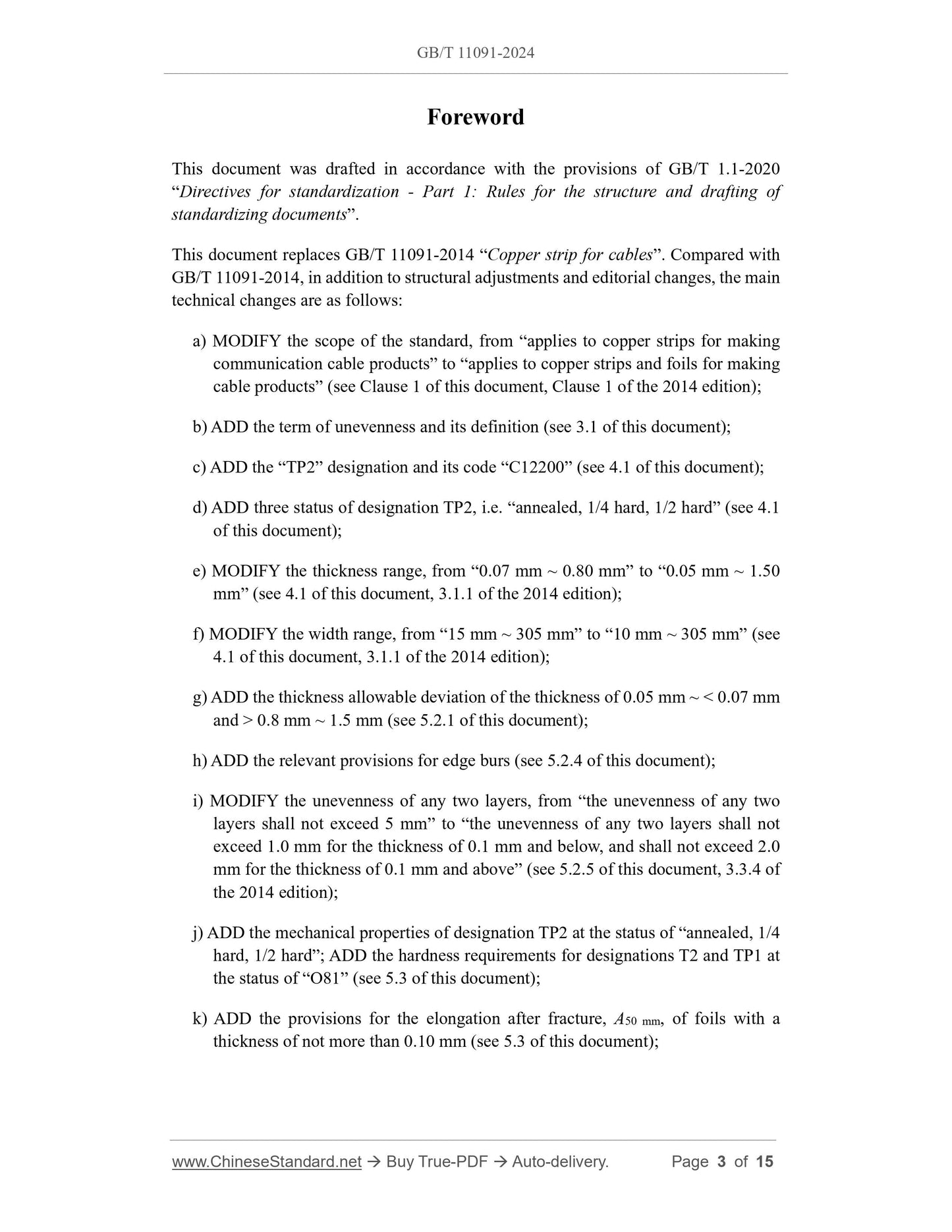

Foreword
This document was drafted in accordance with the provisions of GB/T 1.1-2020
“Directives for standardization - Part 1: Rules for the structure and drafting of
standardizing documents”.
This document replaces GB/T 11091-2014 “Copper strip for cables”. Compared with
GB/T 11091-2014, in addition to structural adjustments and editorial changes, the main
technical changes are as follows:
a) MODIFY the scope of the standard, from “applies to copper strips for making
communication cable products” to “applies to copper strips and foils for making
cable products” (see Clause 1 of this document, Clause 1 of the 2014 edition);
b) ADD the term of unevenness and its definition (see 3.1 of this document);
c) ADD the “TP2” designation and its code “C12200” (see 4.1 of this document);
d) ADD three status of designation TP2, i.e. “annealed, 1/4 hard, 1/2 hard” (see 4.1
of this document);
e) MODIFY the thickness range, from “0.07 mm ~ 0.80 mm” to “0.05 mm ~ 1.50
mm” (see 4.1 of this document, 3.1.1 of the 2014 edition);
f) MODIFY the width range, from “15 mm ~ 305 mm” to “10 mm ~ 305 mm” (see
4.1 of this document, 3.1.1 of the 2014 edition);
g) ADD the thickness allowable deviation of the thickness of 0.05 mm ~ < 0.07 mm
and > 0.8 mm ~ 1.5 mm (see 5.2.1 of this document);
h) ADD the relevant provisions for edge burs (see 5.2.4 of this document);
i) MODIFY the unevenness of any two layers, from “the unevenness of any two
layers shall not exceed 5 mm” to “the unevenness of any two layers shall not
exceed 1.0 mm for the thickness of 0.1 mm and below, and shall not exceed 2.0
mm for the thickness of 0.1 mm and above” (see 5.2.5 of this document, 3.3.4 of
the 2014 edition);
j) ADD the mechanical properties of designation TP2 at the status of “annealed, 1/4
hard, 1/2 hard”; ADD the hardness requirements for designations T2 and TP1 at
the status of “O81” (see 5.3 of this document);
k) ADD the provisions for the elongation after fracture, A50 mm, of foils with a
thickness of not more than 0.10 mm (see 5.3 of this document);
Copper strip and foil for cables

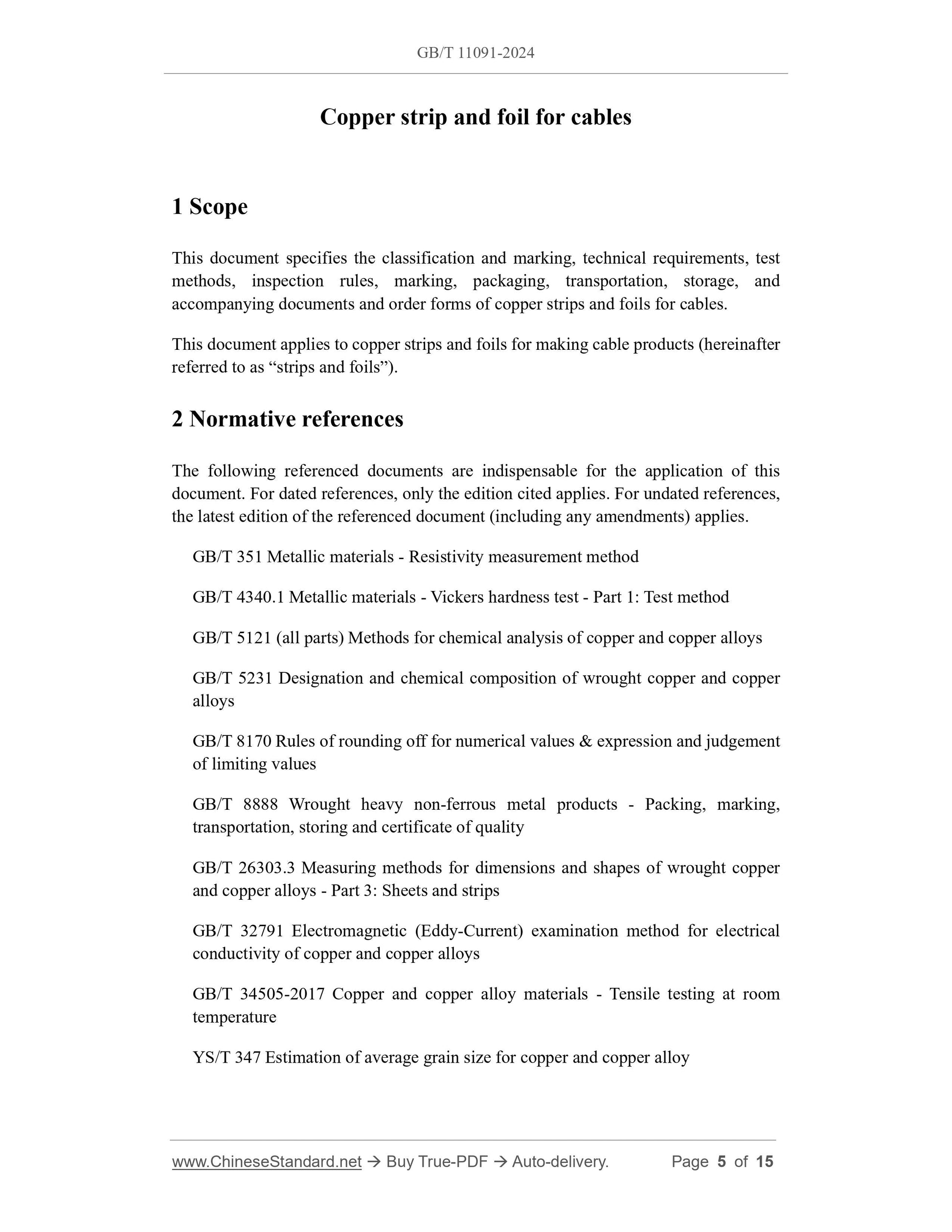

1 Scope
This document specifies the classification and marking, technical requirements, test
methods, inspection rules, marking, packaging, transportation, storage, and
accompanying documents and order forms of copper strips and foils for cables.
This document applies to copper strips and foils for making cable products (hereinafter
referred to as “strips and foils”).
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 351 Metallic materials - Resistivity measurement method
GB/T 4340.1 Metallic materials - Vickers hardness test - Part 1: Test method
GB/T 5121 (all parts) Methods for chemical analysis of copper and copper alloys
GB/T 5231 Designation and chemical composition of wrought copper and copper
alloys
GB/T 8170 Rules of rounding off for numerical values and expression and judgement
of limiting values
GB/T 8888 Wrought heavy non-ferrous metal products - Packing, marking,
transportation, storing and certificate of quality
GB/T 26303.3 Measuring methods for dimensions and shapes of wrought copper
and copper alloys - Part 3: Sheets and strips
GB/T 32791 Electromagnetic (Eddy-Current) examination method for electrical
conductivity of copper and copper alloys
GB/T 34505-2017 Copper and copper alloy materials - Tensile testing at room
temperature
YS/T 347 Estimation of average grain size for copper and copper alloy

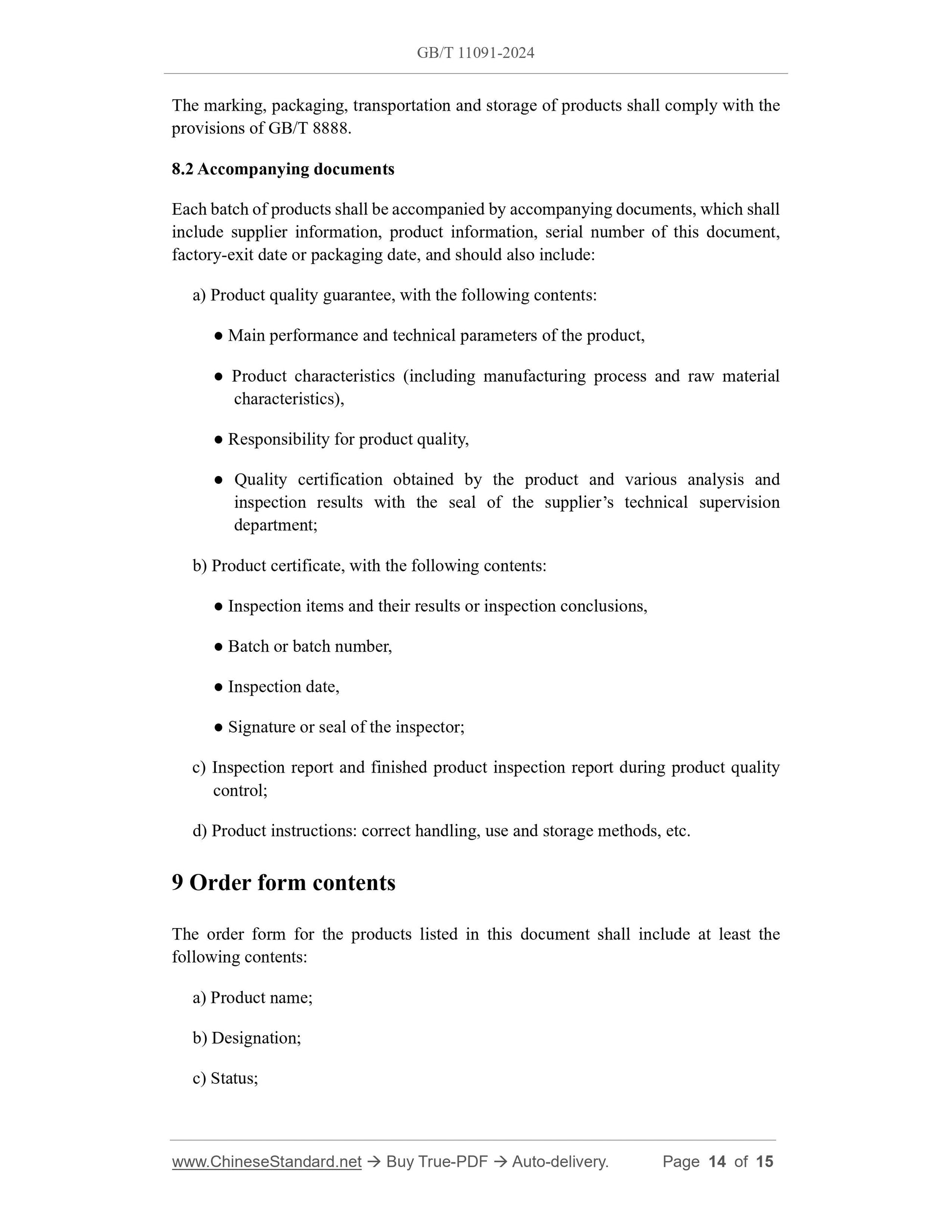

The marking, packaging, transportation and storage of products shall comply with the
provisions of GB/T 8888.
8.2 Accompanying documents
Each batch of products shall be accompanied by accompanying documents, which shall
include supplier information, product information, serial number of this document,
factory-exit date or packaging date, and should also include:
a) Product quality guarantee, with the following contents:
● Main performance and technical parameters of the product,
● Product characteristics (including manufacturing process and raw material
characteristics),
● Responsibility for product quality,
● Quality certification obtained by the product and various analysis and
inspection results with the seal of the supplier’s technical supervision
department;
b) Product certificate, with the following contents:
● Inspection items and their results or inspection conclusions,
● Batch or batch number,
● Inspection date,
● Signature or seal of the inspector;
c) Inspection report and finished product inspection report during product quality
control;
d) Product instructions: correct handling, use and storage methods, etc.
9 Order form contents
The order form for the products listed in this document shall include at least the
following contents:
a) Product name;
b) Designation;
c) Status;
