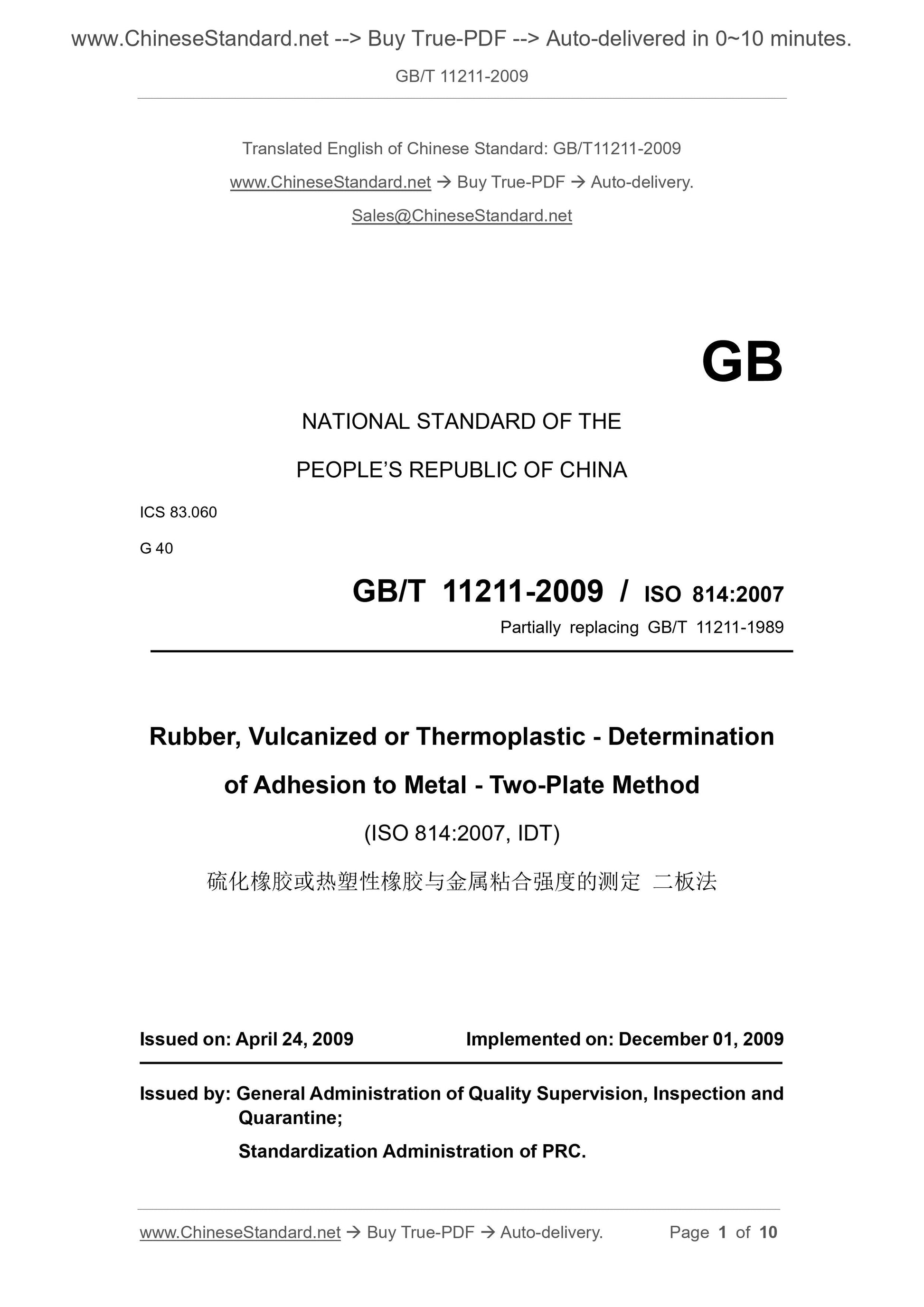

GB/T 11211-2009: Rubber, vulcanized or thermoplastic -- Determination of adhesion to metal -- Two-plate method
GB/T 11211-2009
Rubber, vulcanized and thermoplastic.Determination of adhesion to metal.Two-plate method
ICS 83.060
G40
National Standards of People's Republic of China
GB/T 11211-2009/ISO 814.2007
Replace GB/T 11211-1989
Vulcanized rubber or thermoplastic rubber
Two-plate method for determining the bond strength with metals
(ISO 814.2007, IDT)
Released on.2009-04-24
2009-12-01 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China
China National Standardization Administration issued

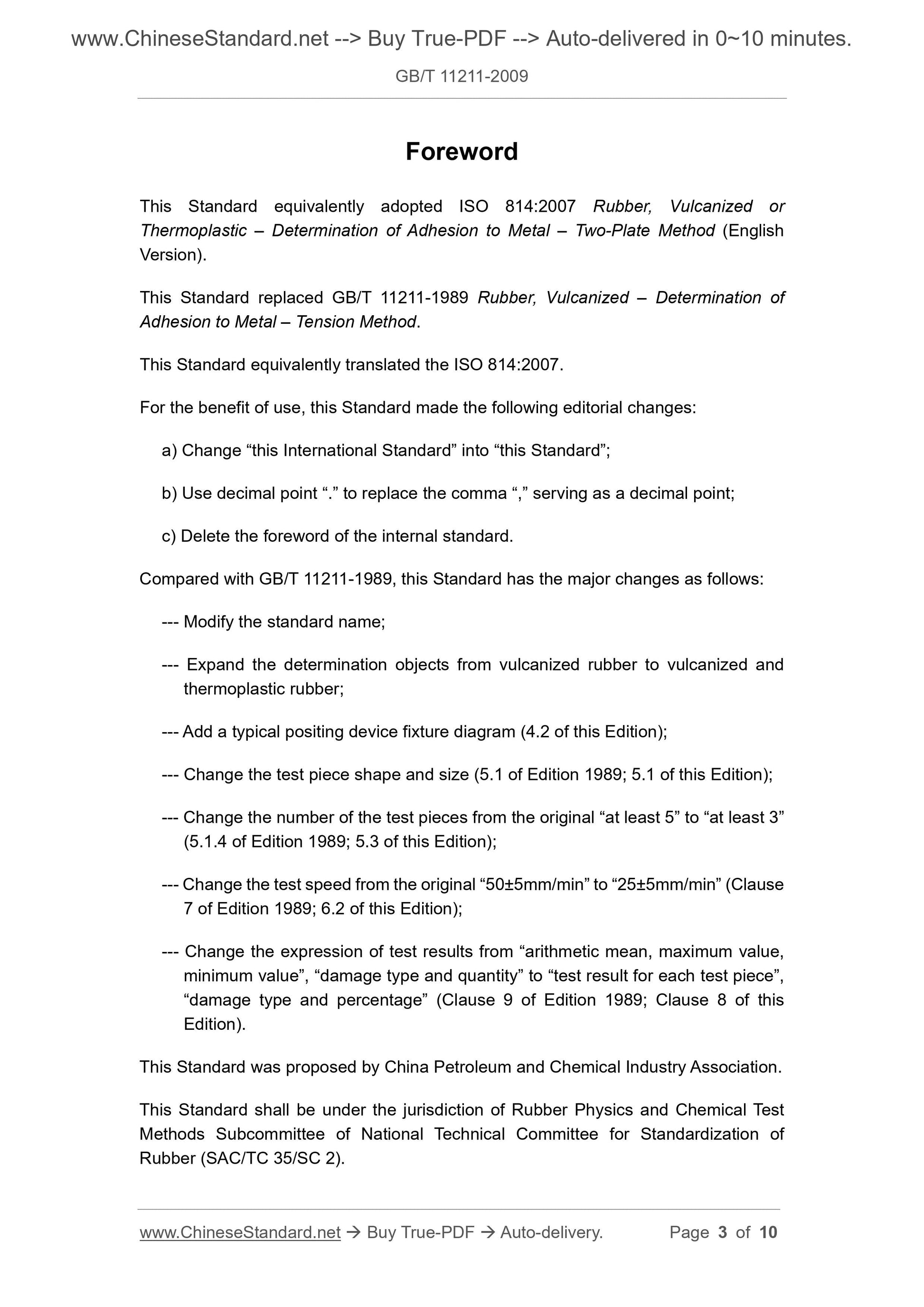

Foreword
This standard is equivalent to ISO 814.2007 "Vulcanized rubber or thermoplastic rubber --- Determination of the bond strength with metal --- two-board method"
(English version).
This standard replaces GB/T 11211-1989 "Determination of the adhesion strength of vulcanized rubber and metal."
This standard is equivalent to translation ISO 814.2007.
For ease of use, this standard makes the following editorial changes.
a) the words “this International Standard” are replaced by the words “this standard”;
b) Replace the comma "," as a decimal point with a decimal point ".";
c) Remove the preface to international standards.
The main changes in this standard compared with GB/T 11211-1989 are as follows.
---Modified the name of the standard;
--- The object of measurement is expanded from vulcanized rubber to vulcanized rubber and thermoplastic rubber;
--- Increase the typical positioning device fixture diagram (4.2 of this edition);
--- Sample shape and size change (5.1 of the 1989 edition; 5.1 of this edition);
--- The number of samples changed from "not less than 5" to "at least 3" (5.1.4 of the 1989 edition; 5.3 of this edition);
---The test speed was changed from the original "50±5mm/min" to "25mm/min±5mm/min" (Chapter 7 of the 1989 edition;
Version 6.2);
--- The test result is changed from "arithmetic mean, highest value, lowest value", "destruction type and quantity" to "test knot of each sample"
"", "Type and percentage of damage" (Chapter 9 of the 1989 edition; Chapter 8 of this edition).
This standard was proposed by the China Petroleum and Chemical Industry Association.
This standard is under the jurisdiction of the National Rubber Standards Committee for Rubber Physics and Chemical Testing Methods Standardization Sub-Committee (SAC/TC35/SC2).

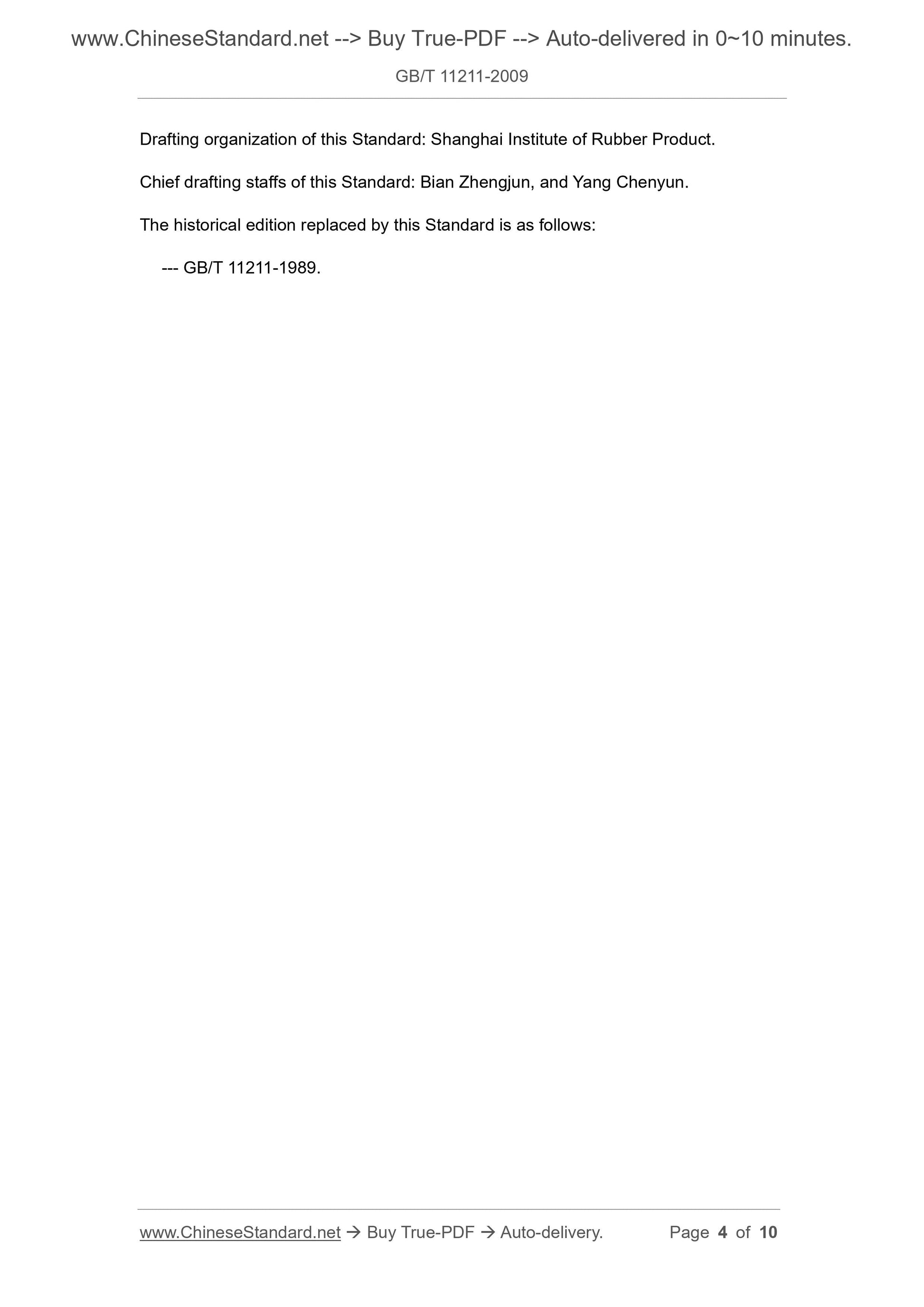

This standard was drafted. Shanghai Rubber Products Research Institute.
The main drafters of this standard. Qi Zhengjun, Yang Chenxi.
The previous versions of the standards replaced by this standard are.
---GB/T 11211-1989.
GB/T 11211-2009/ISO 814.2007
Vulcanized rubber or thermoplastic rubber
Two-plate method for determining the bond strength with metals
Warning. Personnel using this standard should have practical experience in formal laboratory work. This standard is not intended to be relevant due to the use of this standard.
For current safety issues, it is the responsibility of the user to take appropriate safety and health measures and to ensure compliance with the relevant national regulations.
Note. Some operations involved in this standard may use, generate some substances or generate waste and have a pollution to the local environment.
Appropriate documents for the disposal of these substances after use should be developed.

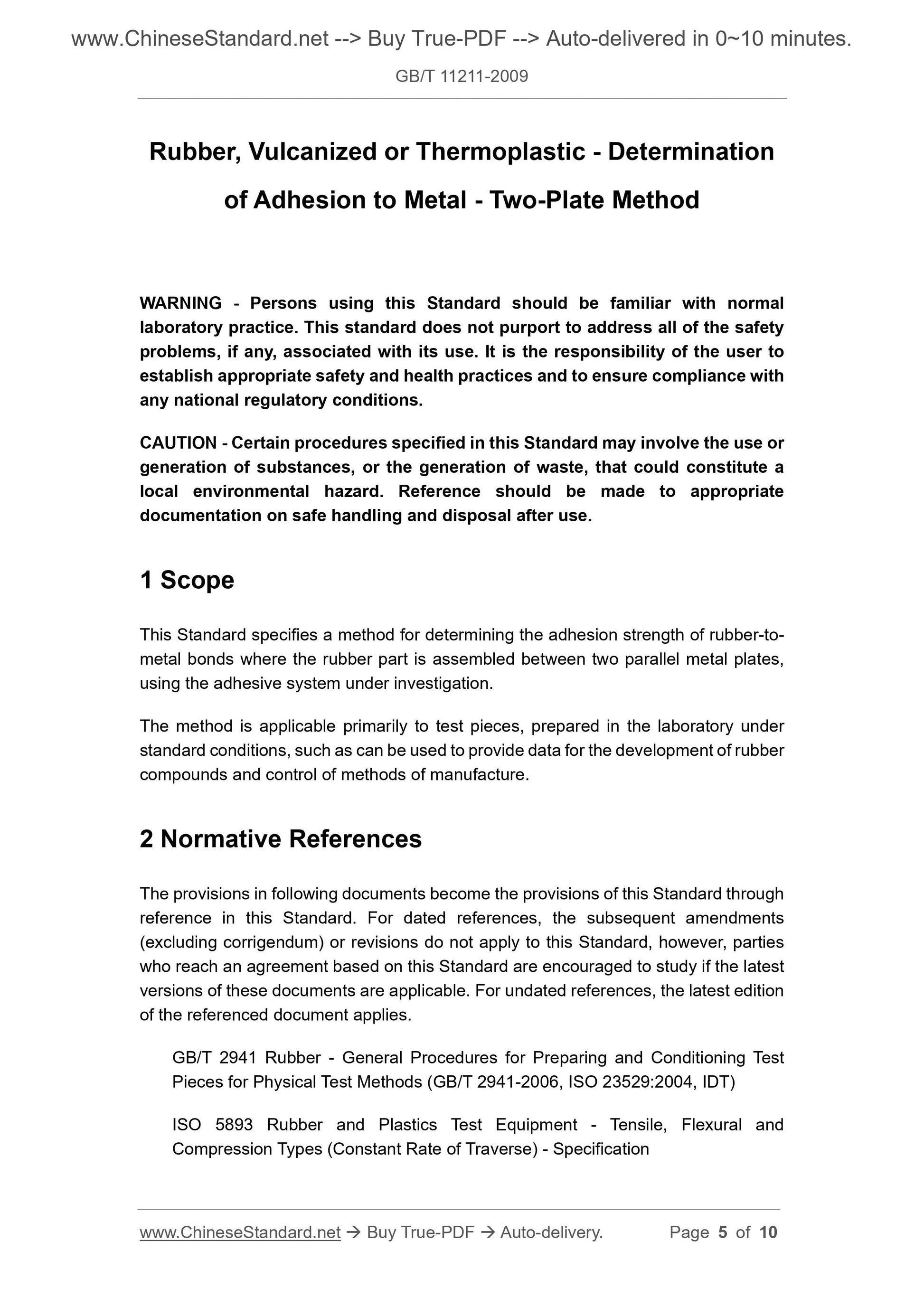

1 range
This standard specifies the test method for determining the bond strength between rubber and metal bonded between two parallel metal sheets.
The method is applicable to samples prepared under the conditions of standard laboratories, and the test results can also be the development and manufacturing methods of rubber compounds.
The study provides experimental data.
2 Normative references
The terms in the following documents become the terms of this standard by reference to this standard. All dated references, followed by all
Modifications (not including errata content) or revisions do not apply to this standard, however, parties to agreements based on this standard are encouraged to study
Is it possible to use the latest version of these files? For undated references, the latest edition applies to this standard.
GB/T 2941 Rubber physical test method General procedure for preparation and adjustment of specimens (GB/T 2941-2006, ISO 23529.2004,
IDT)
ISO 5893 Rubber and plastic testing equipment - tensile, bending and compression type (constant speed drive) - description
3 Principle
This method measures the force required to cause a bond failure in a standard size specimen. The sample is adhered to the rubber layer by two parallel metal sheets.
In combination, the direction of the force is 90° to the bonding surface.
4 test equipment
4.1 Tensile testing machine
The tensile testing machine shall comply with the requirements of ISO 5893, and the force measurement accuracy shall reach the level 2 specified in ISO 5893. Speed of fixture movement
The degree is 25 mm/min ± 5 mm/min.
Note. The inertia (pendulum) type dynamometer is prone to different results due to friction and inertia effects. No inertia (for example, electronic or optical sensor) type dynamometer
The results are not affected by these factors and are therefore preferred.
4.2 Positioning device
It is used to fix the specimen in the testing machine (4.1) and to ensure that the force applied during the test is accurately centered.
The recommended positioning device is shown in Figure 1.
GB/T 11211-2009/ISO 814.2007
The unit is mm
a) assembly b) part A---tail plug connected to the test machine
c) part B---stop block connected to part C) part C---opening for assembling the sample and connecting with part B
A to C--- see b), c), d);
D---metal part of the sample;
E---rubber.
Figure 1 Test fixture for fixing rubber and metal bonded specimens
GB/T 11211-2009/ISO 814.2007
5 sample
5.1 size
The standard specimen has a thickness of 3mm ± 0.1mm and a rubber cylinder with a diameter of 35mm to 40mm. The measurement accuracy is
0.1mm. Its rounded end face is bonded to two metal plates of comparable diameter. Dimensional measurement is performed in accordance with GB/T 2941. The diameter of the metal plate is about
It is 0.1mm smaller than the diameter of the rubber cylinder. The thickness of the metal plate is not less than 9 mm. The recommended sample format is shown in Figure 2.
The unit is mm
1---Test strips.
Figure 2 standard sample
5.2 Sample preparation
5.2.1 Standard size circular metal sheets are preferably made of rolled carbon steel rods. It is also possible to use other parts whose dimensions are the same as the basic dimensions.
metal. The preparation and processing of smooth metal sheets should be carried out in accordance with the bonding system requirements studied.
5.2.2 Cut the unvulcanized rubber disc with a circular punching knife, the size should be such that the amount of glue is limited when molding. According to the bonding system under study
The rubber surface bonded to the metal is treated.
5.2.3 Rubber discs and metal sheets are assembled and vulcanized in a mold. The structure of the mold should be such that the rubber protrudes from the edge of the metal plate by about 0.05 mm to
Prevent tearing of the rubber by the metal edge during the test.
5.2.4 Care should be taken when preparing the sample so that the bonding surface of the rubber and metal does not contaminate dust, moisture and foreign matter. Not when assembling samples
Apply hand contact adhesive surface.
5.2.5 It shall be heated at a controlled temperature and pressure for a specified period of time for compression molding. The time and temperature of vulcanization should be studied
The requirements of the adhesive system are consistent.
5.2.6 After the end of vulcanization, the sample should be taken out of the mold very carefully to avoid the adhesive surface of the sample being improperly cooled before cooling.
stress.
5.3 Number of samples
At least 3 samples should be tested.
5.4 Sample adjustment
5.4.1 Before the test, the sample shall be at least in accordance with the requirements of GB/T 2941 at the standard laboratory temperature (23 °C ± 2 °C or 27 °C ± 2 °C).
Adjust for 16h. For comparison purposes, one or a series of tests should always be performed at the same temperature.
5.4.2 The time interval between test and vulcanization shall comply with the requirements of GB/T 2941.
6 test steps
6.1 Mount the specimen on the positioning device of the testing machine, and pay great attention to adjust the specimen to center it so that the force is evenly divided during the test.
The cloth is on the entire cross section.
6.2 Apply tension to the clamp so that the clamp moves at a constant speed of 25mm/min±5mm/min until the specimen is destroyed.
Maximum force value.
GB/T 11211-2009/ISO 814.2007
Book GB/T 11211-2009/ISO 814.2007
7 results are expressed
7.1 Bond strength
The bond strength is calculated by dividing the maximum force value by the cross-sectional area of the sample, in MPa.
7.2 Symbol of bond failure
a) R indicates rubber damage;
b) RC indicates rubber and coating damage;
c) CP indicates coating and undercoat damage;
d) M indicates metal and primer damage.
8 test report
The test report shall include at least the following.
a) the number of this standard;
b) Detailed description of the test piece.
1) time and temperature of vulcanization;
2) the date of vulcanization;
3) The metal used is different from the specified steel.
c) Detailed description of the test.
1) The time and temperature at which the sample is adjusted;
2) test temperature;
3) Record all abnormal features in the measurement;
4) the number of test samples;
5) All operations not covered by this standard and with reference to this standard, and all operations deemed to be optional.
d) Test results.
1) Indicate the test results for each sample as required by 7.1;
2) Describe the type of failure as specified in 7.2, indicating the percentage of each type of failure.
e) Test date.
