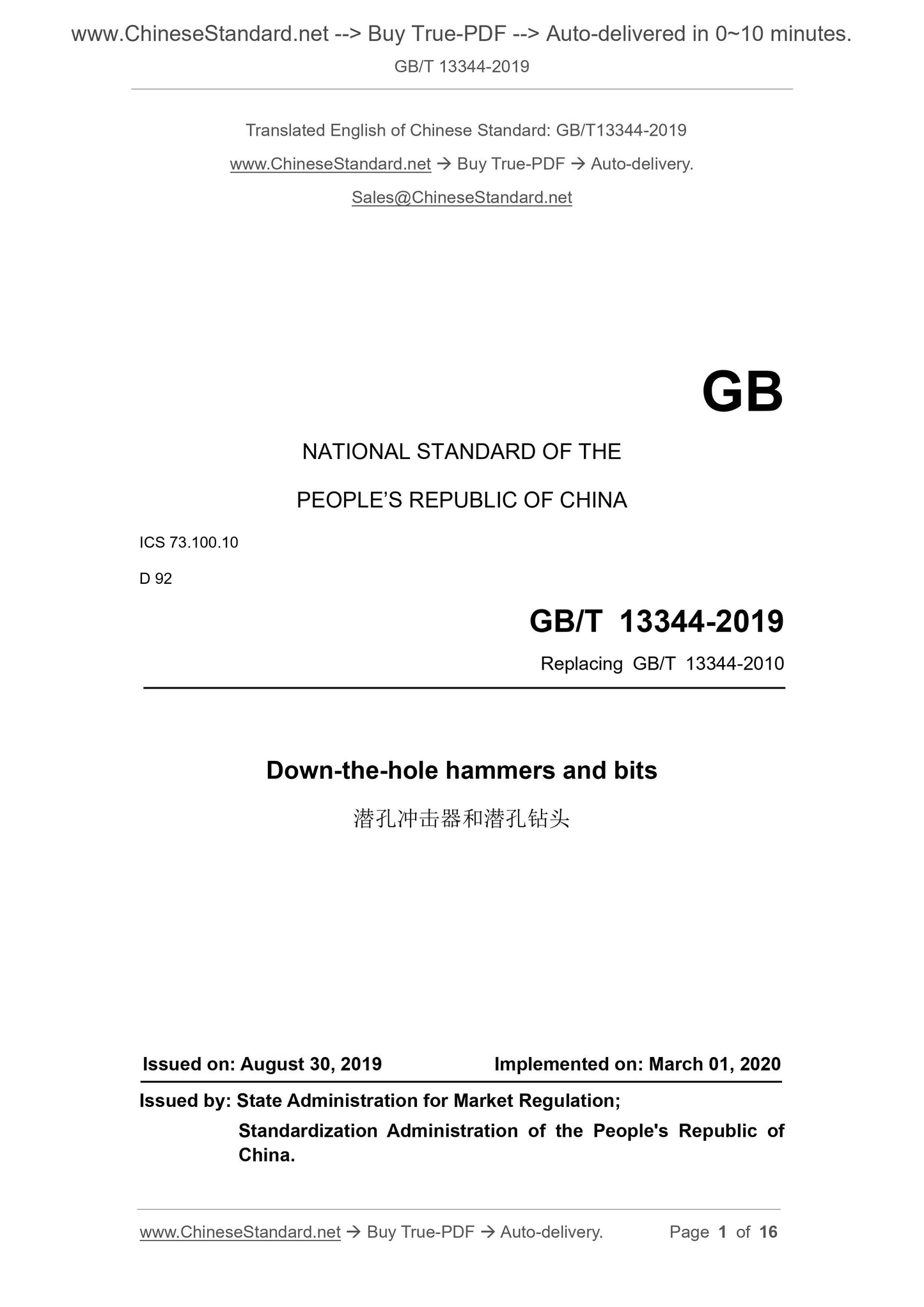

GB/T 13344-2019
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 73.100.10
D 92
Replacing GB/T 13344-2010
Down-the-hole hammers and bits
ISSUED ON: AUGUST 30, 2019
IMPLEMENTED ON: MARCH 01, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of
China.

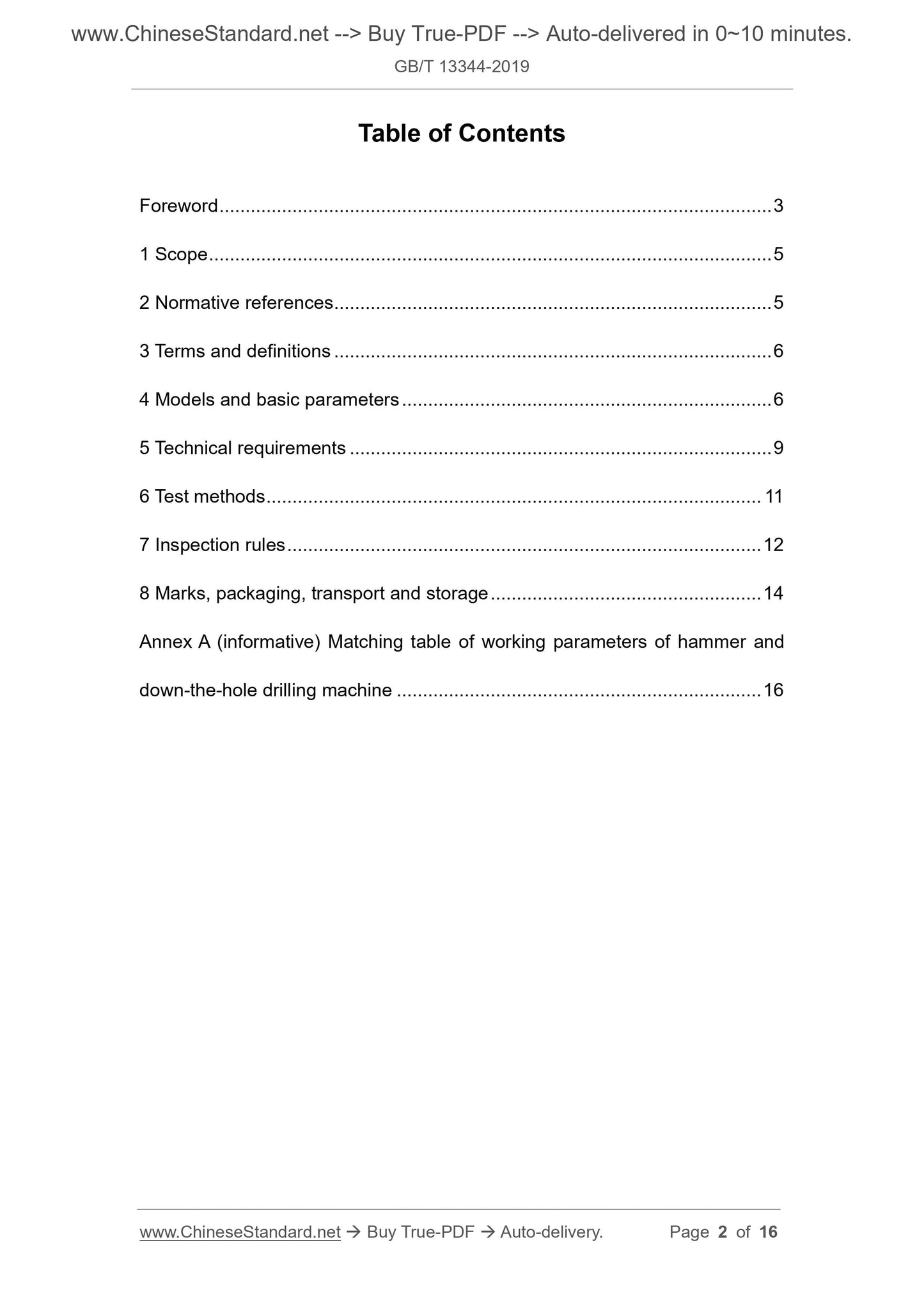

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Models and basic parameters ... 6
5 Technical requirements ... 9
6 Test methods ... 11
7 Inspection rules ... 12
8 Marks, packaging, transport and storage ... 14
Annex A (informative) Matching table of working parameters of hammer and
down-the-hole drilling machine ... 16
Down-the-hole hammers and bits

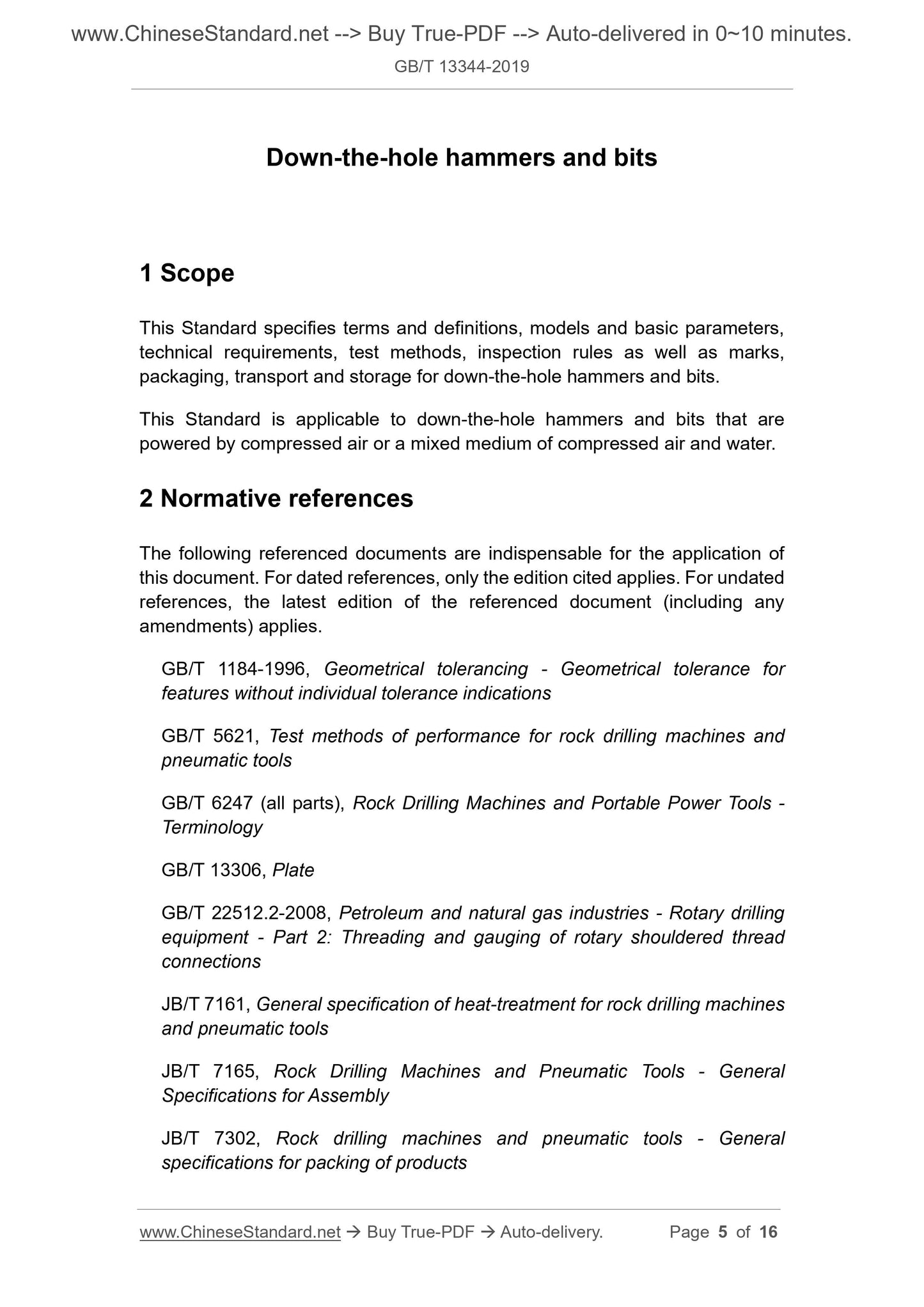

1 Scope
This Standard specifies terms and definitions, models and basic parameters,
technical requirements, test methods, inspection rules as well as marks,
packaging, transport and storage for down-the-hole hammers and bits.
This Standard is applicable to down-the-hole hammers and bits that are
powered by compressed air or a mixed medium of compressed air and water.
2 Normative references
The following referenced documents are indispensable for the application of
this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any
amendments) applies.
GB/T 1184-1996, Geometrical tolerancing - Geometrical tolerance for
features without individual tolerance indications
GB/T 5621, Test methods of performance for rock drilling machines and
pneumatic tools
GB/T 6247 (all parts), Rock Drilling Machines and Portable Power Tools -
Terminology
GB/T 13306, Plate
GB/T 22512.2-2008, Petroleum and natural gas industries - Rotary drilling
equipment - Part 2: Threading and gauging of rotary shouldered thread
connections
JB/T 7161, General specification of heat-treatment for rock drilling machines
and pneumatic tools
JB/T 7165, Rock Drilling Machines and Pneumatic Tools - General
Specifications for Assembly
JB/T 7302, Rock drilling machines and pneumatic tools - General
specifications for packing of products

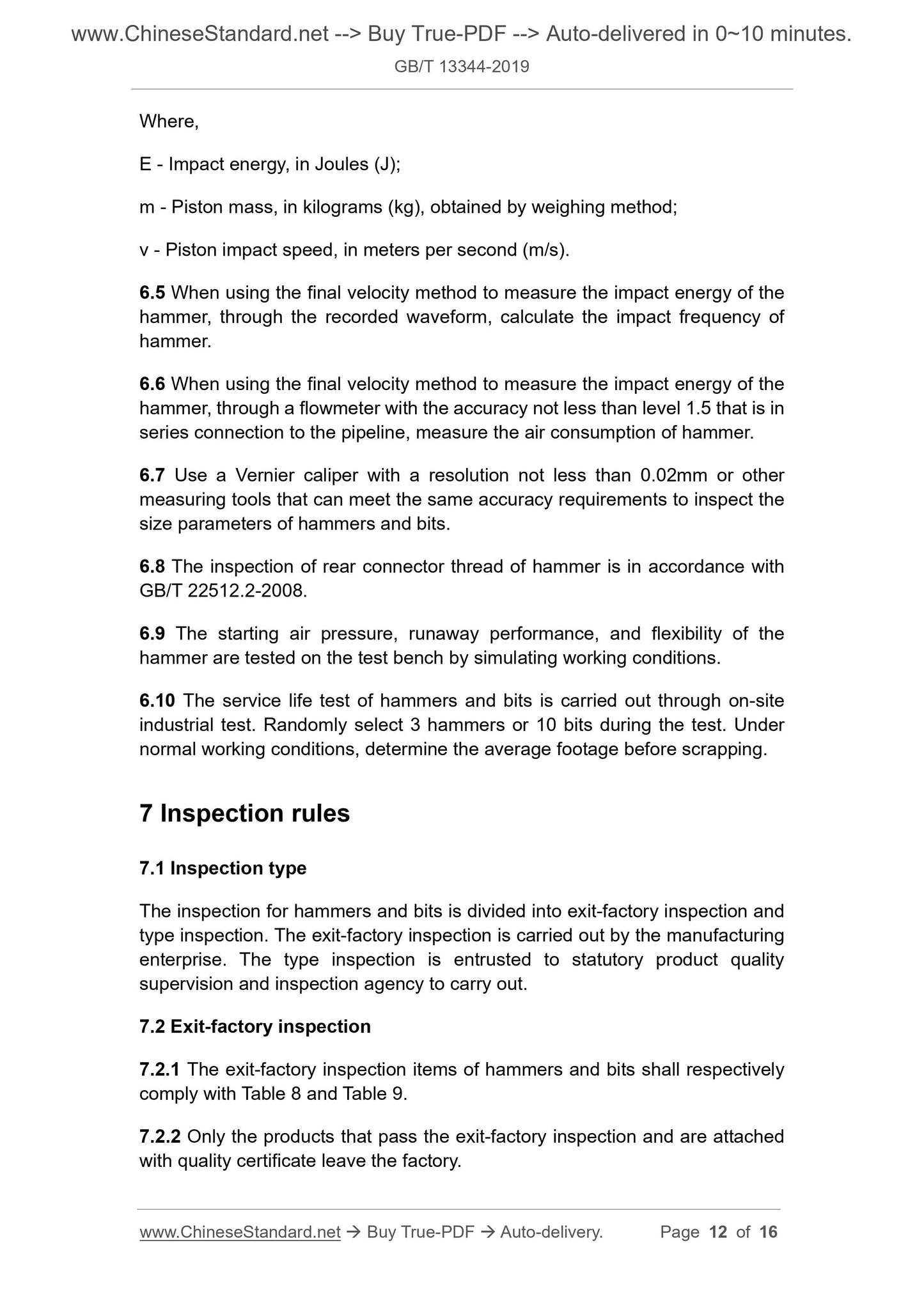

Where,
E - Impact energy, in Joules (J);
m - Piston mass, in kilograms (kg), obtained by weighing method;
v - Piston impact speed, in meters per second (m/s).
6.5 When using the final velocity method to measure the impact energy of the
hammer, through the recorded waveform, calculate the impact frequency of
hammer.
6.6 When using the final velocity method to measure the impact energy of the
hammer, through a flowmeter with the accuracy not less than level 1.5 that is in
series connection to the pipeline, measure the air consumption of hammer.
6.7 Use a Vernier caliper with a resolution not less than 0.02mm or other
measuring tools that can meet the same accuracy requirements to inspect the
size parameters of hammers and bits.
6.8 The inspection of rear connector thread of hammer is in accordance with
GB/T 22512.2-2008.
6.9 The starting air pressure, runaway performance, and flexibility of the
hammer are tested on the test bench by simulating working conditions.
6.10 The service life test of hammers and bits is carried out through on-site
industrial test. Randomly select 3 hammers or 10 bits during the test. Under
normal working conditions, determine the average footage before scrapping.
7 Inspection rules
7.1 Inspection type
The inspection for hammers and bits is divided into exit-factory inspection and
type inspection. The exit-factory inspection is carried out by the manufacturing
enterprise. The type inspection is entrusted to statutory product quality
supervision and inspection agency to carry out.
7.2 Exit-factory inspection
7.2.1 The exit-factory inspection items of hammers and bits shall respectively
comply with Table 8 and Table 9.
7.2.2 Only the products that pass the exit-factory inspection and are attached
with quality certificate leave the factory.
7.4 Sampling and rules for judgement
7.4.1 Randomly inspect 5 pieces per batch for hammer’s exit-factory inspection.
Randomly inspect 10 pieces per batch for bit’s exit-factory inspection. When
hammers and bits are not in compliance with the standard after inspection, it
shall double for re-inspection. If it still fails, this batch of products shall fail in the
exit-factory inspection.
7.4.2 Randomly extract from the conforming products in the exit-factory
inspection for hammer’s type inspection. Extract 2 pieces for each batch. If any
item in No. 2, 3, 4, 8 in Table 8 inspection items fails or any two items in No. 1,
5, 6, 7, 9 in Table 8 inspection items fail, this product shall be determined as
nonconforming. When 1 of 2 pieces fails, then it shall double for random
inspection. If more than 1 (including 1) of 4 pieces fail, this batch of products
shall be determined nonconforming in the type inspection.
7.4.3 Randomly inspect 5 pieces for bit’s type inspection. If No. 5 item in Table
9 inspection items fails or any two items in No. 1~4 in Table 9 inspection items
fail, this product shall be determined as nonconforming. When 1 out of 5 pieces
fails, it shall double for random inspection. If more than 1 (including 1) out of 10
pieces fail, this batch of products shall be determined as nonconforming in the
type inspection.
8 Marks, packaging, transport and storage
8.1 Marks
On the obvious part of the product, there shall be a mark that meets the
requirements of GB/T 13306. The content includes:

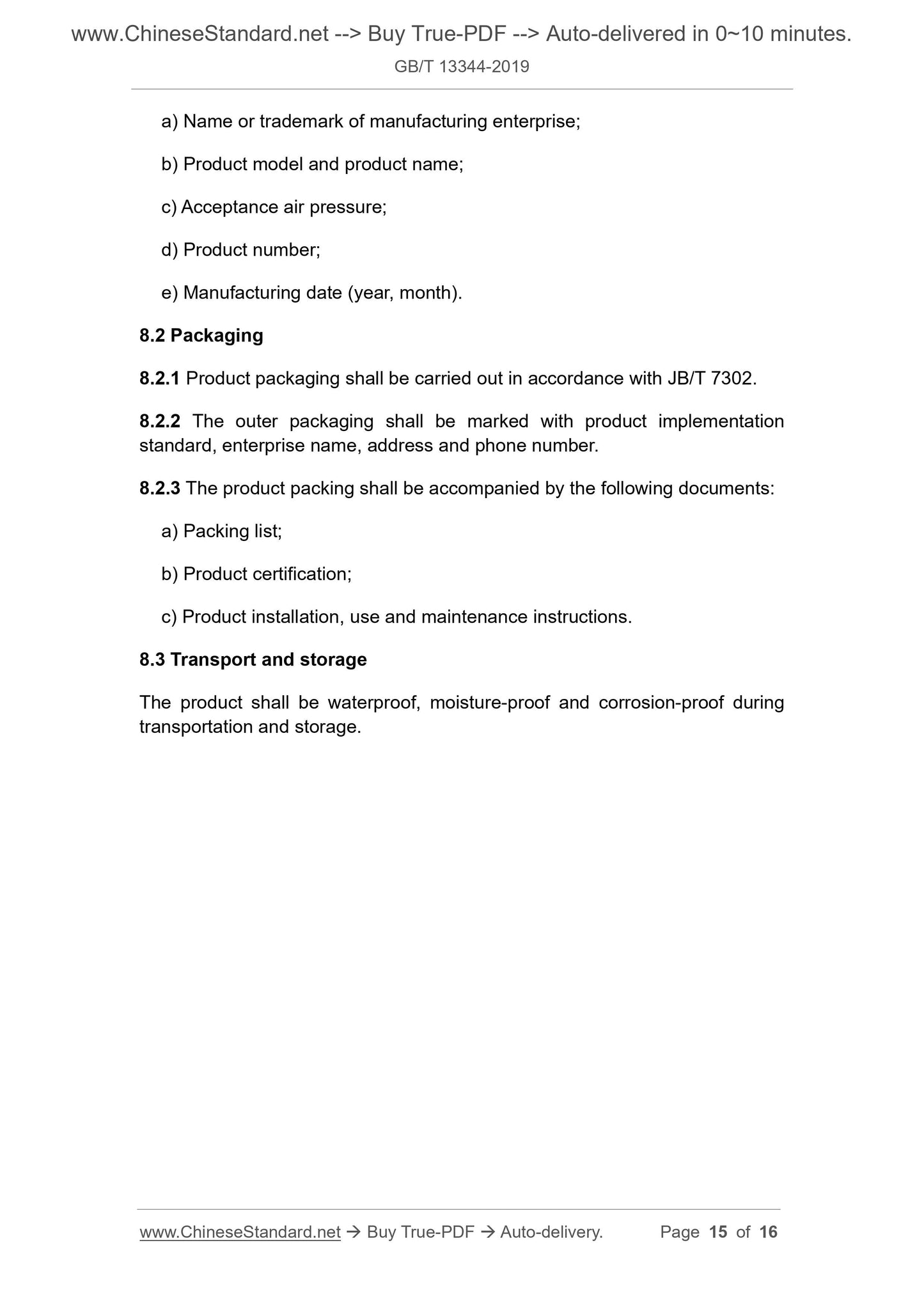

a) Name or trademark of manufacturing enterprise;
b) Product model and product name;
c) Acceptance air pressure;
d) Product number;
e) Manufacturing date (year, month).
8.2 Packaging
8.2.1 Product packaging shall be carried out in accordance with JB/T 7302.
8.2.2 The outer packaging shall be marked with product implementation
standard, enterprise name, address and phone number.
8.2.3 The product packing shall be accompanied by the following documents:
a) Packing list;
b) Product certification;
c) Product installation, use and maintenance instructions.
8.3 Transport and storage
The product shall be waterproof, moisture-proof and corrosion-proof during
transportation and storage.
