GB/T 18029-2000: Wheelchairs - Resistance to ignition of upholstered parts - Requirements and test methods

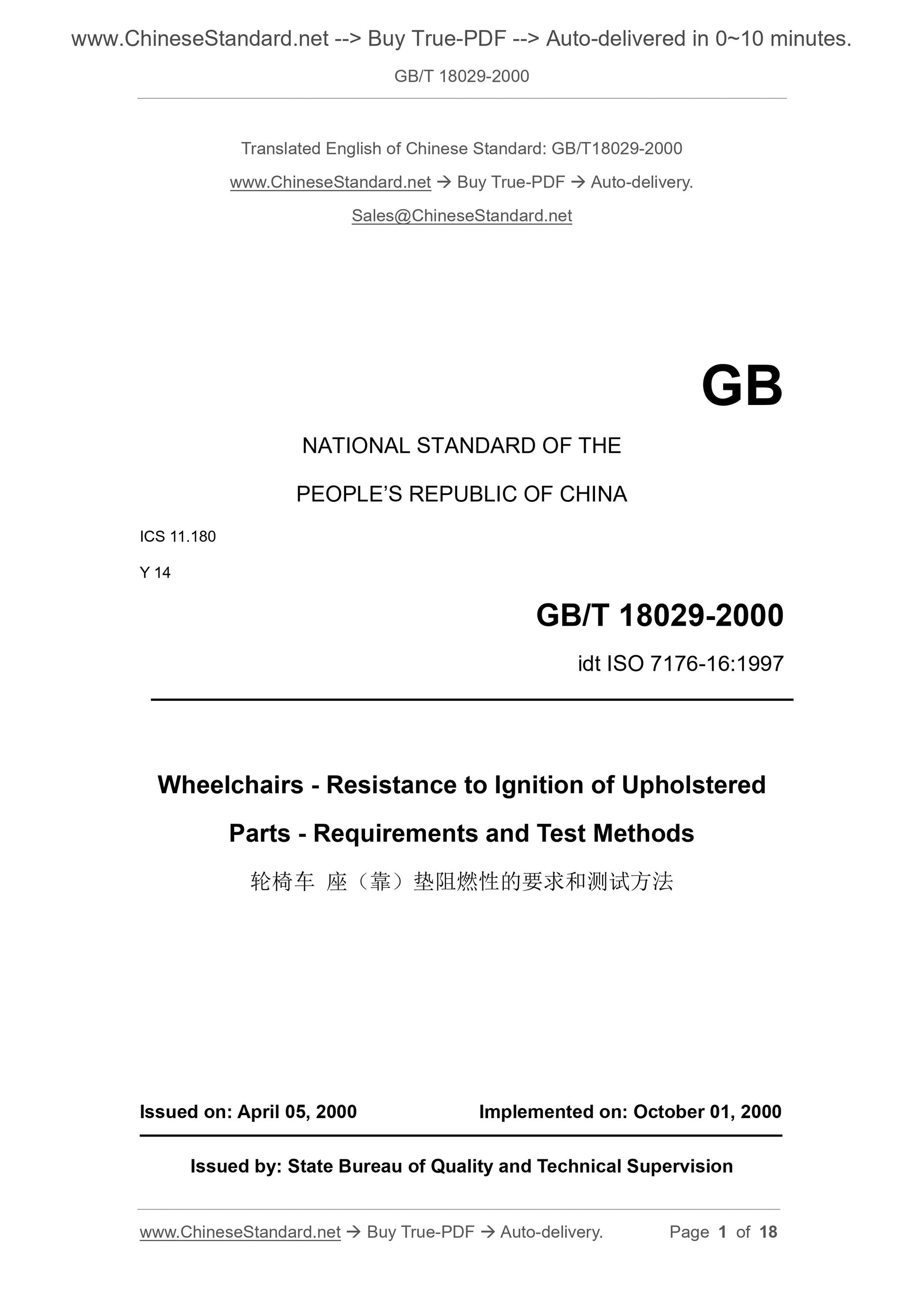

GB/T 18029-2000
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 11.180
Y 14
idt ISO 7176-16.1997
Wheelchairs - Resistance to Ignition of Upholstered
Parts - Requirements and Test Methods
ISSUED ON. APRIL 05, 2000
IMPLEMENTED ON. OCTOBER 01, 2000
Issued by. State Bureau of Quality and Technical Supervision

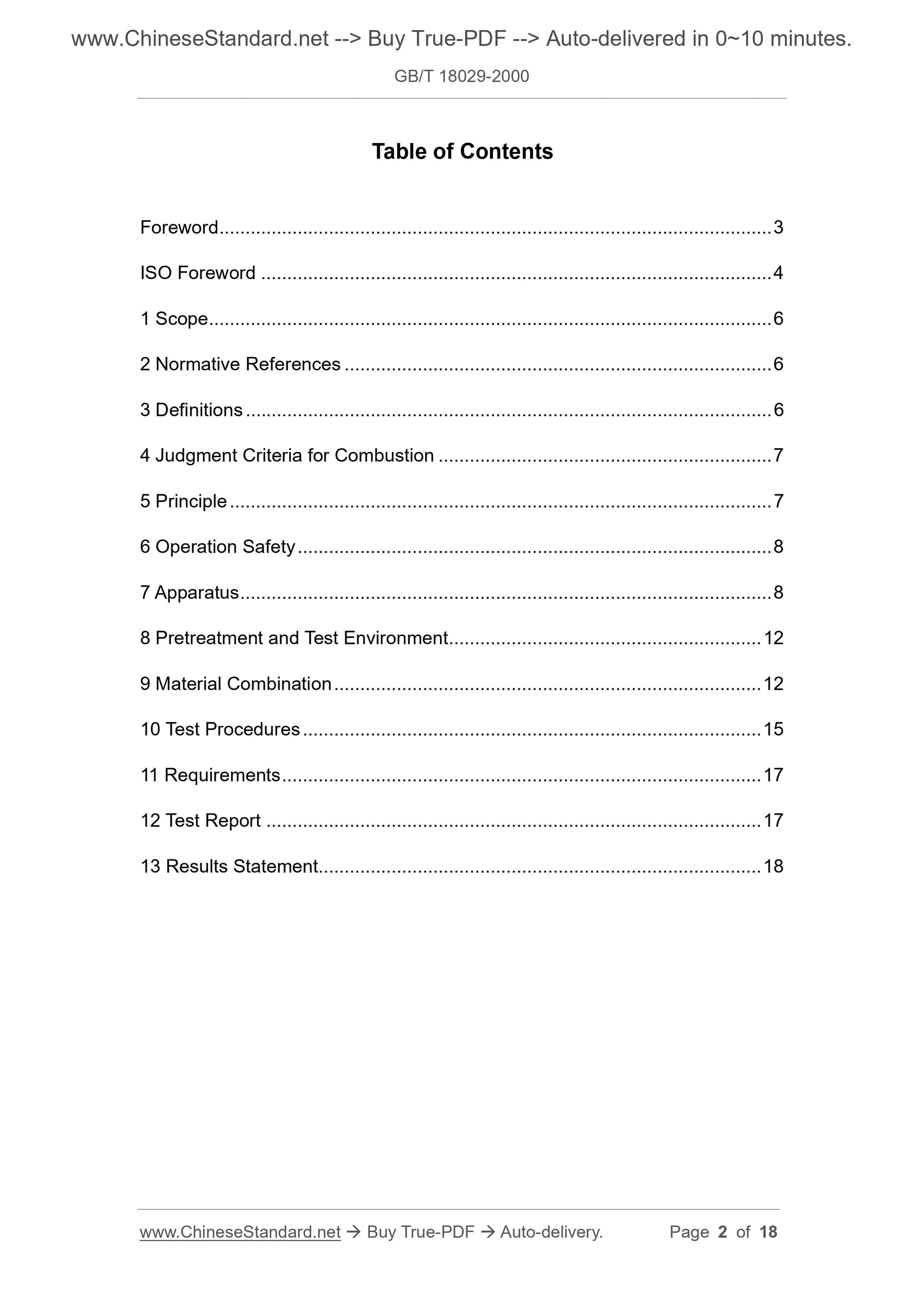

Table of Contents
Foreword ... 3
ISO Foreword ... 4
1 Scope ... 6
2 Normative References ... 6
3 Definitions ... 6
4 Judgment Criteria for Combustion ... 7
5 Principle ... 7
6 Operation Safety ... 8
7 Apparatus ... 8
8 Pretreatment and Test Environment ... 12
9 Material Combination ... 12
10 Test Procedures ... 15
11 Requirements ... 17
12 Test Report ... 17
13 Results Statement... 18
Wheelchairs - Resistance to Ignition of Upholstered
Parts - Requirements and Test Methods

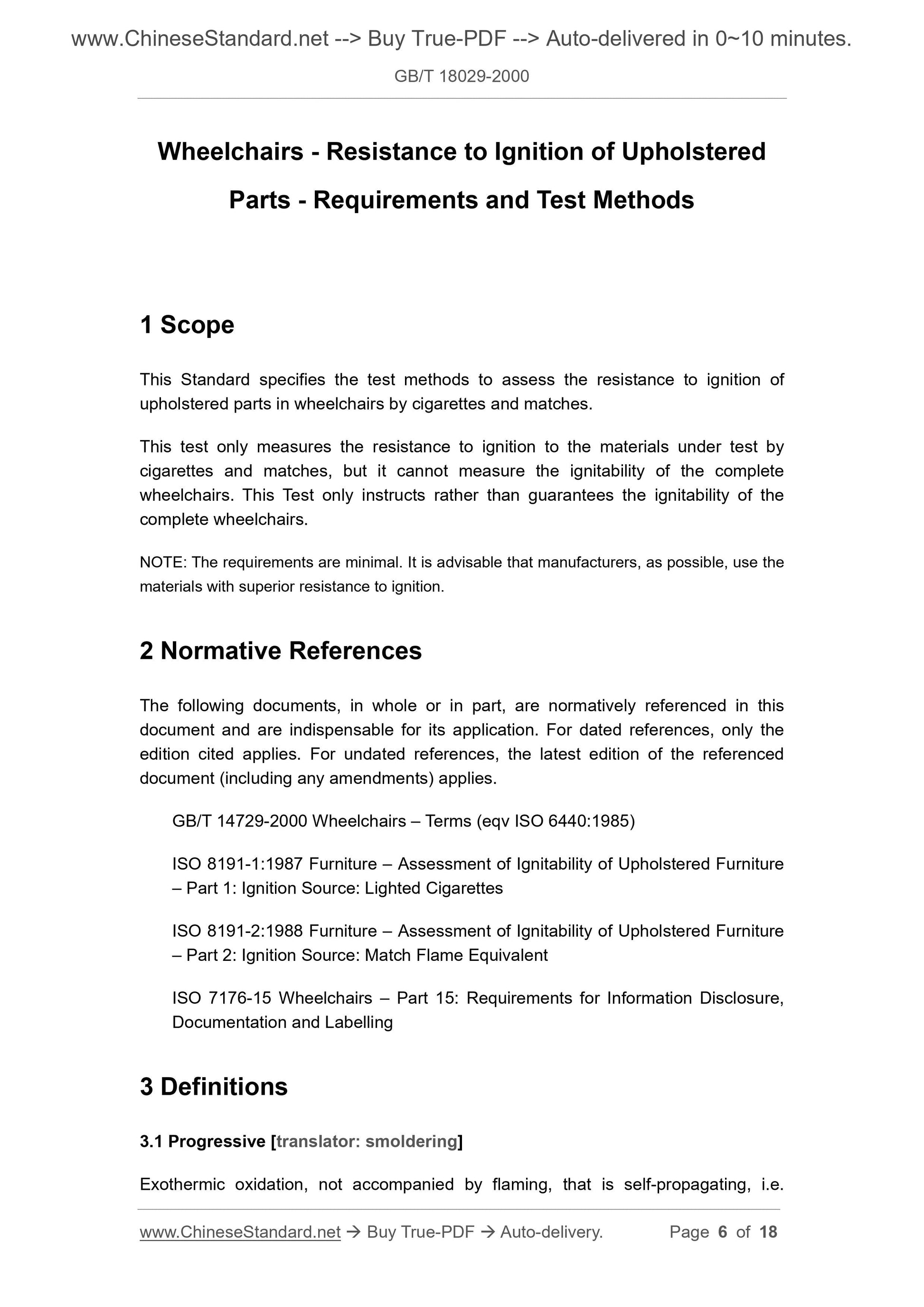

1 Scope
This Standard specifies the test methods to assess the resistance to ignition of
upholstered parts in wheelchairs by cigarettes and matches.
This test only measures the resistance to ignition to the materials under test by
cigarettes and matches, but it cannot measure the ignitability of the complete
wheelchairs. This Test only instructs rather than guarantees the ignitability of the
complete wheelchairs.
NOTE. The requirements are minimal. It is advisable that manufacturers, as possible, use the
materials with superior resistance to ignition.
2 Normative References
The following documents, in whole or in part, are normatively referenced in this
document and are indispensable for its application. For dated references, only the
edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
GB/T 14729-2000 Wheelchairs – Terms (eqv ISO 6440.1985)
ISO 8191-1.1987 Furniture – Assessment of Ignitability of Upholstered Furniture
– Part 1. Ignition Source. Lighted Cigarettes
ISO 8191-2.1988 Furniture – Assessment of Ignitability of Upholstered Furniture
– Part 2. Ignition Source. Match Flame Equivalent
ISO 7176-15 Wheelchairs – Part 15. Requirements for Information Disclosure,
Documentation and Labelling
3 Definitions
3.1 Progressive [translator. smoldering]
Exothermic oxidation, not accompanied by flaming, that is self-propagating, i.e.
independent of the ignition source. It may or may not be accompanied by
incandescence.

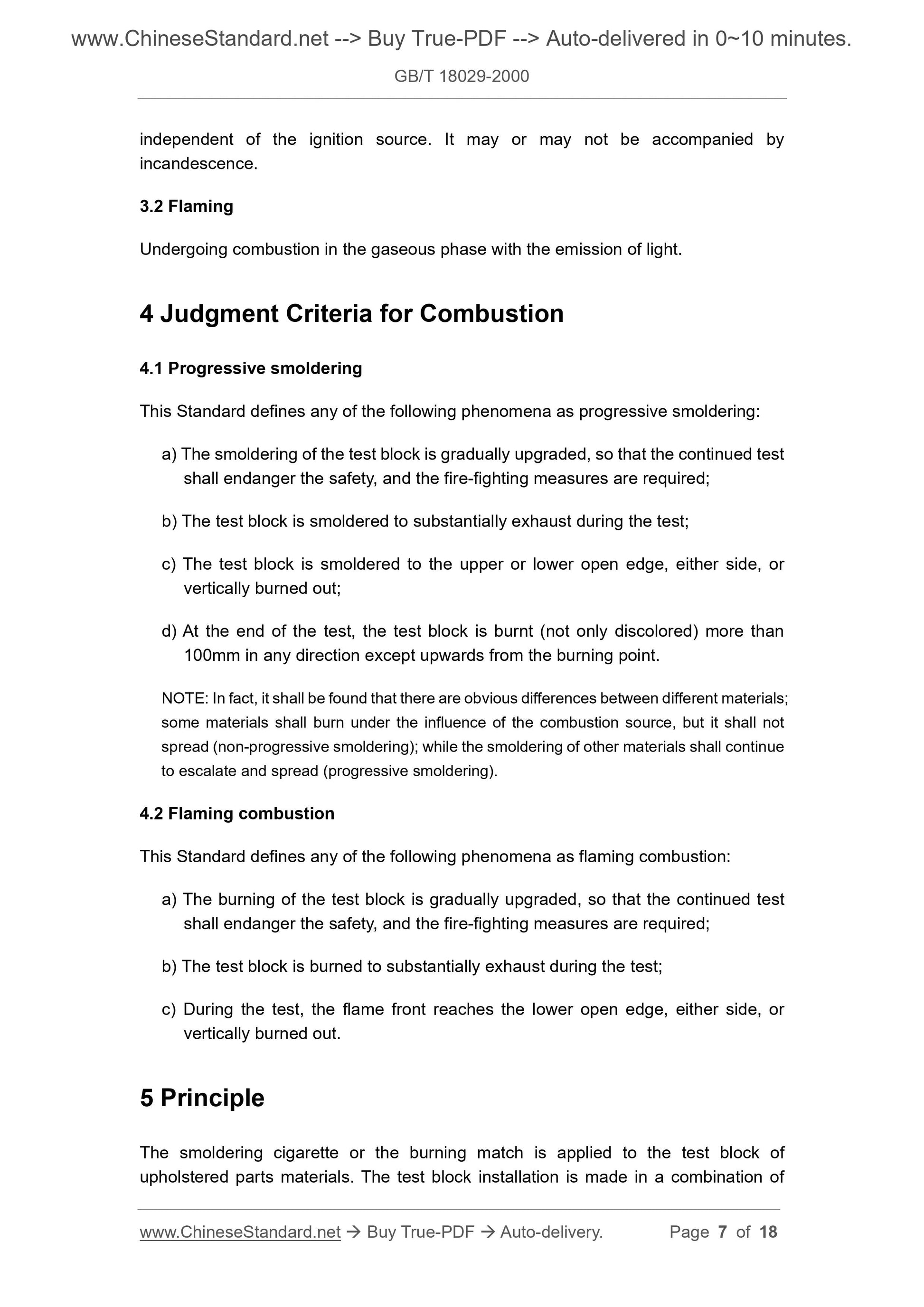

3.2 Flaming
Undergoing combustion in the gaseous phase with the emission of light.
4 Judgment Criteria for Combustion
4.1 Progressive smoldering
This Standard defines any of the following phenomena as progressive smoldering.
a) The smoldering of the test block is gradually upgraded, so that the continued test
shall endanger the safety, and the fire-fighting measures are required;
b) The test block is smoldered to substantially exhaust during the test;
c) The test block is smoldered to the upper or lower open edge, either side, or
vertically burned out;
d) At the end of the test, the test block is burnt (not only discolored) more than
100mm in any direction except upwards from the burning point.
NOTE. In fact, it shall be found that there are obvious differences between different materials;
some materials shall burn under the influence of the combustion source, but it shall not
spread (non-progressive smoldering); while the smoldering of other materials shall continue
to escalate and spread (progressive smoldering).
4.2 Flaming combustion
This Standard defines any of the following phenomena as flaming combustion.
a) The burning of the test block is gradually upgraded, so that the continued test
shall endanger the safety, and the fire-fighting measures are required;
b) The test block is burned to substantially exhaust during the test;
c) During the test, the flame front reaches the lower open edge, either side, or
vertically burned out.
5 Principle
The smoldering cigarette or the burning match is applied to the test block of
upholstered parts materials. The test block installation is made in a combination of
typical wheelchair seat cushion, back cushion (or seat cushion or armrest); the fire
source uses the cigarettes and matches (or equivalent fire source) commonly used by
the smokers. This test method only tests the ignitability of the overall test block
(including skin, lining, fillers, etc.) on the test frame. The test results are not applicable
to the single material in the overall test block.

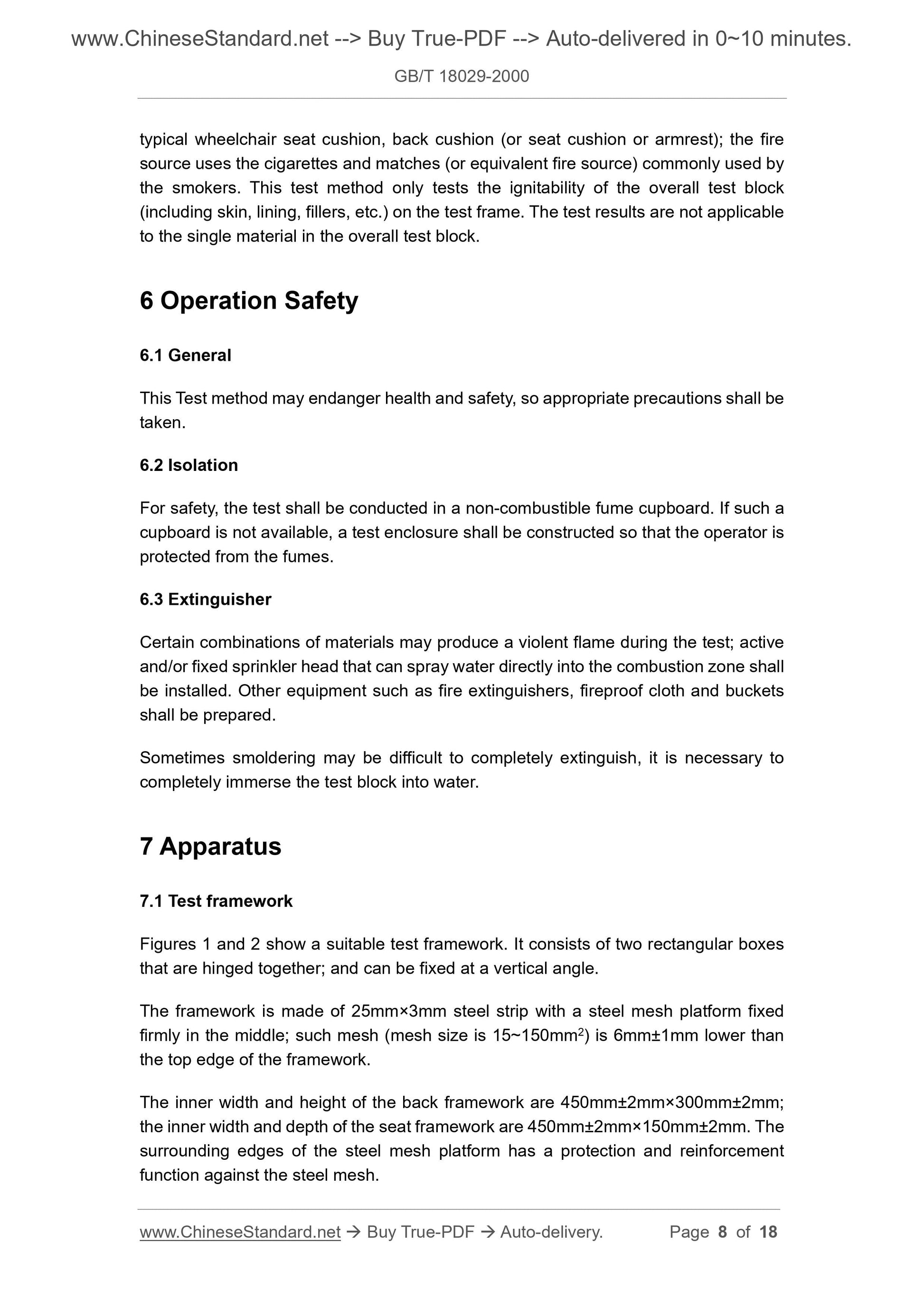

6 Operation Safety
6.1 General
This Test method may endanger health and safety, so appropriate precautions shall be
taken.
6.2 Isolation
For safety, the test shall be conducted in a non-combustible fume cupboard. If such a
cupboard is not available, a test enclosure shall be constructed so that the operator is
protected from the fumes.
6.3 Extinguisher
Certain combinations of materials may produce a violent flame during the test; active
and/or fixed sprinkler head that can spray water directly into the combustion zone shall
be installed. Other equipment such as fire extinguishers, fireproof cloth and buckets
shall be prepared.
Sometimes smoldering may be difficult to completely extinguish, it is necessary to
completely immerse the test block into water.
7 Apparatus
7.1 Test framework
Figures 1 and 2 show a suitable test framework. It consists of two rectangular boxes
that are hinged together; and can be fixed at a vertical angle.
The framework is made of 25mm×3mm steel strip with a steel mesh platform fixed
firmly in the middle; such mesh (mesh size is 15~150mm2) is 6mm±1mm lower than
the top edge of the framework.
The inner width and height of the back framework are 450mm±2mm×300mm±2mm;
the inner width and depth of the seat framework are 450mm±2mm×150mm±2mm. The
surrounding edges of the steel mesh platform has a protection and reinforcement
function against the steel mesh.

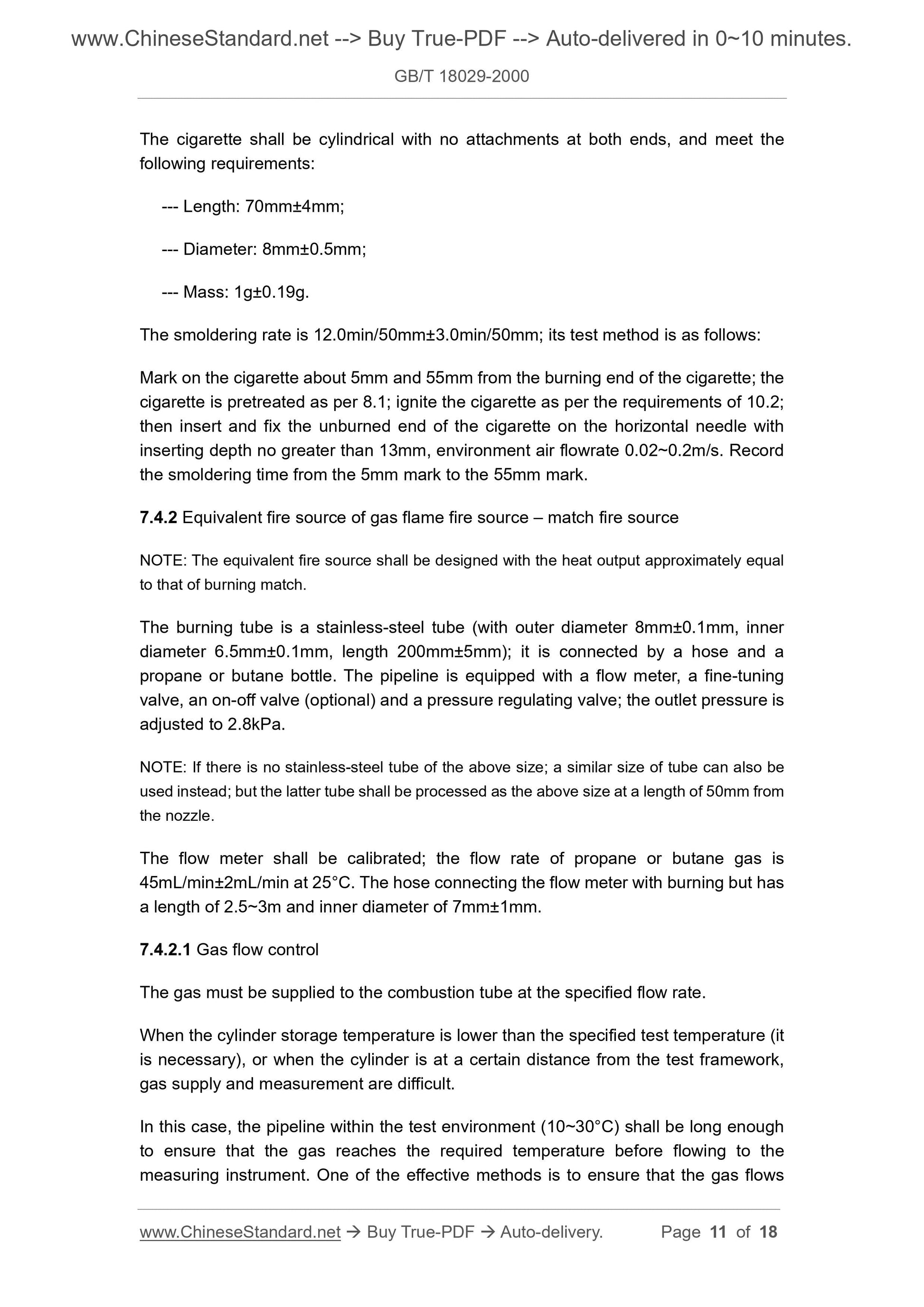

The cigarette shall be cylindrical with no attachments at both ends, and meet the
following requirements.
--- Length. 70mm±4mm;
--- Diameter. 8mm±0.5mm;
--- Mass. 1g±0.19g.
The smoldering rate is 12.0min/50mm±3.0min/50mm; its test method is as follows.
Mark on the cigarette about 5mm and 55mm from the burning end of the cigarette; the
cigarette is pretreated as per 8.1; ignite the cigarette as per the requirements of 10.2;
then insert and fix the unburned end of the cigarette on the horizontal needle with
inserting depth no greater than 13mm, environment air flowrate 0.02~0.2m/s. Record
the smoldering time from the 5mm mark to the 55mm mark.
7.4.2 Equivalent fire source of gas flame fire source – match fire source
NOTE. The equivalent fire source shall be designed with the heat output approximately equal
to that of burning match.
The burning tube is a stainless-steel tube (with outer diameter 8mm±0.1mm, inner
diameter 6.5mm±0.1mm, length 200mm±5mm); it is connected by a hose and a
propane or butane bottle. The pipeline is equipped with a flow meter, a fine-tuning
valve, an on-off valve (optional) and a pressure regulating valve; the outlet pressure is
adjusted to 2.8kPa.
NOTE. If there is no stainless-steel tube of the above size; a similar size of tube can also be
used instead; but the latter tube shall be processed as the above size at a length of 50mm from
the nozzle.
The flow meter shall be calibrated; the flow rate of propane or butane gas is
45mL/min±2mL/min at 25°C. The hose connecting the flow meter with burning but has
a length of 2.5~3m and ...
