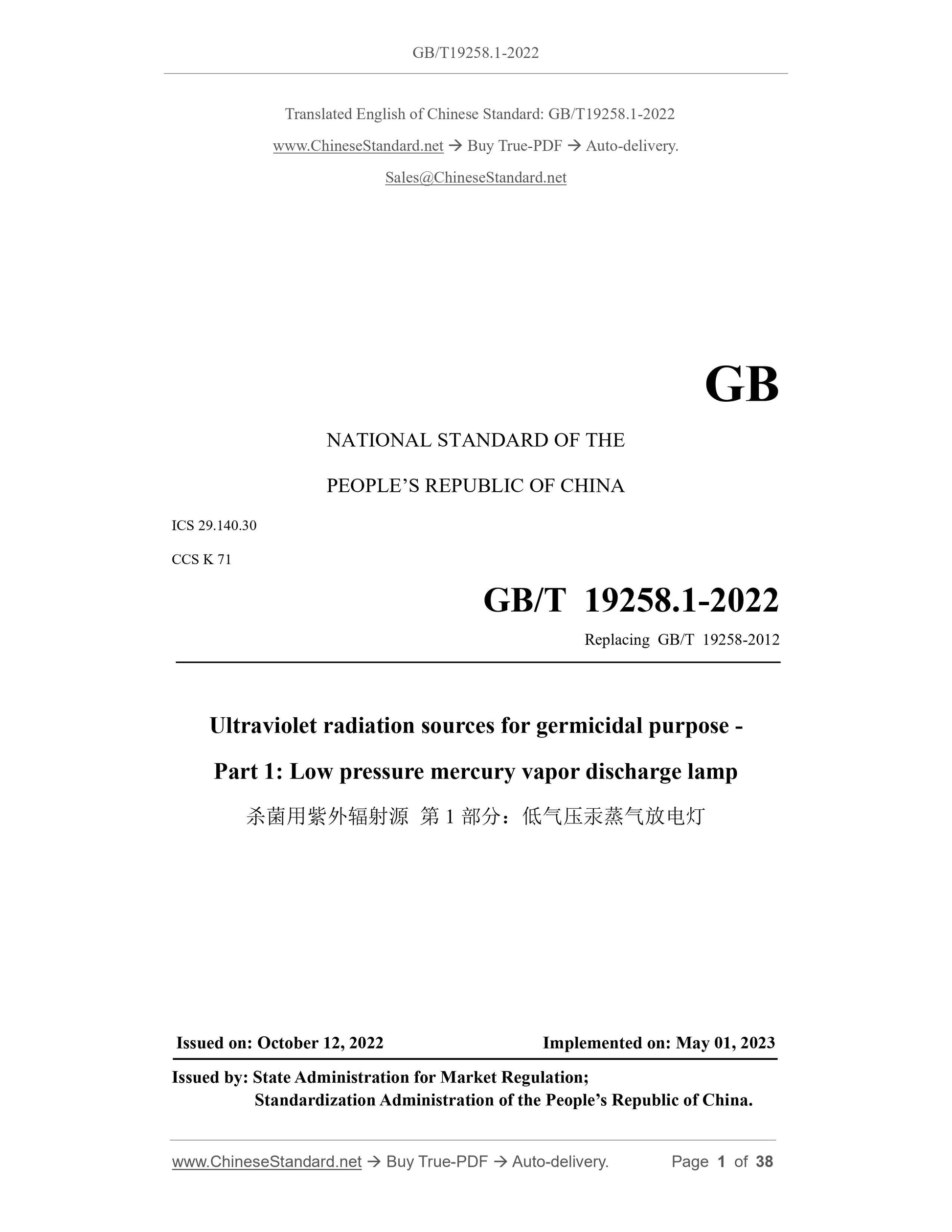

GB/T 19258.1-2022: Ultraviolet radiation sources for germicidal purpose - Part 1: Low pressure mercury vapor discharge lamp
GB/T 19258.1-2022
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.140.30
CCS K 71
GB/T 19258.1-2022
Replacing GB/T 19258-2012
Ultraviolet radiation sources for germicidal purpose -
Part 1: Low pressure mercury vapor discharge lamp
ISSUED ON: OCTOBER 12, 2022
IMPLEMENTED ON: MAY 01, 2023
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

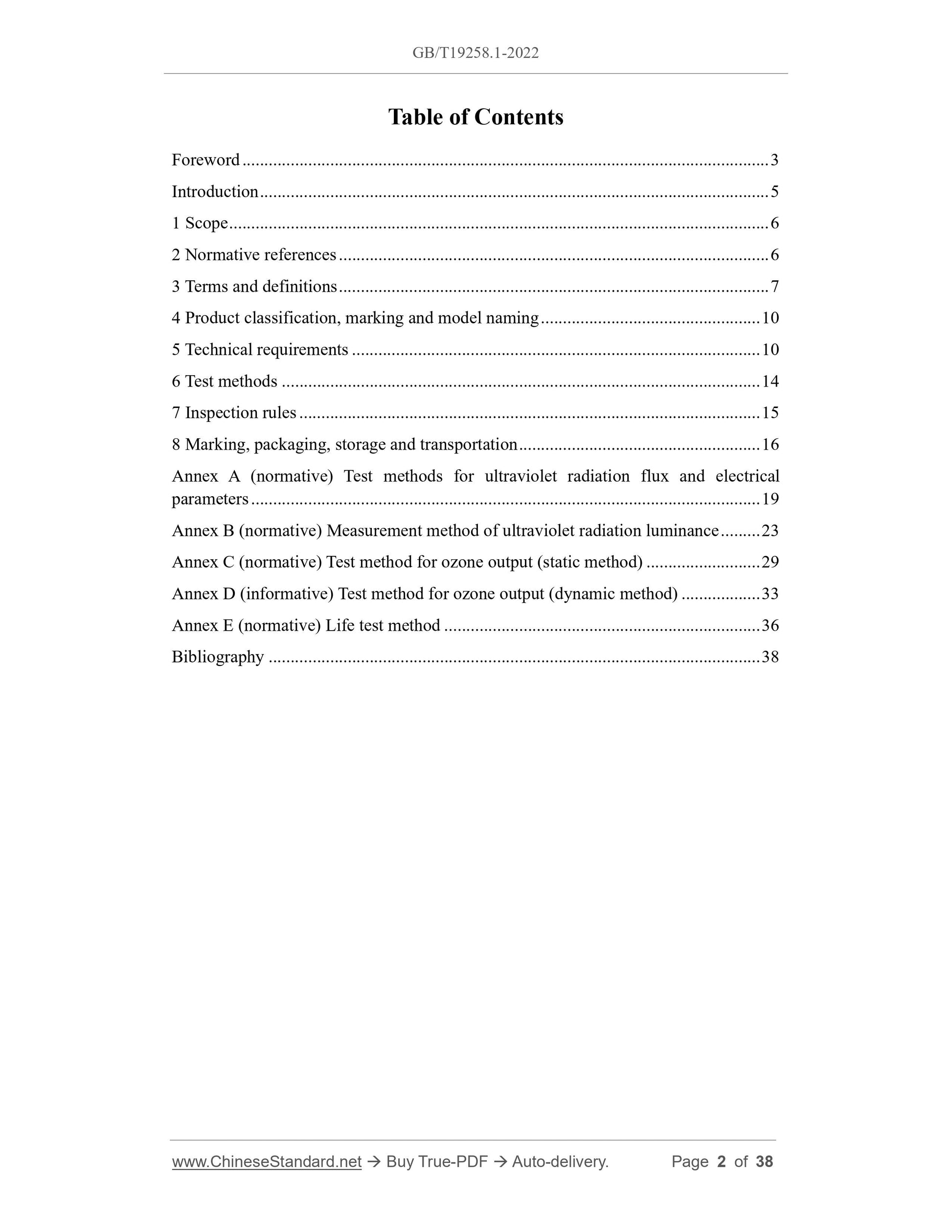

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 7
4 Product classification, marking and model naming ... 10
5 Technical requirements ... 10
6 Test methods ... 14
7 Inspection rules ... 15
8 Marking, packaging, storage and transportation ... 16
Annex A (normative) Test methods for ultraviolet radiation flux and electrical
parameters ... 19
Annex B (normative) Measurement method of ultraviolet radiation luminance ... 23

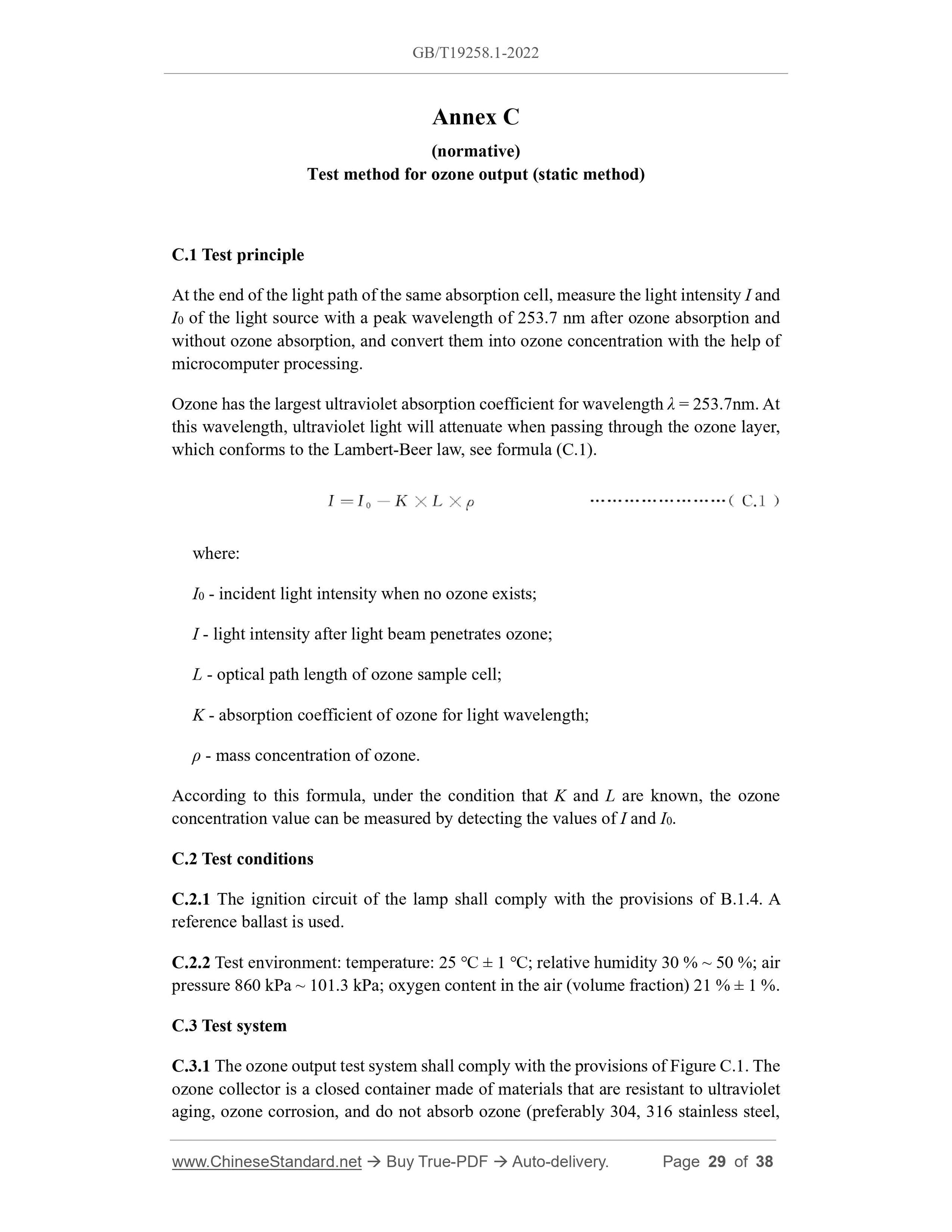

Annex C (normative) Test method for ozone output (static method) ... 29

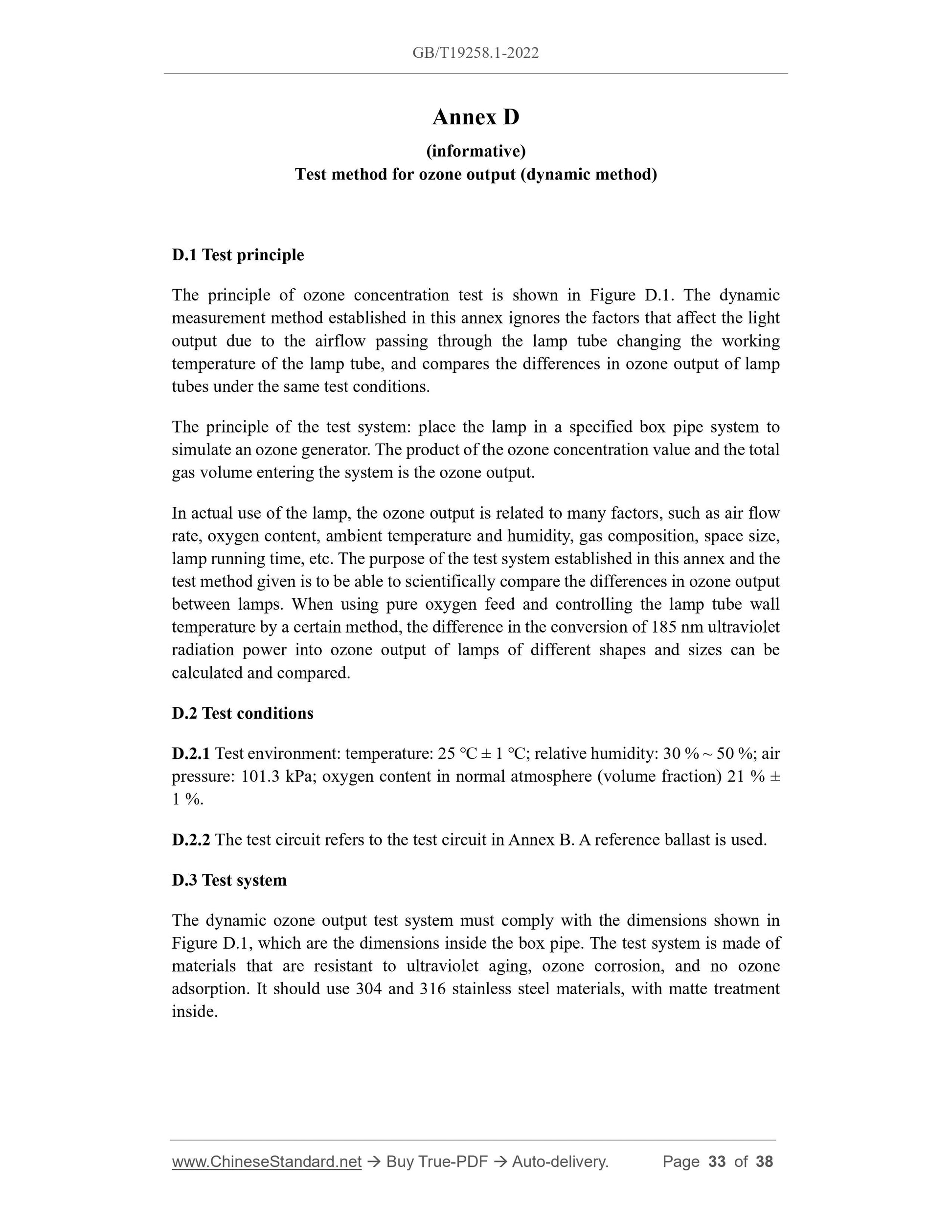

Annex D (informative) Test method for ozone output (dynamic method) ... 33

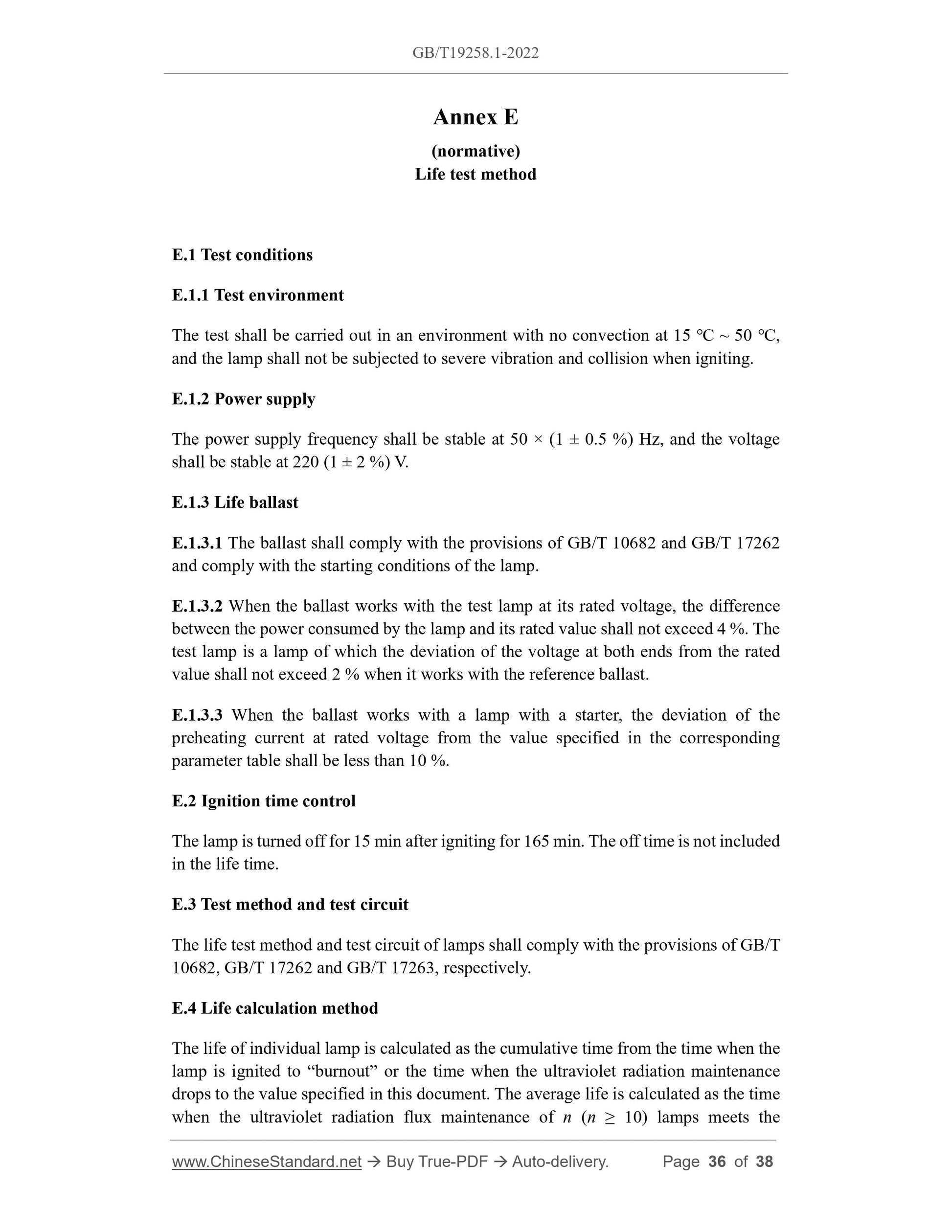

Annex E (normative) Life test method ... 36
Bibliography ... 38
Ultraviolet radiation sources for germicidal purpose -
Part 1: Low pressure mercury vapor discharge lamp

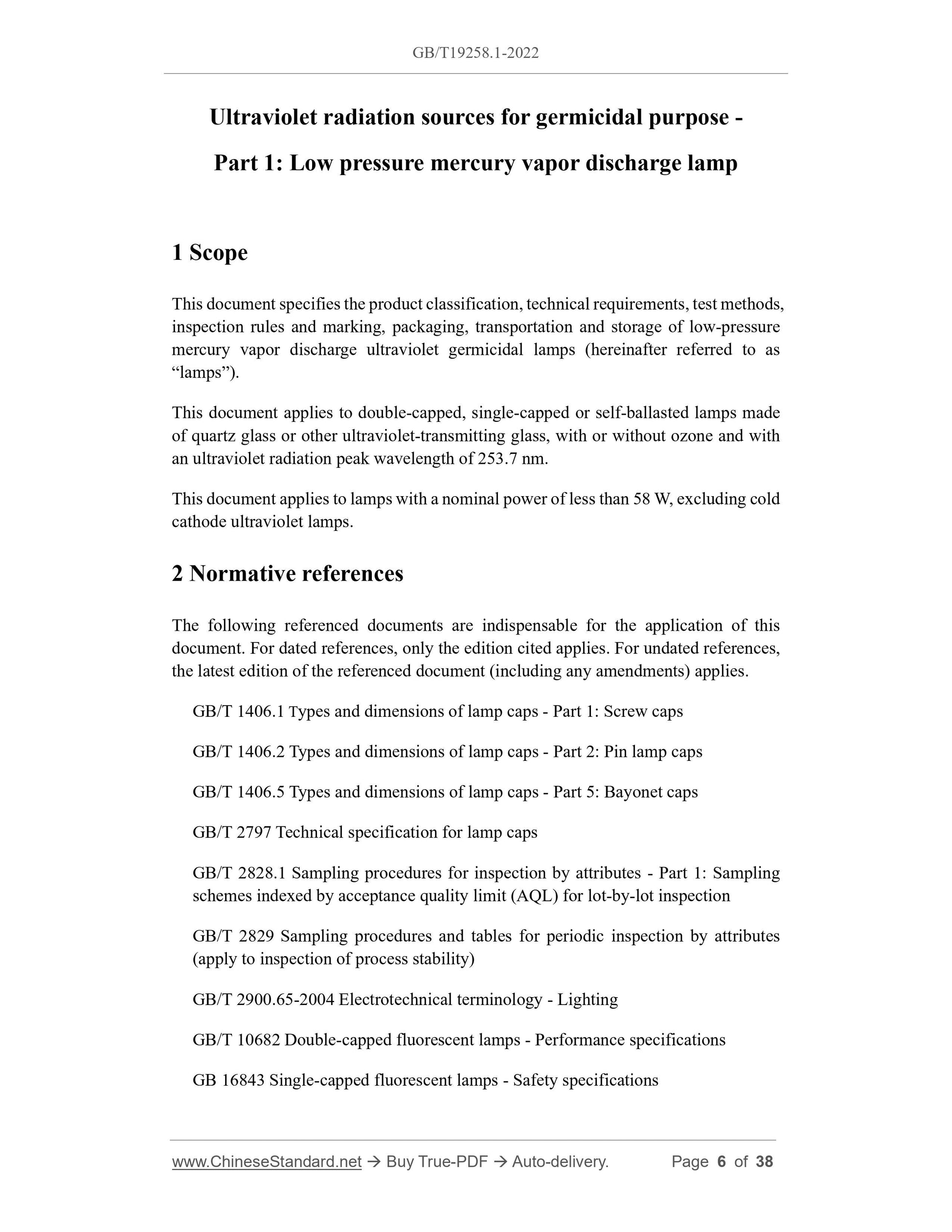

1 Scope
This document specifies the product classification, technical requirements, test methods,
inspection rules and marking, packaging, transportation and storage of low-pressure
mercury vapor discharge ultraviolet germicidal lamps (hereinafter referred to as
“lamps”).
This document applies to double-capped, single-capped or self-ballasted lamps made
of quartz glass or other ultraviolet-transmitting glass, with or without ozone and with
an ultraviolet radiation peak wavelength of 253.7 nm.
This document applies to lamps with a nominal power of less than 58 W, excluding cold
cathode ultraviolet lamps.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 1406.1 Types and dimensions of lamp caps - Part 1: Screw caps
GB/T 1406.2 Types and dimensions of lamp caps - Part 2: Pin lamp caps
GB/T 1406.5 Types and dimensions of lamp caps - Part 5: Bayonet caps
GB/T 2797 Technical specification for lamp caps
GB/T 2828.1 Sampling procedures for inspection by attributes - Part 1: Sampling
schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection
GB/T 2829 Sampling procedures and tables for periodic inspection by attributes
(apply to inspection of process stability)
GB/T 2900.65-2004 Electrotechnical terminology - Lighting
GB/T 10682 Double-capped fluorescent lamps - Performance specifications
GB 16843 Single-capped fluorescent lamps - Safety specifications
The safety requirements of single-capped lamps, self-ballasted lamps and double-
capped lamps shall comply with the corresponding provisions of GB 16843, GB 16844
and GB 18774, respectively.

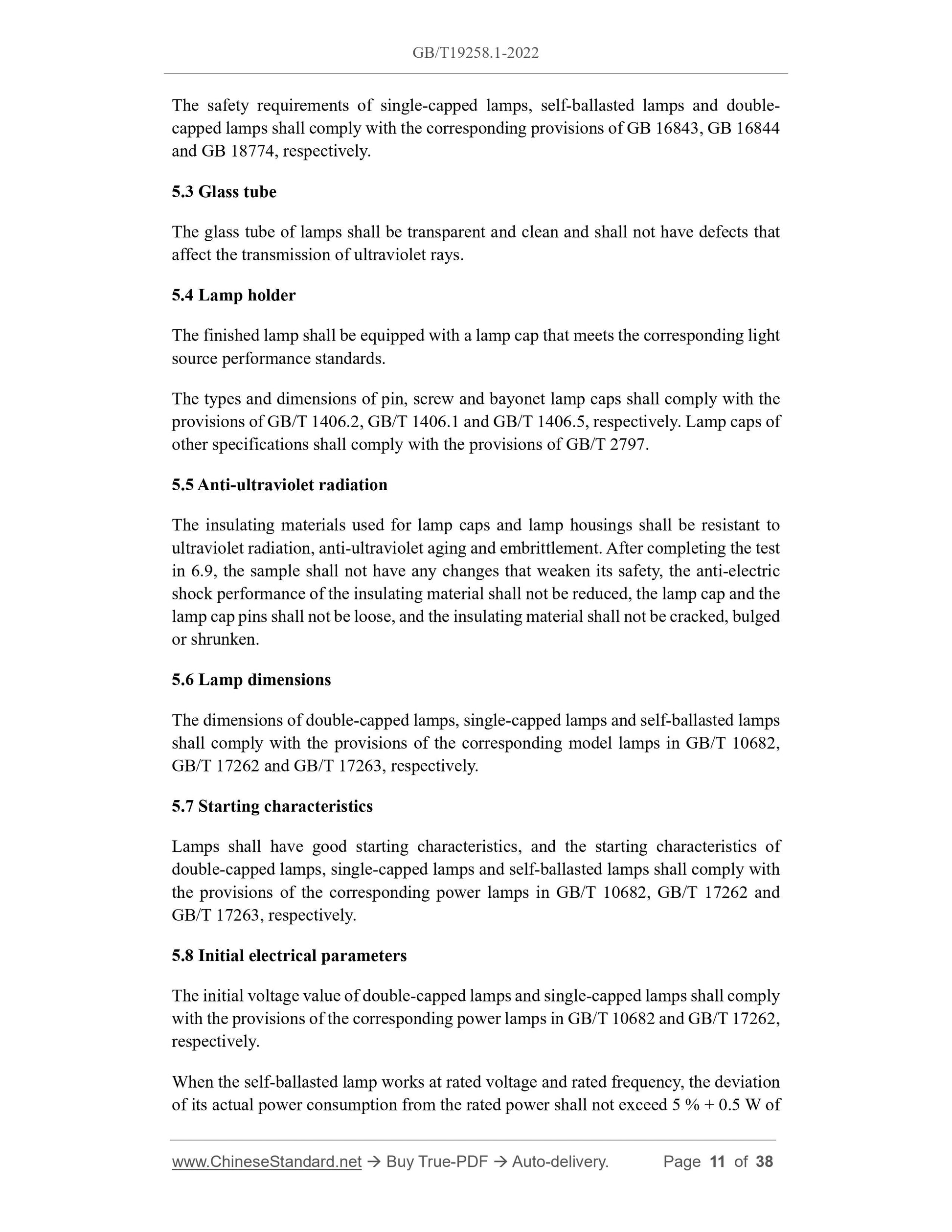

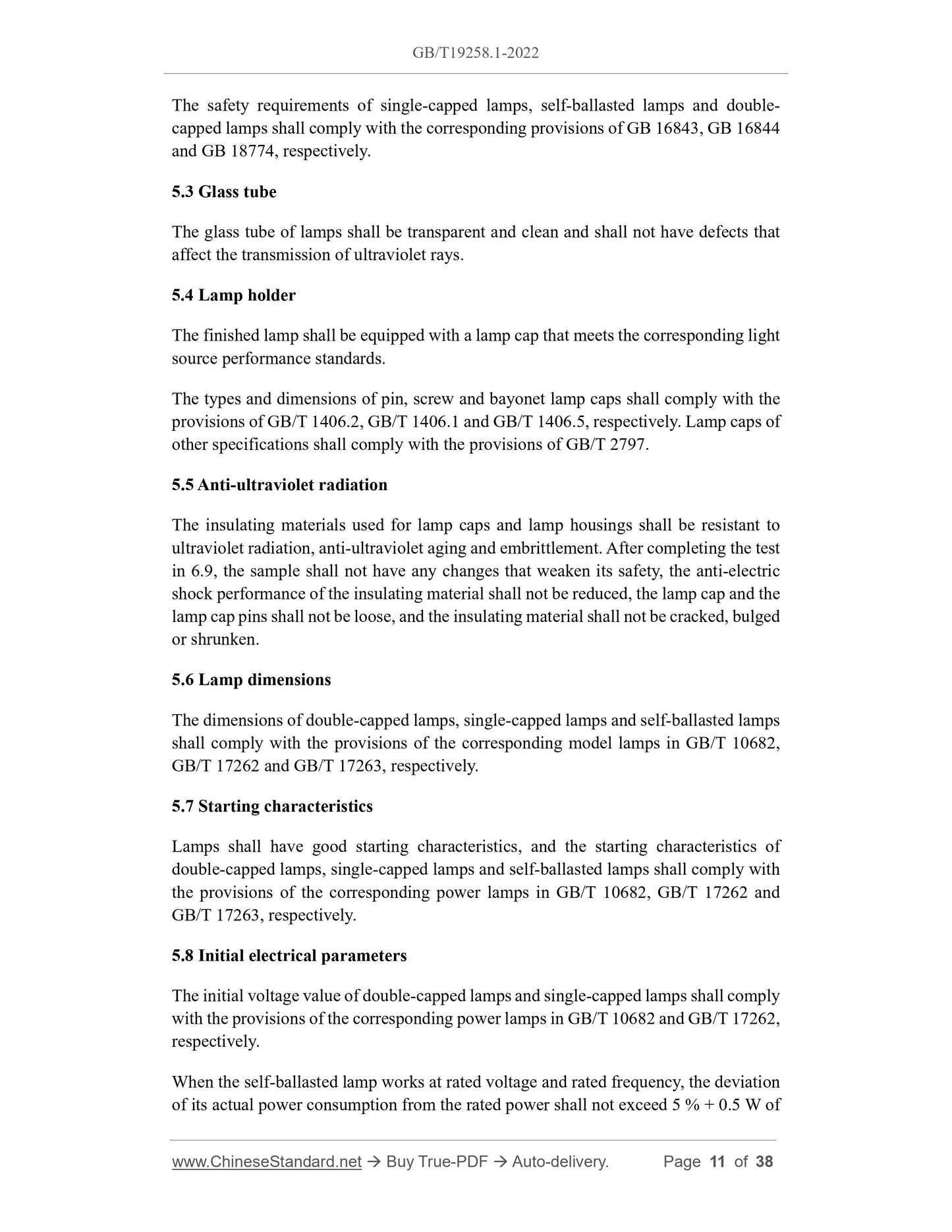

5.3 Glass tube
The glass tube of lamps shall be transparent and clean and shall not have defects that
affect the transmission of ultraviolet rays.
5.4 Lamp holder
The finished lamp shall be equipped with a lamp cap that meets the corresponding light
source performance standards.
The types and dimensions of pin, screw and bayonet lamp caps shall comply with the
provisions of GB/T 1406.2, GB/T 1406.1 and GB/T 1406.5, respectively. Lamp caps of
other specifications shall comply with the provisions of GB/T 2797.
5.5 Anti-ultraviolet radiation
The insulating materials used for lamp caps and lamp housings shall be resistant to
ultraviolet radiation, anti-ultraviolet aging and embrittlement. After completing the test
in 6.9, the sample shall not have any changes that weaken its safety, the anti-electric
shock performance of the insulating material shall not be reduced, the lamp cap and the
lamp cap pins shall not be loose, and the insulating material shall not be cracked, bulged
or shrunken.
5.6 Lamp dimensions
The dimensions of double-capped lamps, single-capped lamps and self-ballasted lamps
shall comply with the provisions of the corresponding model lamps in GB/T 10682,
GB/T 17262 and GB/T 17263, respectively.
5.7 Starting characteristics
Lamps shall have good starting characteristics, and the starting characteristics of
double-capped lamps, single-capped lamps and self-ballasted lamps shall comply with
the provisions of the corresponding power lamps in GB/T 10682, GB/T 17262 and
GB/T 17263, respectively.
5.8 Initial electrical parameters
The initial voltage value of double-capped lamps and single-capped lamps shall comply
with the provisions of the corresponding power lamps in GB/T 10682 and GB/T 17262,
respectively.
When the self-ballasted lamp works at rated voltage and rated frequency, the deviation
of its actual power consumption from the rated power shall not exceed 5 % + 0.5 W of
For lamps with ozone output, the manufacturer needs to provide a curve of the change
of ozone concentration over time, and the average peak value of the initial ozone output
efficacy shall not be less than 80 % of the nominal value.
5.13 Ultraviolet radiation flux maintenance/life
The average life of lamps shall not be less than 5000 h. The ultraviolet radiation flux
maintenance of a single lamp for 2000 h shall not be less than 85 %, and the ultraviolet
radiation flux maintenance at the end of life shall not be less than 65 %.

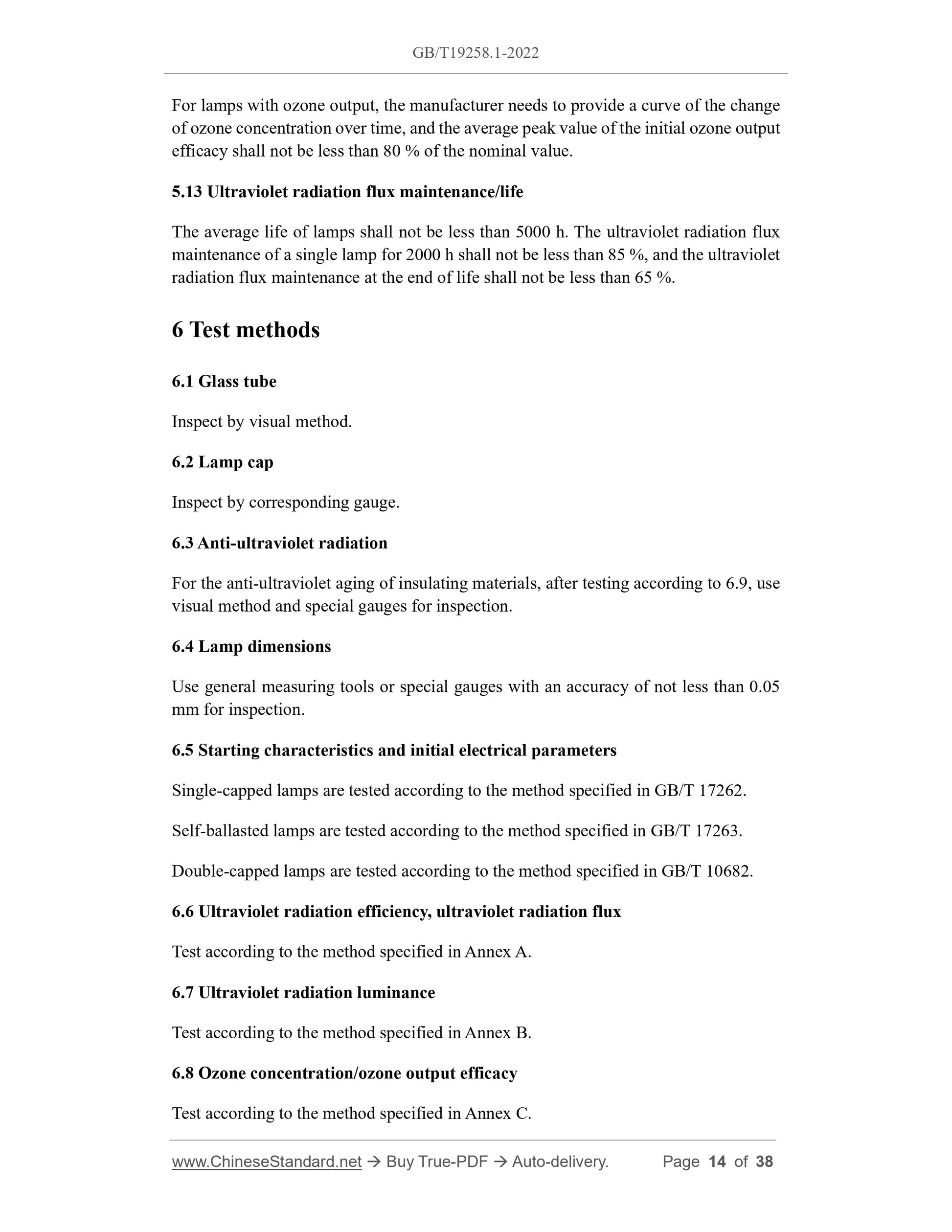

6 Test methods
6.1 Glass tube
Inspect by visual method.
6.2 Lamp cap
Inspect by corresponding gauge.
6.3 Anti-ultraviolet radiation
For the anti-ultraviolet aging of insulating materials, after testing according to 6.9, use
visual method and special gauges for inspection.
6.4 Lamp dimensions
Use general measuring tools or special gauges with an accuracy of not less than 0.05
mm for inspection.
6.5 Starting characteristics and initial electrical parameters
Single-capped lamps are tested according to the method specified in GB/T 17262.
Self-ballasted lamps are tested according to the method specified in GB/T 17263.
Double-capped lamps are tested according to the method specified in GB/T 10682.
6.6 Ultraviolet radiation efficiency, ultraviolet radiation flux
Test according to the method specified in Annex A.

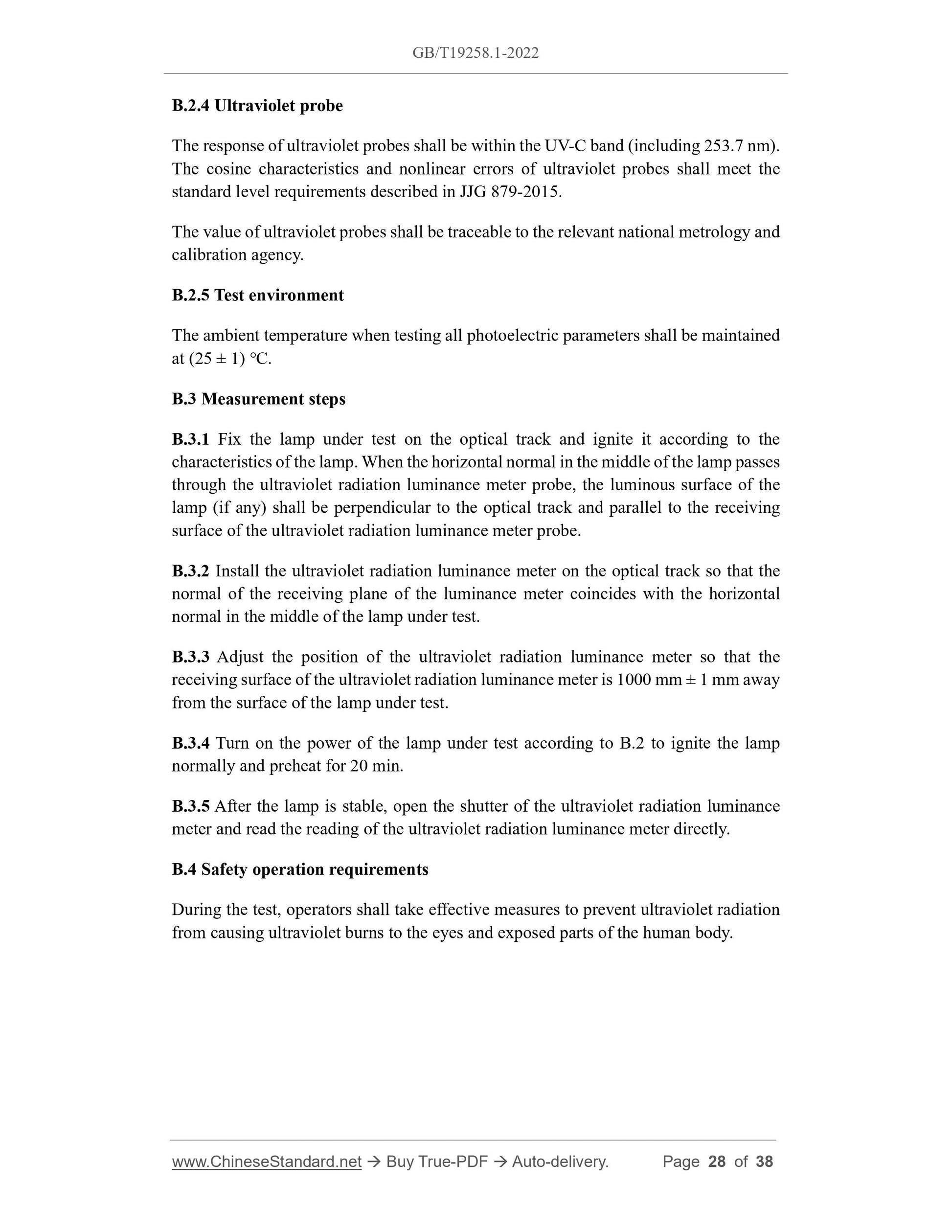

6.7 Ultraviolet radiation luminance
Test according to the method specified in Annex B.

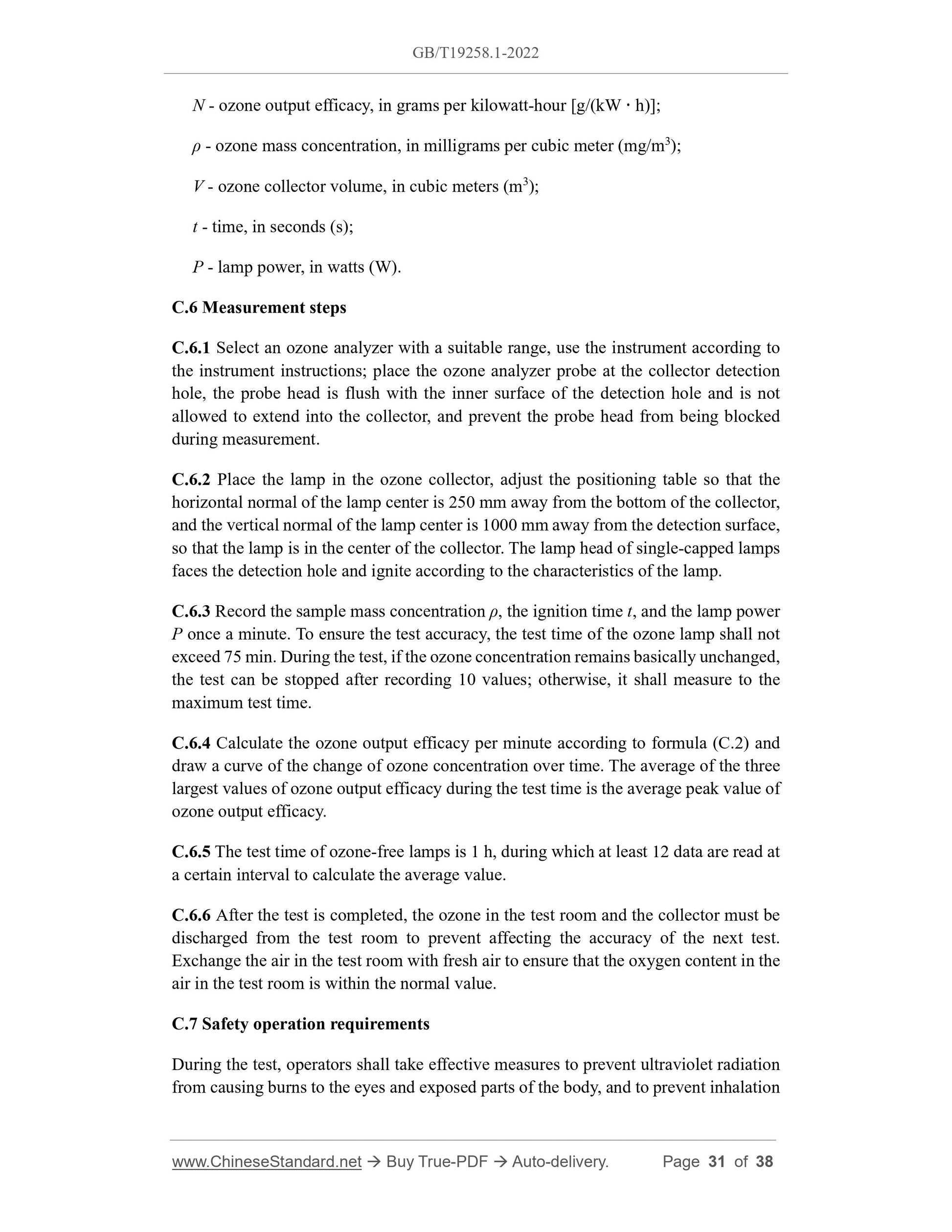

6.8 Ozone concentration/ozone output efficacy
Test according to the method specified in Annex C.

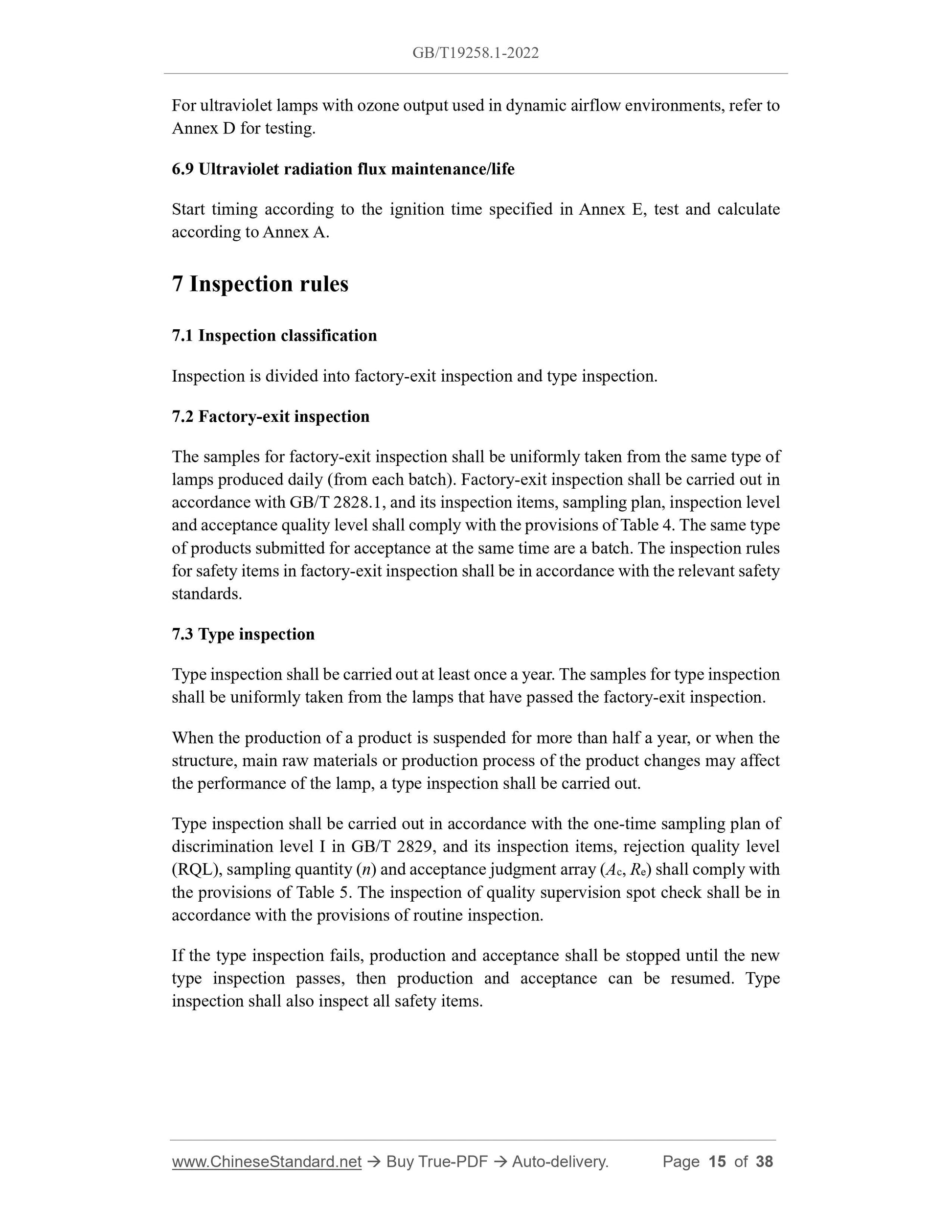

For ultraviolet lamps with ozone output used in dynamic airflow environments, refer to
Annex D for testing.
6.9 Ultraviolet radiation flux maintenance/life
Start timing according to the ignition time specified in Annex E, test and calculate
according to Annex A.
7 Inspection rules
7.1 Inspection classification
Inspection is divided into factory-exit inspection and type inspection.
7.2 Factory-exit inspection
The samples for factory-exit inspection shall be uniformly taken from the same type of
lamps produced daily (from each batch). Factory-exit inspection shall be carried out in
accordance with GB/T 2828.1, and its inspection items, sampling plan, inspection level
and acceptance quality level shall comply with the provisions of Table 4. The same type
of products submitted for acceptance at the same time are a batch. The inspect...
