GB/T 2351-2021: Fluid power systems and components - Outside diameters of tubes and inside diameters of hoses

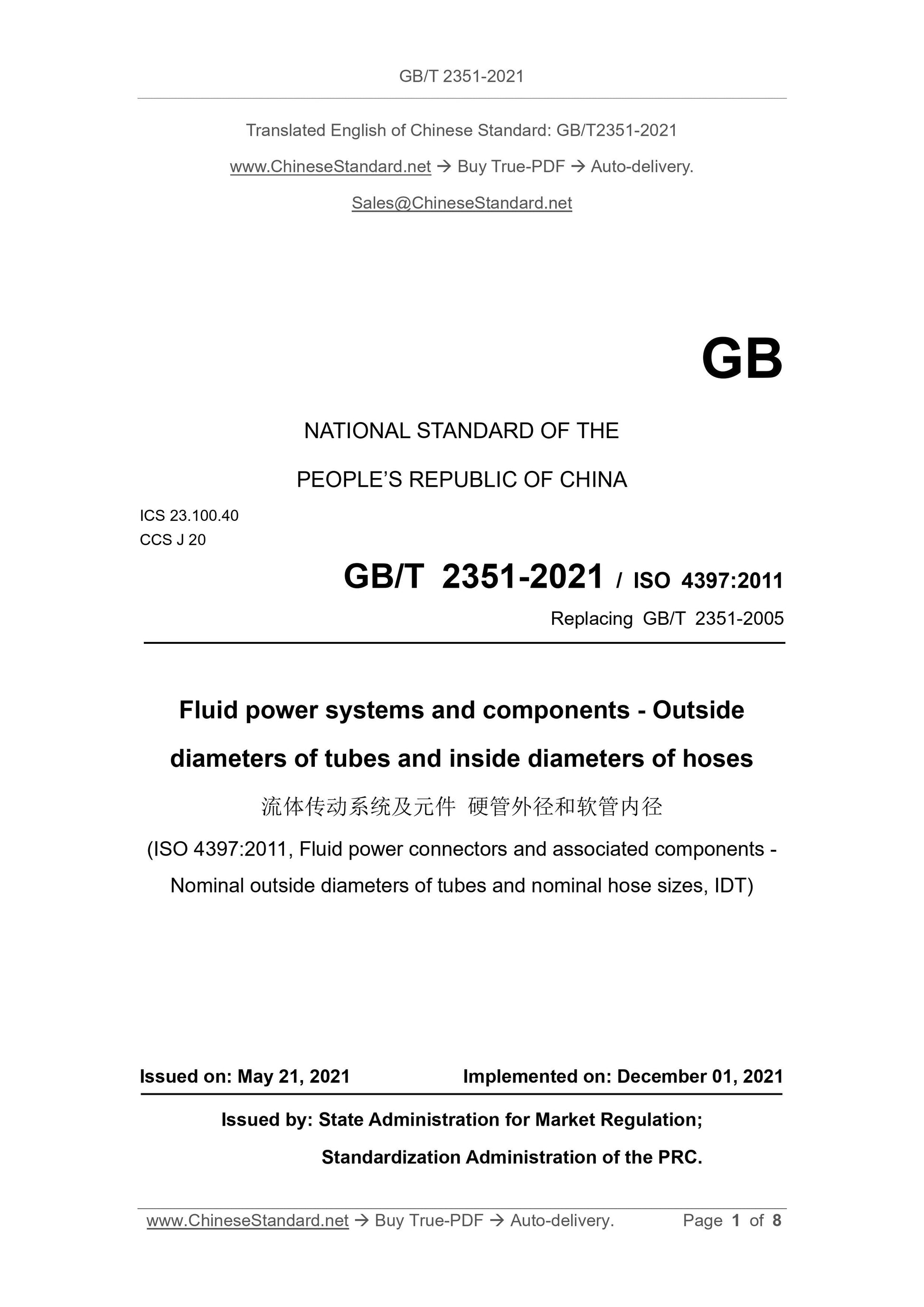

GB/T 2351-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 23.100.40
CCS J 20
GB/T 2351-2021 / ISO 4397:2011
Replacing GB/T 2351-2005
Fluid power systems and components - Outside
diameters of tubes and inside diameters of hoses
(ISO 4397:2011, Fluid power connectors and associated components -
Nominal outside diameters of tubes and nominal hose sizes, IDT)
ISSUED ON: MAY 21, 2021
IMPLEMENTED ON: DECEMBER 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the PRC.

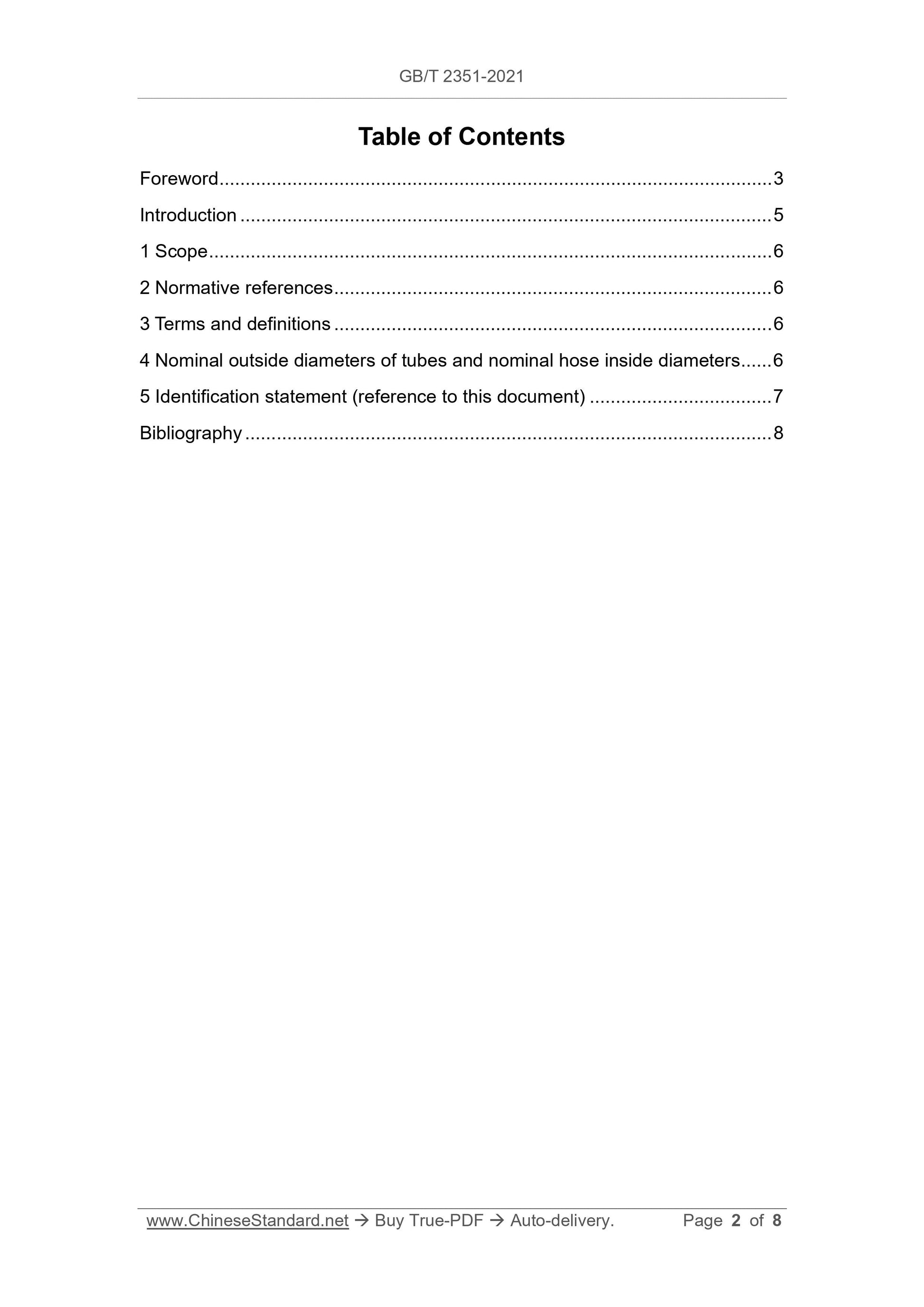

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 6
4 Nominal outside diameters of tubes and nominal hose inside diameters ... 6
5 Identification statement (reference to this document) ... 7
Bibliography ... 8

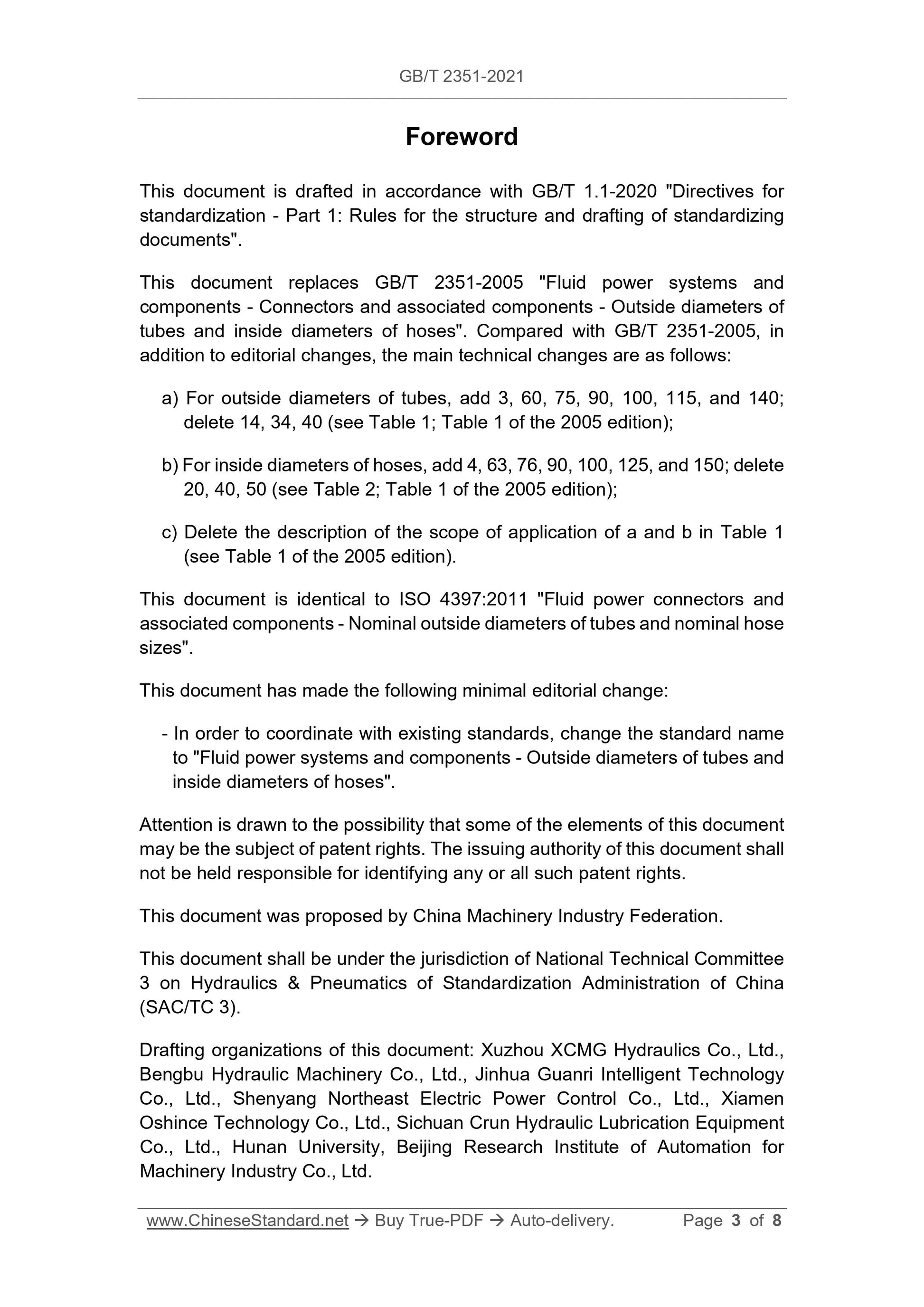

Foreword
This document is drafted in accordance with GB/T 1.1-2020 "Directives for
standardization - Part 1: Rules for the structure and drafting of standardizing
documents".
This document replaces GB/T 2351-2005 "Fluid power systems and
components - Connectors and associated components - Outside diameters of
tubes and inside diameters of hoses". Compared with GB/T 2351-2005, in
addition to editorial changes, the main technical changes are as follows:
a) For outside diameters of tubes, add 3, 60, 75, 90, 100, 115, and 140;
delete 14, 34, 40 (see Table 1; Table 1 of the 2005 edition);
b) For inside diameters of hoses, add 4, 63, 76, 90, 100, 125, and 150; delete
20, 40, 50 (see Table 2; Table 1 of the 2005 edition);
c) Delete the description of the scope of application of a and b in Table 1
(see Table 1 of the 2005 edition).
This document is identical to ISO 4397:2011 "Fluid power connectors and
associated components - Nominal outside diameters of tubes and nominal hose
sizes".
This document has made the following minimal editorial change:
- In order to coordinate with existing standards, change the standard name
to "Fluid power systems and components - Outside diameters of tubes and
inside diameters of hoses".
Attention is drawn to the possibility that some of the elements of this document
may be the subject of patent rights. The issuing authority of this document shall
not be held responsible for identifying any or all such patent rights.
This document was proposed by China Machinery Industry Federation.
This document shall be under the jurisdiction of National Technical Committee
3 on Hydraulics and Pneumatics of Standardization Administration of China
(SAC/TC 3).
Drafting organizations of this document: Xuzhou XCMG Hydraulics Co., Ltd.,
Bengbu Hydraulic Machinery Co., Ltd., Jinhua Guanri Intelligent Technology
Co., Ltd., Shenyang Northeast Electric Power Control Co., Ltd., Xiamen
Oshince Technology Co., Ltd., Sichuan Crun Hydraulic Lubrication Equipment
Co., Ltd., Hunan University, Beijing Research Institute of Automation for
Machinery Industry Co., Ltd.
Fluid power systems and components - Outside
diameters of tubes and inside diameters of hoses

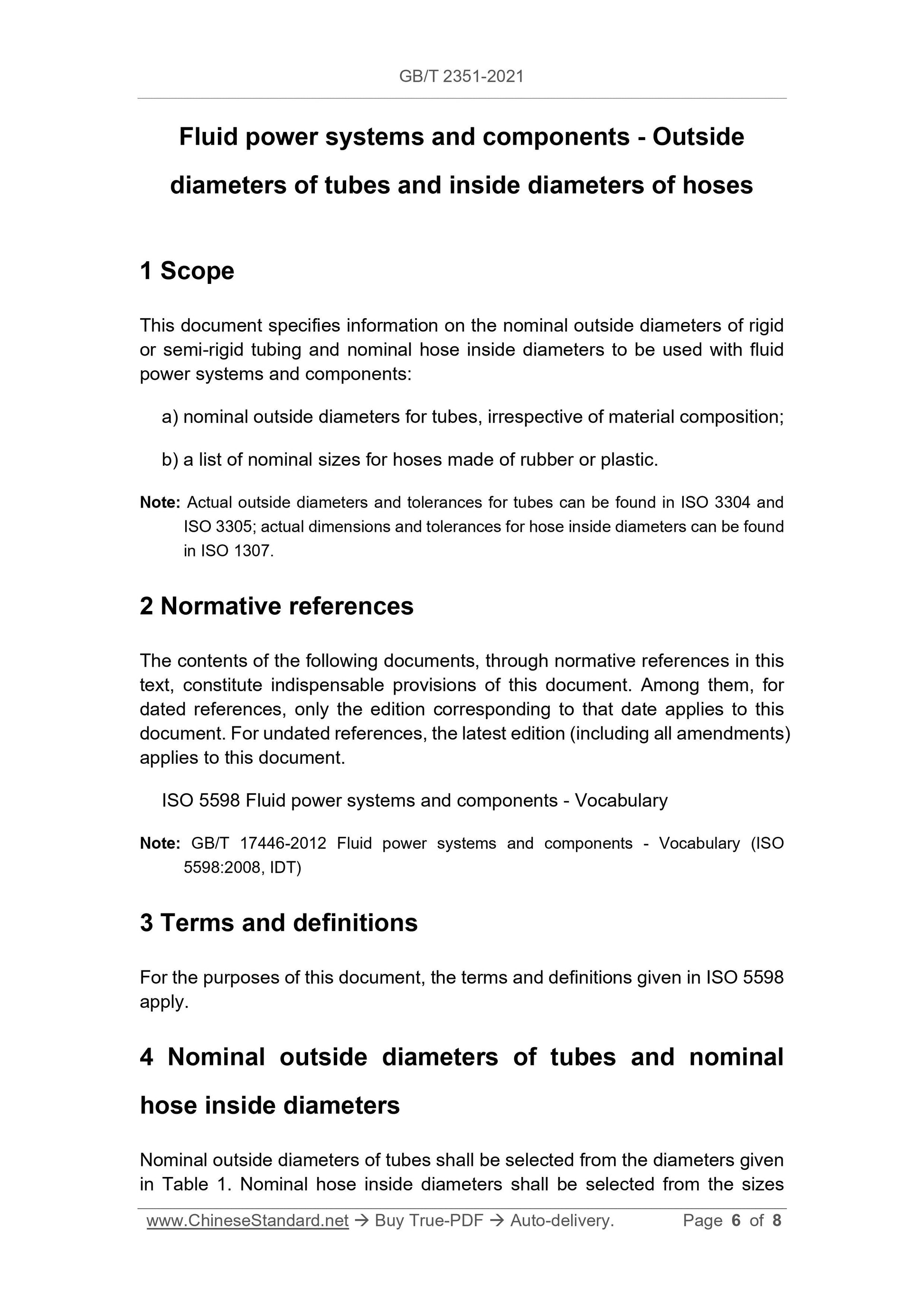

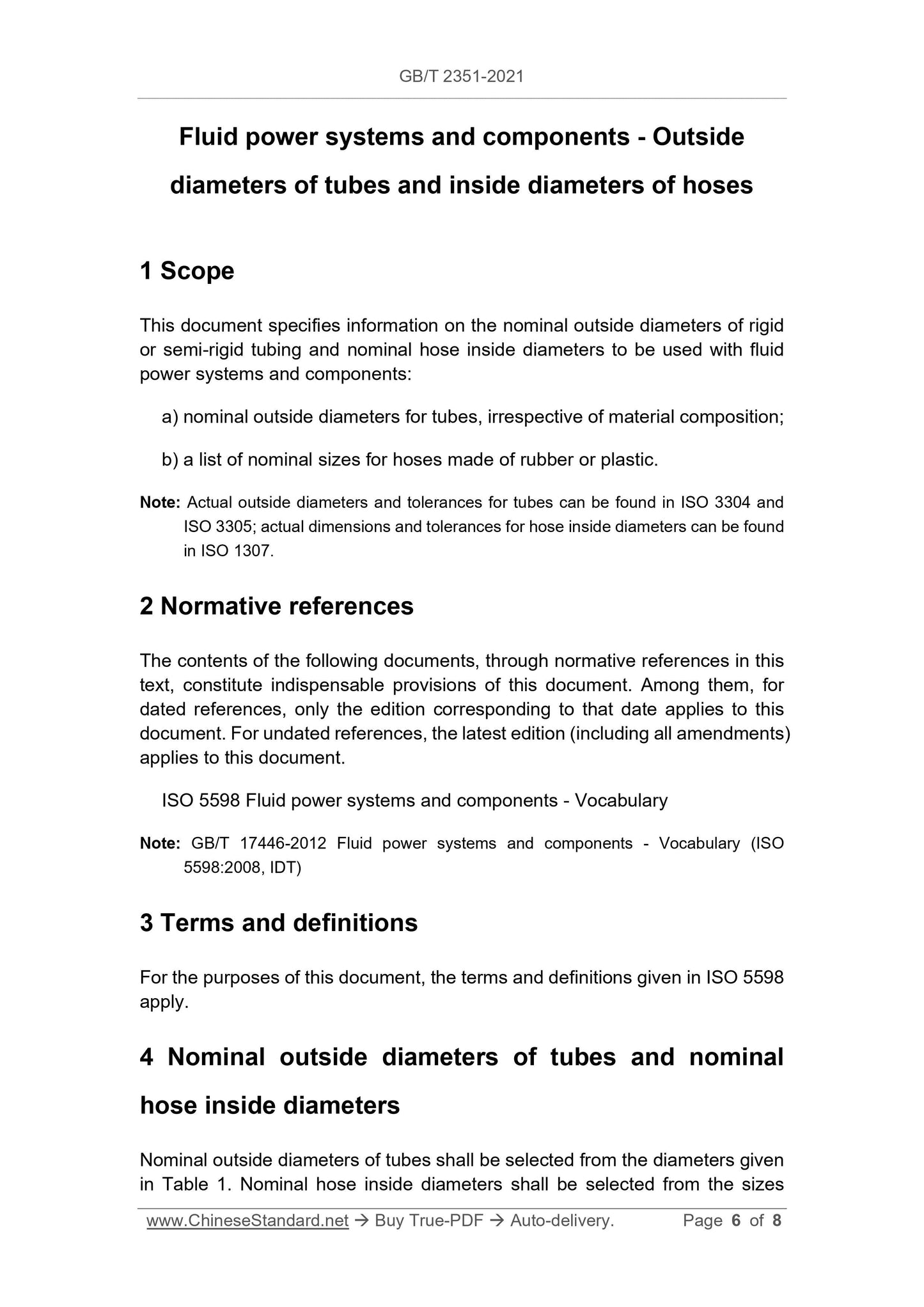

1 Scope
This document specifies information on the nominal outside diameters of rigid
or semi-rigid tubing and nominal hose inside diameters to be used with fluid
power systems and components:
a) nominal outside diameters for tubes, irrespective of material composition;
b) a list of nominal sizes for hoses made of rubber or plastic.
Note: Actual outside diameters and tolerances for tubes can be found in ISO 3304 and
ISO 3305; actual dimensions and tolerances for hose inside diameters can be found
in ISO 1307.
2 Normative references
The contents of the following documents, through normative references in this
text, constitute indispensable provisions of this document. Among them, for
dated references, only the edition corresponding to that date applies to this
document. For undated references, the latest edition (including all amendments)
applies to this document.
ISO 5598 Fluid power systems and components - Vocabulary
Note: GB/T 17446-2012 Fluid power systems and components - Vocabulary (ISO
5598:2008, IDT)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 5598
apply.
4 Nominal outside diameters of tubes and nominal
hose inside diameters
Nominal outside diameters of tubes shall be selected from the diameters given
in Table 1. Nominal hose inside diameters shall be selected from the sizes
