GB/T 32399-2015: Information technology -- Cloud computing -- Reference architecture

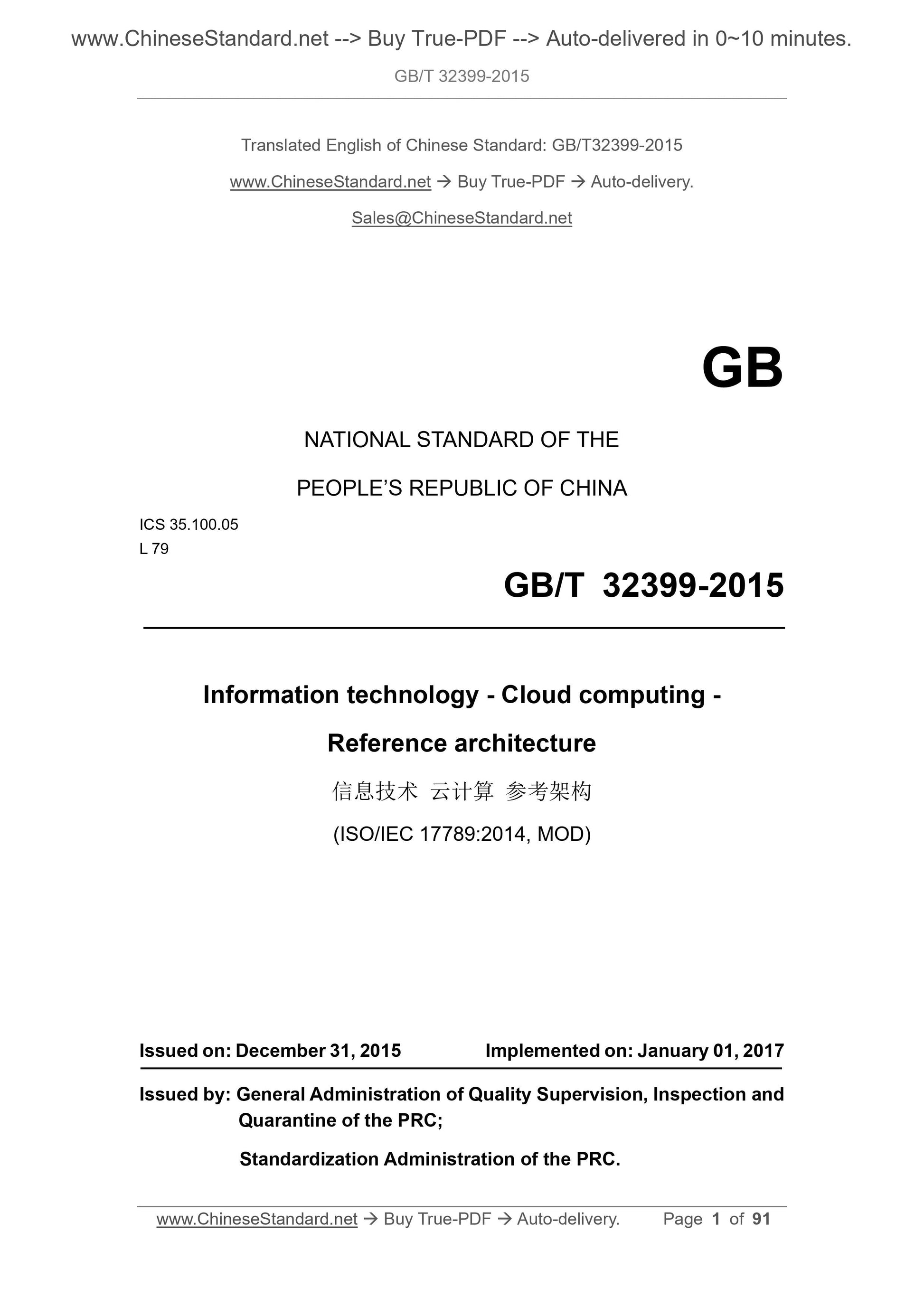

GB/T 32399-2015
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 35.100.05
L 79
Information technology - Cloud computing -
Reference architecture
(ISO/IEC 17789:2014, MOD)
ISSUED ON: DECEMBER 31, 2015
IMPLEMENTED ON: JANUARY 01, 2017
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine of the PRC;
Standardization Administration of the PRC.

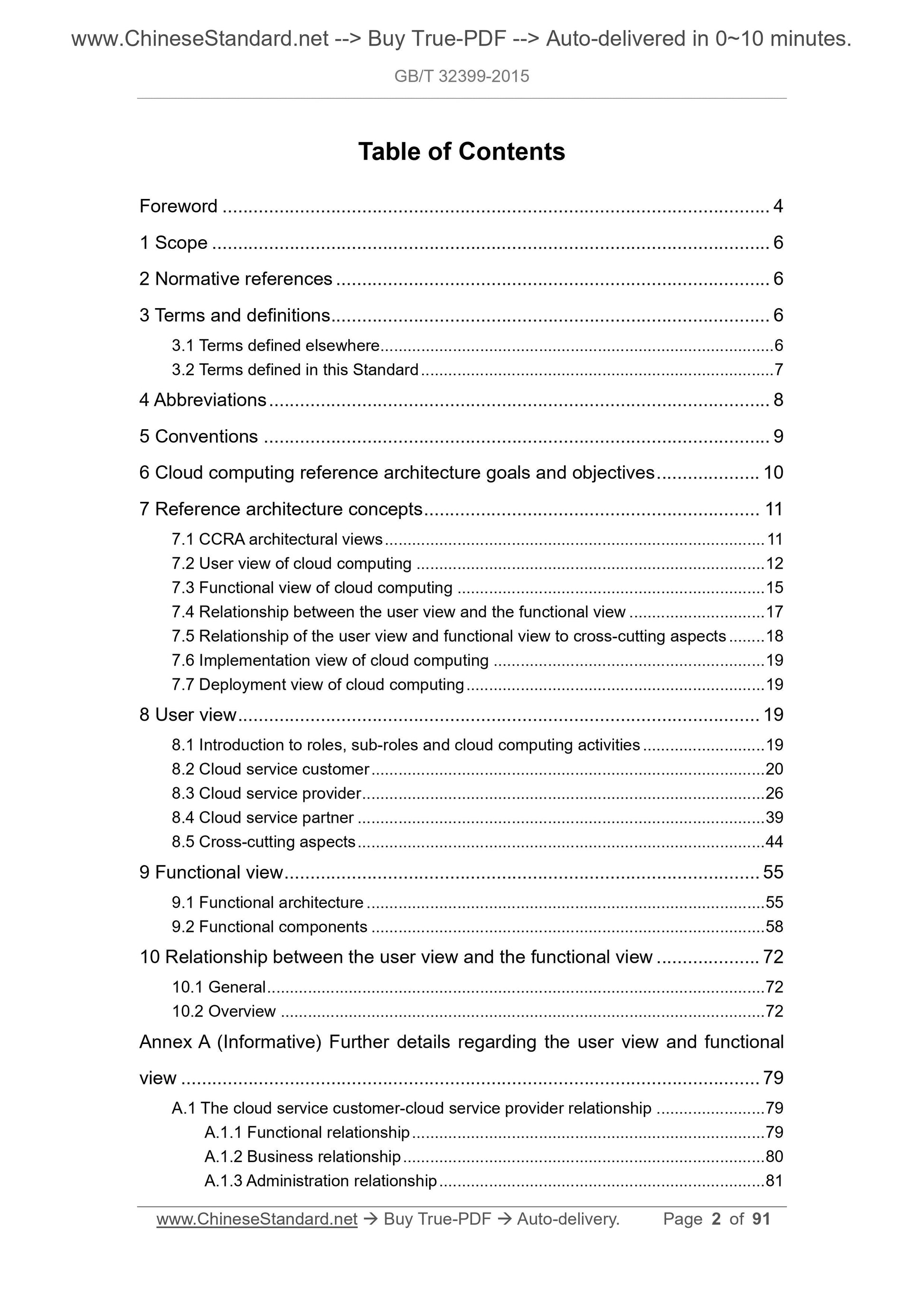

Table of Contents
Foreword ... 4
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 6
3.1 Terms defined elsewhere ... 6
3.2 Terms defined in this Standard ... 7
4 Abbreviations ... 8
5 Conventions ... 9
6 Cloud computing reference architecture goals and objectives ... 10
7 Reference architecture concepts ... 11
7.1 CCRA architectural views ... 11
7.2 User view of cloud computing ... 12
7.3 Functional view of cloud computing ... 15
7.4 Relationship between the user view and the functional view ... 17
7.5 Relationship of the user view and functional view to cross-cutting aspects ... 18
7.6 Implementation view of cloud computing ... 19
7.7 Deployment view of cloud computing ... 19
8 User view ... 19
8.1 Introduction to roles, sub-roles and cloud computing activities ... 19
8.2 Cloud service customer ... 20
8.3 Cloud service provider ... 26
8.4 Cloud service partner ... 39
8.5 Cross-cutting aspects ... 44
9 Functional view ... 55
9.1 Functional architecture ... 55
9.2 Functional components ... 58
10 Relationship between the user view and the functional view ... 72
10.1 General ... 72
10.2 Overview ... 72
Annex A (Informative) Further details regarding the user view and functional
view ... 79
A.1 The cloud service customer-cloud service provider relationship ... 79
A.1.1 Functional relationship ... 79
A.1.2 Business relationship ... 80
A.1.3 Administration relationship ... 81

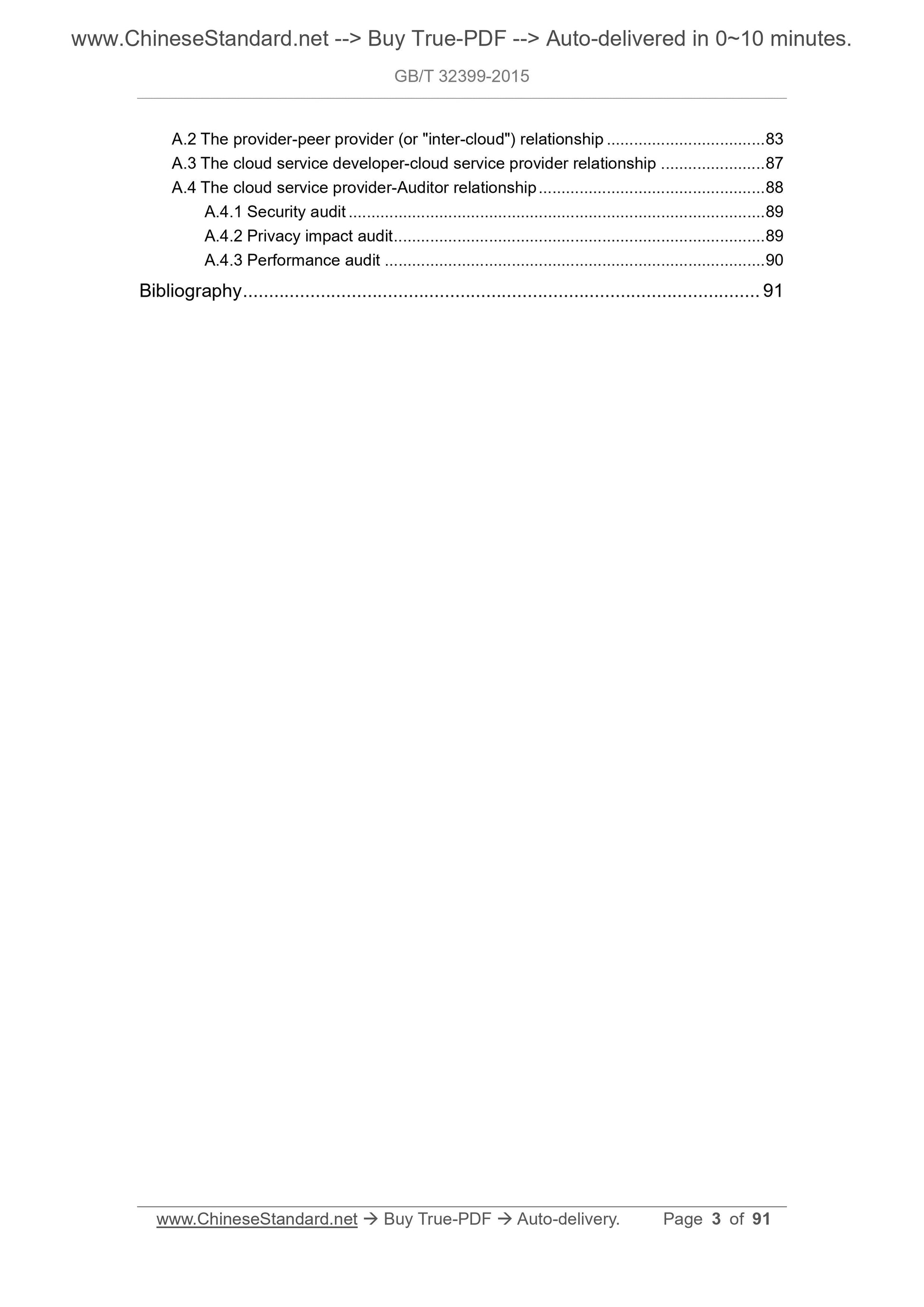

A.2 The provider-peer provider (or "inter-cloud") relationship ... 83
A.3 The cloud service developer-cloud service provider relationship ... 87
A.4 The cloud service provider-Auditor relationship ... 88
A.4.1 Security audit ... 89
A.4.2 Privacy impact audit ... 89
A.4.3 Performance audit ... 90
Bibliography ... 91

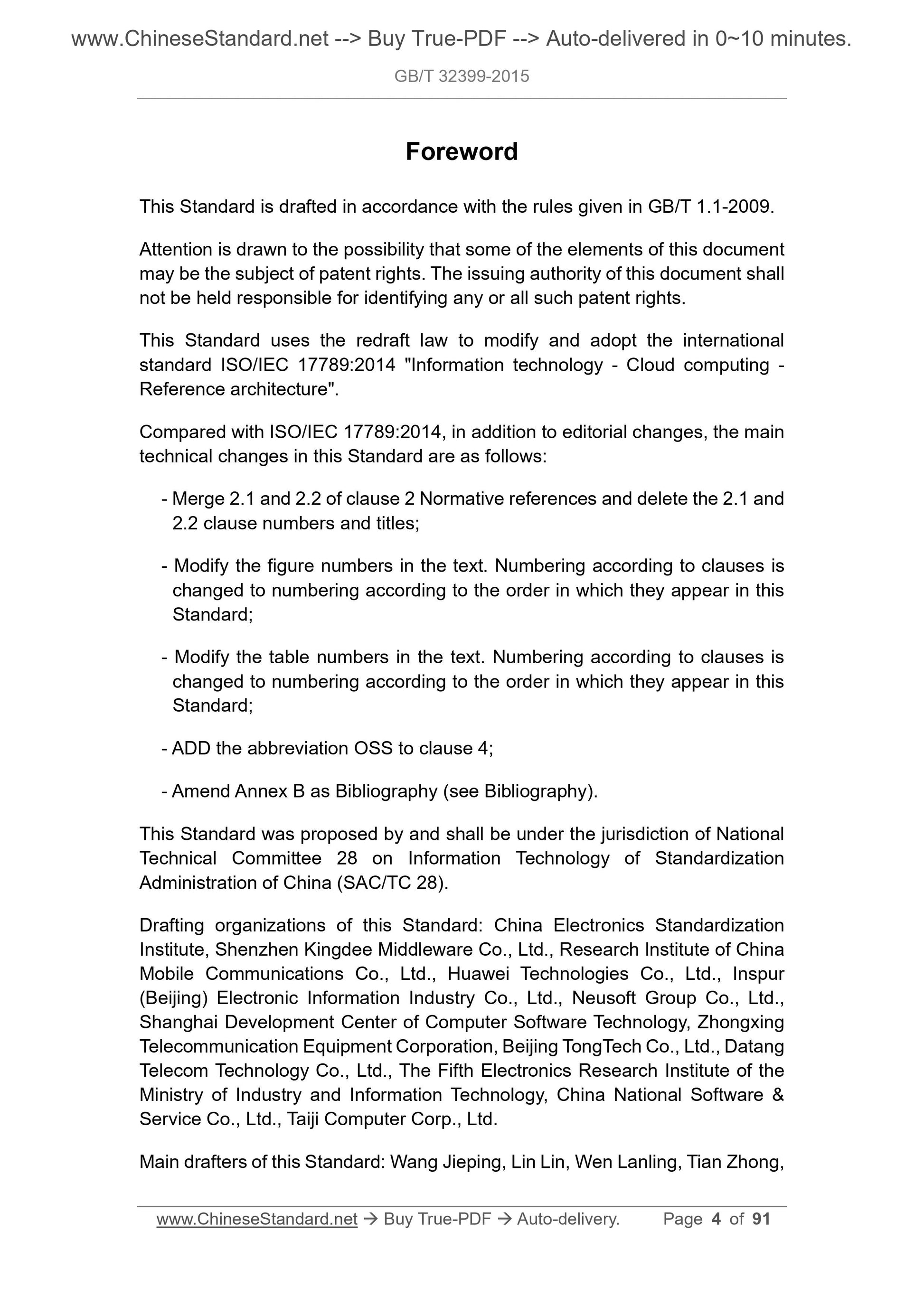

Foreword
This Standard is drafted in accordance with the rules given in GB/T 1.1-2009.
Attention is drawn to the possibility that some of the elements of this document
may be the subject of patent rights. The issuing authority of this document shall
not be held responsible for identifying any or all such patent rights.
This Standard uses the redraft law to modify and adopt the international
standard ISO/IEC 17789:2014 "Information technology - Cloud computing -
Reference architecture".
Compared with ISO/IEC 17789:2014, in addition to editorial changes, the main
technical changes in this Standard are as follows:
- Merge 2.1 and 2.2 of clause 2 Normative references and delete the 2.1 and
2.2 clause numbers and titles;
- Modify the figure numbers in the text. Numbering according to clauses is
changed to numbering according to the order in which they appear in this
Standard;
- Modify the table numbers in the text. Numbering according to clauses is
changed to numbering according to the order in which they appear in this
Standard;
- ADD the abbreviation OSS to clause 4;
- Amend Annex B as Bibliography (see Bibliography).
This Standard was proposed by and shall be under the jurisdiction of National
Technical Committee 28 on Information Technology of Standardization
Administration of China (SAC/TC 28).
Drafting organizations of this Standard: China Electronics Standardization
Institute, Shenzhen Kingdee Middleware Co., Ltd., Research Institute of China
Mobile Communications Co., Ltd., Huawei Technologies Co., Ltd., Inspur
(Beijing) Electronic Information Industry Co., Ltd., Neusoft Group Co., Ltd.,
Shanghai Development Center of Computer Software Technology, Zhongxing
Telecommunication Equipment Corporation, Beijing TongTech Co., Ltd., Datang
Telecom Technology Co., Ltd., The Fifth Electronics Research Institute of the
Ministry of Industry and Information Technology, China National Software and
Service Co., Ltd., Taiji Computer Corp., Ltd.
Main drafters of this Standard: Wang Jieping, Lin Lin, Wen Lanling, Tian Zhong,

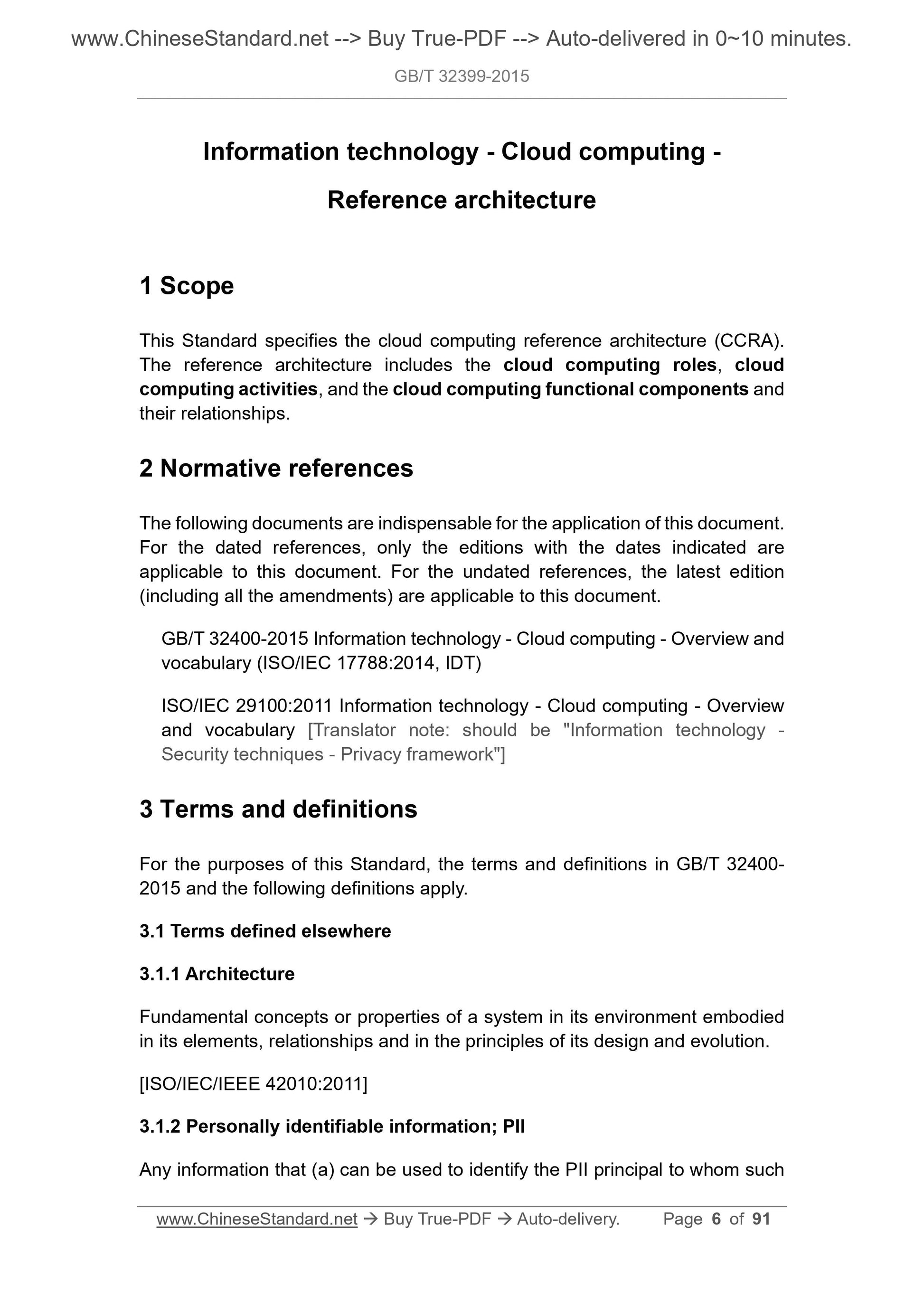

Information technology - Cloud computing -
Reference architecture
1 Scope
This Standard specifies the cloud computing reference architecture (CCRA).
The reference architecture includes the cloud computing roles, cloud
computing activities, and the cloud computing functional components and
their relationships.
2 Normative references
The following documents are indispensable for the application of this document.
For the dated references, only the editions with the dates indicated are
applicable to this document. For the undated references, the latest edition
(including all the amendments) are applicable to this document.
GB/T 32400-2015 Information technology - Cloud computing - Overview and
vocabulary (ISO/IEC 17788:2014, IDT)
ISO/IEC 29100:2011 Information technology - Cloud computing - Overview
and vocabulary [Translator note: should be "Information technology -
Security techniques - Privacy framework"]
3 Terms and definitions
For the purposes of this Standard, the terms and definitions in GB/T 32400-
2015 and the following definitions apply.
3.1 Terms defined elsewhere
3.1.1 Architecture
Fundamental concepts or properties of a system in its environment embodied
in its elements, relationships and in the principles of its design and evolution.
[ISO/IEC/IEEE 42010:2011]
3.1.2 Personally identifiable information; PII
Any information that (a) can be used to identify the PII principal to whom such
