GB/T 33162-2016: Continuously hot-rolled steel sheet and strip for cold-forming steel sections

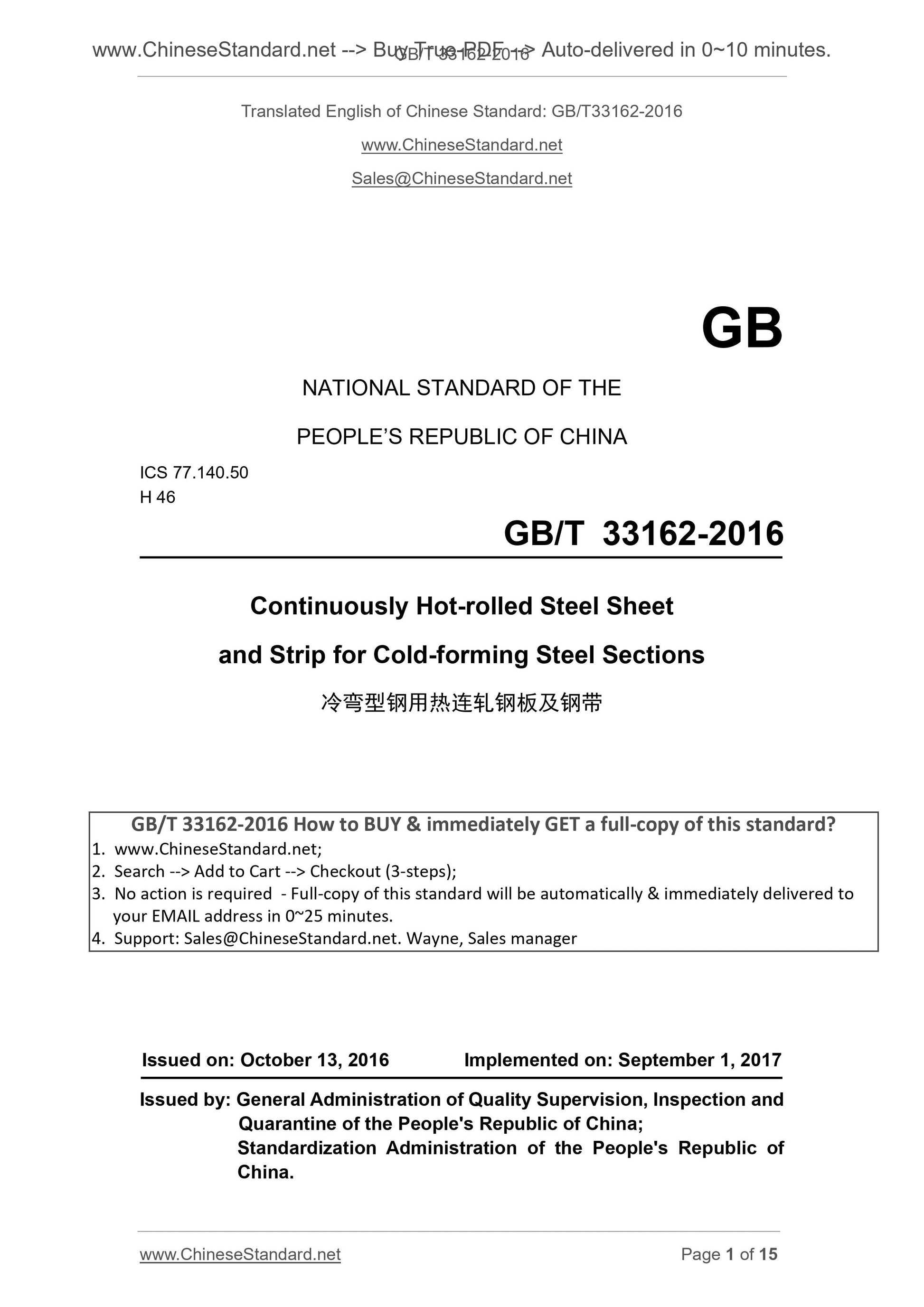

GB/T 33162-2016
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.140.50
H 46
Continuously Hot-rolled Steel Sheet
and Strip for Cold-forming Steel Sections
ISSUED ON. OCTOBER 13, 2016
IMPLEMENTED ON. SEPTEMBER 1, 2017
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

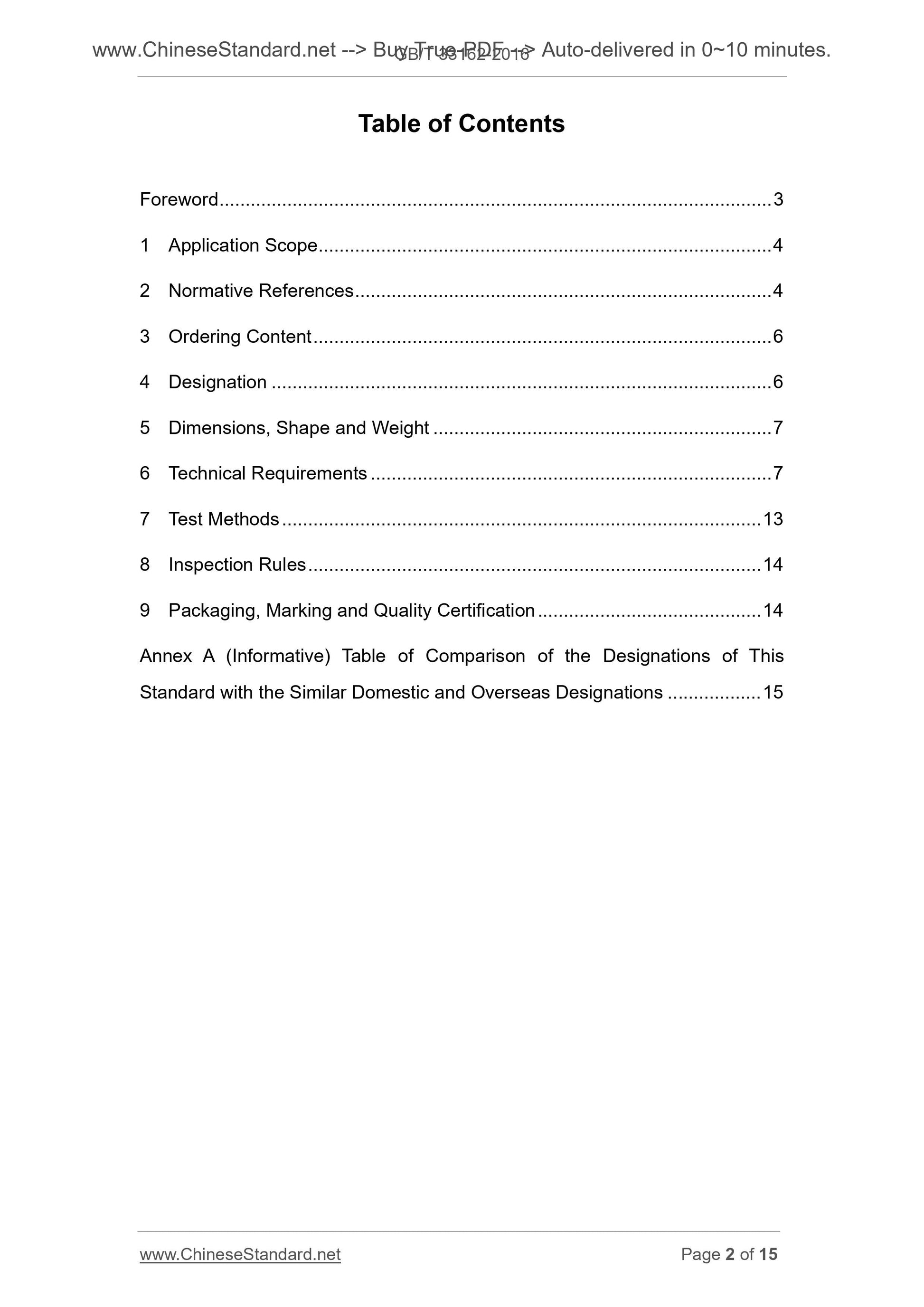

Table of Contents
Foreword ... 3
1 Application Scope ... 4
2 Normative References ... 4
3 Ordering Content ... 6
4 Designation ... 6
5 Dimensions, Shape and Weight ... 7
6 Technical Requirements ... 7
7 Test Methods ... 13
8 Inspection Rules ... 14
9 Packaging, Marking and Quality Certification ... 14
Annex A (Informative) Table of Comparison of the Designations of This
Standard with the Similar Domestic and Overseas Designations ... 15

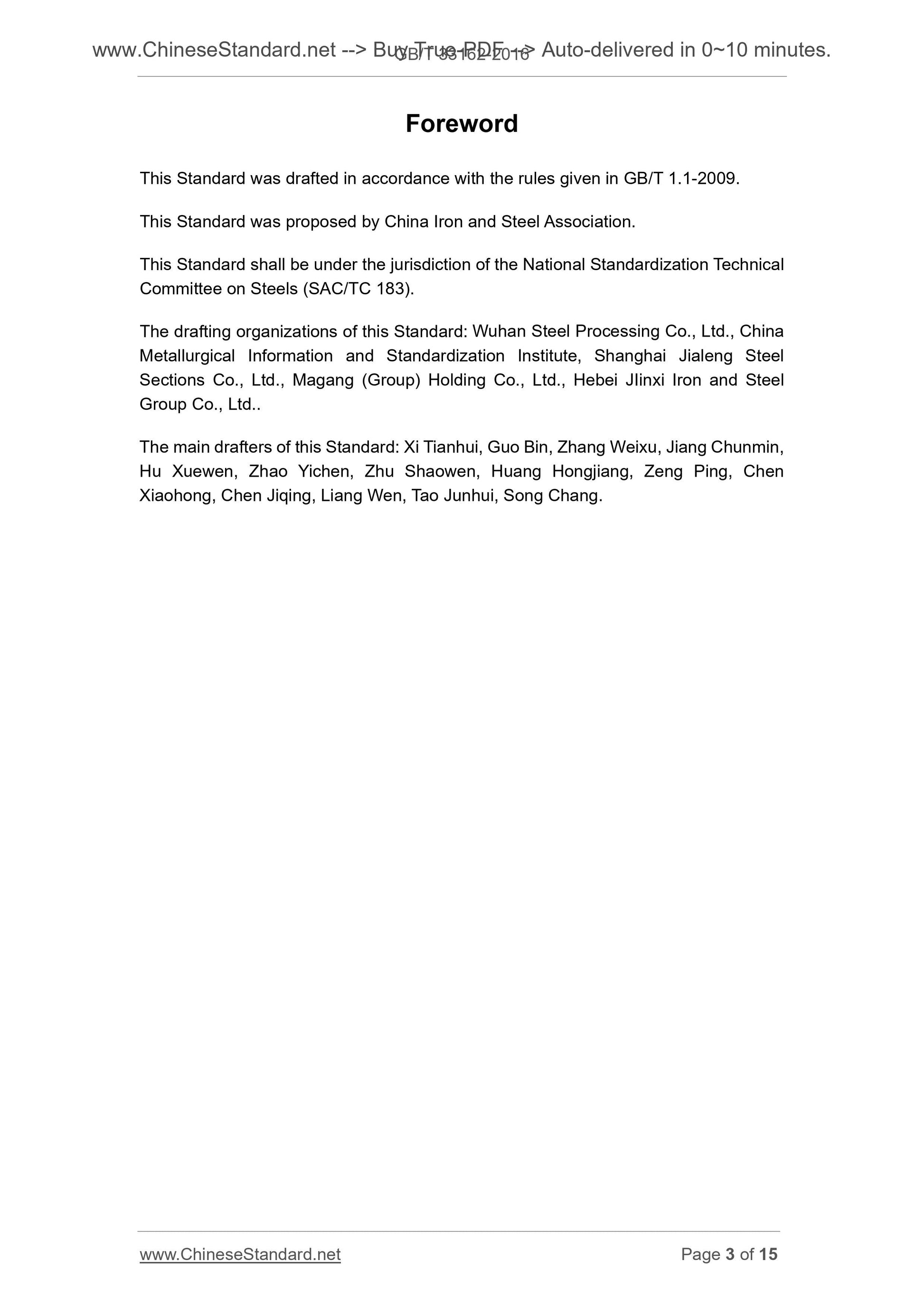

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009.
This Standard was proposed by China Iron and Steel Association.
This Standard shall be under the jurisdiction of the National Standardization Technical
Committee on Steels (SAC/TC 183).
The drafting organizations of this Standard. Wuhan Steel Processing Co., Ltd., China
Metallurgical Information and Standardization Institute, Shanghai Jialeng Steel
Sections Co., Ltd., Magang (Group) Holding Co., Ltd., Hebei JIinxi Iron and Steel
Group Co., Ltd..
The main drafters of this Standard. Xi Tianhui, Guo Bin, Zhang Weixu, Jiang Chunmin,
Hu Xuewen, Zhao Yichen, Zhu Shaowen, Huang Hongjiang, Zeng Ping, Chen
Xiaohong, Chen Jiqing, Liang Wen, Tao Junhui, Song Chang.

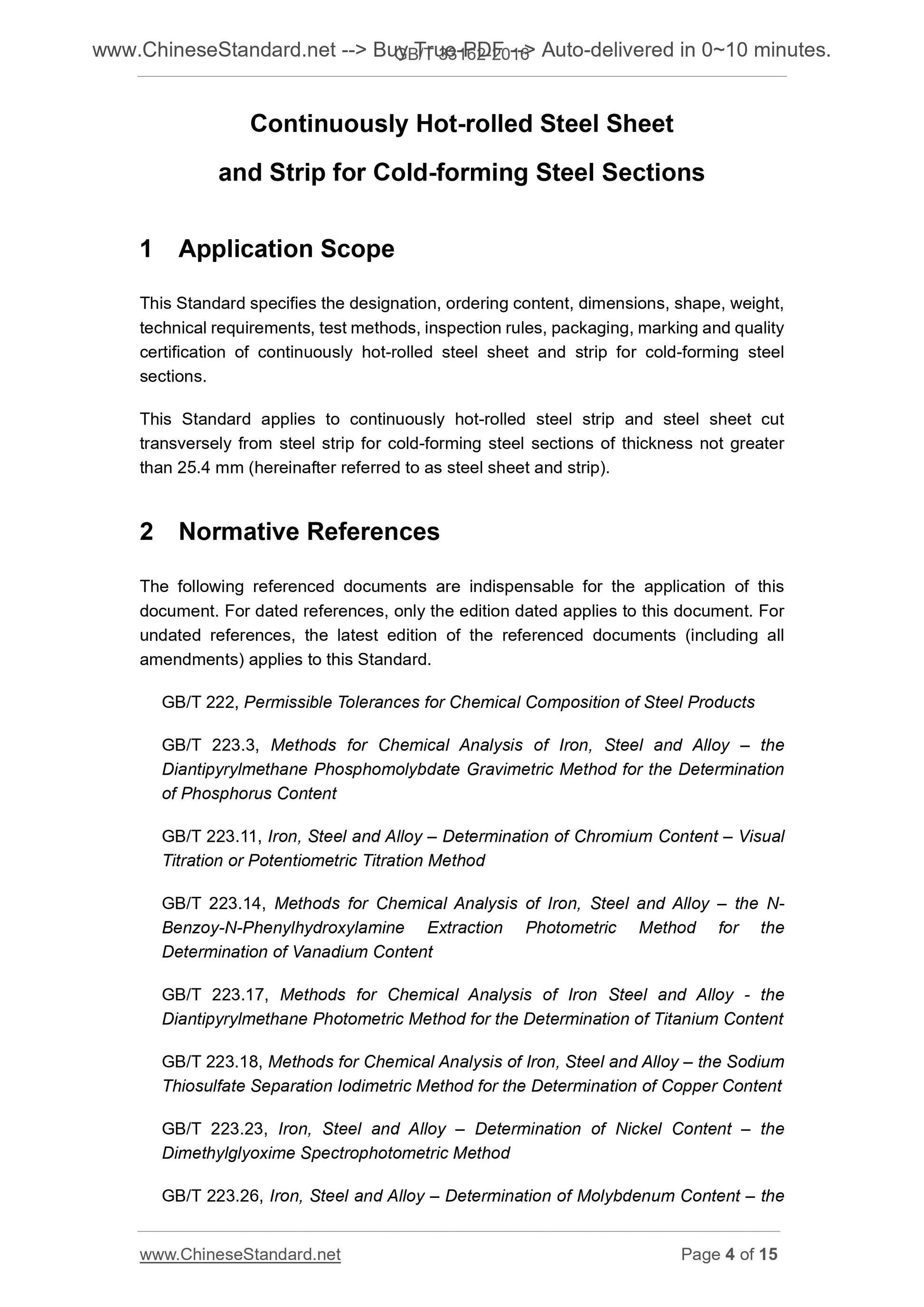

Continuously Hot-rolled Steel Sheet
and Strip for Cold-forming Steel Sections
1 Application Scope
This Standard specifies the designation, ordering content, dimensions, shape, weight,
technical requirements, test methods, inspection rules, packaging, marking and quality
certification of continuously hot-rolled steel sheet and strip for cold-forming steel
sections.
This Standard applies to continuously hot-rolled steel strip and steel sheet cut
transversely from steel strip for cold-forming steel sections of thickness not greater
than 25.4 mm (hereinafter referred to as steel sheet and strip).
2 Normative References
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition dated applies to this document. For
undated references, the latest edition of the referenced documents (including all
amendments) applies to this Standard.
GB/T 222, Permissible Tolerances for Chemical Composition of Steel Products
GB/T 223.3, Methods for Chemical Analysis of Iron, Steel and Alloy – the
Diantipyrylmethane Phosphomolybdate Gravimetric Method for the Determination
of Phosphorus Content
GB/T 223.11, Iron, Steel and Alloy – Determination of Chromium Content – Visual
Titration or Potentiometric Titration Method
GB/T 223.14, Methods for Chemical Analysis of Iron, Steel and Alloy – the N-
Benzoy-N-Phenylhydroxylamine Extraction Photometric Method for the
Determination of Vanadium Content
GB/T 223.17, Methods for Chemical Analysis of Iron Steel and Alloy - the
Diantipyrylmethane Photometric Method for the Determination of Titanium Content
GB/T 223.18, Methods for Chemical Analysis of Iron, Steel and Alloy – the Sodium
Thiosulfate Separation Iodimetric Method for the Determination of Copper Content
GB/T 223.23, Iron, Steel and Alloy – Determination of Nickel Content – the
Dimethylglyoxime Spectrophotometric Method
GB/T 223.26, Iron, Steel and Alloy – Determination of Molybdenum Content – the
Thiocyanate Spectrophotometric Method

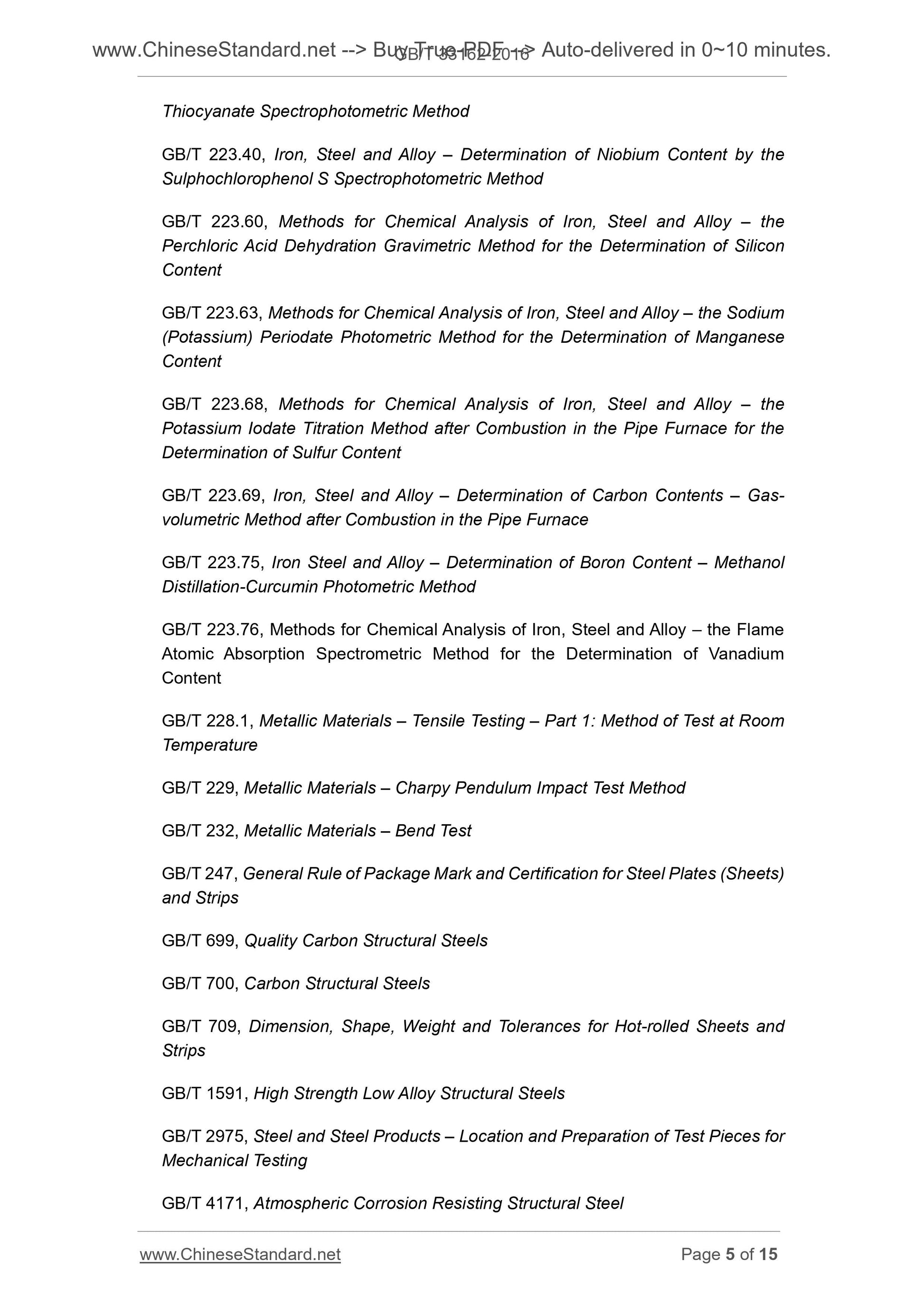

GB/T 223.40, Iron, Steel and Alloy – Determination of Niobium Content by the
Sulphochlorophenol S Spectrophotometric Method
GB/T 223.60, Methods for Chemical Analysis of Iron, Steel and Alloy – the
Perchloric Acid Dehydration Gravimetric Method for the Determination of Silicon
Content
GB/T 223.63, Methods for Chemical Analysis of Iron, Steel and Alloy – the Sodium
(Potassium) Periodate Photometric Method for the Determination of Manganese
Content
GB/T 223.68, Methods for Chemical Analysis of Iron, Steel and Alloy – the
Potassium Iodate Titration Method after Combustion in the Pipe Furnace for the
Determination of Sulfur Content
GB/T 223.69, Iron, Steel and Alloy – Determination of Carbon Contents – Gas-
volumetric Method after Combustion in the Pipe Furnace
GB/T 223.75, Iron Steel and Alloy – Determination of Boron Content – Methanol
Distillation-Curcumin Photometric Method
GB/T 223.76, Methods for Chemical Analysis of Iron, Steel and Alloy – the Flame
Atomic Absorption Spectrometric Method for the Determination of Vanadium
Content
GB/T 228.1, Metallic Materials – Tensile Testing – Part 1. Method of Test at Room
Temperature
GB/T 229, Metallic Materials – Charpy Pendulum Impact Test Method
GB/T 232, Metallic Materials – Bend Test
GB/T 247, General Rule of Package Mark and Certification for Steel Plates (Sheets)
and Strips
GB/T 699, Quality Carbon Structural Steels
GB/T 700, Carbon Structural Steels
GB/T 709, Dimension, Shape, Weight and Tolerances for Hot-rolled Sheets and
Strips
GB/T 1591, High Strength Low Alloy Structural Steels
GB/T 2975, Steel and Steel Products – Location and Preparation of Test Pieces for
Mechanical Testing
GB/T 4171, Atmospheric Corrosion Resisting Structural Steel
GB/T 4336, Carbon and Low-alloy Steel – Determination of Multi-element Contents
– Spark Discharge Atomic Emission Spectrometric Method (Routine Method)
GB/T 8170-2008, Rules of Rounding off for Numerical Values and Expression and
Judgement of Limiting Values
GB/T 10561-2005, Steel – Determination of Content of Nonmetallic Inclusions –
Micrographic Method Using Standards Diagrams
GB/T 17505, Steel and Steel Products – General Technical Delivery Requirements
GB/T 20066, Steel and Iron – Sampling and Preparation of Samples for the
Determination of Chemical Composition

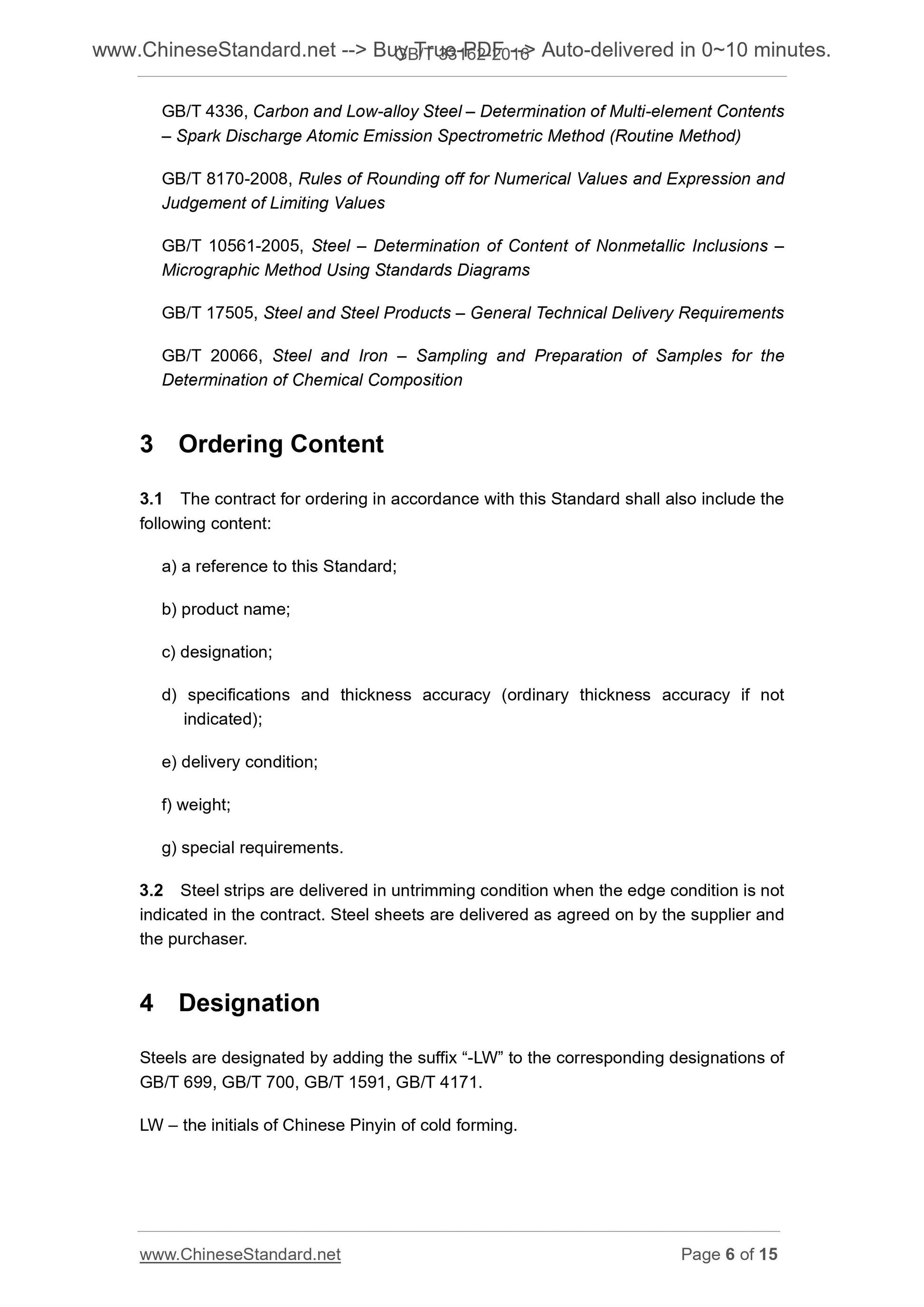

3 Ordering Content
3.1 The contract for ordering in accordance with this Standard shall also include the
following content.
a) a reference to this Standard;
b) product name;
c) designation;
d) specifications and thickness accuracy (ordinary thickness accuracy if not
indicated);
e) delivery condition;
f) weight;
g) special requirements.
3.2 Steel strips are delivered in untrimming condition when the edge condition is not
indicated in the contract. Steel sheets are delivered as agreed on by the supplier and
the purchaser.
4 Designation
Steels are designated by adding the suffix “-LW” to the corresponding designations of
GB/T 699, GB/T 700, GB/T 1591, GB/T 4171.
LW – the initials of Chinese Pinyin of cold forming.

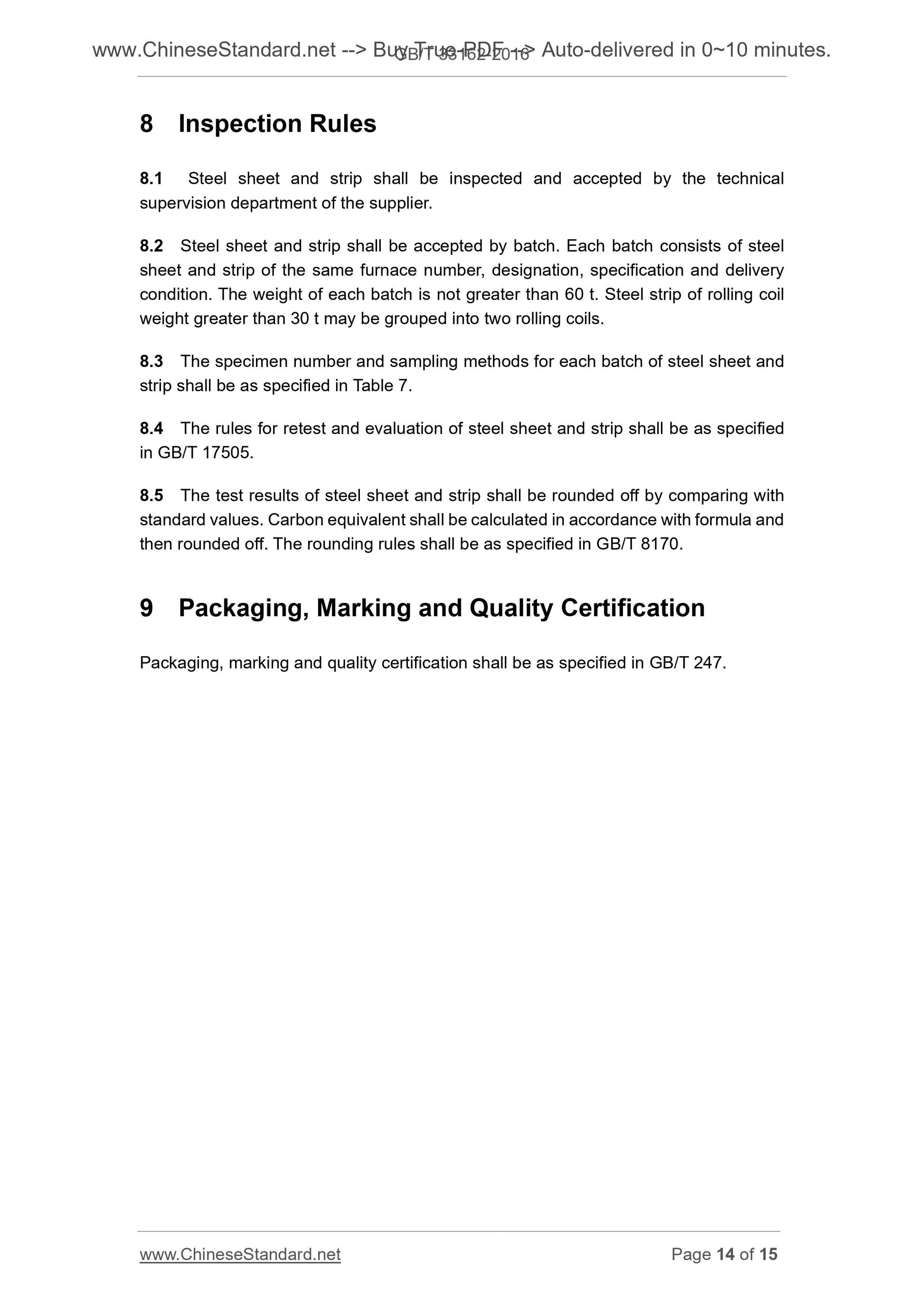

8 Inspection Rules
8.1 Steel sheet and strip shall be inspected and accepted by the technical
supervision department of the supplier.
8.2 Steel sheet and strip shall be accepted by batch. Each batch consists of steel
sheet and strip of the same furnace number, designation, specification and delivery
condition. The weight of each batch is not greater than 60 t. Steel strip of rolling coil
weight greater than 30 t may be grouped into two rolling coils.
8.3 The specimen number and sampling methods for each batch of steel sheet and
strip shall be as specified in Table 7.
8.4 The rules for retest and evaluation of steel sheet and strip shall be as specified
...
