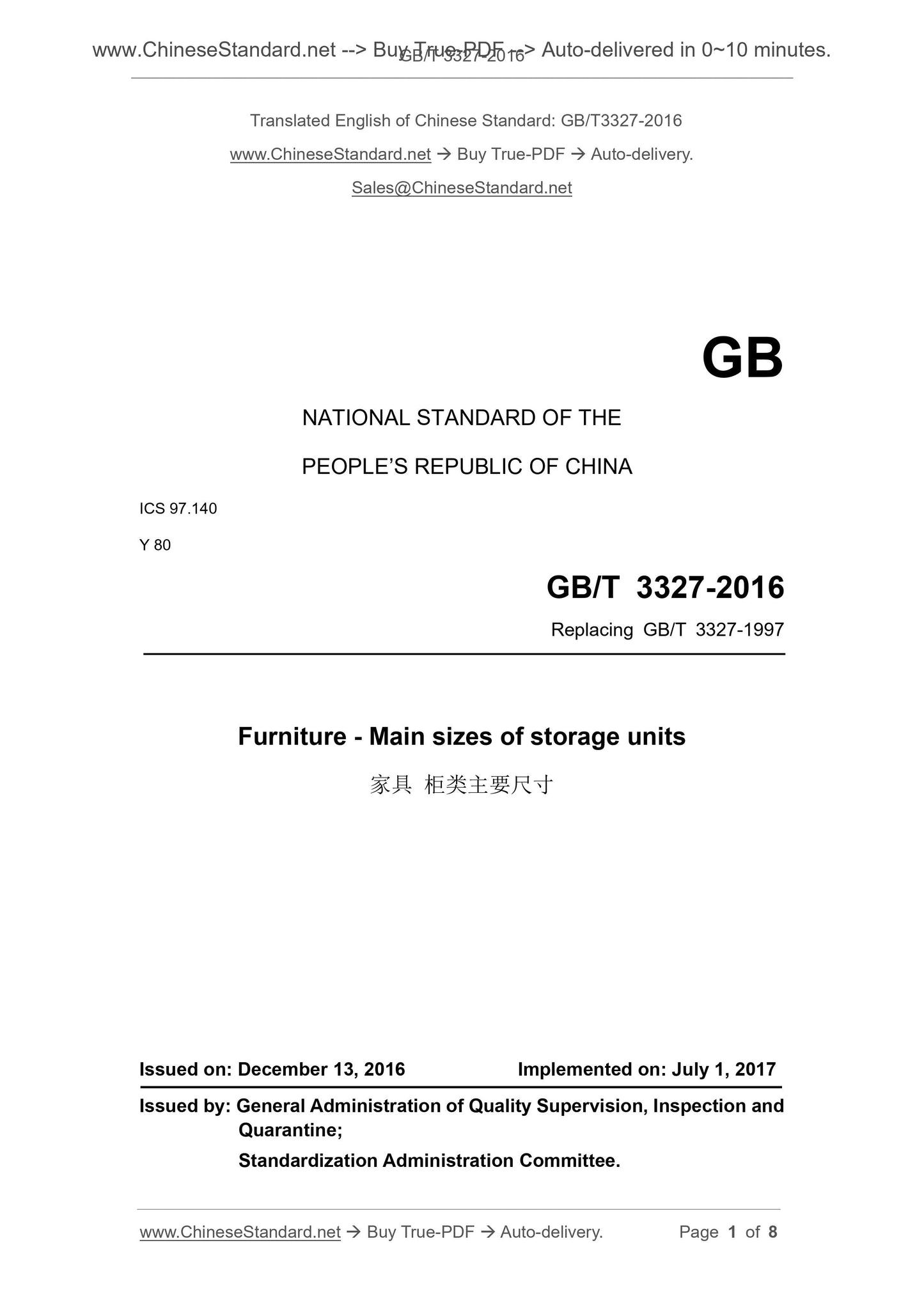

GB/T 3327-2016: Furniture -- Main sizes of storage units
GB/T 3327-2016
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 97.140
Y 80
Replacing GB/T 3327-1997
Furniture - Main sizes of storage units
ISSUED ON. DECEMBER 13, 2016
IMPLEMENTED ON. JULY 1, 2017
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration Committee.

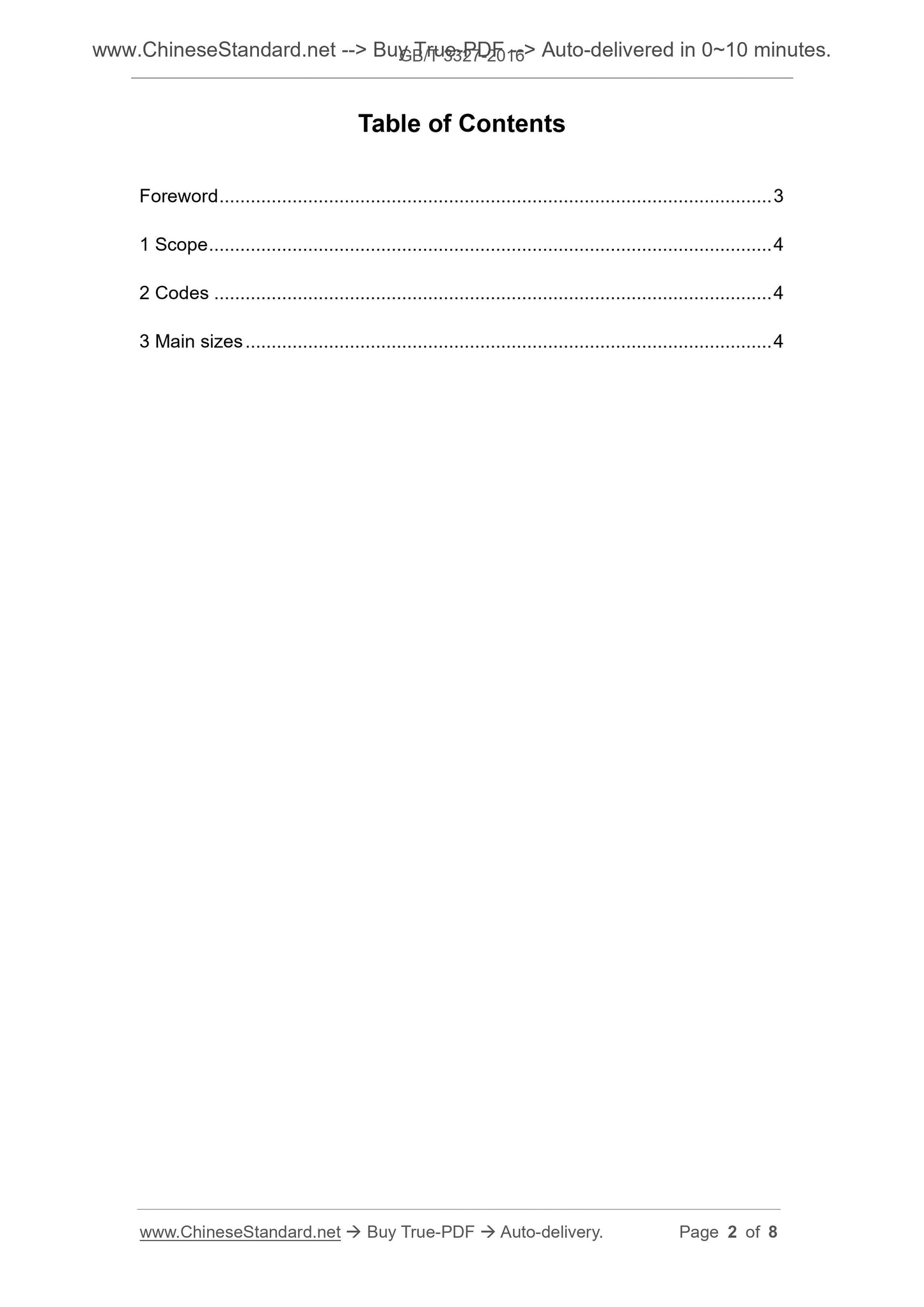

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Codes ... 4
3 Main sizes ... 4

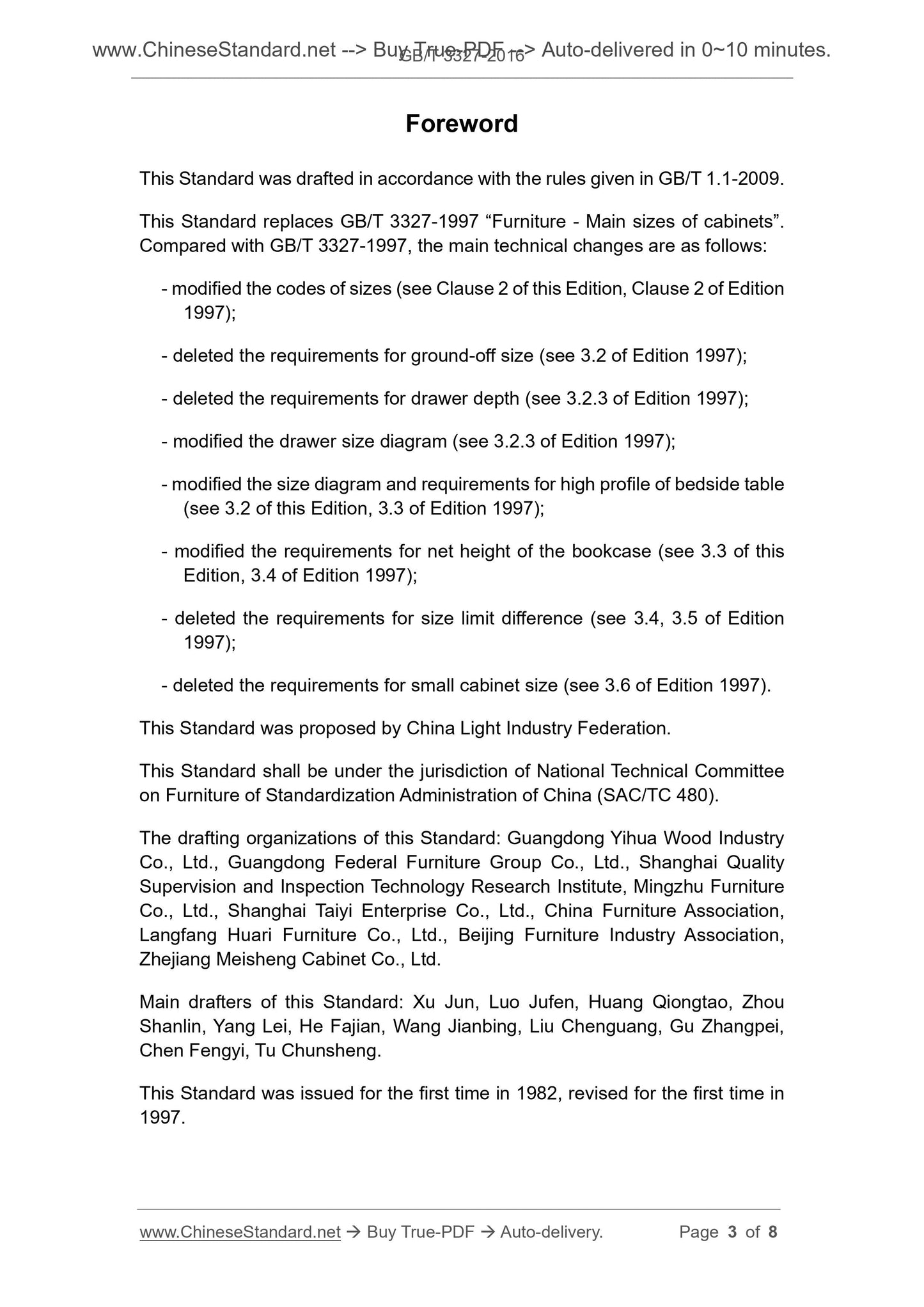

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009.
This Standard replaces GB/T 3327-1997 “Furniture - Main sizes of cabinets”.
Compared with GB/T 3327-1997, the main technical changes are as follows.
- modified the codes of sizes (see Clause 2 of this Edition, Clause 2 of Edition
1997);
- deleted the requirements for ground-off size (see 3.2 of Edition 1997);
- deleted the requirements for drawer depth (see 3.2.3 of Edition 1997);
- modified the drawer size diagram (see 3.2.3 of Edition 1997);
- modified the size diagram and requirements for high profile of bedside table
(see 3.2 of this Edition, 3.3 of Edition 1997);
- modified the requirements for net height of the bookcase (see 3.3 of this
Edition, 3.4 of Edition 1997);
- deleted the requirements for size limit difference (see 3.4, 3.5 of Edition
1997);
- deleted the requirements for small cabinet size (see 3.6 of Edition 1997).
This Standard was proposed by China Light Industry Federation.
This Standard shall be under the jurisdiction of National Technical Committee
on Furniture of Standardization Administration of China (SAC/TC 480).
The drafting organizations of this Standard. Guangdong Yihua Wood Industry
Co., Ltd., Guangdong Federal Furniture Group Co., Ltd., Shanghai Quality
Supervision and Inspection Technology Research Institute, Mingzhu Furniture
Co., Ltd., Shanghai Taiyi Enterprise Co., Ltd., China Furniture Association,
Langfang Huari Furniture Co., Ltd., Beijing Furniture Industry Association,
Zhejiang Meisheng Cabinet Co., Ltd.
Main drafters of this Standard. Xu Jun, Luo Jufen, Huang Qiongtao, Zhou
Shanlin, Yang Lei, He Fajian, Wang Jianbing, Liu Chenguang, Gu Zhangpei,
Chen Fengyi, Tu Chunsheng.
This Standard was issued for the first time in 1982, revised for the first time in
1997.

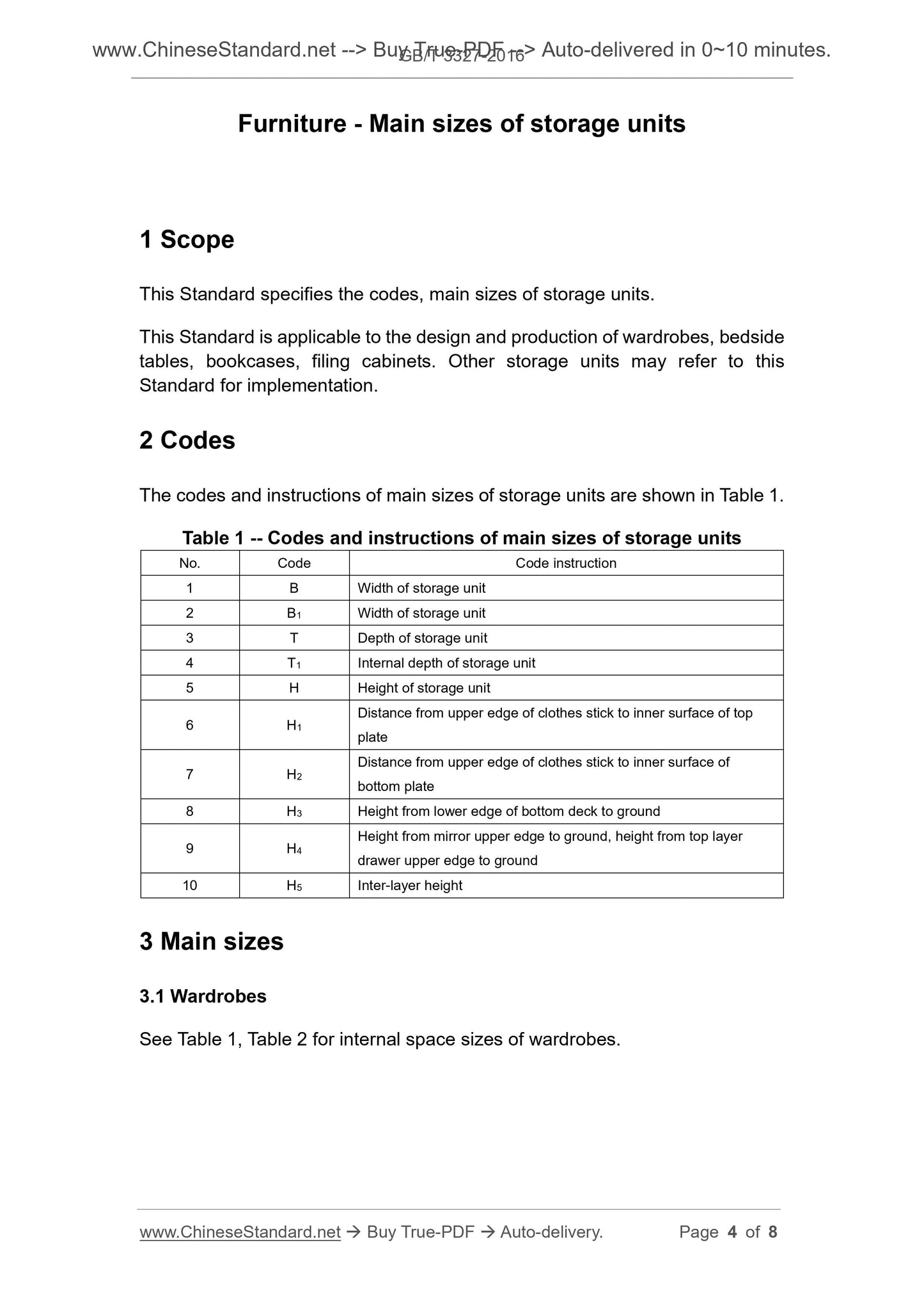

Furniture - Main sizes of storage units
1 Scope
This Standard specifies the codes, main sizes of storage units.
This Standard is applicable to the design and production of wardrobes, bedside
tables, bookcases, filing cabinets. Other storage units may refer to this
Standard for implementation.
2 Codes
The codes and instructions of main sizes of storage units are shown in Table 1.
Table 1 -- Codes and instructions of main sizes of storage units
No. Code Code instruction
1 B Width of storage unit
2 B1 Width of storage unit
3 T Depth of storage unit
4 T1 Internal depth of storage unit
5 H Height of storage unit
6 H1 Distance from upper edge of clothes stick to inner surface of top plate
7 H2 Distance from upper edge of clothes stick to inner surface of bottom plate
8 H3 Height from lower edge of bottom deck to ground
9 H4 Height from mirror upper edge to ground, height from top layer drawer upper edge to ground
10 H5 Inter-layer height
3 Main sizes
3.1 Wardrobes
See Table 1, Table 2 for internal space sizes of wardrobes.
