GB/T 40166-2021: Paper and board - Accelerated ageing(exposure to nitrogen dioxide)

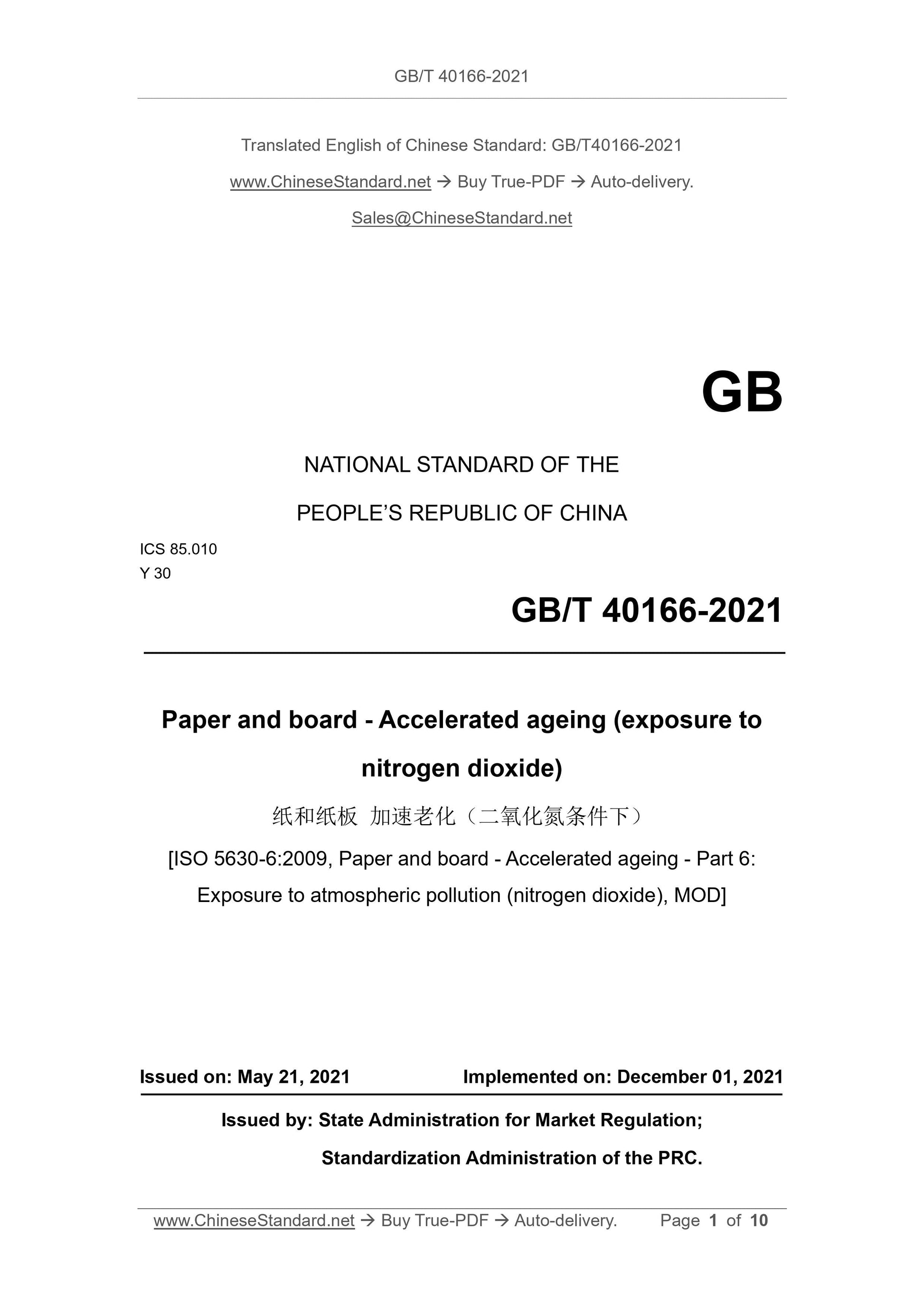

GB/T 40166-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 85.010
Y 30
Paper and board - Accelerated ageing (exposure to
nitrogen dioxide)
[ISO 5630-6:2009, Paper and board - Accelerated ageing - Part 6:
Exposure to atmospheric pollution (nitrogen dioxide), MOD]
ISSUED ON: MAY 21, 2021
IMPLEMENTED ON: DECEMBER 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the PRC.

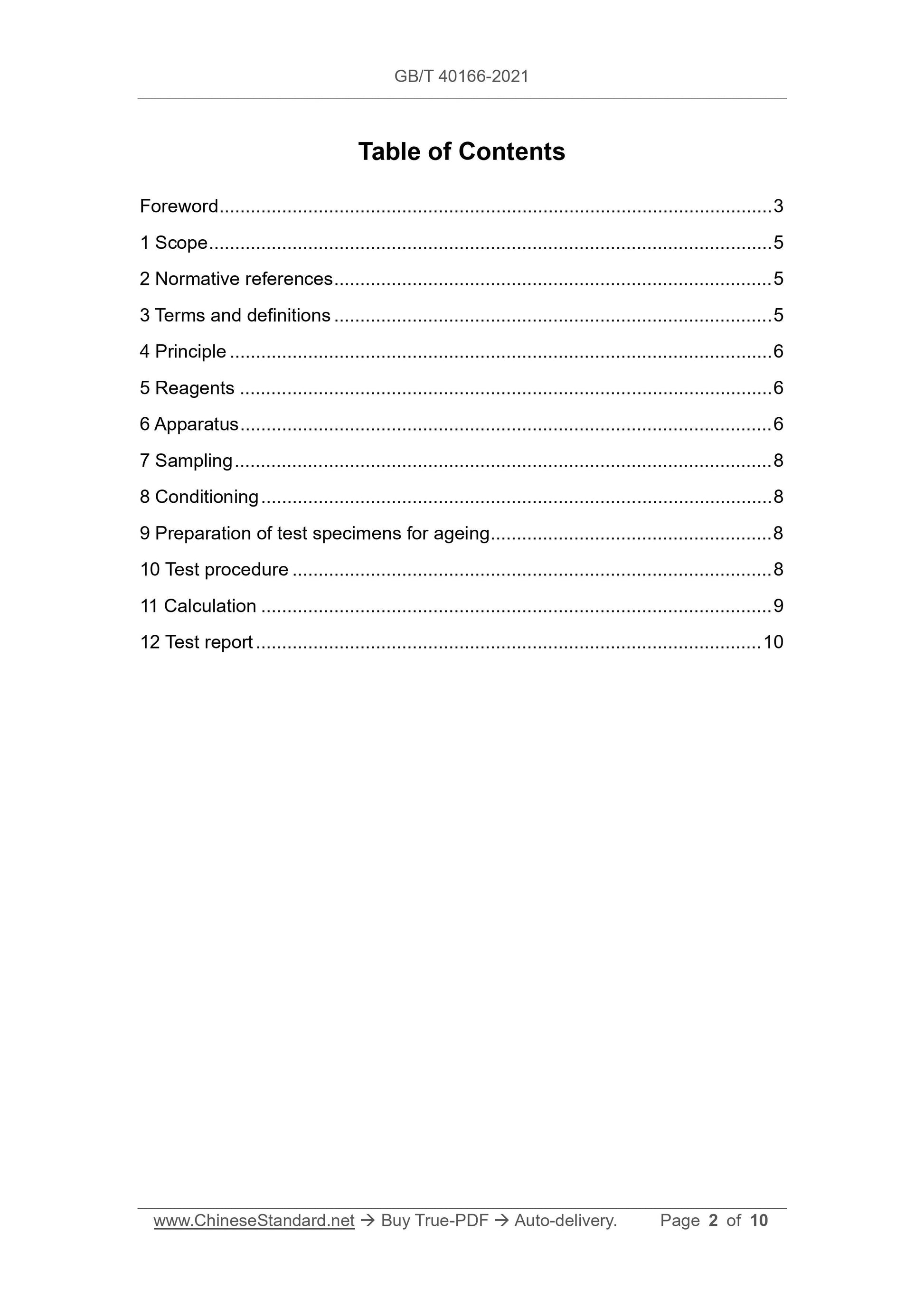

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Principle ... 6
5 Reagents ... 6
6 Apparatus ... 6
7 Sampling ... 8
8 Conditioning ... 8
9 Preparation of test specimens for ageing ... 8
10 Test procedure ... 8
11 Calculation ... 9
12 Test report ... 10

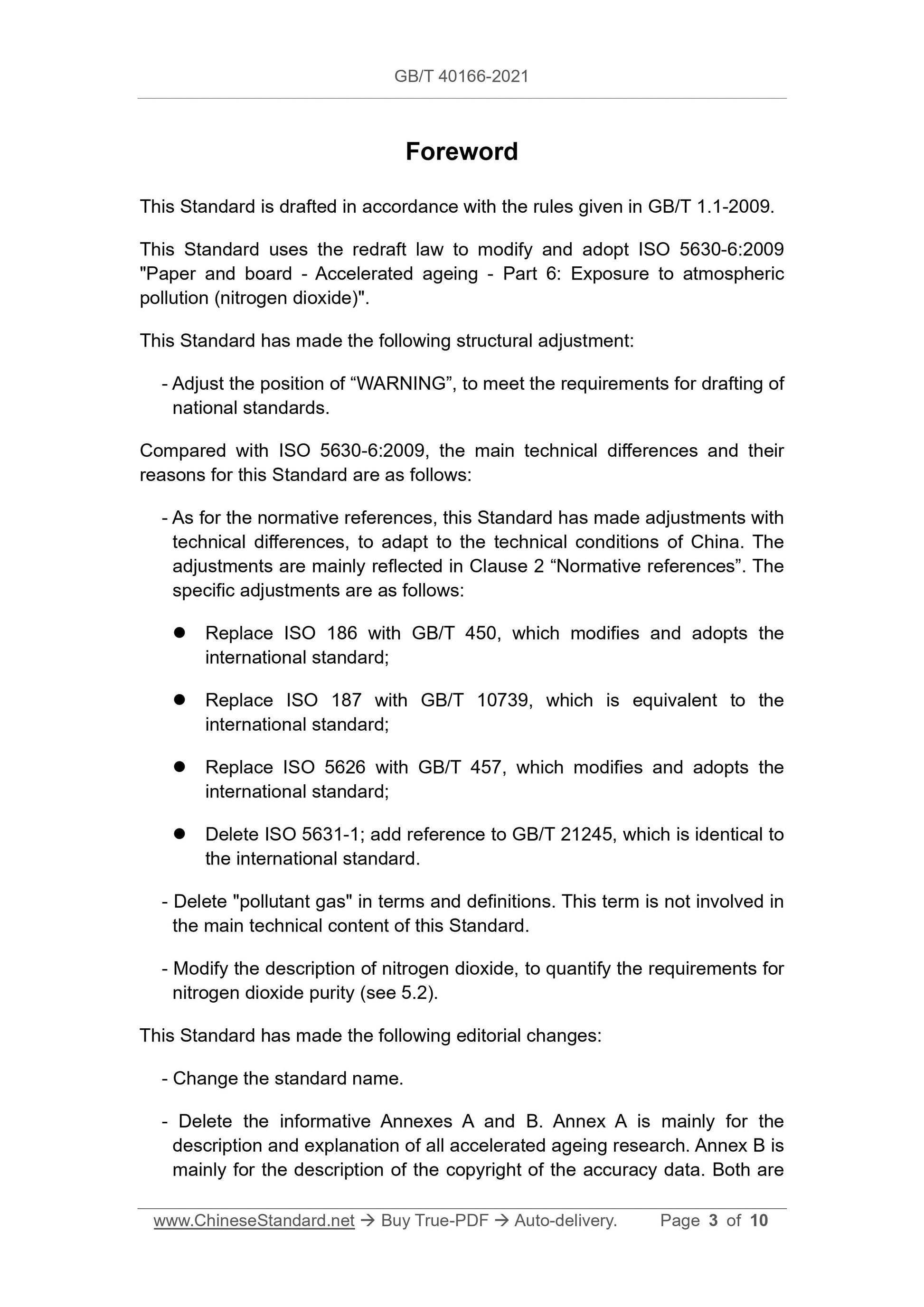

Foreword
This Standard is drafted in accordance with the rules given in GB/T 1.1-2009.
This Standard uses the redraft law to modify and adopt ISO 5630-6:2009
"Paper and board - Accelerated ageing - Part 6: Exposure to atmospheric
pollution (nitrogen dioxide)".
This Standard has made the following structural adjustment:
- Adjust the position of “WARNING”, to meet the requirements for drafting of
national standards.
Compared with ISO 5630-6:2009, the main technical differences and their
reasons for this Standard are as follows:
- As for the normative references, this Standard has made adjustments with
technical differences, to adapt to the technical conditions of China. The
adjustments are mainly reflected in Clause 2 “Normative references”. The
specific adjustments are as follows:
 Replace ISO 186 with GB/T 450, which modifies and adopts the
international standard;
 Replace ISO 187 with GB/T 10739, which is equivalent to the
international standard;
 Replace ISO 5626 with GB/T 457, which modifies and adopts the
international standard;
 Delete ISO 5631-1; add reference to GB/T 21245, which is identical to
the international standard.
- Delete "pollutant gas" in terms and definitions. This term is not involved in
the main technical content of this Standard.
- Modify the description of nitrogen dioxide, to quantify the requirements for
nitrogen dioxide purity (see 5.2).
This Standard has made the following editorial changes:
- Change the standard name.
- Delete the informative Annexes A and B. Annex A is mainly for the
description and explanation of all accelerated ageing research. Annex B is
mainly for the description of the copyright of the accuracy data. Both are

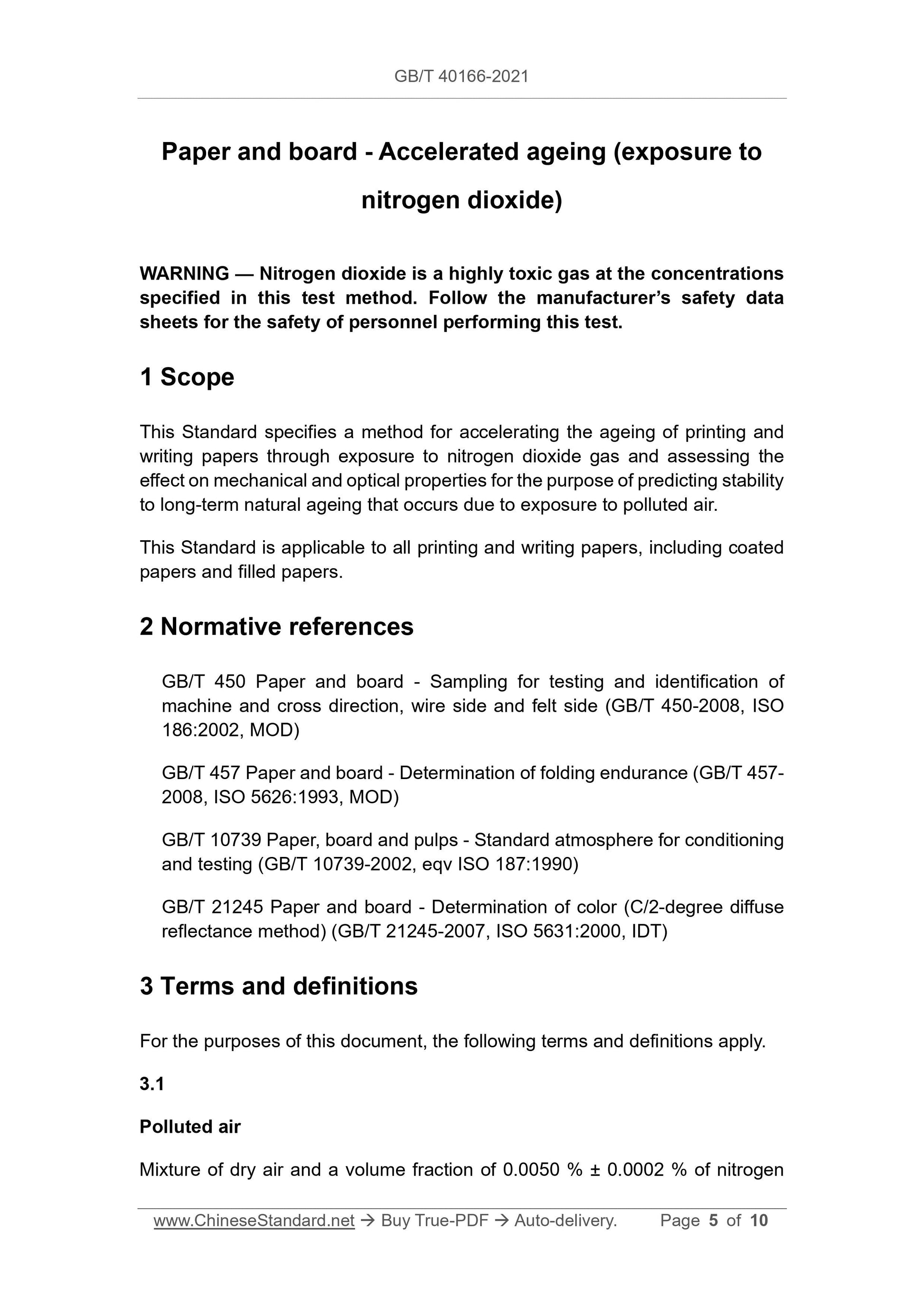

Paper and board - Accelerated ageing (exposure to
nitrogen dioxide)
WARNING — Nitrogen dioxide is a highly toxic gas at the concentrations
specified in this test method. Follow the manufacturer’s safety data
sheets for the safety of personnel performing this test.
1 Scope
This Standard specifies a method for accelerating the ageing of printing and
writing papers through exposure to nitrogen dioxide gas and assessing the
effect on mechanical and optical properties for the purpose of predicting stability
to long-term natural ageing that occurs due to exposure to polluted air.
This Standard is applicable to all printing and writing papers, including coated
papers and filled papers.
2 Normative references
GB/T 450 Paper and board - Sampling for testing and identification of
machine and cross direction, wire side and felt side (GB/T 450-2008, ISO
186:2002, MOD)
GB/T 457 Paper and board - Determination of folding endurance (GB/T 457-
2008, ISO 5626:1993, MOD)
GB/T 10739 Paper, board and pulps - Standard atmosphere for conditioning
and testing (GB/T 10739-2002, eqv ISO 187:1990)
GB/T 21245 Paper and board - Determination of color (C/2-degree diffuse
reflectance method) (GB/T 21245-2007, ISO 5631:2000, IDT)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
Polluted air
Mixture of dry air and a volume fraction of 0.0050 % ± 0.0002 % of nitrogen
