GB/T 42125.14-2023: Safety requirements for electrical equipment for measurement, control and laboratory use -- Part 14: Particular requirements for automatic and semi-automatic laboratory equipment for analysis and other purposes

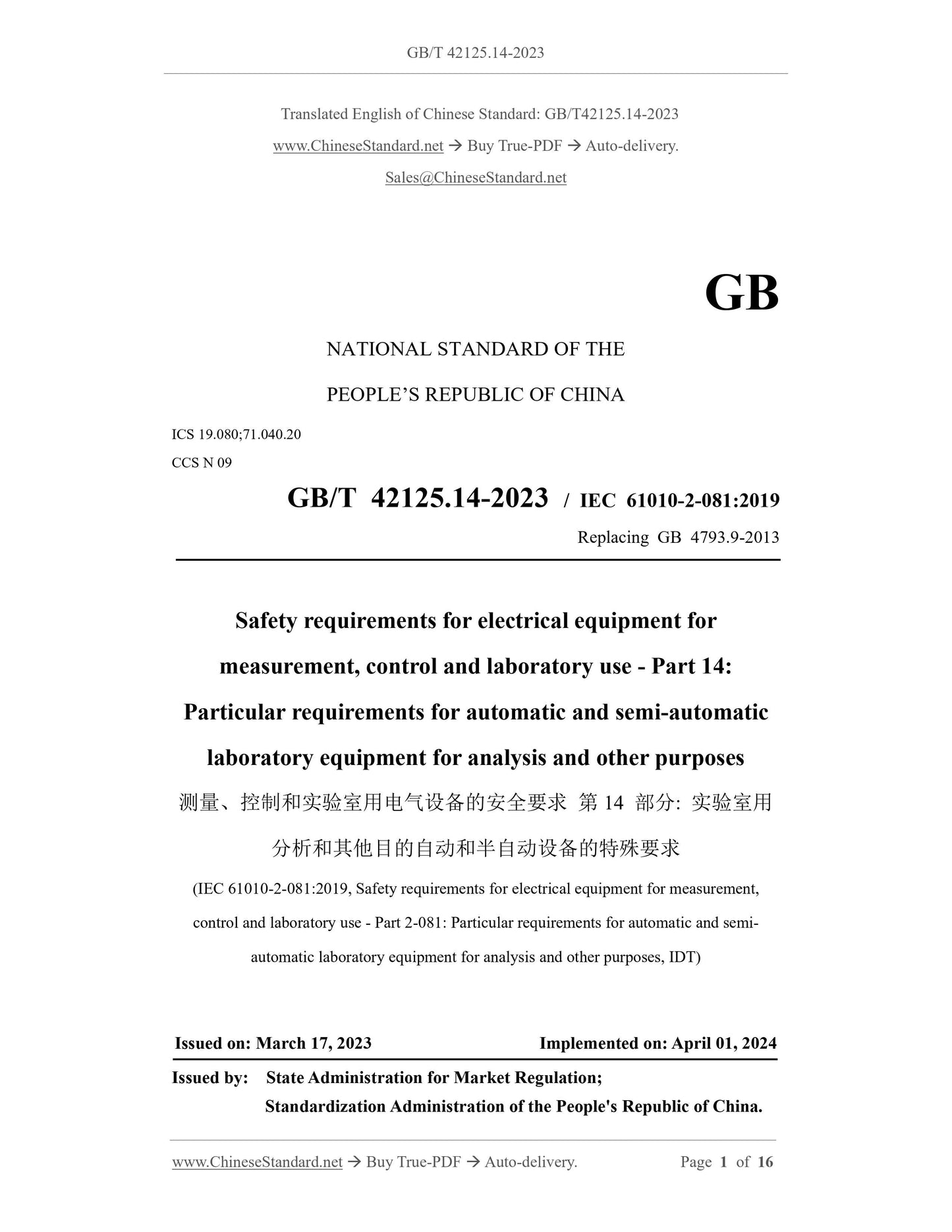

GB/T 42125.14-2023
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 19.080;71.040.20
CCS N 09
GB/T 42125.14-2023 / IEC 61010-2-081:2019
Replacing GB 4793.9-2013
Safety requirements for electrical equipment for
measurement, control and laboratory use - Part 14:
Particular requirements for automatic and semi-automatic
laboratory equipment for analysis and other purposes
(IEC 61010-2-081:2019, Safety requirements for electrical equipment for measurement,
control and laboratory use - Part 2-081: Particular requirements for automatic and semi-
automatic laboratory equipment for analysis and other purposes, IDT)
ISSUED ON: MARCH 17, 2023
IMPLEMENTED ON: APRIL 01, 2024
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of China.

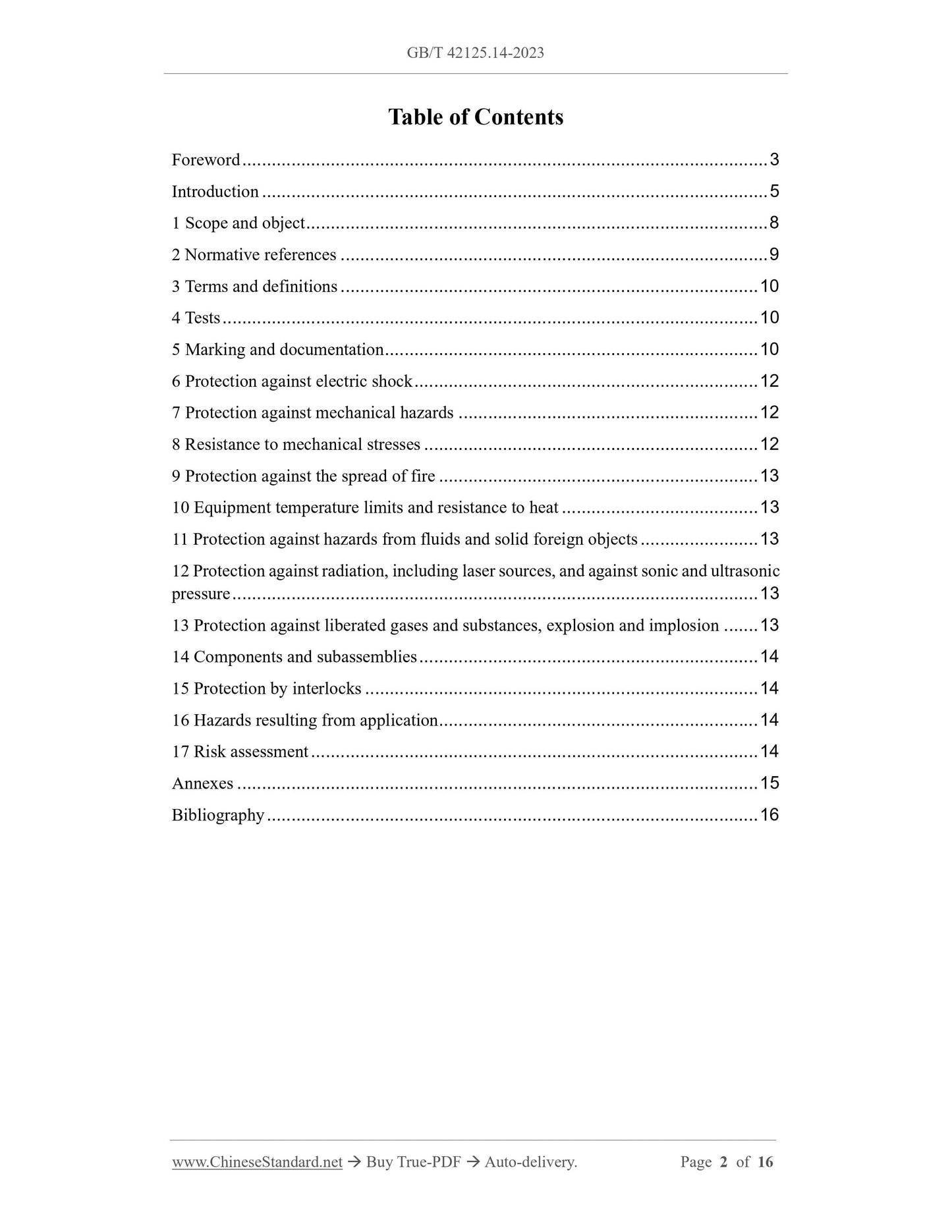

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope and object ... 8
2 Normative references ... 9
3 Terms and definitions ... 10
4 Tests ... 10
5 Marking and documentation ... 10
6 Protection against electric shock ... 12
7 Protection against mechanical hazards ... 12
8 Resistance to mechanical stresses ... 12
9 Protection against the spread of fire ... 13
10 Equipment temperature limits and resistance to heat ... 13
11 Protection against hazards from fluids and solid foreign objects ... 13
12 Protection against radiation, including laser sources, and against sonic and ultrasonic
pressure ... 13
13 Protection against liberated gases and substances, explosion and implosion ... 13
14 Components and subassemblies ... 14
15 Protection by interlocks ... 14
16 Hazards resulting from application ... 14
17 Risk assessment ... 14
Annexes ... 15
Bibliography ... 16

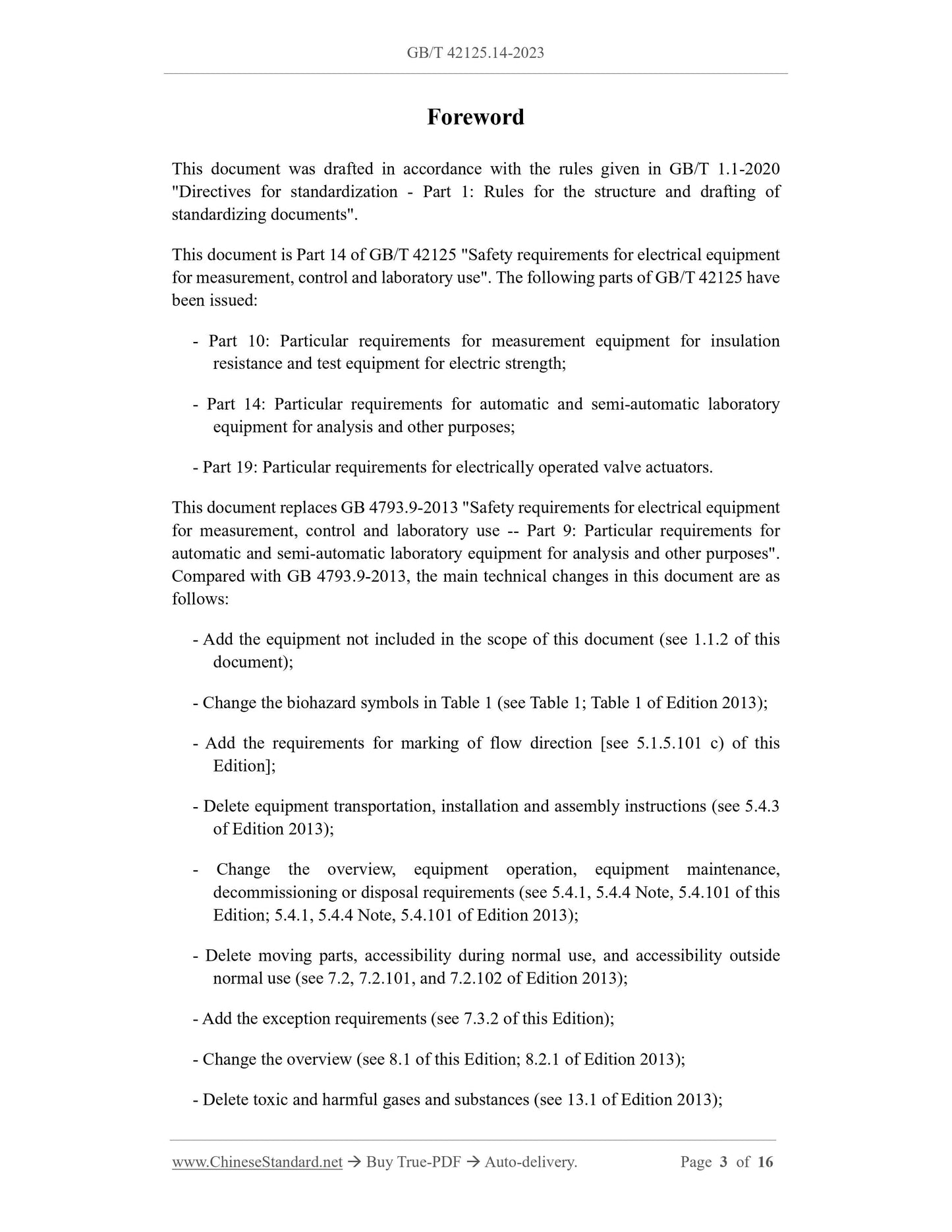

Foreword
This document was drafted in accordance with the rules given in GB/T 1.1-2020
"Directives for standardization - Part 1: Rules for the structure and drafting of
standardizing documents".
This document is Part 14 of GB/T 42125 "Safety requirements for electrical equipment
for measurement, control and laboratory use". The following parts of GB/T 42125 have
been issued:
- Part 10: Particular requirements for measurement equipment for insulation
resistance and test equipment for electric strength;
- Part 14: Particular requirements for automatic and semi-automatic laboratory
equipment for analysis and other purposes;
- Part 19: Particular requirements for electrically operated valve actuators.
This document replaces GB 4793.9-2013 "Safety requirements for electrical equipment
for measurement, control and laboratory use -- Part 9: Particular requirements for
automatic and semi-automatic laboratory equipment for analysis and other purposes".
Compared with GB 4793.9-2013, the main technical changes in this document are as
follows:
- Add the equipment not included in the scope of this document (see 1.1.2 of this
document);
- Change the biohazard symbols in Table 1 (see Table 1; Table 1 of Edition 2013);
- Add the requirements for marking of flow direction [see 5.1.5.101 c) of this
Edition];
- Delete equipment transportation, installation and assembly instructions (see 5.4.3
of Edition 2013);
- Change the overview, equipment operation, equipment maintenance,
decommissioning or disposal requirements (see 5.4.1, 5.4.4 Note, 5.4.101 of this
Edition; 5.4.1, 5.4.4 Note, 5.4.101 of Edition 2013);
- Delete moving parts, accessibility during normal use, and accessibility outside
normal use (see 7.2, 7.2.101, and 7.2.102 of Edition 2013);
- Add the exception requirements (see 7.3.2 of this Edition);
- Change the overview (see 8.1 of this Edition; 8.2.1 of Edition 2013);
- Delete toxic and harmful gases and substances (see 13.1 of Edition 2013);

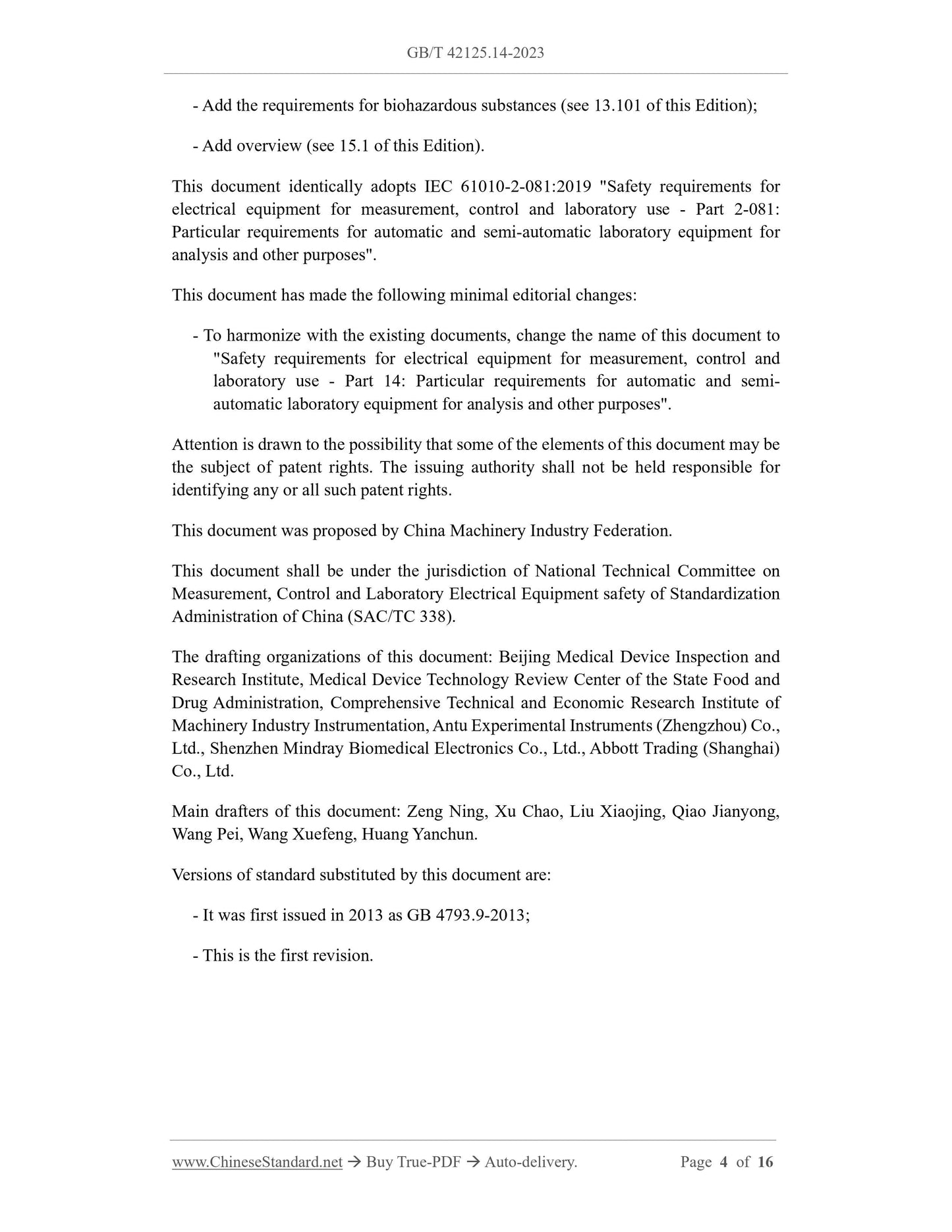

- Add the requirements for biohazardous substances (see 13.101 of this Edition);
- Add overview (see 15.1 of this Edition).
This document identically adopts IEC 61010-2-081:2019 "Safety requirements for
electrical equipment for measurement, control and laboratory use - Part 2-081:
Particular requirements for automatic and semi-automatic laboratory equipment for
analysis and other purposes".
This document has made the following minimal editorial changes:
- To harmonize with the existing documents, change the name of this document to
"Safety requirements for electrical equipment for measurement, control and
laboratory use - Part 14: Particular requirements for automatic and semi-
automatic laboratory equipment for analysis and other purposes".
Attention is drawn to the possibility that some of the elements of this document may be
the subject of patent rights. The issuing authority shall not be held responsible for
identifying any or all such patent rights.
This document was proposed by China Machinery Industry Federation.
This document shall be under the jurisdiction of National Technical Committee on
Measurement, Control and Laboratory Electrical Equipment safety of Standardization
Administration of China (SAC/TC 338).
The drafting organizations of this document: Beijing Medical Device Inspection and
Research Institute, Medical Device Technology Review Center of the State Food and
Drug Administration, Comprehensive Technical and Economic Research Institute of
Machinery Industry Instrumentation, Antu Experimental Instruments (Zhengzhou) Co.,
Ltd., Shenzhen Mindray Biomedical Electronics Co., Ltd., Abbott Trading (Shanghai)
Co., Ltd.
Main drafters of this document: Zeng Ning, Xu Chao, Liu Xiaojing, Qiao Jianyong,
Wang Pei, Wang Xuefeng, Huang Yanchun.
Versions of standard substituted by this document are:
- It was first issued in 2013 as GB 4793.9-2013;
- This is the first revision.

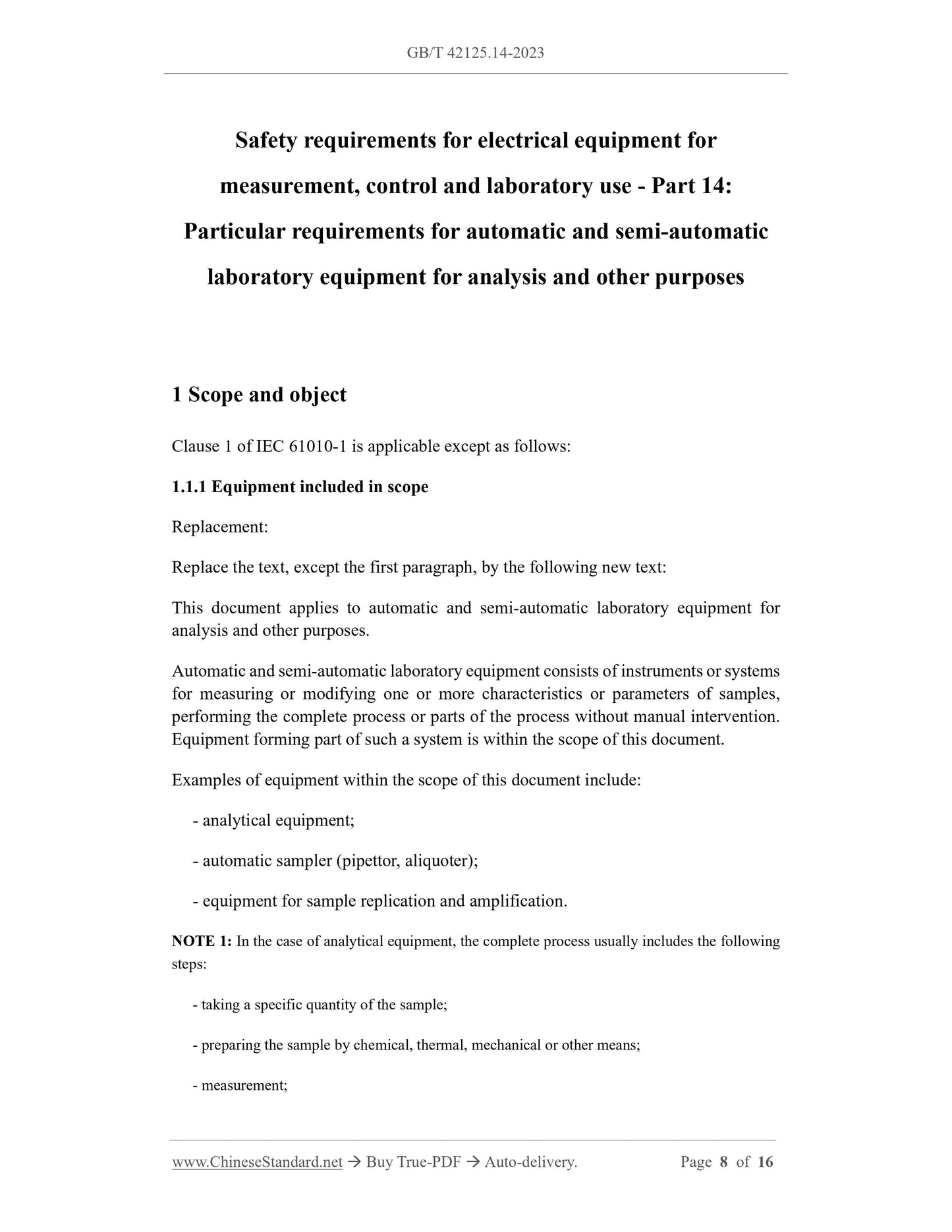

Safety requirements for electrical equipment for
measurement, control and laboratory use - Part 14:
Particular requirements for automatic and semi-automatic
laboratory equipment for analysis and other purposes
1 Scope and object
Clause 1 of IEC 61010-1 is applicable except as follows:
1.1.1 Equipment included in scope
Replacement:
Replace the text, except the first paragraph, by the following new text:
This document applies to automatic and semi-automatic laboratory equipment for
analysis and other purposes.
Automatic and semi-automatic laboratory equipment consists of instruments or systems
for measuring or modifying one or more characteristics or parameters of samples,
performing the complete process or parts of the process without manual intervention.
Equipment forming part of such a system is within the scope of this document.
Examples of equipment within the scope of this document include:
- analytical equipment;
- automatic sampler (pipettor, aliquoter);
- equipment for sample replication and amplification.
NOTE 1: In the case of analytical equipment, the complete process usually includes the following
steps:
- taking a specific quantity of the sample;
- preparing the sample by chemical, thermal, mechanical or other means;
- measurement;

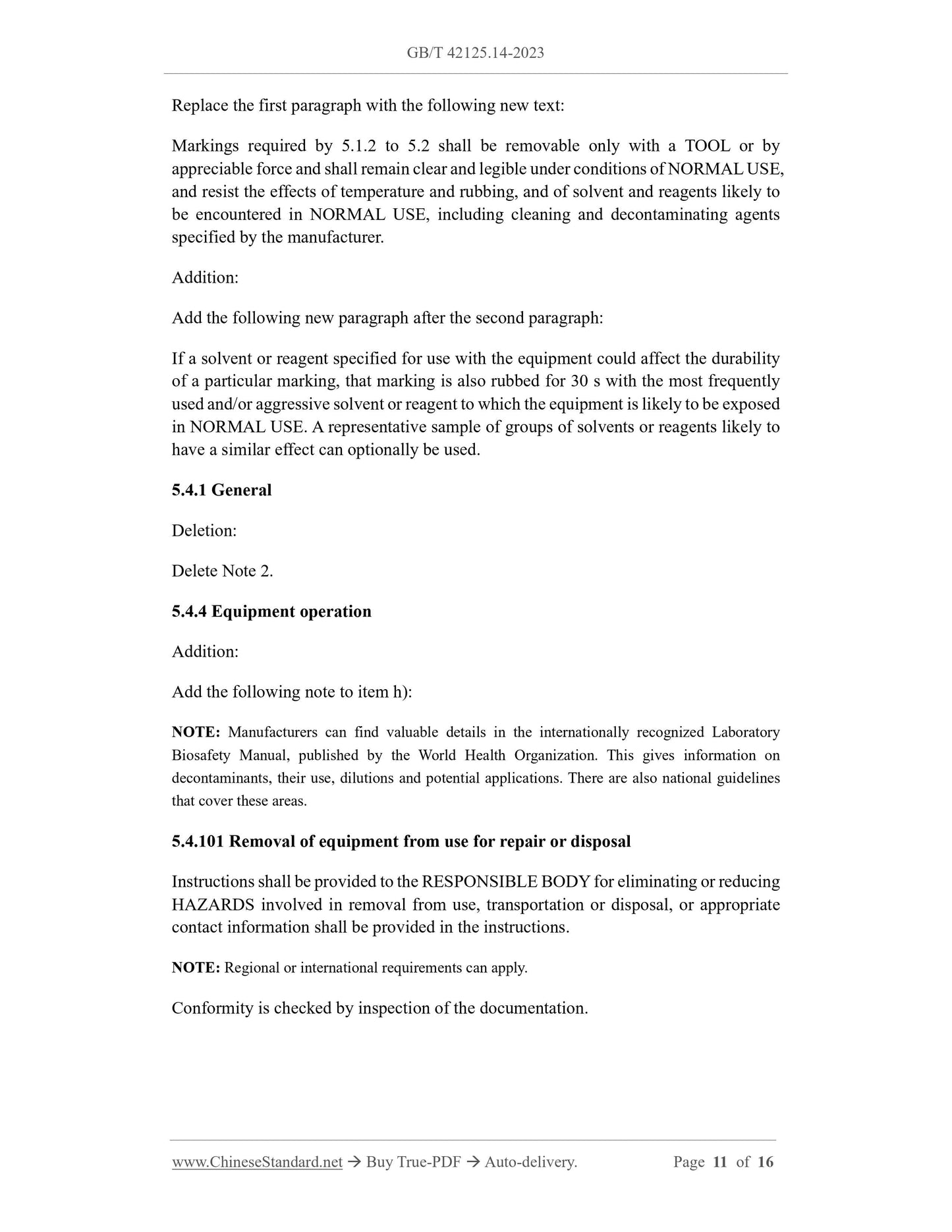

Replace the first paragraph with the following new text:
Markings required by 5.1.2 to 5.2 shall be removable only with a TOOL or by
appreciable force and shall remain clear and legible under conditions of NORMAL USE,
and resist the effects of temperature and rubbing, and of solvent and reagents likely to
be encountered in NORMAL USE, including cleaning and decontaminating agents
specified by the manufacturer.
Addition:
Add the following new paragraph after the second paragraph:
If a solvent or r...
