GB/T 4214.9-2021: Test method for noise of household and similar electrical appliances -- Particular requirements for fans

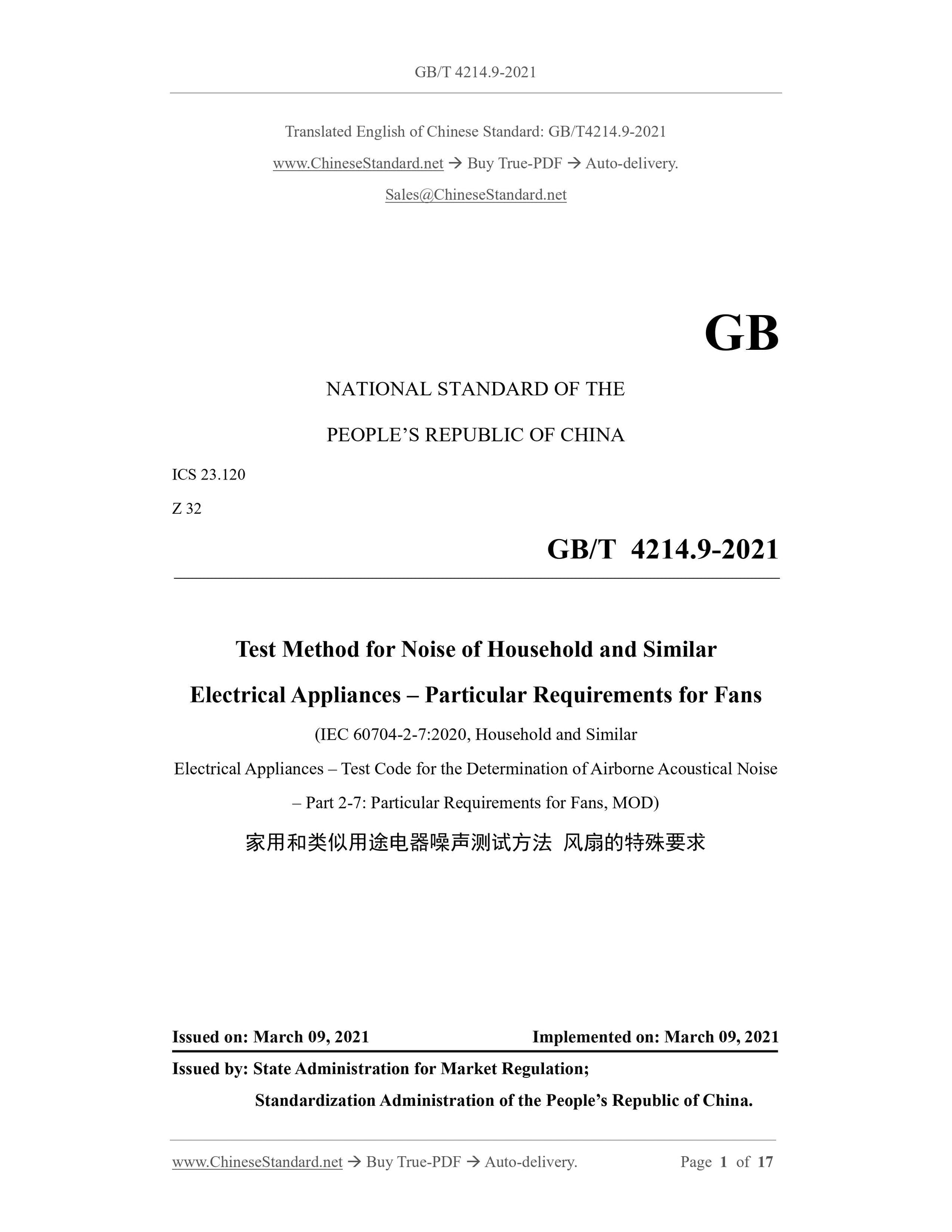

GB/T 4214.9-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 23.120
Z 32
Test Method for Noise of Household and Similar
Electrical Appliances – Particular Requirements for Fans
(IEC 60704-2-7:2020, Household and Similar
Electrical Appliances – Test Code for the Determination of Airborne Acoustical Noise
– Part 2-7: Particular Requirements for Fans, MOD)
ISSUED ON: MARCH 09, 2021
IMPLEMENTED ON: MARCH 09, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

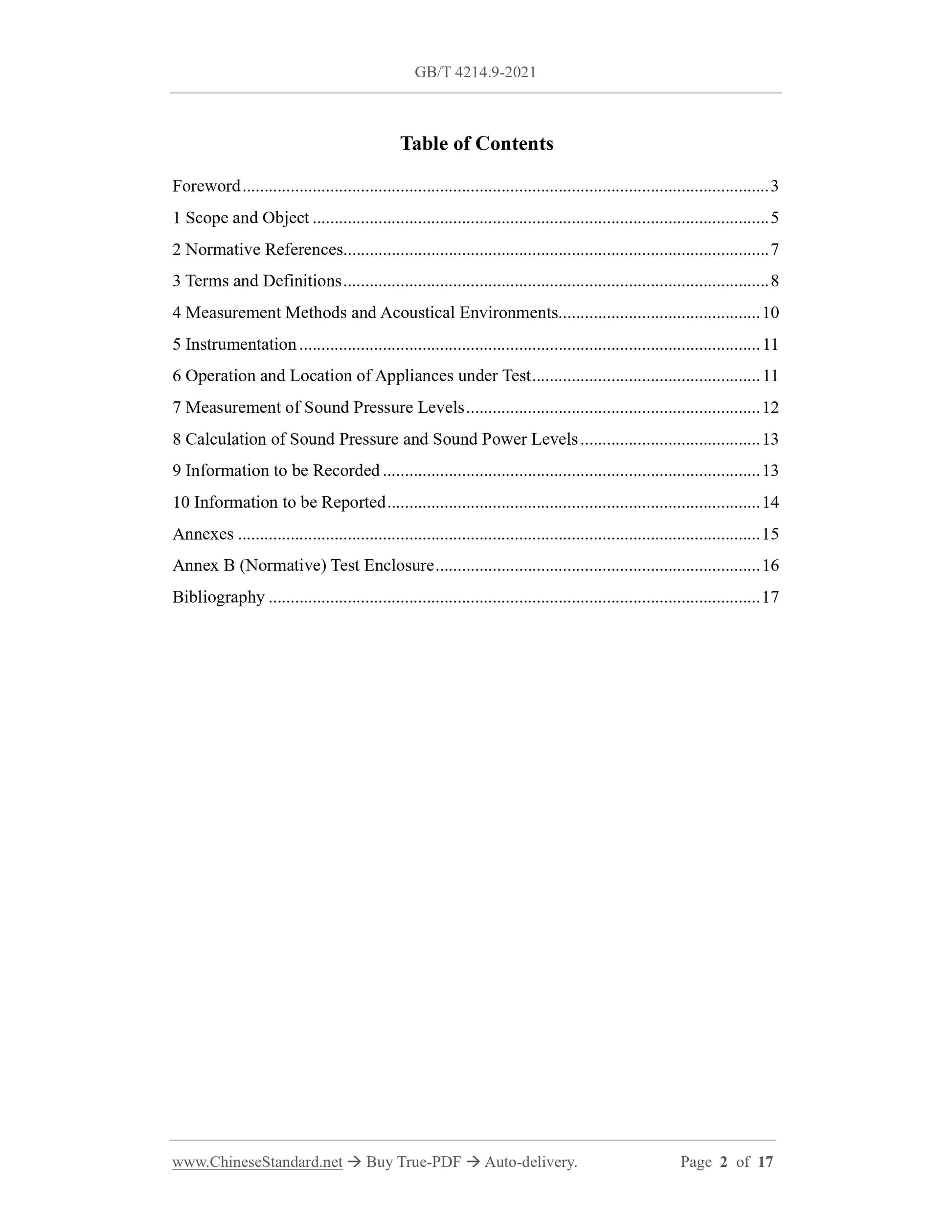

Table of Contents
Foreword ... 3
1 Scope and Object ... 5
2 Normative References ... 7
3 Terms and Definitions ... 8
4 Measurement Methods and Acoustical Environments ... 10
5 Instrumentation ... 11
6 Operation and Location of Appliances under Test ... 11
7 Measurement of Sound Pressure Levels ... 12
8 Calculation of Sound Pressure and Sound Power Levels ... 13
9 Information to be Recorded ... 13
10 Information to be Reported ... 14
Annexes ... 15
Annex B (Normative) Test Enclosure ... 16
Bibliography ... 17

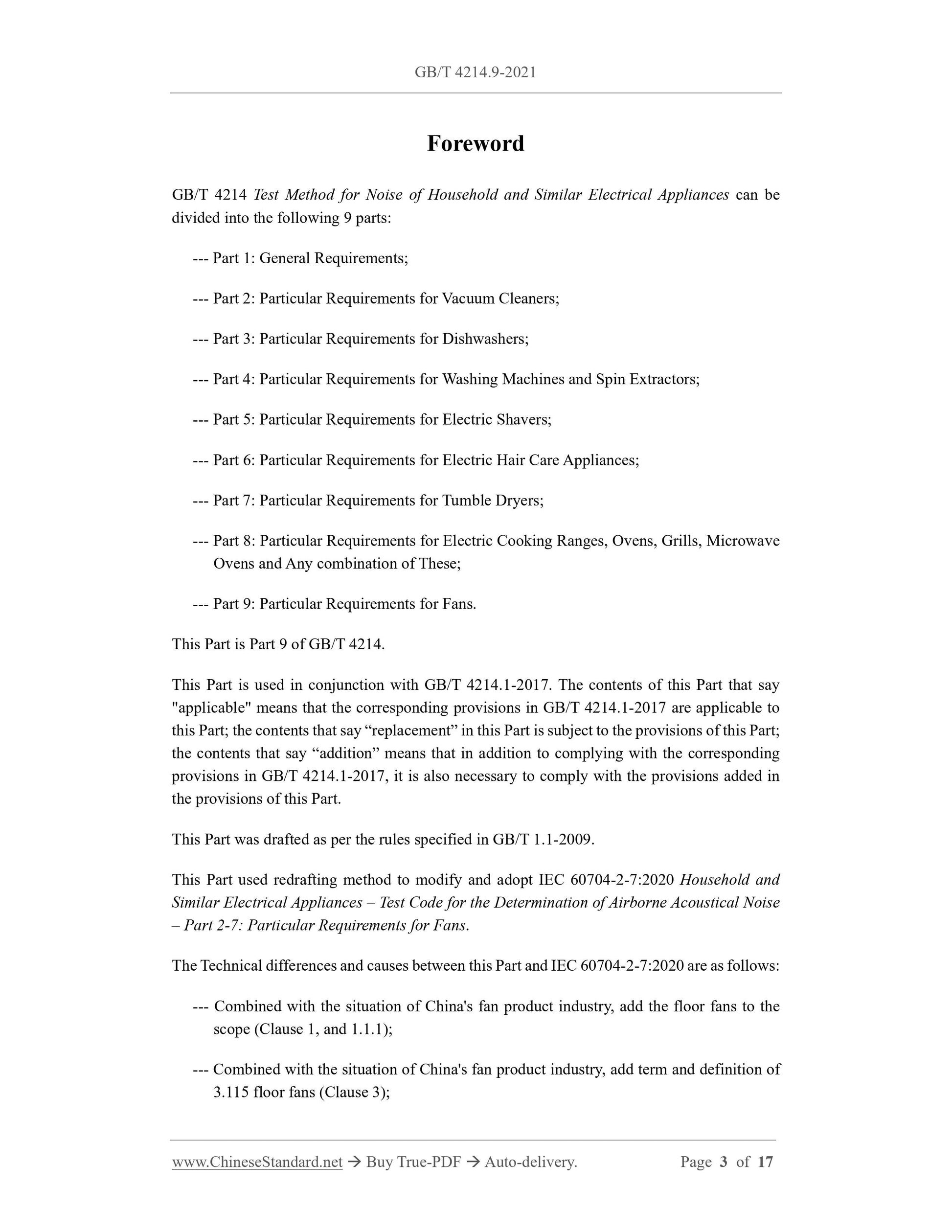

Foreword
GB/T 4214 Test Method for Noise of Household and Similar Electrical Appliances can be
divided into the following 9 parts:
--- Part 1: General Requirements;
--- Part 2: Particular Requirements for Vacuum Cleaners;
--- Part 3: Particular Requirements for Dishwashers;
--- Part 4: Particular Requirements for Washing Machines and Spin Extractors;
--- Part 5: Particular Requirements for Electric Shavers;
--- Part 6: Particular Requirements for Electric Hair Care Appliances;
--- Part 7: Particular Requirements for Tumble Dryers;
--- Part 8: Particular Requirements for Electric Cooking Ranges, Ovens, Grills, Microwave
Ovens and Any combination of These;
--- Part 9: Particular Requirements for Fans.
This Part is Part 9 of GB/T 4214.
This Part is used in conjunction with GB/T 4214.1-2017. The contents of this Part that say
"applicable" means that the corresponding provisions in GB/T 4214.1-2017 are applicable to
this Part; the contents that say “replacement” in this Part is subject to the provisions of this Part;
the contents that say “addition” means that in addition to complying with the corresponding
provisions in GB/T 4214.1-2017, it is also necessary to comply with the provisions added in
the provisions of this Part.
This Part was drafted as per the rules specified in GB/T 1.1-2009.
This Part used redrafting method to modify and adopt IEC 60704-2-7:2020 Household and
Similar Electrical Appliances – Test Code for the Determination of Airborne Acoustical Noise
– Part 2-7: Particular Requirements for Fans.
The Technical differences and causes between this Part and IEC 60704-2-7:2020 are as follows:
--- Combined with the situation of China's fan product industry, add the floor fans to the
scope (Clause 1, and 1.1.1);
--- Combined with the situation of China's fan product industry, add term and definition of
3.115 floor fans (Clause 3);

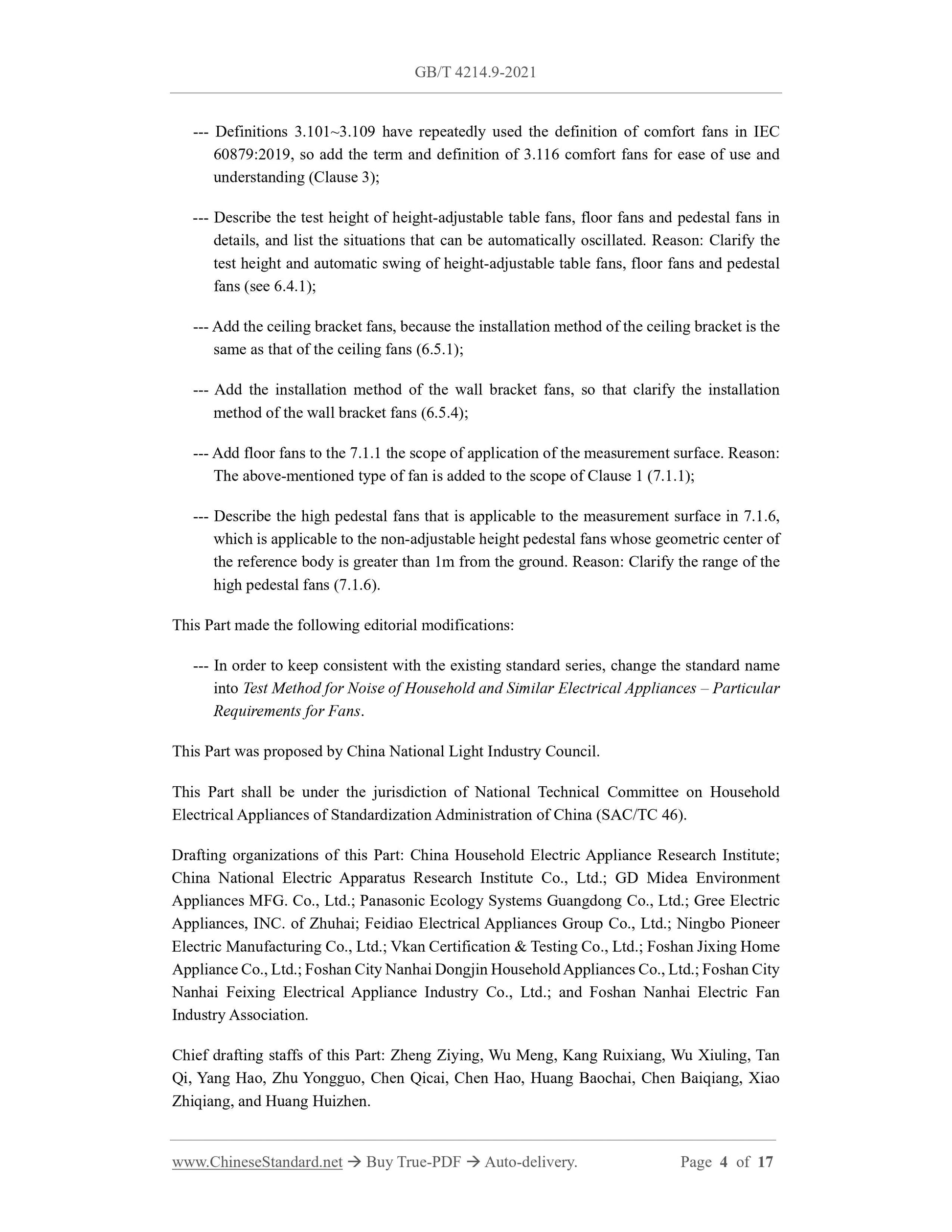

--- Definitions 3.101~3.109 have repeatedly used the definition of comfort fans in IEC
60879:2019, so add the term and definition of 3.116 comfort fans for ease of use and
understanding (Clause 3);
--- Describe the test height of height-adjustable table fans, floor fans and pedestal fans in
details, and list the situations that can be automatically oscillated. Reason: Clarify the
test height and automatic swing of height-adjustable table fans, floor fans and pedestal
fans (see 6.4.1);
--- Add the ceiling bracket fans, because the installation method of the ceiling bracket is the
same as that of the ceiling fans (6.5.1);
--- Add the installation method of the wall bracket fans, so that clarify the installation
method of the wall bracket fans (6.5.4);
--- Add floor fans to the 7.1.1 the scope of application of the measurement surface. Reason:
The above-mentioned type of fan is added to the scope of Clause 1 (7.1.1);
--- Describe the high pedestal fans that is applicable to the measurement surface in 7.1.6,
which is applicable to the non-adjustable height pedestal fans whose geometric center of
the reference body is greater than 1m from the ground. Reason: Clarify the range of the
high pedestal fans (7.1.6).
This Part made the following editorial modifications:
--- In order to keep consistent with the existing standard series, change the standard name
into Test Method for Noise of Household and Similar Electrical Appliances – Particular
Requirements for Fans.
This Part was proposed by China National Light Industry Council.
This Part shall be under the jurisdiction of National Technical Committee on Household
Electrical Appliances of Standardization Administration of China (SAC/TC 46).
Drafting organizations of this Part: China Household Electric Appliance Research Institute;
China National Electric Apparatus Research Institute Co., Ltd.; GD Midea Environment
Appliances MFG. Co., Ltd.; Panasonic Ecology Systems Guangdong Co., Ltd.; Gree Electric
Appliances, INC. of Zhuhai; Feidiao Electrical Appliances Group Co., Ltd.; Ningbo Pioneer
Electric Manufacturing Co., Ltd.; Vkan Certification and Testing Co., Ltd.; Foshan Jixing Home
Appliance Co., Ltd.; Foshan City Nanhai Dongjin Household Appliances Co., Ltd.; Foshan City
Nanhai Feixing Electrical Appliance Industry Co., Ltd.; and Foshan Nanhai Electric Fan
Industry Association.
Chief drafting staffs of this Part: Zheng Ziying, Wu Meng, Kang Ruixiang, Wu Xiuling, Tan
Qi, Yang Hao, Zhu Yongguo, Chen Qicai, Chen Hao, Huang Baochai, Chen Baiqiang, Xiao
Zhiqiang, and Huang Huizhen.
Test Method for Noise of Household and Similar
Electrical Appliances – Particular Requirements for Fans

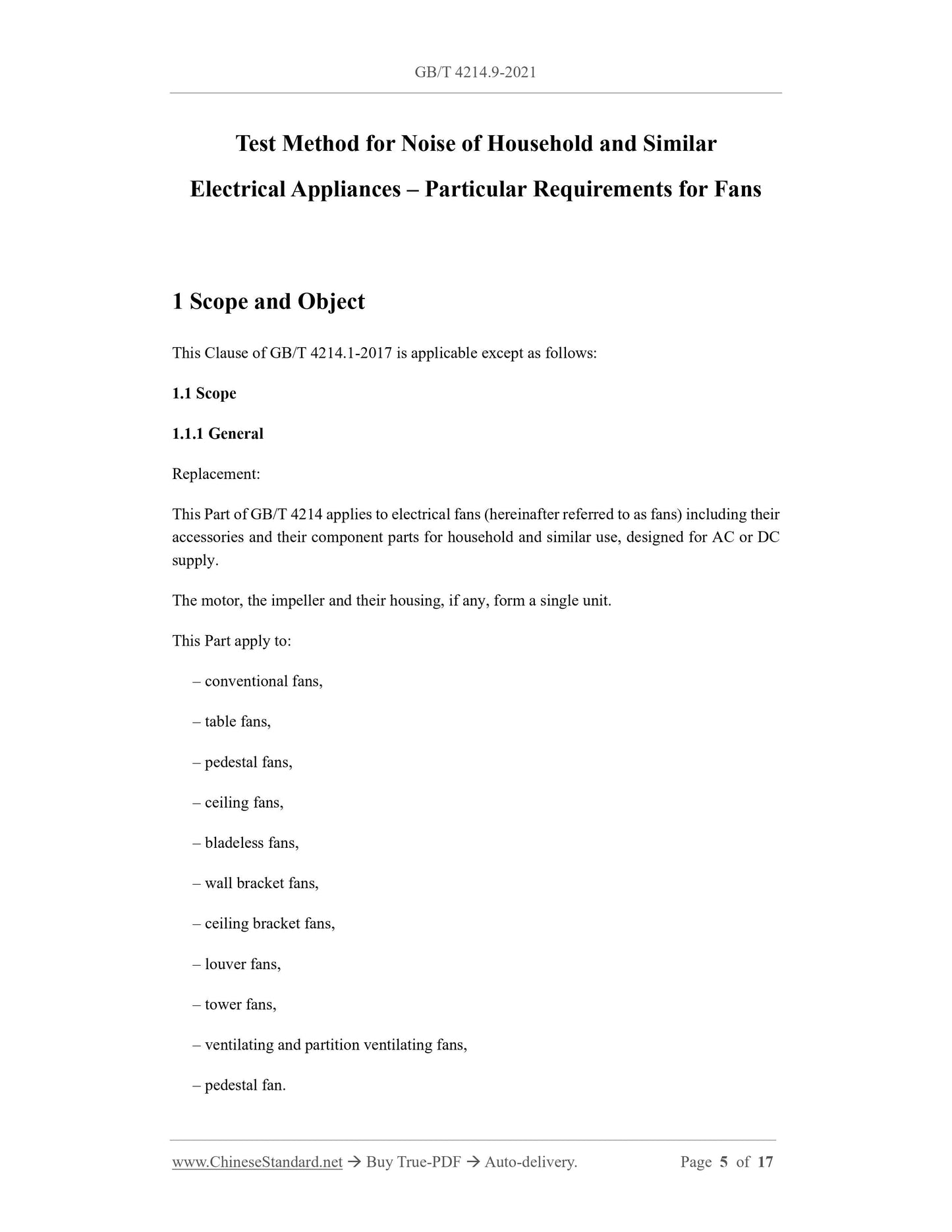

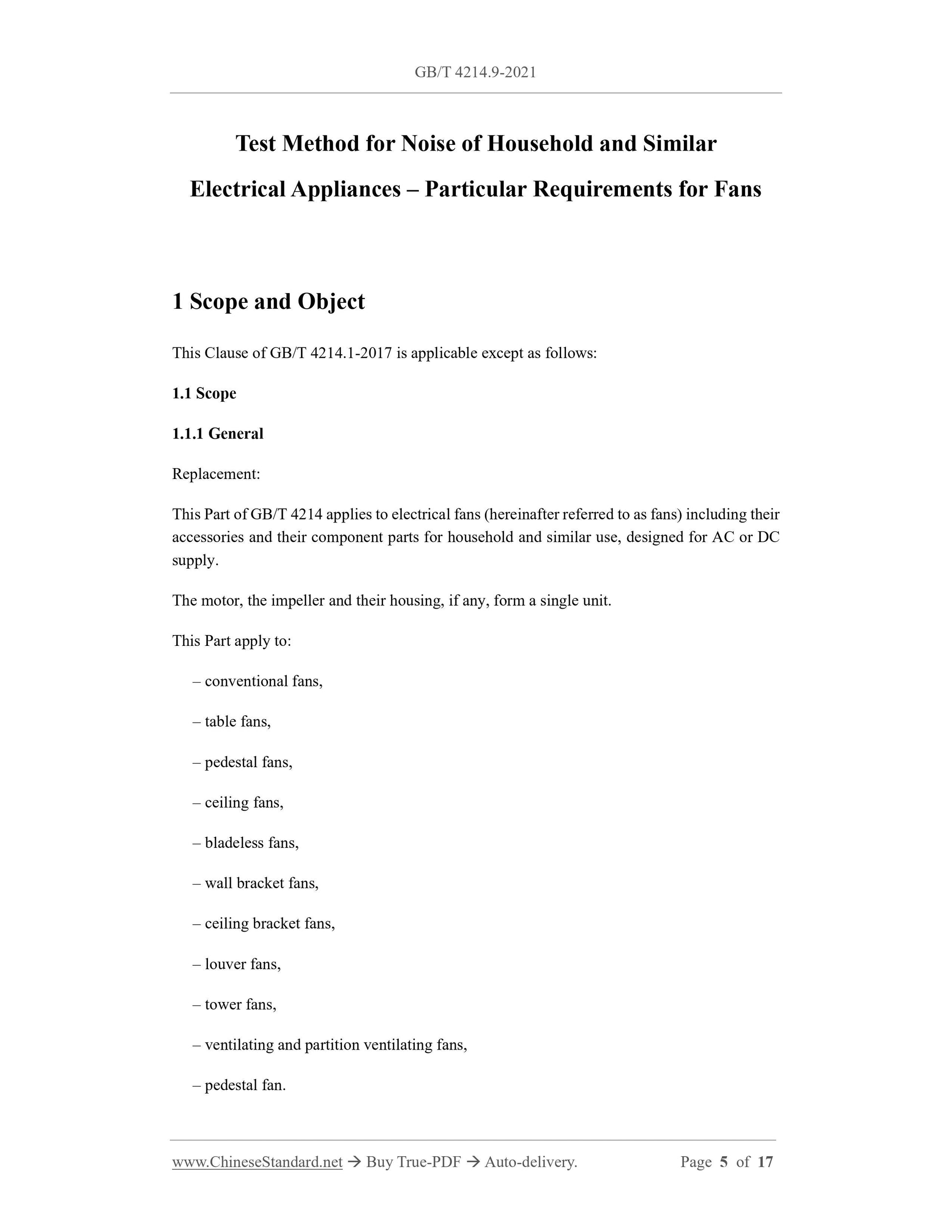

1 Scope and Object
This Clause of GB/T 4214.1-2017 is applicable except as follows:
1.1 Scope
1.1.1 General
Replacement:
This Part of GB/T 4214 applies to electrical fans (hereinafter referred to as fans) including their
accessories and their component parts for household and similar use, designed for AC or DC
supply.
The motor, the impeller and their housing, if any, form a single unit.
This Part apply to:
– conventional fans,
– table fans,
– pedestal fans,
– ceiling fans,
– bladeless fans,
– wall bracket fans,
– ceiling bracket fans,
– louver fans,
– tower fans,
– ventilating and partition ventilating fans,
– pedestal fan.

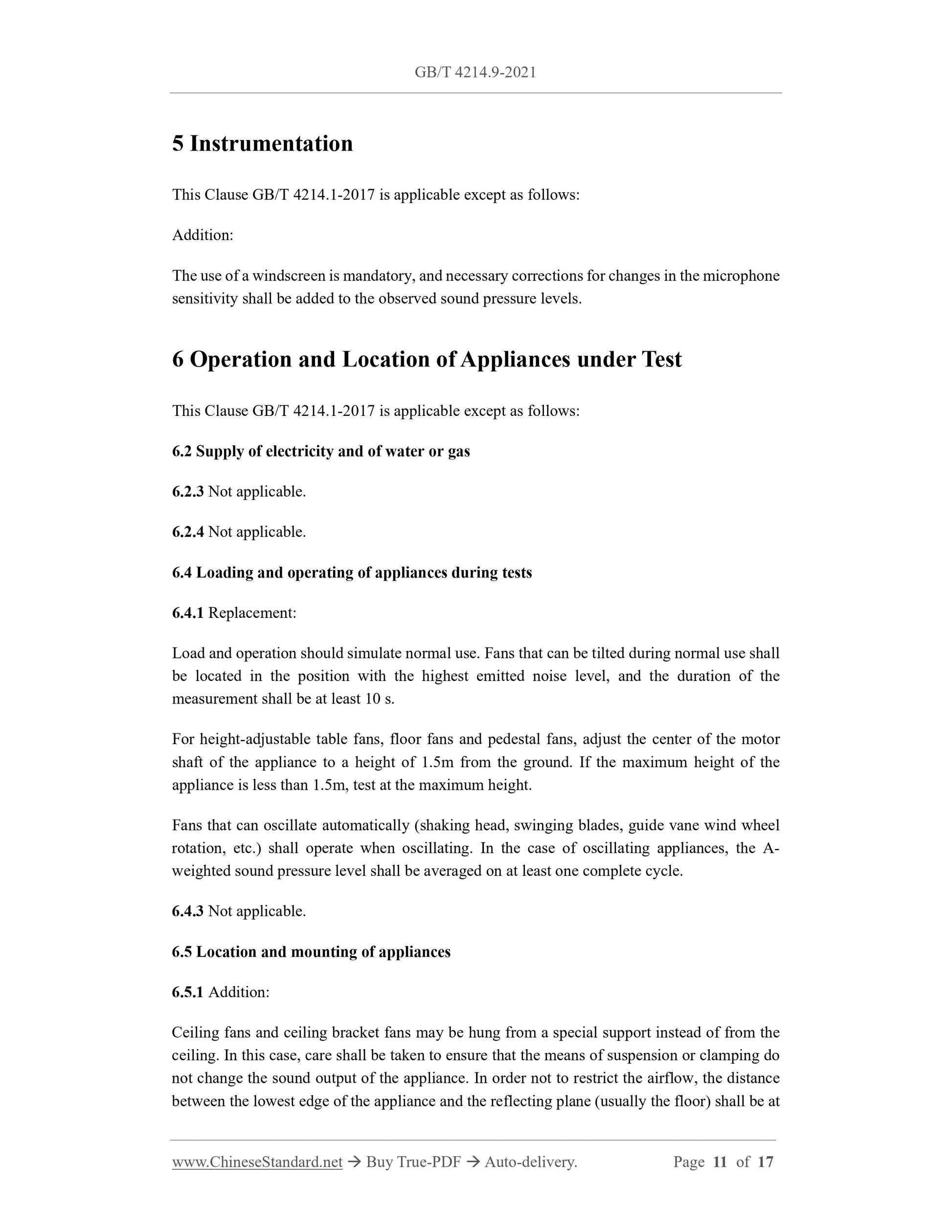

5 Instrumentation
This Clause GB/T 4214.1-2017 is applicable except as follows:
Addition:
The use of a windscreen is mandatory, and necessary corrections for changes in the microphone
sensitivity shall be added to the observed sound pressure levels.
6 Operation and Location of Appliances under Test
This Clause GB/T 4214.1-2017 is applicable except as follows:
6.2 Supply of electricity and of water or gas
6.2.3 Not applicable.
6.2.4 Not applicable.
6.4 Loading and operating of appliances during tests
6.4.1 Replacement:
Load and operation should simulate normal use. Fans that can be tilted during normal use shall
be located in the position with the highest emitted noise level, and the duration of the
measurement shall be at least 10 s.
For height-adjustable table fans, floor fans and pedestal fans, adjust the center of the motor
shaft of the appliance to a height of 1.5m from the ground. If the maximum height of the
appliance is less than 1.5m, test at the maximum height.
Fans that can oscillate automatically (shaking head, swinging blades, guide vane wind wheel
rotation, et...
