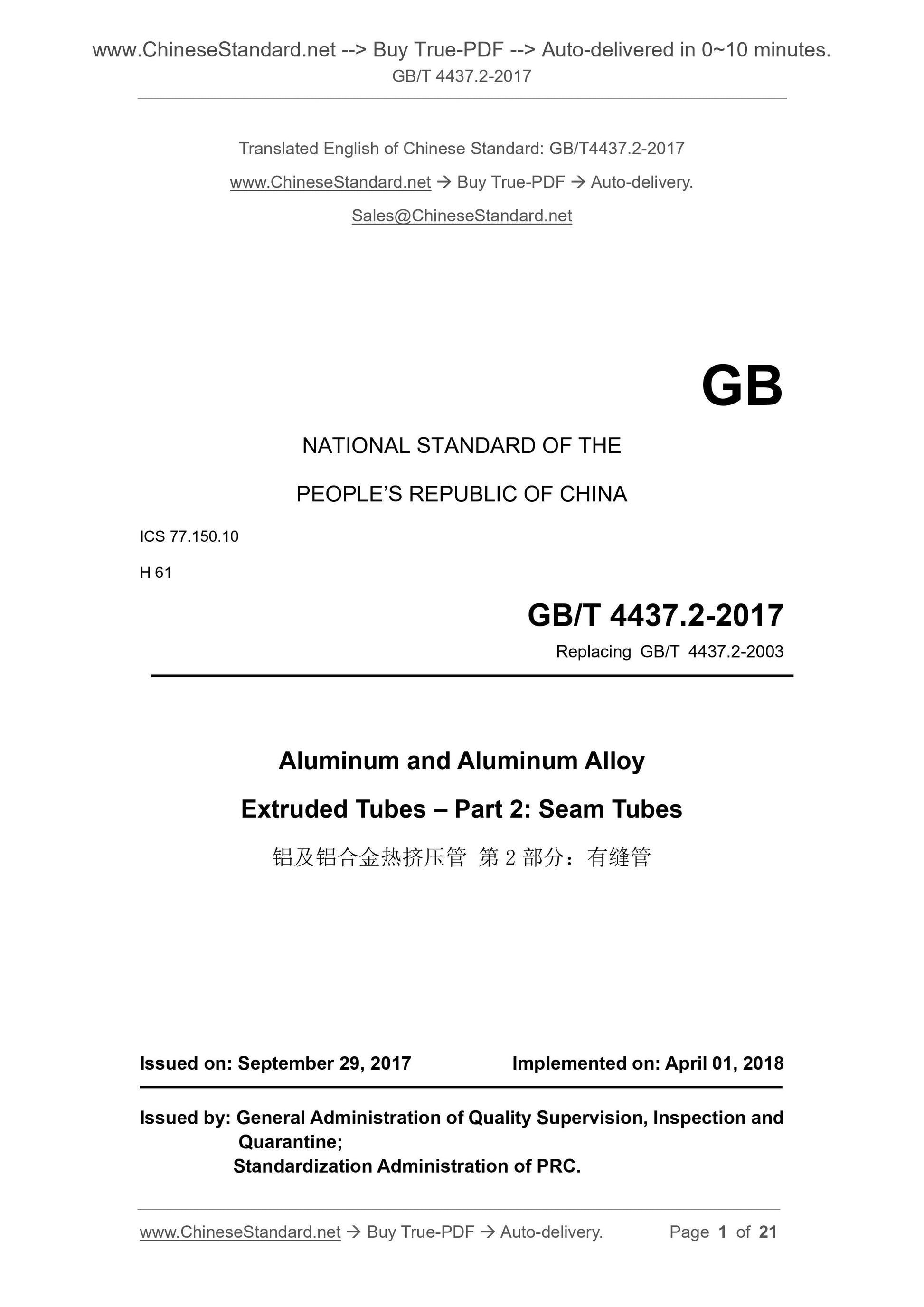

GB/T 4437.2-2017: Aluminium and aluminium alloy extruded tubes -- Part 2: Seam tubes
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.10 H 61
GB/T 4437.2-2017
Replacing GB/T 4437.2-2003
Aluminum and Aluminum Alloy
Extruded Tubes – Part 2. Seam Tubes
Issued on. September 29, 2017 Implemented on. April 01, 2018
Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of PRC.

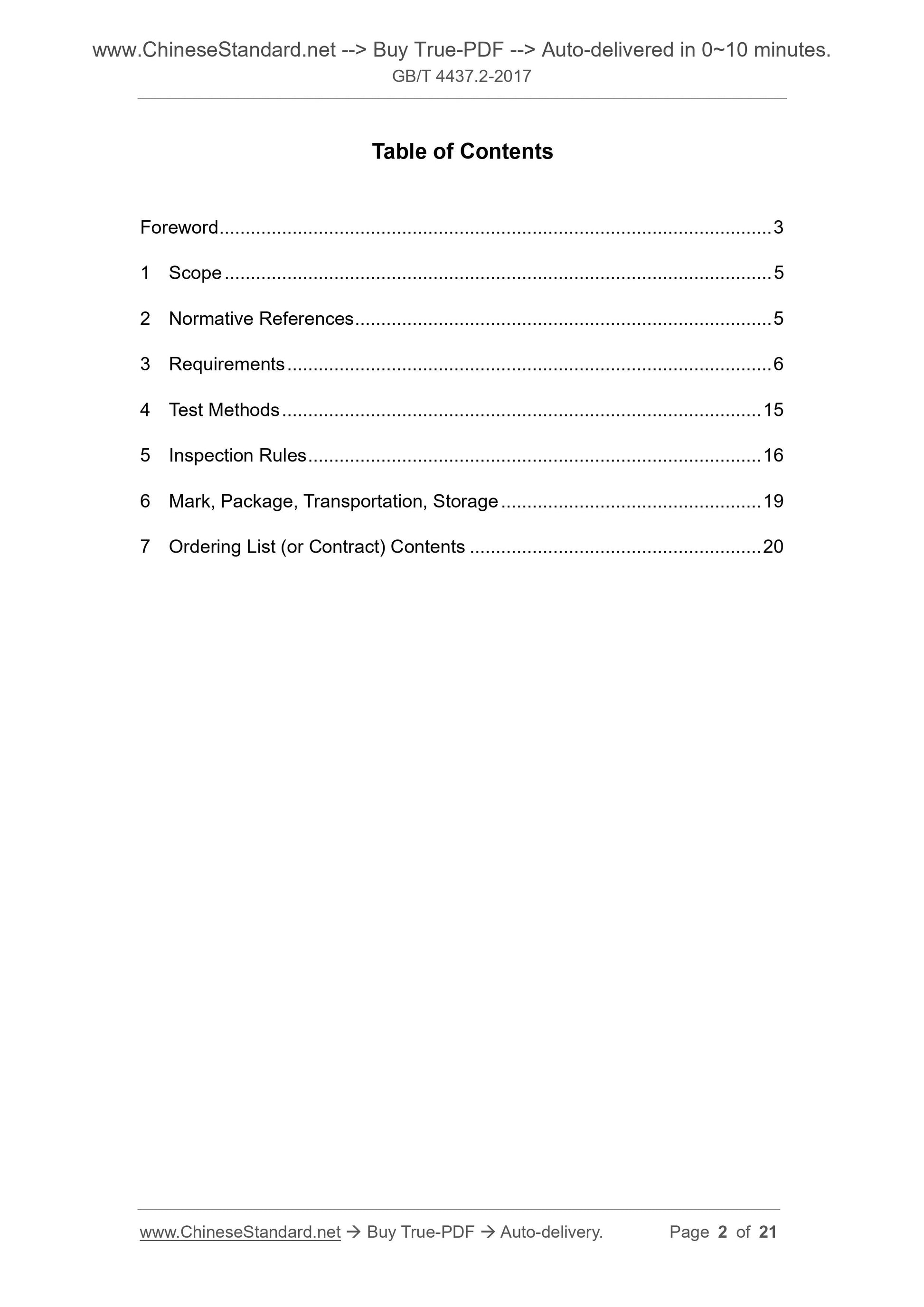

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Requirements ... 6
4 Test Methods ... 15
5 Inspection Rules ... 16
6 Mark, Package, Transportation, Storage ... 19

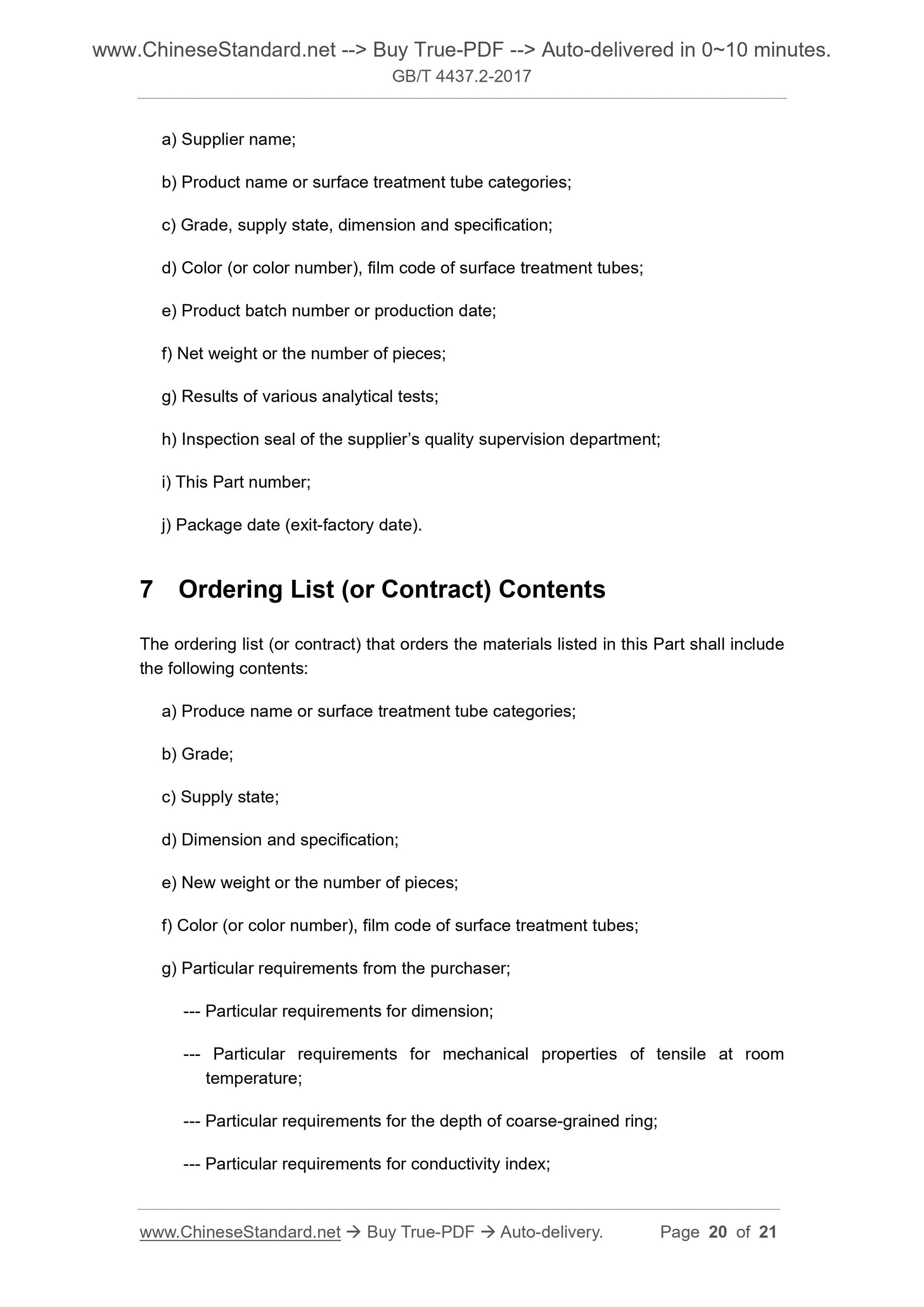

7 Ordering List (or Contract) Contents ... 20

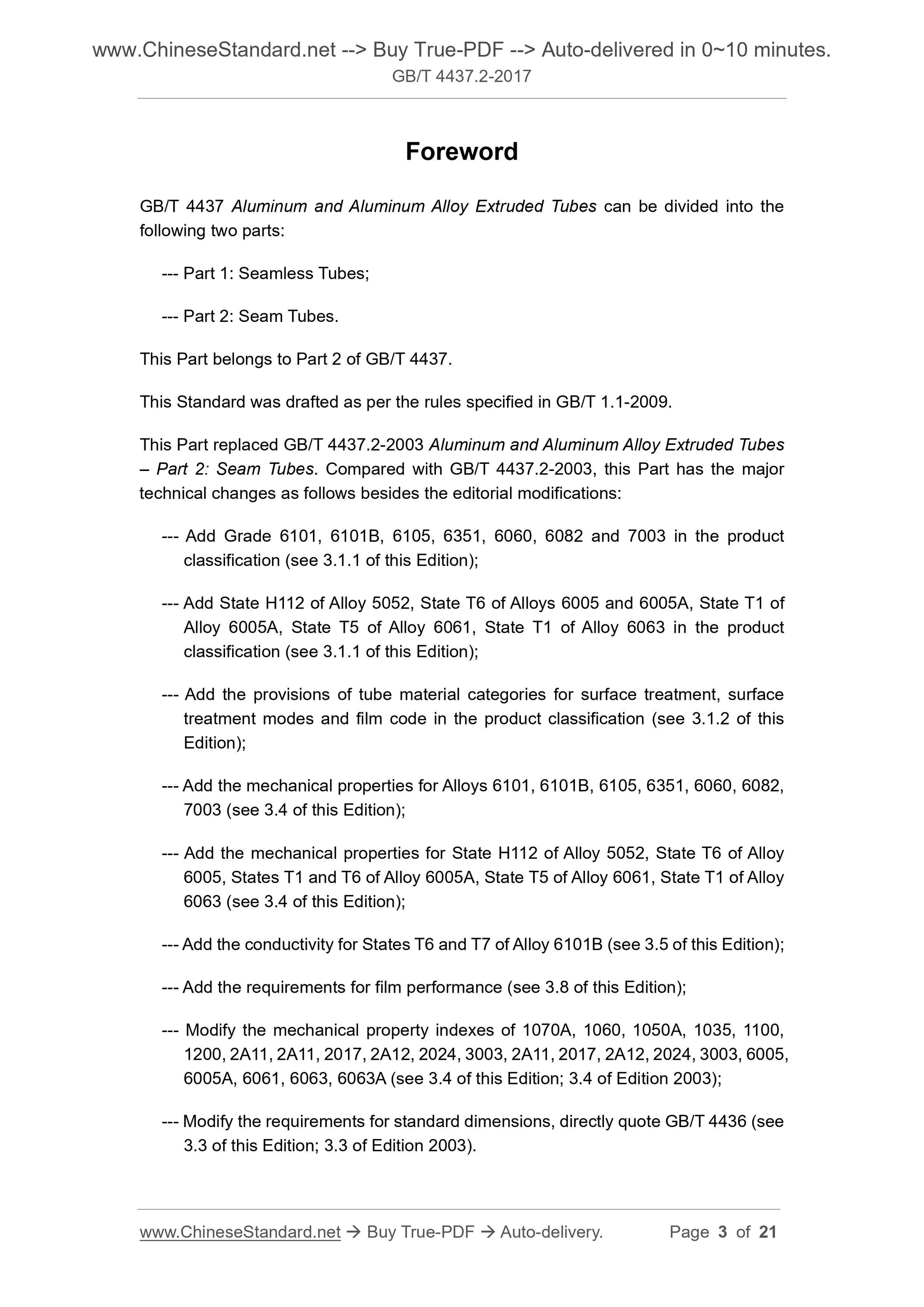

Foreword
GB/T 4437 Aluminum and Aluminum Alloy Extruded Tubes can be divided into the
following two parts. --- Part 1. Seamless Tubes; --- Part 2. Seam Tubes.
This Part belongs to Part 2 of GB/T 4437.
This Standard was drafted as per the rules specified in GB/T 1.1-2009.
This Part replaced GB/T 4437.2-2003 Aluminum and Aluminum Alloy Extruded Tubes
– Part 2. Seam Tubes. Compared with GB/T 4437.2-2003, this Part has the major technical changes as follows besides the editorial modifications.
---Add Grade 6101, 6101B, 6105, 6351, 6060, 6082 and 7003 in the product classification (see 3.1.1 of this Edition);
--- Add State H112 of Alloy 5052, State T6 of Alloys 6005 and 6005A, State T1 of Alloy 6005A, State T5 of Alloy 6061, State T1 of Alloy 6063 in the product classification (see 3.1.1 of this Edition);
--- Add the provisions of tube material categories for surface treatment, surface treatment modes and film code in the product classification (see 3.1.2 of this Edition);
--- Add the mechanical properties for Alloys 6101, 6101B, 6105, 6351, 6060, 6082, 7003 (see 3.4 of this Edition);
--- Add the mechanical properties for State H112 of Alloy 5052, State T6 of Alloy 6005, States T1 and T6 of Alloy 6005A, State T5 of Alloy 6061, State T1 of Alloy 6063 (see 3.4 of this Edition);
--- Add the conductivity for States T6 and T7 of Alloy 6101B (see 3.5 of this Edition);
--- Add the requirements for film performance (see 3.8 of this Edition);
---Modify the mechanical property indexes of 1070A, 1060, 1050A, 1035, 1100, 1200, 2A11, 2A11, 2017, 2A12, 2024, 3003, 2A11, 2017, 2A12, 2024, 3003, 6005, 6005A, 6061, 6063, 6063A (see 3.4 of this Edition; 3.4 of Edition 2003);
--- Modify the requirements for standard dimensions, directly quote GB/T 4436 (see
3.3 of this Edition; 3.3 of Edition 2003).
Aluminum and Aluminum Alloy
Extruded Tubes – Part 2. Seam Tubes

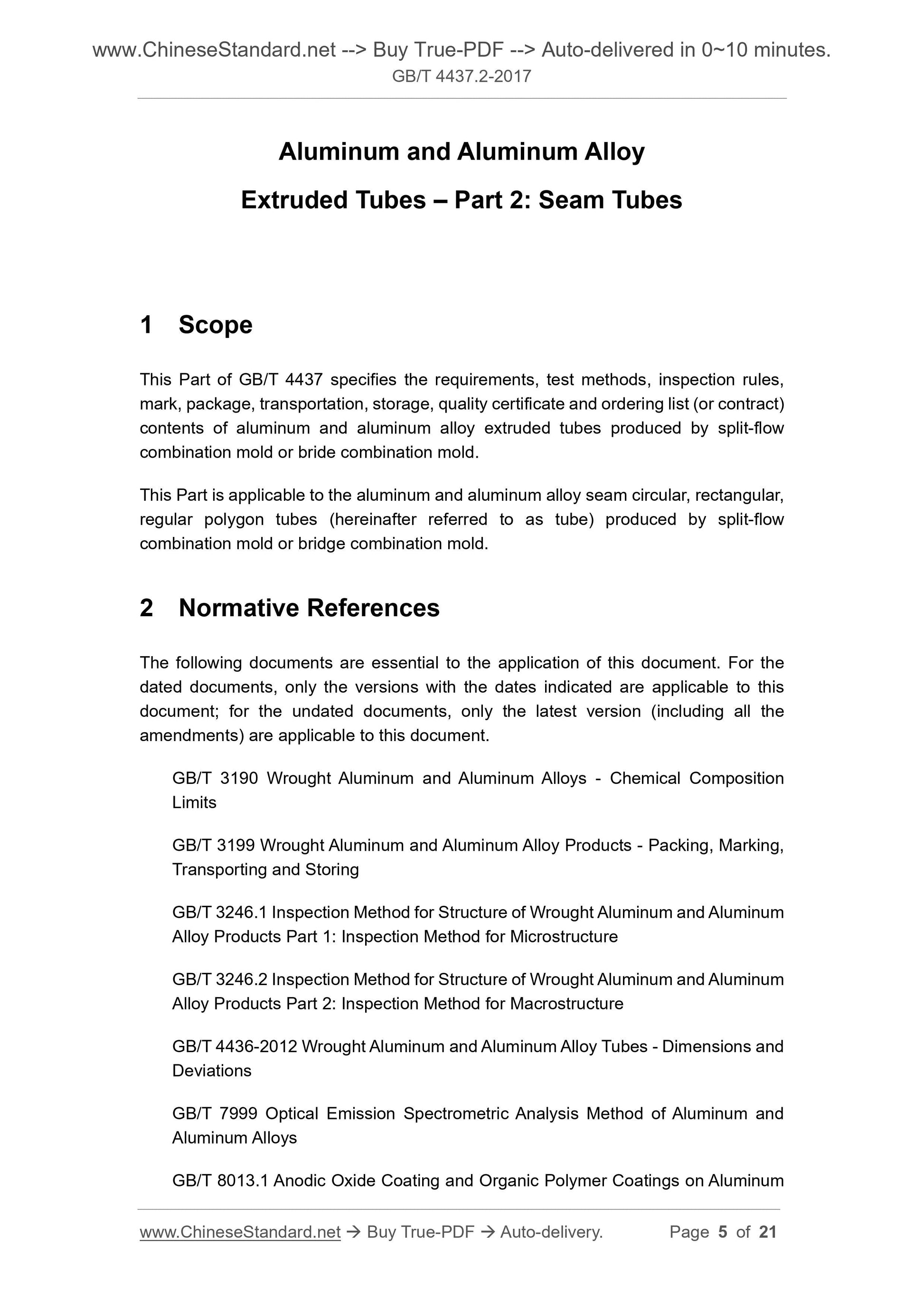

1 Scope
This Part of GB/T 4437 specifies the requirements, test methods, inspection rules, mark, package, transportation, storage, quality certificate and ordering list (or contract) contents of aluminum and aluminum alloy extruded tubes produced by split-flow combination mold or bride combination mold.
This Part is applicable to the aluminum and aluminum alloy seam circular, rectangular, regular polygon tubes (hereinafter referred to as tube) produced by split-flow combination mold or bridge combination mold.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.
GB/T 3190 Wrought Aluminum and Aluminum Alloys -Chemical Composition Limits
GB/T 3199 Wrought Aluminum and Aluminum Alloy Products -Packing, Marking, Transporting and Storing
GB/T 3246.1 Inspection Method for Structure of Wrought Aluminum and Aluminum Alloy Products Part 1. Inspection Method for Microstructure
GB/T 3246.2 Inspection Method for Structure of Wrought Aluminum and Aluminum Alloy Products Part 2. Inspection Method for Macrostructure
GB/T 4436-2012 Wrought Aluminum and Aluminum Alloy Tubes - Dimensions and Deviations
GB/T 7999 Optical Emission Spectrometric Analysis Method of Aluminum and Aluminum Alloys

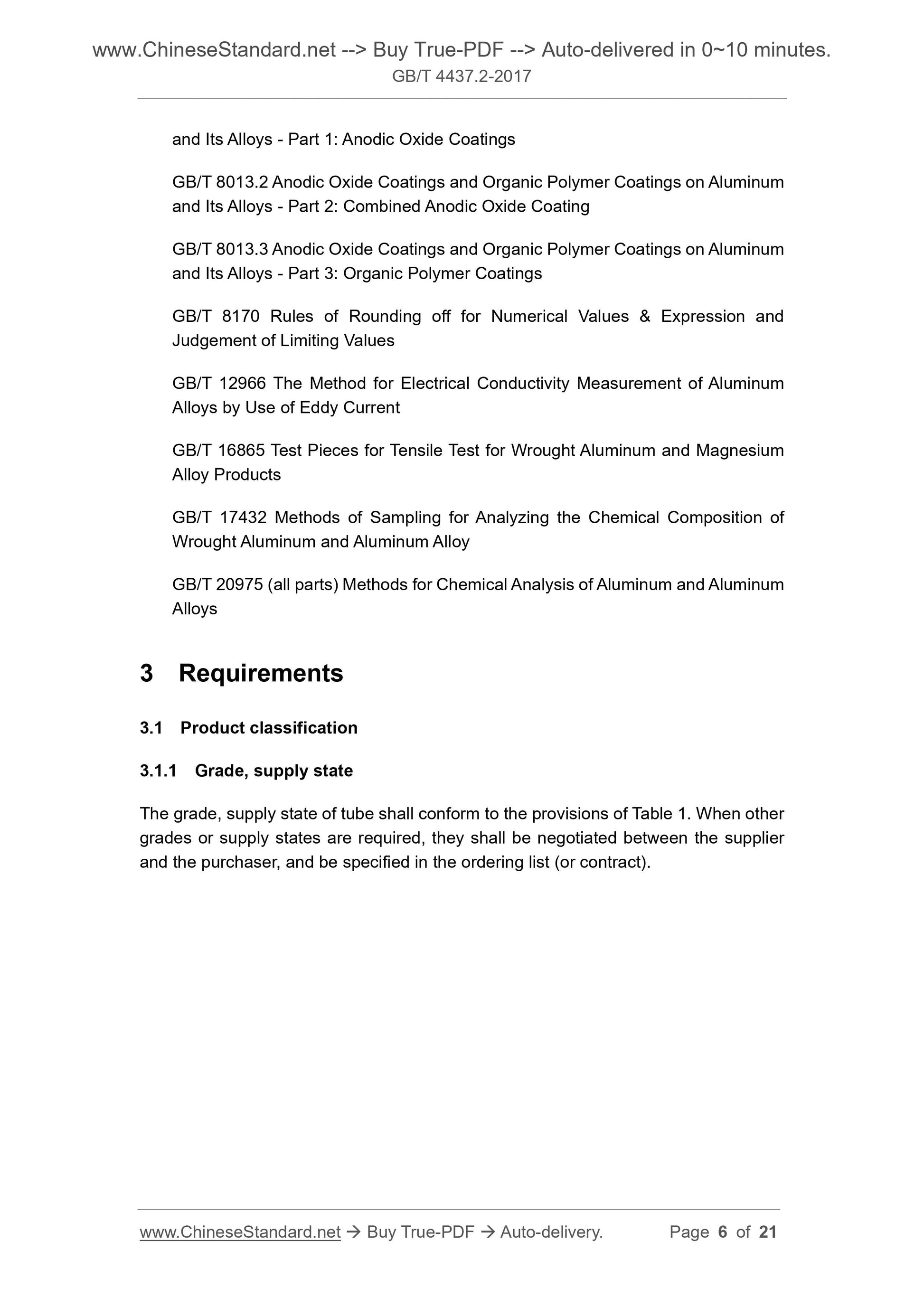

GB/T 8013.1 Anodic Oxide Coating and Organic Polymer Coatings on Aluminum and Its Alloys - Part 1. Anodic Oxide Coatings
GB/T 8013.2 Anodic Oxide Coatings and Organic Polymer Coatings on Aluminum and Its Alloys - Part 2. Combined Anodic Oxide Coating
GB/T 8013.3 Anodic Oxide Coatings and Organic Polymer Coatings on Aluminum and Its Alloys - Part 3. Organic Polymer Coatings
GB/T 8170 Rules of Rounding off for Numerical Values and Expression and Judgement of Limiting Values
GB/T 12966 The Method for Electrical Conductivity Measurement of Aluminum Alloys by Use of Eddy Current
GB/T 16865 Test Pieces for Tensile Test for Wrought Aluminum and Magnesium Alloy Products
GB/T 17432 Methods of Sampling for Analyzing the Chemical Composition of Wrought Aluminum and Aluminum Alloy
GB/T 20975 (all parts) Methods for Chemical Analysis of Aluminum and Aluminum Alloys
3 Requirements
3.1 Product classification
3.1.1 Grade, supply state
The grade, supply state of tube shall conform to the provisions of Table 1. When other grades or supply states are required, they shall be negotiated between the supplier and the purchaser, and be specified in the ordering list (or contract).
3.9.4
The appearance quality of the surface treatment tube shall conform to the relevant provisions of GB/T 8013.1~GB/T 8013.3.

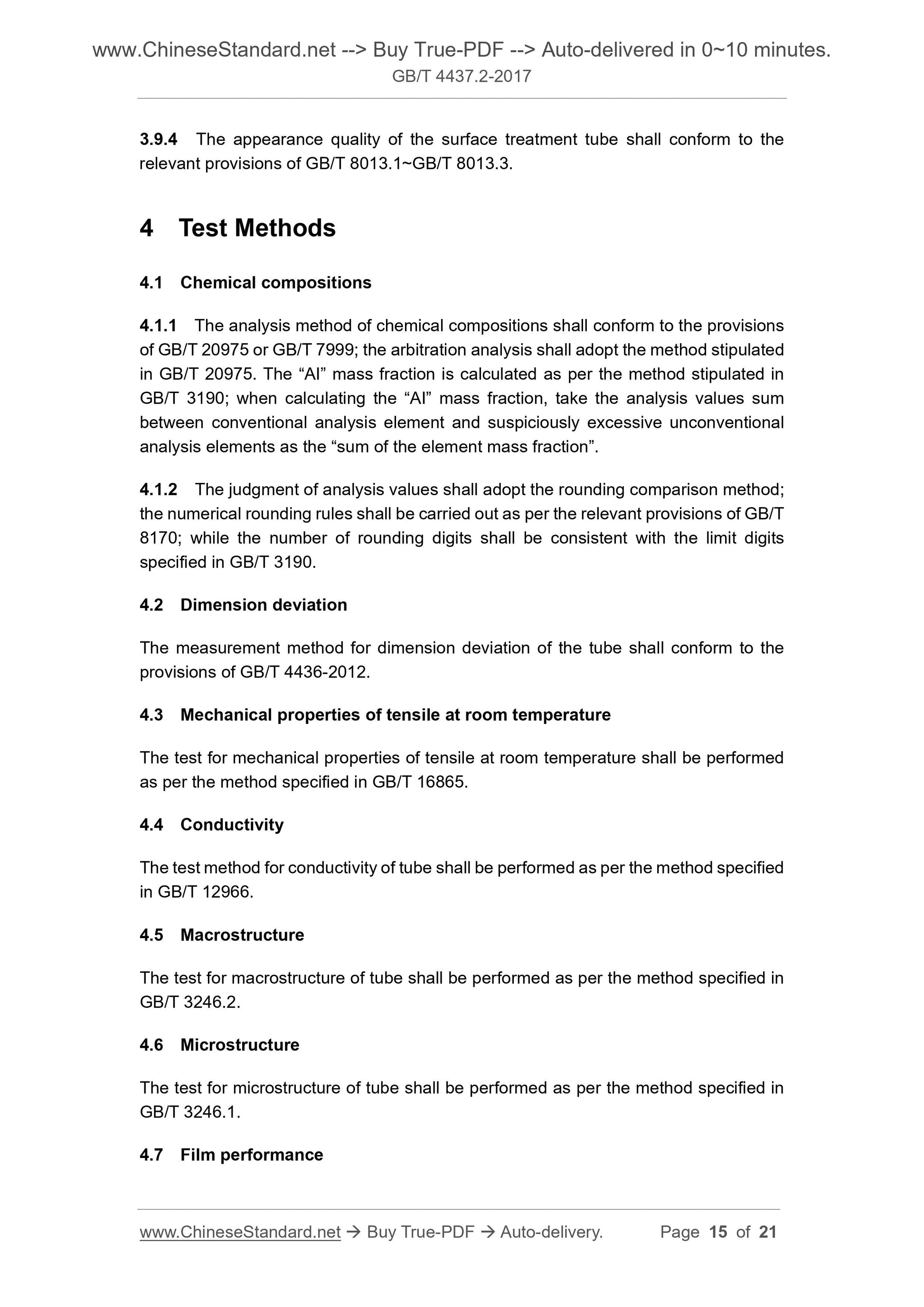

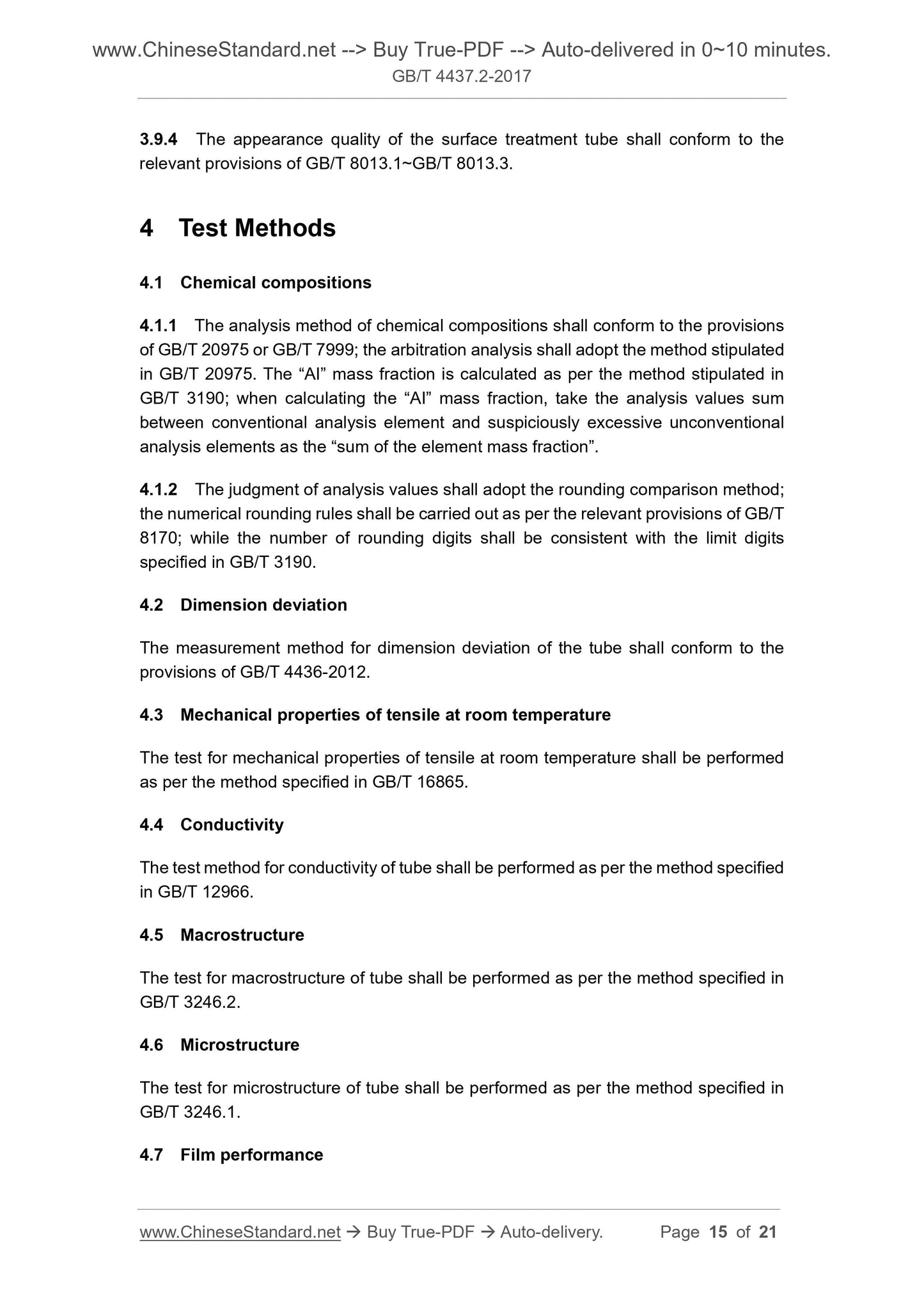

4 Test Methods
4.1
Chemical compositions
4.1.1 The analysis method of chemical compositions shall conform to the provisions of GB/T 20975 or GB/T 7999; the arbitration analysis shall adopt the method stipulated in GB/T 20975. The “AI” mass fraction is calculated as per the method stipulated in GB/T 3190; when calculating the “AI” mass fraction, take the analysis values sum between conventional analysis element and suspiciously excessive unconventional analysis elements as the “sum of the element mass fraction”.
4.1.2 The judgment of analysis values shall adopt the rounding comparison method; the numerical rounding rules shall be carried out as per the relevant provisions of GB/T 8170; while the number of rounding digits shall be consistent with the limit digits specified in GB/T 3190.
4.2 Dimension deviation
The measurement method for dimension deviation of the tube shall conform to the provisions of GB/T 4436-2012.
4.3 Mechanical properties of tensile at room temperature
The test for mechanical properties of tensile at room temperature shall be performed as per the method specified in GB/T 16865.
4.4 Conductivity
The test method for conductivity of tube shall be performed as per the method specified in GB/T 12966.
4.5 Macrostructure
The test for macrostructure of tube shall be performed as per the method specified in GB/T 3246.2.
4.6 Microstructure
The test for microstructure of tube shall be performed as per the method specified in GB/T 3246.1.
4.7 Film performance

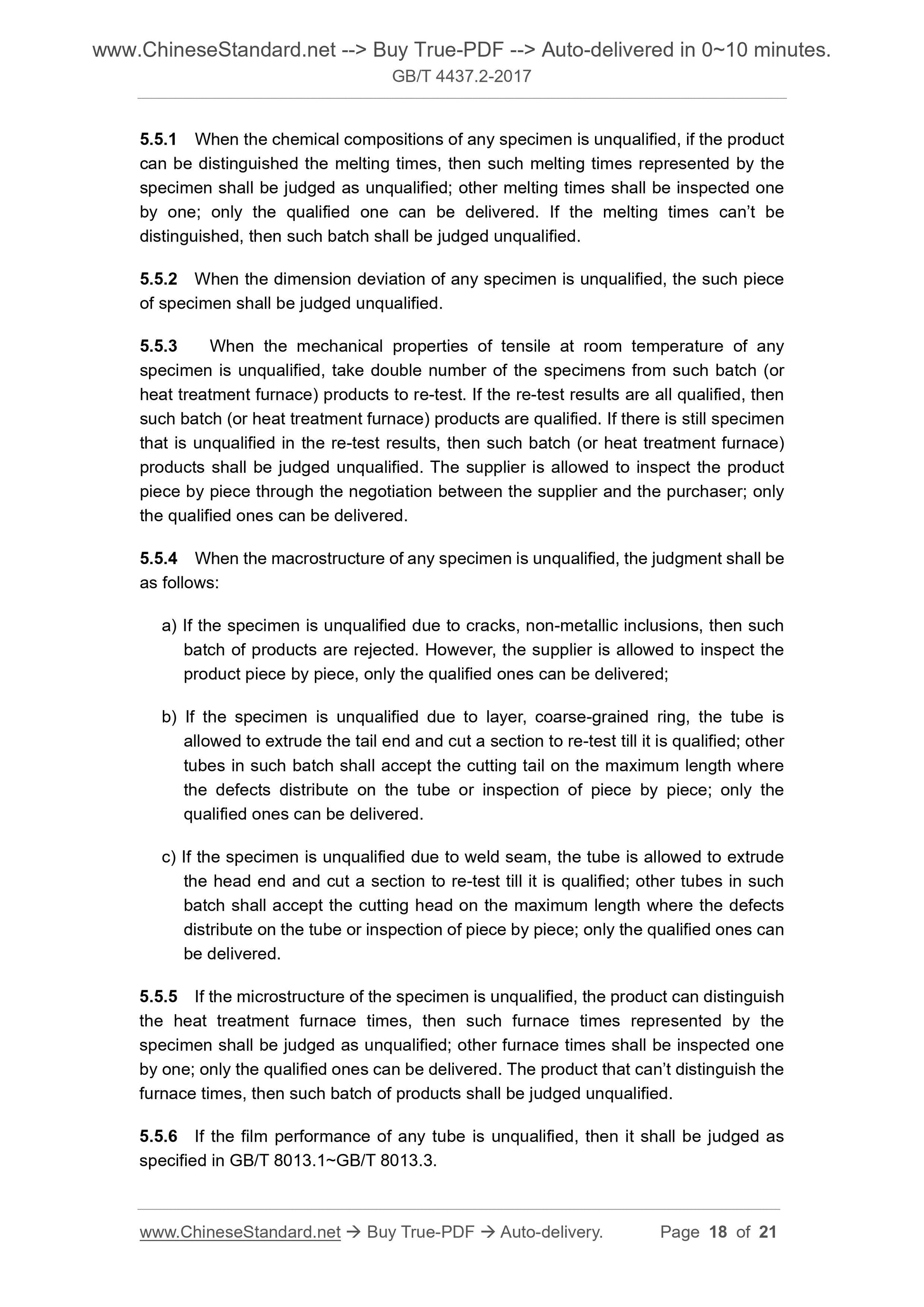

5.5.1 When the chemical compositions of any specimen is unqualified, if the product can be distinguished the melting times, then such melting times represented by the specimen shall be judged as unqualified; other melting times shall be inspected one by one; only the qualified one can be delivered. If the melting times can’t be distinguished, then such batch shall be judged unqualified.
