GB/T 4831-2016: Specification for model of rotating electrical motor

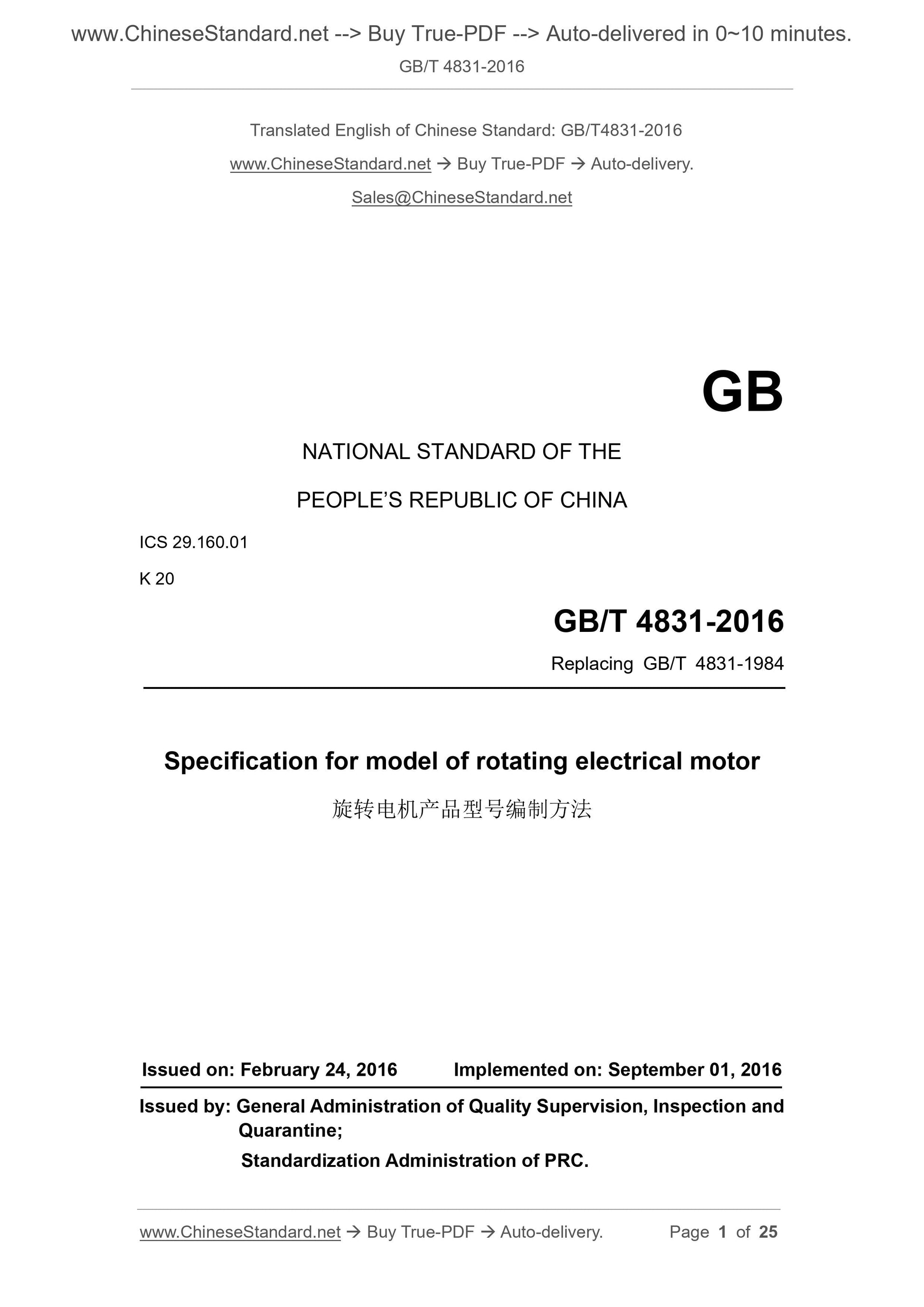

GB/T 4831-2016
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.160.01
K 20
Replacing GB/T 4831-1984
Specification for model of rotating electrical motor
ISSUED ON: FEBRUARY 24, 2016
IMPLEMENTED ON: SEPTEMBER 01, 2016
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of PRC.

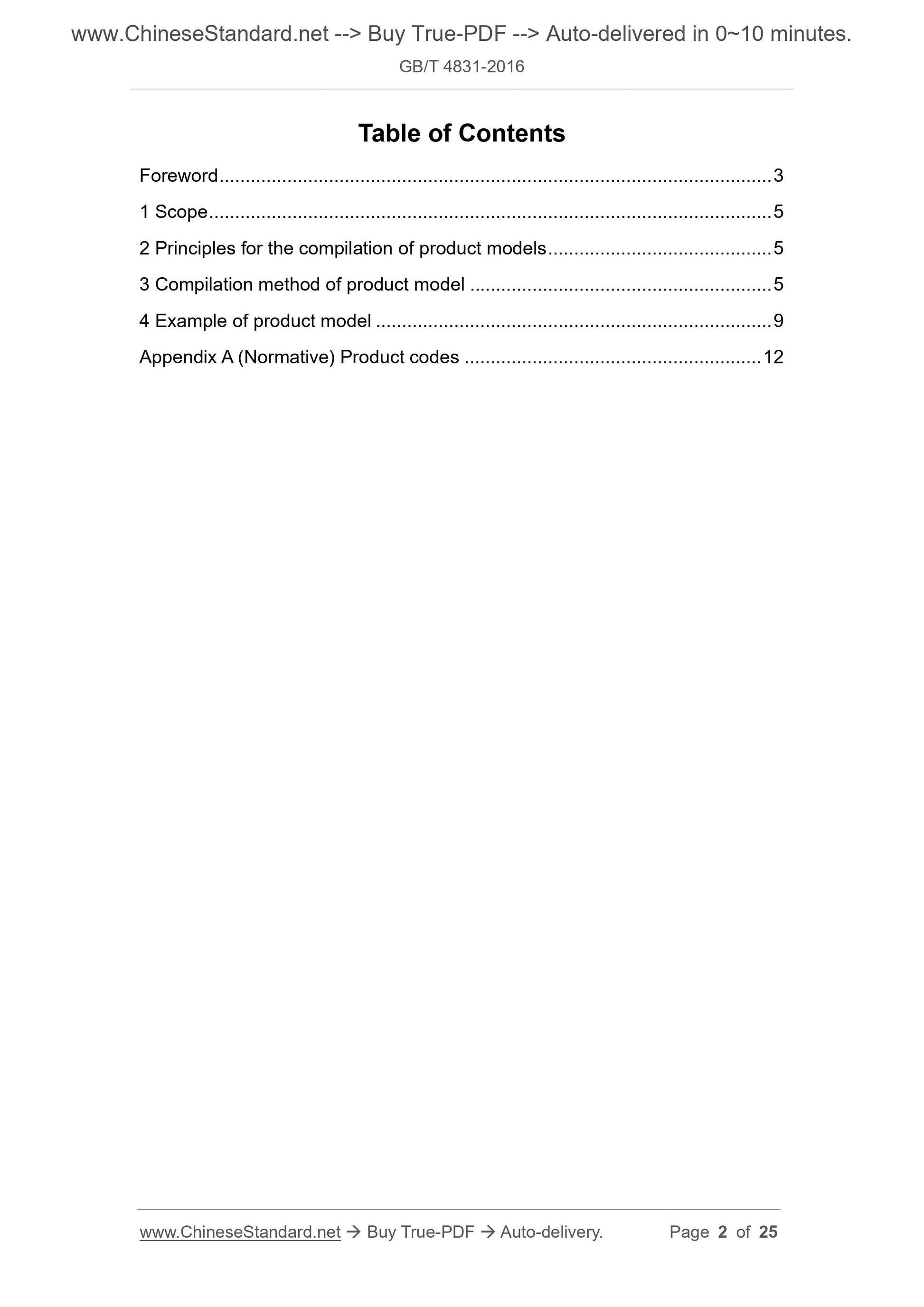

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Principles for the compilation of product models ... 5
3 Compilation method of product model ... 5
4 Example of product model ... 9
Appendix A (Normative) Product codes ... 12

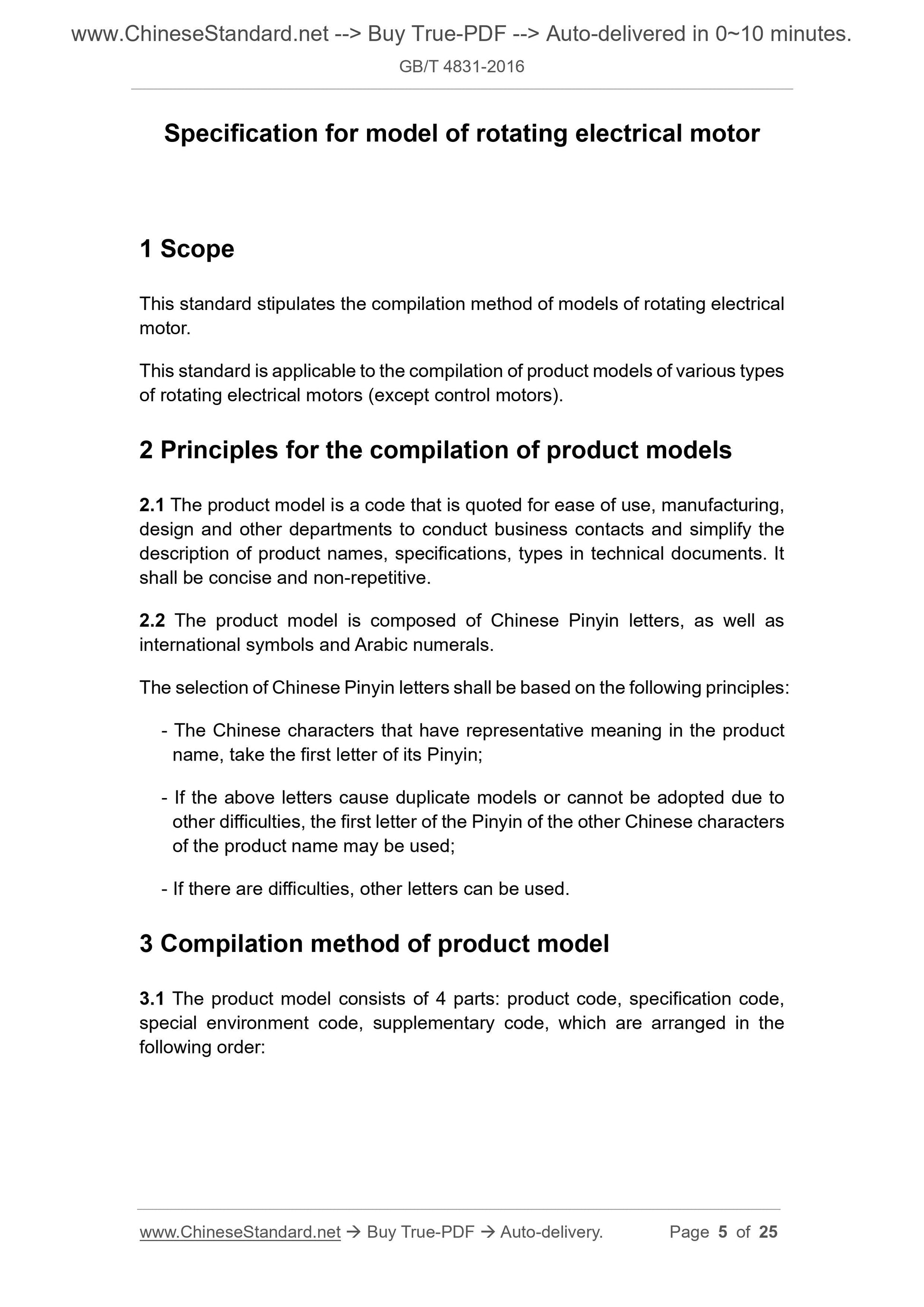

Specification for model of rotating electrical motor
1 Scope
This standard stipulates the compilation method of models of rotating electrical
motor.
This standard is applicable to the compilation of product models of various types
of rotating electrical motors (except control motors).
2 Principles for the compilation of product models
2.1 The product model is a code that is quoted for ease of use, manufacturing,
design and other departments to conduct business contacts and simplify the
description of product names, specifications, types in technical documents. It
shall be concise and non-repetitive.
2.2 The product model is composed of Chinese Pinyin letters, as well as
international symbols and Arabic numerals.
The selection of Chinese Pinyin letters shall be based on the following principles:
- The Chinese characters that have representative meaning in the product
name, take the first letter of its Pinyin;
- If the above letters cause duplicate models or cannot be adopted due to
other difficulties, the first letter of the Pinyin of the other Chinese characters
of the product name may be used;
- If there are difficulties, other letters can be used.
3 Compilation method of product model
3.1 The product model consists of 4 parts: product code, specification code,
special environment code, supplementary code, which are arranged in the
following order:

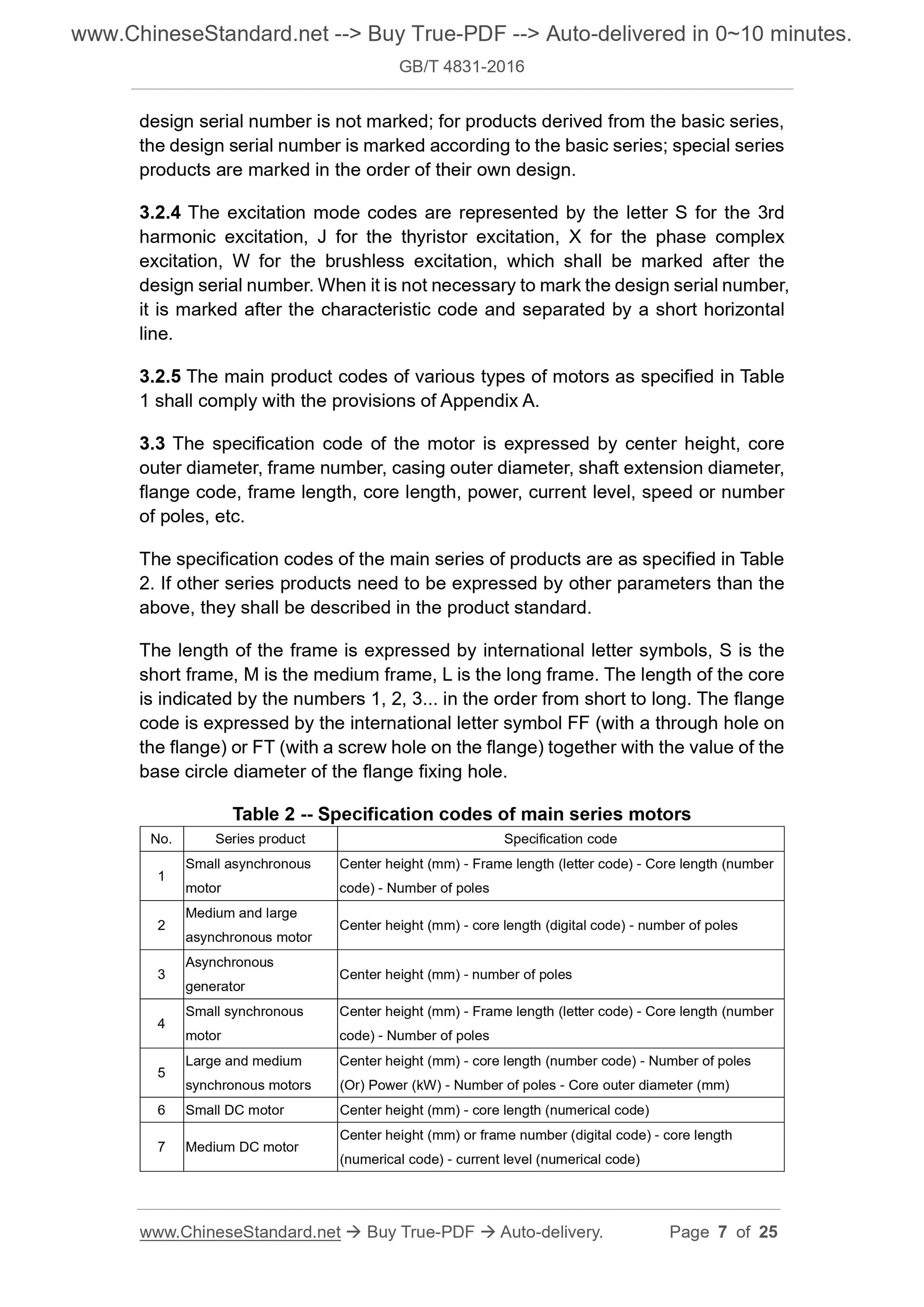

design serial number is not marked; for products derived from the basic series,
the design serial number is marked according to the basic series; special series
products are marked in the order of their own design.
3.2.4 The excitation mode codes are represented by the letter S for the 3rd
harmonic excitation, J for the thyristor excitation, X for the phase complex
excitation, W for the brushless excitation, which shall be marked after the
design serial number. When it is not necessary to mark the design serial number,
it is marked after the characteristic code and separated by a short horizontal
line.
3.2.5 The main product codes of various types of motors as specified in Table
1 shall comply with the provisions of Appendix A.
3.3 The specification code of the motor is expressed by center height, core
outer diameter, frame number, casing outer diameter, shaft extension diameter,
flange code, frame length, core length, power, current level, speed or number
of poles, etc.
The specification codes of the main series of products are as specified in Table
2. If other series products need to be expressed by other parameters than the
above, they shall be described in the product standard.
The length of the frame is expressed by international letter symbols, S is the
short frame, M is the medium frame, L is the long frame. The length of the core
is indicated by the numbers 1, 2, 3... in the order from short to long. The flange
code is expressed by the international letter symbol FF (with a through hole on
the flange) or FT (with a screw hole on the flange) together with the value of the
base circle diameter of the flange fixing hole.
Table 2 -- Specification codes of main series motors
No. Series product Specification code
1 Small asynchronous motor
Center height (mm) - Frame length (letter code) - Core length (number
code) - Number of poles
2 Medium and large asynchronous motor Center height (mm) - core length (digital code) - number of poles
3 Asynchronous generator Center height (mm) - number of poles
4 Small synchronous motor
Center height (mm) - Frame length (letter code) - Core length (number
code) - Number of poles
5 Large and medium synchronous motors
Center height (mm) - core length (number code) - Number of poles
(Or) Power (kW) - Number of poles - Core outer diameter (mm)
6 Small DC motor Center height (mm) - core length (numerical code)
7 Medium DC motor Center height (mm) or frame number (digital code) - core length (numerical code) - current level (numerical code)

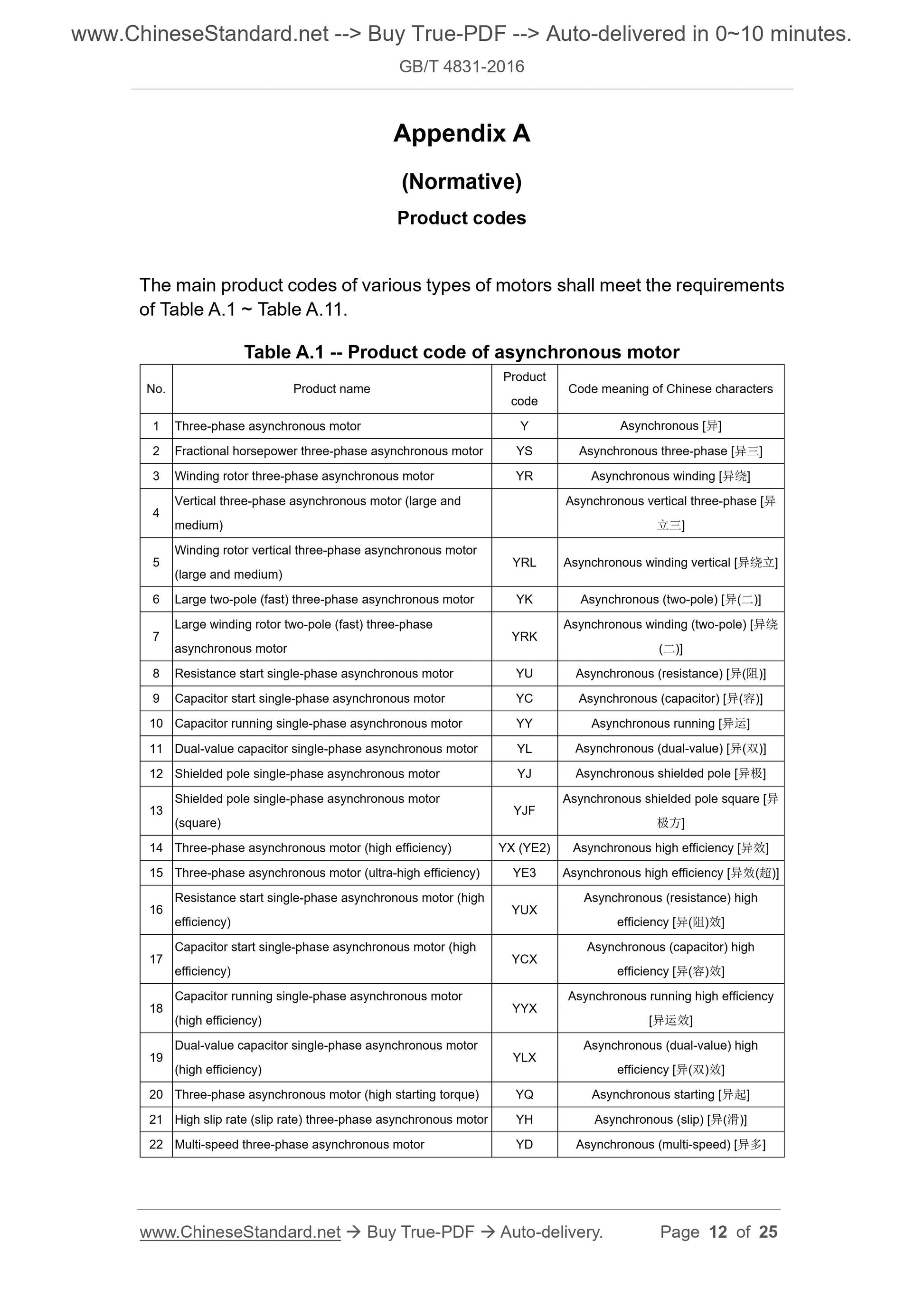

Appendix A
(Normative)
Product codes

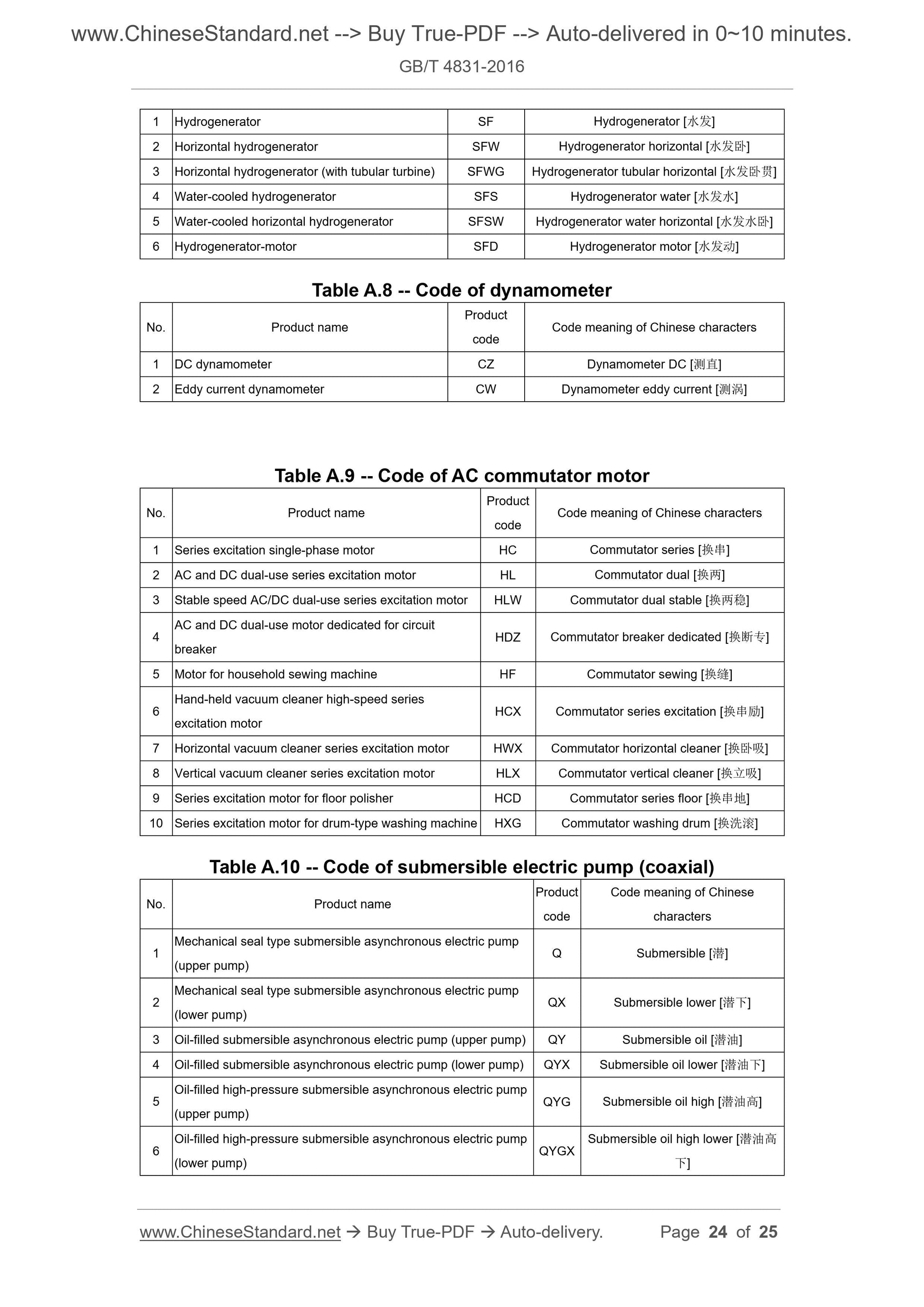

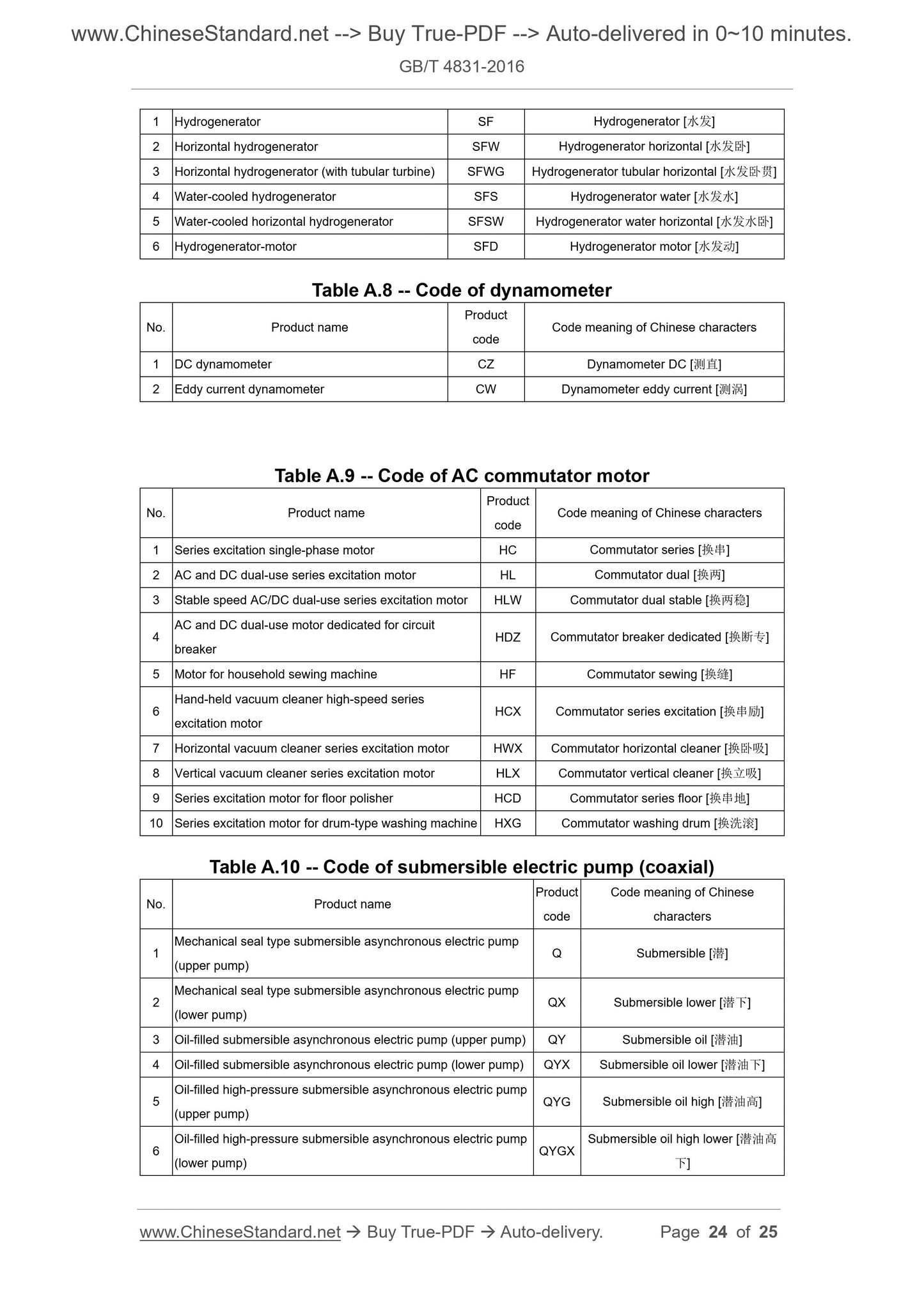

The main product codes of various types of motors shall meet the requirements
of Table A.1 ~ Table A.11.
Table A.1 -- Product code of asynchronous motor
No. Product name Product code Code meaning of Chinese characters
1 Three-phase asynchronous motor Y Asynchronous [异]
2 Fractional horsepower three-phase asynchronous motor YS Asynchronous three-phase [异三]
3 Winding rotor three-phase asynchronous motor YR Asynchronous winding [异绕]
4 Vertical three-phase asynchronous motor (large and medium)
Asynchronous vertical three-phase [异
立三]
5 Winding rotor vertical three-phase asynchronous motor (large and medium) YRL Asynchronous winding vertical [异绕立]
6 Large two-pole (fast) three-phase asynchronous motor YK Asynchronous (two-pole) [异(二)]
7 Large winding rotor two-pole (fast) three-phase asynchronous motor YRK
Asynchronous winding (two-pole) [异绕
(二)]
8 Resistance start single-phase asynchronous motor YU Asynchronous (resistance) [异(阻)]
9 Capacitor start single-phase asynchronous motor YC Asynchronous (capacitor) [异(容)]
10 Capacitor running single-phase asynchronous motor YY Asynchronous running [异运]
11 Dual-value capacitor single-phase asynchronous motor YL Asynchronous (dual-value) [异(双)]
12 Shielded pole single-phase asynchronous motor YJ Asynchronous shielded pole [异极]
13 Shielded pole single-phase asynchronous motor (square) YJF
Asynchronous shielded pole square [异
14 Three-phase asynchronous motor (high efficiency) YX (YE2) Asynchronous high efficiency [异效]
15 Three-phase asynchronous motor (ultra-high efficiency) YE3 Asynchronous high efficiency [异效(超)]
16 Resistance start single-phase asynchronous motor (high efficiency) YUX
Asynchronous (resistance) high
efficiency [异(阻)效]
17 Capacitor start single-phase asynchronous motor (high efficiency) YCX
Asynchronous (capacitor) high
efficiency [异(容)效]
18 Capacitor running single-phase asynchronous motor (high efficiency) YYX
Asynchronous running high efficiency
[异运效]
19 Dual-value capacitor single-phase asynchronous motor (high efficiency) YLX
Asynchronous (dual-value) high
efficiency [异(双)效]
20 Three-phase asynchronous motor (high starting torque) YQ Asynchronous starting [异起]
21 High slip rate (slip rate) three-phase asynchronous motor YH Asynchronous (slip) [异(滑)]
22 Multi-speed three-phase asynchronous motor YD Asynchronous (multi-speed) [异多]
10 Sine wave three-phase synchronous generator TFX Synchronous generator sine [同发弦]
12 AC exciter TFL Synchronous generator exciter [同发励]

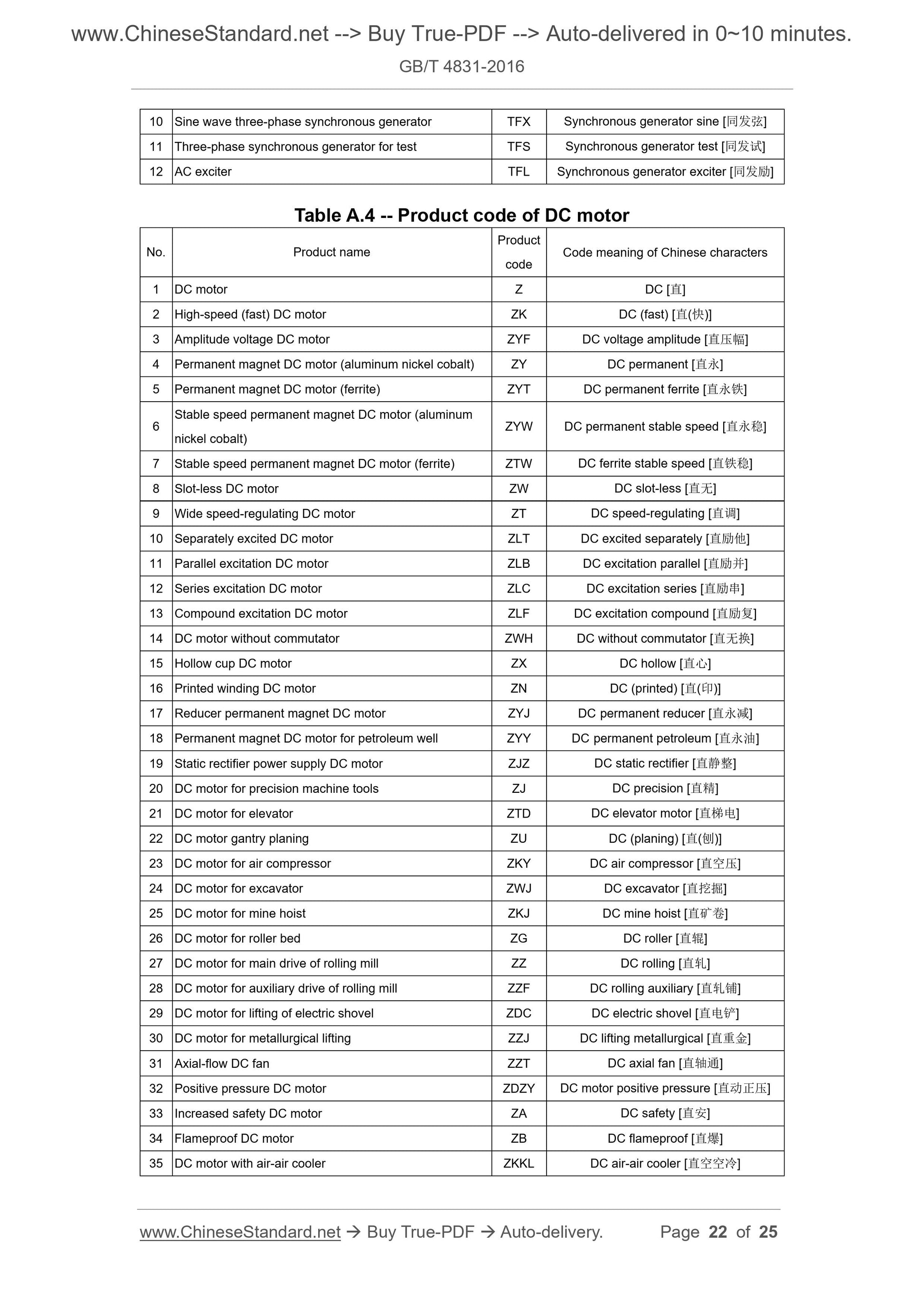

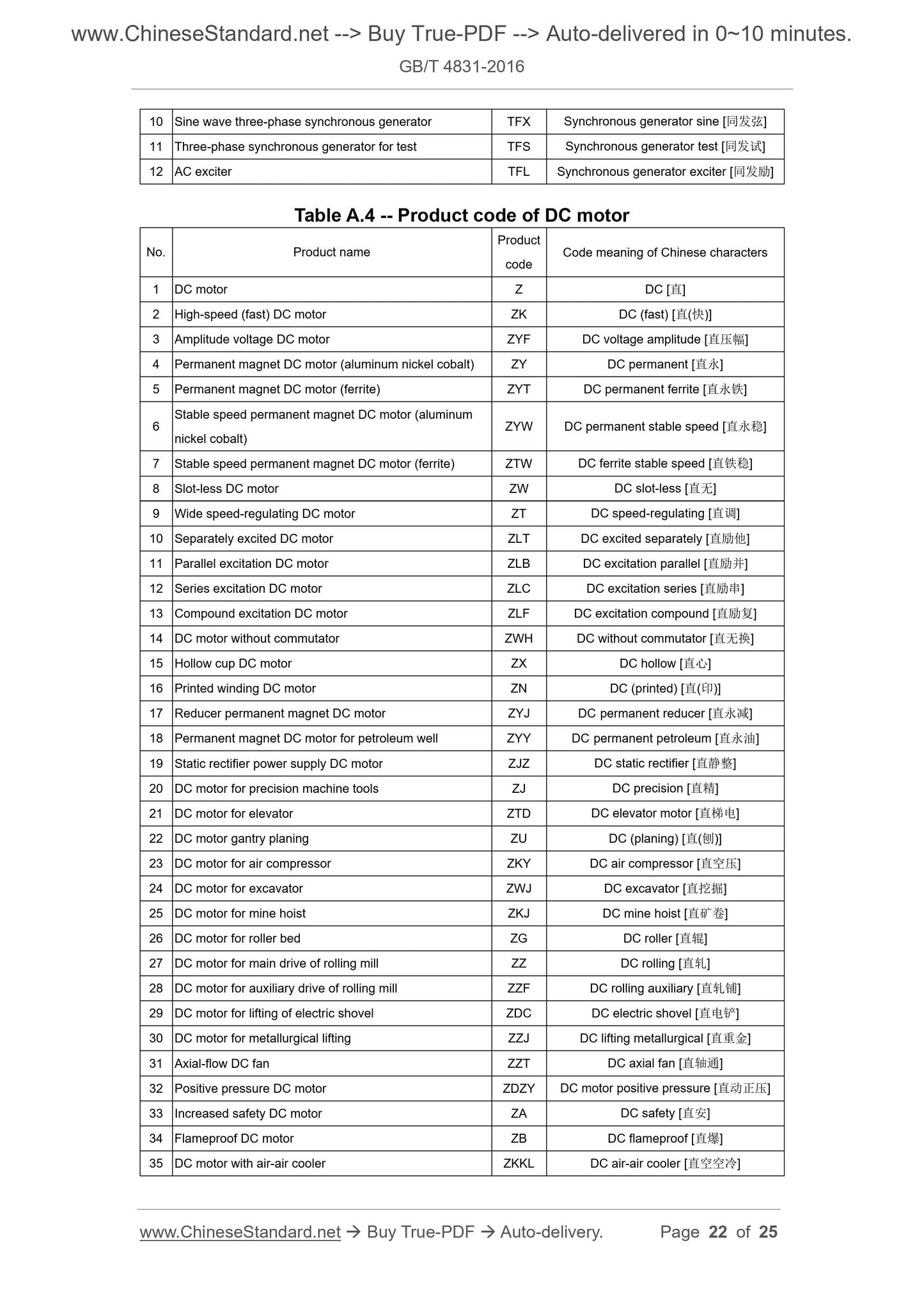

Table A.4 -- Product code of DC motor
No. Product name Product code Code meaning of Chinese characters
1 DC motor Z DC [直]
2 High-speed (fast) DC motor ZK DC (fast) [直(快)]
3 Amplitude voltage DC motor ZYF DC voltage amplitude [直压幅]
4 Permanent magnet DC motor (aluminum nickel cobalt) ZY DC permanent [直永]
6 Stable speed permanent magnet DC motor (aluminum ni...
