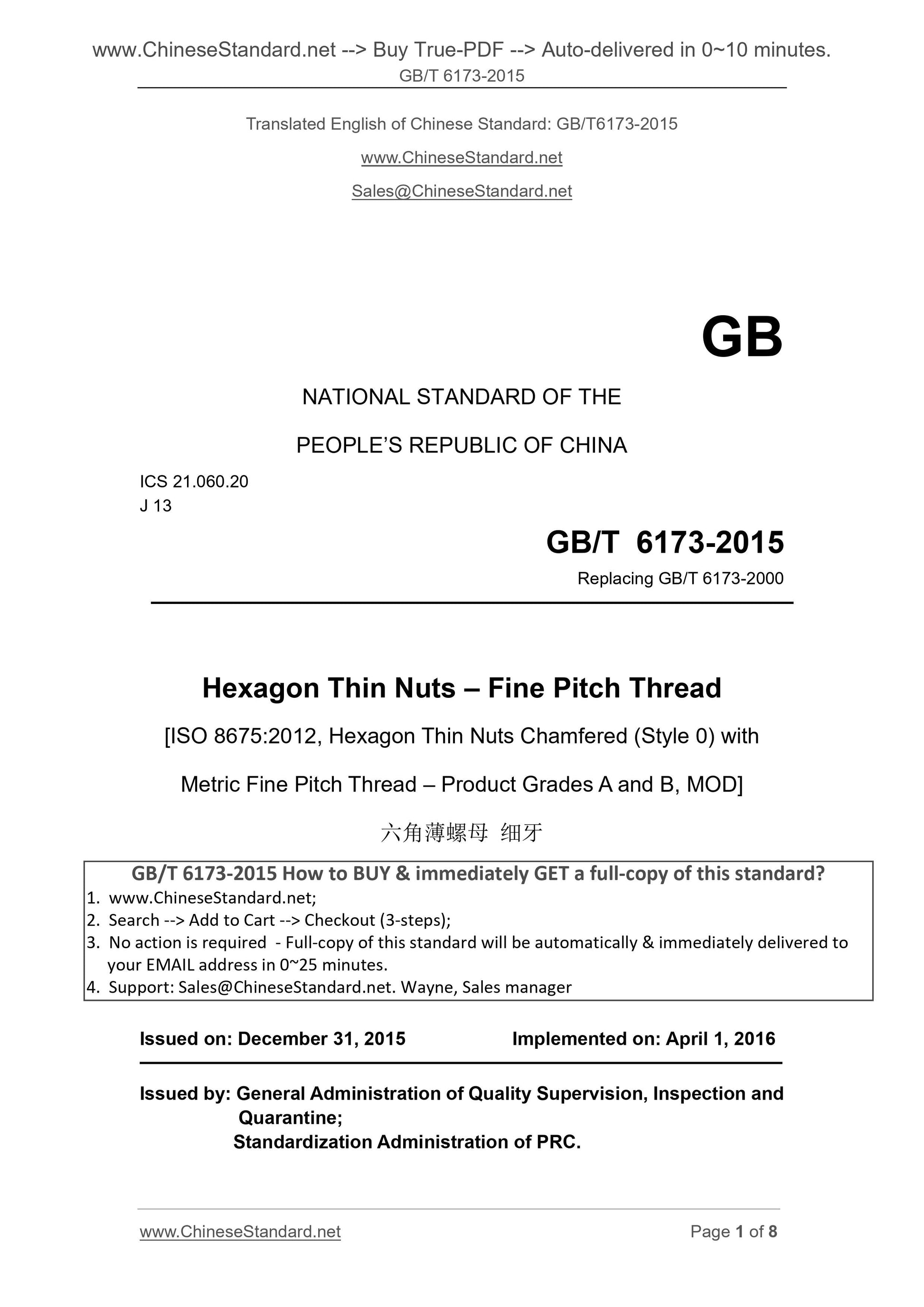

GB/T 6173-2015: Hexagon thin nuts -- Fine pitch thread
GB/T 6173-2015
Hexagon thin nuts - Fine pitch thread
ICS 21.060.20
J13
National Standards of People's Republic of China
Replacing GB/T 6173-2000
Hexagon thin nuts with fine pitch thread
[ISO 8675.2012, Hexagonthinnutschamfered (style0) withmetricfine
pitchthread-ProductgradesAandB, MOD]
Issued on. 2015-12-31
2016-04-01 implementation
Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China
Standardization Administration of China released

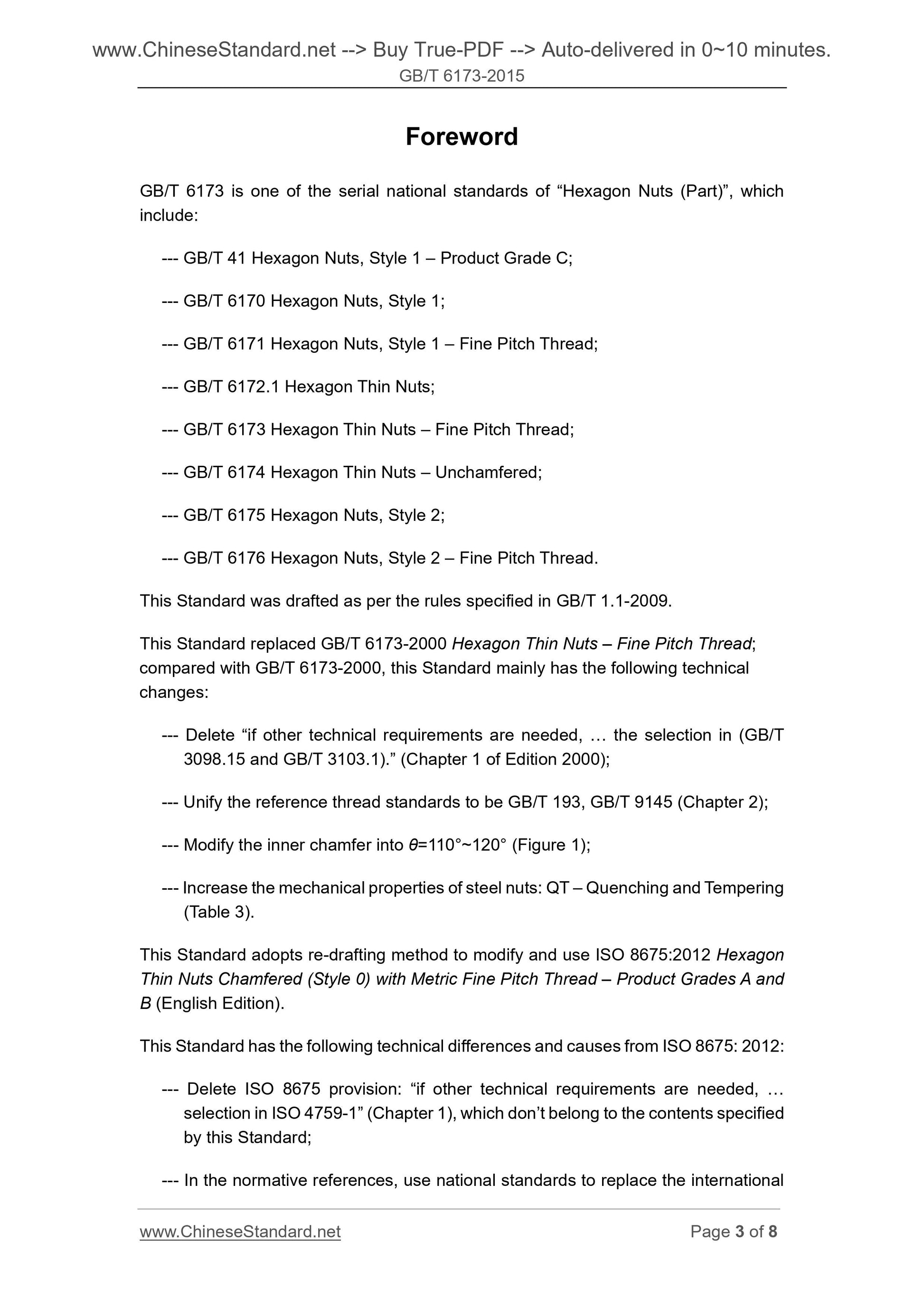

Foreword
GB/T 6173 is "(part) hex nut" national standards one of the series, the series includes.
--- GB/T 411 type hexagon nuts C grade;
--- GB/T 61701 type hexagon nuts;
--- GB/T 61711 type hexagon nuts with fine pitch thread;
--- GB/T 6172.1 Hexagon thin nuts;
--- GB/T 6173 Hexagon thin nuts with fine pitch thread;
--- GB/T 6174 Hexagon thin nut without chamfer;
--- GB/T 61752 type hexagon nuts;
--- GB/T 61762 type hexagon nuts fine teeth.
This standard was drafted in accordance with GB/T 1.1-2009 given rules.
This standard replaces GB/T 6173-2000 "hex nuts fine tooth thin" compared with GB/T 6173-2000, the main technical changes are as follows.
--- Delete "For other technical requirements, (GB/T 3098.15 and GB/T 3103.1) Select." (Chapter 1 of the 2000 edition);
--- Reference standard unified thread GB/T 193, GB/T 9145 (Chapter 2);
--- Fillet amended as θ = 110 ° ~ 120 ° (Fig. 1);
--- To increase the mechanical properties of steel nuts. QT --- quenched and tempered (Table 3).
This standard uses redrafted law revision using ISO 8675.2012 "chamfer Hexagon thin nuts (Type 0) metric fine thread products
Grade A and Grade B "(in English).
This standard and ISO 8675.2012 and its causes technical differences are as follows.
--- Delete ISO 8675 states. "For other technical requirements, ISO 4759-1, select" (Chapter 1), not part of the standard gauge
Given content;
--- Normative reference document, instead of using our standards with international standards (Chapter 2), increase the reference GB/T 90.2 (Table 3),
GB/T 193 (Table 3), GB/T 5267.4 (Table 3), GB/T 9145 (Table 3) and GB/T 1237 (5.1), the deletion of ISO 724,
ISO 965-1 references to meet our basic standard fasteners;
--- Fillet amended as θ = 110 ° ~ 120 ° (Fig. 1), increases the effective screwing length;
--- For the implementation of basic standards, to increase the mechanical properties of steel nuts. QT --- quenched and tempered (Table 3);
--- Increase in packaging technology requirements (Table 3), to meet our basic standard fasteners;
--- Modify tag example is a simplified markup example (5.2), to comply with the provisions of GB/T 1237's.
This standard also made the following editorial changes.
--- To modify the standard name;
--- Delete references ISO 8675.
The standard proposed by China Machinery Industry Federation.
This standard by the National Standardization Technical Committee fasteners (SAC/TC85) centralized.
This standard is drafted by. Productivity Promotion Center in the machine.
Participated in the drafting of this standard. Haiyan Yuxing Nuts Co., Ltd.
This standard by the National Standardization Technical Committee Secretariat responsible for the interpretation of fasteners.
This standard replaces the standards previously issued as follows.
--- GB 53-1958, GB 53-1966, GB 53-1976;
--- GB 54-1958, GB 54-1966, GB 54-1976;
--- GB/T 6176-1986, GB/T 6176-2000.

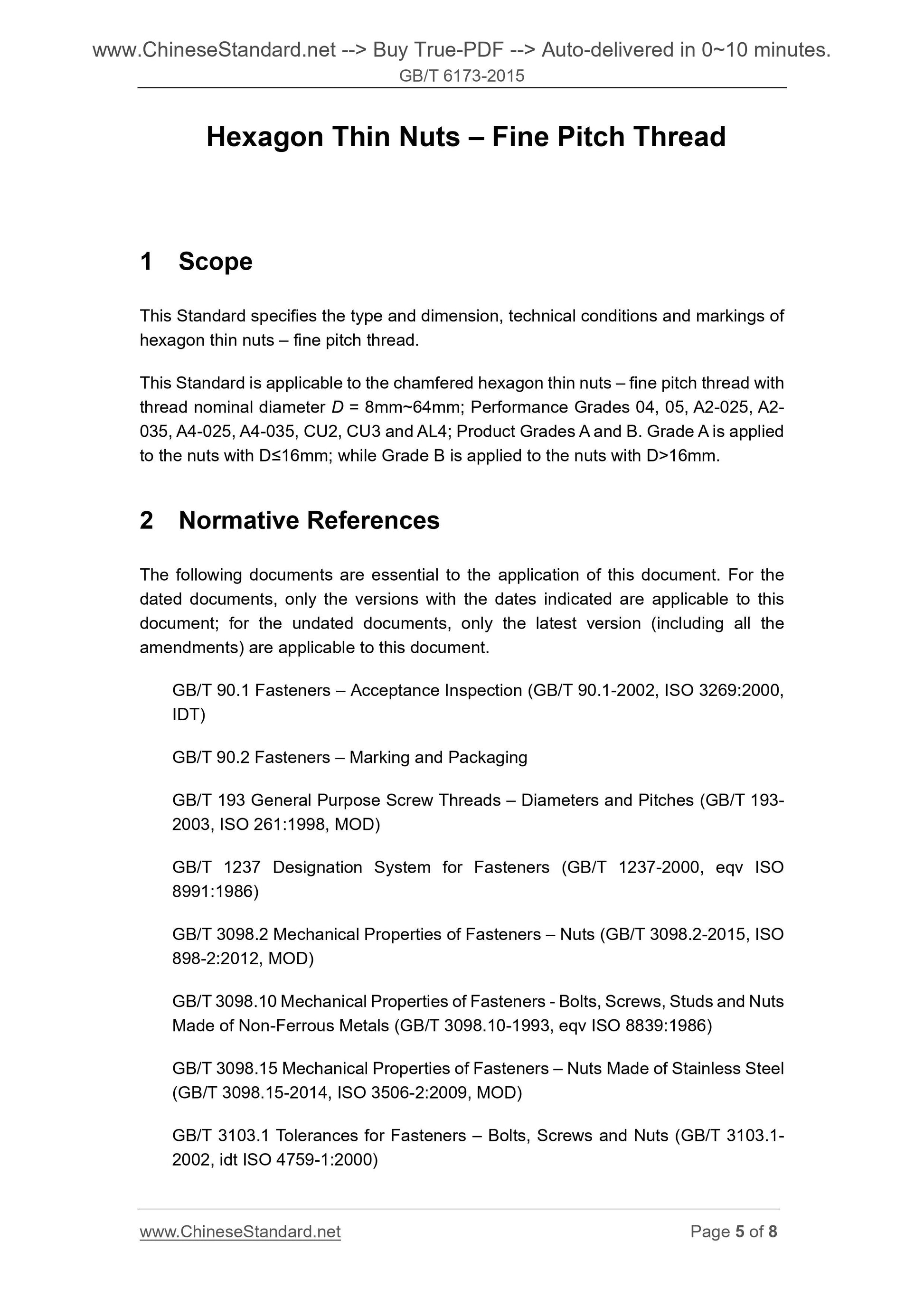

Hexagon thin nuts with fine pitch thread
1 Scope
This standard specifies the fine pitch Hexagon thin nut type size, technical requirements and marking.
This standard applies to nominal thread diameter D = 8mm ~ 64mm, the performance rating of 04,05, A2-025, A2-035, A4-025, A4-
035, CU2, CU3 and AL4, product grade A and B grades, fine thread, chamfer Hexagon thin nuts. A class for D≤16mm
Nut; Class B for D> 16mm nut.
2 Normative references
The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein
Member. For undated references, the latest edition (including any amendments) applies to this document.
GB/T 90.1 fasteners acceptance inspection (GB/T 90.1-2002, ISO 3269.2000, IDT)
GB/T 90.2 Fasteners marking and packaging
GB/T 193 series ordinary thread diameter and pitch (GB/T 193-2003, ISO 261.1998, MOD)
GB/T 1237 fasteners labeling method (GB/T 1237-2000, eqvISO 8991. 1986)
GB/T 3098.2 Mechanical properties of fasteners (GB/T 3098.2-2015, ISO 898-2.2012, MOD)
GB/T 3098.10 Mechanical properties of fasteners non-ferrous metal manufacturing bolts, screws, studs and nuts (GB/T 3098.10-
1993, eqvISO 8839. 1986)
GB/T 3098.15 mechanical properties of stainless steel fasteners nuts (GB/T 3098.15-2014, ISO 3506-2.2009, MOD)
GB/T 3103.1 Tolerances for fasteners - Bolts, screws, studs and nuts (GB/T 3103.1-2002, idtISO 4759-1.2000)
GB/T 5267.1 fasteners plating layer (GB/T 5267.1-2002, ISO 4042.1999, IDT)
GB/T 5267.2 fasteners non-electrolytic zinc flake coating (GB/T 5267.2-2002, ISO 10683.2000, IDT)
GB/T 5267.4 fastener surface treatment corrosion resistant stainless steel passivation (GB/T 5267.4-2009, ISO 16048.2003,
IDT)
GB/T 5276 Fasteners Bolts, screws, studs and nuts - Symbols and designations size (GB/T 5276-2015, ISO 225.
2010, MOD)
GB/T 5779.2 nut fastener surface defects (GB/T 5779.2-2000, idtISO 6157-2.1995)
GB/T 9145 common thread moderate accuracy, preferably series limit size (GB/T 9145-2003, ISO 965-2.1998,
MOD)
GB/T 16938 Fasteners Bolts, screws, studs and nuts - General technical conditions (GB/T 16938-2008, ISO 8992.
2005, IDT)
3 Dimensions
Nut pattern dimensions shown in Figure 1, Table 1 and Table 2.
Size code and labeling should be consistent with GB/T 5276.
aβ = 15 ° ~ 30 °;
bθ = 110 ° ~ 120 °.
figure 1
Table 1 is preferably thread size in millimeters
Thread Size
(D × P)
M8 × 1M10 × 1M12 × 1.5M16 × 1.5M20 × 1.5M24 × 2M30 × 2M36 × 3M42 × 3M48 × 3M56 × 4M64 × 4
da
max 8.75 10.80 13.00 17.30 21.60 25.90 32.40 38.90 45.40 51.80 60.50 69.10
min 8.00 10.00 12.00 16.00 20.00 24.00 30.00 36.00 42.00 48.00 56.00 64.00
dw min 11.63 14.63 16.63 22.49 27.70 33.25 42.75 51.11 59.95 69.45 78.66 88.16
e min 14.38 17.77 20.03 26.75 32.95 39.55 50.85 60.79 71.30 82.60 93.56 104.86
max 4.00 5.00 6.00 8.00 10.00 12.00 15.00 18.00 21.00 24.00 28.00 32.00
min 3.70 4.70 5.70 7.42 9.10 10.90 13.90 16.90 19.70 22.70 26.70 30.40
mw min 2.96 3.76 4.56 5.94 7.28 8.72 11.12 13.52 15.76 18.16 21.36 24.32
Nominal = max13.00 16.00 18.00 24.00 30.00 36.00 46.00 55.00 65.00 75.00 85.00 95.00
min 12.73 15.73 17.73 23.67 29.16 35.00 45.00 53.80 63.10 73.10 82.80 92.80
Table 2 Non-preferred thread size in millimeters
Thread Size
(D × P)
M10 ×
1.25
M12 ×
1.25
M14 ×
1.5
M18 ×
1.5
M20 × 2
M22 ×
1.5
M27 × 2M33 × 2M39 × 3M45 × 3M52 × 4M60 × 4
da
max 10.80 13.00 15.10 19.50 21.60 23.70 29.10 35.60 42.10 48.60 56.20 64.80
min 10.00 12.00 14.00 18.00 20.00 22.00 27.00 33.00 39.00 45.00 52.00 60.00
dw min 14.63 16.63 19.64 24.85 27.70 31.35 38.00 46.55 55.86 64.70 74.20 83.41
e min 17.77 20.03 23.36 29.56 32.95 37.29 45.20 55.37 66.44 76.95 88.25 99.21
max 5.00 6.00 7.00 9.00 10.00 11.00 13.50 16.50 19.50 22.50 26.00 30.00
min 4.70 5.70 6.42 8.42 9.10 9.90 12.40 15.40 18.20 21.20 24.70 28.70
mw min 3.76 4.56 5.14 6.74 7.28 7.92 9.92 12.32 14.56 16.96 19.76 22.96
Nominal = max 16.00 18.00 21.00 27.00 30.00 34.00 41.00 50.00 60.00 70.00 80.00 90.00
min 15.73 17.73 20.67 26.16 29.16 33.00 40.00 49.00 58.80 68.10 78.10 87.80
4 Technical conditions and reference standards
Technical conditions and standards referenced in Table 3.
Table 3 Technical conditions and reference standards
Stainless steel material non-ferrous metal
General technical conditions GB/T 16938
Screw thread
Tolerance 6H
Standard GB/T 193, GB/T 9145
mechanical
performance
grade
standard
D≤39mm. 04,05 (QT)
D> 39mm. by agreement
GB/T 3098.2
D≤24mm. A2-035, A4-035
24mm \u003cD≤39mm.
A2-025, A4-025
D> 39mm. by agreement
GB/T 3098.15
CU2, CU3, AL4
GB/T 3098.10
tolerance
Product grades D≤M16. A grade; D> M16. B grade
Standard GB/T 3103.1
Surface defects GB/T 5779.2 - -
Surface treatment
Without treatment;
Electroplating technology required by the GB/T 5267.1;
Non-electrolytic zinc flake coating technology required by the
GB/T 5267.2
Simple processing;
Passivation treatment technology required by the GB/T 5267.4
Simple processing;
Electroplating technology required by the GB/T 5267.1
For additional technical requirements or surface treatment, supply and demand should Agreement
Acceptance and packaging GB/T 90.1, GB/T 90.2
QT --- quenching and tempering.
5 Mark
5.1 labeling method
Marking method according to GB/T 1237 regulations.
5.2 tag example
Thread size is M16 × 1.5, the performance rating of 05, the surface is not treated, the product grade A-level, fine thread, chamfer hexagonal
Thin nut Tags.
Nut GB/T 6173 M16 × 1.5
