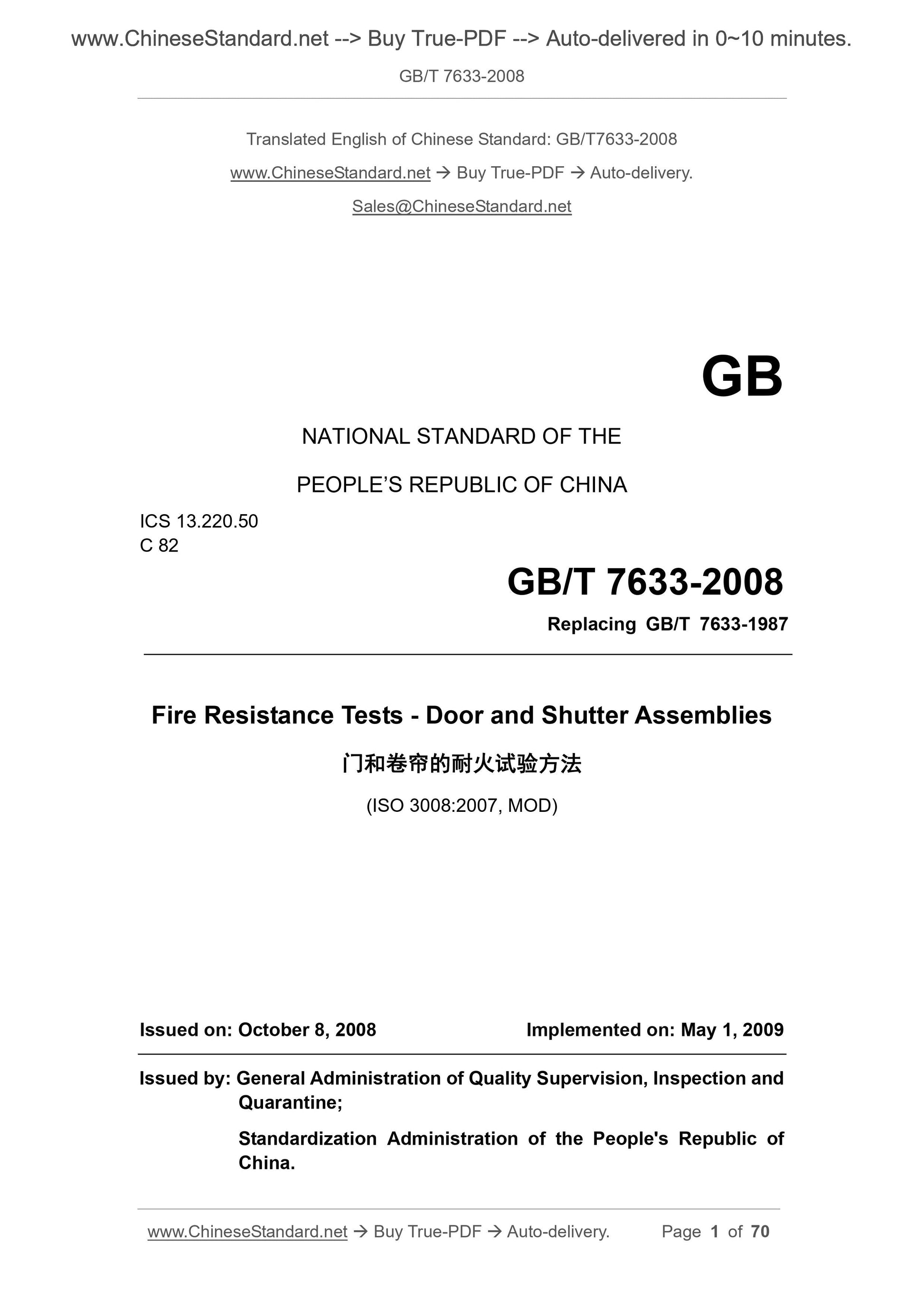

GB/T 7633-2008: Fire resistance tests -- Door and shutter assemblies
GB/T 7633-2008
Fire resistance tests.Door and shutter assemblies
ICS 13.220.50
C82
National Standards of People's Republic of China
GB/T 7633-2008
Replace GB/T 7633-1987
Fire test method for doors and roller blinds
(ISO 3008.2007, MOD)
Released on.2008-10-08
2009-05-01 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China
China National Standardization Administration issued

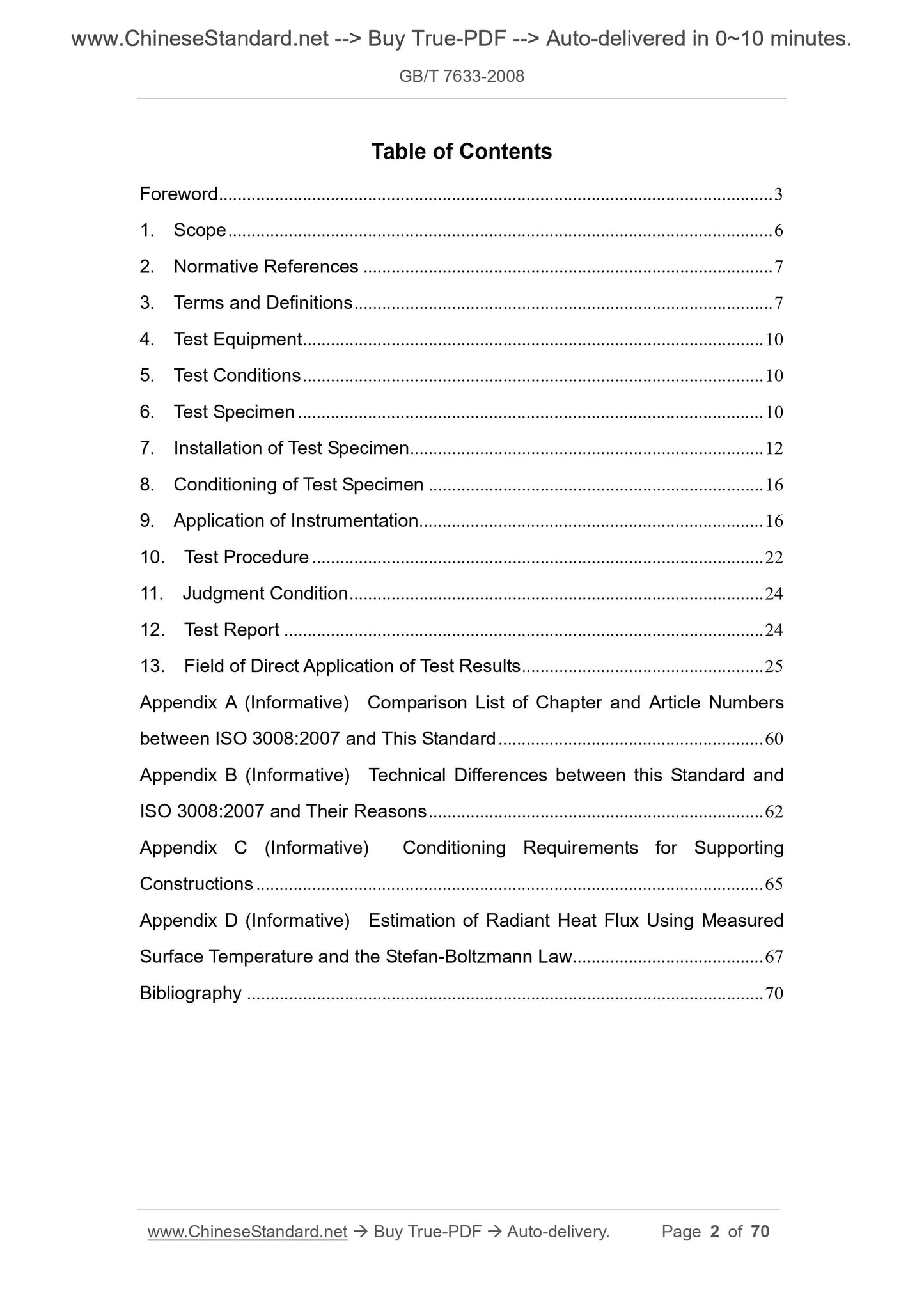

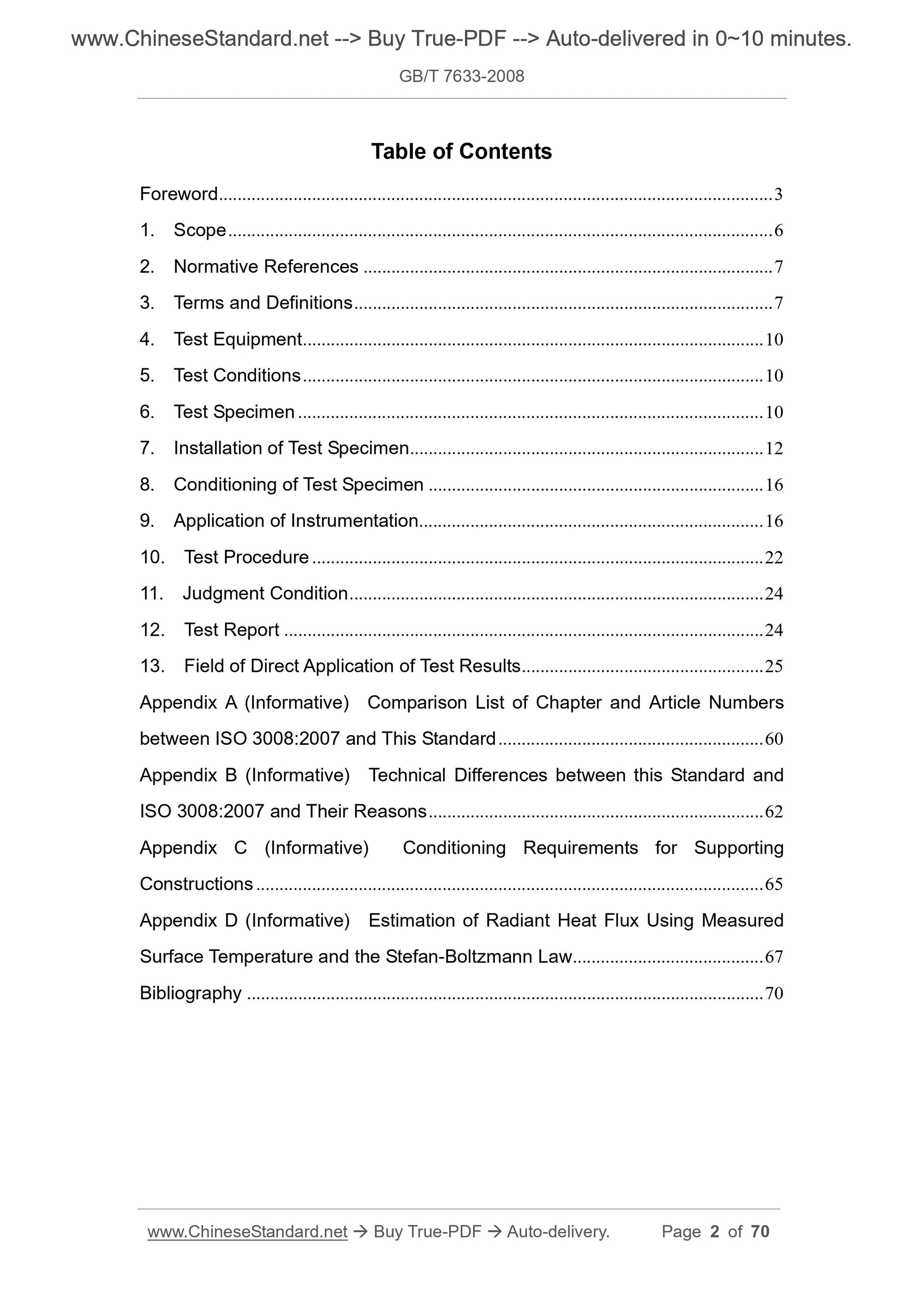

Content
Foreword III
1 range 1
2 Normative references 1
3 Terms and Definitions 1
4 Test equipment 3
5 Test conditions 3
6 test piece 3
7 Installation of test pieces 4
8 specimen maintenance 5
9 Application of measuring instruments 6
10 Test procedure 8
11 Judgment condition 9
12 Test report 9
13 Direct application range of test results 10
Appendix A (informative appendix) This standard chapter number is compared with ISO 3008.2007 chapter number 42
Appendix B (informative) Technical differences and causes of this standard and ISO 3008.2007 44
Appendix C (Normative) Maintenance requirements for support structures 46
Appendix D (informative) Assessment of radiant heat flux using surface temperature and Stephen Boltzmann's law 47
Reference 49
GB/T 7633-2008

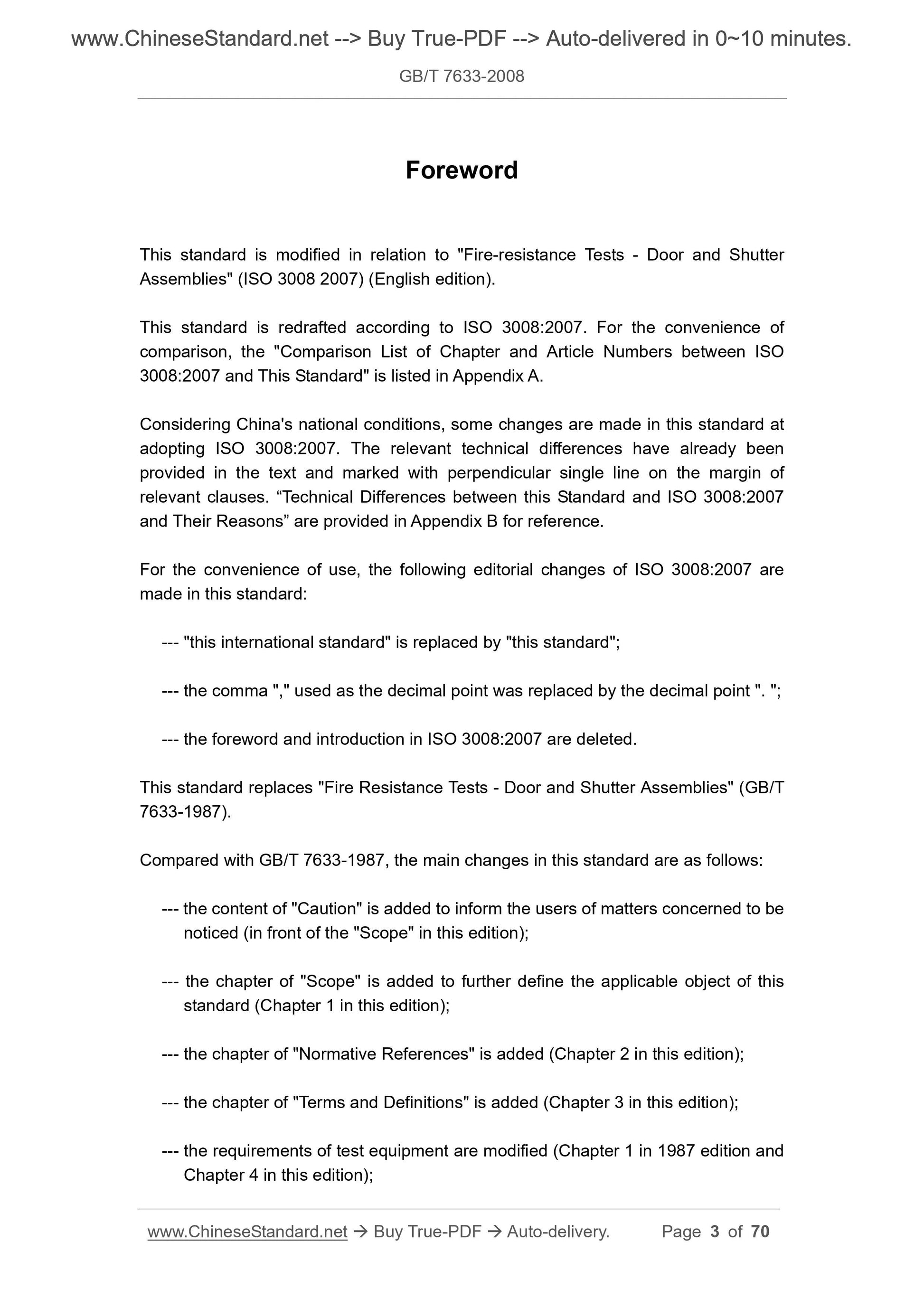

Foreword
This standard is modified to use ISO 3008.2007 "Fire Test Door and Roller Assembly" (English version).
This standard was redrafted in accordance with ISO 3008.2007. For the sake of comparison, the standard chapter number is listed in the informative Appendix A.
Checklist with ISO 3008.2007 chapter number.
Taking into account China's national conditions, this standard was revised when adopting ISO 3008.2007. Relevant technical differences have been incorporated into the text and
Use a vertical single line to identify the margins of the terms they refer to. These technical differences and causes are given in informative Appendix B.
The list is for reference.
For ease of use, the following editorial changes have been made to this standard for ISO 3008.2007.
--- "This International Standard" is replaced by the word "this standard";
--- Replace the comma "," as a decimal point with a decimal point ".'";
--- Remove the preface and introduction to ISO 3008.2007.
This standard replaces GB/T 7633-1987 "Fire Test Methods for Doors and Rolling Curtains".

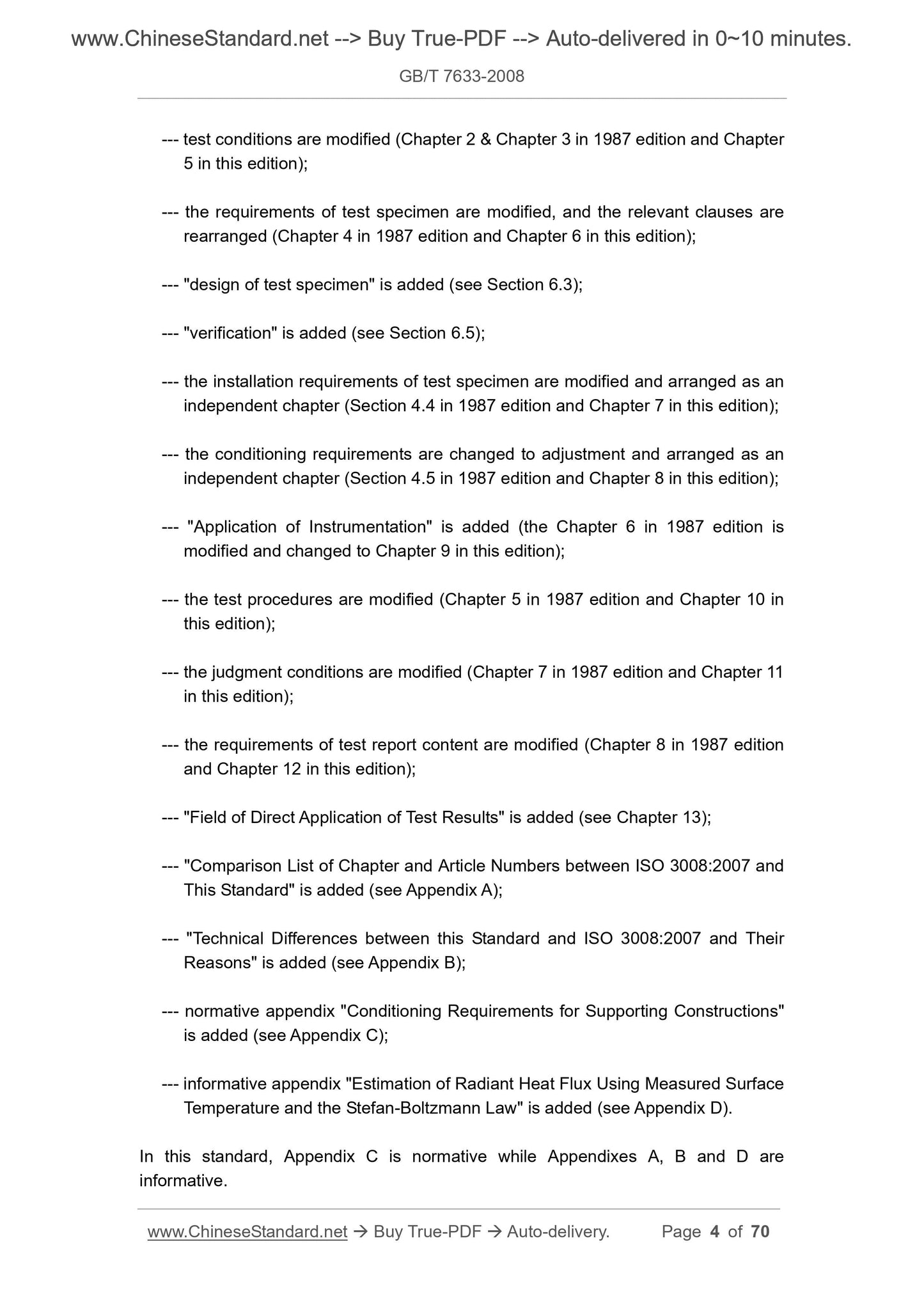

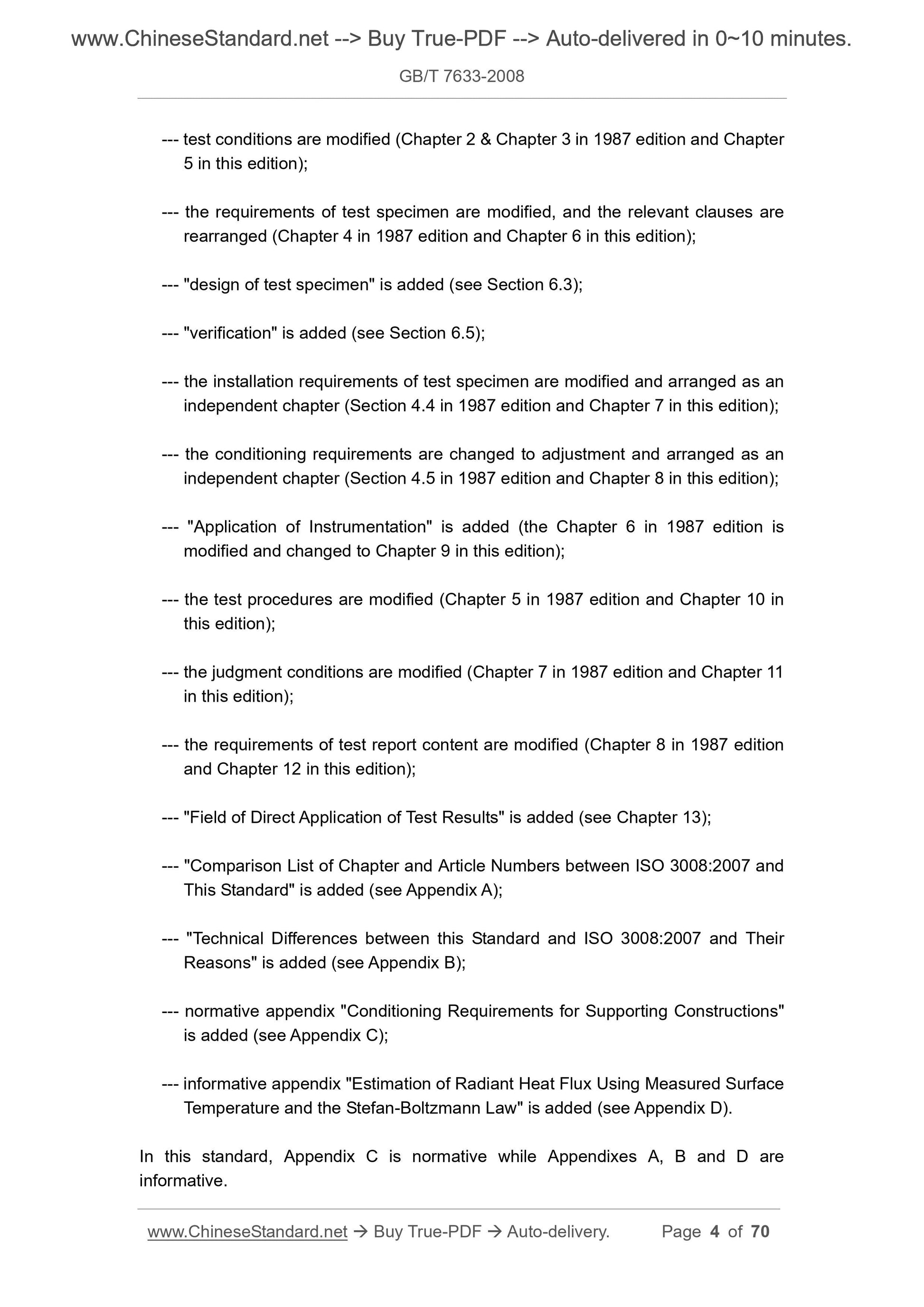

The main changes in this standard compared with GB/T 7633-1987 are as follows.
--- Added "attention" content, prompting users of this standard should pay attention to matters (before the "scope" of this edition);
--- Added a chapter on "Scope" to further clarify the applicable objects of the standard (Chapter 1 of this edition);
--- Added "normative reference documents" (Chapter 2 of this edition);
--- Added "terms and definitions" (Chapter 3 of this edition);
--- Revised the requirements of the test equipment (Chapter 1 of the 1987 edition; Chapter 4 of this edition);
--- Revised the test conditions (Chapter 2, Chapter 3 of the 1987 edition; Chapter 5 of this edition);
--- Revised the requirements of the test piece and reorganized the relevant provisions (Chapter 4 of the 1987 edition; Chapter 6 of this edition);
--- Added "test piece design" (see 6.3);
--- Added "verification" (see 6.5);
--- Modified the test piece installation requirements, and separately compiled into a chapter (1987 version 4.4; this edition of Chapter 7);
--- Change the maintenance requirements into adjustments and separate them into a chapter (4.5 of the 1987 edition; Chapter 8 of this edition);
--- Added "Application of Measuring Instruments" (modified Chapter 6 of the 1987 version, edited as Chapter 9 of this edition);
--- Revised the test procedure (Chapter 5 of the 1987 edition; Chapter 10 of this edition);
---Modified the judgment conditions (Chapter 7 of the 1987 edition; Chapter 11 of this edition);
--- Revised the content requirements of the test report (Chapter 8 of the 1987 edition; Chapter 12 of this edition);
--- Added "the scope of direct application of test results" (see Chapter 13);
--- Added the informative appendix "This standard chapter number and ISO 3008.2007 chapter number comparison table" (see Appendix A);
--- Added the informative appendix "Technical differences and causes of this standard and ISO 3008.2007" (see Appendix B);
--- Added the normative appendix "Conservation requirements for support structures" (see Appendix C);
--- Added an informative appendix "Using Surface Temperature and Stephen Boltzmann's Law to Evaluate Radiant Heat Flux" (see Appendix D).
Appendix C of this standard is a normative appendix, Appendix A, Appendix B, and Appendix D are informative appendices.
This standard was proposed by the Ministry of Public Security of the People's Republic
This standard is under the jurisdiction of the Eighth Technical Committee of the National Fire Protection Standardization Technical Committee (SAC/TC113/SC8).
GB/T 7633-2008
This standard is drafted by. Tianjin Fire Research Institute of the Ministry of Public Security.
Participated in the drafting of this standard. Shenzhen Pengji Longdian Security Co., Ltd.
The main drafters of this standard. Zhang Xianghui, Bai Shuying, Zhao Huali, Han Weiping, Cao Wenhong, Huang Wei, Qian Tao, Xie Fenglan, Liu Xiaohui, Yu Yufu.
The previous versions of the standards replaced by this standard are.
---GB/T 7633-1987.
GB/T 7633-2008
Fire test method for doors and roller blinds
Note. All personnel who organize and participate in this test should be aware that fire tests may be hazardous. Because there is a fire test
May produce toxic and/or harmful fumes and fumes; in addition, during the installation of the test piece, the test process and the cleaning of the residue after the test,
Mechanical hazards and operational hazards may occur. Therefore, all potential hazards and health hazards should be assessed and safety precautions made.
Report. Perform the necessary training for relevant personnel to ensure that laboratory staff operate in accordance with safety procedures.

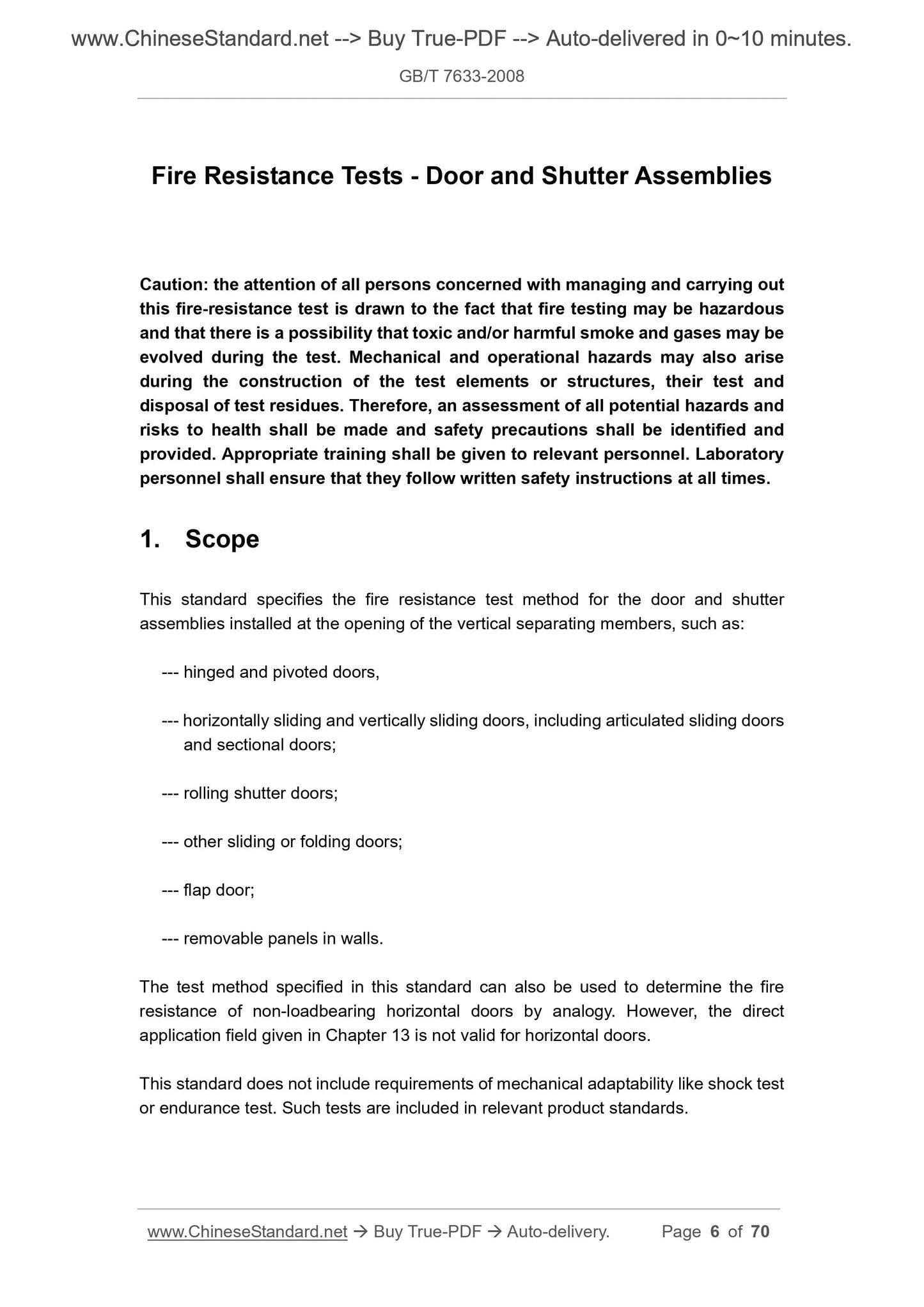

1 range
This standard specifies the fire test method for doors and roller blind assemblies installed at the opening of vertical partition members. Such as.
---Hinged door, pivot door;
---Horizontal sliding door, vertical sliding door, including linked sliding door and sectional door;
---Shutter doors;
---Other sliding and folding doors;
--- flap door;
--- A board that can move in the wall.
The test methods specified in this standard can also be used to determine the fire resistance of non-load-bearing horizontal doors and roller blinds by analogy, given in Chapter 13
The direct application range does not apply to horizontal doors.
This standard does not include mechanical adaptability requirements, such as vibration tests or endurance tests, which are included in the relevant product standards.
2 Normative references
The terms in the following documents become the terms of this standard by reference to this standard. All dated references, followed by all
Modifications (not including errata content) or revisions do not apply to this standard. However, parties to agreements based on this standard are encouraged to
Whether the latest version of these files can be used. For undated references, the latest edition applies to this standard.
GB/T 5907 Basic Terms of Fire Fighting Part 1 1)
GB/T 9978.1 Fire resistance test methods for building components - Part 1. General requirements (GB/T 9978.1-2008, ISO 834-1.
1999, MOD)
3 Terms and definitions
The following terms and definitions established in GB/T 5907 and GB/T 9978.1 apply to this standard.
1) The standard will be based on the integration of revisions GB/T 5907-1986, GB/T 14107-1993 and GB/T 16283-1996, with the words "Fire vocabulary"
The total title is divided into 5 parts. Among them, the second part is GB/T 5907.2 "Fire vocabulary part 2. fire safety vocabulary", will be modified
Use ISO 13943.2000.
3.1
Door assembly refers to a complete set of doors, consisting of door frames, pivot/hinged door leaves or sliding/segmented door leaves, side panels, lighting panels/cross panels, metal attachments, and
The seal consists of.
3.2
The roller blind assembly refers to a complete set of roller blinds consisting of a scroll, a folding or sliding curtain, a guide rail, a reel, a mechanical transmission and a casing.
GB/T 7633-2008
3.3
Metal parts used in the door assembly. Such as. hinge (hinge), handle, lock, emergency push bar, nameplate, license plate, skirting board, sliding pass
Moving device, closing device, etc.
3.4
The door leaf opens in one direction.
3.5
The door leaf opens in both directions.
3.6
A structure for closing a test furnace and supporting a door or roller blind assembly.
3.7
Install the specific structure of the door or roller blind assembly. It is used to close the test furnace and provide the same binding force and heat as in actual use.
transfer.
3.8
A door or roller blind assembly that is mounted on a standard or auxiliary support structure for testing.
3.9
Test piece and support structure assembly.
3.10
A member that extends from one frame to the other along the upper portion of the door leaf, so that the upper portion of the door leaf forms an opening into which the sill can be embedded.
3.11
The upper part of the door leaf is fixed between the upper frame, the two frames and the horizontal sill.
3.12
Above the door leaf without the cross, the fixed panel embedded between the upper frame and the two frames has the same thickness and appearance as the door leaf.
3.13
A fixing plate embedded in the side of the door leaf.
3.14
The largest door leaf in a door assembly with multiple door leaves, or a door leaf that is first opened when the handle is used in normal times.
Note. In a door assembly with multiple door leaves, if each door is the same size and the door leaf is not equipped with handles (or other hardware such as push bolts)
()), there is no main door leaf in this type of door assembly.
3.15
The center plane between the front and back sides of the door frame (rail) is used as the median sagittal plane of the door (roller) assembly, and the door (roller) assembly is constructed in various parts.
GB/T 7633-2008
The size, shape and arrangement have a one-to-one correspondence on both sides of the median sagittal plane.
Note. When the fire shutter is a double rail double curtain, the median sagittal plane refers to the center plane between the rails used by the two curtains.
4 test equipment
4.1 The test equipment shall comply with the provisions of GB/T 9978.1. The test furnace used in the fire test shall be adapted to the direction of the test piece, and the vertical test piece
Wall furnaces should be used, and beam-plate furnaces should be used for horizontal test pieces.
4.2 The heat flux measurement instrument (heat flow meter) of the test piece backfire surface shall comply with the provisions of 9.3.2.
5 test conditions
The temperature and pressure conditions in the test furnace shall comply with the provisions of GB/T 9978.1.
6 test pieces
6.1 Specimen size
If not limited by the size of the test furnace opening, the test piece and all its components shall be tested in full size (actual size). Can't
The full-size test door or roller blind assembly shall be selected for the maximum size that may be tested. The fire resistance of the full-size test piece is analyzed by the extended application.
To. The minimum fire area of the support structure shall meet the requirements of 7.3.1.
6.2 Number of test pieces
For each specified auxiliary structure or support structure (see 7.3.1) and its constraints (see 7.3.4), the door (roller) assembly shall be at least
A fire test was performed once.
If the door (roller blind) structure is symmetrical, one of the test pieces may be taken for one side to perform a fire test. If the door (roller blind) is asymmetrical,
The number of test pieces shall be determined in accordance with the following provisions.
a) When the door (roller) is required to have fire resistance on each side and the weak surface cannot be determined, at least 2 identical tests should be selected.
a piece of fire resistance test on each side;
b) When each side of the door (roller) is required to have fire resistance and a weak surface can be determined, one test piece should be selected, only weak
Perform a fire test on the surface;
c) When only a specific surface of the door (roller blind) is required to have fire resistance, one test piece shall be selected and only the surface shall be subjected to a fire test.
The results of this test are limited to the application of a specific surface to the fire in the actual state.
The determination of the number of test pieces shall be specified in the test report.
6.3 Test piece design
6.3.1 In order to maximize the direct application of the test results, the requirements of 7.3 should be considered when designing the test piece and supporting the structure.
6.3.2 Side panels, slabs or flush panels included in doors or roller blinds shall be part of the test piece, whether or not they are inlaid with glass. Side panel should be installed
On the side of the door lock.
6.3.3 The test piece shall be representative of the door or roller blind assembly that is expected to be used in practice, including surface finishes (top coats) that form an important part of the test piece and
Accessories, as these may affect the performance of the door or roller blind assembly during the test.
6.3.4 The commissioner shall provide the laboratory with design clearances including tolerances.
6.4 Production
The test piece shall be produced in accordance with the method specified in GB/T 9978.1. The materials used in the test piece, the manufacturing process, the splicing and installation methods shall be capable of
Represents the actual use. Modifications to the installation form for the test to be carried out shall have no significant impact on the test piece and shall be tested
The revision is described in detail in the report.
6.5 Verification
6.5.1 The commissioner shall provide a sufficiently detailed description of the test piece so that the test room can inspect the test piece in...
