GB/T 9799-2024: Metallic and other inorganic coatings - Electroplated coatings of zinc with supplementary treatments on iron or steel
GB/T 9799-2024
GB
NATIONAL STANDARD OF THE
PEOPLE'S REPUBLIC OF CHINA
ICS 25.220.40
CCS A 29
Replacing GB/T 9799-2011
Metallic and other inorganic coatings - Electroplated
coatings of zinc with supplementary treatments on iron or
steel
(ISO 2081.2018, MOD)
ISSUED ON. JUNE 29, 2024
IMPLEMENTED ON. JANUARY 1, 2025
Issued by. State Administration for Market Regulation;
Standardization Administration of PRC.
Table of Contents
Foreword... 3
Introduction... 5
1 Scope... 6
2 Normative references... 6
3 Terms and definitions, abbreviations and symbols... 8
3.1 Terms and definitions... 8
3.2 Abbreviations... 8
3.3 Symbols... 8
4 Information that the buyer shall provide to the supplier... 8
4.1 Necessary information... 8
4.2 Additional information... 9
5 Marking... 9
5.1 General rules... 9
5.2 Marking rules... 10
5.3 Marking of base materials... 11
5.4 Marking of heat treatment requirements... 11
6 Requirements... 12
6.1 Appearance... 12
6.2 Thickness... 12
6.3 Trivalent chromium conversion coating and other post-treatment... 13
6.4 Bonding strength of the zinc electroplated coating and the trivalent chromium
conversion coating... 13
6.5 Accelerated corrosion test... 13
6.6 Stress relief heat treatment before electroplating... 14
6.7 Hydrogen embrittlement relief heat treatment... 15
7 Sampling... 15
Appendix A (normative) Marking of chromate conversion coatings and other auxiliary
treatments... 16
Appendix B (normative) Measurement of average coating thickness on small
workpieces... 18
References... 20
Metallic and other inorganic coatings - Electroplated
coatings of zinc with supplementary treatments on iron or
steel
WARNING. Some of the substances and processes required by this document may
cause health hazards if appropriate measures are not taken. This document does
not discuss any matters and regulations that may endanger health, safety or the
environment during the use of this document. Users of this document are
responsible for establishing appropriate and feasible health, safety and
environmental regulations and taking appropriate measures to comply with
relevant national regulations. Compliance with this document does not mean
exemption from legal obligations.

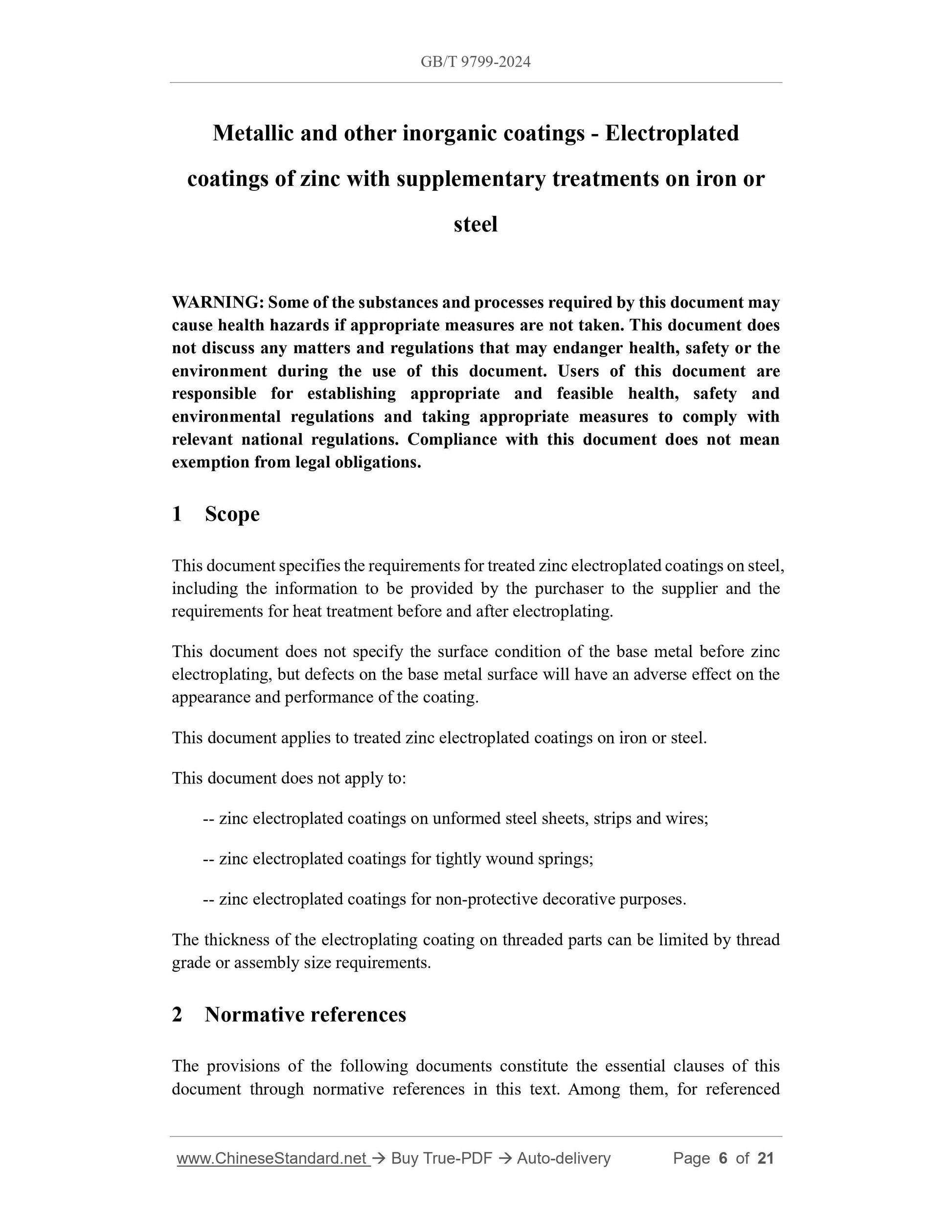

1 Scope
This document specifies the requirements for treated zinc electroplated coatings on steel,
including the information to be provided by the purchaser to the supplier and the
requirements for heat treatment before and after electroplating.
This document does not specify the surface condition of the base metal before zinc
electroplating, but defects on the base metal surface will have an adverse effect on the
appearance and performance of the coating.
This document applies to treated zinc electroplated coatings on iron or steel.
This document does not apply to.
-- zinc electroplated coatings on unformed steel sheets, strips and wires;
-- zinc electroplated coatings for tightly wound springs;
-- zinc electroplated coatings for non-protective decorative purposes.
The thickness of the electroplating coating on threaded parts can be limited by thread
grade or assembly size requirements.
2 Normative references
The provisions of the following documents constitute the essential clauses of this
document through normative references in this text. Among them, for referenced

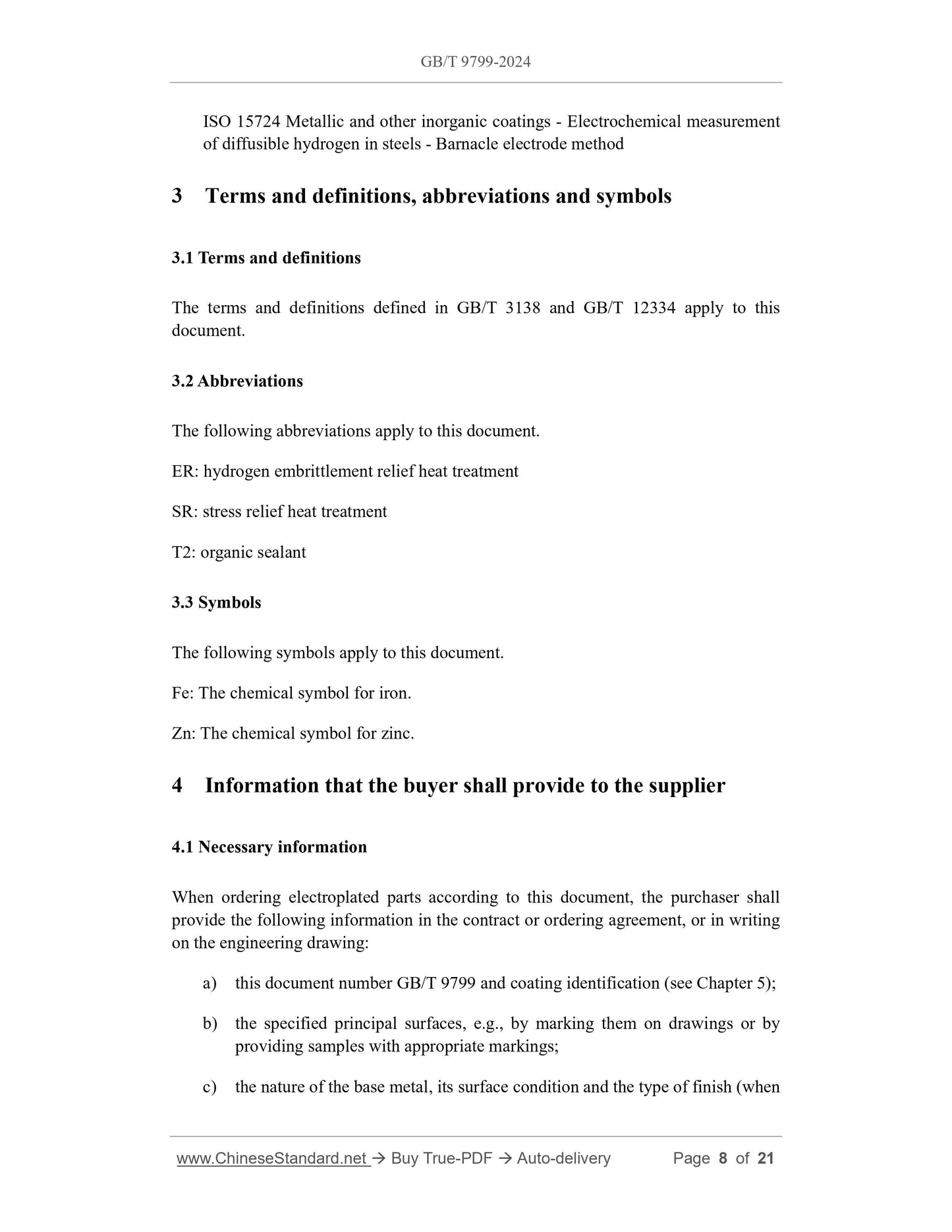

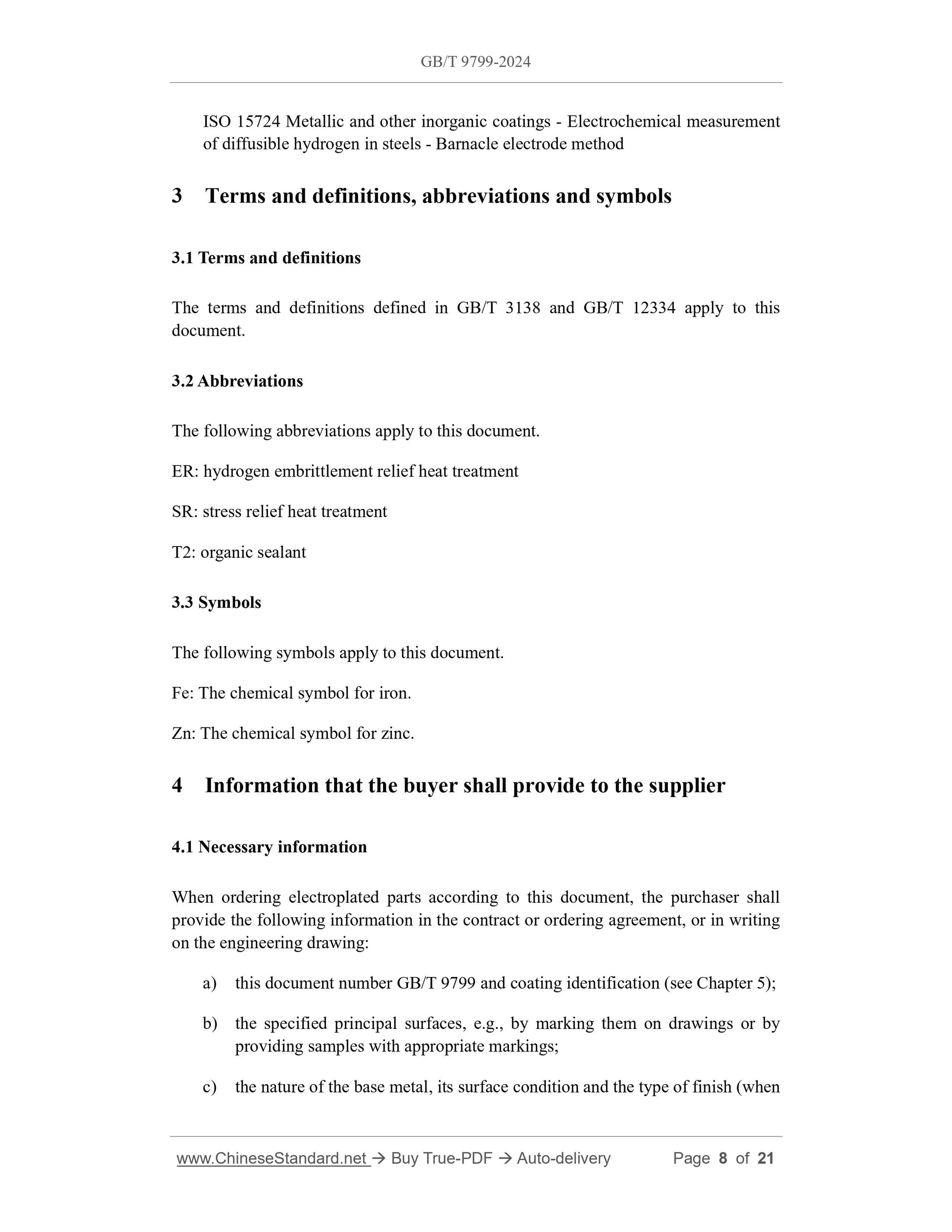

ISO 15724 Metallic and other inorganic coatings - Electrochemical measurement
of diffusible hydrogen in steels - Barnacle electrode method
3 Terms and definitions, abbreviations and symbols
3.1 Terms and definitions
The terms and definitions defined in GB/T 3138 and GB/T 12334 apply to this
document.
3.2 Abbreviations
The following abbreviations apply to this document.
ER. hydrogen embrittlement relief heat treatment
SR. stress relief heat treatment
T2.organic sealant
3.3 Symbols
The following symbols apply to this document.
Fe. The chemical symbol for iron.
Zn. The chemical symbol for zinc.
4 Information that the buyer shall provide to the supplier
4.1 Necessary information
When ordering electroplated parts according to this document, the purchaser shall
provide the following information in the contract or ordering agreement, or in writing
on the engineering drawing.
a) this document number GB/T 9799 and coating identification (see Chapter 5);
b) the specified principal surfaces, e.g., by marking them on drawings or by
providing samples with appropriate markings;

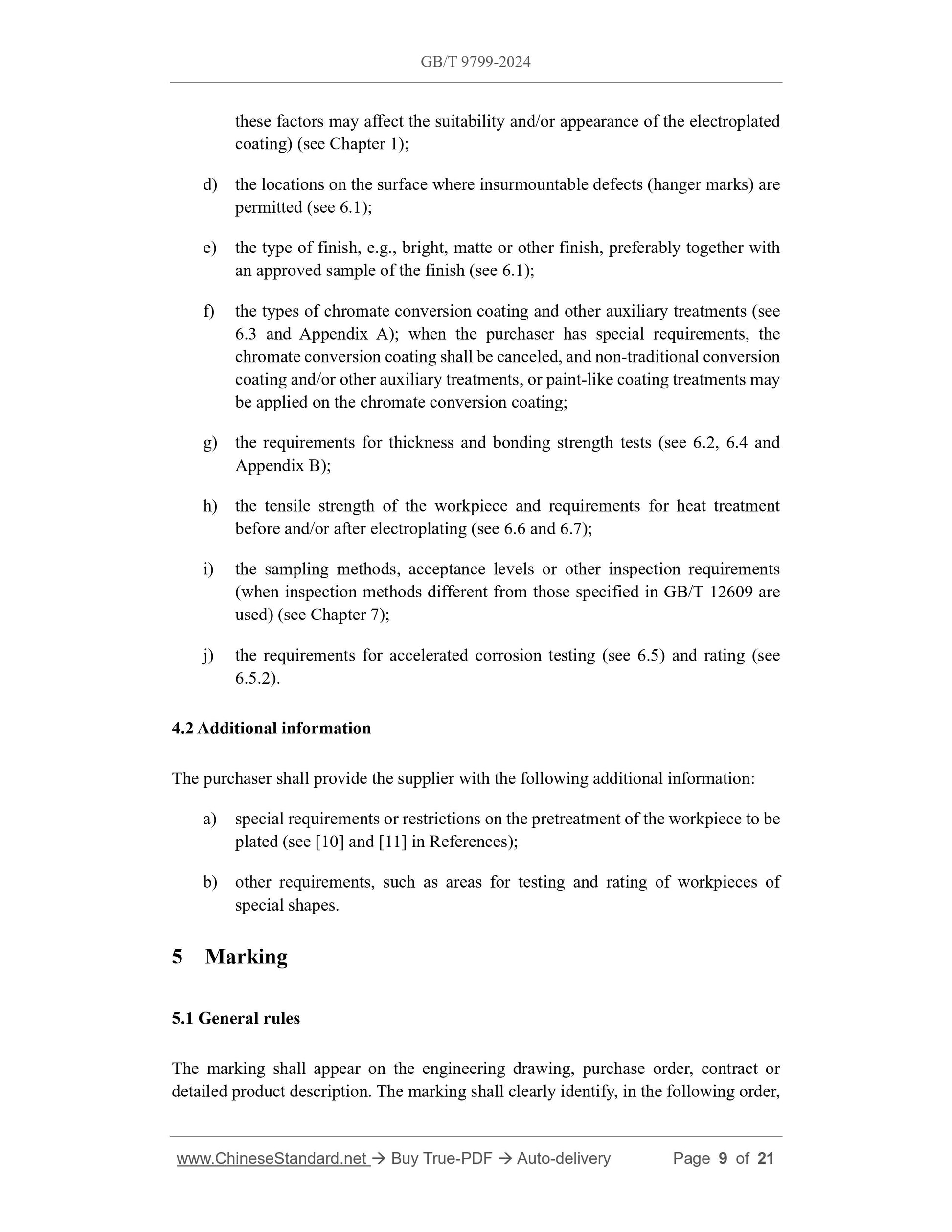

c) the nature of the base metal, its surface condition and the type of finish (when
these factors may affect the suitability and/or appearance of the electroplated
coating) (see Chapter 1);
d) the locations on the surface where insurmountable defects (hanger marks) are
permitted (see 6.1);
e) the type of finish, e.g., bright, matte or other finish, preferably together with
an approved sample of the finish (see 6.1);
f) the types of chromate conversion coating and other auxiliary treatments (see
6.3 and Appendix A); when the purchaser has special requirements, the
chromate conversion coating shall be canceled, and non-traditional conversion
coating and/or other auxiliary treatments, or paint-like coating treatments may
be applied on the chromate conversion coating;
g) the requirements for thickness and bonding strength tests (see 6.2, 6.4 and
Appendix B);
h) the tensile strength of the workpiece and requirements for heat treatment
before and/or after electroplating (see 6.6 and 6.7);
i) the sampling methods, acceptance levels or other inspection requirements
(when inspection methods different from those specified in GB/T 12609 are
used) (see Chapter 7);
j) the requirements for accelerated corrosion testing (see 6.5) and rating (see
6.5.2).
4.2 Additional information
The purchaser shall provide the supplier with the following additional information.
a) special requirements or restrictions on the pretreatment of the workpiece to be
plated (see [10] and [11] in References);
b) other requirements, such as areas for testing and rating of workpieces of
special shapes.
5 Marking
5.1 General rules
The marking shall appear on the engineering drawing, purchase order, contract or
detailed product description. The marking shall clearly identify, in the following order,

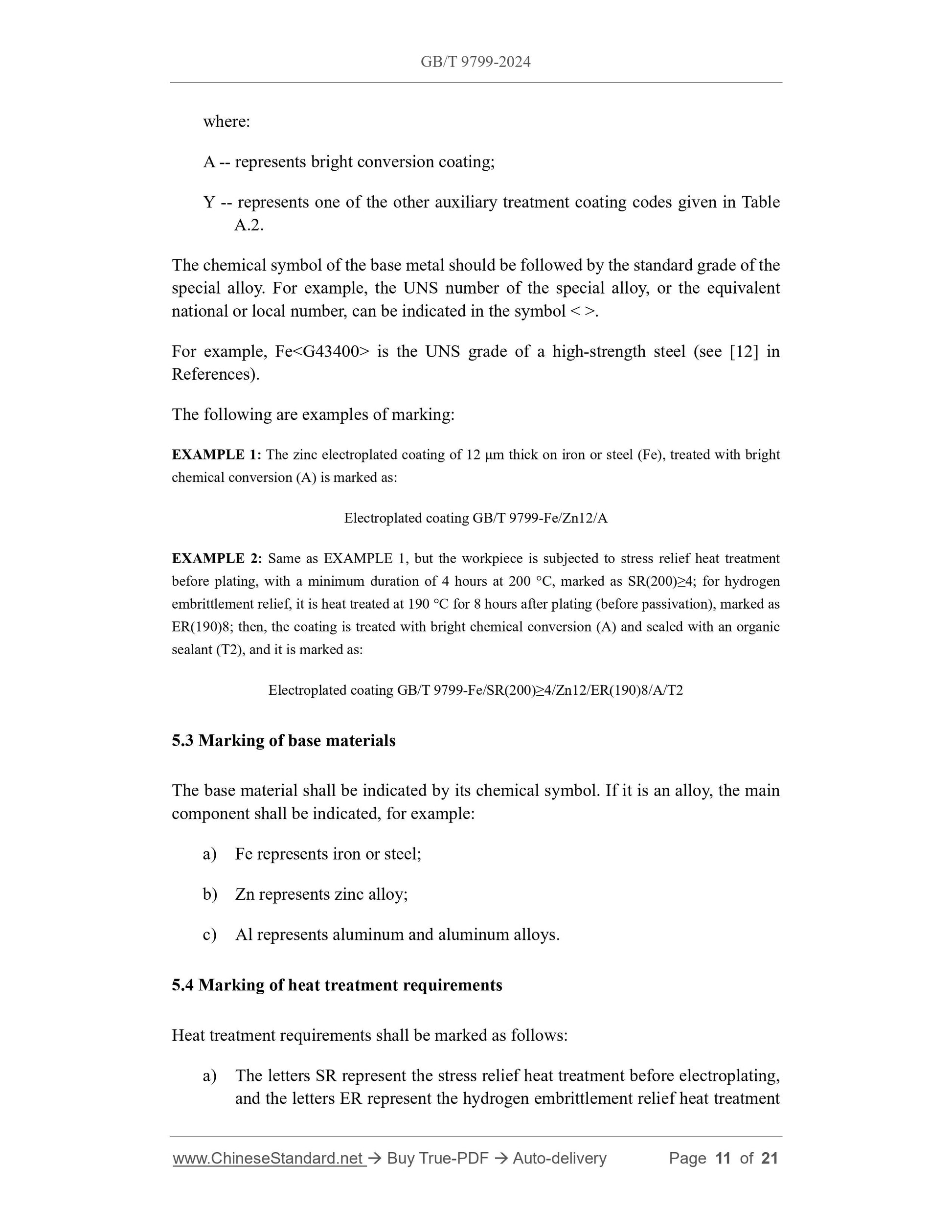

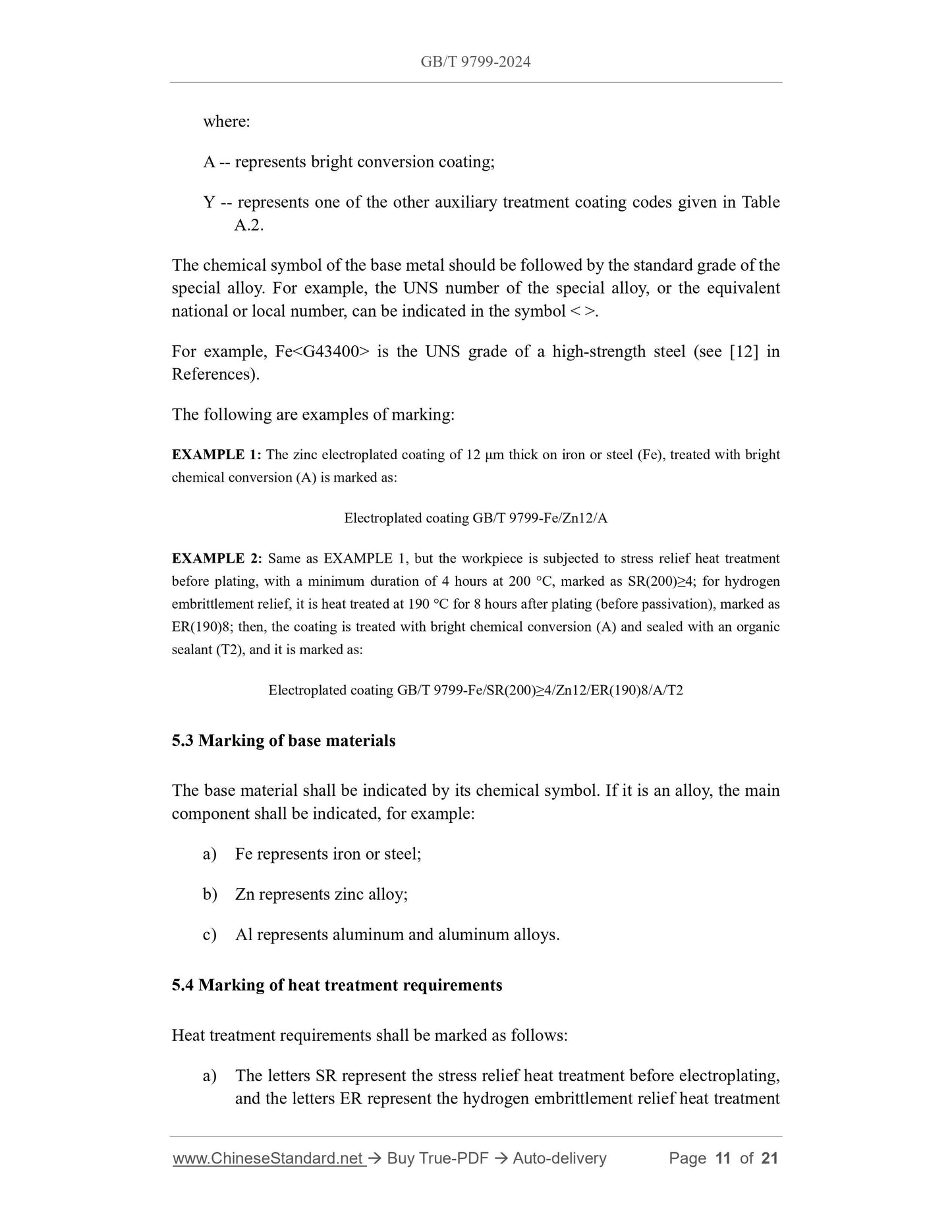

where.
A -- represents bright conversion coating;
Y -- represents one of the other auxiliary treatment coating codes given in Table
A.2.
The chemical symbol of the base metal should be followed by the standard grade of the
special alloy. For example, the UNS number of the special alloy, or the equivalent
national or local number, can be indicated in the symbol < >.
For example, Fe< G43400> is the UNS grade of a high-strength steel (see [12] in
References).
The following are examples of marking.
EXAMPLE 1.The zinc electroplated coating of 12 μm thick on iron or steel (Fe), treated with bright
chemical conversion (A) is marked as.
Electroplated coating GB/T 9799-Fe/Zn12/A
EXAMPLE 2.Same as EXAMPLE 1, but the workpiece is subjected to stress relief heat treatment
before plating, with a minimum duration of 4 hours at 200 °C, marked as SR(200)≥4; for hydrogen
embrittlement relief, it is heat treated at 190 °C for 8 hours after plating (before passivation), marked as
ER(190)8; then, the coating is treated with bright chemical conversion (A) and sealed with an organic
sealant (T2), and it is marked as.
