GM/T 0106-2021: Cryptograph application requirements for bank card terminal

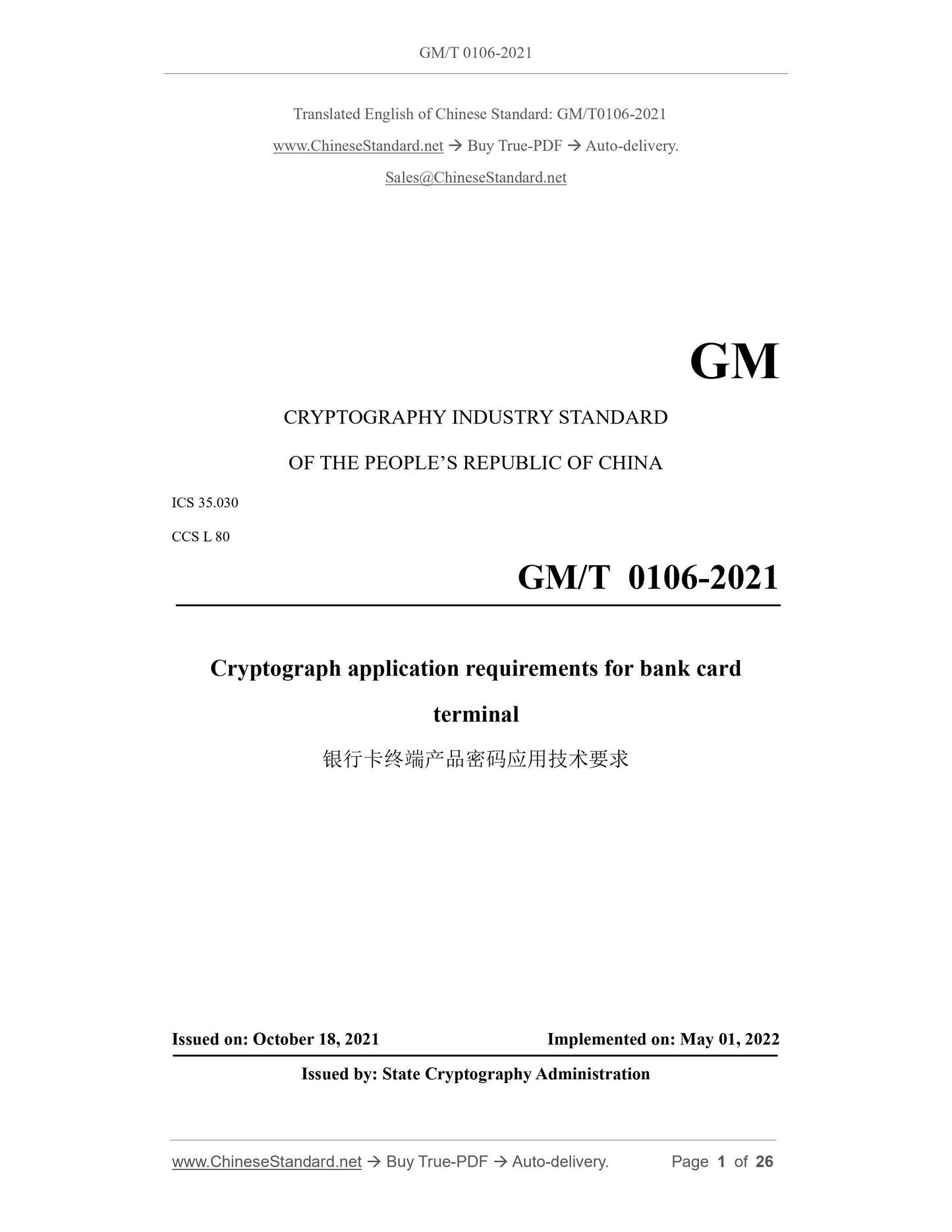

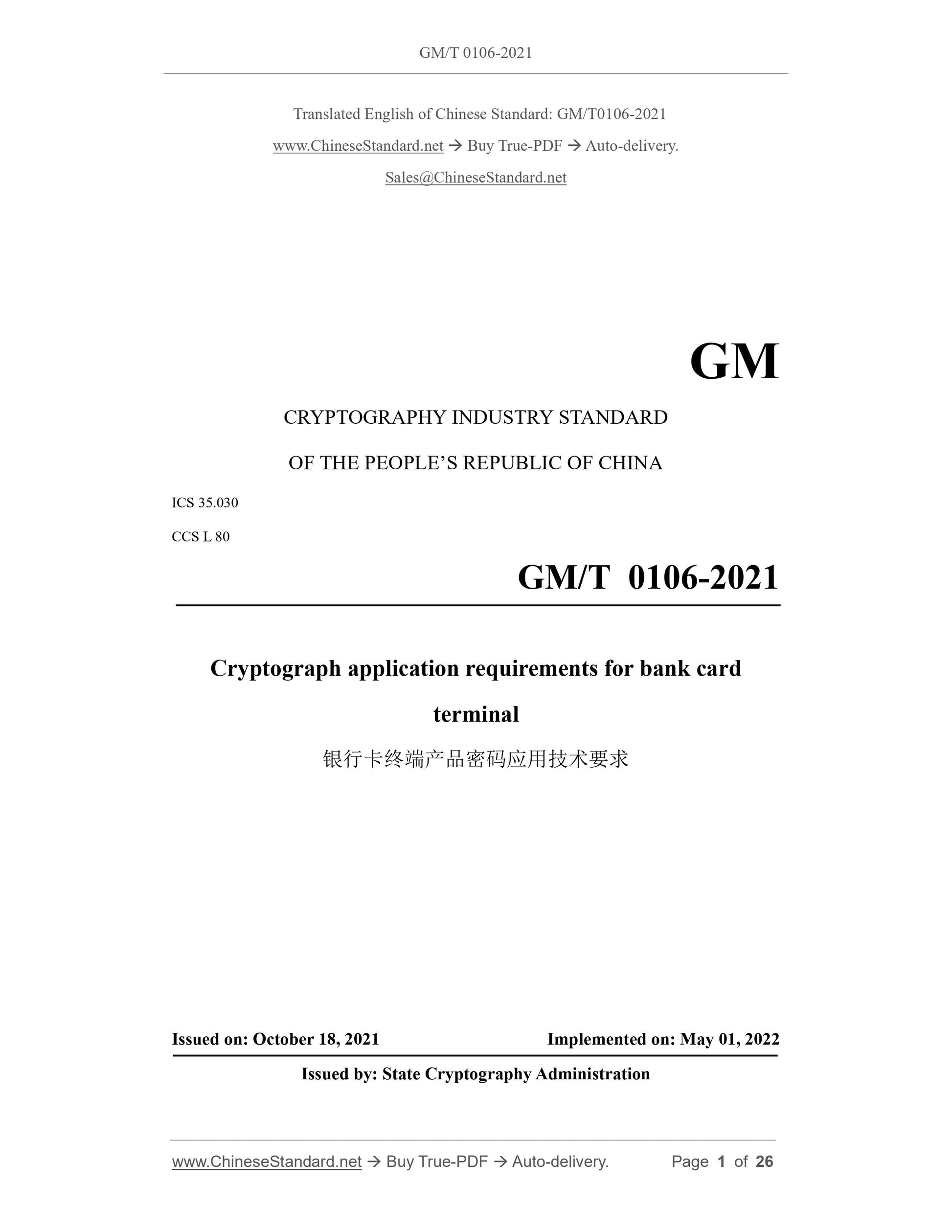

GM/T 0106-2021
GM
CRYPTOGRAPHY INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 35.030
CCS L 80
Cryptograph application requirements for bank card
terminal
ISSUED ON: OCTOBER 18, 2021
IMPLEMENTED ON: MAY 01, 2022
Issued by: State Cryptography Administration

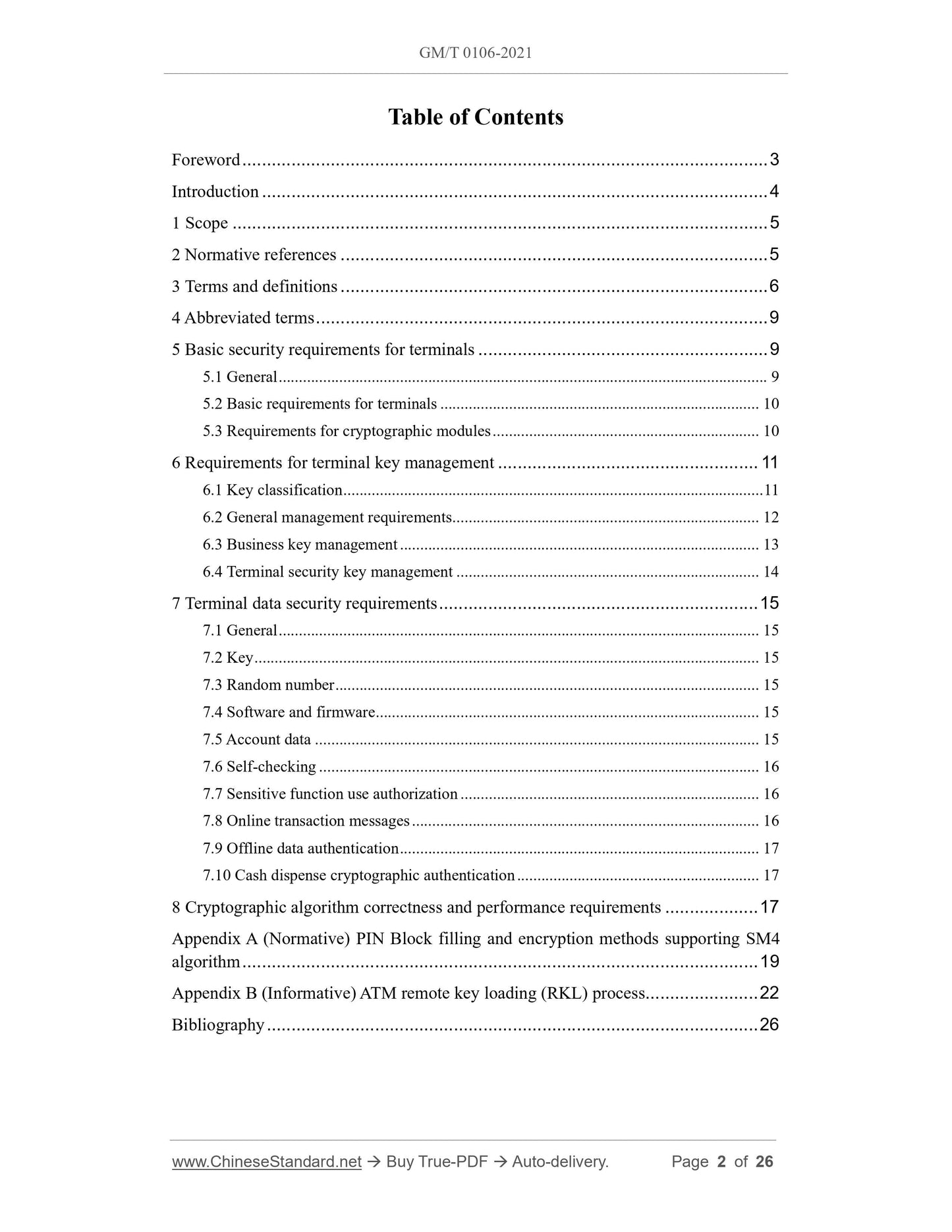

Table of Contents
Foreword ... 3
Introduction ... 4
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Abbreviated terms ... 9
5 Basic security requirements for terminals ... 9
5.1 General ... 9
5.2 Basic requirements for terminals ... 10
5.3 Requirements for cryptographic modules ... 10
6 Requirements for terminal key management ... 11
6.1 Key classification ... 11
6.2 General management requirements ... 12
6.3 Business key management ... 13

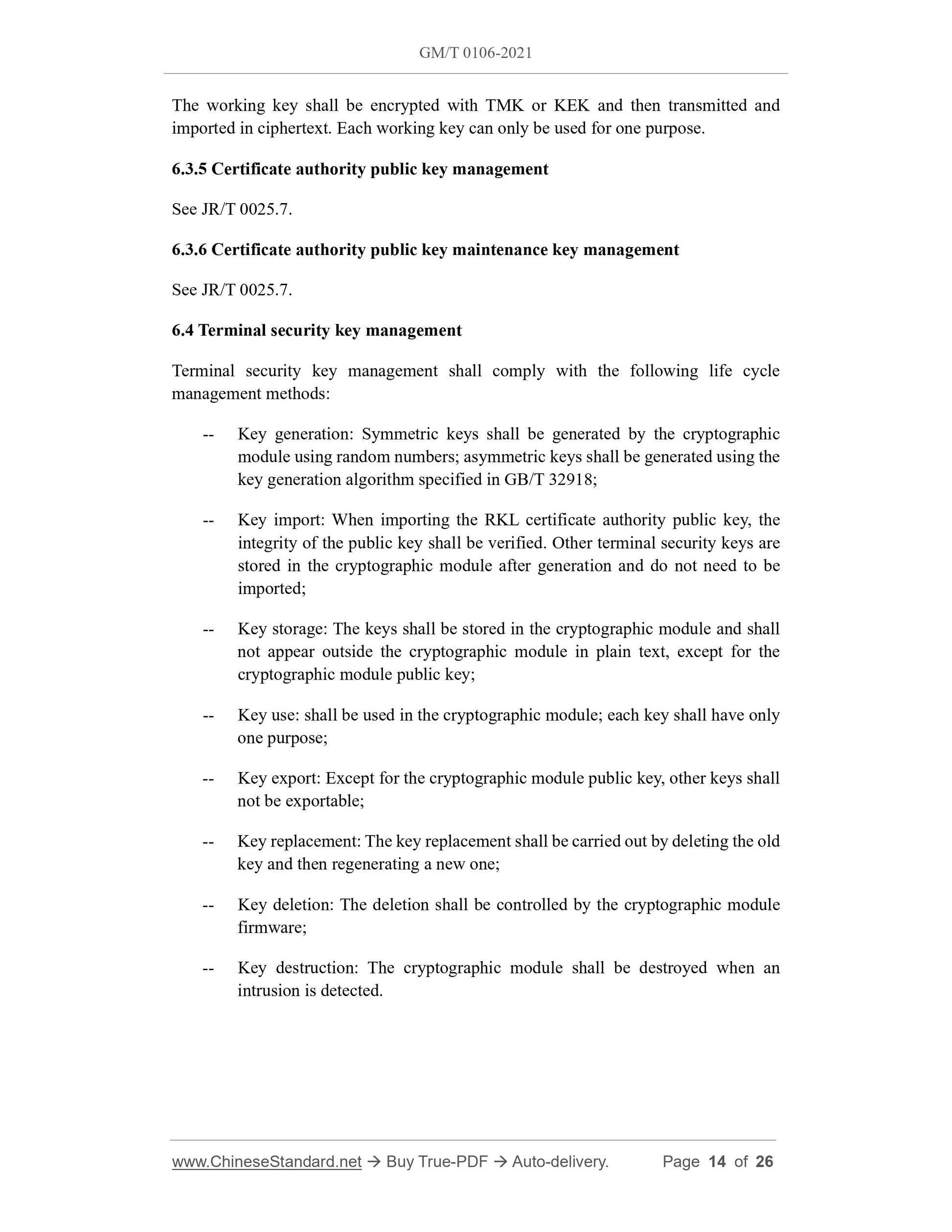

6.4 Terminal security key management ... 14
7 Terminal data security requirements ... 15
7.1 General ... 15
7.2 Key ... 15
7.3 Random number ... 15
7.4 Software and firmware ... 15
7.5 Account data ... 15

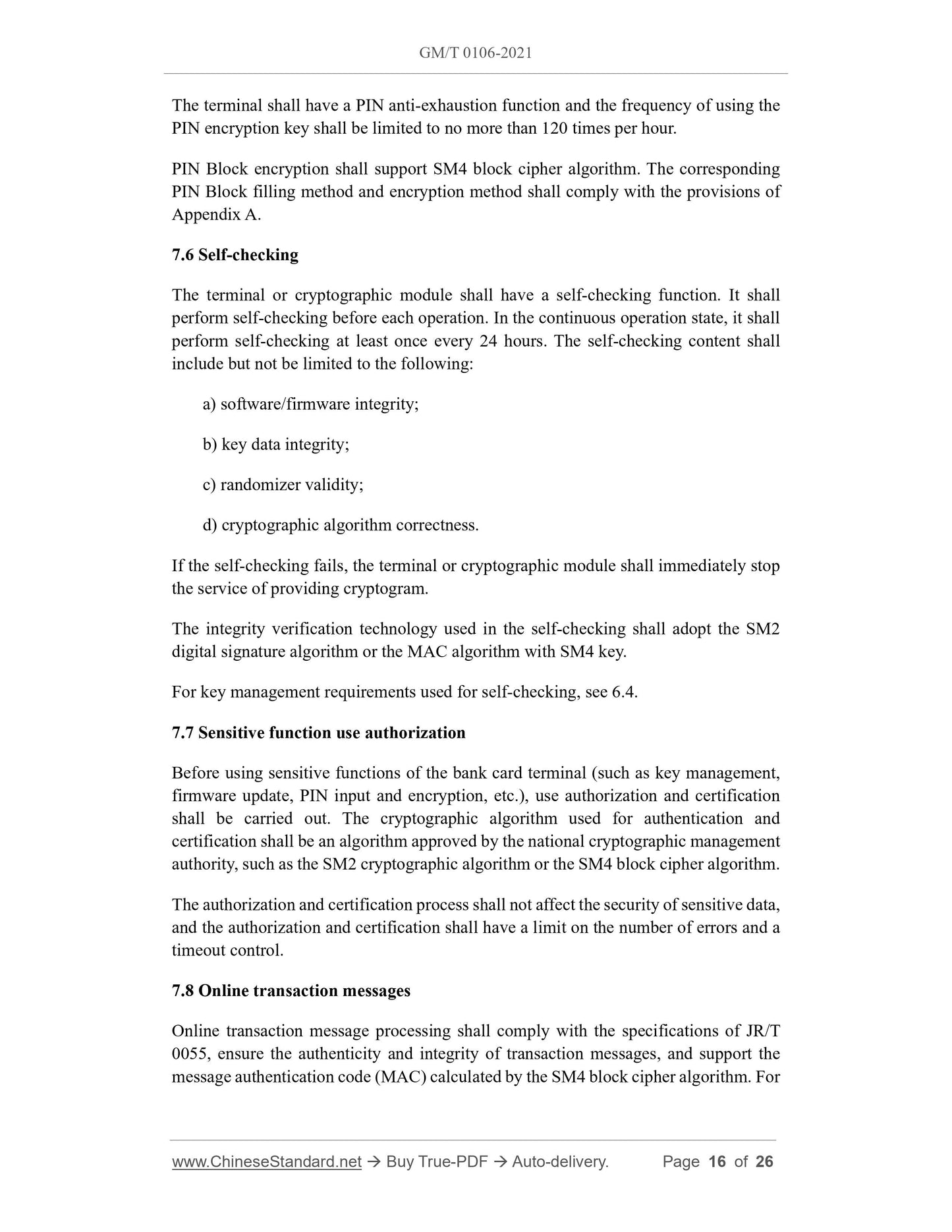

7.6 Self-checking ... 16
7.7 Sensitive function use authorization ... 16
7.8 Online transaction messages ... 16
7.9 Offline data authentication ... 17

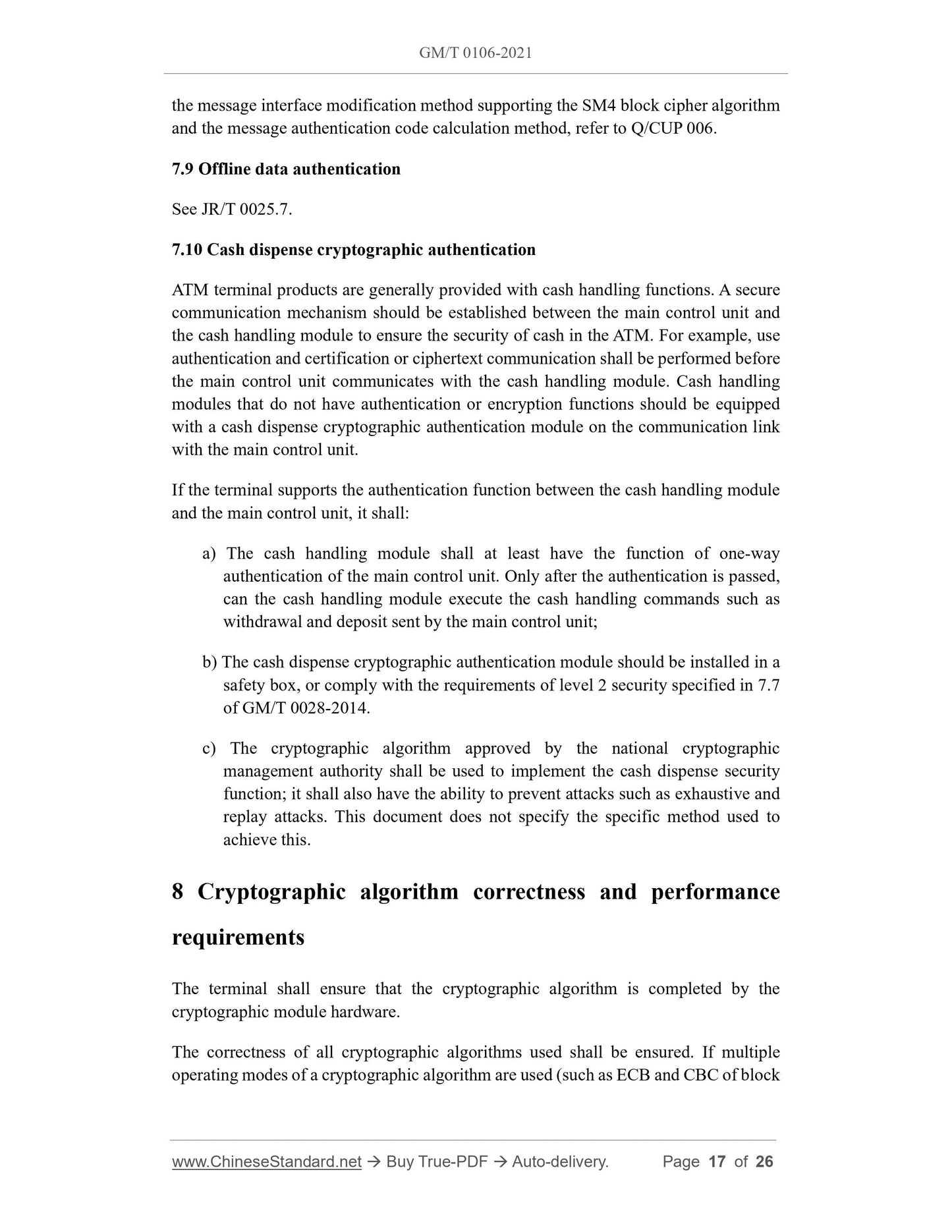

7.10 Cash dispense cryptographic authentication ... 17
8 Cryptographic algorithm correctness and performance requirements ... 17
Appendix A (Normative) PIN Block filling and encryption methods supporting SM4
algorithm ... 19

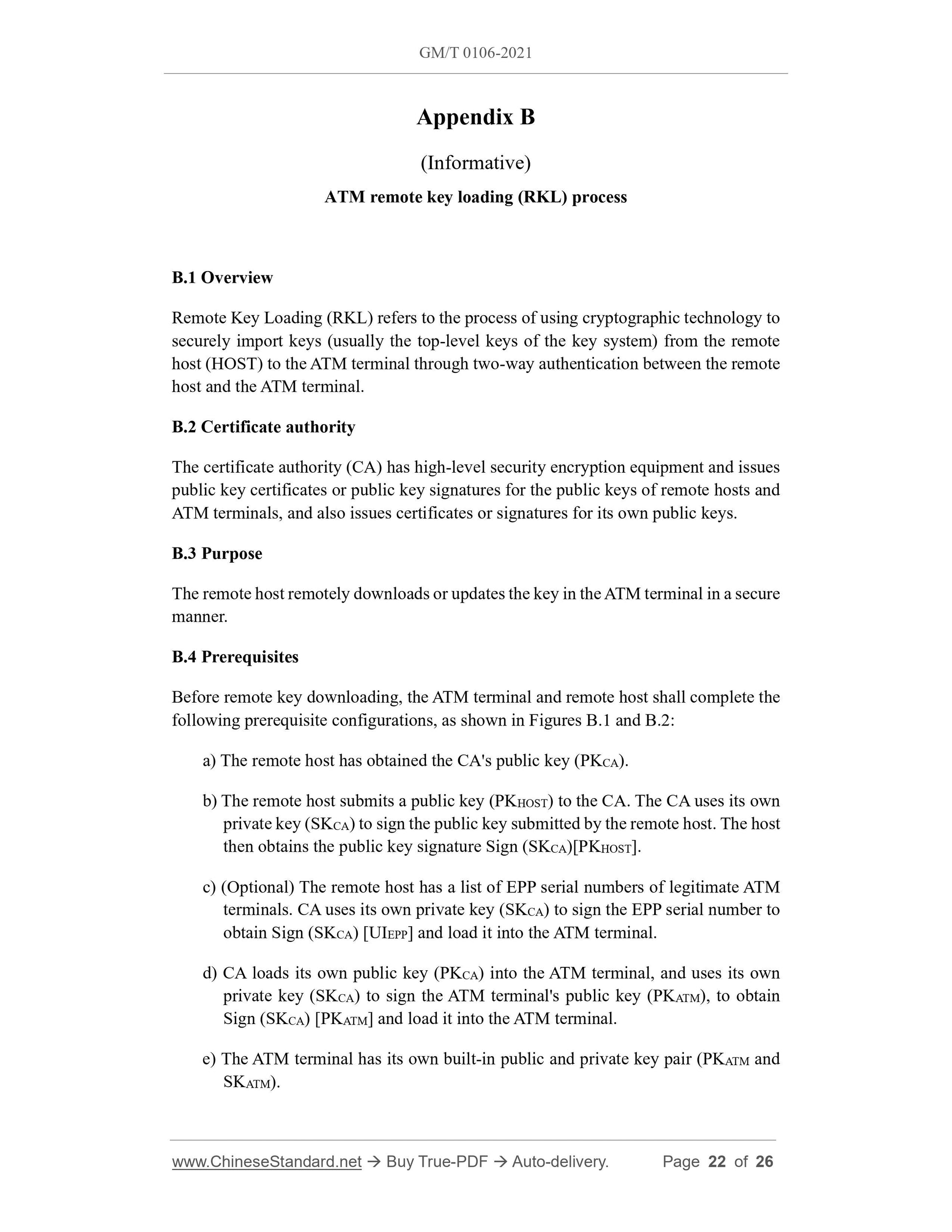

Appendix B (Informative) ATM remote key loading (RKL) process ... 22
Bibliography ... 26
Cryptograph application requirements for bank card
terminal

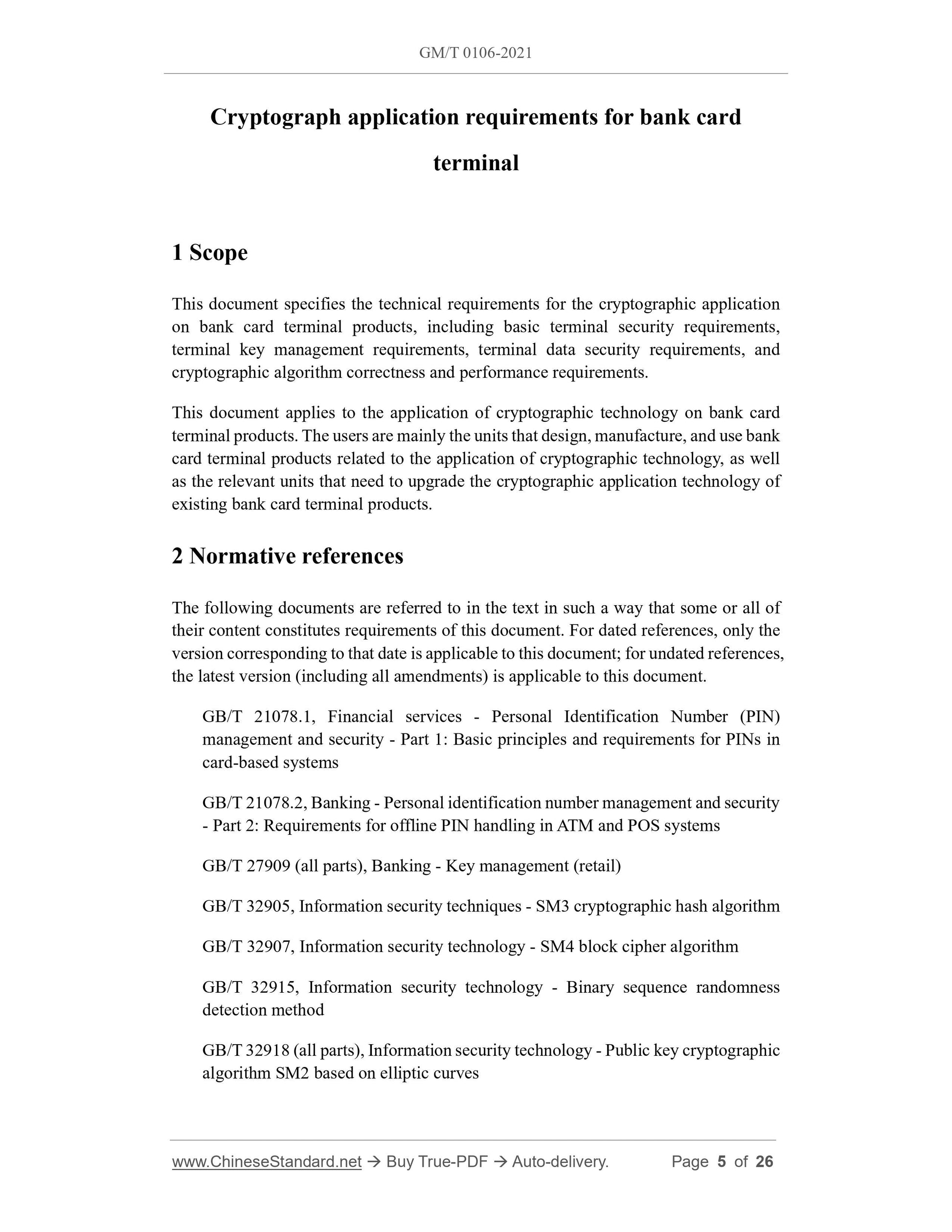

1 Scope
This document specifies the technical requirements for the cryptographic application
on bank card terminal products, including basic terminal security requirements,
terminal key management requirements, terminal data security requirements, and
cryptographic algorithm correctness and performance requirements.
This document applies to the application of cryptographic technology on bank card
terminal products. The users are mainly the units that design, manufacture, and use bank
card terminal products related to the application of cryptographic technology, as well
as the relevant units that need to upgrade the cryptographic application technology of
existing bank card terminal products.
2 Normative references
The following documents are referred to in the text in such a way that some or all of
their content constitutes requirements of this document. For dated references, only the
version corresponding to that date is applicable to this document; for undated references,
the latest version (including all amendments) is applicable to this document.
GB/T 21078.1, Financial services - Personal Identification Number (PIN)
management and security - Part 1: Basic principles and requirements for PINs in
card-based systems
GB/T 21078.2, Banking - Personal identification number management and security
- Part 2: Requirements for offline PIN handling in ATM and POS systems
GB/T 27909 (all parts), Banking - Key management (retail)
GB/T 32905, Information security techniques - SM3 cryptographic hash algorithm
GB/T 32907, Information security technology - SM4 block cipher algorithm
GB/T 32915, Information security technology - Binary sequence randomness
detection method
GB/T 32918 (all parts), Information security technology - Public key cryptographic
algorithm SM2 based on elliptic curves
GB/T 32918.3-2016, Information security techniques - Elliptic Curve public-key
cryptography - Part 3: Key exchange protocol
GM/T 0008, Cryptography test criteria for security IC
GM/T 0028-2014, Security requirements for cryptographic modules
GM/Z 4001, Cryptology terminology
JR/T 0025.6, China financial integrated circuit card specifications - Part 6:
Debit/credit application terminal specification
JR/T 0025.7, China financial integrated circuit card specifications - Part 8: Contact
less specification independent of application
JR/T 0055 (all parts), Technical specifications on bankcard interoperability
JR/T 0120.1, Security specification for bank card terminals - Part 1: Port of sale
terminal
JR/T 0120.3, Security specification for bank card terminals - Part 3: Self-service
terminal
JR/T 0120.5, Security specification for bank card terminals - Part 5: PIN entry
device
ANSI X9.24 (all parts), Retail financial services - Symmetric key management

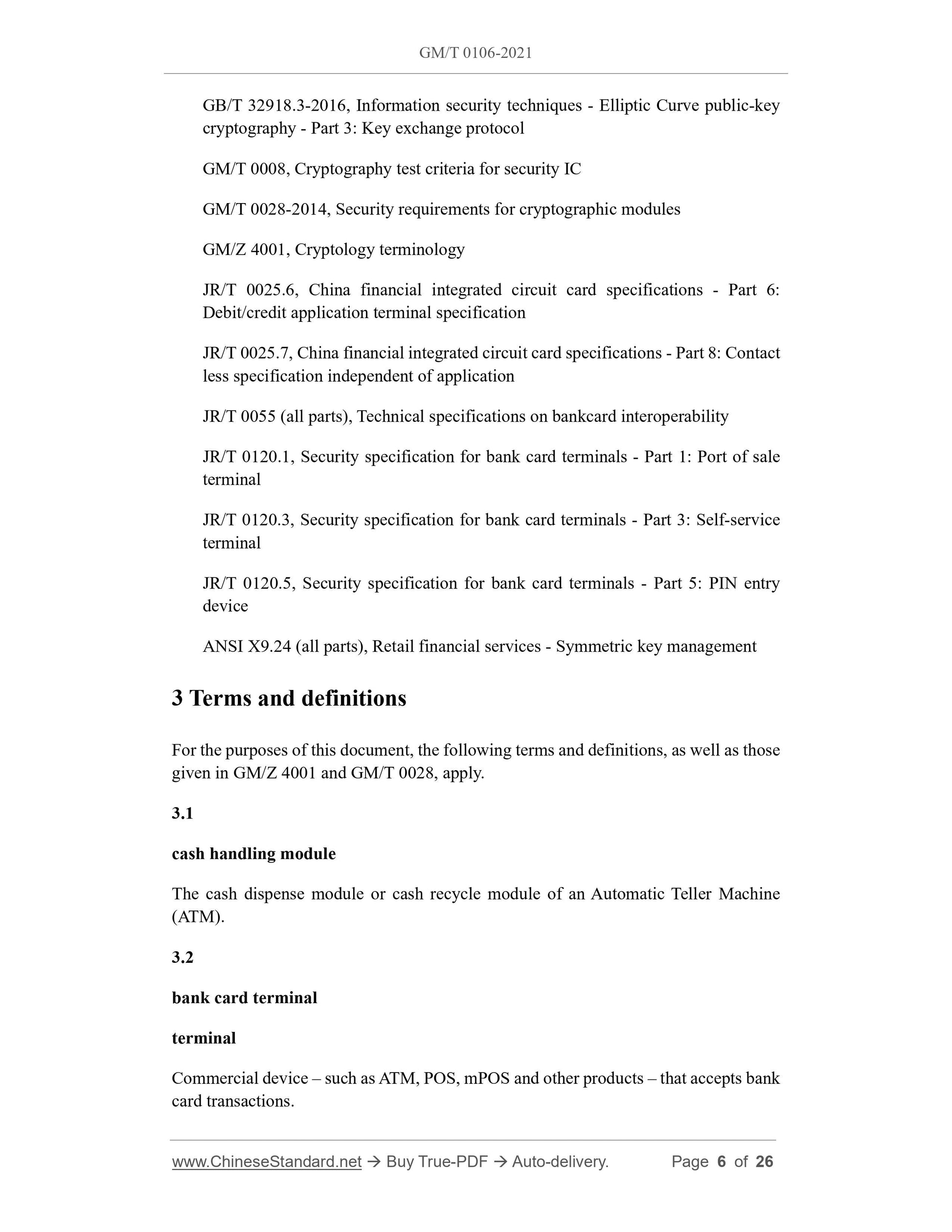

3 Terms and definitions
For the purposes of this document, the following terms and definitions, as well as those
given in GM/Z 4001 and GM/T 0028, apply.
3.1
cash handling module
The cash dispense module or cash recycle module of an Automatic Teller Machine
(ATM).
3.2
bank card terminal
terminal
Commercial device – such as ATM, POS, mPOS and other products – that accepts bank
card transactions.

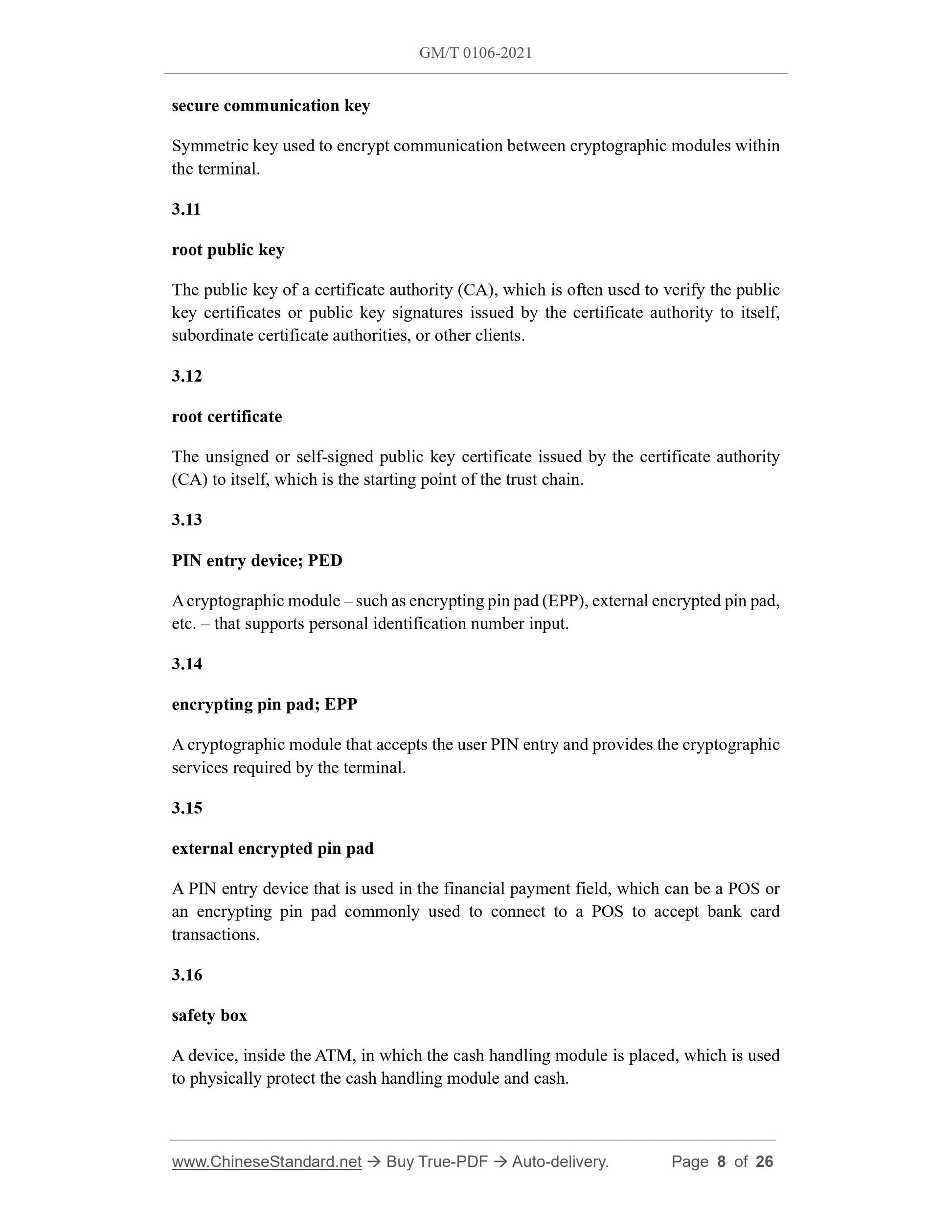

secure communication key
Symmetric key used to encrypt communication between cryptographic modules within
the terminal.
3.11
root public key
The public key of a certificate authority (CA), which is often used to verify the public
key certificates or public key signatures issued by the certificate authority to itself,
subordinate certificate authorities, or other clients.
3.12
root certificate
The unsigned or self-signed public key certificate issued by the certificate authority
(CA) to itself, which is the starting point of the trust chain.
3.13
PIN entry device; PED
A cryptographic module – such as encrypting pin pad (EPP), external encrypted pin pad,
etc. – that supports personal identification number input.
3.14
encrypting pin pad; EPP
A cryptographic module that accepts the user PIN entry and provides the cryptographic
services required by the terminal.
3.15
external encrypted pin pad
A PIN entry device that is used in the financial payment field, which can be a POS or
an encrypting pin pad commonly used to connect to a POS to accept bank card
transactions.
3.16
safety box
A device, inside the ATM, in which the cash handling module is placed, which is used
to physically protect the cash handling module and cash.

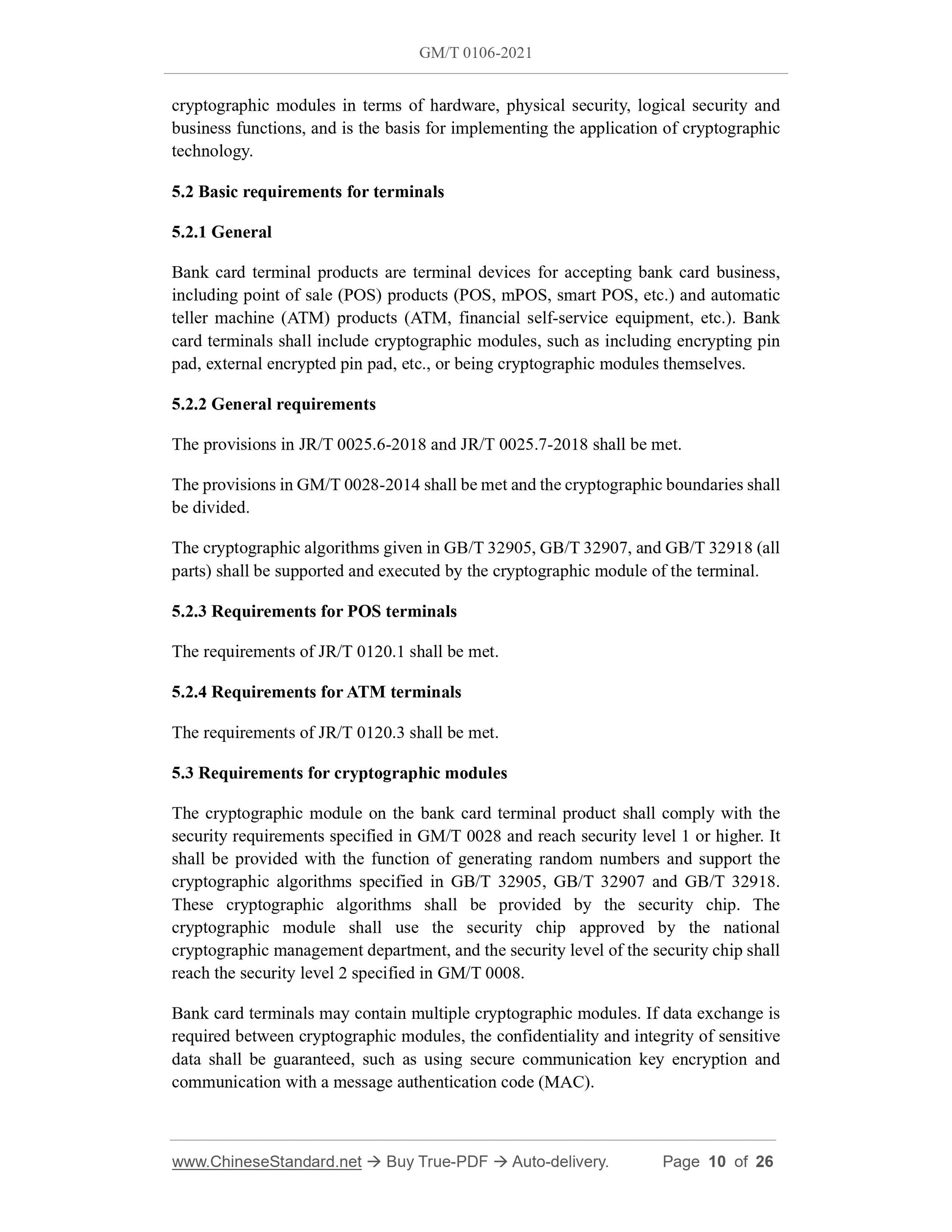

cryptographic modules in terms of hardware, physical security, logical security and
business functions, and is the basis for implementing the application of cryptographic
technology.
5.2 Basic requirements for terminals
5.2.1 General
Bank card terminal products are terminal devices for accepting bank card business,
including point of sale (POS) products (POS, mPOS, smart POS, etc.) and automatic
teller machine (ATM) products (ATM, financial self-service equipment, etc.). Bank
card terminals shall include cryptographic modules, such as including encrypting pin
pad, external encrypted pin pad, etc., or being cryptographic modules themselves.
5.2.2 General requirements
The provisions in JR/T 0025.6-2018 and JR/T 0025.7-2018 shall be met.
The provisions in GM/T 0028-2014 shall be met and the cryptographic boundaries shall
be divided.
The cryptographic algorithms given in GB/T 32905, GB/T 32907, and GB/T 32918 (all
parts) shall be supported and executed by the cryptographic module of the terminal.
5.2.3 Requirements for POS terminals
The requirements of JR/T 0120.1 shall be met.
5.2.4 Requirements for ATM terminals
The requirements of JR/T 0120.3 shall be met.
5.3 Requirements for cryptographic modules
The cryptographic module on the bank card terminal product shall comply with the
security requirements specified in GM/T 0028 and reach security level 1 o...
