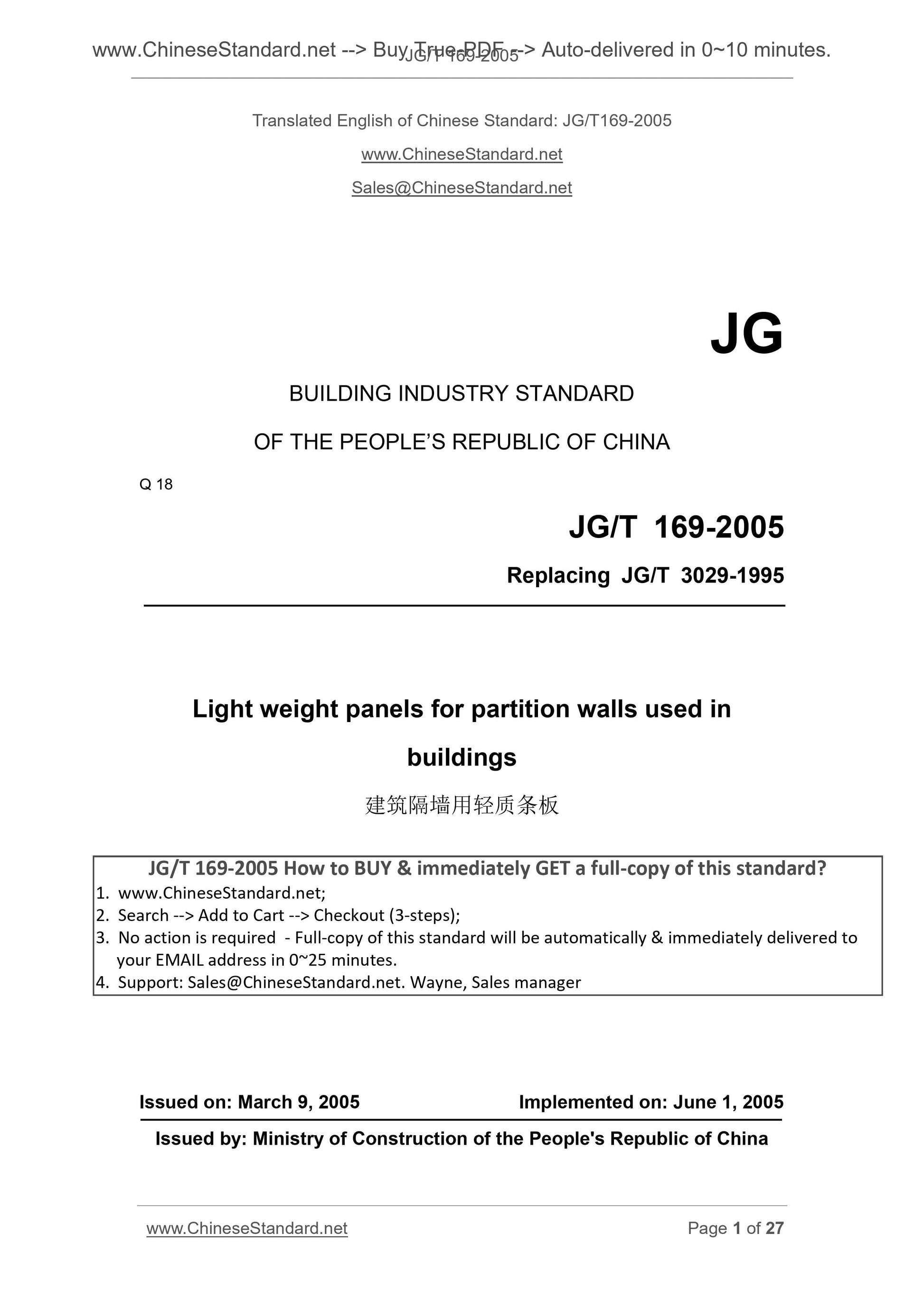

JG/T 169-2005: Light weight panels for partition walls used in buildings
JG/T 169-2005
JG
BUILDING INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
Q 18
Replacing JG/T 3029-1995
Light weight panels for partition walls used in
buildings
ISSUED ON. MARCH 9, 2005
IMPLEMENTED ON. JUNE 1, 2005
Issued by. Ministry of Construction of the People's Republic of China
Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Classification ... 6
5 Requirements ... 8
6 Test methods ... 10
7 Inspection rules ... 22
8 Marks, transport and storage ... 26

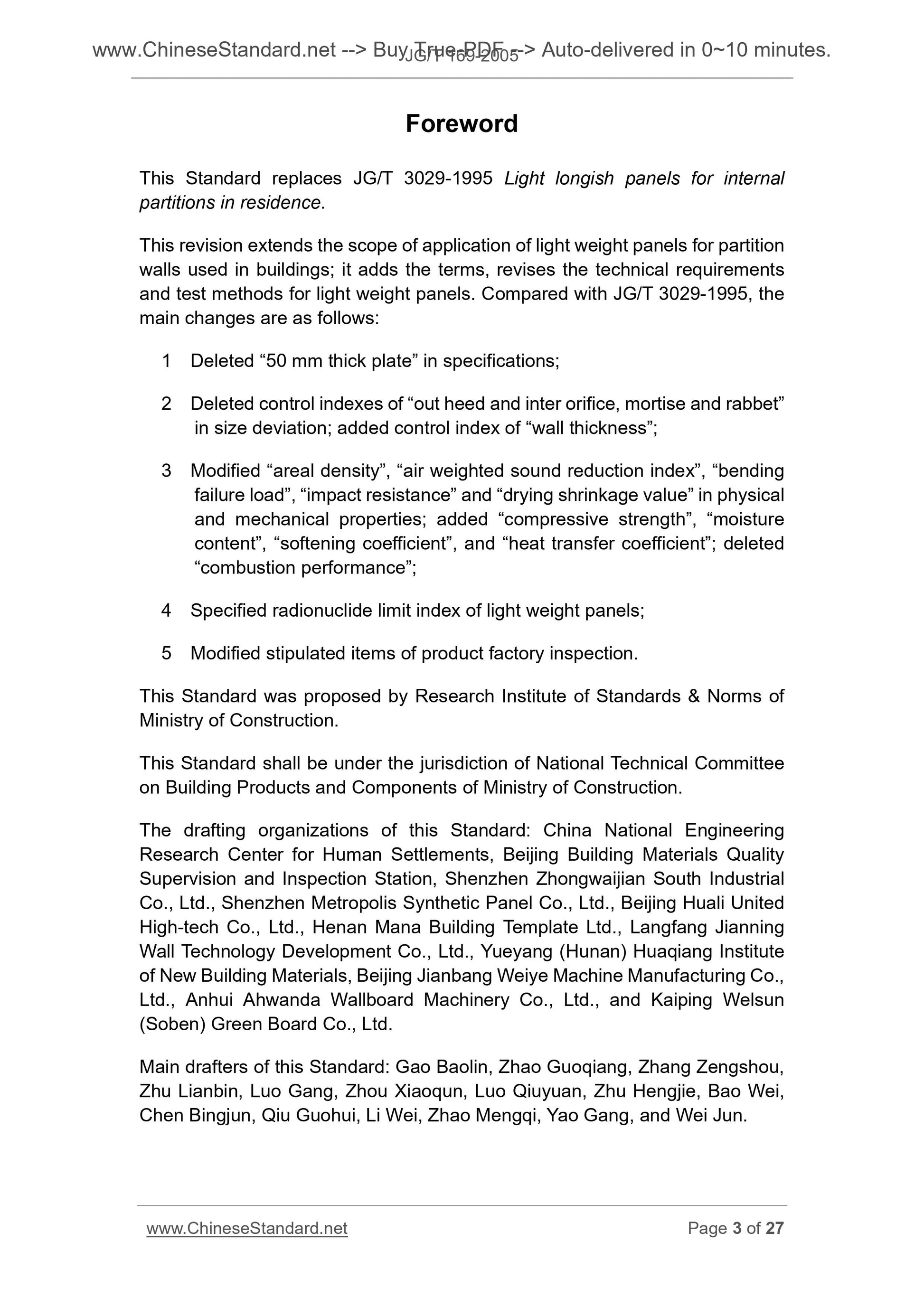

Foreword
This Standard replaces JG/T 3029-1995 Light longish panels for internal
partitions in residence.
This revision extends the scope of application of light weight panels for partition
walls used in buildings; it adds the terms, revises the technical requirements
and test methods for light weight panels. Compared with JG/T 3029-1995, the
main changes are as follows.
1 Deleted “50 mm thick plate” in specifications;
2 Deleted control indexes of “out heed and inter orifice, mortise and rabbet”
in size deviation; added control index of “wall thickness”;
3 Modified “areal density”, “air weighted sound reduction index”, “bending
failure load”, “impact resistance” and “drying shrinkage value” in physical
and mechanical properties; added “compressive strength”, “moisture
content”, “softening coefficient”, and “heat transfer coefficient”; deleted
“combustion performance”;
4 Specified radionuclide limit index of light weight panels;
5 Modified stipulated items of product factory inspection.
This Standard was proposed by Research Institute of Standards and Norms of
Ministry of Construction.
This Standard shall be under the jurisdiction of National Technical Committee
on Building Products and Components of Ministry of Construction.
The drafting organizations of this Standard. China National Engineering
Research Center for Human Settlements, Beijing Building Materials Quality
Supervision and Inspection Station, Shenzhen Zhongwaijian South Industrial
Co., Ltd., Shenzhen Metropolis Synthetic Panel Co., Ltd., Beijing Huali United
High-tech Co., Ltd., Henan Mana Building Template Ltd., Langfang Jianning
Wall Technology Development Co., Ltd., Yueyang (Hunan) Huaqiang Institute
of New Building Materials, Beijing Jianbang Weiye Machine Manufacturing Co.,
Ltd., Anhui Ahwanda Wallboard Machinery Co., Ltd., and Kaiping Welsun
(Soben) Green Board Co., Ltd.
Main drafters of this Standard. Gao Baolin, Zhao Guoqiang, Zhang Zengshou,
Zhu Lianbin, Luo Gang, Zhou Xiaoqun, Luo Qiuyuan, Zhu Hengjie, Bao Wei,
Chen Bingjun, Qiu Guohui, Li Wei, Zhao Mengqi, Yao Gang, and Wei Jun.
Light weight panels for partition walls used in
buildings

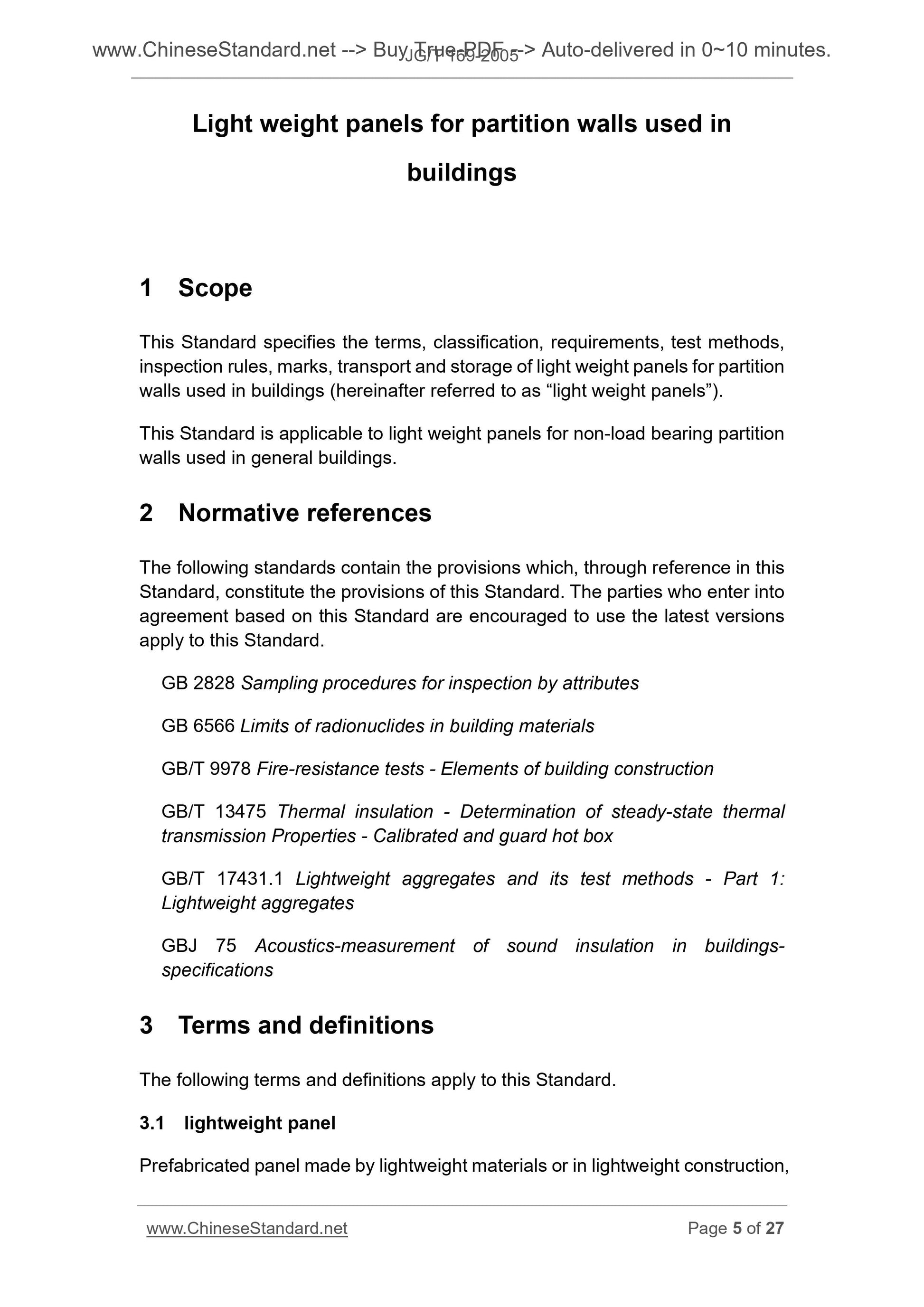

1 Scope
This Standard specifies the terms, classification, requirements, test methods,
inspection rules, marks, transport and storage of light weight panels for partition
walls used in buildings (hereinafter referred to as “light weight panels”).
This Standard is applicable to light weight panels for non-load bearing partition
walls used in general buildings.
2 Normative references
The following standards contain the provisions which, through reference in this
Standard, constitute the provisions of this Standard. The parties who enter into
agreement based on this Standard are encouraged to use the latest versions
apply to this Standard.
GB 2828 Sampling procedures for inspection by attributes
GB 6566 Limits of radionuclides in building materials
GB/T 9978 Fire-resistance tests - Elements of building construction
GB/T 13475 Thermal insulation - Determination of steady-state thermal
transmission Properties - Calibrated and guard hot box
GB/T 17431.1 Lightweight aggregates and its test methods - Part 1.
Lightweight aggregates
GBJ 75 Acoustics-measurement of sound insulation in buildings-
specifications
3 Terms and definitions
The following terms and definitions apply to this Standard.

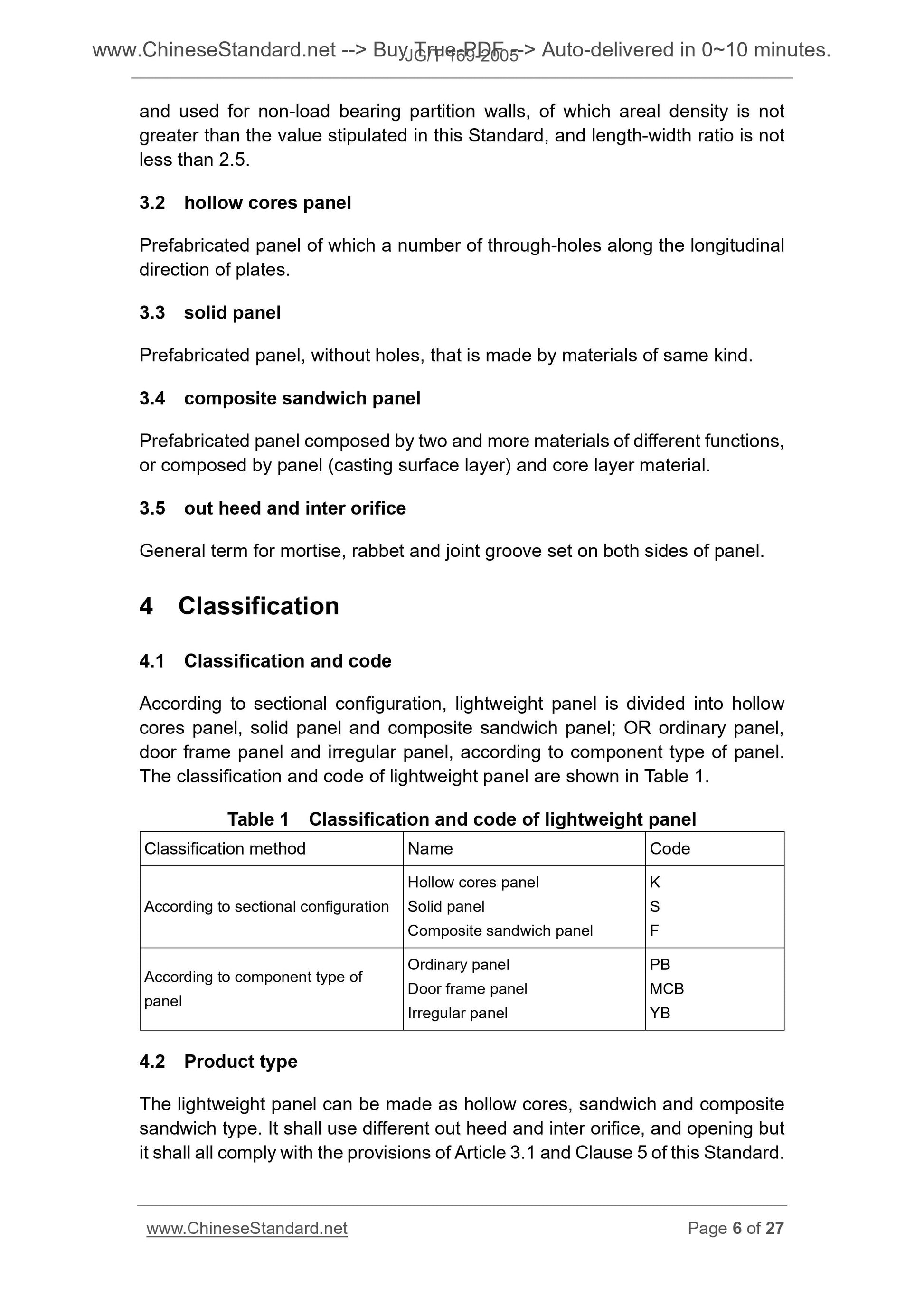

3.1 lightweight panel
Prefabricated panel made by lightweight materials or in lightweight construction,
and used for non-load bearing partition walls, of which areal density is not
greater than the value stipulated in this Standard, and length-width ratio is not
less than 2.5.
3.2 hollow cores panel
Prefabricated panel of which a number of through-holes along the longitudinal
direction of plates.
3.3 solid panel
Prefabricated panel, without holes, that is made by materials of same kind.
3.4 composite sandwich panel
Prefabricated panel composed by two and more materials of different functions,
or composed by panel (casting surface layer) and core layer material.
3.5 out heed and inter orifice
General term for mortise, rabbet and joint groove set on both sides of panel.
4 Classification
4.1 Classification and code
According to sectional configuration, lightweight panel is divided into hollow
cores panel, solid panel and composite sandwich panel; OR ordinary panel,
door frame panel and irregular panel, according to component type of panel.
The classification and code of lightweight panel are shown in Table 1.
Table 1 Classification and code of lightweight panel
Classification method Name Code
According to sectional configuration
Hollow cores panel
Solid panel
Composite sandwich panel
According to component type of
panel
Ordinary panel
Door frame panel
Irregular panel
PB
MCB
YB
4.2 Product type
The lightweight panel can be made as hollow cores, sandwich and composite
sandwich type. It shall use different out heed and inter orifice, and opening but
it shall all comply with the provisions of Article 3.1 and Clause 5 of this Standard.
mm × 30 mm
6 Wall thickness b / mm ≥ 12
NOTE Defects in 3, 4, and 5 that are lower than the limits are negligible while defects that
are higher than the limits are unqualified.
a This inspection is for composite sandwich panel.
b Wall thickness shall be inspected for hollow cores panel.

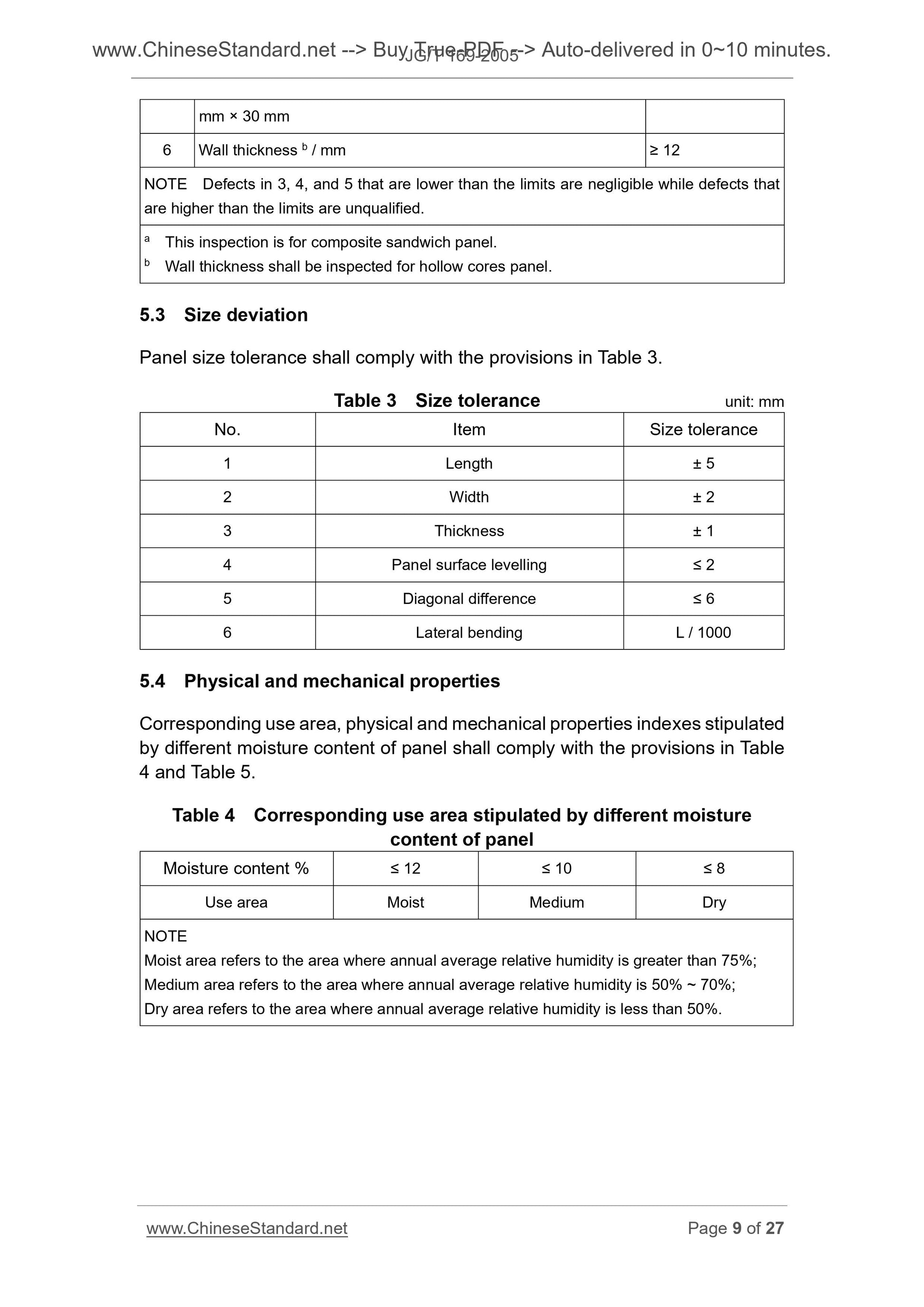

5.3 Size deviation
Panel size tolerance shall comply with the provisions in Table 3.
Table 3 Size tolerance unit. mm
No. Item Size tolerance
1 Length ± 5
2 Width ± 2
3 Thickness ± 1
4 Panel surface levelling ≤ 2
5 Diagonal difference ≤ 6
6 Lateral bending L / 1000
5.4 Physical and mechanical properties
Corresponding use area, physical and mechanical properties indexes stipulated
by different moisture content of panel shall comply with the provisions in Table
4 and Table 5.
Table 4 Corresponding use area stipulated by different moisture
content of panel
Moisture content % ≤ 12 ≤ 10 ≤ 8
Use area Moist Medium Dry
NOTE
Moist area refers to the area where annual average relative humidity is greater than 75%;
Medium area refers to the area where annual average relative humidity is 50% ~ 70%;
Dry area refers to the area where annual average relative humidity is less than 50%.
be equal to panel width.

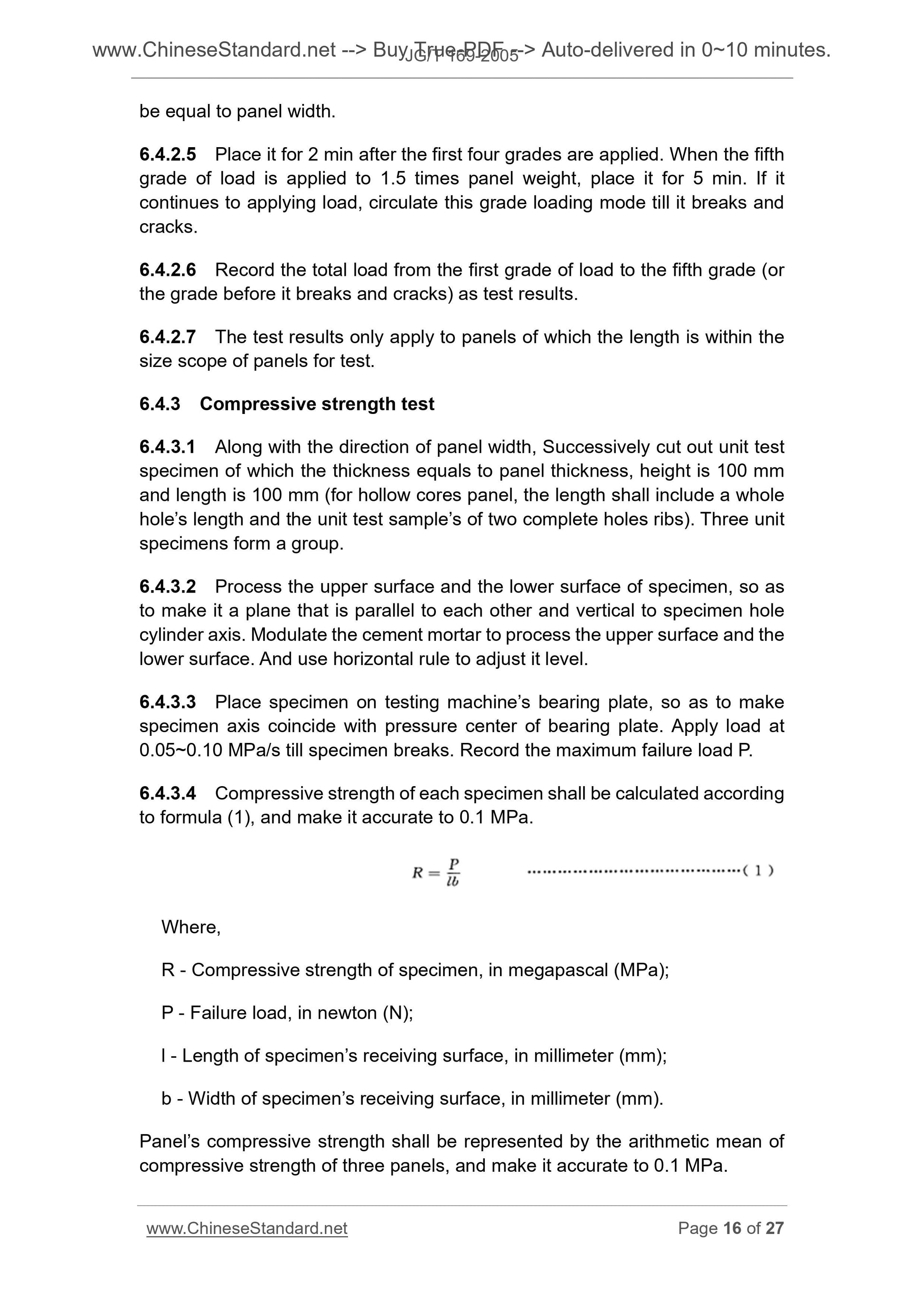

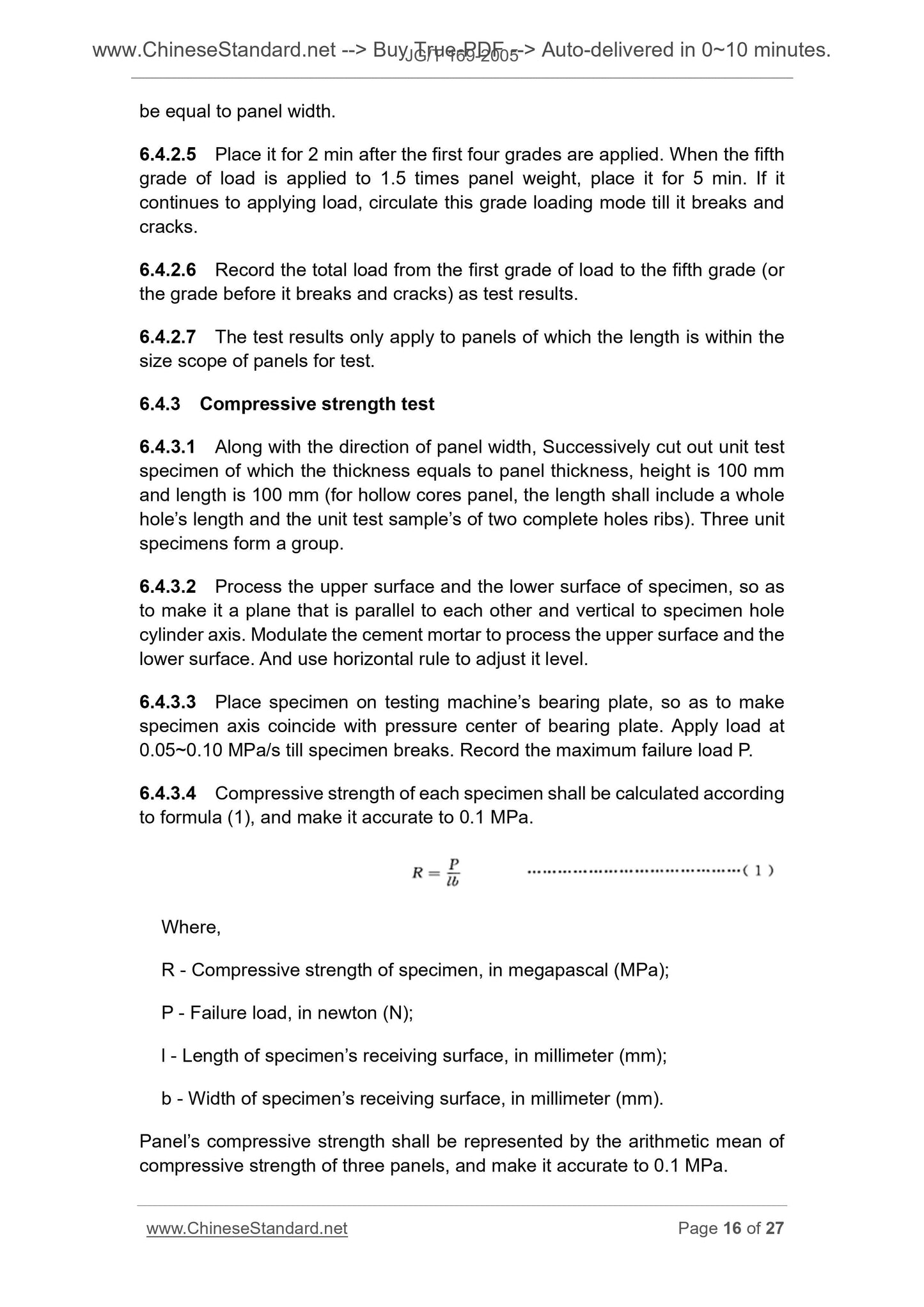

6.4.2.5 Place it for 2 min after the first four grades are applied. When the fifth
grade of load is applied to 1.5 times panel weight, place it for 5 min. If it
continues to applying load, circulate this grade loading mode till it breaks and
cracks.
6.4.2.6 Record the total load from the first grade of load to the fifth grade (or
the grade before it breaks and cracks) as test results.
6.4.2.7 The test results only apply to panels of which the length is within the
size scope of panels for test.
6...
