Q/BQB 500-2019: General requirements of packaging, marking and inspection document for wire rods

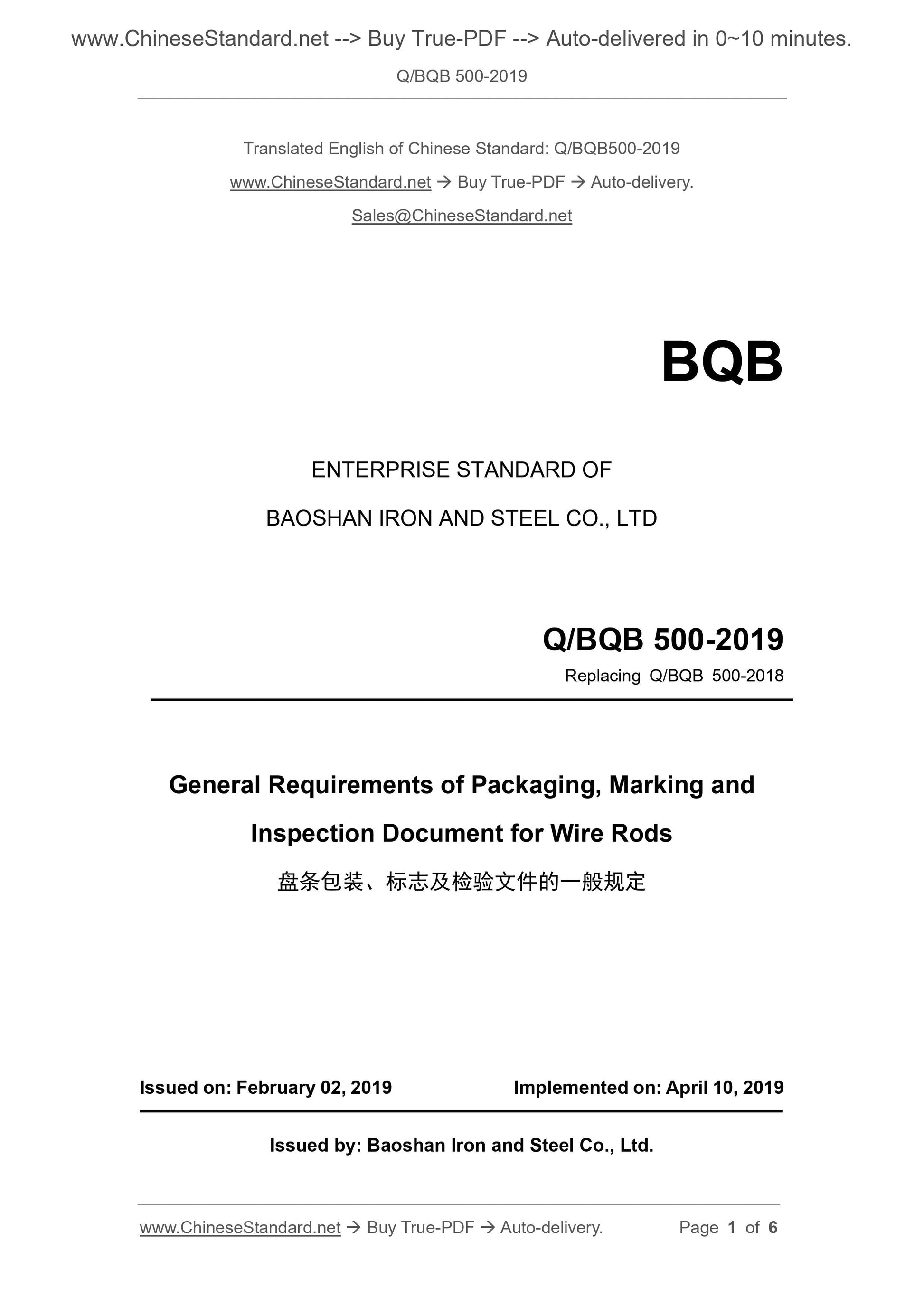

Q/BQB 500-2019
General requirements of packaging, marking and inspection document for wire rods
Q/BQB 500-2019
Replaces Q/BQB 500-2018
General requirements for wire rod packaging, marking and inspection documents
General requirements of packaging, marking and inspection document
for wire rods
2019-02-02 release
2019-04-10 Implementation
release

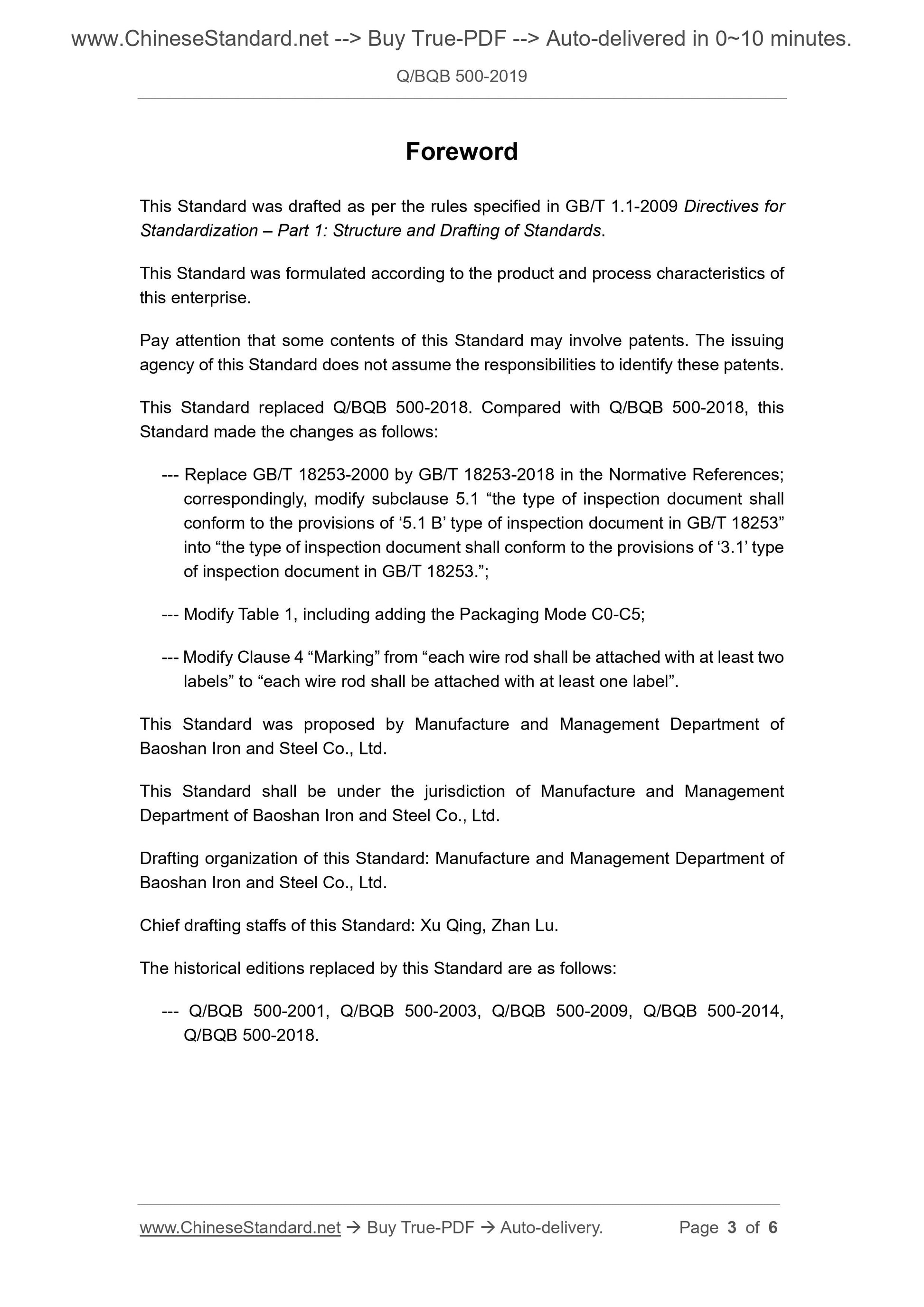

Foreword
This standard was drafted in accordance with the rules given in GB/T 1.1-2009 "Guidelines for Standardization Work Part 1. Structure and Compilation of Standards".
This standard is formulated based on the characteristics of the company's products and processes.
Please note that some elements of this standard may involve patents. The issuer of this standard is not responsible for identifying these patents.
This standard replaces Q/BQB 500-2018. Compared with Q/BQB 500-2018, the main changes in this standard are as follows.
-Normative references, GB/T 18253-2018 replaces GB/T 18253-2000. Correspondingly, Article 5.1 "Classes of Inspection Document
Type should comply with the requirements of the inspection document type '5.1 B' in GB/T 18253 "was changed to" The type of inspection documents should conform to GB/T
18253 to check the document type '3.1'. ";
--Modify Table 1 to add C0 ~ C5 mode for packaging;
-Amend clause "4 marks". "Each wire rod should be attached with at least two labels" to "Each wire rod should be attached with at least one label
sign".
This standard is proposed by the Manufacturing Management Department of Baoshan Iron and Steel Co., Ltd.
This standard is under the jurisdiction of Baoshan Iron and Steel Manufacturing Co., Ltd.
This standard was drafted by the Manufacturing Management Department of Baoshan Iron and Steel Co., Ltd.
The main drafters of this standard. Xu Qing and Zhan Lu.
The previous versions of the standards replaced by this standard are.
--Q/BQB 500-2001, Q/BQB 500-2003, Q/BQB 500-2009, Q/BQB 500-2014, Q/BQB 500-2018.
General requirements for wire rod packaging, marking and inspection documents

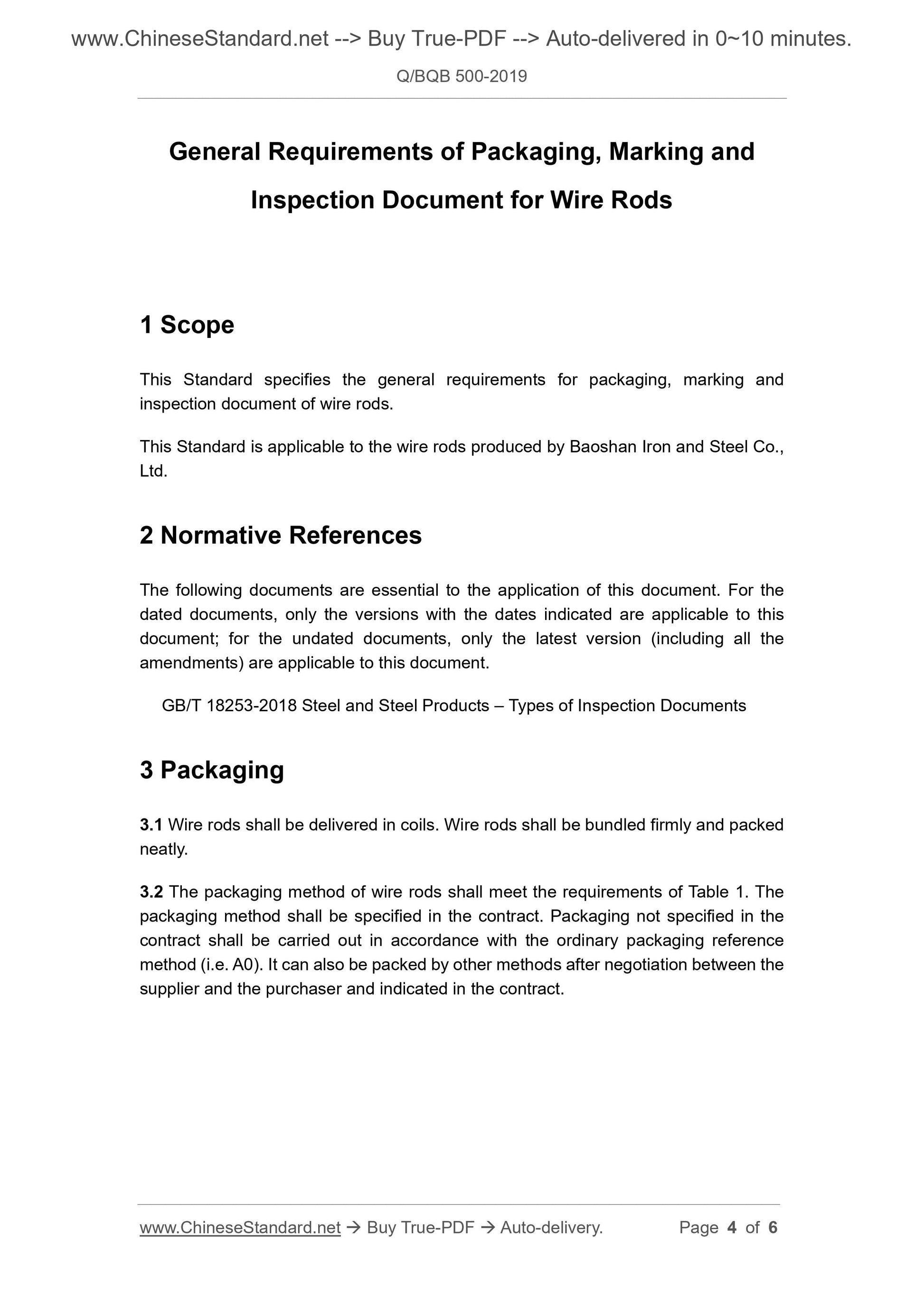

1 Scope
This standard specifies the general requirements for packaging, marking and inspection documents for wire rods.
This standard applies to wire rods produced by Baoshan Iron and Steel Co., Ltd.
2 Normative references
The following documents are essential for the application of this document. For dated references, only the dated version applies to this document.
For undated references, the latest version (including all amendments) applies to this document.
GB/T 18253-2018 Types of inspection documents for steel and steel products
3 Packaging
3.1 Wire rods shall be delivered in coils. Wire rods should be sturdy and packed neatly.
3.2 The packaging method of wire rod shall meet the requirements of Table 1. The packing method should be specified in the contract. Not stated in the contract
(Ie A0) for packaging. It can also be packed by other methods after negotiation between the supplier and the buyer, and in the contract.
Table 1
package
Types of
Packing method. additional combination of standard packaging materials
0 1 2 3 4 5 6 7 8 9 A
ordinary
package
Wire rod + radial strap or wire
(4 lanes)
Paper corner protection bag
Lamination
Ribbon
Anti-rust paper
film
Paper corner protector
Lamination
Ribbon
Paper corner protector
Anti-rust paper
film
Lamination
Ribbon
film
Paper corner protector
Lamination
Ribbon
film
Integral
Bagging
Paper protection
Square
Asana
Recommended range. short distance, halfway
And general purpose products
strengthen
package
Wire rod + radial strap or wire
(8 lanes)
Paper corner protection bag
Lamination
Ribbon
Anti-rust paper
film
Paper corner protector
Lamination
Ribbon
Paper corner protector
Anti-rust paper
film
Lamination
Ribbon
film
Paper corner protector
Lamination
Ribbon
film
Integral
Bagging
Paper protection
Square
Asana
Recommended range. export, halfway,
Long-distance and high value-added products
ordinary
package
Wire rod + wire
(4 lanes) + ring
Protective material
Bagging
+ Ring
Protective material
Material + set
Strapping
Ring guard
Protective material
+ Overall
Bagging
(Offline)
Strapping
Ring guard
Protective material
+ Overall
Bagging
(Online)
-----Recommended range. Aoyama base
General purpose products and high
Value-added products
4 signs
At least one label should be attached to each wire rod. The label should include at least the supplier's name, brand number, furnace number, rolling batch number, coil number, specification,
Imprint of weight, etc. The sign should be firm and legible.
5 Inspection documents
5.1 In general, the type of inspection documents shall comply with the provisions of inspection document type "3.1" in GB/T 18253. I.e.
Authorized inspection representatives independent of the production department shall conduct inspections and tests in accordance with the prescribed inspection and test requirements, and issue inspection documents. through
The supply and demand parties negotiate and indicate in the contract. Other types of inspection documents can also be provided.
5.2 Inspection documents must be issued for each batch of delivery wire. The contents of the inspection documents can be specified as required. trademark, supplier name, order unit,
Name, product name, product order standard, product specification and weight, contract number, brand number, furnace number, rolling batch number, number of plates, standard regulations
Various test results, date of issuance of inspection documents, signature of person in charge of quality management department, etc.
