QB/T 2709-2005: Leather. Physical and mechanical tests. Determination of thickness

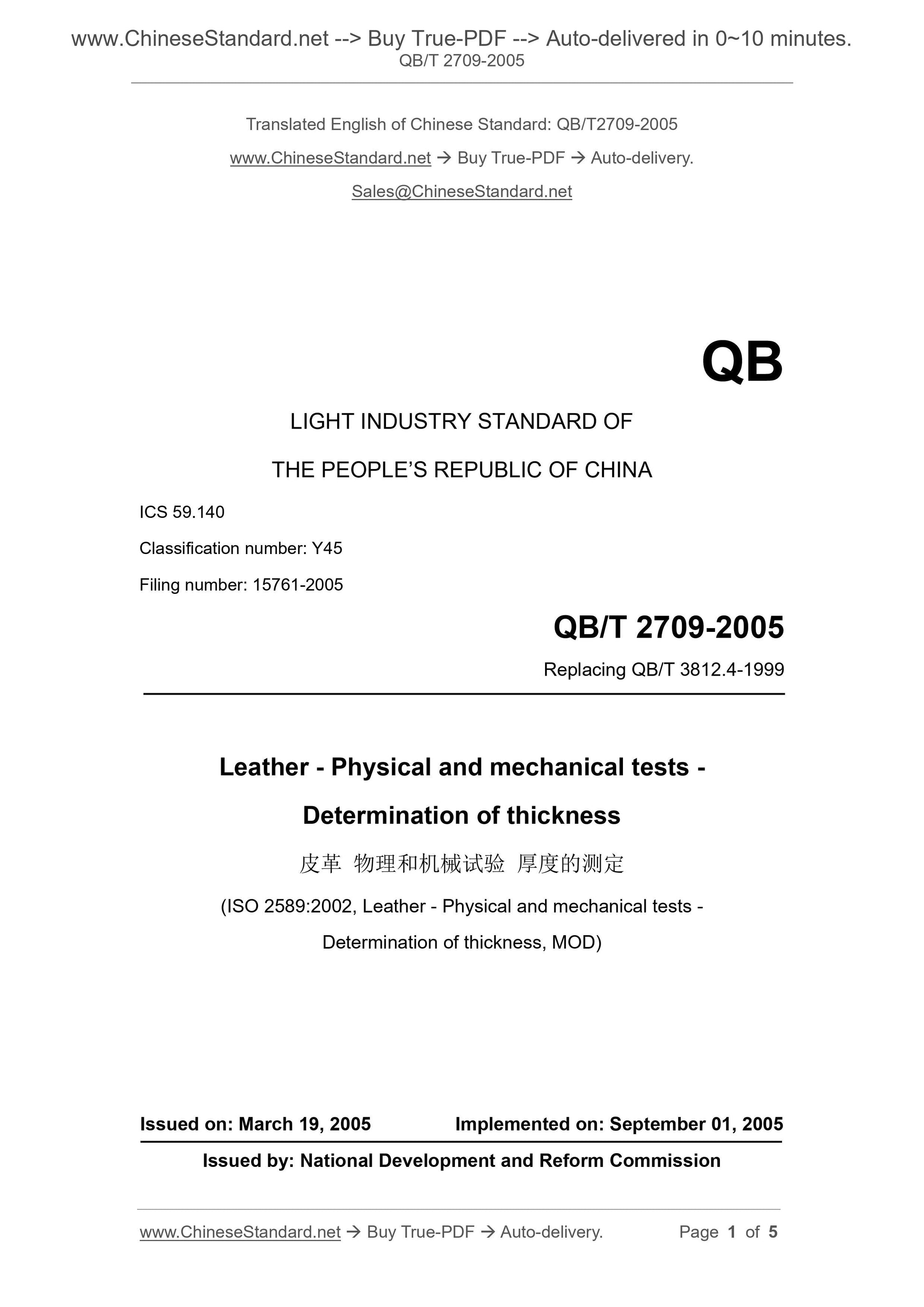

QB/T 2709-2005
LIGHT INDUSTRY STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
ICS 59.140
Classification number. Y45
Filing number. 15761-2005
Replacing QB/T 3812.4-1999
Leather - Physical and mechanical tests -
Determination of thickness
(ISO 2589.2002, Leather - Physical and mechanical tests -
Determination of thickness, MOD)
ISSUED ON. MARCH 19, 2005
IMPLEMENTED ON. SEPTEMBER 01, 2005
Issued by. National Development and Reform Commission

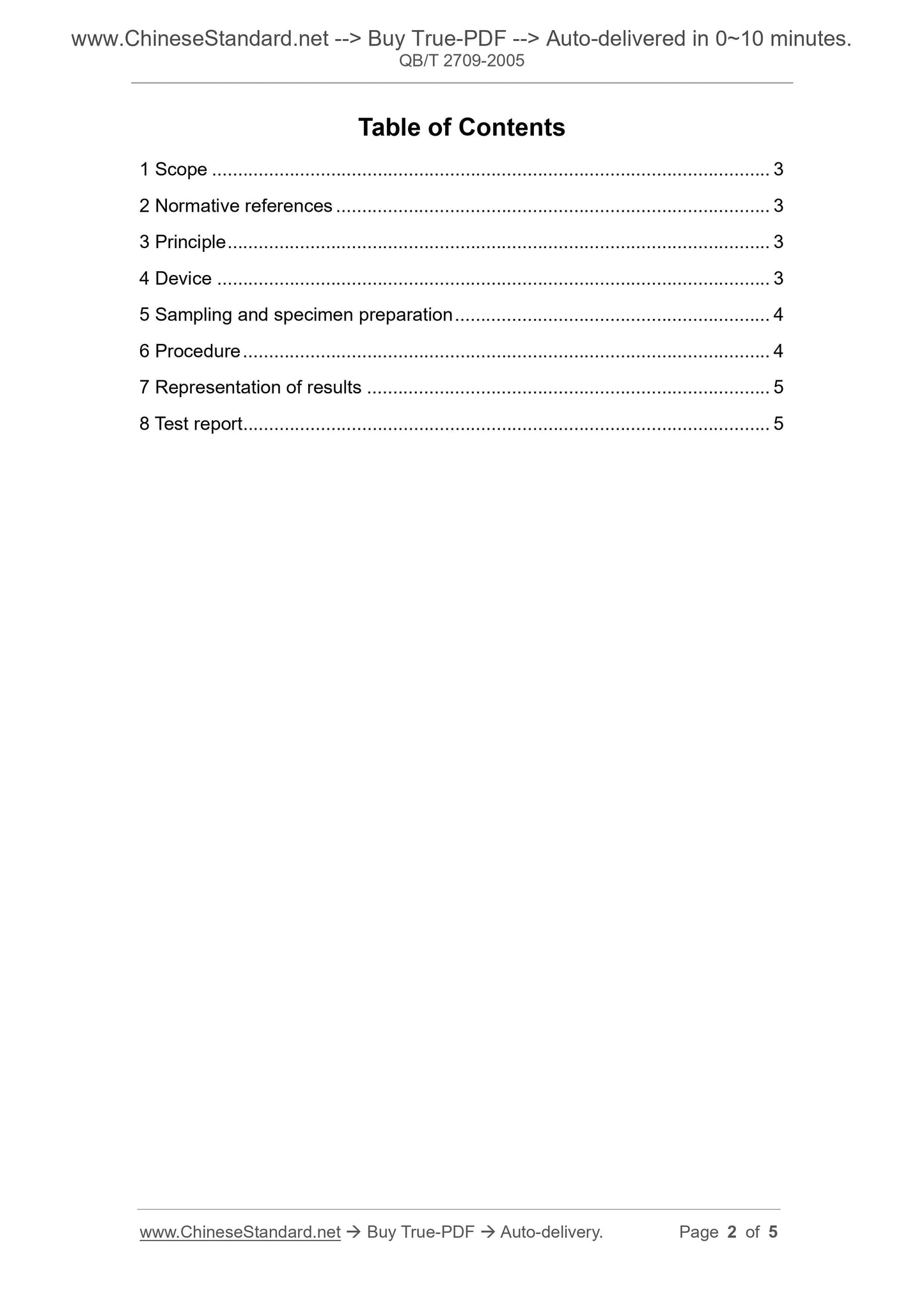

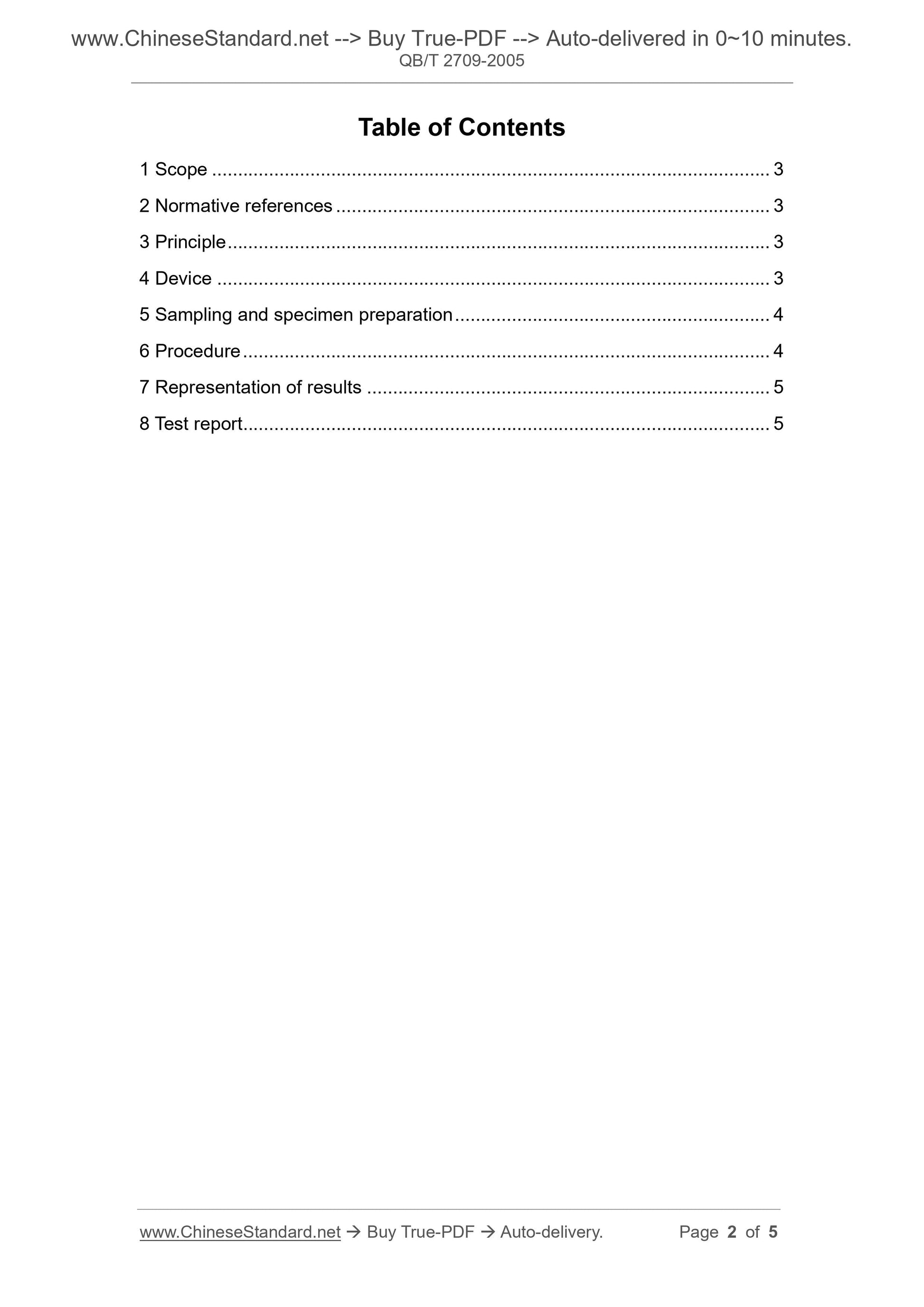

Table of Contents
1 Scope... 3
2 Normative references... 3
3 Principle... 3
4 Device... 3
5 Sampling and specimen preparation... 4
6 Procedure... 4
7 Representation of results... 5
8 Test report... 5

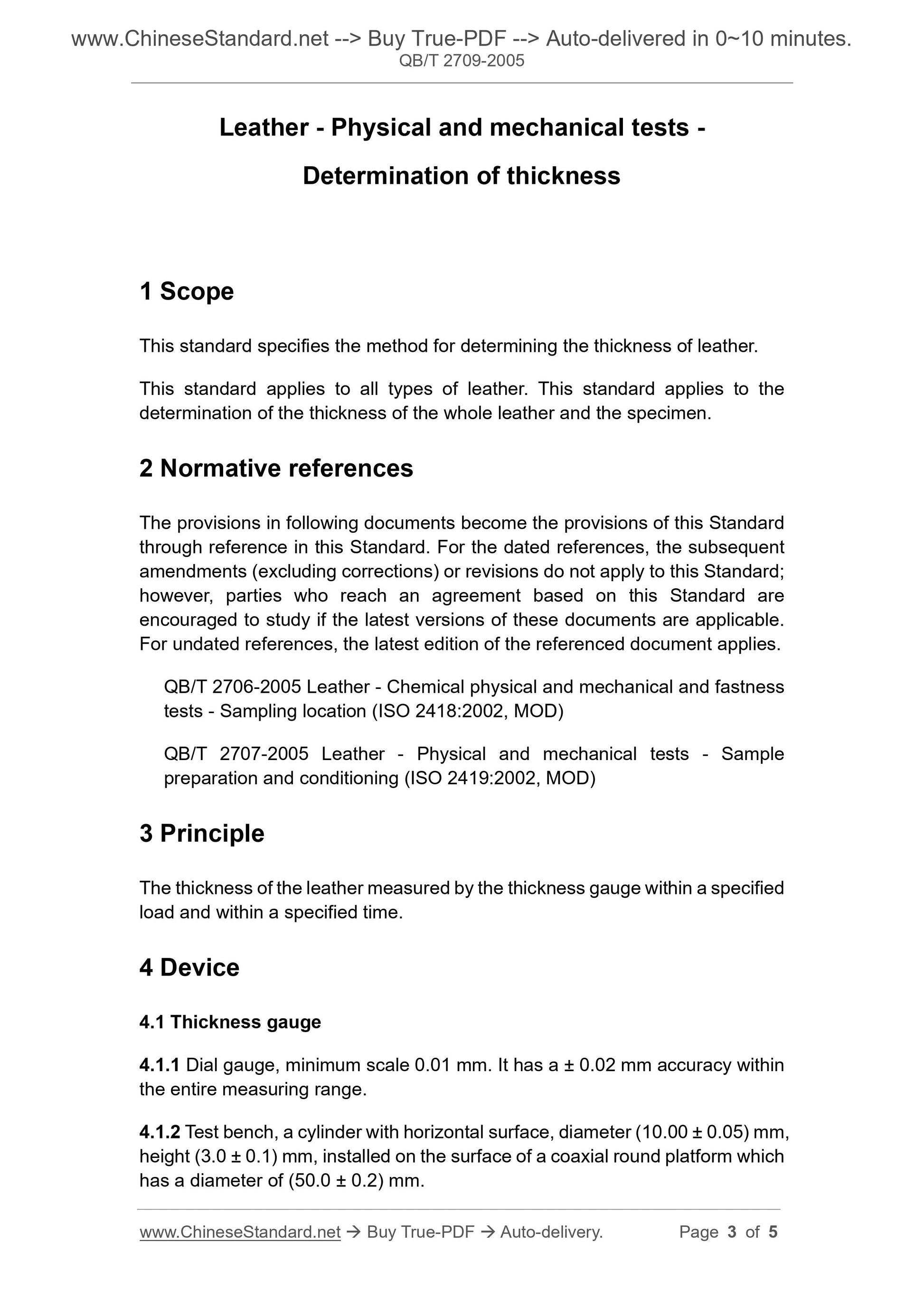

Leather - Physical and mechanical tests -
Determination of thickness
1 Scope
This standard specifies the method for determining the thickness of leather.
This standard applies to all types of leather. This standard applies to the
determination of the thickness of the whole leather and the specimen.
2 Normative references
The provisions in following documents become the provisions of this Standard
through reference in this Standard. For the dated references, the subsequent
amendments (excluding corrections) or revisions do not apply to this Standard;
however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable.
For undated references, the latest edition of the referenced document applies.
QB/T 2706-2005 Leather - Chemical physical and mechanical and fastness
tests - Sampling location (ISO 2418.2002, MOD)
QB/T 2707-2005 Leather - Physical and mechanical tests - Sample
preparation and conditioning (ISO 2419.2002, MOD)
3 Principle
The thickness of the leather measured by the thickness gauge within a specified
load and within a specified time.
4 Device
4.1 Thickness gauge
4.1.1 Dial gauge, minimum scale 0.01 mm. It has a ± 0.02 mm accuracy within
the entire measuring range.
4.1.2 Test bench, a cylinder with horizontal surface, diameter (10.00 ± 0.05) mm,
height (3.0 ± 0.1) mm, installed on the surface of a coaxial round platform which
has a diameter of (50.0 ± 0.2) mm.
