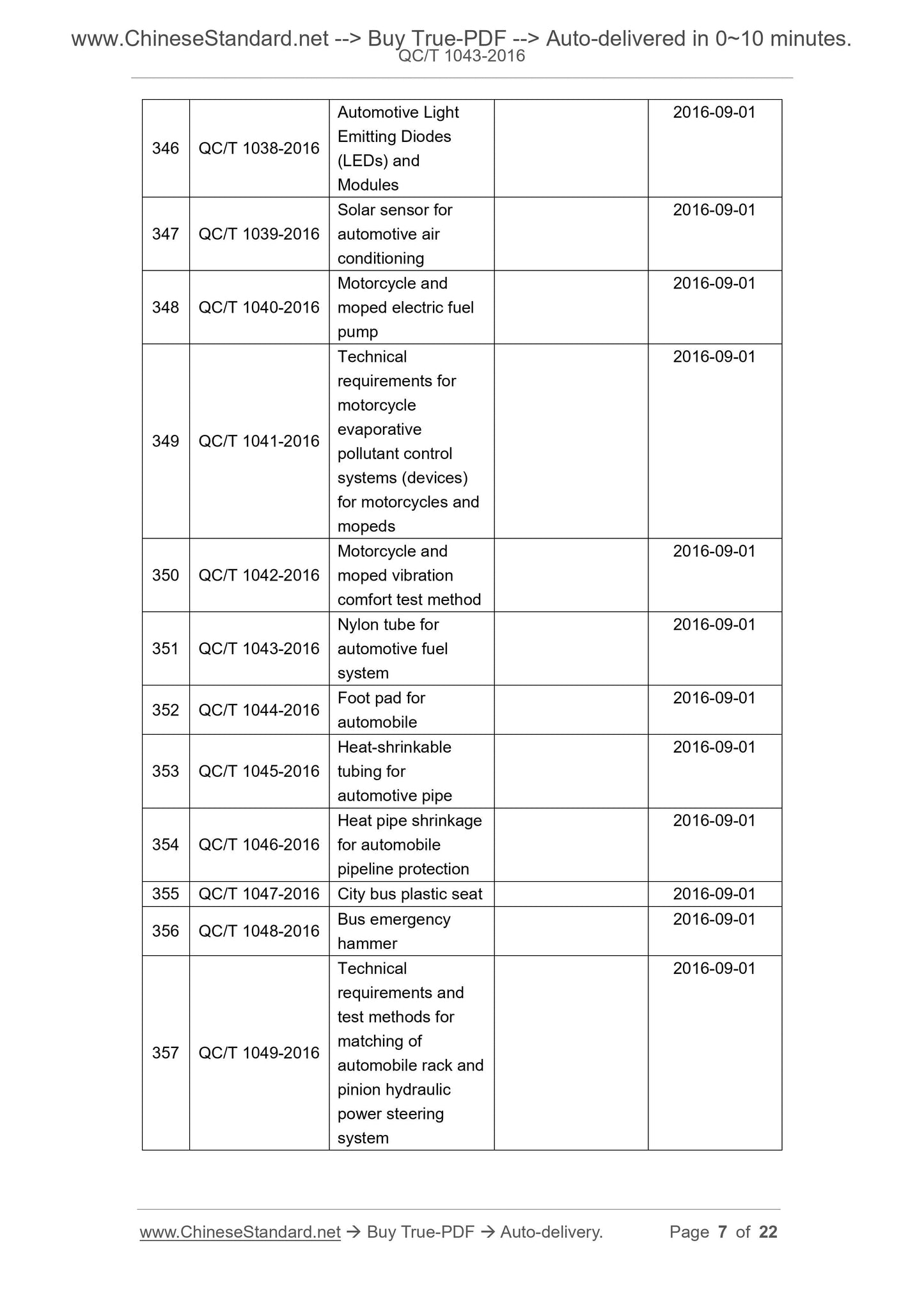

351 QC/T 1043-2016
Nylon tube for
automotive fuel
system
2016-09-01
352 QC/T 1044-2016 Foot pad for automobile
2016-09-01
353 QC/T 1045-2016
Heat-shrinkable
tubing for
automotive pipe
2016-09-01
354 QC/T 1046-2016
Heat pipe shrinkage
for automobile
pipeline protection
2016-09-01
355 QC/T 1047-2016 City bus plastic seat 2016-09-01
356 QC/T 1048-2016 Bus emergency hammer
2016-09-01
357 QC/T 1049-2016
Technical
requirements and
test methods for
matching of
automobile rack and
pinion hydraulic
power steering
system
2016-09-01
Automotive fuel system nylon tube
1 Scope
This standard specifies the requirements such as terms and definitions,
dimensions and tolerances, materials and colors, technical requirements, test
methods, marking, inspection rules, packaging, transportation, storage for
single-layer nylon hose and hose assemblies for automotive fuel systems.
This standard applies to single-layer nylon hose and hose assemblies for
automotive fuel systems.
2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) are applicable to this standard.
GB/T 1033.1-2008 Plastics - Methods for determining the density of non-
cellular plastics - Part 1: Immersion method liquid pyknometer method and
titration method
GB/T 2828.1-2012 Sampling procedures for inspection by attributes - Part 1:
Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot
inspection
GB/T 2918-1998 Plastics - Standard atmospheres for conditioning and
testing
GB/T 6003.1-2012 Test sieves - Technical requirements and testing - Part 1:
Test sieves of metal wire cloth
GB/T 7528-2011 Rubber and plastics hoses and hose assemblies -
Vocabulary
GB/T 19466.3-2004 Plastics - Differential scanning calorimetry (DSC) - Part
3: Determination of temperature and enthalpy of melting and crystallization
QC/T 798-2008 Multi-layers plastic tubing for automotive fuel system
ISO 1874.1:2010 Plastics - Polyamide (PA) moulding and extrusion
materials - Part 1: Designation system and basis for specification

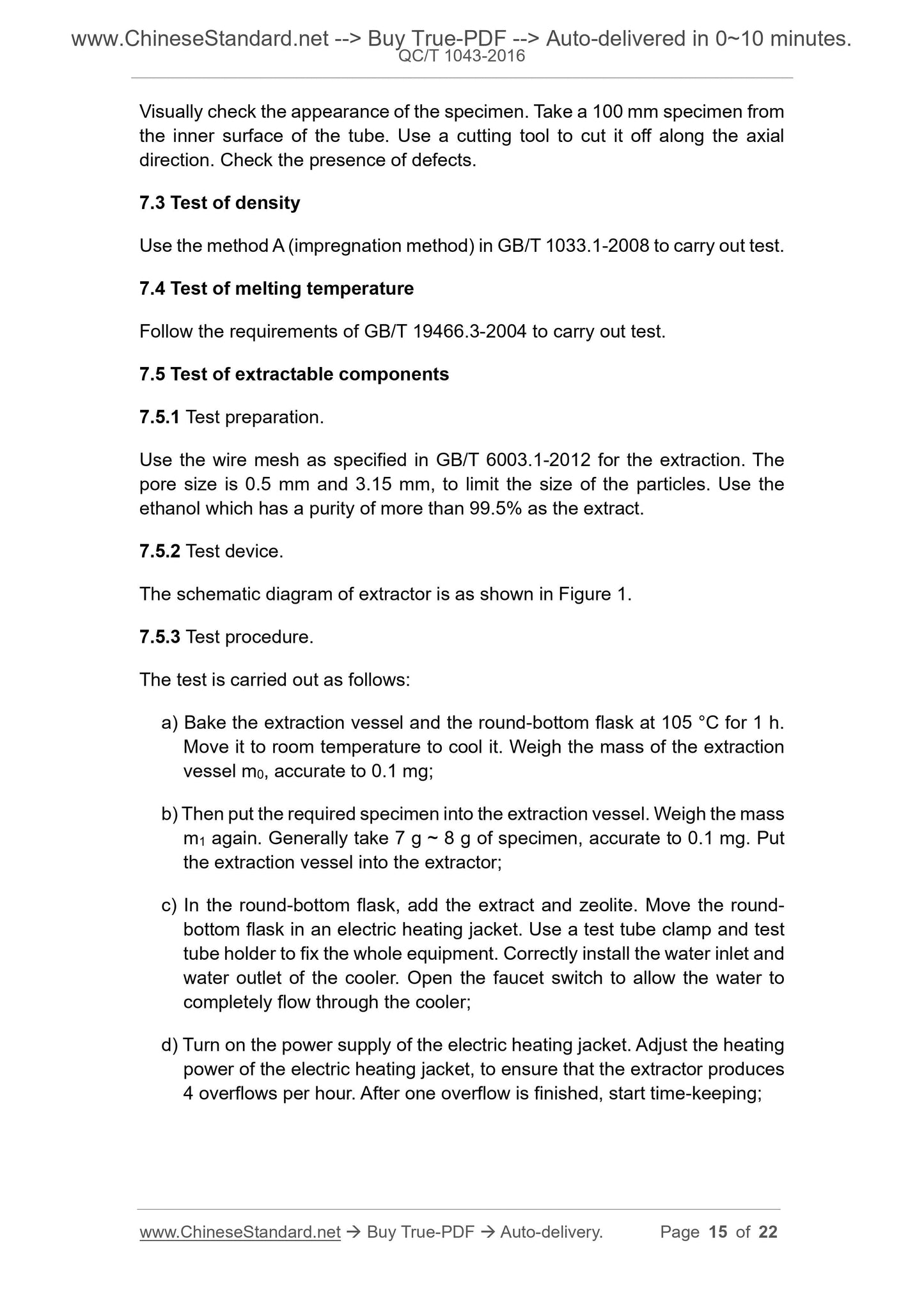

Visually check the appearance of the specimen. Take a 100 mm specimen from
the inner surface of the tube. Use a cutting tool to cut it off along the axial
direction. Check the presence of defects.
7.3 Test of density
Use the method A (impregnation method) in GB/T 1033.1-2008 to carry out test.
7.4 Test of melting temperature
Follow the requirements of GB/T 19466.3-2004 to carry out test.
7.5 Test of extractable components
7.5.1 Test preparation.
Use the wire mesh as specified in GB/T 6003.1-2012 for the extraction. The
pore size is 0.5 mm and 3.15 mm, to limit the size of the particles. Use the
ethanol which has a purity of more than 99.5% as the extract.
7.5.2 Test device.
The schematic diagram of extractor is as shown in Figure 1.
7.5.3 Test procedure.
The test is carried out as follows:
a) Bake the extraction vessel and the round-bottom flask at 105 °C for 1 h.
Move it to room temperature to cool it. Weigh the mass of the extraction
vessel m0, accurate to 0.1 mg;
b) Then put the required specimen into the extraction vessel. Weigh the mass
m1 again. Generally take 7 g ~ 8 g of specimen, accurate to 0.1 mg. Put
the extraction vessel into the extractor;
c) In the round-bottom flask, add the extract and zeolite. Move the round-
bottom flask in an electric heating jacket. Use a test tube clamp and test
tube holder to fix the whole equipment. Correctly install the water inlet and
water outlet of the cooler. Open the faucet switch to allow the water to
completely flow through the cooler;
d) Turn on the power supply of the electric heating jacket. Adjust the heating
power of the electric heating jacket, to ensure that the extractor produces
4 overflows per hour. After one overflow is finished, start time-keeping;

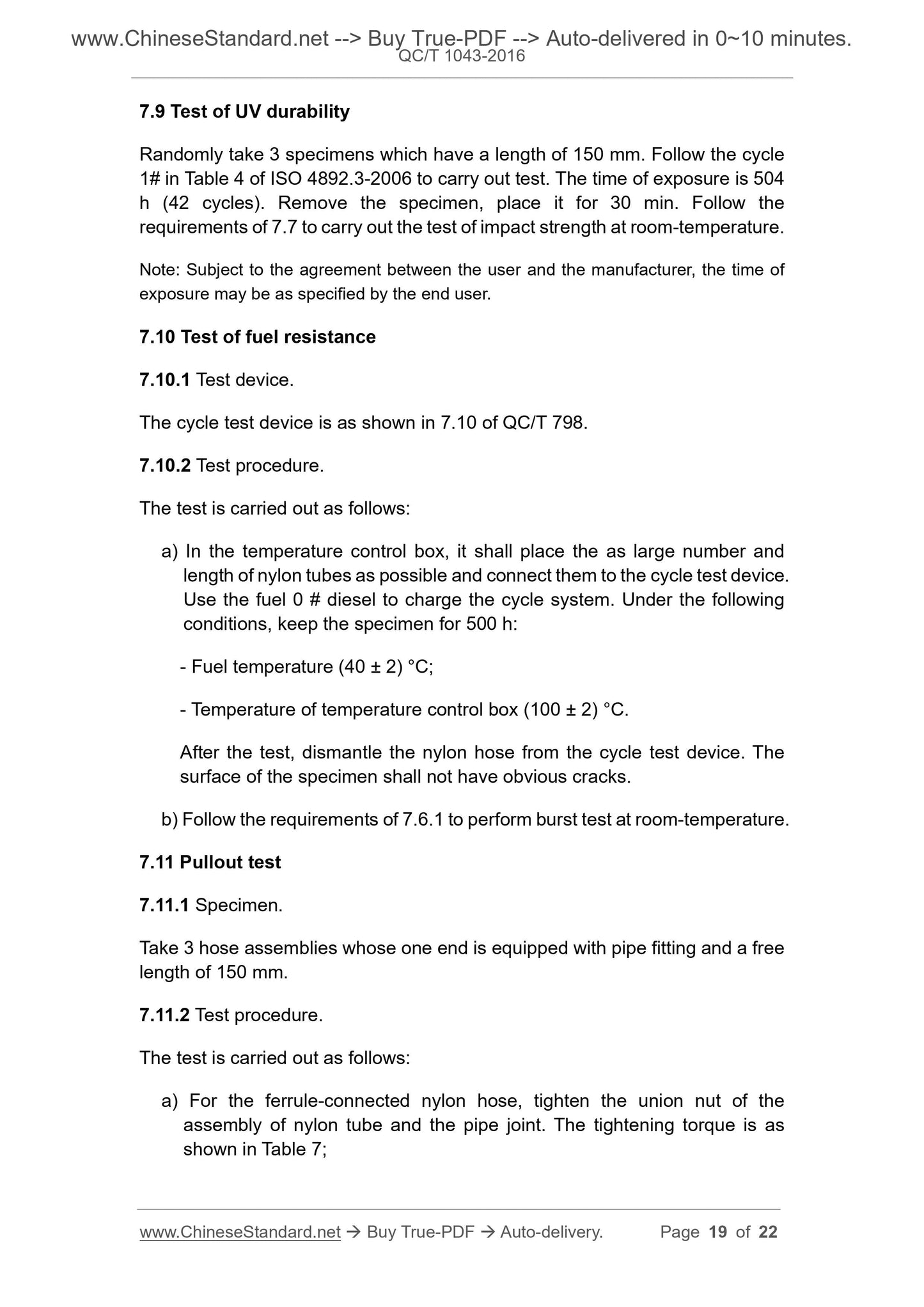

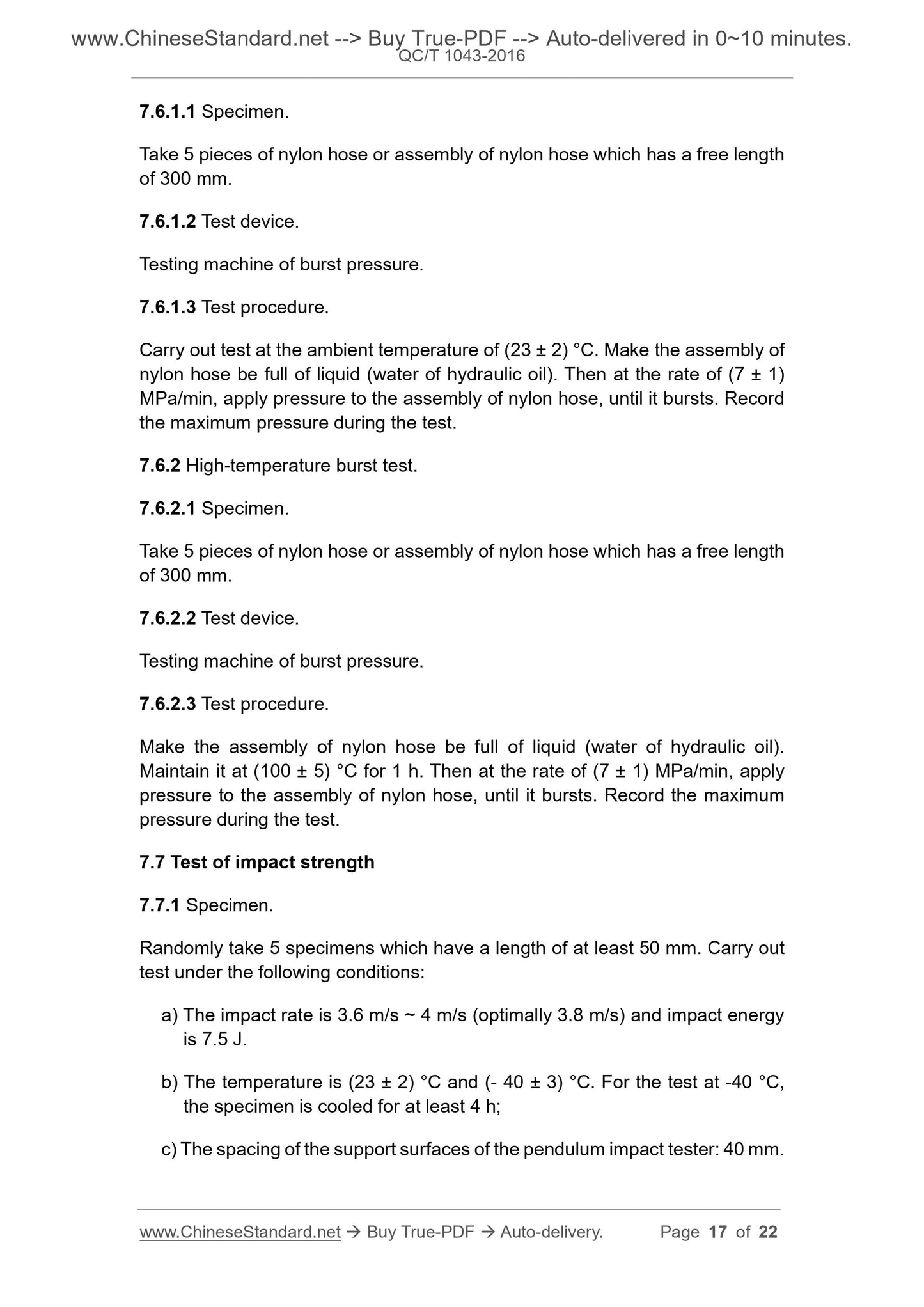

7.6.1.1 Specimen.
Take 5 pieces of nylon hose or assembly of nylon hose which has a free length
of 300 mm.
7.6.1.2 Test device.
Testing machine of burst pressure.
7.6.1.3 Test procedure.
Carry out test at the ambient temperature of (23 ± 2) °C. Make the assembly of
nylon hose be full of liquid (water of hydraulic oil). Then at the rate o...
