YD/T 3909-2021: Vehicle emergency call system based on public telecommunication network - Requirements and architecture

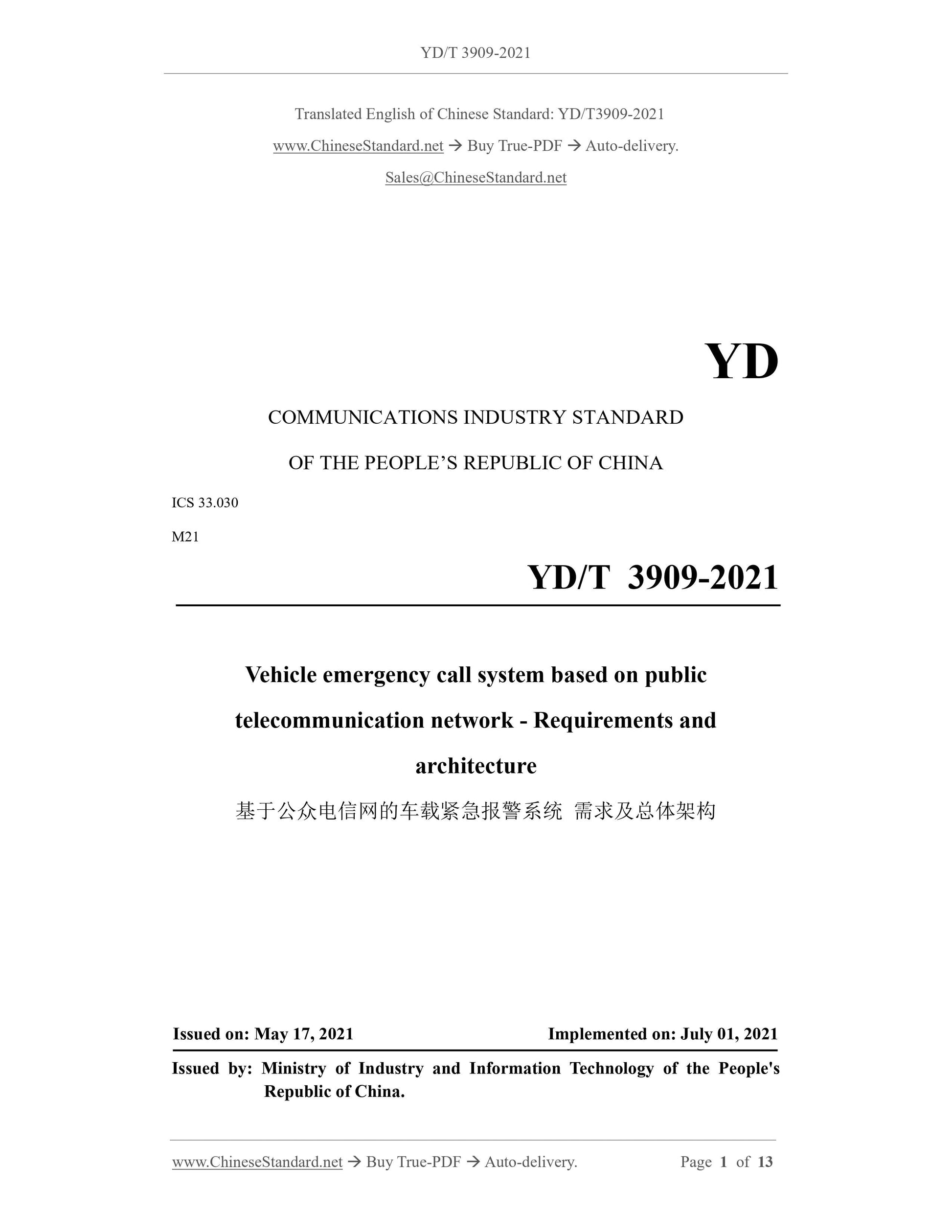

YD/T 3909-2021
YD
COMMUNICATIONS INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 33.030
M21
Vehicle emergency call system based on public
telecommunication network - Requirements and
architecture
ISSUED ON: MAY 17, 2021
IMPLEMENTED ON: JULY 01, 2021
Issued by: Ministry of Industry and Information Technology of the People's
Republic of China.

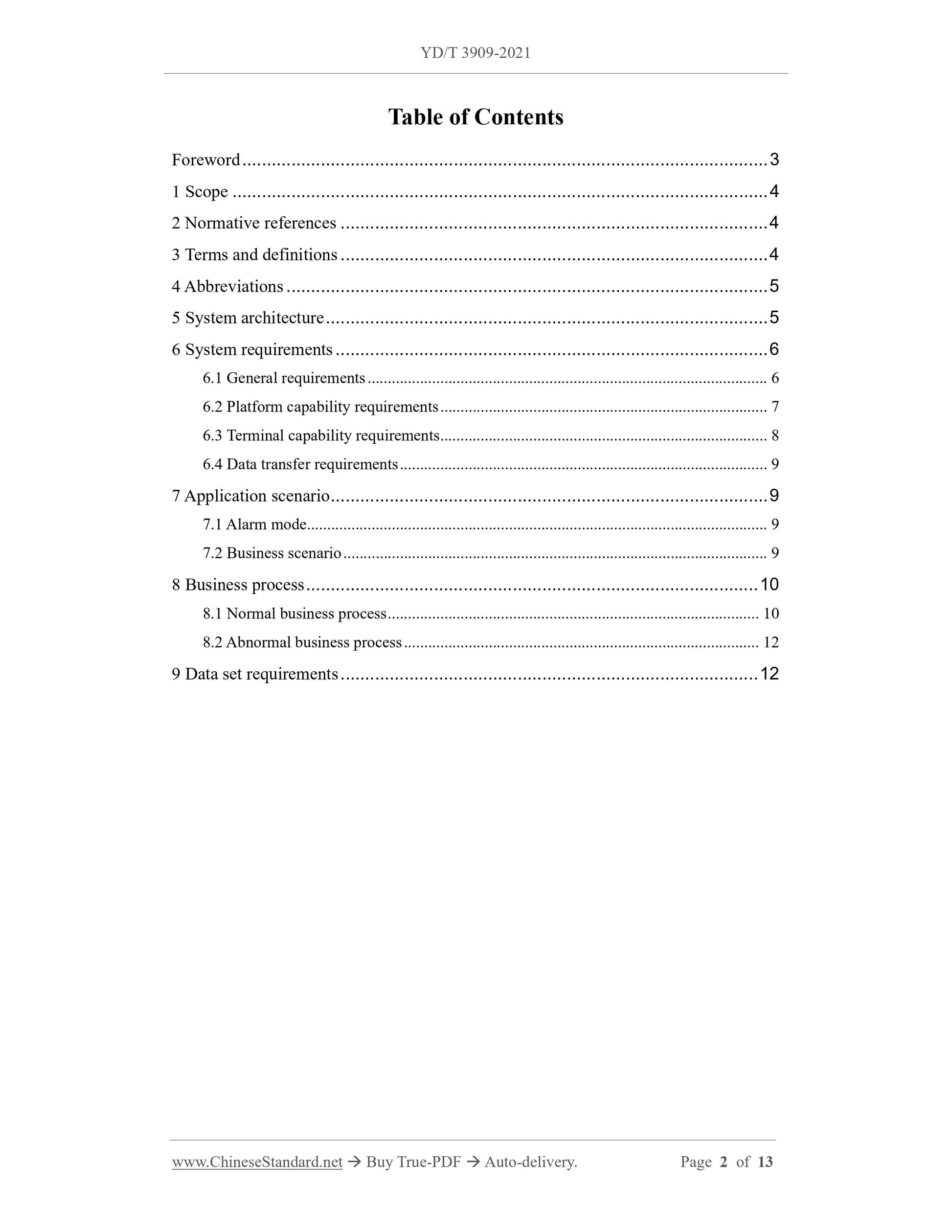

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Abbreviations ... 5
5 System architecture ... 5
6 System requirements ... 6
6.1 General requirements ... 6
6.2 Platform capability requirements ... 7
6.3 Terminal capability requirements ... 8
6.4 Data transfer requirements ... 9
7 Application scenario ... 9
7.1 Alarm mode ... 9
7.2 Business scenario ... 9
8 Business process ... 10
8.1 Normal business process ... 10
8.2 Abnormal business process ... 12
9 Data set requirements ... 12
Vehicle emergency call system based on public
telecommunication network - Requirements and
architecture

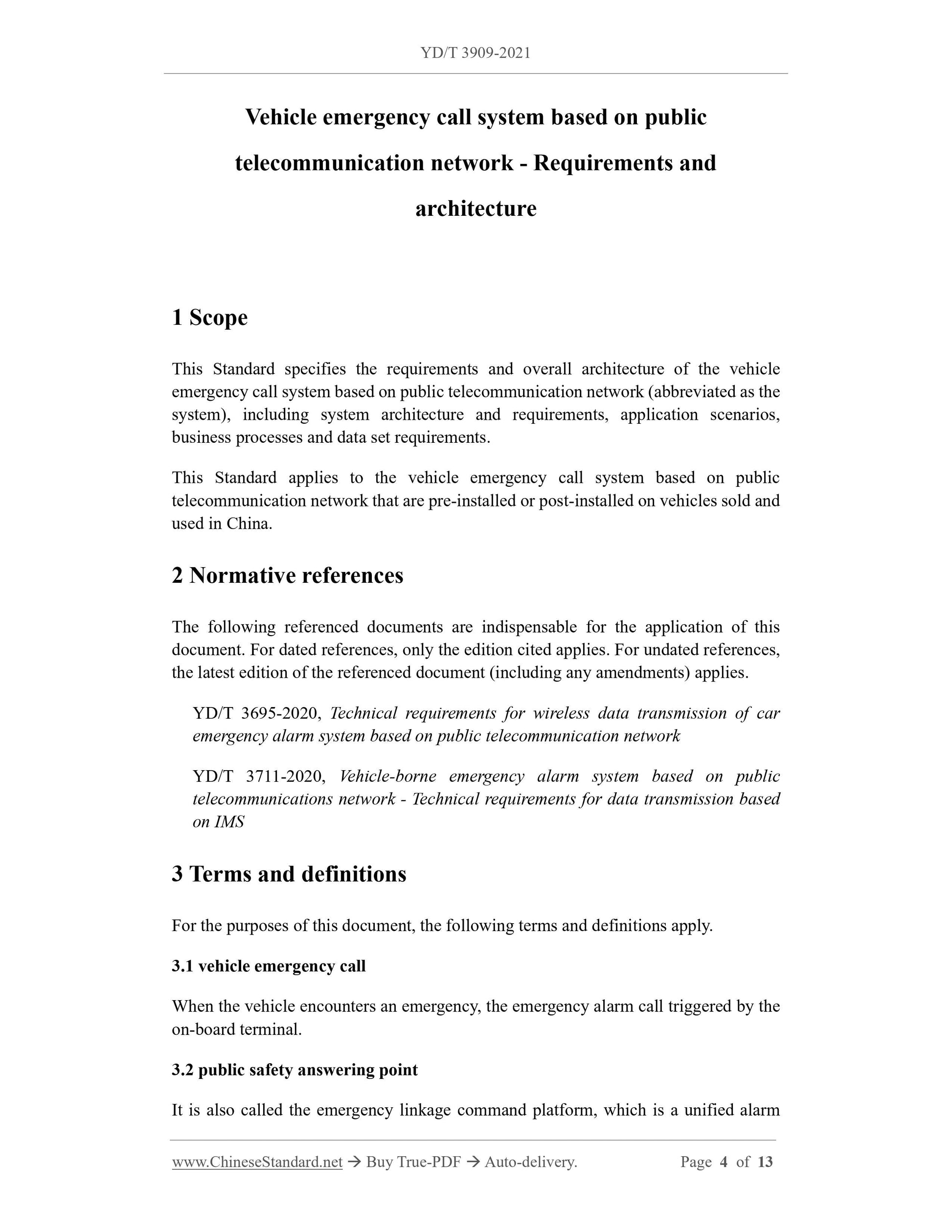

1 Scope
This Standard specifies the requirements and overall architecture of the vehicle
emergency call system based on public telecommunication network (abbreviated as the
system), including system architecture and requirements, application scenarios,
business processes and data set requirements.
This Standard applies to the vehicle emergency call system based on public
telecommunication network that are pre-installed or post-installed on vehicles sold and
used in China.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
YD/T 3695-2020, Technical requirements for wireless data transmission of car
emergency alarm system based on public telecommunication network
YD/T 3711-2020, Vehicle-borne emergency alarm system based on public
telecommunications network - Technical requirements for data transmission based
on IMS
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1 vehicle emergency call
When the vehicle encounters an emergency, the emergency alarm call triggered by the
on-board terminal.
3.2 public safety answering point
It is also called the emergency linkage command platform, which is a unified alarm
provided by the roaming area.

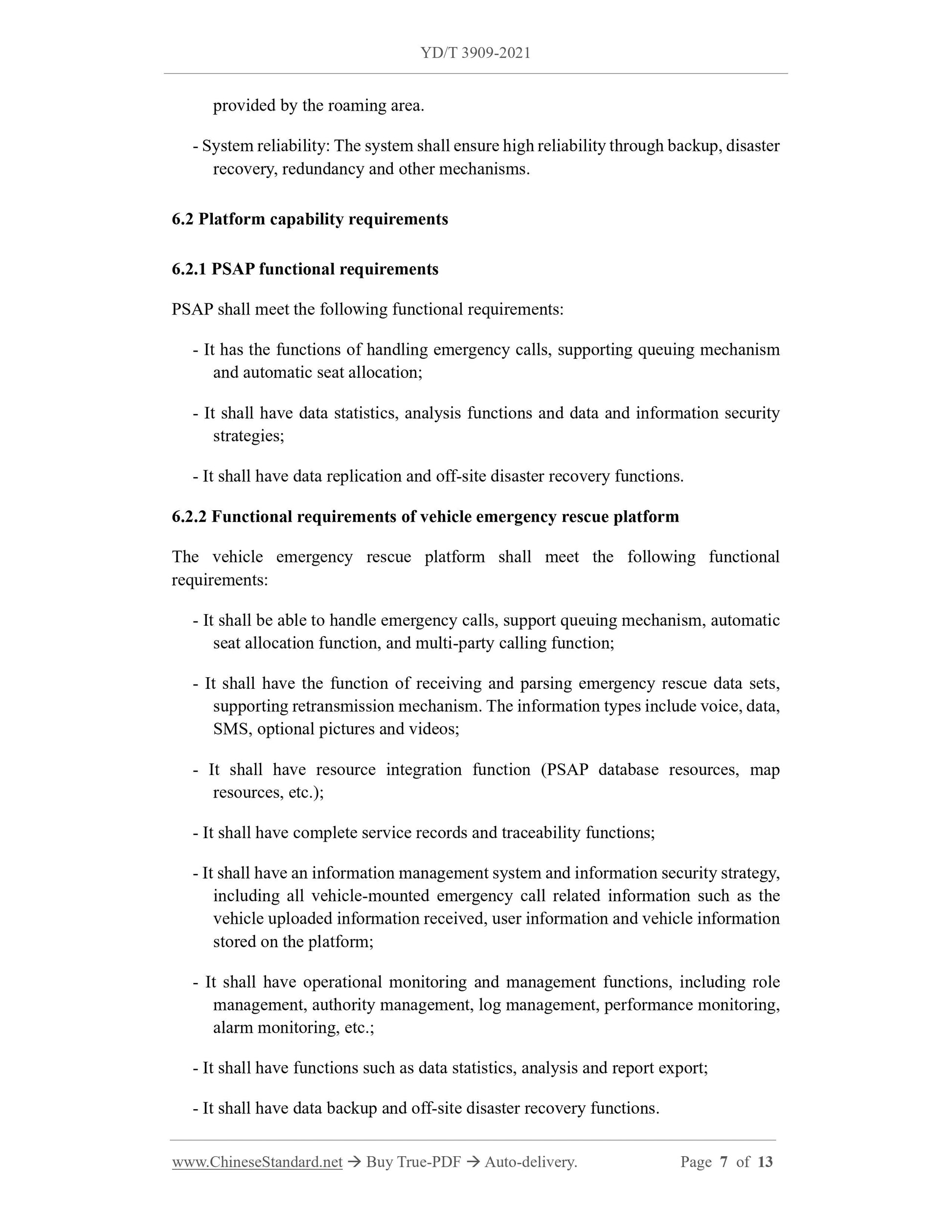

- System reliability: The system shall ensure high reliability through backup, disaster
recovery, redundancy and other mechanisms.
6.2 Platform capability requirements
6.2.1 PSAP functional requirements
PSAP shall meet the following functional requirements:
- It has the functions of handling emergency calls, supporting queuing mechanism
and automatic seat allocation;
- It shall have data statistics, analysis functions and data and information security
strategies;
- It shall have data replication and off-site disaster recovery functions.
6.2.2 Functional requirements of vehicle emergency rescue platform
The vehicle emergency rescue platform shall meet the following functional
requirements:
- It shall be able to handle emergency calls, support queuing mechanism, automatic
seat allocation function, and multi-party calling function;
- It shall have the function of receiving and parsing emergency rescue data sets,
supporting retransmission mechanism. The information types include voice, data,
SMS, optional pictures and videos;
- It shall have resource integration function (PSAP database resources, map
resources, etc.);
- It shall have complete service records and traceability functions;
- It shall have an information management system and information security strategy,
including all vehicle-mounted emergency call related information such as the
vehicle uploaded information received, user information and vehicle information
stored on the platform;
- It shall have operational monitoring and management functions, including role
management, authority management, log management, performance monitoring,
alarm monitoring, etc.;
- It shall have functions such as data statistics, analysis and report export;
- It shall have data backup and off-site disaster recovery functions.

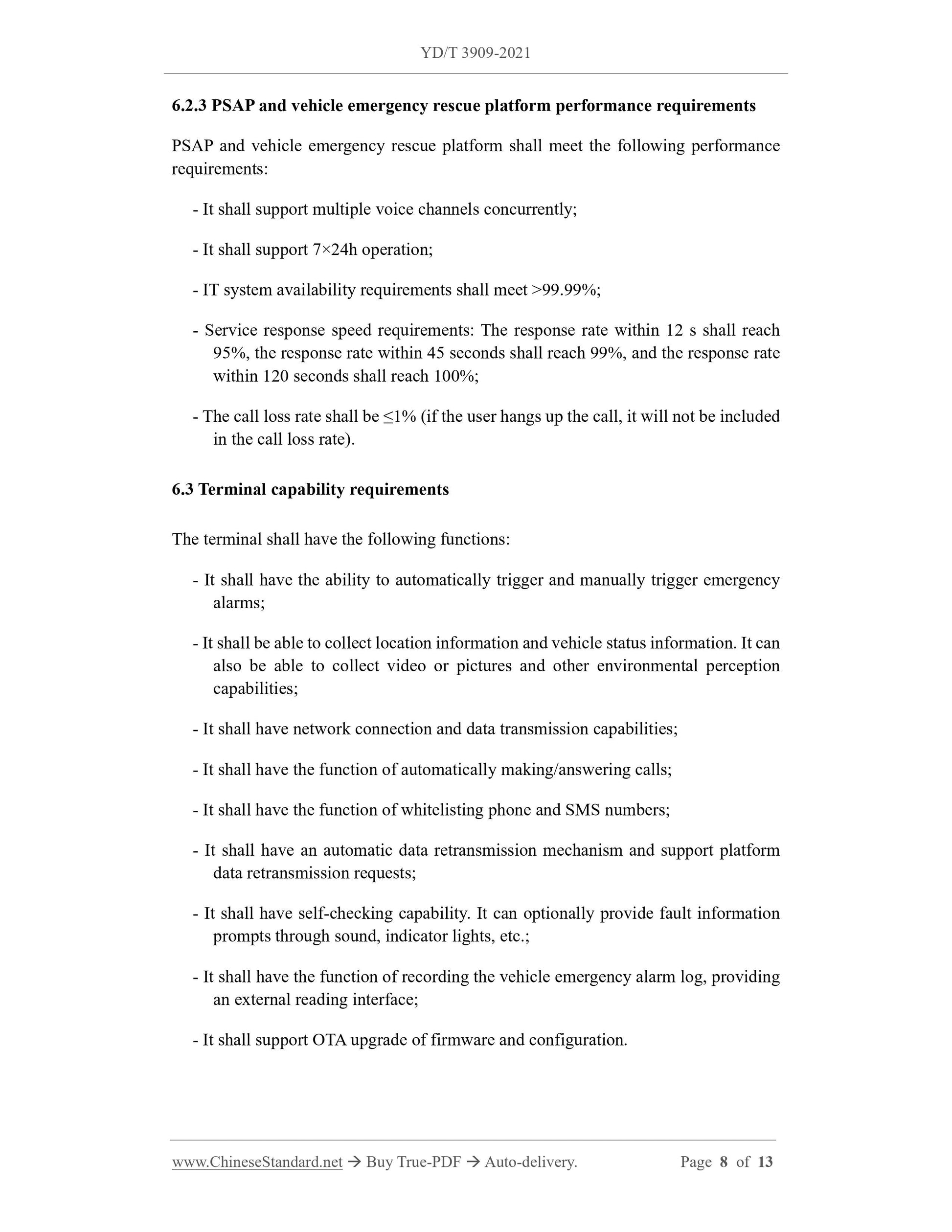

6.2.3 PSAP and vehicle emergency rescue platform performance requirements
PSAP and vehicle emergency rescue platform shall meet the following performance
requirements:
- It shall support multiple voice channels concurrently;
- It shall support 7×24h operation;
- IT system availability requirements shall meet >99.99%;
- Service response speed requirements: The response rate within 12 s shall reach
95%, the response rate within 45 seconds shall reach 99%, and the response rate
within 120 seconds shall reach 100%;
- The call loss rate shall be ≤1% (if the user hangs up the call, it will not be included
in the call loss rate).
6.3 Terminal capability requirements
The terminal shall have the following functions:
- It shall have the ability to automatically trigger and manually trigger emergency
alarms;
- It shall be able to collect location information and vehicle status information. It can
also be able to collect video or pictures and other environmental perception
capabilities;
- It shall have network connection and data transmission capabilities;
- It shall have the function of automatically making/answering calls;
- It shall have the function of whitelisting phone and SMS numbers;
- It shall have an automatic data retransmission mechanism and support platform
data retransmission requests;
- It shall have self-checking capability. It can optionally provide fault information
prompts through sound, indicator lights, etc.;
- It shall have the function of recording the vehicle emergency alarm log, providing
an external reading interface;
- It shall support OTA upgrade of firmware and configuration.

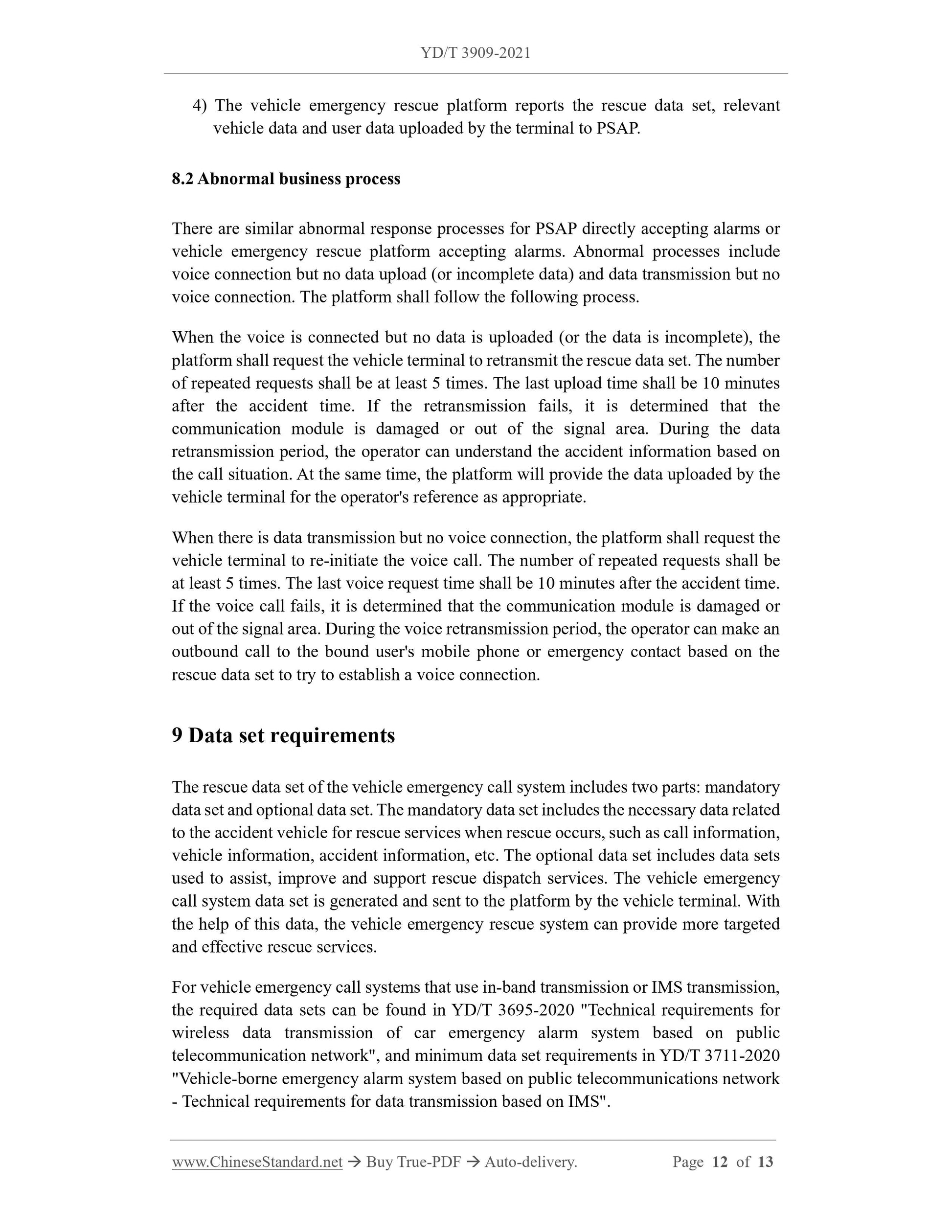

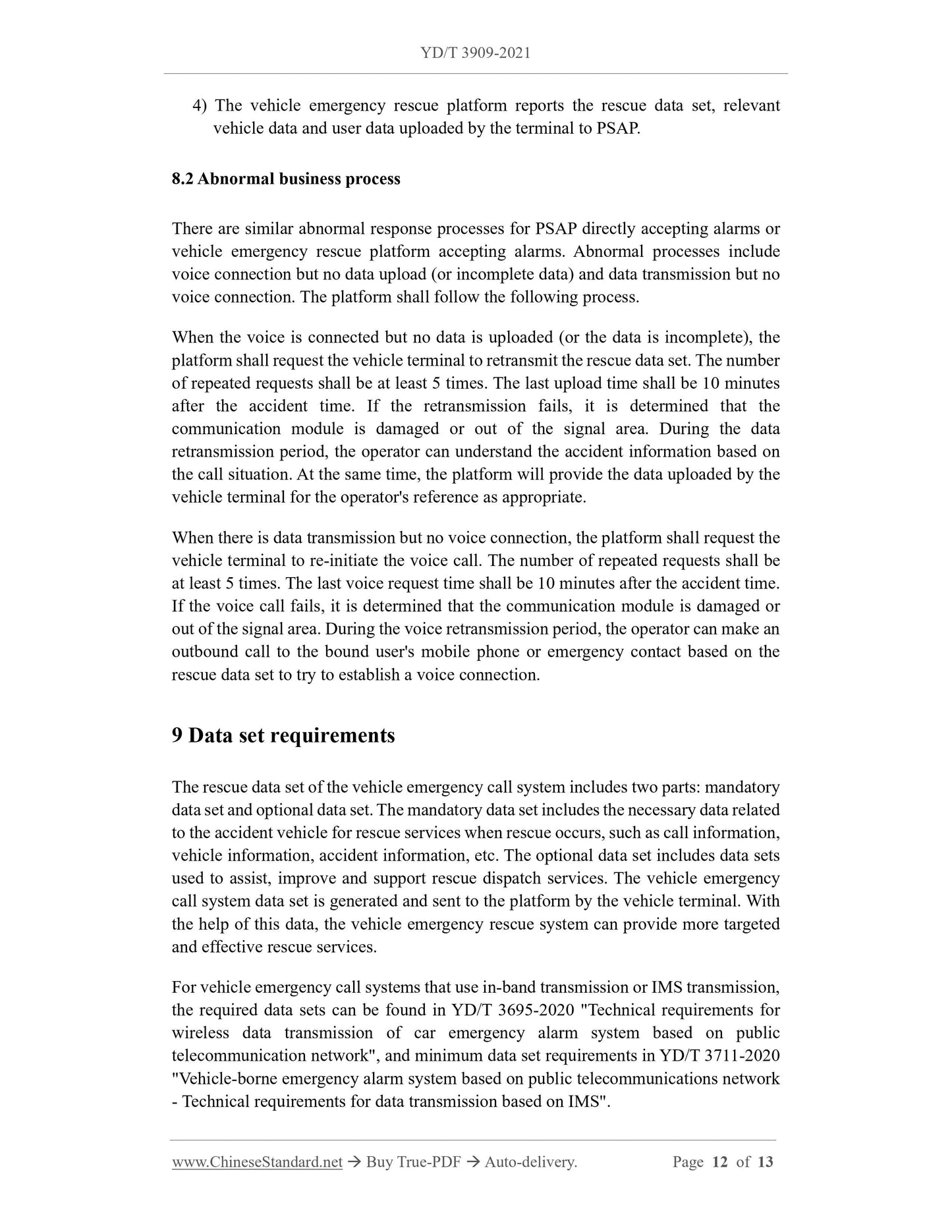

4) The vehicle emergency rescue platform reports the rescue data set, relevant
vehicle data and user data uploaded by the terminal to PSAP.
8.2 Abnormal business process
There are similar abnormal response processes for PSAP directly accepting alarms or
vehicle emergency rescue platform accepting alarms. Abnormal processes include
voice connection but no data upload (or incomplete data) and data transmission but no
voice connection. The platform shall follow the following process.
When the voice is connected but no data is uploaded (or the data is incomplete), the
platform shall request the vehicle terminal to retransmit the rescue data set. The number
of repeated requests shall be at least 5 times. The last upload time shall be 10 minutes
after the accident time. If the retransmission fails, it is determined that the
communication module is damaged or out of the signal area. During the data
retransmission period, the operator can understand the accident information based on
the call situation. At the same time, the platform will provide the data uploaded by the
vehicle terminal for the operator's reference as appropriate.
When there is data transmission but no voice connection, the platform shall request the
vehicle terminal to re-initiate the voice call. The number of repeated requests shall be
at least 5 times. The last voice request time shall be 10 minutes after the accident time.
If the voice call fails, it is determined that the communication modu...
