YY/T 0497-2018: Sterile insulin syringe for single use

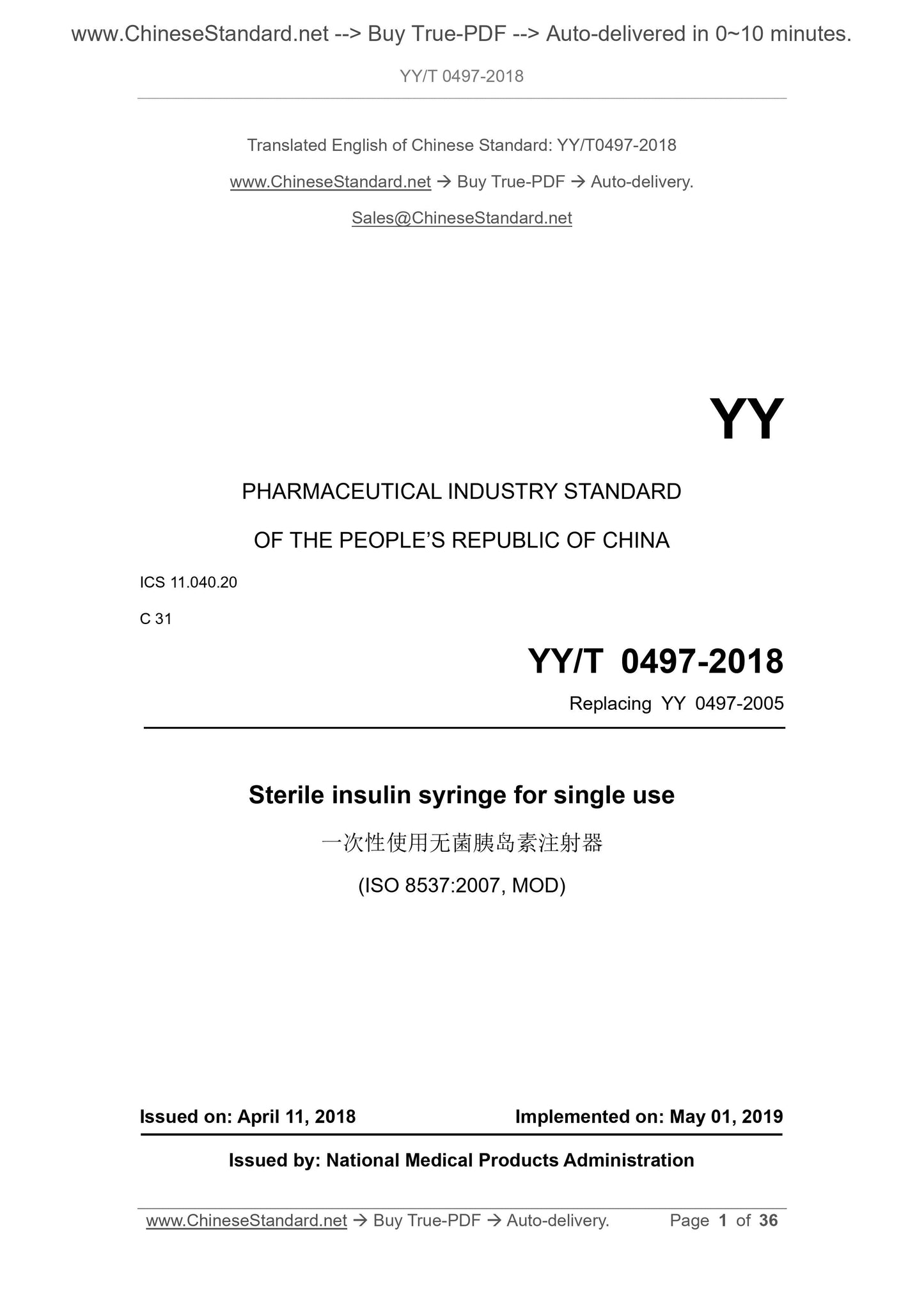

YY/T 0497-2018
Sterile insulin syringe for single use
ICS 11.040.20
C31
People's Republic of China Pharmaceutical Industry Standard
Replacing YY 0497-2005
Sterile insulin syringe for single use
(ISO 8537.2007, MOD)
2018-04-11 released
2019-05-01 Implementation
Issued by the State Drug Administration

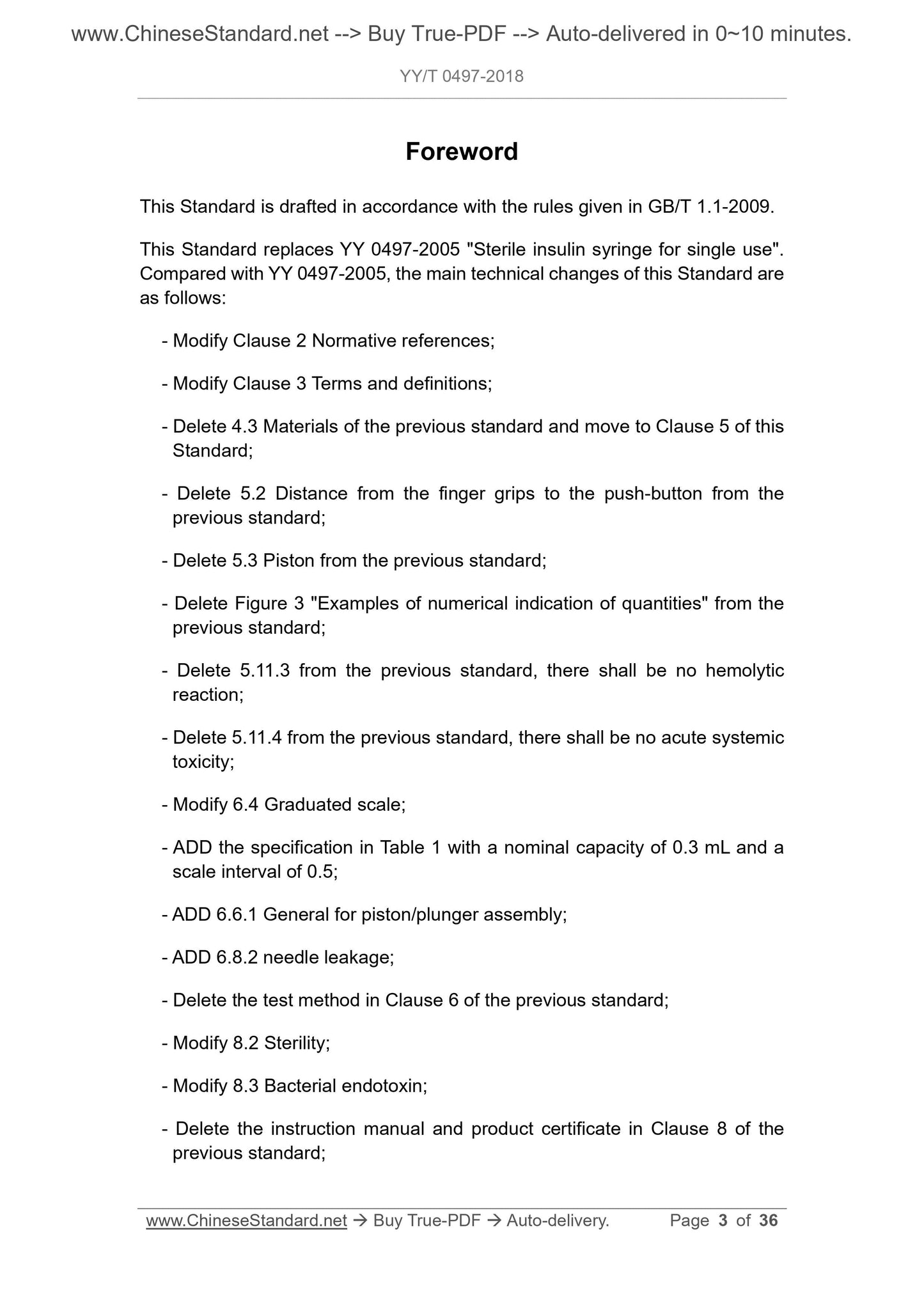

Preface
This standard was drafted in accordance with the rules given in GB/T 1.1-2009.
This standard replaces YY 0497-2005 "Sterile Insulin Syringe for Single Use", compared with YY 0497-2005, mainly
The technical changes are as follows.
---Modified the normative references in Chapter 2;
---Modified Chapter 3 terms and definitions;
--- Deleted 4.3 materials in the original standard and moved to Chapter 5 of this standard;
--- Deleted the distance from 5.2 coat curling to hand pressing in the original standard;
--- Deleted the 5.3 piston in the original standard;
--- Deleted Figure 3 "Example of quantity value indication" in the original standard;
--- Deleted 5.11.3 in the original standard, there should be no hemolytic reaction;
--- Deleted 5.11.4 in the original standard should have no acute systemic toxicity.
---Modified the 6.4 scale ruler;
---Added the specifications in Table 1 with a nominal capacity of 0.3mL and a scale interval of 0.5;
---Added 6.6.1 general rules of piston/core rod assembly;
--- Added 6.8.2 needle leakage;
--- Deleted Chapter 6 test methods in the original standard;
---Modified 8.2 aseptic;
---Modified 8.3 bacterial endotoxin;
--- Deleted the instruction manual and product certificate in Chapter 8 of the original standard;
---Added in 9.1 "Type 1, Type 3, Type 5 and Type 7 use dialysis paper on one side and plastic material on the other side
Claim";
--- Deleted the "license number required by regulations", "sterilization method, sterilization validity period, sterilization certificate" in Chapter 8 of the original standard;
---Adjusted Appendix A in the original standard to Appendix B and made modifications;
--- Added Appendix A "Test Method for Force Required to Operate Core Rod";
---Adjusted Appendix B in the original standard to Appendix G and modified the preparation method of easy oxides;
---Adjust and modify Appendix C in the original standard to Appendix D;
--- Deleted Appendix D of the original standard;
--- Deleted Appendix E of the original standard;
--- Added Appendix E "Test Method for Air Leakage at the Connection of Syringe Cone/Needle Seat or Needle/Jacket under Negative Pressure";
---Adjusted Appendix F in the original standard to Appendix I and modified it;
---Added Appendix F "Test Method for Air Leakage at Piston when Syringe Pumping Negative Pressure";
---Adjusted Appendix G in the original standard to Appendix J and modified it;
--- Deleted Appendix H in the original standard;
--- Added Appendix H "Test Method for Residual Ethylene Oxide";
This standard uses the redrafting method to modify and adopt ISO 8537.2007 "Single-use sterile insulin syringes with or without needles".
The technical differences between this standard and ISO 8537.2007 and the reasons are as follows.
---Regarding normative reference documents, this standard has made adjustments with technical differences to adapt to my country's technical conditions and adjustments.
The situation is specifically reflected in Chapter 2 "Normative Reference Documents", and the specific adjustments are as follows.
● Replace ISO 9626 (see 6.8.2) with GB/T 18457 modified to adopt international standards;
● Replace ISO 594-1 (see 6.7.1) with GB/T 1962.1 which is equivalent to adopting international standards;
● Replace ISO 7864 with the non-equivalent international standard GB 15811 (see 6.8.1, 6.8.2);
● Added reference to GB 15810 (see 6.4.1.2);
● Added reference to GB/T 6682 (see 7.4);
● Added reference to GB/T 14233.2 (see 8.2);
● Added reference to GB 18278.1 (see 8.2);
● Added reference to GB 18279.1 (see 8.2);
● Added reference to GB 18280.1 (see 8.2);
● Added reference to YY/T 0466.1 (10.3.4).
---Added "Chapter 5 Materials" to standardize material requirements;
---Added in 6.4.2 for 1.0mL and 2.0mL syringes, numbers can be marked on the 5-unit scale capacity line
Requirements;
---Modified the requirement of "extractable metal content";
---Added "7.3 Easy Oxidation";
--- Added "7.4 Residual Ethylene Oxide";
---Added "Chapter 8 Biological Properties" to standardize the biological requirements of products;
---Added 9.1 "Type 1, Type 3, Type 5 and Type 7 packaging materials with dialysis paper on one side and plastic material on the other side";
---Modified the packaging requirements;
---Modified the requirements of the logo;
---Modify Appendix A in ISO 8537.2007 and move it to Appendix G of this standard;
--- Move Appendix B of ISO 8537.2007 to Appendix F of this standard;
--- Move Appendix C of ISO 8537.2007 to Appendix A of this standard;
---Modify Appendix D in ISO 8537.2007 and move it to Appendix B of this standard;
--- Move Appendix E in ISO 8537.2007 to Appendix C of this standard;
--- Move Appendix F in ISO 8537.2007 to Appendix D of this standard;
--- Move Appendix G of ISO 8537.2007 to Appendix E of this standard;
--- Deleted Appendix H in ISO 8537.2007;
--- Move Appendix I of ISO 8537.2007 to Appendix J of this standard;

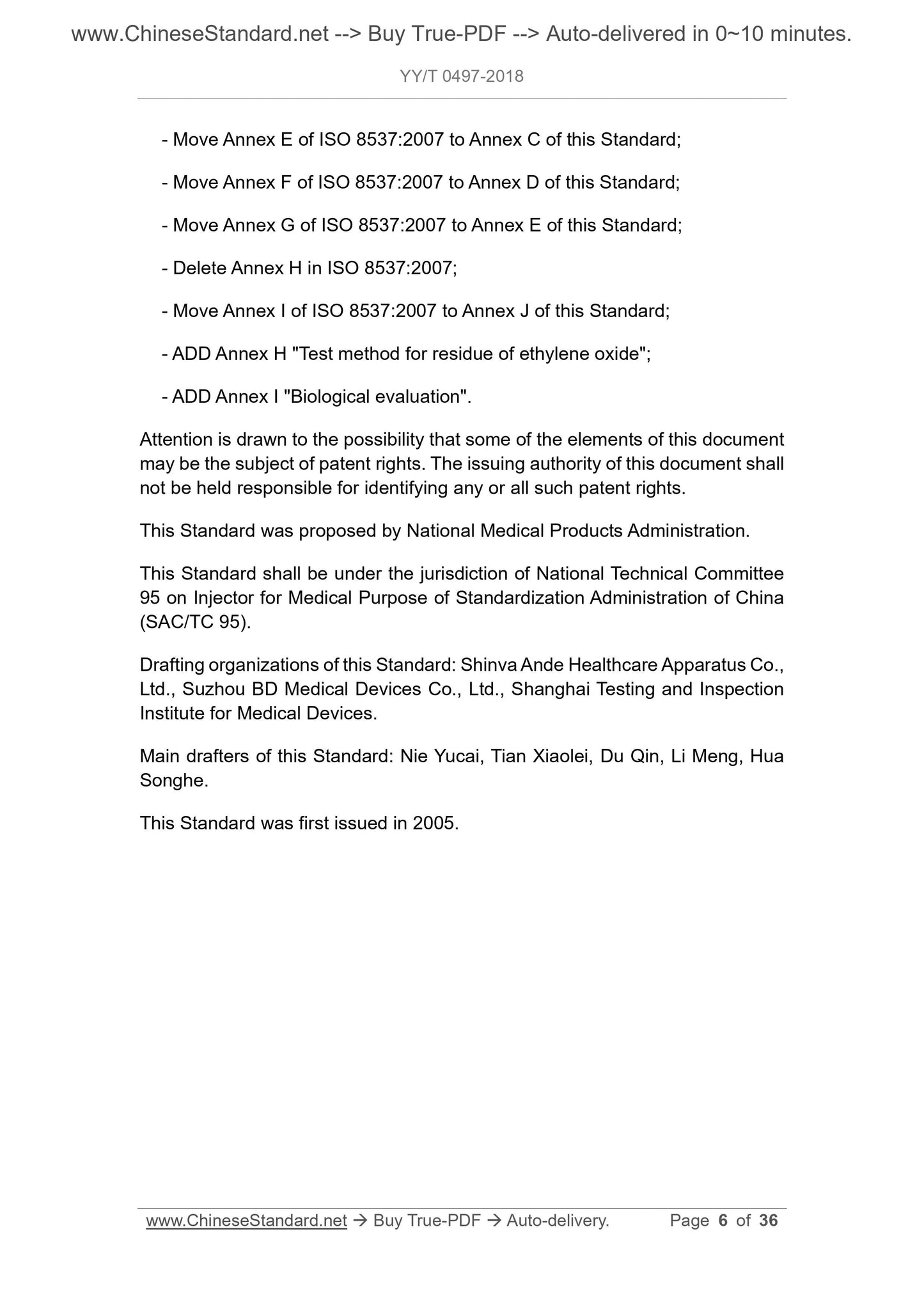

---Added Appendix H "Methods for Detection of Residual Ethylene Oxide";
---Added Appendix I "Biological Evaluation";
Please note that certain contents of this document may involve patents. The issuing agency of this document is not responsible for identifying these patents.
This standard was proposed by the State Drug Administration.
This standard is under the jurisdiction of the National Medical Syringe (Needle) Standardization Technical Committee (SAC/TC95).
Drafting organizations of this standard. Shandong Xinhua Ande Medical Products Co., Ltd., Suzhou Bidi Medical Devices Co., Ltd., Shanghai Medical Devices
Testing institute.
The main drafters of this standard. Nie Yucai, Tian Xiaolei, Du Qin, Li Meng, Hua Songhe.
This standard was first published in.2005.
Sterile insulin syringe for single use

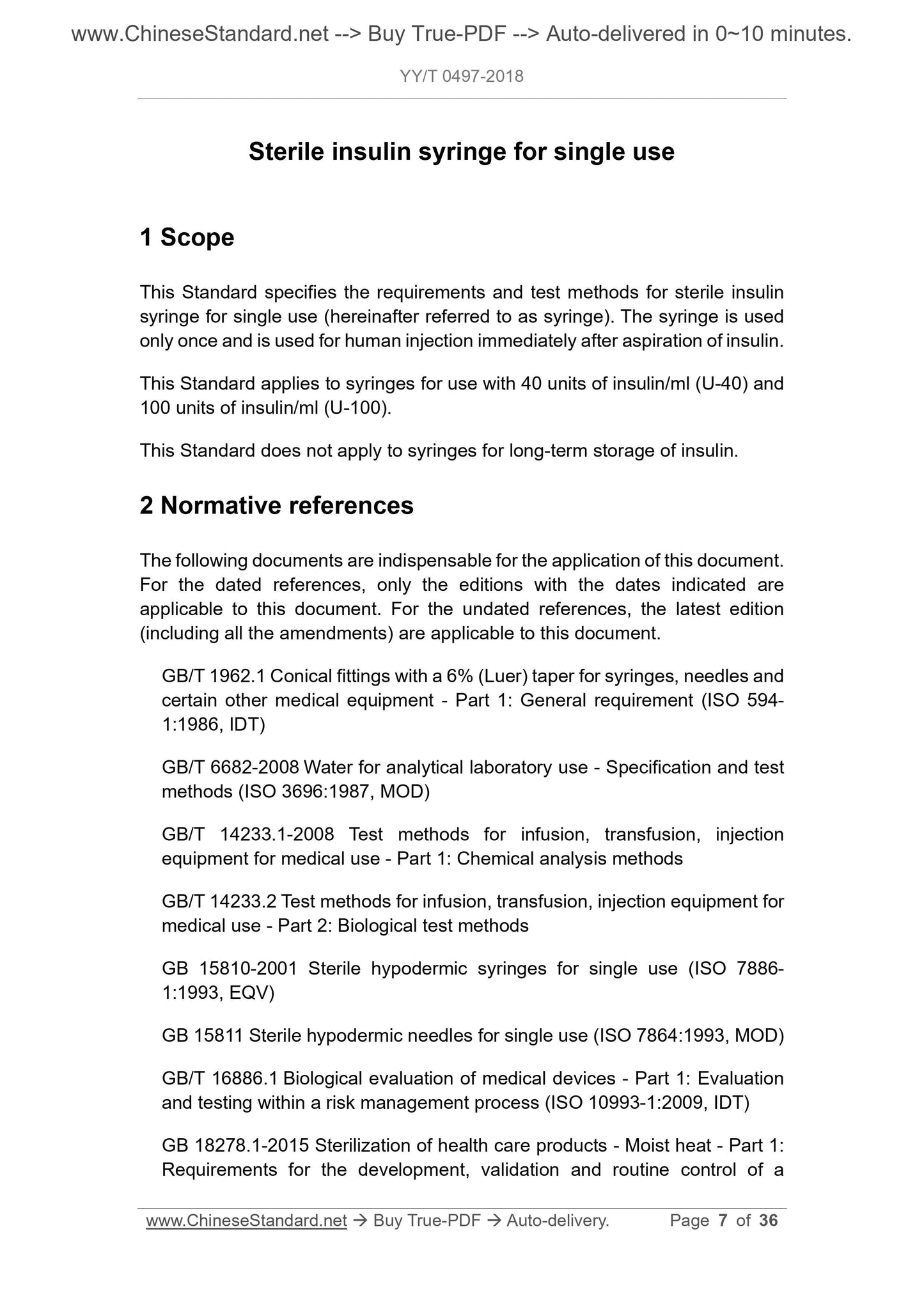

1 Scope
This standard specifies the requirements and test methods for single-use sterile insulin syringes (hereinafter referred to as syringes).
One-time use, for human injection immediately after inhaling insulin.
This standard applies to syringes that inject 40 units per milliliter (U-40) and 100 units per milliliter (U-100) of insulin.
This standard does not apply to syringes for long-term storage of insulin.
2 Normative references
The following documents are indispensable for the application of this document. For dated reference documents, only the dated version applies to this article
Pieces. For undated references, the latest version (including all amendments) applies to this document.
GB/T 1962.1 Syringes, injection needles and other medical devices 6% (Luer) tapered joints Part 1.General requirements
(ISO 594-1.1986, IDT)
GB/T 6682-2008 Analytical laboratory water specifications and test methods (ISO 3696.1987, MOD)
GB/T 14233.1-2008 Medical infusion, blood transfusion, and injection equipment inspection methods Part 1.Chemical analysis methods
GB/T 14233.2 Test methods for medical infusion, blood transfusion and injection equipment-Part 2.Biological test methods
GB 15810-2001 Sterile syringes for single use (ISO 7886-1.1993, EQV)
GB 15811 Sterile injection needles for single use (ISO 7864.1993, MOD)
GB/T 16886.1 Biological evaluation of medical devices. Part 1.Evaluation and testing in the risk management process (ISO 10993-1.
2009, IDT)
GB 18278.1-2015 Sterilization Moisture Heat of Medical and Healthcare Products Part 1.Development, Validation and Routine of the Sterilization Process of Medical Devices
Control requirements (ISO 17665-1.2006, IDT)
GB 18279.1-2015 Sterilization of medical and health care products ethylene oxide Part 1.Development, validation and verification of the sterilization process of medical devices
General control requirements (ISO 11135-1.2007, IDT)
GB 18280.1-2015 Medical and health care products sterilization radiation Part 1.Medical device sterilization process development, confirmation and routine
Control requirements (ISO 11137-1.2006, IDT)
GB/T 18457 Manufacturing of stainless steel needle tubes for medical devices (ISO 9626.1991.2001, MOD)
GB/T 19633.1 Terminally sterilized medical device packaging Part 1.Requirements for materials, sterile barrier systems and packaging systems
(ISO 11607-1.2006, IDT)
ISO 7000.2014 Graphical Signs for Equipment-Registered Symbols
ISO 81714-1.2010 Design of Graphic Symbols Technical Documents Used in Products---Part 1.Basic Rules
YY/T 0466.1 Medical devices are used for medical device labeling, marking and providing information symbols. Part 1.General requirements
(ISO 15233-1.2012, IDT)

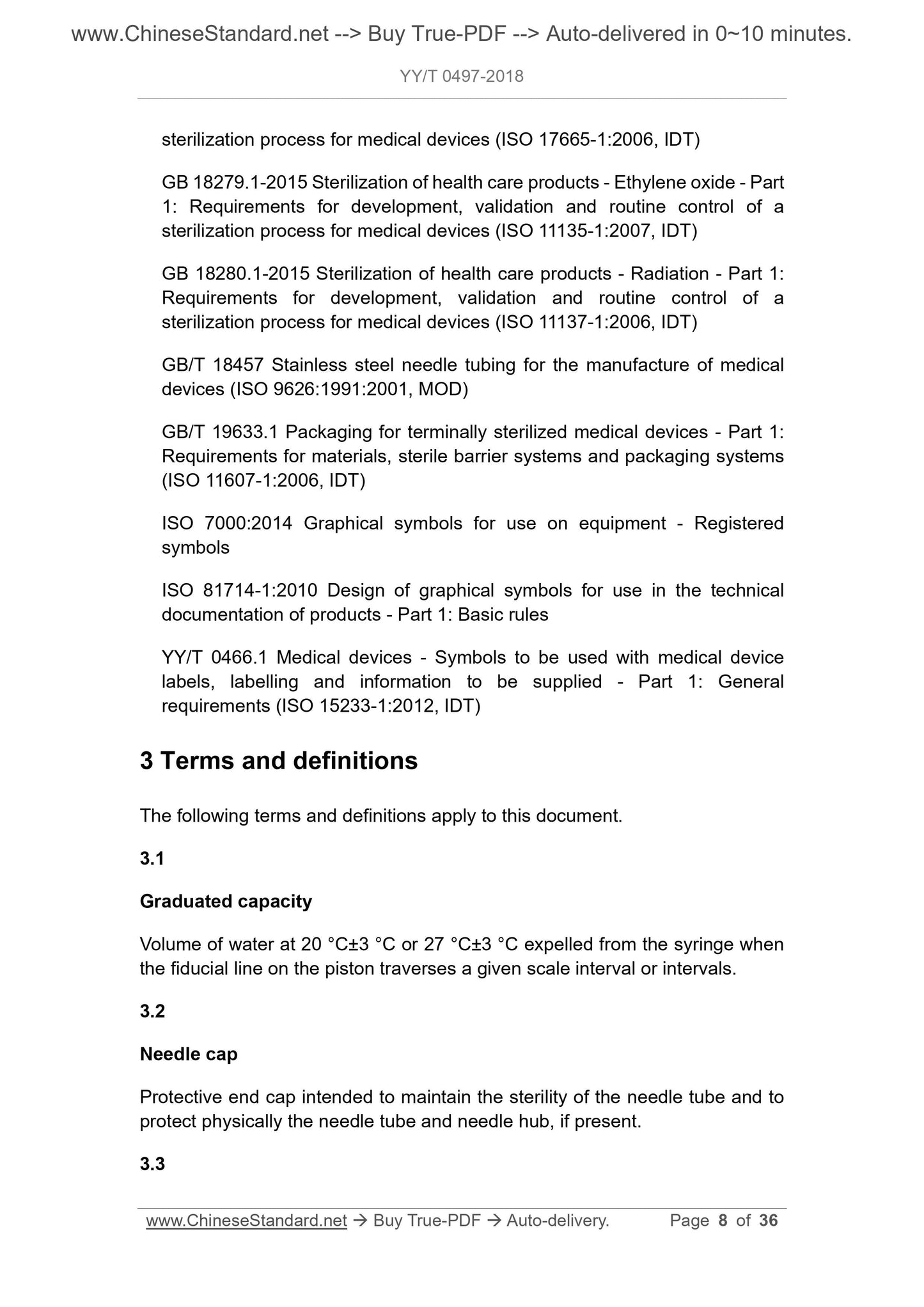

3 Terms and definitions
The following terms and definitions apply to this document.
3.1
Graduatedcapacity
The reference line of the piston moves one or several given volume intervals to determine the discharge from the syringe at 20℃±3℃ or 27℃±
The volume of water at 3°C.
3.2
Needlecap
